Victor Tools L246 User manual

Electric Patio Sweeper
L246 v01: 26/10/22
Please read and retain these instructions for future reference
Power Details: VOLTAGE: 230V-240V a.c./50HZ
NO LOAD SPEED: 1200/MIN
MAX. BRUSH DIAMETER: 100MM
Accessories: 1x Nylon brush
1x Steel brush
Use: This item requires two hands to use safely.
Please read this instruction manual thoroughly before starting and ensure you are familiar with
the operation of your new Electric Patio Sweeper
RECOMMENDED FOR PERSONS OVER 18 YEARS OF AGE.
ALWAYS USE HEAD, EYE AND EAR PROTECTION EQUIPMENT AND SAFETY SHOES AND HAND
GLOVES
Dimensions
(H) 125 x (W) 22 x (D) 18cm
WEIGHT (including cable) 1.9KG
5M LONG STRETCH CABLE
Material
PP/NYLON/ALUMINIUM/COPPER/STEEL/RUBBER/ IRON
Technical Data
Model No.
DT3001
Voltage / Frequency
230V-240V~ , 50Hz
Input Power
150W
No Load Speed
1,200/min
Max. brush diameter
100 mm
Net Weight
1.60kg
A-weighted sound pressure level
LPA
67.90dB(A)
A-weighted sound power level
LWA
82.44dB(A)
Uncertainty K
3dB(A)
- Guaranteed sound power
level
- (in accordance with
2000/14/EC)
96dB(A)
Vibration(in accordance with EN
28662-1)
Main handle:
0.4904m/s2
Uncertainty K
1,5 m/s2

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 2
Contents
Technical Data ......................................................................................................................................................1
Symbol Explanation ..............................................................................................................................................3
WARNING!............................................................................................................................................................3
Read the user instructions carefully to make sure you understand all the controls and what they do. .........3
Remove plug from the mains immediately if the cable is damaged or cut.......................................................3
Do not expose to rain. .........................................................................................................................................3
Do not leave the product outdoors while it is raining........................................................................................3
General Power Tool Safety Warnings...................................................................................................................4
SPECIFIC SAFETY RULES ........................................................................................................................................7
INTENDED USE......................................................................................................................................................7
Operating Controls ...............................................................................................................................................8
ASSEMBLING.........................................................................................................................................................8
OPERATION........................................................................................................................................................ 10
MAINTENANCE AND STORAGE.......................................................................................................................... 10
PLUG WIRING (UK & IRELAND)..............................................................................Error! Bookmark not defined.
DISPOSAL ........................................................................................................................................................... 11
UK & EU DECLARATION OF CONFORMITY......................................................................................................... 13
The declared vibration total value and the declared noise emission values have been measured in
accordance with a standard test method EN 62841-1 and may be used for comparing one tool
with another. The declared vibration total value may also be used in a preliminary assessment of
exposure.
Warning!
The vibration and noise emission during actual use of the power tool can differ from the declared
total value depending on the ways in which the tool is used, in particular, what kind of work
piece is machined.
It is necessary to identify safety measured to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts of the operating
cycle such as the times when the tool is switched off and when it is running idle in addition to the
trigger time)

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 3
Try to minimize the impact of vibration and noise. Exemplary measures to reduce vibration
exposure include wearing gloves while using the tool, limiting working time, and using
accessories in good condition.

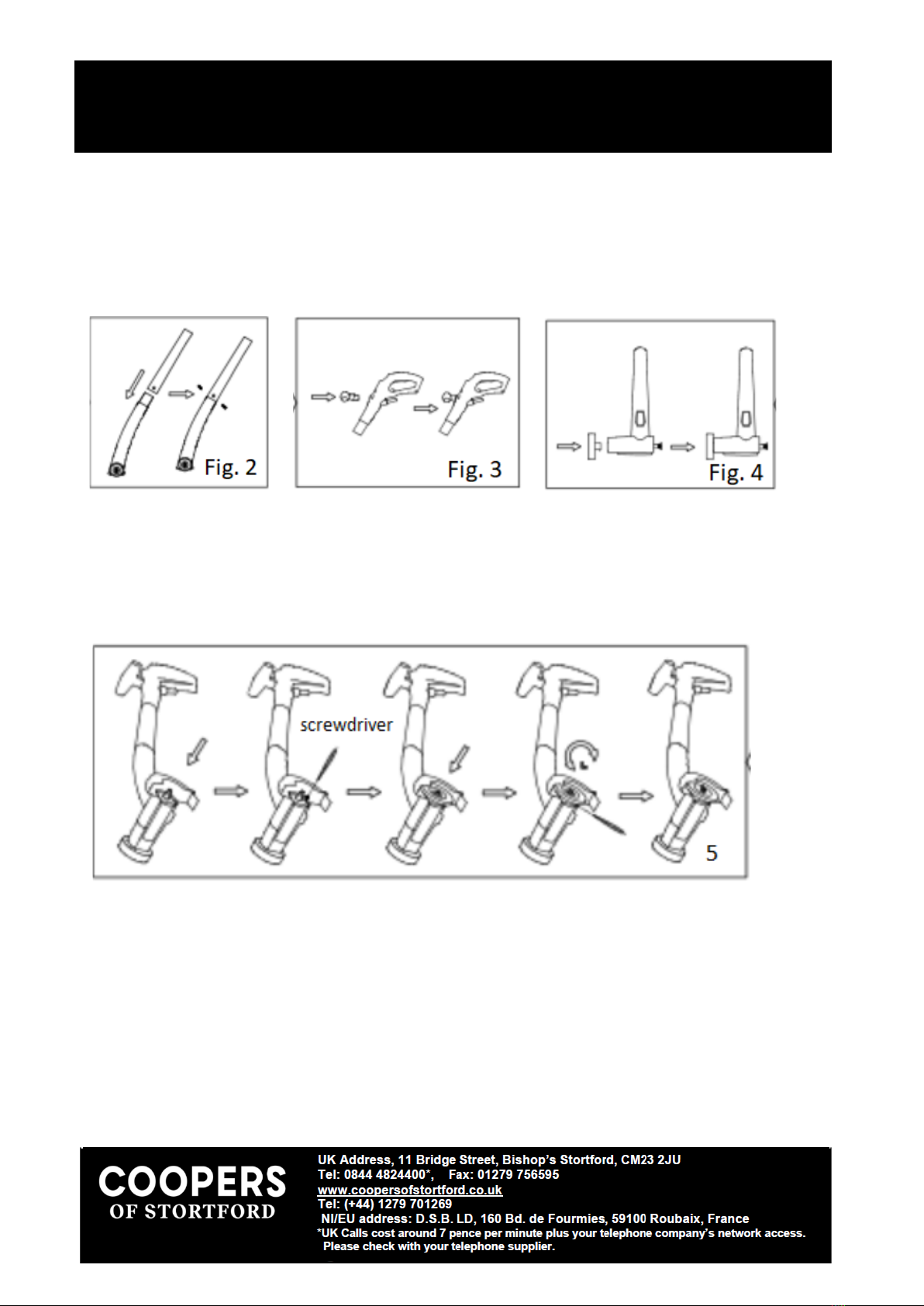

ASSEMBLY INSTRUCTIONS / INSTRUCTIONS FOR USE:
Unpack the components carefully. Please check all parts have been removed from the packaging.
Symbol Explanation
Warning! Please read these operating instructions carefully and observe
the notes given. Use these operating instructions to familiarise yourself
with the Electric Patio Sweeper, its proper use and the notes on safety.
For safety reasons, children under the age of 18 and people not familiar
with these operating instructions must not use this Electric Patio Sweeper.
Persons with reduced physical or mental abilities may use the Electric Patio
Sweeper only if they are supervised or instructed by a responsible person.
If not used properly this product can be dangerous.
The warnings and safety instructions must be followed to ensure reasonable safety
and efficiency in using this product.
Explanation of Warnings and Symbols on your product.
WARNING!
Read the user instructions carefully to make sure you
understand all the controls and what they do.
Remove plug from the mains immediately if the cable is
damaged or cut.
Do not expose to rain.
Do not leave the product outdoors while it is raining.

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 4
The use of eye protection is recommended.
Head protection must be worn.
Keep away from electric cables, whether overhead, on
the ground or along outdoor buildings.
General Power Tool Safety Warnings
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. Remove all
stones, leaves, twigs, branches, debris from the work area before using this tool.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not use / expose power tools in bad weather or wet conditions. especially when there is a risk
of lightning. This decreases the risk of being struck by lightning.
d) To reduce the risk of electrocution, never use the Patio Sweeper near any electrical power lines.
Contact with or use near power lines may cause serious injury or electric shock resulting
in death.

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 5
e) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
f) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
g) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and /or battery pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tools may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not use on or near ladders.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 6
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and /or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow anyone unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
•Keep all parts of the body away from any blades / cutter blades. Do not remove cut material or
hold material to be cut when blades are moving. Make sure the switch is off when clearing
jammed material. A moment of inattention while operating the Patio Sweeper may result in
serious personal injury.
•Carry the Electric Patio Sweeper by the handle with the cutter blade stopped. When
transporting or storing the Electric Patio Sweeper always fit the cutting device cover. Proper
handling of the Patio Sweeper will reduce possible personal injury from the cutter blades.
•Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact
hidden wiring or its own cord. Cutter blades contacting a “live” wire may make exposed metal
parts of the power tool “live” and could give the operator an electric shock.
•Keep cable away from the cutting area. During operation the cable may be hidden in shrubs and
can be accidentally cut by the blade.

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 7
SPECIFIC SAFETY RULES
Reduce noise generation and vibration as much as possible!
Use only equipment that is in good condition. Maintain and clean the equipment regularly. Adapt
your way of working to the equipment. Do not overload the equipment. Have the equipment
checked if necessary. Switch off the equipment when not in use. Wear gloves.
Even if you use this electric power tool in accordance with the instructions, certain residual risks
cannot be eliminated. The following hazards may arise in connection with the equipment’s
construction and layout:
1. Lung damage if no suitable protective dust mask is applied.
2. Damage to hearing if no suitable ear protection is applied.
3. Health damage caused by hand-arm vibrations if the equipment is used over a longer period or
is not properly guided and maintained.
Before starting the equipment
Before you connect the equipment to the power supply make sure that the data on the rating plate
is identical to the supply voltage. Always pull out the power plug before making adjustments to the
equipment.
Cables
Use only permitted extension cables in accordance with EN 50565 Parts 1 & 2. Ask your electrical
specialist.
INTENDED USE
The equipment is designed to remove weeds from between paving stones and slabs. It is not
intended for use on sensitive surfaces like tiles. The equipment is to be used only for its prescribed
purpose. Any other use is deemed to be a case of misuse. The user/operator and not the
manufacturer will be liable for any damage or injuries of any kind caused as a result of this. Please
note that our equipment has not been designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial
businesses or for equivalent purposes

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 8
Operating Controls
ASSEMBLING
•Assemble main handle and middle tube (see Figure 1)
•Insert two parts together, fix two parts by the screw.
1. Auxiliary handle
2. Main handle
3. Switch trigger
4. Cable strain-relief clamp
5. Motor body
6. Guard hood
7. Brush
8. Guide wheel
Packing List
1x Weed Sweeper body
1x Auxiliary handle
1x Guard hood
6x Screws ST4 x 14
1x Guide wheel (set)
1x Wire brush
1x Plastic brush

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 9
•Assemble motor housing and middle tube (see Figure 2)
•Insert two parts together, fix two parts by the screw.
•Assemble auxiliary handle (see Figure 3)
•Assemble the guide wheel (see Figure 4)
•Take guide wheel to push it into the side hole of housing.
•Assemble the guard hood and brush(see Figure 5)
Put the guard hood on main housing, Use 2pcs ST4 x 14 screw to secure guard hood.
There are 2 different brushes available.
Take one brush and put it inside the shaft, using the butterfly nut to screw the brush.

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 10
OPERATION
The tool can be plugged into any socket-outlet (with 230 V
AC) that is equipped with a 10A fuse or higher. The socket-
outlet has to be safeguarded by an earth leakage circuit
breaker (ELCB). The operating current must not exceed
30mA. Insert the tool plug into the power cord coupling
(extension). Secure the power cable with the strain-relief clip
found on the equipment. To switch on the equipment hold
the safety Lock-off and press and hold the ON/OFF switch. To

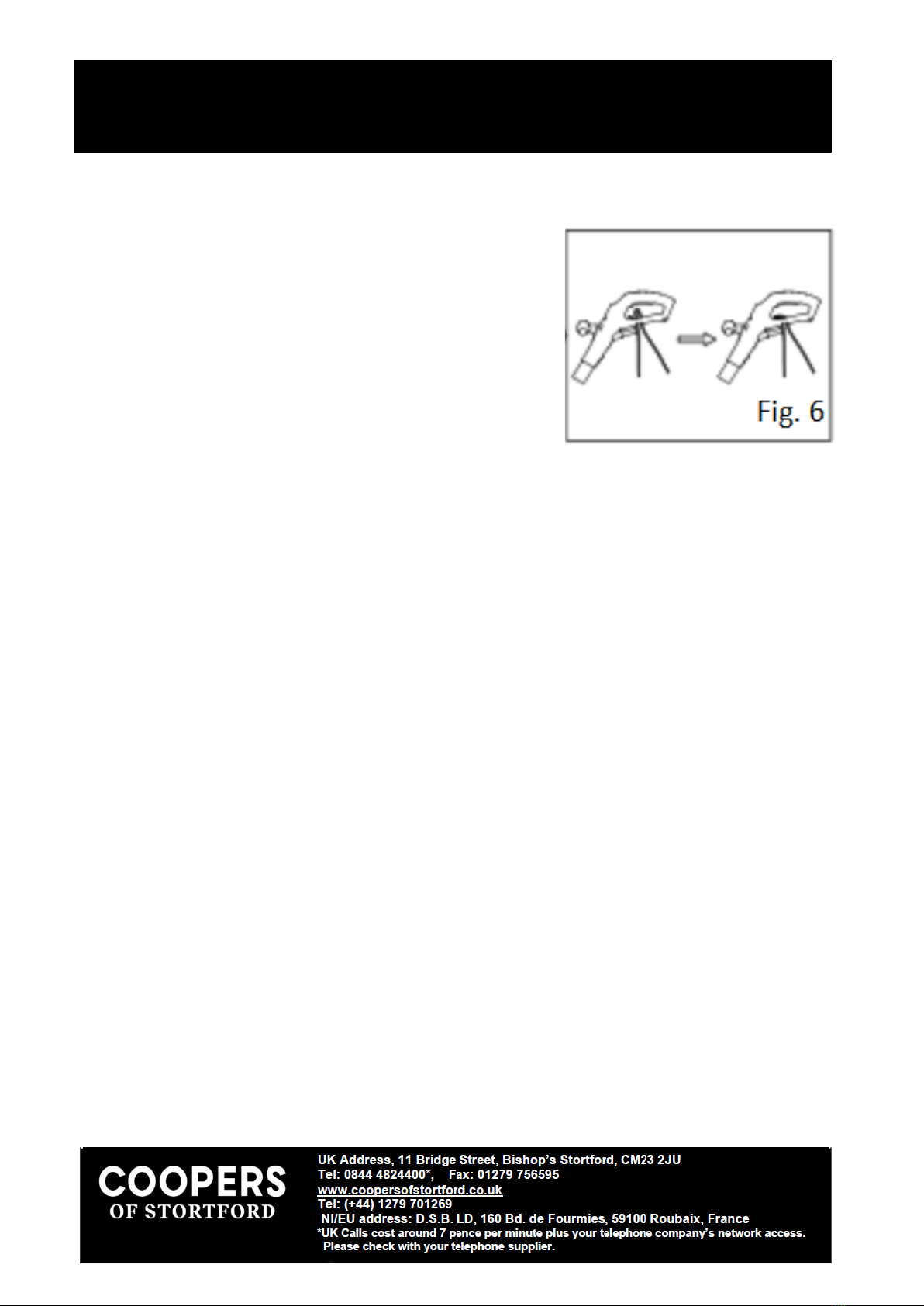

switch off, release the ON/OFF switch. (Fig. 6)
One wire brush and one plastic brush are supplied with the equipment. The wire brush is suited for
use on robust surfaces and obstinate weeds. We recommend using the plastic brush for light
vegetation and surfaces too sensitive the for the steel brush.
Important
Always carry out a short trial run to check out possible effects on the surfaces of the paving
stones or slabs before starting with your work. Never use the equipment on very sensitive
surfaces, for example tiles.
Important
Only use brushes which are in good condition. Replace excessively worn or damaged brushes
immediately.
Always use both hands to operate the equipment.
Guide the equipment along the joints at a walking pace.
For uniform results, carry out your work at a constant speed.
If necessary, guide the equipment along the same joint several times.
MAINTENANCE AND STORAGE
Replacing the power cable
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its
after sales service or a similarly trained person to remain safe to use.
Cleaning, maintenance and ordering of spare parts
Always pull out the power plug before starting any cleaning work.
Cleaning
Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure. We

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 11
recommend that you clean the equipment immediately after you use it. Clean the equipment
regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may
be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of
the equipment. Clean the guard hood with a brush upon evidence of dirt and grime.
Carbon brushes
In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.
Important
The carbon brushes should not be replaced by anyone but a qualified electrician.
Servicing
There are no parts inside the equipment which require additional maintenance.
Storage
Store the equipment and accessories out of children’s reach in a dark and dry place at above
freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool
in its original packaging.
PLUG WIRING (UK & IRELAND)
This appliance is fitted with a moulded BS 1363 13-amp plug. This is fitted with a 7amp fuse.
If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 should be used.
If there is a fuse cover fitted, this cover must be re-fitted after changing the fuse. If the fuse cover is lost or
damaged the plug must not be used. Spare fuse holders and fuses are available from electrical outlets. If the
socket outlets in your home or office are not suitable for this product’s plug, the plug must be removed and
disposed of safely. Attempts to insert the plug into the wrong socket is likely to cause electric hazard.
DISPOSAL
•Coopers of Stortford use recyclable or recycled packaging where possible.
•Please dispose of all packaging, paper, cartons, packaging in accordance with
your local recycling regulations.
•At the end of the product’s lifespan please check with your local council
authorised household waste recycling centre for disposal.
•Plastics, polybags –this is made from the following recyclable plastic.
Code & Symbol
Type of Plastic
Polypropylene
Commonly used
for
Microwaveable food containers, yoghurt pots, butter tubs, disposable
pltes and cups

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 12
Notes
Commonly recycled and collected from household recycling bins
(packaging tape itself not recyclable but does not interfere with
cardboard)

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 13
UK & EU DECLARATION OF CONFORMITY
We, Coopers of Stortford hereby declare under our sole responsibility, that the product named
below has been designed to comply with all relevant sections of the below referenced standards
and directives: -
Description & item Number: Electric Patio Sweeper
Model No: L246 (DT3001)
Conforms to the following UK Regulations and EU Directives: -
•Supply of Machinery (Safety) Regulations 2008 and Machinery Directive 2006/42/EC.
•The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001 &
amendments and Noise Directive 2000/14/EC & 2005/88/EC.
•The Electrical Equipment (Safety) Regulations 2016 & Low Voltage Directive 2014/35/EU.
•Electromagnetic Compatibility Regulations 2016 & EMC Directive 2014/30/EU.
•Restriction of Hazardous Substances (RoHS) Regulations & RoHS Directive 2011/65/EU &
2015/863/EU.
The conformity assessment procedure followed was in accordance with the following Standards:-
Machinery Directive & LVD Directive Standards:
EN 62841-1:2015，EN ISO 12100:2010,AfPS GS 2019:01 PAK
EMC Standards:
EN 55014-1: 2017, EN 55014-2: 2015,EN IEC 55014-1: 2021, EN IEC 55014-2: 2021,
EN IEC 61000-3-2: 2019, EN IEC 61000-3-2: 2019/A1:2021,EN 61000-3-3: 2013,
EN 61000-3-3: 2013/A1:2019
RoHS Standards:
2011/65/EU and (EU) 2015/863)
Measured Sound Pressure Level: LPA = _67.90_dB(A)
Measured Sound Power Level: LWA = _ 82.44dB(A)
Vibration Level: _0.6818 ____ m/s²

Electric Patio Sweeper L246 Instructions for Use
Please read and retain these instructions for future reference v001: 26/10/22
Page no. 14
The Test reports for this item are available from:
Coopers of Stortford, 11 Bridge Street, Bishop’s Stortford,
Hertfordshire, CM23 2JU
Bill Stewart –Technical Manager
CUSTOMER SERVICES:
•Customers in GB (England, Scotland and Wales), please contact our customer services -
UK Head Office, 11 Bridge Street, Bishop’s Stortford, CM23 2JU, Tel: [phone]
•Customers in Northern Ireland and Europe, please contact our customer services -
D.S.B. LD, 160 Bd. de Fourmies, 59100 Roubaix, France, Tel: [phone]
