Ryobi RBL1802Li4 User manual

RBL1802Li4
CBL1802
ORIGINAL INSTRUCTIONS
18V ONE+ Cordless
Blower

Important!
It is essential that you read the instructions in this manual before operating
this machine.
Subject to technical modifications.

1
2
1
3
Fig. 2
5
4
Fig. 3
Fig. 1
21
3

2
Fig. 4 Fig. 5

Safety
1
RULES FOR SAFE OPERATION
Your blower has been engineered and manufactured to
Ryobi’s high standard for dependability, ease of operation,
and operator safety. When properly cared for, it will give
you years of trouble-free performance.
Thank you for buying a Ryobi product.
WARNING
When using battery operated tools basic safety
precautions should always be followed to reduce
the risk of fire, leaking batteries and personal injury,
including the following.
Read all these instructions before operating this product
and keep for future reference.
■Do not allow children or untrained individuals to use this
unit.
■Wear heavy long trousers, non-slip safety footwear and
gloves.
■Never operate unit while bare foot or wearing open
shoes.
■Do not wear loose clothing, or jewelry that might get
entangled in this unit.
■Do not touch the fan when operating this unit.
■Keep all bystanders, children, and pets at least 15m
(50 feet) away. Remember that the operator or user is
responsible for accidents occurring to bystanders, their
property, as well as themselves.
■Check for damaged parts. Before further use of the
appliance, any part that is damaged should be carefully
checked to determine that it will operate properly and
perform its intended function.
■Check for breakage of parts and any other conditions
that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by
an authorized service center. Following this rule will
reduce the risk of shock, fire,or serious injury.
■Do not force the product. Use the correct tool for your
application. The correct tool will do the job better and
safer at the rate for which it is designed.
■Do not over-reach. Keep proper footing and balance
at all times. Proper footing and balance enables better
control of the product in unexpected situations.
■Secure long hair so it can not become entangled in
moving parts or air intake.
■Do not operate this unit when you are tired, ill, or under
the influence of alcohol, drugs, or medication.
■Do not operate in poor lighting.
■Never let anyone use your unit who has not received
adequate instructions in the unit’s proper use.
■Keep the handles dry and clean.
■Consider work area environment. Do not expose power
tools to rain. Do not use power tools in damp or wet
locations. Keep work area lit. Do not use power tools
where there is risk to cause fire or explosion.
■Store battery or idle tools. When not in use, tools and
batteries should be stored separately in dry, high or
locked up areas out of reach of children. Ensure that
battery terminals cannot be shorted by other metal
parts such as screws, nails, etc.
■Disconnect the tool from its battery pack when not in
use, disconnecting the blower tube before service.
■Avoid unintentional starting. Do not carry the tool with a
finger on the switch.
■Stay alert. Watch what you are doing. Use common
sense. Do not operate tool when you are tired.
■Have your tool repaired by a qualified person. This tool
is in accordance with the relevant safety requirements.
Repairs should only be carried out by qualified persons
using original spare parts, otherwise this may result in
considerable danger to the user.
WARNING
Use only the manufacturer’s replacement parts. Failure
to do so may cause poor performance, possible injury
and may void your warranty.
BATTERY TOOL USE AND CARE
■Ensure the switch is in the off position before inserting
battery pack. Inserting the battery pack into power tools
that have the switch on invites accidents.
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
■Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
■When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
■Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
SAVE THESE INSTRUCTIONS. REFER TO THEM
FREQUENTLY AND USE THEM TO INSTRUCT OTHERS
WHO MAY USE THIS UNIT. IF YOU LOAN SOMEONE
THIS UNIT, LOAN THEM THESE INSTRUCTIONS ALSO.

Safety
2
ADDITIONAL SAFETY RULES
WARNING
The product is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the product by a person responsible
for their safety.
Children should be supervised to ensure that they do not
play with the product.
INTENDED USE
You may use this tool for the purposes listed below:
■Clearing hard surfaces such as driveways and
walkways.
■Keeping decks and driveways free from leaves and
pine needles.
WARNING
Not intended for use other than what's listed above.
DESCRIPTION

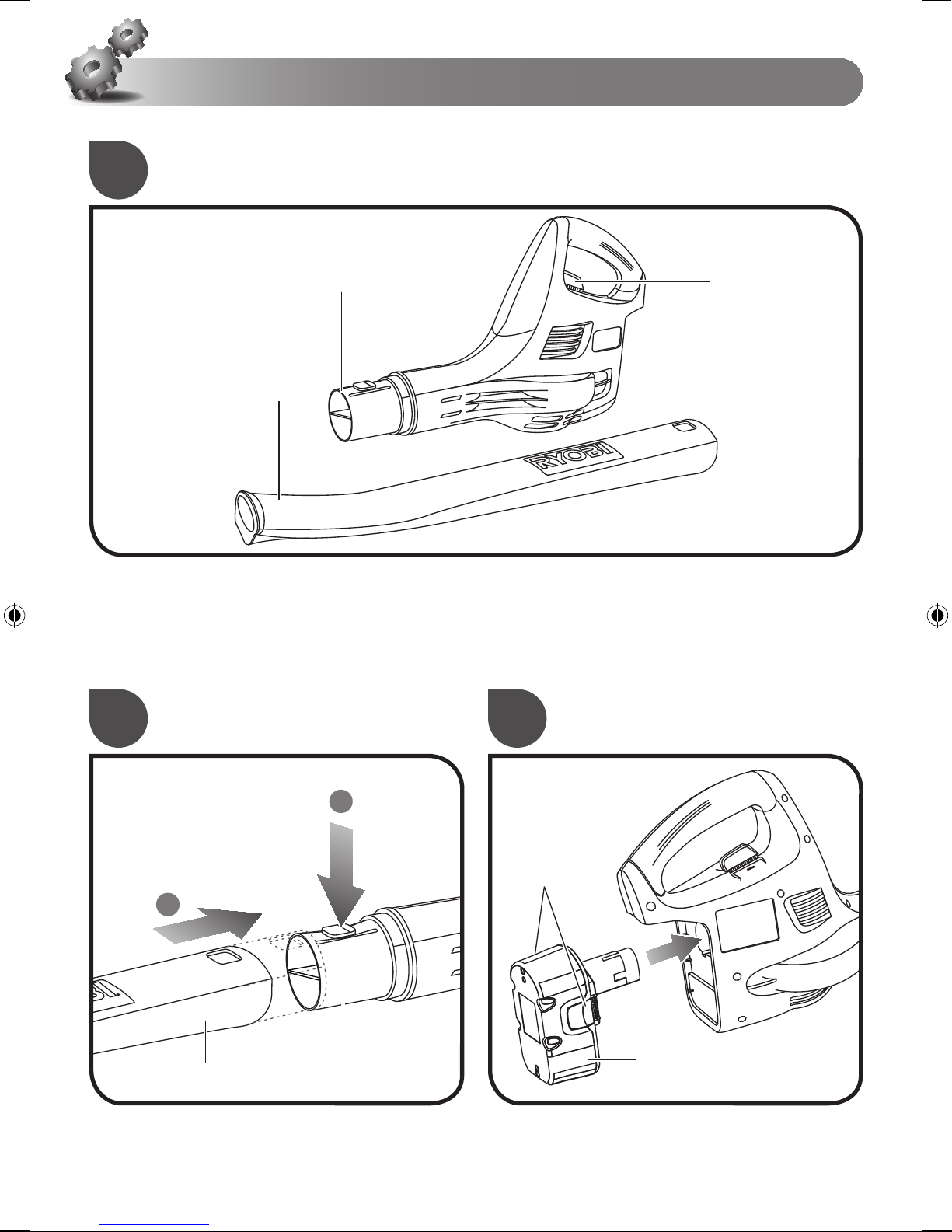

REFER TO FIGURE SHEET
1. Blower housing outlet
2. Power switch
3. Blower tube
4. Latches.
5. Battery pack
KNOW YOUR BLOWER
See Figure 1.
The safe use of this product requires an understanding of
the information on the blower and in this operator’s manual
as well as a knowledge of the project you are attempting.
Before use of this product, familiarize yourself with all
operating features and safety rules.
BLOWER TUBE
The blower tube can be installed on the blower without
using any tools.
ASSEMBLY
WARNING
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from the
blower when assembling parts.
ASSEMBLING THE BLOWER TUBE
See Figure 2.
■With the logo area facing up, slide the blower tube over
the outlet on the blower housing.
■Press down on the tab on the blower housing outlet.
■Push tab on outlet on the blower housing down until it
locks into place through the opening in the blower tube.
OPERATION
WARNING
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
sufficient to inflict serious injury.
TO INSTALL BATTERY PACK
See Figure 3.
■Place the power switch in the OFF ( O ) position.
■Place the battery pack in the blower. Align raised rib on
battery pack with groove in the blower’s battery port.
■Make sure the latches on each side of the battery pack
snap in place and that battery pack is secured in the
blower before beginning operation.
CAUTION
When placing battery pack in the blower, be sure raised
rib on battery pack aligns with the back of the blower and
latches into place properly. Improper installation of the
battery pack can cause damage to internal components.
TO REMOVE BATTERY PACK
See Figure 3.
■Place the power switch in the OFF ( O ) position.
■Locate latches on side of battery pack and depress both
sides to release battery pack.
■Remove battery pack from the blower.
STARTING /STOPPING THE BLOWER
See Figures 4.
■To start the blower, place the power switch in the ON
( l ) position.
■To stop the blower, place the power switch in the OFF
( O ) position.
WARNING
Battery tools are always in operating condition.
Therefore, switch should always be in the OFF position
when not in use or carrying at your side.

Safety
3
OPERATING THE BLOWER
See Figure 5.
■To keep from scattering debris, blow around the outer
edges of a debris pile. Never blow directly into the
center of a pile.
■To reduce sound levels, limit the number of pieces of
equipment used at any one time.
■Use rakes and brooms to loosen debris before blowing.
In dusty conditions, slightly dampen surfaces when
water is available.
■Conserve water by using power blowers instead of
hoses for many lawn and garden applications, including
areas such as gutters, screens, patios, grills, porches,
and gardens.
■Watch out for children, pets, open windows, or freshly
washed cars, and blow debris safely away.
■After using blowers or other equipment, CLEAN UP!
Dispose of debris properly.
WARNING
When servicing use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
Do not at any time let brake fluids, gasoline, petroleum
based products, penetrating oils, etc. come in contact
with plastic parts. They contain chemicals that can
damage, weaken or destroy plastic.
WARNING
Do not attempt to modify this tool or create accessories
not recommended for use with this tool. Any such
alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
WARNING
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
STORING THE BLOWER
Clean the blower thoroughly before storing. Store the
blower in a dry, well-ventilated place that is inaccessible to
children. Keep away from corrosive agents such as garden
chemicals and de-icing salts.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories
and packaging should be sorted for
environmental-friendly recycling.

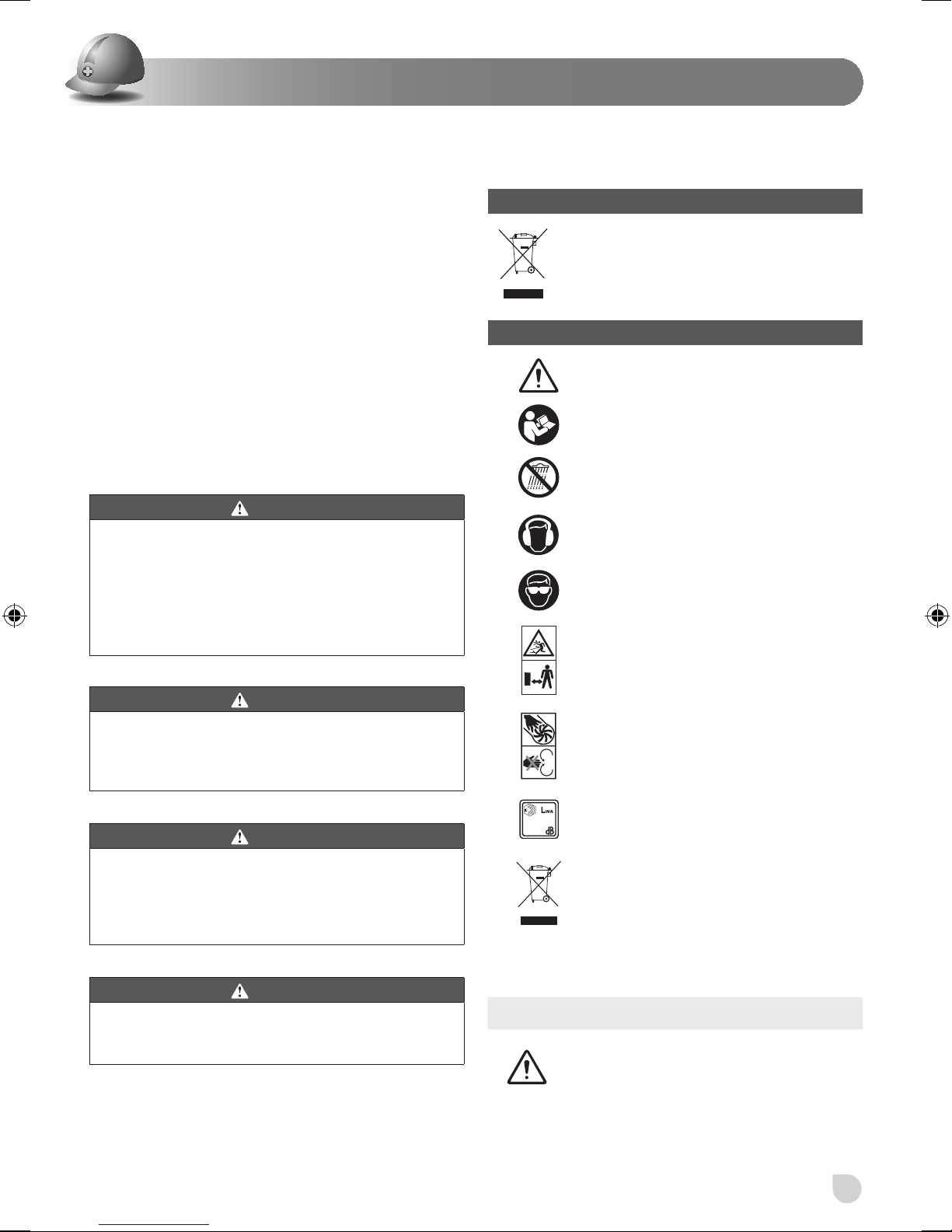

SYMBOL
Safety alert
Please read the instructions carefully
before starting the machine.
Do not expose to rain or damp
conditions.
Wear ear protection.
Wear eye protection.
Beware of thrown or ying objects. Keep
all bystanders at least 15 m away.
Rotating Fans. Keep hands and feet
out of the openings while the machine
is running.
96 Guaranteed sound power level.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or
retailer for recycling advice.
The following signal words and meanings are intended
to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER:
Indicates an imminently
hazardous situation, which,
if not avoided, will result in
death or serious injury.

Safety
4
20130227v1
WARNING:
Indicates a potentially
hazardous situation, which,
if not avoided, could result in
death or serious injury.
CAUTION:
Indicates a potentially
hazardous situation, which,
if not avoided, may result in
minor or moderate injury.
CAUTION:
(Without Safety Alert Symbol)
Indicates a situation that may
result in property damage.

PRODUCT SPECIFICATIONS
Model RBL1802Li4 CBL1802
Motor 18V
Air Velocity 190 km/h
Measured sound pressure
level
LpA: 83 dB(A), KpA: 2 dB(A)
Measured sound power
level
LWA: 93.7 dB(A), KWA: 2 dB(A)
Vibration ah: 1.57 m/s2, K: 1.5 m/s2
Weight with Battery Pack 2.2 kg
Battery Pack 1 x RB18L40 Not included
Compatible Battery Packs ABP1801 / ABP1802 / BPL-1815 /
BPL-1820 / BPL-1820G / RB18L13 /
RB18L15 / RB18L26 / RB18L40
Charger 1 x BCL14181H Not included
Compatible Chargers BCL-1800 / BCL1418 / BCL14181H
/ BCL14183H
(for all compatible battery packs)
ACR-1800
(only for ABP1801 / ABP1802)
20130227v1

Techtronic Industries (Australia) Pty. Ltd.
Level 1, 660 Doncaster Road
Doncaster, VIC 3108, Australia
Techtronic Industries New Zealand Ltd.
27 Clemow Drive
Mt. Wellington, Auckland 1060, New Zealand
960732014-01
