Victory Cross Roads Classic User manual

SPECIFICATIONS / GAUGE / AUDIO
1.1
CHAPTER 1
SPECIFICATIONS / GAUGE / AUDIO 1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3
TRADEMARKS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.3
SERVICE RULES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.3
SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4
GENERAL SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5
2012-2013 CROSS ROADS CLASSIC™ / HARD-BALL™ . . . . . . . . . . . . . . . . . . . . . . .1.5
2012-2013 CROSS COUNTRY®/ CROSS COUNTRY TOUR®/ NESS. . . . . . . . . . . . .1.7
VEHICLE LOADING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9
GROSS VEHICLE WEIGHT RATING (GVWR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.9
VEHICLE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.10
MODEL NUMBER DESIGNATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.10
VEHICLE IDENTIFICATION NUMBER (VIN) DESIGNATION. . . . . . . . . . . . . . . . . . . . 1.10
VIN NUMBER / MANUFACTURER LABEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.10
VECI / NECI / TIRE INFORMATION LABELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.11
ENGINE NUMBER LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.11
KEY IDENTIFICATION NUMBER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.11
SADDLEBAG WARNING LABEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.11
REAR SHOCK AIR PRESSURE LABEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.11
PUBLICATIONS & TECHNICAL LITERATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.12
REFINISHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.12
PAINT COLORS BY MODEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.12
PAINT COLOR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.13
BREAK IN PERIOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.14
EMISSIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.15
SPECIAL SERVICE TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.16
TRANSPORTING, ELEVATING, AND SECURING THE MOTORCYCLE . . . . . . . . . . . 1.19
KEY SWITCH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.20
CROSS ROADS SPEEDOMETER / INSTRUMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . 1.21
SPEEDOMETER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.21
MULTI-FUNCTION DISPLAY - CROSS ROADS (MFD) . . . . . . . . . . . . . . . . . . . . . . . . 1.21
SPEEDOMETER GEAR POSITION INDICATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.21
CROSS ROADS INSTRUMENT CLUSTER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.22
CROSS COUNTRY INSTRUMENT CLUSTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.23
MULTI FUNCTION DISPLAY - CROSS COUNTRY (MFD) . . . . . . . . . . . . . . . . . . . . . .1.24
ENGINE ERROR CODES (CROSS COUNTRY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.24
CLOCK (CROSS COUNTRY). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.25
TRIP INFORMATION (CROSS COUNTRY). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.25
GEAR POSITION (CROSS COUNTRY). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.25
TRIP ODOMETER (CROSS COUNTRY). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.25
TEMPERATURE (CROSS COUNTRY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.26
ODOMETER (CROSS COUNTRY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.26
CHANGING INFORMATION DISPLAY UNITS (CROSS COUNTRY) . . . . . . . . . . . . . . 1.26
CONSOLE SWITCHES (CROSS COUNTRY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.26
HAND GRIP HEATER SWITCH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.26
SEAT HEATER SWITCH (CROSS COUNTRY TOUR) . . . . . . . . . . . . . . . . . . . . . . . . .1.26
LEFT HANDLEBAR SWITCHES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.27
MODE BUTTON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.27
HAZARD SWITCH (EMERGENCY FLASHERS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.27
HEADLAMP HIGH / LOW BEAM SWITCH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.27
TURN SIGNAL SWITCH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.27
TURN SIGNAL MOMENTARY FEATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.28
STARTER INTERLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28

1.2
SPECIFICATIONS / GAUGE / AUDIO
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
RIGHT HANDLEBAR CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28
ENGINE STOP SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28
ENGINE STARTER BUTTON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28
FRONT BRAKE LEVER REACH ADJUSTMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28
AUDIO / COM / CRUISE CONTROL BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.29
AUXILIARY DRIVING LIGHT SWITCH (CROSS ROADS CLASSIC) . . . . . . . . . . . . . . 1.29
RADIO / AUDIO SYSTEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.29
CB RADIO / ICOM SYSTEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.38
AUX / IPOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.42
XM RADIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.44
NAV MP3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.46
REFERENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.49
SAE TAP DRILL SIZES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.49
METRIC TAP DRILL SIZES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.49
DECIMAL EQUIVALENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.49
FAHRENHEIT TO CELSIUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.50
MEASUREMENT CONVERSION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.50

1.3
SPECIFICATIONS / GAUGE / AUDIO
1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
GENERAL INFORMATION
Trademarks
The following are REGISTERED trademarks of Polaris Industries Inc.:
VICTORY MOTORCYCLES, VICTORY, VICTORY PERFORMANCE, VICTORY VISION, NESS SIGNATURE SERIES
VICTORY VISION, FREEDOM, POLARIS; VEGAS; VEGAS JACKPOT; HAMMER; KINGPIN; NESS SIGNATURE
SERIES VEGAS JACKPOT.
Polaris acknowledges the following products mentioned in this manual:
LOCTITE, is a registered trademark of the Henkel Corporation
DUNLOP, is a registered trademark of the Dunlop Tire Corporation.
STA-BIL, is a registered trademark of Gold Eagle
NYOGEL, trademark of Gold Eagle
FLUKE, registered trademark of the Fluke Corporation
XM, a registered trademark of XMSatellite Radio, Inc.
Garmin is a registered trademark of Garmin, Ltd.
Service Rules
In order to perform service work efficiently and prevent costly errors, technicians should read the text in this manualand
familiarize themselves with the procedures before beginning. Notes, Cautions and Warnings have been included for
clarification of text and safety concerns. Knowledge of mechanical theory, tool use and shop procedures are necessary
to perform some procedures in this manual safely and correctly.
Use only genuine Victory service parts, including fasteners that require replacement if removed. Do NOT substitute
fasteners or hardware.
Cleanlinessofpartsandtoolsaswellastheworkareaisofprimaryimportance.Dirtandforeignmatterwillcausedamage
to precision parts. Clean the motorcycle before beginning service. Clean all parts before installing.
If difficulty is encountered in removing or installing a component, look to see if a cause for the difficulty can be found. If
it is necessary to tap the part into place, use a soft face hammer and tap lightly.
Always follow torque specifications as outlined throughout this manual. Incorrect torquing may lead to serious machine
damage or in the case of steering, driveline, and chassis components, can result in loss of control during operation of
the motorcycle, which may result in severe personal injury or death.
If a torquing sequence is indicated for nuts, bolts or screws of a certain component, start all fasteners and hand tighten.
Following the method and sequence indicated, tighten evenly to the specified torque value. When removing nuts, bolts
or screws from a component with several fasteners, loosen them all about 1/4 turn before removing them to prevent
distortion of that component.
Replacealloilseals, sealingwashers,gaskets,andO-ringswithnewonesduringassembly.Be surethematingsurfaces
for the gasket are clean and smooth to avoid leaks and maintain specified tolerances.
Some procedures require removal of retaining rings or clips. Removal can weaken and deform these parts, therefore,
they should always be replaced with new parts. When installing new retaining rings and clips, use care not to expand
or compress them beyond what is required for installation.
Victory lubricants and greases have been specially formulated to provide maximum performance and protection when
applied properly. In some applications, warranty coverage may be void if improper lubricants are used.
Parts requiring grease should be cleaned thoroughly and fresh grease applied before reassembly. Deteriorating grease
loses lubricity and may contain abrasive foreign matter. Always replace locking hardware such as lock nuts or lock
washers, fasteners that have pre-applied locking agent, or any other fasteners as noted in this service manual with
genuineVictoryhardwarefromanauthorizedVictorydealer.Workingwithbatteriescanbehazardous.Reviewallbattery
warnings and cautions.

1.4
SPECIFICATIONS / GAUGE / AUDIO
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
SAFETY INFORMATION
Understanding Safety Labels & Instructions
READ AND BECOME FAMILIAR WITH ALL WARNING AND CAUTION SYMBOLS AND STATEMENTS LISTED
BELOW AND IN THE TEXT OF THIS MANUAL BEFORE YOU BEGIN WORK.
NOTICE:
.
NOTICE
.
This is the safety alert symbol. When you see this symbol
on the vehicle or in this manual, be alert to the potential for
personal injury. Your safety is involved!
Indicates a hazardous situation, which, if not avoided, could
result in death or serious injury.
Indicatesahazardoussituation,which,ifnotavoided,couldresult
in minor or moderate injury.
Indicatesahazardoussituation,which,ifnotavoided,couldresult
in damage to the motorcycle.
The engine exhaust from this product
containschemicalsknowntocausecancer,
birth defects or other reproductive harm.
Never run the engine in an enclosed area
without a properly functioning exhaust
gas evacuation system connected to the
product.
Wear insulated protection for hands and
arms or wait until hot components have
cooled sufficiently before working on the
product.
Careshouldbetakentobesurethemotorcycle
will not tip or fall while elevated. Severe
personal injury or death could occur if the
motorcycle tips or falls.
Improper repairs or service can create
unsafe conditions that may cause severe
personal injury or death.
Modifications to this motorcycle not
approved by Victory may cause loss of
performance, excessive emissions, and
make the machine unsafe for use.
Brake fluid is poisonous. Do not ingest or
allow brake fluid to contact eyes. Always
wear eye protection when working with
brake fluid.
The engine and exhaust components on
this product become very hot during
operationand remain sofor aperiod oftime
after the engine is stopped.
Brake fluid is poisonous.
KEEP OUT OF REACH OF CHILDREN.
Battery electrolyte is poisonous. It
contains sulfuric acid. Serious burns can
result from contact with skin, eyes or
Brake fluid will damage plastic, painted and rubber parts.
Protect these surfaces whenever the brake system is being
Gasoline is extremely flammable and explosive under certain
conditions.
• Always stop the engine and refuel outdoors or in a
well ventilated area
• Do not smoke or allow open flames or sparks in or
near the area where refueling is performed or where
gasoline is stored
• Do not overfill the tank. Do not fill the tank neck above
the fuel tank insert. Leave air space to allow for fuel
expansion
• If you get gasoline in your eyes or if you swallow
gasoline, see your doctor immediately. Never try to
syphon gasoline using mouth suction
• If you spill gasoline on your skin or clothing,
immediately was it off with soap and water and
change clothing
• Never start the engine or let it run in an enclosed
area. Engine exhaust fumes are poisonous and can
cause loss of consciousness or death in a short time

1.5
SPECIFICATIONS / GAUGE / AUDIO
1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
GENERAL SPECIFICATIONS
2012-2013 Cross Roads Classic™ / Hard-Ball™
Specifications may change with the addition of custom order options and / or accessories. Polaris Sales Inc. reserves the right without prior notice to
discontinue at any time at its discretion any of the items herein or change specifications or designs without incurring any obligation to the customer.
C
A
P
A
C
I
T
I
E
S
&
D
I
M
E
N
S
I
O
N
S
Cross Roads Classic Hard-Ball
Oil Capacity 5.0 Qt. (4.75 ltr) (Approximately 4.5 qts. or 4.25 ltr at oil & filter change)
Fuel Capacity 5.8 US Gal (22.0 ltr) (1.0 U.S. gal / 3.8 ltr reserve)
Fuel Type / Octane Minimum Premium Unleaded / 91 Octane
Dry Weight 745 lbs (338 kg) *LE = 772 lbs (350 kg) 758 lbs (345 kg)
Wet Weight 780 lbs (354 kg) *LE = 807 lbs (366 kg) 793 lbs (360 kg)
Gross Vehicle Weight Rating 1360 lbs (617 kg)
Gross Axle Weight Rating Refer to Manufacturer Information label on frame of vehicle (left side of steering head)
Maximum Load Subtract Wet Weight from GVWR or refer to Rider’s Manual. Never exceed GVWR
Overall Length 104.4 in. (265.0 cm) except Cross Roads LE = 106.4 in. (270.26 cm)
Overall Width 36.0 in. (91.4 cm) 36.0 in. (91.4 cm)
Overall Height 56.3 in. (143.0 cm) 54.4 in. (138.2 cm)
Seat Height 26.3 in (66.8 cm) 26.25 in (66.7 cm)
Ground Clearance 5.8 in (14.8 cm)
Total Storage Volume 21.3 gallons (80.6 liters) See Saddlebag Warning (inside right saddlebag lid)
Passenger Capacity 1
Wheelbase 65.7 in (166.9 cm)
Rake / Trail 29 Degrees / 5.6 in. (14.2 cm)
E
N
G
I
N
E
Engine Type VICTORY FreedomV-Twin
Engine Configuration 50oSOHC V-Twin 4 Stroke
Engine Displacement 1731cc / 106 cubic inch 6 speed (106 / 6 engine)
Engine Cooling System Air / Oil
Compression Ratio 9.4:1
Compression Pressure 210 - 225 psi (1448 - 1551 kPa)
Valve Train 4 Valves per cylinder. Hydraulic Lifters & Cam Chain Adjusters (No Adjustment)
Bore x Stroke 101 x 108 mm
Idle Speed / Fast Idle Speed NOT ADJUSTABLE - ECM Controlled by IAC (Spec Idle Speed is 950 +/- 100 RPM)
Fuel System / Throttle Body Bore Size Closed Loop Sequential Electronic Fuel Injection / Dual Bore 45 mm
Exhaust System Type Split Dual Exhaust With Crossover
Lubrication System Wet Sump
Spark Plug Type (Gap) NGK DCPR6E (.032 in. / .8 mm)
Dry Weight (Engine Approximate) 265 lbs (120 Kg)
B
R
A
K
E
S
Brake Type (Front / Rear) Disc / Disc
Front Brake Dual 300x5mm Floating Disc / 4 Piston Calipers ABS
Rear Brake Single 300x7mm Floating Disc / 2 Piston Caliper ABS

1.6
SPECIFICATIONS / GAUGE / AUDIO
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
2012-2013 Cross Roads Classic™ / Hard-Ball™
Specifications may change with the addition of custom order options and / or accessories. Polaris Sales Inc. reserves the right without prior notice
to discontinue at any time at its discretion any of the items herein or change specifications or designs without incurring any obligation to the customer.
D
R
I
V
E
S
Y
S
T
E
M
Cross Roads Classic Hard-Ball
Transmission Type Manual, 6 Speed Constant Mesh with True Overdrive
Clutch Type Wet, Multi-Plate, Diaphragm Spring
Primary Drive Type Wet, Gear Drive w/ Torque Compensator
Primary Reduction Ratio 1.48:1
Final Drive Type / Belt Width /
Final Drive Ratio Carbon Fiber Reinforced Belt / 28mm / 2.12:1
Gear Shift Pattern 1 Down, 5 Up
Internal Gear Ratios 1st 3.13:1
2nd 2.02:1
3rd 1.50:1
4th 1.20:1
5th 1:1
6th .87:1
S
U
S
P
E
N
S
I
O
N
Front Wheel (Size / Type) Spoke Type - 3.50 X 18”
Rear Wheel (Size / Type) Spoke Type - 5.00 X 16”
Front Tire Dunlop 491 Elite II - 130/70-18 63H Bias-Ply (Tube Type)
Rear Tire Dunlop D418 Elite 3 - 180/60R16 M/C 80H Radial (Tube Type)
Minimum Tread Depth .063 in. (1.6mm)
Front Type Inverted Telescopic Cartridge Fork
Front Travel 5.1 in. (13 cm)
Front Tube Diameter 43 mm (1.7 in.)
Rear Shock Type Single, Monotube Air Adjustable Shock
Rear Swingarm Type Cast Aluminum with Constant Rate Linkage
Rear Travel (inches) 4.7 in (12 cm)
L
I
G
H
T
S
Headlamp High H-11 55W / Low: H-11 55W
HID Headlamp (If equipped) High H-11 / Low: D1SR
Turn Signal Lamp Non-Serviceable LED
Brake / Tail / License Plate Lamp Non-Serviceable LED
Alternator / Battery 625W (48A @ 13.0VDC) / 12V 18AH 310 CCA
F
U
S
E
S
Turn Signal / Horn 10 amp fuse
Chassis 20 amp fuse
Engine 15 amp fuse
Fuel Pump / Ignition Coil 15 amp fuse
Ignition 10 amp fuse
Lights 20 amp fuse
Circuit Breakers See fuse box label (Chapter 2)
F
U
E
L
Fuel Type Premium Unleaded / 91 Octane Minimum
Fuel Pump Pressure 3.51 BAR (351 kPa) (51 psi)
FuelPumpVolume(Approx.@12V) 60 liters / hr (500 ml or 16.9 oz. / 30 seconds) (0.26 gal / min)
Fuel Level Sensor Resistance Empty: 250 Ohms / Full: 50 Ohms
Fuel Pump Current Draw Less than 5.0 Amps
Fuel Injector Resistance 11.4 - 12.6 Ohms

1.7
SPECIFICATIONS / GAUGE / AUDIO
1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
2012-2013 Cross Country® / Cross Country Tour® / NESS Specifications
Specifications may change with the addition of custom order options and / or accessories. Polaris Sales Inc. reserves the right without prior notice to
discontinue at any time at its discretion any of the items herein or change specifications or designs without incurring any obligation to the customer.
C
A
P
A
C
I
T
I
E
S
&
D
I
M
E
N
S
I
O
N
S
Cross Country / NESS Cross Country Tour / NESS
Oil Capacity 5.0 Qt. (4.75 ltr) (Approximately 4.5 qts. or 4.25 ltr at oil & filter change)
Fuel Capacity 5.8 US Gal (22.0 ltr) (1.0 U.S. gal / 3.8 ltr reserve)
Fuel Type / Octane Minimum Premium Unleaded / 91 Octane
Dry Weight 760 lbs (344 kg) / 765 lbs (347 kg) 845 lbs (384 kg)
Wet Weight 795 lbs (361 kg) / 800 lbs (363 kg) 880 lbs (399 kg)
Gross Vehicle Weight Rating 1360 lbs (618 kg)
Gross Axle Weight Rating Refer to Manufacturer Information label on frame of vehicle (left side of steering head)
Maximum Load Subtract Wet Weight from GVWR or refer to Rider’s Manual. Never exceed GVWR
Overall Length 104.4 in. (265.0 cm) 108.1 in. (274.7 cm)
Overall Width 39.2 in. (99.5 cm) 40.5 in. (102.9 cm)
Overall Height 53.2 in. (135.1 cm) 59.75 in. (151.8 cm)
Seat Height 26.25 in (66.7 cm)
Ground Clearance 5.8 in (14.8 cm)
Total Storage Volume 21.3 gallons (80.6 liters) See Saddlebag
Warning (inside right saddlebag lid) 38.7 gallons (146.5 liters) See Saddlebag Warning (inside right saddlebag lid)
Passenger Capacity 1
Wheelbase 65.7 in (166.9 cm)
Rake / Trail 29 Degrees / 5.6 in. (14.2 cm)
E
N
G
I
N
E
Engine Type VICTORY FreedomV-Twin
Engine Configuration 50oSOHC V-Twin 4 Stroke
Engine Displacement 1731cc / 106 cubic inch 6 speed (106 / 6 engine)
Engine Cooling System Air / Oil
Compression Ratio 9.4:1
Compression Pressure 210 - 225 psi (1448 - 1551 kPa)
Valve Train 4 Valves per cylinder. Hydraulic Lifters & Cam Chain Adjusters (No Adjustment)
Bore x Stroke 101 x 108 mm
Idle Speed / Fast Idle Speed NOT ADJUSTABLE - ECM Controlled by IAC (Spec Idle Speed is 950 +/- 100 RPM)
Fuel System / Throttle Body Bore Size Closed Loop Sequential Electronic Fuel Injection / Dual Bore 45 mm
Exhaust System Type Split Dual Exhaust With Crossover
Lubrication System Wet Sump
Spark Plug Type (Gap) NGK DCPR6E (.032 in. / .8 mm)
Dry Weight (Engine Approximate) 265 lbs (120 Kg)
B
R
A
K
E
S
Brake Type (Front / Rear) Disc / Disc
Front Brake Dual 300x5mm Floating Disc / 4 Piston Calipers ABS
Rear Brake Single 300x7mm Floating Disc / 2 Piston Caliper ABS

1.8
SPECIFICATIONS / GAUGE / AUDIO
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
2012-2013 Cross Country® / Cross Country Tour® / NESS
Specifications may change with the addition of custom order options and / or accessories. Polaris Sales Inc. reserves the right without prior notice to
discontinue at any time at its discretion any of the items herein or change specifications or designs without incurring any obligation to the customer.
D
R
I
V
E
S
Y
S
T
E
M
Cross Country / NESS Cross Country Tour
Transmission Type Manual, 6 Speed Constant Mesh with True Overdrive
Clutch Type Wet, Multi-Plate, Diaphragm Spring
Primary Drive Type Wet, Gear Drive w/ Torque Compensator
Primary Reduction Ratio 1.48:1
Final Drive Type / Belt Width /
Final Drive Ratio Carbon Fiber Reinforced Belt / 28mm / 2.12:1
Gear Shift Pattern 1 Down, 5 Up
Internal Gear Ratios 1st 3.13:1
2nd 2.02:1
3rd 1.50:1
4th 1.20:1
5th 1:1
6th .87:1
S
U
S
P
E
N
S
I
O
N
Front Wheel (Size / Type) Cast or Billet / 3.5 x 18 (inch)
Rear Wheel (Size / Type) Cast or Billet 5.00 x 16 (inch)
Front Tire Dunlop D418F Elite 3 - 130/70R18 63H Radial
Rear Tire Dunlop D418 Elite 3 - 180/60R16 M/C 80H Radial
Minimum Tread Depth .063 in. (1.6mm)
Front Type Inverted Telescopic Cartridge Fork
Front Travel 5.1 in. (13 cm)
Front Tube Diameter 43 mm (1.7 in.)
Rear Shock Type Single, Monotube Air Adjustable Shock
Rear Swingarm Type Cast Aluminum with Constant Rate Linkage
Rear Travel (inches) 4.7 in (12 cm)
L
I
G
H
T
S
HID Headlamp High H-11 / Low: D1SR
Turn Signal Lamp Non-Serviceable LED
Brake / Tail / License Plate Lamp Non-Serviceable LED
Alternator / Battery 625W (48A @ 13.0VDC) / 12V 18AH 310 CCA
F
U
S
E
S
Turn Signal / Horn 10 amp fuse
Chassis 20 amp fuse
Engine 15 amp fuse
Fuel Pump / Ignition Coil 15 amp fuse
Ignition 10 amp fuse
Lights 20 amp fuse
Circuit Breakers See fuse box label (Chapter 2)
F
U
E
L
Fuel Type Premium Unleaded / 91 Octane Minimum
Fuel Pump Pressure 3.51 BAR (351 kPa) (51 psi)
FuelPumpVolume(Approx.@12V) 60 liters / hr (500 ml or 16.9 oz. / 30 seconds) (0.26 gal / min)
Fuel Level Sensor Resistance Empty: 250 Ohms / Full: 50 Ohms
Fuel Pump Current Draw Less than 5.0 Amps
Fuel Injector Resistance 11.4 - 12.6 Ohms

1.9
SPECIFICATIONS / GAUGE / AUDIO
1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
VEHICLE LOADING
Gross Vehicle Weight Rating (GVWR)
The maximum load capacity of your motorcycle is the maximum weight you may add to your motorcycle without
exceeding theGVWR.Thiscapacityisdeterminedbycalculatingthedifferencebetweenyourmotorcycle’sgrossvehicle
weight rating and the wet weight.
Refer to the specification section of this manual or the Manufacturing Information / VIN label on the motorcycle frame
for model-specific information. Refer to Information label section in this manual (page 1.10) for location on the
motorcycle.
When determining the weight you willbe adding to your motorcycle, and to ensure you do not exceed the maximum load
capacity, include the following:
•operator body weight
•passenger body weight
•weight of all riders’ apparel and items in or on apparel
•weight of any accessories and their contents
•weight of any additional cargo on the motorcycle
WARNING
Exceeding the gross vehicle weight rating of your motorcycle can reduce stability and handling and could cause loss
of control. NEVER exceed the gross vehicle weight rating of your motorcycle.

1.10
SPECIFICATIONS / GAUGE / AUDIO
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
VEHICLE INFORMATION
Model Number Designation
Example: V13SW36NA
Vehicle Identification Number (VIN) Designation
Example: 5VPXB36N0C3000000

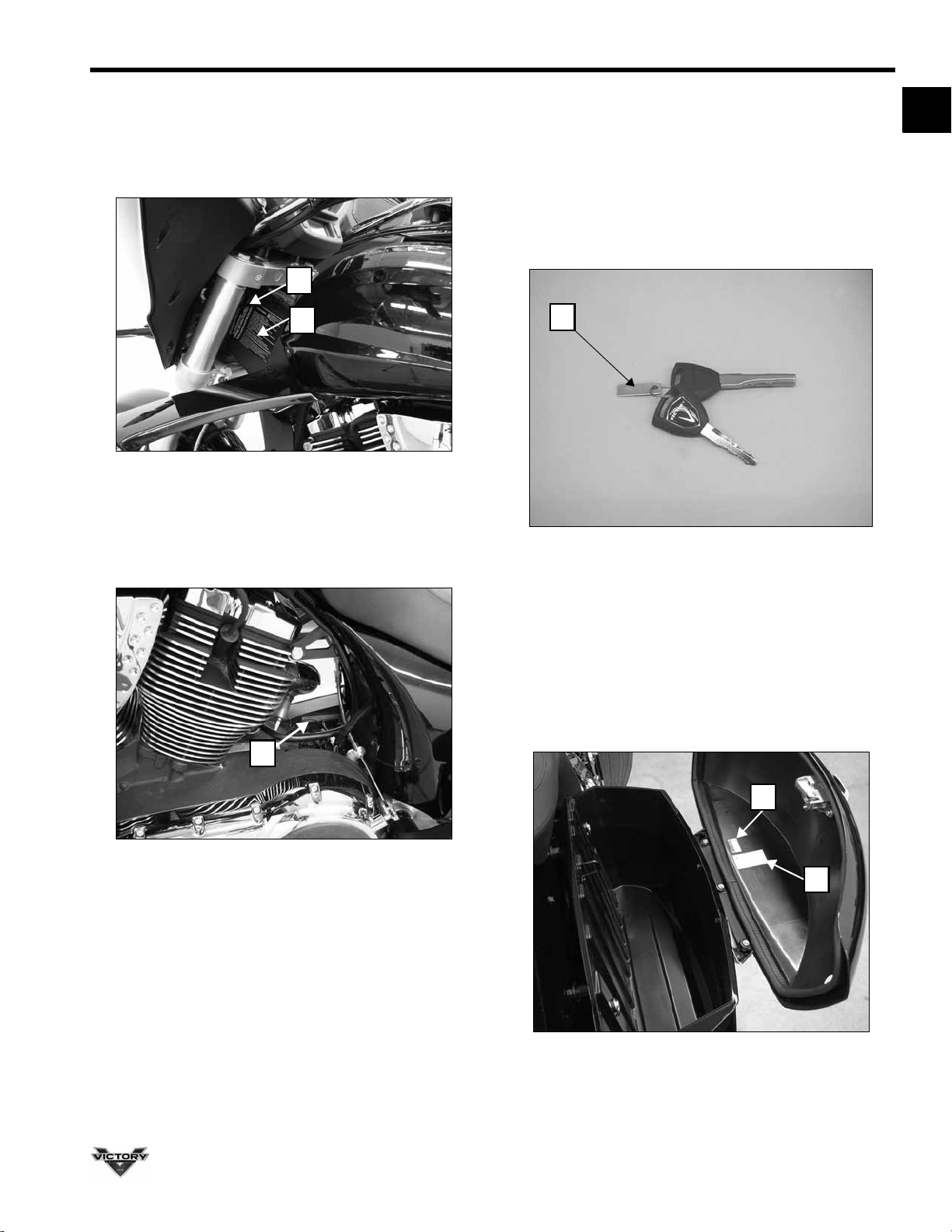

VIN Number / Manufacturer Label
The Manufacturer Information Label (A) contains the following:
• Vehicle Identification Number (VIN) (also stamped into frame on right side of the steering head).
• Gross Vehicle Weight Rating
• Gross Axle Weight Rating
• Tire and Wheel Information
• Date of Manufacture
GROUP MODEL
YEAR MODEL MODEL TYPE ENGINE SIZE ENGINE
HP SERIES COLOR PREMIUM DESIGNATION
1st digit 2/3rd digit 4th digit* 5th digit* 6th digit* 7th digit* 8th digit 9thdigit** 10th digit
V11 12
13
A = Arlen Ness Vision
B = Cross Roads
D = Cross Country
E = Hard-Ball
G = Vegas
H = Hammer
K = C. Ness CCT
M = Judge
R = Boardwalk
S = Vision Tour
T = Cross Country Tour
W = Vegas High-Ball
X = Jackpot
Z = Z. Ness Cross Ctry
A = 8 Ball
B = Standard
C = Custom
L = Low
S = Sport
W = ABS
Z = Limited
Edition
1 = 1507 cc (92 ci)
2 = 1634 cc (100 ci)
3 = 1731 cc (106 ci)
6 = 78-94
7 = 95-115
E = Int’l
N =
North
America
C = California
A = Canada
* = digits that would transfer to 17 digit VIN and are used in digits 4-8 respectively
** = 9th digit will be used on color/featured versions of models (not including the base)
First 3 digits and 9th digit are used in model number only. They are not used with the 17 digit VIN.
World Mfg. ID
Vehicle Descriptors Vehicle Identifiers
Chassis Type Engine Size Engine HP Series Check Digit Model Year * Mfg. Location
Individual Serial No.
1234567891011121314151617
5VPXB36N0C3000000
* Model Year: A = 2010; B = 2011; C = 2012; D = 2013

1.11
SPECIFICATIONS / GAUGE / AUDIO
1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
VECI / NECI / Tire Information Labels
The Vehicle Emission Control Information (VECI) and
Noise Emission Control Information (NECI) labels are
located at (B).
Engine Number Location
The engine number (C) is stamped into the right
crankcase boss and identifies engine model and serial
number.
Key Identification Number
The key identification number (D) is stamped on a tag
attached to the key ring. If key and identification number
are lost or misplaced, the lock set must be replaced.
Key blanks are available from Victory. Locksmiths familiar
with the motorcycle industry will be able to cut a
replacement key with an I.D. number and a key blank.
Saddlebag Warning Label
Saddlebag Warning Label (E).
Rear Shock Air Pressure Label
Rear Shock Air Pressure Label (F).
B
A
C
E
D
F
E

1.12
SPECIFICATIONS / GAUGE / AUDIO
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
PUBLICATIONS & TECHNICAL LITERATURE
PUBLICATION PART NUMBERS
SomeVictorypublications,suchasOwner’sManualsandPartsBooksareavailableon-lineandcanbedownloadedfrom
the Victory motorcycles web site (http://www.polarisindustries.com/en-us/Victory/). Click on the Riders pull down menu
and select Manuals and Parts.
Service Manuals and Owner’s Manuals can be purchased through any authorized Victory motorcycle dealer. The part
numbers are listed in the following table. Some manuals are available for purchase on-line at www.purepolaris.com.
REFINISHING
Paint Colors By Model
The 8th Digit of the model number (either a C, D, L, or U) designates the Series:
(C = CANADA, D = Domestic (49 State), E = Europe, L = CALIFORNIA, and U = United Kingdom.
The 9th letter of the model number designates the color.
MODEL Service Manua l PN Owner’s Manual PN
2012 Vegas, Hammer, Jackpot, Kingpin 9923271 9923268 (NA)
2012 Vision 9923282 9923276 (NA)
2012 Cross Roads / Cross Country 9923286 9923283 (NA)
2012 Cross Roads Hard-Ball Supplement No supplement offered. 9923966
2013 Vegas, Hammer, Jackpot, High-Ball, Judge, Boardwalk 9924060 9924064
2012-2013 Vision 9924040 9924035
2012-2013 Cross Roads / Cross Country / Hard-Ball 9924047 9924041
2012 VICTORY CROSS ROADS / CROSS ROADS CLASSIC LE / CROSS ROADS HARD-BALL w/ABS
Model Number Model
V12BW36NA, NAA, NAC Black
V12BW36EA Black (soft bags)
V12EW36EA Black (hard bags)
V12EW36NZ, NZC, NZA, EZ Flat Black with Red Pinstripe (hard bags)
V12BW36NS, NSA, NSC Sunset Red
V12BW36EB Sunset Red (soft bags)
V12EW36ES Sunset Red (hard bags)
V12EW36EB Imperial Blue
V12BW36NR, NRA, NRC, ER Black with Classic graphics
2012 VICTORY CROSS COUNTRY / CROSS COUNTRY TOUR / NESS w/ABS
V12DW36NA, NAA, NAC, EA Solid Black
V12DW36NCA Sunset Red
V12DW36NY, NYA, NYC, EY Sunset Red & Silver
V12TW36NA, NAC, NAA, EA Black
V12TW36NS, NSA, NSC, ES Sunset Red
V12TW36ET Sunset & Silver
V12KW36NN, NNA, NNC, EN Boardwalk Blue / Ness Graphics
V12TW36NW, NWA, NWC, EW Pearl White

1.13
SPECIFICATIONS / GAUGE / AUDIO
1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
Paint Color Codes
For current information Victory Dealers can go to www.polarisdealers.com/News, Forms, and Links. Enter PAINT
CODES in the search box.
2013 VICTORY CROSS ROADS CLASSIC / HARD-BALL
Model Number Model
V13BW36EB, NB, NBA, NBC Burgundy / Classic Graphics
V13EW36EZ, NZ, NZA, NZC Flat Black with Red Pinstripe (hard bags)
2013 VICTORY CROSS COUNTRY / CROSS COUNTRY TOUR / NESS
V13DW36EA, NA, NAA, NAC Black
V13DW36EF, NF, NFA, NFC Anti-Freeze Green / Flame Graphics
V13DW36ES, NS, NSA, NSC Sunset Red
V13DW36ET, NT, NTA, NTC Super Graphite
V13TW36EA, NA, NAA, NAC Black
V13TW36EC, NC, NCA, NCC Nuclear Sunset / Graphics
V13TW36EL, NL, NLA, NLC Bronze Mist
V13TW36EU, NU, NUA, NUC Boardwalk Blue
V13KW36EK, NK, NKA, NKC Gold Digger Pearl / Ness Graphics
V13ZW36EV, NV, NVA, NVC Suede Titanium Metallic / Ness Graphics
V13DW36NN, NNC, NNA Suede Nuclear Sunset
PAINT COLOR: PAINT CODE NOTES
Black P-266
Imperial Blue P-598
Vogue Silver P-354
Boardwalk Blue P-524
Pearl White P-566
Sunset Red P-520
Suede Titanium Metallic P-1342
Gold Digger Pearl P-1341
Bronze Mist P-451
Anti-Freeze Green P-1335
Burgundy --
Super Graphite P-1339
Metallic Flake Additive METALLIC Add vial of flake to quart of clear base
Clear C
Flat Black P-463
UNDERCOATERS
(Base Coat Only) WU, OWU, PWU, VVU WU=White Undercoater; OWU=Off-White Undercoater; PWU=Pearl White Undercoater; VVU=Victory Violet Undercoater

1.14
SPECIFICATIONS / GAUGE / AUDIO
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
BREAK IN PERIOD
Break-in Procedure
Thereis nevera moreimportantperiodinthelifeofanewVictorymotorcyclethantheperiodbetweenzeroand500miles
(805km).AVictorymotorcycleis manufacturedusingthebest possiblematerialsandmanufacturingtechniques,but the
final machining process is the break-in. During break-in period, many parts in the engine wear and polish to correct
operating clearances. During this time, the operator should:
• Avoid prolonged full throttle operation.
• Avoid operation which might result in excessive heating of the engine.
The general break-in guidelines are as follows:
BREAK-IN GUIDELINES
Miles/km Throttle
Position Notes
0-90 miles 0-1/3 Avoid prolonged operation above 1/3 throttle. Stop engine and let it cool
followingeveryhourofoperation.Varyspeedofmotorcycle.Donotoperate
machine at one set throttle position.
90-300 miles 0-1/2 Avoid prolonged operation above 1/2 throttle. Stop engine and let it cool
following every hour of operation. Vary speed of the motorcycle. Do not
operate machine at one set throttle position.
300-500 miles 0-3/4 Avoid cruising speeds above 3/4 throttle.
500 miles Replace the engine oil and engine oil filter. Perform 500 mile service on the machine.
See chapter 2 for more information.
500 + Avoidprolongedfull-throttleoperation. Varytheenginespeedoccasionally. Followthepre-
ride inspection outlined in the owner's manual.

1.15
SPECIFICATIONS / GAUGE / AUDIO
1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
EMISSIONS
Emission Control Systems
The U.S. Environmental Protection Agency and California Air Resources Board (CARB) require manufacturers to certify
that their motorcycles comply with applicable exhaust emissions standards during their useful life, and that motorcycles
built after January 1, 1983 comply with applicable noise emission standards for one year or 6,000 km (3,730 mi) after
the time of sale to the ultimate purchaser, when operated and maintained according to the instructions provided.
Emission Sources
An internal combustion engine produces carbon monoxide and hydrocarbons during operation. Hydrocarbons must be
controlled because under some conditions hydrocarbons react with sunlight to produce photochemical smog. Carbon
monoxide must be controlled because it is toxic.
Exhaust Emission Control
Victory Motorcycles have an electronic engine management system which controls fuel delivery and ignition timing to
controlhydrocarbonand carbonmonoxideemissions.Followthe Periodic MaintenanceInterval Table on (page 2.4) and
inspect the emission control system as outlined in this manual. No adjustments can be made to the EEC system.
Noise Emission Control System
Tampering with Noise Control Systems is Prohibited. Federal law prohibits the following acts or causing thereof:
1. The removal or rendering inoperative by any person otherthan for purposes of maintenance, repair or replacement,
any device or element of design incorporated into the motorcycle for the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is in use, or
2. The use of the motorcycle after such device or element of design has been removed or rendered inoperative.
Among those acts presumed to constitute tampering are the acts listed below:
1. Removal of, or puncturing the muffler, baffles, header pipes or any other component which conducts exhaust
gases.
2. Removal or puncturing of any part of the intake system.
3. Lack of proper maintenance.
4. Replacing any moving part of the motorcycle or parts of the exhaust / intake system with parts other than those
specified by the manufacturer.
Crankcase Emission Control
The crankcase emission control system is comprised of a closed system that routes crankcase emissions through the
air cleaner into the combustion chamber.
Evaporative Emission Control
California models are equipped with an Evaporative Emissions
Canister mounted under the rear fender. Activated charcoal inside the
canister temporarily stores fuel vapor from the fuel tank vent system.
TheElectronic ControlModule(ECM)opensacanisterpurgevalvethat
connects the charcoal canister to the intake tract (when conditions are
correct)topurgethecanisterofvaporsabsorbedbythecharcoal.Refer
to Chapter 5 for system diagram and Chapter 2 for maintenance.

1.16
SPECIFICATIONS / GAUGE / AUDIO
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
SPECIAL SERVICE TOOLS
General / Precision Measuring Tools
Tune Up & Maintenance Tools
Electrical Tools
TOOL PART NUMBER
Bearing & Seal Driver Set PV-43558
Bodywork Removal Tool Set PV-49955
Bore Gauge Set, 50-100mm PV-3017
Dial Caliper (Metric, 0-150mm) PV-26900-7
Dial Caliper (Electronic Conversion. English 0-6” / Metric 0-150mm) PV-39776
Dial Indicator, Adjustable (Metric. 10mm travel) PV-26900-12
Dial Indicator Stand, Flexible. Magnetic Base PV-34481
Engine Ear Listening Device PV-39565
Feeler Gauge Set PV-26900-8 or PV-26900-9
Outside Micrometer (0-25 & 25-50mm) PV-3006, PV-3007
Outside Micrometer Set (0-100mm) PV-3009
Small Hole Gauge Set Commercially Available
Straight Edge, Precision PV-34673
Surface Plate Commercially Available
Telescoping Gauge Set PU-45423
Torque Wrench (3/8” Drive 0-50 in-lb. beam type) PV-43543
Torque Wrench (1/2” Drive 0-150 ft-lbs beam type) PV-43552
Torque Wrench (3/8” Drive 15-100 ft-lbs click type) PV-43564
TOOL PART NUMBER
Belt Tension Gauge PV-43532
Belt Tension - Sonic Tension Meter Commercially available
Cylinder Leakdown Tester PV-35667-A
Compression Gauge Set PV-33223
Oil Pressure Gauge Set PV-43531
Vacuum Brake Bleeder PV-50204
Front Brake Lever Reserve Inspection Adapter PV-50104
TOOL PART NUMBER
Ammeter Inductive Clamp for Fluke 73™ Multimeter PV-39617
Cruise Control Jumper Harness (Diagnostic) Kit PV-49358
Electrical Connector Test Adapter Kit PV-43526
Inductive Timing Light PV-43537
Multimeter, Fluke 73™ PV-43546
Battery / Conductance Tester MDX - 610P / PU-50296

1.17
SPECIFICATIONS / GAUGE / AUDIO
1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
Engine, Clutch, & Transmission Tools
Steering & Suspension Tools
TOOL PART NUMBER
Clutch Shaft Bearing Support
(for clutch shaft installation) PV-47331
Crankcase Assembly Tool (Crankcase Installer) PV-46299 (Must be used with PV-45030) and
Adapter (Extension) PVX-47429
Crankcase Assembly Tool Adapter PVX-47429
Crankshaft Bearing Protector PV-47207
Crankshaft Rotation Tool PV-48736
Crankcase Separator (Crankcase Removal) PV-47332B (MY11 complete new kit), or PV-
47332A & PV-50371 (PV-50371 updates PV-
47332A for MY11 engines)
Engine Hoist or Lift Commercially Available
Engine Lock Tool PV-43502-A
Engine Stand Commercially Available
Flywheel Puller PV-43533
Mainshaft (Clutch Shaft) Holder PV-45028
Crankcase Installation Tool (Crankcase Assembly) PV-46299 (Must be used with PV-45030)
Mainshaft (Output Shaft) Seal Installation Tool PV-43505
Piston Ring Compressor (97mm +) Includes PV-43570-1 Pliers, PV-43570-2 Band
(3 5/8” to 3 7/8”)
Valve Spring Compressors (Adapter is PV-43513-A) PV-1253 or PV-4019 (Quick Release)
TOOL PART NUMBER
Blind Bearing Remover Set PV-43551
Wheel Bearing Service Set PV-49462
Fork Spring Compressor PV-49463
Cartridge Shaft Extension PV-49453
Cartridge Holder PV-49452
Fork Oil Level Gauge PV-59000-A
Fork Seal Driver 43mm, Inverted Forks PV-47035
Fork Seal Guide Tool, 43mm PV-47037
Steering Bearing, Wheel Bearing Installation Set PV-43515
Steering Stem Bearing Adjustment Socket PV-43508
Steering Stem Bearing Spanner Wrench PV-43509
Shock Spring Compressor PV-43571

1.18
SPECIFICATIONS / GAUGE / AUDIO
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
Wheel & Tire
Fuel System & Fuel Injection
Tool Ordering Information
Order Special Service Tools from SPX Corporation (Phone [phone] / FAX [phone]) or use the link on the
Victory Dealer Web site.
If you are not a Victory dealer use the phone or FAX number listed above or visit http://polaris.spx.com/
TOOL PART NUMBER
Air Pressure Gauge PV-48909 (Victory Air Pump & Gauge) Or
Commercially Available Tire Pressure Gauge
Tire Bead Breaker
(May be part of the tire removal equipment being used) Commercially Available
Tire Mounting Lubricant Commercially Available
Tire Removal Equipment Commercially Available
Rim Protector PV-43536
Wheel Balancing/Truing Stand Commercially Available
TOOL PART NUMBER
(See Chapter 5 for more information)
Victory/Polaris Diagnostic Tool Kit PV-46085-B
PV-46085-B (above) INCLUDES:
Digital Wrench Software: PU-47052-G
Standard Interface Cable: PU-47151
Victory Adapter: PV-46085-2
SmartLink Interface Kit: PU-47471
Fuel Pressure Gauge PU-43506-A
Fuel Pressure Gauge Adapter PV-48656
Fluke 73 Digital Multi-Meter or (Fluke 77 DMM) PV-43546 (Fluke 77 - PV-43568)
Electrical Connector Test Adapter Kit PV-43526
LaptopComputer(Refertodiagnosticsoftwareusermanual
or HELP section for minimum specifications Commercially Available
Fuel Tank Fitting Plug Tool (9.5mm) 2009-2011 PV-50251
Fuel Tank Fitting Plug Tool (11.8mm) 2011-current
Refer to Chapter 5 for tool application details. PV-50567

1.19
SPECIFICATIONS / GAUGE / AUDIO
1
© Copyright 2012 Polaris Sales Inc.
9924047 - 2012-2013 VICTORY Cross Roads / Cross Country Service Manual
TRANSPORTING, ELEVATING, AND SECURING THE MOTORCYCLE
General Guidelines
If you must transport the motorcycle or secure it to a lift table:
• Use a truck, trailer, or lift table designed or equipped properly for motorcycles. Review truck, trailer or lift
manufacturer’s recommendations.
• Do not tow the motorcycle with another vehicle, as towing will impair the motorcycle’s steering and handling,
which can cause a loss of control.
• Position and restrain the motorcycle so it remains upright on the truck, trailer, or lift table as gasoline may leak
out of the fuel tank vent if the motorcycle is transported at extreme angles. Gasoline is a fire hazard and it can
also damage the motorcycle’s finish.
• Do not restrain the motorcycle using the handlebars. Place soft tiedown straps around lower triple clamp and
fork tube, clear of any cables, wire harness, or other parts.
• Secure the rear of the motorcycle with tiedowns around the swingarm, being careful to avoid brake lines,
exhaust, drive belt, or drive belt guards.
• The motorcycle can be elevated by placing a stable, flat platform jack or lift mechanism on a firm flat surface and
lifting under the engine crankcase. The platform should be a minimum 12 inches square, and clear of any
components under the motorcycle. DO NOT attempt to lift the motorcycle without properly securing it with
straps.
WARNING
Care should be taken to be sure the motorcycle will not tip or fall while elevated. Severe personal injury or
death could occur if the motorcycle tips or falls.
To swing arm (both sides)
(Both sides)
Platform jack
