VIDAR NDT PRO User manual

VIDAR NDTPRO
Industrial Film Digitizer
Installation Guide
For Use with Windows 7 & Windows 8
(Serial Numbers 370,000 to 379,999)
P/N 19440-001, Rev C

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 2
© Copyright 2017 by VIDAR® Systems Corporation. All rights reserved.
Terms denoted by the trademark symbol (or ®) used in this publication are trademarks
or service marks registered in the United States or other countries.
365 Herndon Parkway
Herndon, VA 20170 U.S.A.
Sales: 1-800-471-7226
Email: [e-mail]
Phone: [phone]
Fax: [phone]
Internet: www.vidar.com
Technical Support:
Phone: [phone]-SCAN or 1-703-471-7070
E-mail: [e-mail]
Emergo Europe
Prinsessegracht 20
2514 AP The Hague
The Netherlands
E-mail: [e-mail]

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 3
Caution: No operator-serviceable parts inside. Refer servicing to qualified personnel.
Achtung: Gehäuse nicht öffnen. Wartung uno reparatur nur durch eletrofachkräfte.
Attention: Aucune piece ne peut etre remplacee par l’utilisateur. Toute operation de
maintenance doit etre effectuee par une personne qualiee.
Atencion: Acceso interno solo autorizado a personal tecnico cualificado.
Attenzione: Non appire. Rivolgersi a personale qualificado.
Radio Frequency Emissions
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area can cause harmful interference, in which case the user will be required
to correct the interference at his or her own expense.
Product compliance testing was conducted using VIDAR shielded cables. Modifications
to the digitizer or the VIDAR shielded cables or the use of cables other than those
available from VIDAR could void the user’s authority to operate the equipment.
Acceptable shipping conditions
Temperature: –18° to +60°C (0° to +140°F)
Relative humidity: 20% to 85%, non-condensing
Atmospheric pressure: 500 to 106 hPa (+18,000 to –1,200ft)
Operating conditions
Temperature: 10°C to 30°C (60°F to 85°F)
Relative humidity: 20% to 85%, non-condensing
Atmospheric pressure: 696 to 1013hPa (10,000 to 0 ft)
Electrical supply
Voltage: 100 to 240 VAC
Current: 0.75 to 1.5 A
Frequency: 47 to 63 Hz

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 4
Safety and compliance information
MEDICAL EQUIPMENT WITH RESPECT TO ELECTRIC SHOCK, FIRE AND
MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH UL60601-1,
IEC60601-1 AND CAN/CSA C22.2 No. 601.1
This product is intended to be turned on and left on. Operation is continuous. To maintain
Medical Equipment Certification, the digitizer must be connected to a host computer that
has been configured in accordance with IEC 60601-1-1.
This product is in the Ordinary Equipment Class. It provides no protection against the
ingress of water.
This product is not suitable for use in the presence of flammable anesthetic mixtures with
air or with oxygen or with nitrous oxide.
Class I Medical Device; No Applied Parts. This product provides Class I medical device
protection against electrical shock.
Power cords used with this device in North America must be rated by Underwriters
Laboratories for hospital use. Power cords used with this device in Europe must meet the
requirements of IEC 227 Designation 53 or IEC 245 Designation 53.
Correct and safe operation of the digitizer requires familiarity with
information that is not marked on the product. The following
symbol indicates the operator should consult the manual for
additional information.
This Class 1 LED device is safe under reasonably
foreseeable conditions of operation.
The LED illumination system consists of 16 Class 1
LEDs, a mirror system to spread the light, and a
diffuser to distribute the light approximately uniformly across an area of 2.4 sq in (15.5
sq cm). Light from the LED illuminator may be indirectly observed in the digitizer’s film
entry and exit areas.
5RA9

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 5
Contents
VIDAR NDTPRO Industrial Film Digitizer Installation Guide................................................1
Intended Use......................................................................................................................6
Unpack................................................................................................................................7
1. Look for Damage......................................................................................................7
2. Unpack the shipping carton .....................................................................................8
3. Unpack the Accessory Box.......................................................................................9
4. Unwrap....................................................................................................................10
5. Identify the Components.........................................................................................11
6. If Anything Is Missing..............................................................................................12
7. Activate Your Product Warranty..............................................................................12
Setting Up.........................................................................................................................13
Identify Important Features.........................................................................................14
Assemble the Digitizer ................................................................................................15
Connect the Power Cord.............................................................................................20
VIDAR NDTPRO Industrial Film Digitizer Device Driver Installation Guide....................21
InstallDeviceDriversforWindows7&8....................................................................................22
1. Apply Power to the Digitizer....................................................................................22
About the VIDAR Drivers ............................................................................................23
2. Install the VIDAR Drivers ........................................................................................23
Appendix: Electromagnetic Guidance.................................................................................29
Appendix: Symbols...............................................................................................................33

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 6
Intended Use
The NDTPRO Industrial Film Digitizer is intended for making digital copies of x-ray films for non-
destructive testing applications. This device is not intended for medical use.

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 7
Unpack
In this chapter, you will:
Unpack and inspect the digitizer’s parts.
Identify the digitizer’s parts.
1. Look for Damage
Before unpacking the Digitizer, examine the shipping carton for damage.
If the carton is damaged:
Notify the shipper immediately.
Take photographs of the damage.
Send pictures and description of damage to: [e-mail].
Notify VIDAR Support at 1-703-471-7070.

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 8
2. Unpack the shipping carton
IMPORTANT: Save all the packing materials. If you need to
ship the digitizer later, you should repack the digitizer in the
original materials by reversing the procedure described here.
Failure to properly pack, or failure to use VIDAR authorized
shipping materials, will void the product’s warranty, and will
likely result in costly repairs.
Remove items from the shipping carton in the order shown below.
1
Upper foam support
Feeder
Digitizer base
Accessory box
Shipping carton
Leave in box:
lower foam support
2
3
4
Note: For clarity, this
illustration does not show
the plastic bags surrounding
the digitizer and feeder.

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 9
IMPORTANT: Save all the packing materials. If you need to
ship the digitizer later, you should repack the digitizer in the
original materials by reversing the procedure described here.
Failure to properly pack, or failure to use VIDAR authorized
shipping materials, will void the product’s warranty, and will
likely result in costly repairs.
3. Unpack the Accessory Box
a. Remove these items from the accessory box:
4
Documentation in
padded bag (bag
not shown)
Accessory box
USB cable
1
3
Power cord
Film support bar
in padded bag
(bag not shown)
2

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 10
b. Then remove these items from the accessory box:
5
Cardboard retainer
Accessory box
7
Stand
6
Exit tray
4. Unwrap
a. Unwrap all items.
b. Remove the foam block from the rear of the digitizer base:
Note: For clarity, this
illustration does not show
the plastic bag surrounding
the exit tray.

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 11
IMPORTANT: Save the carton and all packing materials.If
you need to ship the digitizer later, you must repack it using the
original wire ties, plastic bags, foam supports and cartons.
Instructions for repacking are provided in the “Packing the film
digitizer for shipment” section of this manual.

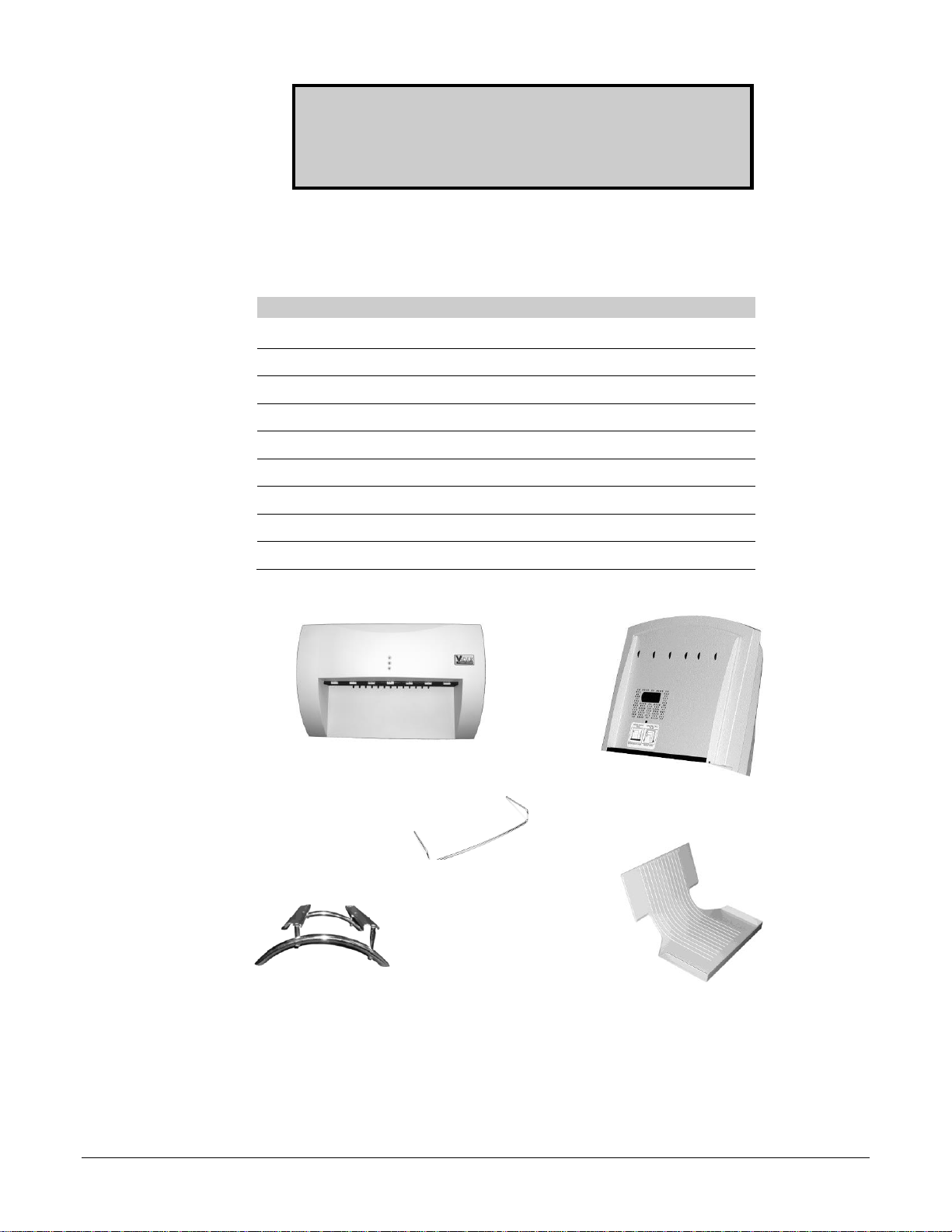

5. Identify the Components

Item

Digitizer base

Exit tray

Film feeder

Film support bar

Stand

Power cord: 115V (p/n 4043-001) or 230V (p/n 2104-006)

Quick setup card

USB cable: 6 foot (p/n 4618)

VIDAR NDTPRO Industrial Film Digitizer CD
Digitizer Base
Film Feeder
Exit Tray
Stand
Film Support bar

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 12
6. If Anything Is Missing...
Immediately contact your VIDAR supplier.
7. Activate Your Product Warranty
a. Locate the “Warranty information card” form on the NDTPRO Industrial Film
Digitizer CD.
b. Print the “Warranty information card.”
c. In the “Product information” section, record this information:
Digitizer serial number.
d. Complete the form.
e. Mail or fax the form to VIDAR Systems Corp.
If your digitizer needs service, this information should be on file at VIDAR.
Contact VIDAR Technical Support if you have any questions
about installing or using your VIDAR film digitizer:
Phone: [phone].SCAN (+1.800.471.7226)
+1.703.471.7070 outside the U.S.
E-mail: m[email protected]
NEXT: Go to “Setting up” 

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 13
Setting Up
The digitizer must be placed on a counter or tabletop.
SAFETY WARNING
Never place the digitizer on the floor.

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 14
Identify Important Features
Look over the digitizer base and locate the features shown in this section. You will need
to know where these features are when you assemble the digitizer.
Film Feeder Screw holes
Film Feeder
Connector
ON/OFF switch
(a rocker switch)
Press I to turn power ON.
Press 0 to turn power OFF.
Digitizer base, rear view
Power switch and power entry module
Kernel
Switch—
Factory use
ONLY!
USB Port
ON/OFF Switch
Power Entry module

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 15

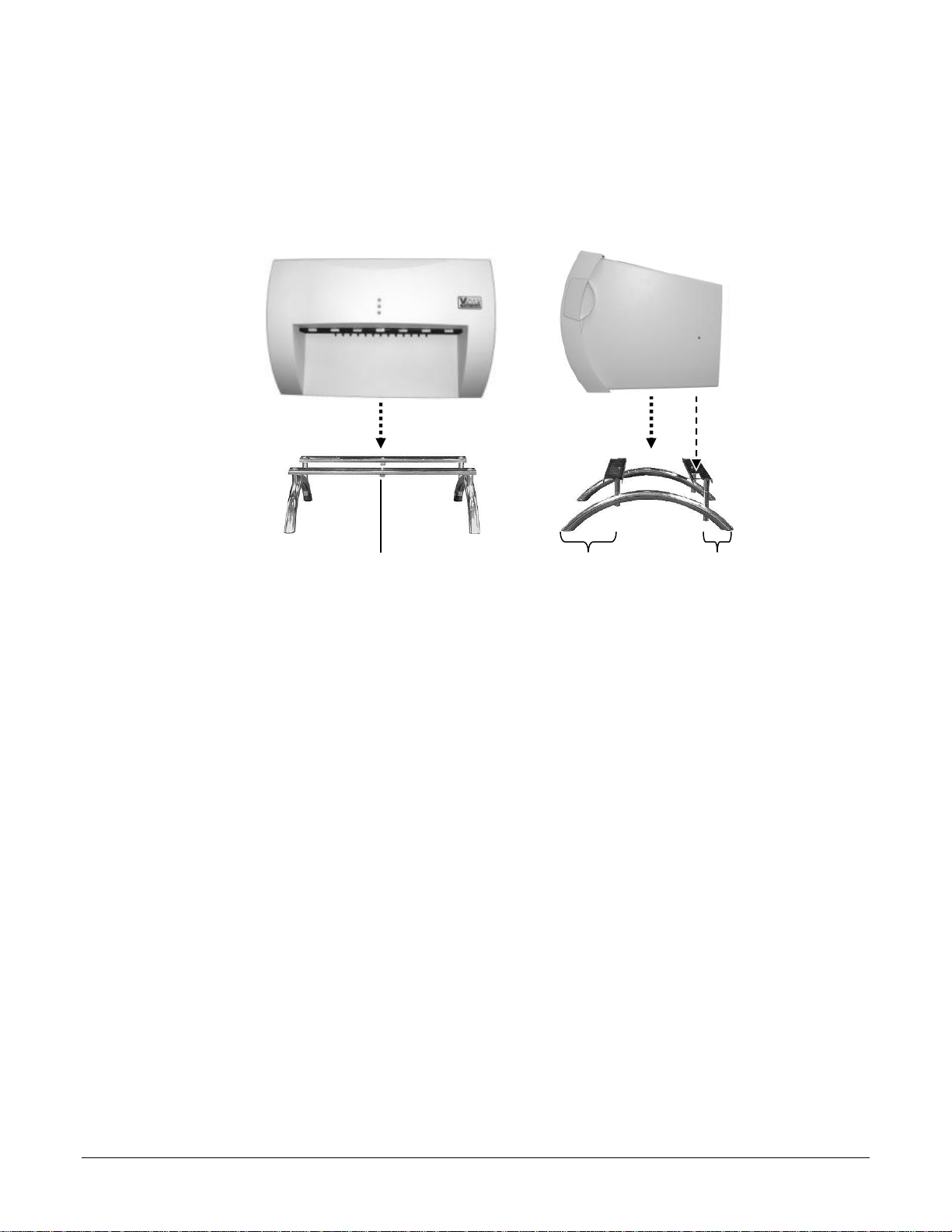

Assemble the Digitizer
1. Place the stand on a solid, flat surface (such as a table).
2. Place the digitizer base on the stand as shown below. Tighten the thumbscrews on the
bottom of the stand to secure it to the digitizer.
Front view Side view
Thumbscrews (2) Longer portion toward front
*Vent in bottom of base
must be over cutout in stand
Front
*

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 16

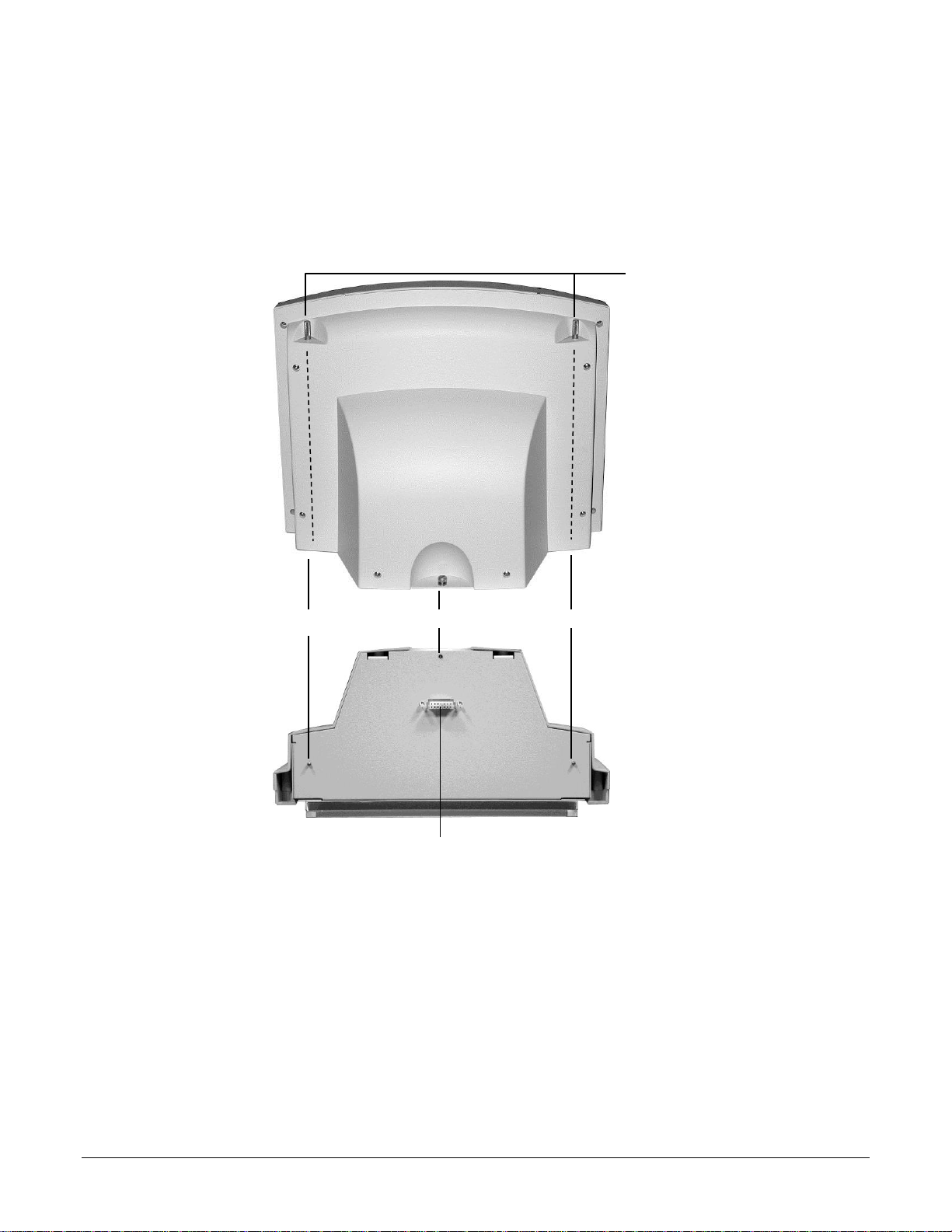

3. Attach the feeder to the digitizer:
a. Note the three screws protruding from the bottom of the feeder. These mate to
holes in the digitizer base. Two of the screws are very long—their tops ends are
near the top of the feeder.
Also note the connector on the bottom of the feeder. It mates to the connector on
top of the digitizer base.
Long screw Short screw Long screw
Connector
Feeder, rear view
Feeder, bottom view
Top ends of
long screws

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 17
b. Place the feeder on top of the
digitizer, and slide the feeder
connector into the digitizer
connector.
c. On the rear of the feeder,
tighten the three screws to
secure the feeder to the
digitizer base.
You may need to move
the feeder slightly to get
the screws started in the
holes.
Tighten each screw a few
turns, then repeat until all
are finger tight.
Screws

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 18

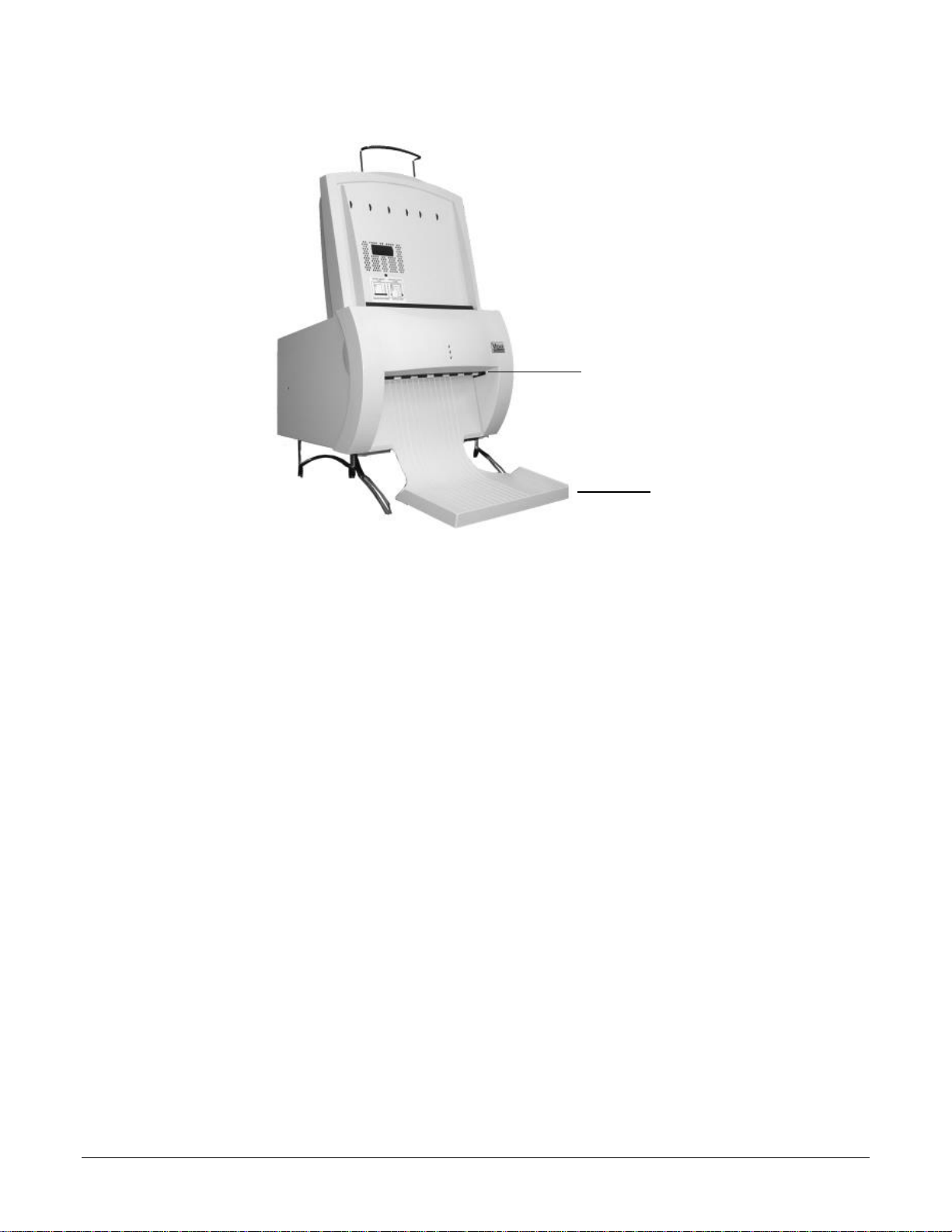

4. Install the exit tray by hooking it over the notched plastic edge just below the rollers.
When the exit tray is properly positioned, it will be parallel to the roller shaft.
Properly installed exit tray
Roller shaft
Exit tray

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 19
5. Insert the film support bar legs into the two holes on the film feeder’s top edge. The
film support bar’s curved center portion must face the front of the film feeder.
IMPORTANT: Do not lift or carry the digitizer using the film
support bar.
Warning
Before you begin the installation procedure, turn off all power to
the computer and peripherals.
Précaution
Avant de commencer la connexion, assurez vous que votre
ordinateur soit bien éteint.
Advertencia
Antes de continuar con la instalación, favor de apagar su
computadora y periférico.
Warnung
Vor dem Installieren den Computer und angeschlossene Geräte
ausschalten.
Front of film feeder
Holes in film feeder
Film support bar
Curved portion
of film support
bar
Front of film
feeder

19440-001 Rev. C VIDAR NDTPRO Industrial Film Digitizer Installation Guide 20
Connect the Power Cord
1. Connect the power cord to the digitizer’s Power Entry Module (PEM), located on the
rear of the digitizer.
2. Connect the other end of the power cord to a grounded power outlet.
Note: The film digitizer has an auto-sensing power supply.
When you apply power, the digitizer will detect the voltage and
set itself for proper operation.
NEXT: “Device Driver Installation Guide” 
