VIDAR NDT PRO User manual

VIDARNDTPRO
Industrial Film Digitizer
User Guide
For Use with Windows 7 & Windows 8
(Serial Numbers 370,000 to 379,999)
P/N 19441-001, Rev B

19441-001-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 2
© Copyright 2015 by VIDAR®Systems Corporation. All rights reserved.
Terms denoted by the trademark symbol (or ®) used in this publication are trademarks
or service marks registered in the United States or other countries.
365 Herndon Parkway
Herndon, VA 20170 U.S.A.
Sales: 1-800-471-7226 or 1-703-471-7070
Email: order@3dsystems.com
Phone: 1-703-471-7070
Fax: 1-703-471-7665
Internet: www.vidar.com
Technical Support:
Phone: 1-800-471-7226 or 1-703-471-7070
E-mail: medtech@3dsystems.com
Emergo Europe
Molenstraat15
2513 BH, The Hague
The Netherlands
E-mail: service@emergogroup.com

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 3
Caution: No operator-serviceable parts inside. Refer servicing to qualified personnel.
Achtung: Gehäuse nicht öffnen. Wartung uno reparatur nur durch eletrofachkräfte.
Attention: Aucune piece ne peut etre remplacee par l’utilisateur. Toute operation de
maintenance doit etre effectuee par une personne qualiee.
Atencion: Acceso interno solo autorizado a personal tecnico cualificado.
Attenzione: Non appire. Rivolgersi a personale qualificado.
Radio Frequency Emissions
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area can cause harmful interference, in which case the user will be required
to correct the interference at his or her own expense.
Product compliance testing was conducted using VIDAR shielded cables. Modifications
to the digitizer or the VIDAR shielded cables or the use of cables other than those
available from VIDAR could void the user’s authority to operate the equipment.
Acceptable shipping conditions
Temperature: –18° to +60°C (0° to +140°F)
Relative humidity: 20% to 85%, non-condensing
Atmospheric pressure: 500 to 1060hPa (+18,000 to –1,200ft)
Operating conditions
Temperature: 10°C to 30°C (60°F to 85°F)
Relative humidity: 20% to 85%, non-condensing
Atmospheric pressure: 696 to 1013hPa (10,000 to 0 ft)
Electrical supply
Voltage: 100 to 240 VAC
Current: 0.75 to 1.5 A
Frequency: 47 to 63 Hz

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 4

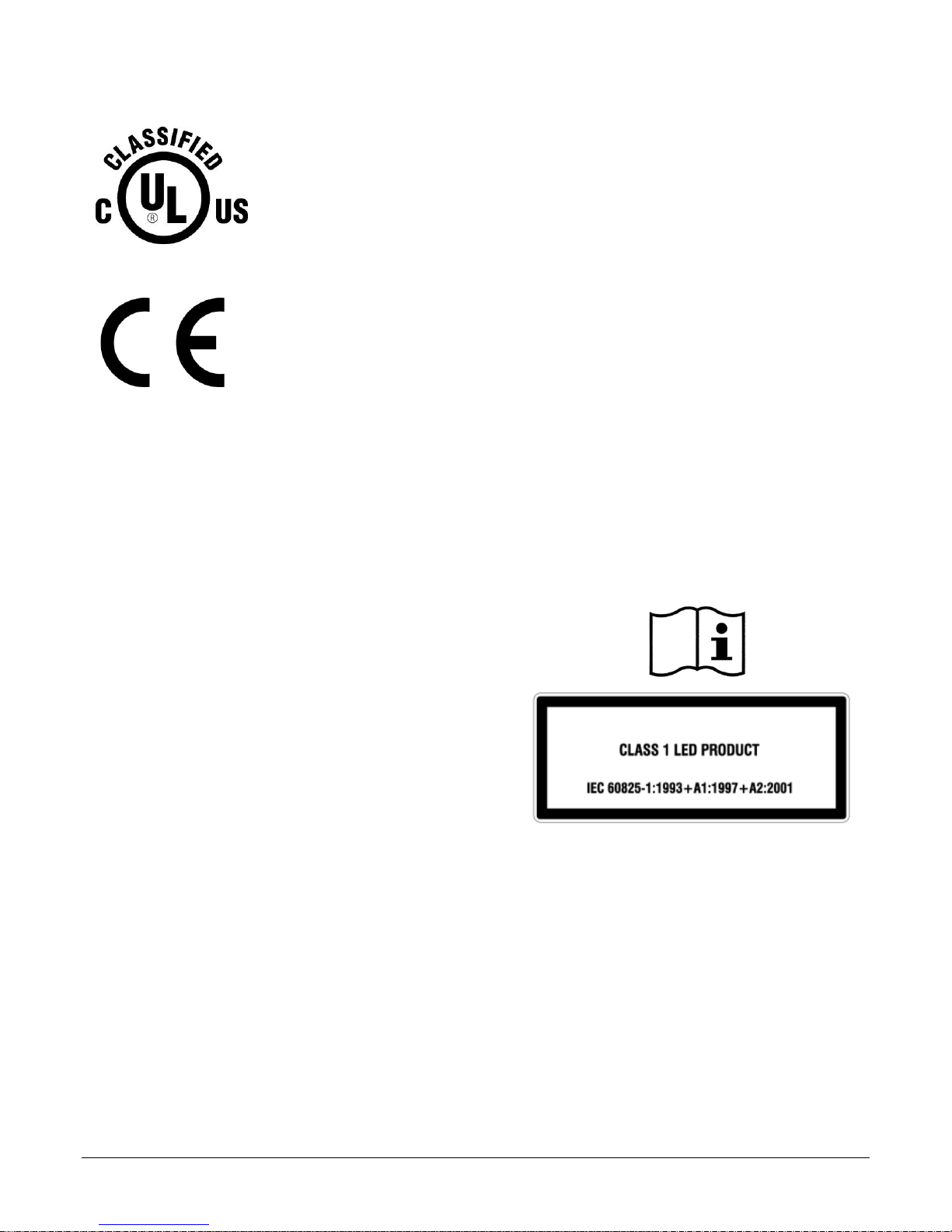

Safety and compliance information
MEDICAL EQUIPMENT WITH RESPECT TO ELECTRIC SHOCK, FIRE AND
MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH UL60601-1,
IEC60601-1 AND CAN/CSA C22.2 No. 601.1
This product is intended to be turned on and left on. Operation is continuous. To maintain
Medical Equipment Certification, the digitizer must be connected to a host computer that
has been configured in accordance with IEC 60601-1-1.
This product is in the Ordinary Equipment Class. It provides no protection against the
ingress of water.
This product is not suitable for use in the presence of flammable anesthetic mixtures with
air or with oxygen or with nitrous oxide.
Class I Medical Device; No Applied Parts. This product provides Class I medical device
protection against electrical shock.
Power cords used with this device in North America must be rated by Underwriters
Laboratories for hospital use. Power cords used with this device in Europe must meet the
requirements of IEC 227 Designation 53 or IEC 245
Designation 53.
Correct and safe operation of the digitizer requires
familiarity with information that is not marked on the
product. The following symbol
indicates the operator should consult
the manual for additional
information.
This Class 1 LED device is safe
under reasonably foreseeable
conditions of operation.
The LED illumination system consists of 16 Class 1 LEDs, a mirror system to spread the
light, and a diffuser to distribute the light approximately uniformly across an area of 2.4
sq in (15.5 sq cm). Light from the LED illuminator may be indirectly observed in the
digitizer’s film entry and exit areas.
5RA9

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 5
Contents
Intended Use.............................................................................................................................6
Operating
the VIDAR NDTPRO Industrial Film Digitizer
..............................................................7
About Digitizer and Film Sizes ............................................................................................7
About Films..........................................................................................................................8
Basic Operating Instructions ...............................................................................................9
Digitizing a Single Film......................................................................................................10
Digitizing Multiple Films.....................................................................................................12
Preventive Maintenance.........................................................................................................14
Cleaning the Auto-Feed Roller..........................................................................................14
Cleaning the Diffuser.........................................................................................................15
Replacing the Lamp Cartridge...........................................................................................19
Troubleshooting .....................................................................................................................20
Reading the LEDs .............................................................................................................20
Top LED: feeder status..............................................................................................21
Center LED: Digitizer Status......................................................................................21
Bottom LED: Power Status........................................................................................22
In Case of Difficulty............................................................................................................22
Weights and Dimensions.......................................................................................................25
Shipping weight and dimensions ................................................................................25
Digitizer weight and dimensions: ................................................................................25
Packing the Film Digitizer for Shipment..............................................................................26
1. Turn Off the Digitizer .....................................................................................................26
2. Disconnect the Power Cord and USB Cable.................................................................26
3. Remove the Exit Tray from the Digitizer Base ..............................................................27
4. Remove the Feeder from the Digitizer Base .................................................................28
5. Remove the Digitizer Base from the Stand ...................................................................29
6. Wrap Certain Items........................................................................................................29
7. Pack the Accessory Box................................................................................................30
8. Pack the Shipping Carton..............................................................................................32
Appendix: Electromagnetic Guidance.................................................................................33
Appendix: Symbols...............................................................................................................37

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 6
Intended Use
The NDTPRO Industrial Film Digitizer is intended for making digital copies of x-ray films for non-
destructive testing applications. This device is not intended for medical use.

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 7
Operating
the VIDAR NDTPRO Industrial Film Digitizer
About Digitizer and Film Sizes
Nominal
resolution
Pixels
(14”x17” film)
Spot size
(μm)
DPI
Line pairs
per mm
2K x 2.5K
2100 x 2550
170
150
3
4K x 5K
4200 x 5100
85
300
6
8K x 10K
7980 x 9690
44
570
11
Scan modes 16-bit, 12-bit and 8-bit grayscale outputs
Manual Feed
Film sizes Width: 2.36" to 14" (6cm to 35.6cm)
Length: 8" to 51"†(20.3cm to 129.5cm)
Thickness: 0.006" to 0.010" (0.15mm to 0.51mm)
†Longer films over 17” require user support during feeding, and a scanning
application that handles long films.
Auto film feeder Standard 25-film capacity (mixed sizes, no presorting)
Film sizes “Light box loading”: head-up, normal reading, left justified
Width: 7”to 14”(20.3cm x 35.6cm)
Length 8”to 17”(20.3cm x 43.2cm)
Thickness: 0.006”to 0.010”(0.15mm to 0.51mm)

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 8
About Films
The film digitizer handles standard radiograph film sizes up to 14”(35.5cm) wide.
You can batch feed multiple films (up to 25), and you can mix film sizes ranging from 8”
x 8”(20.3cm x 24.5cm) to 14”x 17”(35.5cm x 43cm) in one batch feed stack—as long
as you follow the rules below.
IMPORTANT: Remove stickers, tape, staples, paper clips, etc.
from films before scanning. These may cause serious film
feeding problems and may damage the digitizer’s internal
mechanisms. Failure to remove extraneous items from
films will void your warranty.
Load films just as you would view them on a light box, with these qualifications:
Films must be loaded left justified.
Do not load films more than 17”(43.2cm) long for batch scanning in the auto feeder.
See “Digitizing a single film,” later in this chapter, when loading films longer than
17”.

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 9
Basic Operating Instructions
1. Turn on the film digitizer and wait for all three LEDs to turn green.
Note: Always turn on the film digitizer before turning on the
computer. This enables the computer to recognize the digitizer.
Note: Several minutes are required for the digitizer to carry out
its internal diagnostics and establish communications with the
scanning application. These activities must be completed
before you can load film into the digitizer.
2. Turn on the computer.
3. Launch the scanning application.
IMPORTANT: Remove stickers, tape, staples, paper clips, etc.
from films before scanning. These may cause serious film
feeding problems. Failure to remove extraneous items from
films will void your warranty.
4. If you will be digitizing films 17”
(43.2cm) or longer, raise the film support
bar.
Longer films out to 51” may require
manual support.
5. Load the film.
How you load the film depends on whether you are digitizing one film or multiple
films, and the film sizes to be digitized. See the next pages for details.
CAUTION: X-ray images displayed on a computer monitor are
representative only. A variety of factors influence image density
and size—including monitor luminance and calibration, window
and level settings, zoom level, and dimensional and grayscale
inaccuracies resulting from build-up of tolerances in the
digitizer, display board and computer. For this reason, special
precautions must be exercised (e.g., calibrating the software
ruler and computer monitor) when taking measurements from
digitized images. Please refer to the user’s manual for your
digitizing software for more information.
Note: All films, regardless of size, must be left justified when
loaded into the feeder and/or digitizer.

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 10

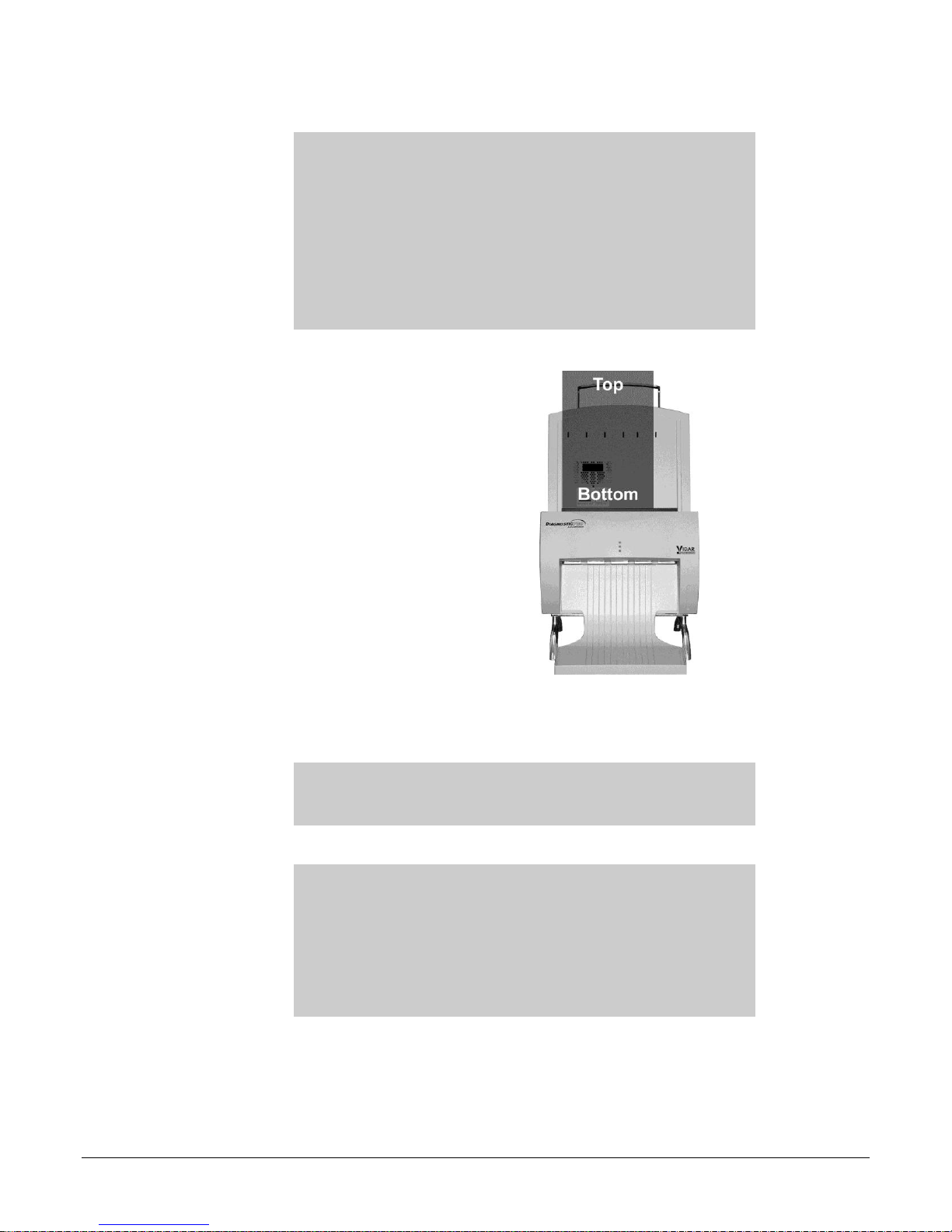

Digitizing a Single Film
Options for digitizing single films
There are two ways to scan a single film:
By manually inserting the film behind the blue bar (as
described in this section), or
By treating the single film as a batch-of-one (if the scanning
application supports this approach); for instructions, see
“Digitizing multiple films” (next section in this manual).
The digitizer cannot batch-of-one feed a single film smaller than
2.36" wide x 8" long (5.99cm wide x 20.3cm long). Do not scan
paper.
1. Hold the film in front of you as you
would view it on a light box.
2. Align the left edge of the film with
the film guide on the left side of the
feeder.
3. Place the film into the slot
BEHIND the blue bar.
The blue bar has a lip and a groove
on the top edge of the digitizer
where the feeder is attached. Place
a single film directly behind the
blue bar.
When the digitizer senses the film,
it automatically stages the film in preparation for digitizing. The film will first move
down, then up. This is normal operation.
CAUTION: If the film is not staged properly, do not manually
pull the film out of the digitizer. Instead, use the scanning
application’s EJECT command to remove the film.
Note: When a film has been staged, it is in the digitizer’s light
path. The ADC (Automatic Digitizer Calibration) feature requires
that the light path be clear of the film for proper background
calibration of the digitizer. The digitizer will automatically adjust
the film’s position to properly proceed with ADC. Depending on
the location of the film’s leading or trailing edge, and the length
of time the film has been blocking the light path, the film will be:
a) pushed up, or b) pushed down.
4. Using your scanning software, execute the Scan command.

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 11
Note: Proper orientation of the
film during loading depends on
the scanning application program
you are using. Some scanning
programs rotate images 180° for
display. If images appear upside
down, you may be able to set the
default orientation in the scanning
application. If this option isn’t
available, then insert films into the
digitizer upside down, as shown
here.

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 12

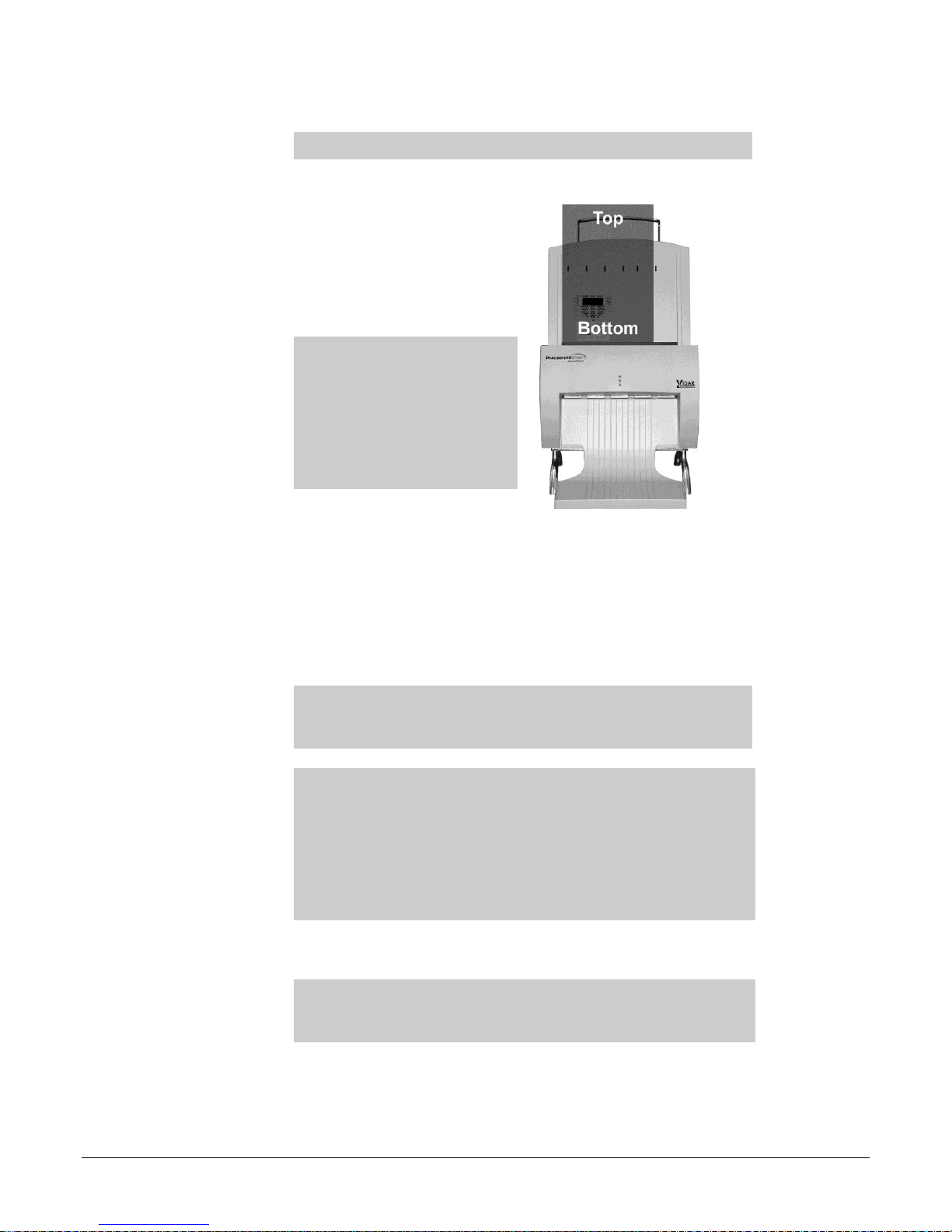

Digitizing Multiple Films
CAUTION: Do not load more than 25 films at one time.
1. Hold the film stack in front of you
as you would view it on a light box.
Films at the back of the stack are
digitized first.
Note: The digitizer cannot
batch feed films smaller than
8" wide x 8" long (20.3cm
wide x 20.3cm long). When
loading small films, the
vertical dimension must be at
least 8" (20.3cm). Do not
scan paper.
2. Align the left edge of the film stack with the film guide on the left edge of the feeder.
3. Place the film stack IN the groove in the blue bar.
The blue bar has a lip and a groove on the top edge of the digitizer where the feeder is
attached.
Note: If you are digitizing a single film, place the film directly
BEHIND the blue bar. (This film must be at least 8" wide x 8"
long (20.3cm wide x 20.3cm long).
Note: When a film has been staged, it is in the digitizer’s light
path. The ADC (Automatic Digitizer Calibration) feature requires
that the light path be clear of the film for proper background
calibration of the digitizer. The digitizer will automatically adjust
the film’s position to properly proceed with ADC. Depending on
the location of the film’s leading or trailing edge, and the length
of time the film has been blocking the light path, the film will be:
a) pushed up, or b) pushed down.
4. Using your scanning software, execute the Scan command.
Note: During extended batch scans (more than 5 films), the
digitizer may pause periodically to recalibrate. This is normal
operation.

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 13
Note: Proper orientation of the
film during loading depends on
the scanning application program
you are using. Some scanning
programs rotate images 180° for
display. If images appear upside
down, you may be able to set the
default orientation in the scanning
application. If this option isn’t
available, then insert films into the
digitizer upside down, as shown
here.

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 14
Preventive Maintenance

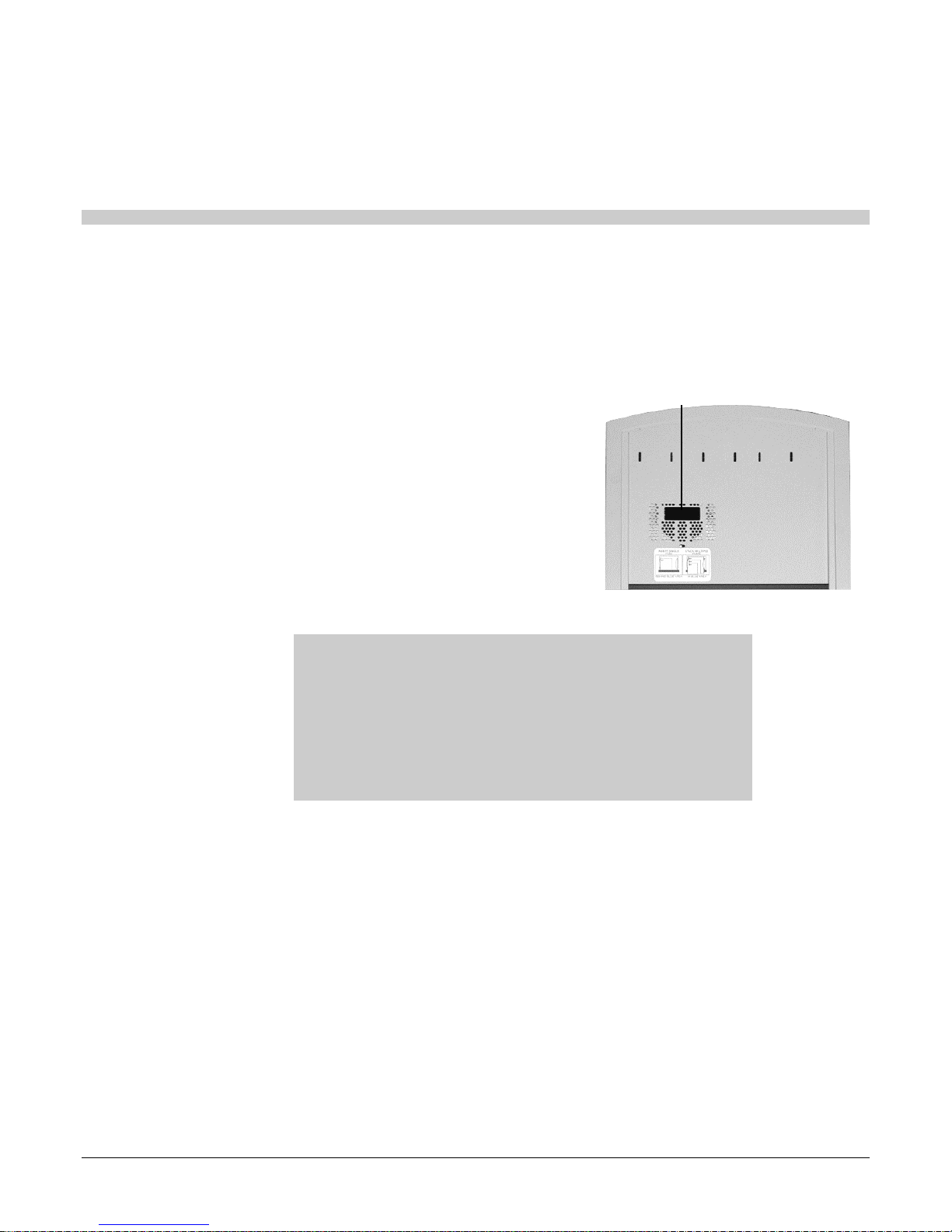

Cleaning the Auto-Feed Roller
After extensive use, dust or lint particles may build up on the Auto-Feed Roller. VIDAR
recommends cleaning the roller at least twice per year.
Loop a piece of light adhesive tape (such as
Scotch® Magic™ Tape) around your fingers
with the adhesive side out, then gently pat the
roller. Pat and turn the roller until its entire
surface is clean.
CAUTION:
Do not use any type of cleaning solvent on the feed roller
and idler wheels, as this could damage these components
and cause improper operation.
Do not use tape with a strong adhesive, such as packing
tape or strapping tape.
Do not use tape requiring the adhesive to be wetted, such as
brown paper packing tape.
Auto-Feed Roller

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 15
Cleaning the Diffuser
If you notice streaks (vertical artifacts) in images, you should clean the diffuser.
1. Turn off the digitizer. Allow 10 to 15 minutes for the bulb cartridge to cool to a
comfortable temperature before removing it.

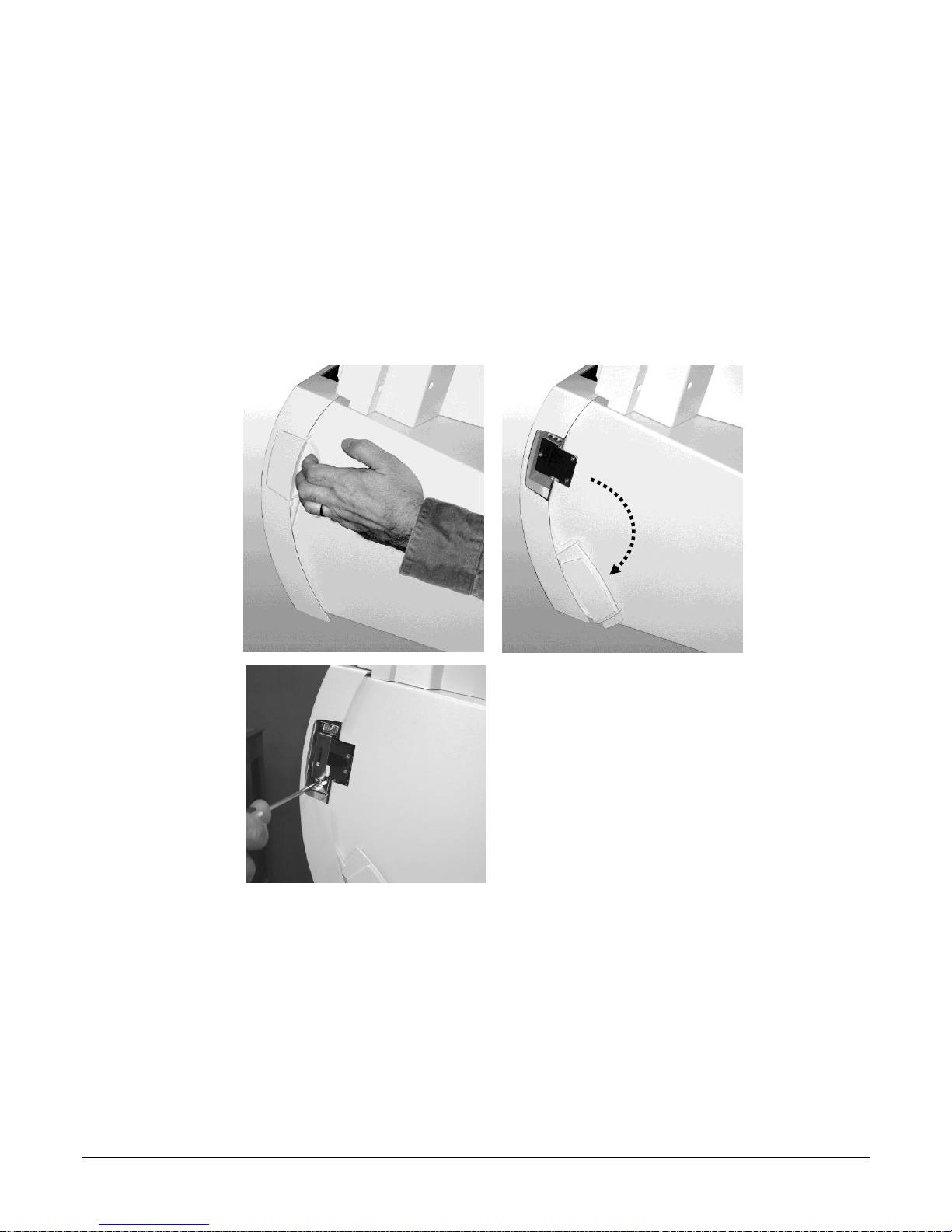

2. Open the door on the side of the digitizer base:
3. Remove the lamp Cartridge Clamp using a #2 Philips screwdriver.

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 16
Wipe in one
direction only!
Diffuser
4. Grasp the top and bottom of the lamp cartridge, and then pull it out.
CAUTION: Do not touch the diffuser material with your fingers.
5. Place the lamp cartridge on a flat surface with the diffuser facing up.
6. Clean the diffuser using a lint-free wipe (VIDAR P/N: 15194 or P/N: 4247). Wipe in
one direction only. Don’t wipe back and forth.
Note: The lamp cartridge assembly will resemble the image
shown below:
IMPORTANT: DO NOT USE ALCOHOL or other SOLVENTS
as they may degrade the diffuser and void your warranty.
Do not touch
diffuser!

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 17
Slide in digitizer base
Slide in digitizer base
Slot in lamp
cartridge
Slot in lamp
cartridge
Bulb
Cartridge
7. Insert the lamp cartridge into the
digitizer base:
The diffuser must face the rear of the
digitizer base.
The end of the lamp cartridge with
the white connector goes in first.
Ensure the slots along the top and
bottom of the cartridge align with
the slides in the digitizer (see
illustration at right).
When the cartridge is nearly all the way in, push it firmly until you feel the
connector snap into place.
Slide cartridge in... then push to seat connector
8. Re-install the lamp cartridge clamp assembly if removed earlier.
Diffuser

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 18
9. Close the door on the side of the digitizer base. Be sure the door closes fully.
10. Turn on the digitizer. The digitizer will recalibrate to the cleaned diffuser.

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 19
Replacing the Lamp Cartridge
WARNING: The lamp cartridge assembly is specific to the
NDTPRO Industrial Film Digitizer model. Ensure you have
the correct replacement lamp Cartridge before installing a new
lamp.
Contact VIDAR Technical Support if you have any questions
about installing or using your VIDAR film digitizer:
Phone: Phone: +1.800.471.7226
+1.703.471.7070 outside the U.S.
E-mail: mailto:[email protected]
Follow the instructions in “Cleaning the Diffuser,” earlier in this chapter, but work with
the new lamp cartridge in steps 5 through 10.
Preventive maintenance is not covered under warranty. (Only failures during the
published warranty period are covered by warranty replacement. Failures must be
confirmed by running VIDAR’s Digitizer Diagnostic Tool. The software generates a
report showing light values indicative of lamp performance. You can request a copy of
the Digitizer Diagnostic program from VIDAR Technical Support.)

19441-001 Rev. B VIDAR NDTPRO Industrial Film Digitizer User’s Guide 20
Troubleshooting
Reading the LEDs
Three LEDs on the front of the digitizer provide operating information.
Location
Function
Normal state
Top LED
Feeder status
Solid green
Center LED
Digitizer status
Solid green, but slow flashing
when digitizer is busy
Bottom LED
Power status
Solid green
Tables on the next three pages explain all LED states.
LEDs
Other manuals for NDT PRO
2
This manual suits for next models
1
Table of contents
