Videotek VT-7108 User manual

Videotek Company Limited
VT-7108 Users manual
Document name : Technical Instructions
Document NO. : VT1.7108.000CS
Version : 01
Compiler : Luoxiangrong
Checker :
Authorizer :
Commencement date: On November 8,2013
Distribution NO. :
All rights reserved, the pirate edition investigates necessarily!
signet

Technical Instructions
Volume : Volume Two
Total Pages : 5 Pages
Total Volume : One Volume
Product NO. ：VT-7108
Product name : Wireless Transmission
Product drawing NO.: VT1.7108.000CS
Compiler : Luoxiangrong
Checker :
Authorizer :
On November 8,2013
Videotek Company Limited

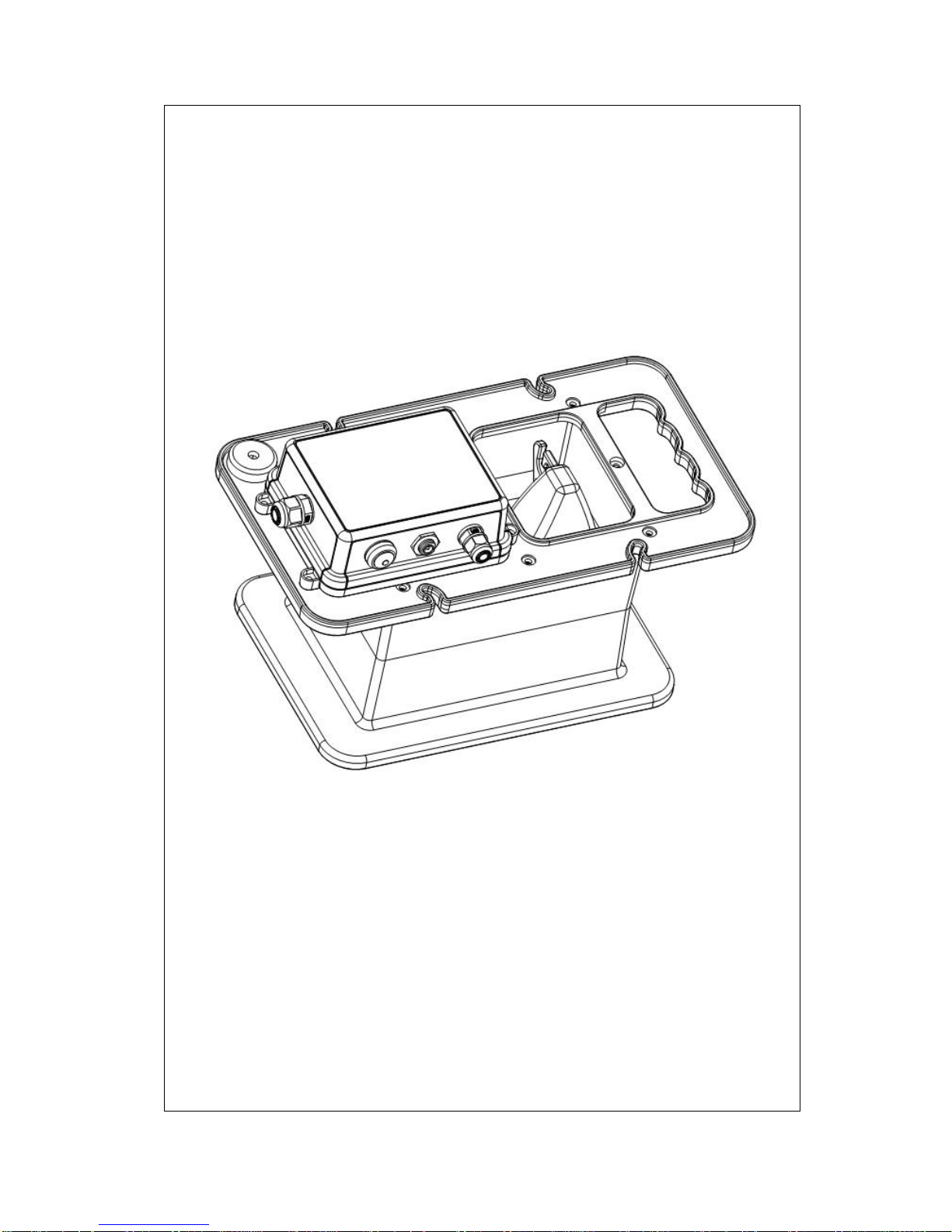

External View

1.Subject matter and Applications
The instructions stated the series of VT-7108 is made up of WIFI
image transmission;HD cameras,etc.It is a remote wireless
monitoring transmitter contains image collection ,compression
storage transport functions. The technical requirements include
features;technical parameter;operation manual etc.The series of
product of VT-7108 will display the image on the
andriod/iphone/ipad etc.smart phone thru WIFI.
2.Features of 7108
2.1 Unique separating appearance design
2.2 Get the image for monitoring on smart phone or IPAD via
WI-FI
2.3 Low power consumption design
2.4 Unique function of taking photos or videos via cellphone
2.5 adjust the brightness of LED via the cellphone
2.6 It can display ,monitor and storage on varies of Android
cellphone and IPHONE
2.7 Transmission distance above 50M
2.8 One key to restore the factory default Settings
2.9 With the multinational languages design
2.10 short latency time when transmitting images
2.11 It can change name and password

3.Technical Data
Wireless transmitter
It is made of super compressive engineering plastic ,high
efficiency power and high resolution camera etc.
3.1 Video input:Composite Video,1V(p-p)+or-20% 75 Ohms
3.2 Dimensions:IPHONE or Android etc.Varies of smart phone
3.3 System: Above Android 2.3 or IOS 6.0
3.4 wireless parameter:
Frequency range:2412-2472MHz
Wireless transmit operation mode:ieee802.11b/g/n
Receiving sensitivity:-88dBM
Maximum power supply:(16dBM)
Modulation system:OFDM
3.5 Video output: 1V(p-p)+or-20% 75 Ohms
3.6 cable length: 20M
3.7 Power supply:DC :10V-15V
3.8 Power consumption: ≤4W
3.9 Standby current:0MA
3.10 TV system：PAL/NTSC
3.11 Light button:red
3.12 Low voltage display:≤10.5V±0.5V
3.13 Waterproof standard:IP65

3.14 Operating temp:-15ºC-- +65ºC
3.15 Storage temp:-20ºC-- +70ºC 2hours, 30seconds to turn it on
3.16 Whole dimension:279mm(length)×152mm(wide)×167mm(high)
3.17 maximum transmission distance:80M
4.7108 Operating instructions
4.1 OSD instructions
CONNECT NOW (Connect video and display image)
SYSTEM STEP
CHANGE WIFI NAME
CHANGE WIFI PASSWORD
FACTORY Default
BACK
LIBRARY (Photos or video skinning)
LED ON/OFF
I Agree
Operation Manual
4.2 Button instructions
1.Video output.Connect to the equipment with AV video display
2.Recharge socket,Intermediate for the anode.(Please use the
special charger)

3.Power switch,short pressing to turn it on;Long pressing more
than 2 seconds to turn it off;3times short pressing to reset.
4.Video port.To connect the video with varies of same ports.
4.3 FISHphone WIFI wireless monitoring operation manual
1.Make sure the camera have connected with the WIFI equipment.As
shown below:
2.turn on the power of WIFI equipment,the equipment include a
rechargeable battery,when insert the special charger in the DC
socket,it will work by recharge.A full battery can work more than
8 hours.(remark:one time pressing turn it on.more than 3 seconds
pressing turn it off,three times continuous pressing reset the

system.
3.On the mobile phone standby mode shown as below ,click
“settings”and set the “WIFI”.
4.Click “WIFI”select the name of the wireless router.As shown
below:

5.select “FISHPhone”WIFI net,when there is a “√”on the
fishphone,wireless router has selected,then click “home”back.
6.On the mobile phone standby mode shown as below,click
“FISHPone”and enter.
7.Appeared as shown below:

(In the official version of the software, only the first time
using this software will appear the following screen)
Click “click here”for end user license agreement and will show
the following page,and click “back”key back.

Click “View Usage Warnings” and will turn to following page,and
click “back”key back.

Click “I agree” and will turn to following page,(In the official
version of the software, only the first time using this software
will appear the following screen)
Click “ ” and will turn to following page,

When the equipment is normal connection,the LED light will flash
rapidly,it means the system is on normal operation.
B.click the screen of monitoring enter the full screen monitoring

Click “ ” and show the following page.then it can
set the “WIFI name”and “passwords”
Click “ Change WIFI name” and show the following page

OLD WIFI NAME will recognize automatically, generally don't have
to set.
NEW WIFI NAME to modify the NAME, input the NEW NAME.
CONFIRM after input the name click this button to CONFIRM the
modification.
Cannel for the cancel button, that is, cancel and return to the
interface of a changed.
After the modification, the WIFI module of 7108 needs to be
restarted, then search the WIFI after restarted is already a
new WIFI name.
6.As shown below:
1. the LED button of camera.
2. the button of taking monitor photos
3. the button of adjusting brightness of LED light;
4. Photos or video skinning
5. exit monitoring

7.click “ ”and enter the monitoring screen to take
photos,as it is shown below,when the button become red,it means
monitoring photos have been taken.
8.Click “ ”and enter the monitoring screen to record
videos,as it is shown below,when the button become red,it means
recording the monitoring video.click“ ”again stop
recording.

9.9.click “ ”and turn off the LED light of camera.click
and adjust the brightness of LED light.
10.Click “ ”and enter the function of browsing
photos.then click “camera roll”and browsing the photos.

13.click one photo and show below,
Click “Cancel”back to “camera roll”interface,click
“choose”back to monitoring interface.
