Videplus VP-EO2C User manual

Page 1 of 7
Model VP-EO2C
Ethernet Extender
VP-EO2C Ethernet Extender allows 10/100 BaseT Ethernet
to be transmitted over any 2-wire copper cables. This device is often used in
legacy installations where existing wire is re-used as part of an upgrade
to IP devices.
This device contains the Master unit and Slave unit, which supports point to point and point to multi-point network
transmission. Now this device has been widely used for network extension system, network security, network
information publishing system, network renovation and expansion systems, railway, urban traffic, mining and
telecommunication, etc.
IP Video Surveillance Network Smart Home
Elevator IP Surveillance Intelligent Network Industry
Page 2 of 7
◆Max transmission distance can reach 1,000m (RVS 2×1mm2)
◆Max physical bandwidth can reach 500Mbps
◆Support power over coax technology (0-220V)
◆Plug and play, transparent transmission, no adjustment and no need to change the upper software
◆Low power consumption, communication channel dynamic adjustment and high performance error correction coding
technology
Telephone Line: Category 3 or above Power Line: RVV, RVS, RVVP, RVB 2×0.5mm2
UTP Cable: Category 5 or above Coaxial Cable: RG59 or above
RJ45 port by EIA / TIA568B BNC/2-wire Converter (Optional)
Power Adapter by 12VDC/1A, 5mm female power port (Optional)
Page 3 of 7
Category
Description
Power
Available Voltage Range
12VDC±10%
Power Consumption
≤2W / PC
Transmission / Rate
Standard Compliance
IEEE1901, IEEE802.3
Up down Agreement
CSMA/CA
Physical Speed
500Mbps
Encryption Way
128-bit AES Encryption
Reliability
MTBF
>30000 hours
Physical Characteristic
Dimensions (L × W × H)
97mm×86mm×25mm
Material
Aluminum
Net Weight
130g/PC
Operating Environment
Working Temperature
-20℃~60℃
Working Humidity
<95% Non-condensation
Page 4 of 7
Tips: VP-EO2C Ethernet Extender signal belongs to high frequency radio frequency signal. Considering the cable loss,
please choose better quality connectors.
The graph below shows VP-EO2C transmission distance and network data rate. The data differs from the cables types.
When you use this device, please choose the suitable cables in line with your demands.
The above data for TCP throughput is the measured data in the actual environment. The maximum physical layer data
is 500Mbps. For coaxial cable transmission, performance is more stable, but it also affected by the cable and terminal
matching methods. The above tests are all finished in the field test.
Master
Slave
Step
Installation Instruction
Step
Installation Instruction
1
Network equipment is connected to RJ45 port of
master unit(1)
8
The connection terminal of A line of 2-wire (8)
2
The connection terminal of A line of 2-wire(2)
9
The connection terminal of B line of 2-wire (9)
3
The connection terminal of B line of 2-wire (3)
10
Connect the UTP cable of network equipment to
RJ45 port of slave unit(10)
4
Connect power supply (12VDC) to the power
port (4)
11
Connect power supply (12VDC) to the power port
(11)
5
Power indicator is always on(5)
12
Power indicator is always on(12)
6
Network data indicator, it quickly blinks when
data is normal(6)
13
Network data indicator, it quickly blinks when data
is normal(13)
7
Line indicator is on (In one line, the indicator is
always on when powered firstly, indicator is
always flash when powered later) (7)
14
Line indicator quickly blinks (In one line, the
indicator is always on when powered firstly,
indicator is always flash when powered later)(14)
Page 5 of 7
Figure 1 - Typical Installation
Most installations that use the VP-EO2C involve the replacement of old analog equipment with new IP devices, while
reusing the installed wire. In generally, there are two connections types. One is typical connection (Figure 1 above).
And the other is Bus-architecture and Daisy Chain Connection (Figure 2 and 3 Below). You can choose the
connection type in line with actual environment
Figure 2- Bus-architecture Connection
Page 6 of 7
Figure 3-Daisy Chain Connection
OT-PLC601 supports multicast function which can realize one point to multi-point data forwarding, to improve
transmission efficiency.
Figure 4- Multicast
Figure 4- Multicast
Tips: For a lot of front-end network equipment, you can use a network switch to collect, when more network devices
are connected, you can choose 16 Channel Ethernet Extender Hub.
VP-EO2C can support Power and Ethernet simultaneous transmission. When Ethernet signal transmission in
power line, to avoid power line interference, you should install Power Filter on each VP-EO2C unit, installation diagram
as below:
Figure 5- Powerline Application
When you use VP-EO2C, please follow the below tips as a reference, in order to reduce the fault in the process of
using and the inspection work.
Page 7 of 7
1. The device supports auto-negotiation allocate master and slave. It also can be set master-slave side and grouped by
software. Each group (one point to multi-point communications group) only allows one Master, others are Slaves.
Otherwise, the network data won't be able to transmit.
2. Signal transmission cable must be the copper cable. Other material cables will cause the decrease of signal
transmission quality and distance.
3. Long distance cable connection must be formal connection methods, such as welding or using connectors.
4. Coaxial cable, twisted-pair cable, telephone line and power line all can be used to transmit network data signal in
projects. A variety of cables arbitrary mixed connection also can reduce the quality of signal.
5. Please choose matching power supply (12VDC / 1A).
6. If need to transmit power at the same time, you should install power filter in the front of each device to make sure
signal stability
7. There is no waterproof design for this product, please make sure it is used in dry environment.
8. If device fails, do not disassemble or repair it by yourself. Please contact us timely.
Attentions: Specifications are subject to change without notice. Thank you for choosing us. For more details,
please visit our website: www.videplus.com
Videplus NI Ltd
Units B4 and B5, 24 Duncrue Crescent, Belfast, BT3 9BW, UK
Tel: +44 2890 329480
Fax: +44 2890 329460
www.videplus.com

Popular Extender manuals by other brands

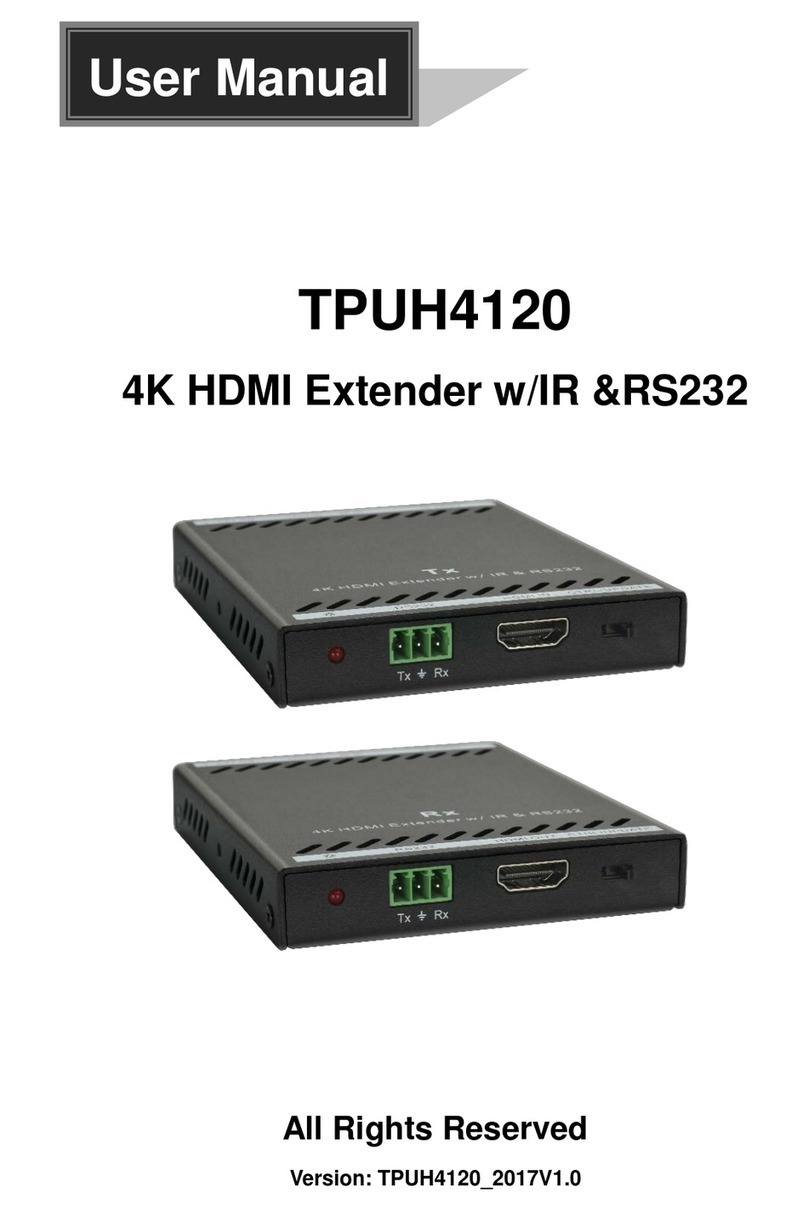

WolfPack TPUH4120 user manual

WolfPack

WolfPack TPUH4120 user manual

EVE Extend Get started

EVE

EVE Extend Get started

Savant HCX-4KHDR100 Quick reference guide

Savant

Savant HCX-4KHDR100 Quick reference guide

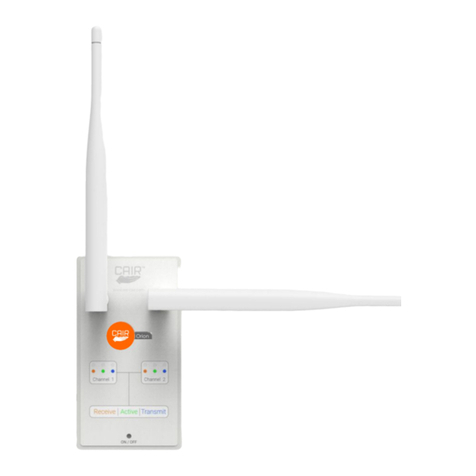

Cair Orion Programming guide

Cair

Cair Orion Programming guide

Eagle Tree Systems PowerPanel LCD Display Expander user manual

Eagle Tree Systems

Eagle Tree Systems PowerPanel LCD Display Expander user manual

Kramer FC-46H2 user manual

Kramer

Kramer FC-46H2 user manual

Metra Electronics CS-HDC5EXTSRLO user manual

Metra Electronics

Metra Electronics CS-HDC5EXTSRLO user manual

INSTEON 2992-222 quick start guide

INSTEON

INSTEON 2992-222 quick start guide

Metronic 475263 manual

Metronic

Metronic 475263 manual

TP-Link AC1900 Quick installation guide

TP-Link

TP-Link AC1900 Quick installation guide

ActionTec ECB7250A KIT quick start guide

ActionTec

ActionTec ECB7250A KIT quick start guide

MuxLab 500757 Quick installation guide

MuxLab

MuxLab 500757 Quick installation guide

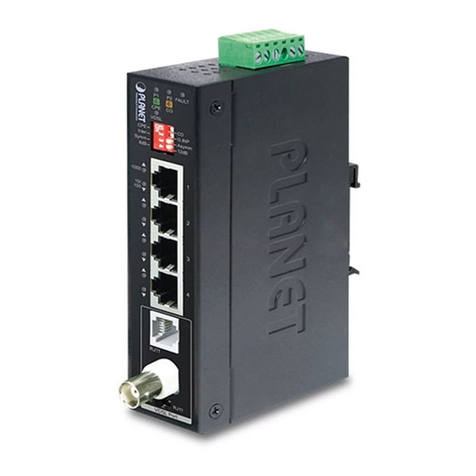

Planet IVC-234GT user manual
