Videsur-electronic VSFHD1080 User manual

VSFHD1080 USERMANUAL
Preface
Thank youforpurchasing thisHDCAR DVR whoseappearance is miniandexquisite. Thismanualwill
descript in detail howtouse thisproduct andatthesametime provide youdetailed product information,
includingoperation,installation,andtechnicalspecifications, etc.,please readand understandthis
manualfullybeforeusing,also keep thismanualwe hope that ourproductcanmeetyourneeds and
provide youa long service.
Introduction
This product isa super smallhigh definition digitalvideo cameraaimed atthemarket demand andit
hasthefunctionsofleadingthehigh-definitiondigitalaudiorecording, video recording, photographing,
high-speed USB datatransmission,USB charging .
Itis widelyuseand convenientto recordanytimeaswell as anywhere.

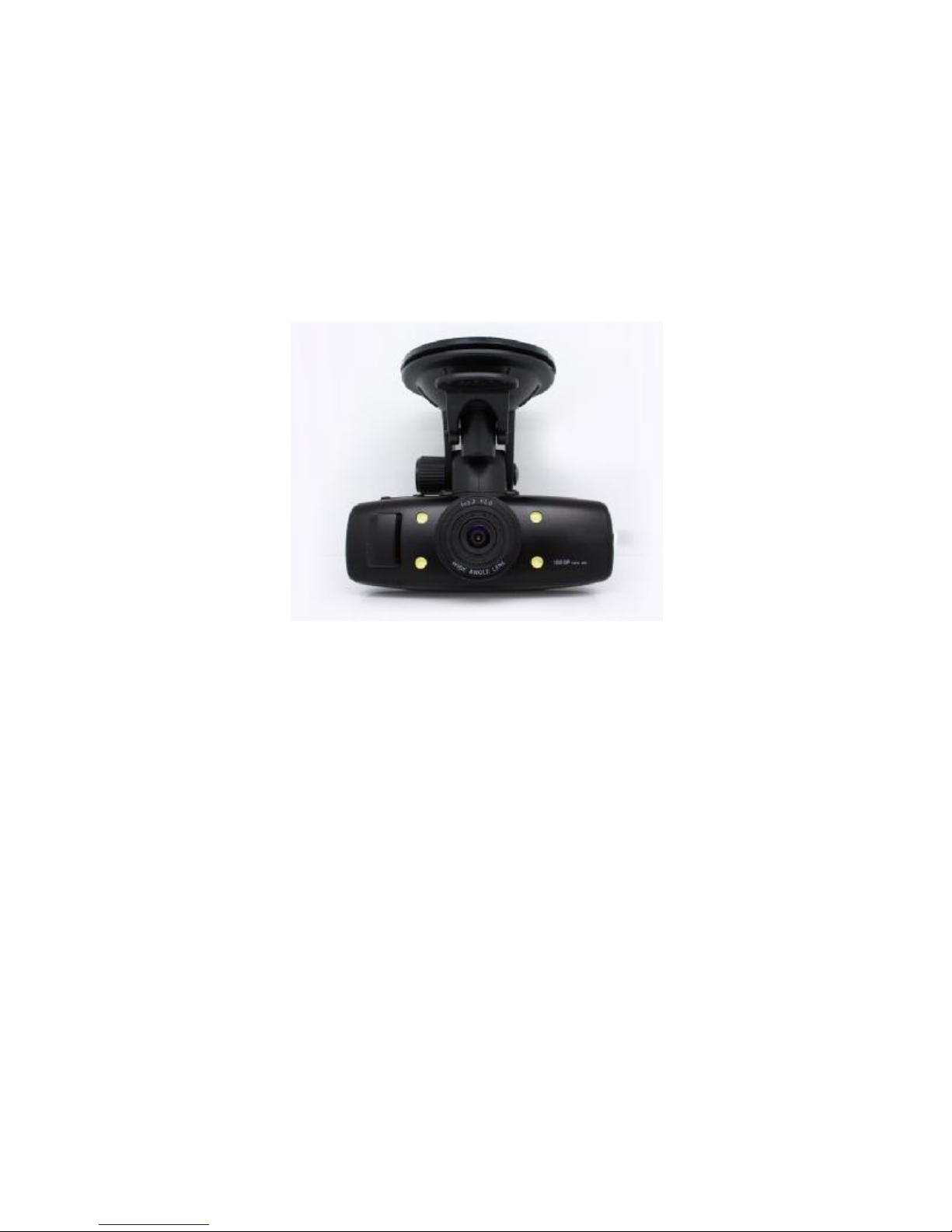

Picture introductionof product function

Installationand use
Batterycapacityindicator,please refertodiagram
Full slightly low low
Battery charging
1Directlyconnect carchargertoUSBinterfacetocharge,canchargeinshutdownstate inthisway
also.
2)USBcharge,connectthis producttocomputer viaUseUSBdatalinetocharge, canchargein
shutdownstate in this wayalso.
SD card sinstallationand removal
1In accordancewiththe indicateddirection,insert TF card toslotuntil the TF cardis fixed.
2Gentlypress TF card,canremove after itpopsup
Note
1Please note the directionofinserting TF card,machineandTFcard maybe damaged duetoreverse
insertion.
2Whenyou insertTFcardinto machine, themachinewill setitasthe defaultstorage device, the

originalinformationinthe TF cardinformationmaynotbeable toberead.
3Ifthe TF card is incompatible withthe machine,pleasere-plug it orchangeone and retry.
4Please usehighspeed TF card
User Guide
Turnon and offvideocamera
1. Pressthe powerbuttonforone second toboot
2Press the powerbuttonfor3seconds to shut down
How toenter system setup options...
PressMODEkey twice toenter "systemsettings"option,atthis time task "system settings"is gray
I.Videorecording Settings
1magequality：1920*1080@30fps 1440*1080@30fps 1280*720@30fps 848*480@60fps
2EVvalue
3Audio:on/off
4Whitebalance:Off/automatic
5Contrast settings
6Sharpness：High/ soft / standard
7Special effect：Standard/bright / black &white/ negative /nostalgia/Art
8Circular camera：128M/256M/512M/cancel
9Delay shutdown:cancel/ yes
10 LED：on/automatic on / off
11 Mobile detection : on/off
12 MDSENS：1/2/3/4/5/6/7/8
II System settings
1Language: Chinese Simplified / traditionalChinese / English/Korean/ English/ Italian/ Japanese
2Volume：1/2/3/4/5/6/7
3Date setting：2012.08.09
4Timesetting：12:00
5TVoutput：NTSC/PAL
6Format：cancel/yes
7restoredefaultsetting：cancel/yes
8automatic shutdown：1minute/3 minutes/5minutes/off
9Frequency：50HZ/60HZ
10, Timestamp：Date/time
11, Screen setting：On/1 minute/3 minutes
12,Accelerationsensor：1/2/3/4/5/6/7
13, GPS: Yes/No
14, Version：V2.0.4G|HB
1Howtorecordvideo and set options

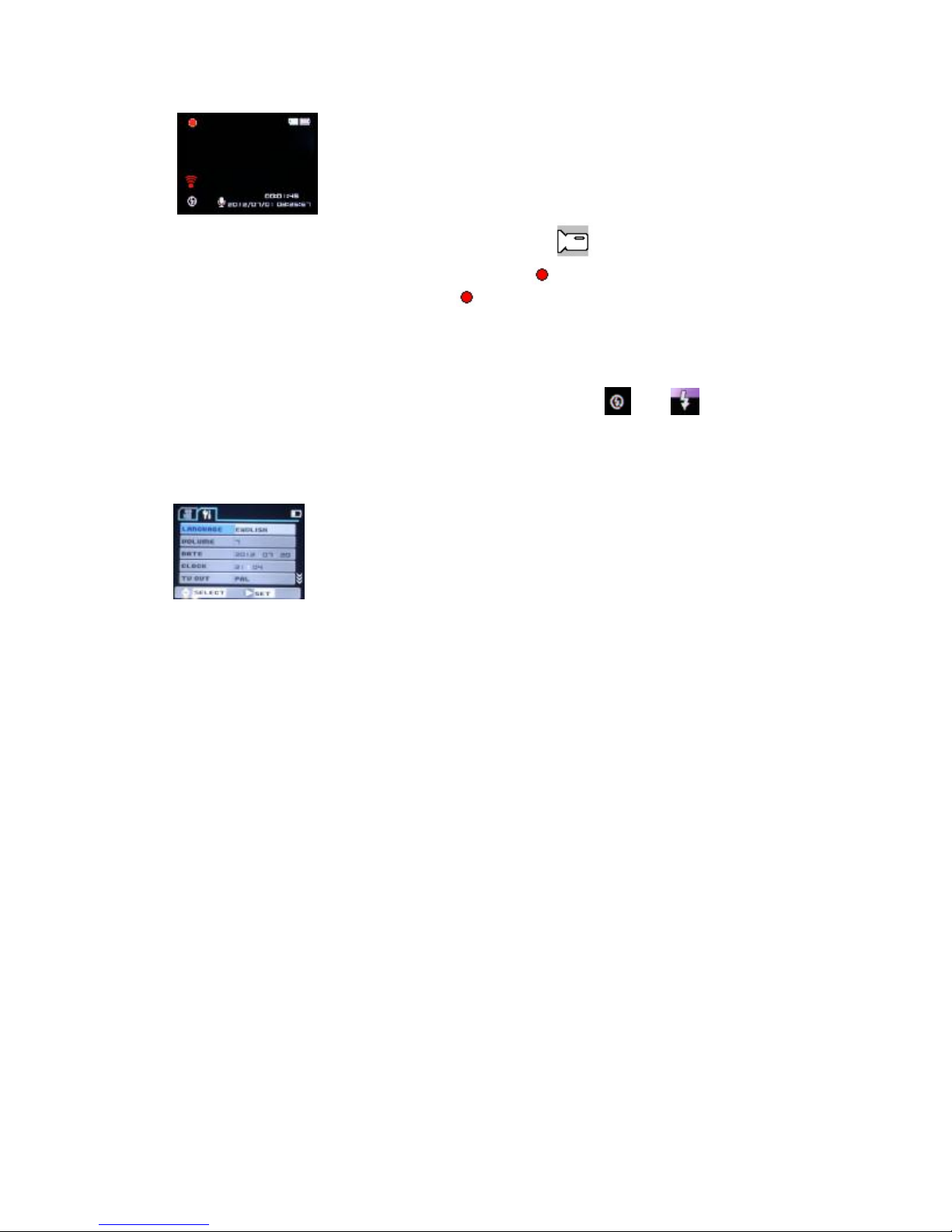

Machineenters into video recordingmode,whenthereisa on theupperleft cornerofthe
screen, press REC/OKtostartrecording there is aflashing“ on the upperleft corner of thescreen.
PressREC /OKagainto stop, atthe same time “ disappears。
2Selectionofnightlight:
In thestandbymode,shortpresstoopen switchkey can switch between “and“Nightmode
isto turnon filllight.
III DVR Settings
PressbuttonMODE twice,enterinto the setting options
Resolution：1920*1080@30fps 1440*1080@30fps 1280*720@30fps 848*480@60fps
Circulating video：128M/256M/512M/取消
Mobile detection：On/Off
Videoaudio：On/Off
Date label：On/Off
Photographing
PressbuttonPowerON/OFF, DVR goesintostandbymode, andaimsatthecamerabody, nowyoucan
presstheupanddownkeystoadjust digitalzoom,at thistimehold the DVRandmake sure itisnot
moving. Pressphotographing key to takeapicture, DVR issues "Kacha "sound,finishphotographing.
Tip：
1In the stateof recording, playback,menu,canpress MODE to switch between them.
Playback mode

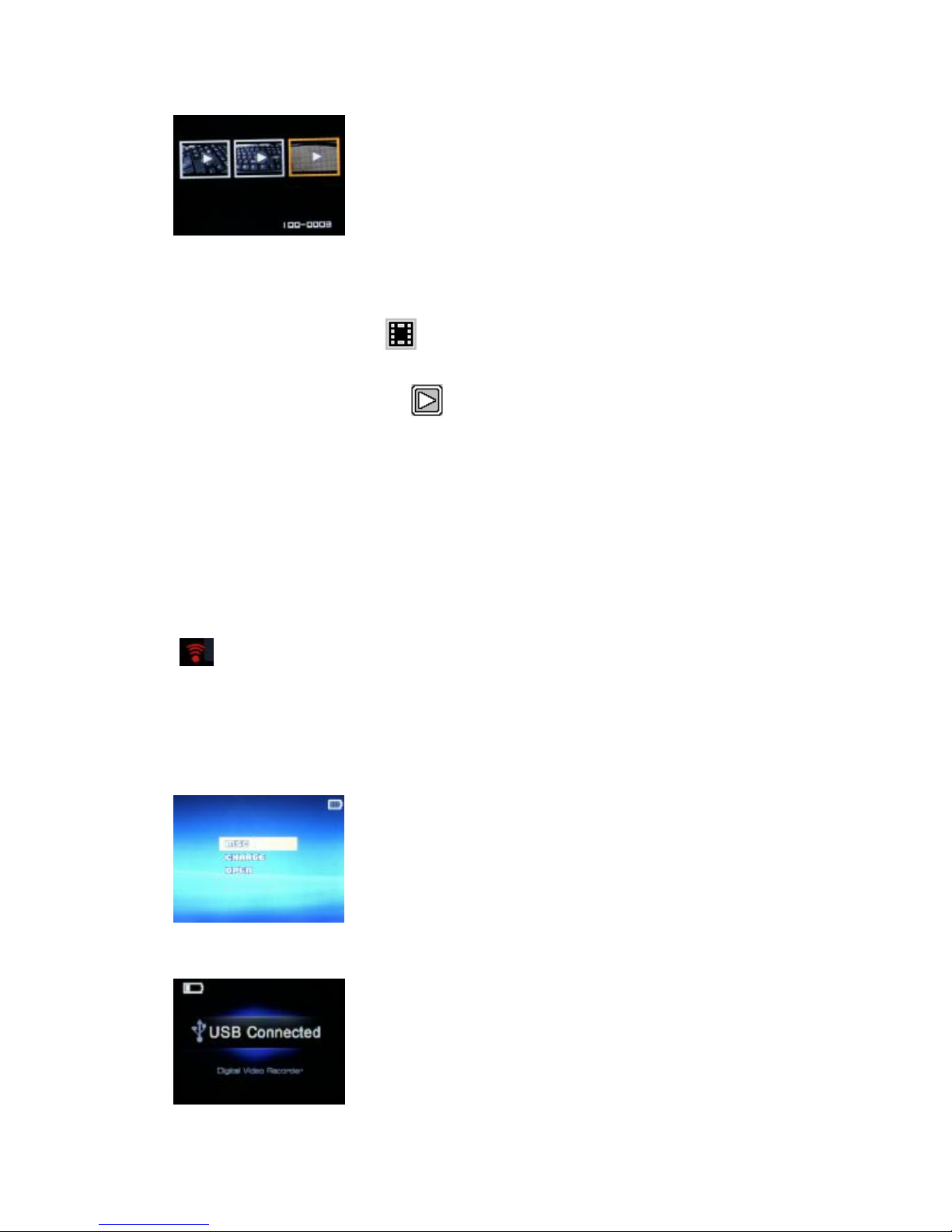

1When DVR enters into recordingmode,at thistime pressMODE twice, can goto thestateofbrowsing
6pictures2. Press UP/DOWN toviewpicturesandvideos. Nopress OKtoenterinto singlemode,also
caneditthesefiles. Whenthereis “ on theupleft corner whichmeans video. PressOKtoplay
and pause video, and at the sametimepress UP/DOWN tocontrol volumeas welllong press UP/DOWN
forfastforwarding/back during playing. “ on the screen means picturefiles。
2deleting
In playbackmode, ifpressbutton photograph,optionDeleteandFormatappear, move to the items
youwantand press OKto “delete or “deleteall", and pressOKagain to confirm.
Mode ofrecording videowhile charging
Connectcharger totheUSBinterfaceof machine, canenter into the modeofrecordingvideowhile
charging afterbooting
SignalGPSsearch
“ ” isGPS signalindicator icon,itwillchange to "green "whennormalsearched to GPSsignals,
that means signalGPS has been searched.
Data backup
USB modebackup
ConnectDVRtocomputer viaUSB cable, atthistimemachine willboot automaticallyandshowbelow
icon
Select “Memory and press OKto confirm, click “My Computer,thereis aremovable disk,can findrelated
files underremovable disk/DCIM

Remark：
1Operating system：Windows 2000/XP/Vista/Windows 7,MACOSX10.3.6 以上。
2Select storage media to transfer file
3Select charge,canchargeDVR
4Select boot cannormally bootDVR
Playvideo: use the player in CD toplay
Connect totelevisionto play
1Use HDMI line toconnect high-qualitytelevisiontoplay
2Use TV line toconnect TV torecordvideo, photograph,browpicture and files
Tip: Canuseremovable diskinDV’sstarting statewithoutinstalling drivers.
Remark: If this productis Down,whichiscausedby improperoperation,youcanusesmallhard objects
to tap Reset button, then itwill work again.
Technicalspecifications
LCD screen size 1.5 4：3TFTLCD
SENSOR 5MP OV5653
Camera lens 130 degreesA+ highlevelresolutionandultra wide angle lens
Optionallanguage Chinese Simplified /traditionalChinese /English/Korean/English/Italian/
Japanese
Video 1920*1080@30fps 1440*1080@30fps 1280*720@30fps 848*480@60fps
Videoformat AVI
Picture format JPG
TF Memorycard TF
Microphone/speaker Built-in
Photographing mode Single shot
Lightfrequency 50Hz/60Hz

TV output NTSC/PAL
USB interface USB2.0
Powerinterface 5V500MA
Battery Built-in
System requirements Windows 2000/XP/Vista/Windows 7,MACOSX10.3.6above
Note：The product designisreserved and its specification maychange without notice.
