Vie Oli OLID1077 User manual

User Guide
OLID1077
AROMA ULTRASONIC
DIFFUSER
with SOFT LED LIGHTS

In the Box
• OLID1077 - Ultrasonic Diffuser (x1)
• USB Power Cable (x1)
• Essential Oil (x1)
• Instruction Manual (x1)
Before You Begin...
• NOT INTENDED FOR MEDICAL USE
• This device is not intended to be a substitute for medical
attention.
• Do not expose the unit to extreme temperatures (heat or
cold), open flames, humid conditions, or wet conditions.
• Do not submerge in water.
• Do not open this product or attempt to repair the unit your-
self should it not be working.
• The amount and intensity of aroma produced will vary.
Factors that affect production of aroma can include water
type, humidity, temperature, air current, and/or type or brand
of essential oil used.
• It may take up to a half hour before you can smell the essential
oil.
• Aroma Operation Time: Up to 8 hours
• Water Tank Capacity: 60 mL
• The suggested room size for this device is ~150 ft²(this may
vary greatly by environment, type of essential oil used, etc.).
• Only 100% natural essential oil should be used with this
product. Oil containing chemical fragrance, spice, or other
impurities may cause malfunctions.
• ONLY use the supplied power cable. If using a USB adapter,
it MUST be a 5V/1A USB adapter (not included).
• When not in use, the diffuser should be stored in a dry, cool
location, away from sources of water or heat.
• It is recommended that the diffuser be covered to protect it
from exposure to dust if it will not be in use for a long period
of time.
Before You Begin...

Location of Controls
Water
Tank
Air Intake Vent
Mist Outlet
Cover
Inner
Lid
Power
Button
Micro-USB
Power Port
Warning: Do not block
air intake vent.

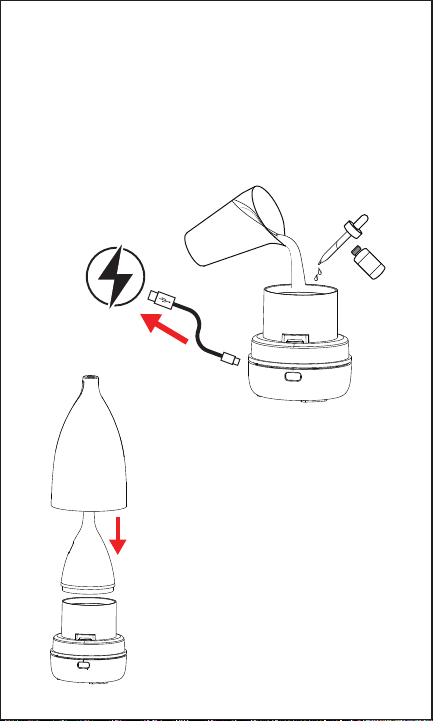

Getting Started
Setup
1. Insert the smaller connector of the supplied USB power
cable into the micro-USB power port on the back. Plug the
other connector into a 5V/1A USB power source, such as a
5V/1A USB wall adapter (not included).
2. Remove the cover and inner lid and fill the tank with room
temperature water until the MAX level line is reached.
3. Add 2 - 3 drops (~0.1 - 0.15
mL) of essential oil.
4. Replace the inner lid and
cover and place on a flat,
sturdy surface.
CAUTION: Using more than
the recommended amount of
oil may cause the diffuser to
get clogged and not operate
properly.
1
2
3
4

Using the Diffuser
• Press the Power button to turn the diffuser on. The LED
light ring will turn on and fade through colors.
• Press a 2nd time to freeze the current LED light color.
• Press a 3rd time to turn the LED light ring OFF.
• Press a 4th time to turn the diffuser OFF.
• Press + hold the Power button to switch between
Continuous & Intermittent Mist Modes. In Continuous Mist
Mode, the diffuser will mist every 30 seconds.
Cleaning the Diffuser
When you are finished using the diffuser, unplug the cable,
and drain any water remaining in the tank.
Gently wipe the inside of the tank with a
clean cloth or rag to remove any leftover
oil. Do NOT use any soaps or detergents
to clean the water tank.
Carefully clean the nozzle over the
ultrasonic pad with a brush or cotton
swab.
Do not use any soap,
detergent, or bleach
to clean
1st Press - Turn diffuser & lights ON
2nd Press - Freeze LED light color
3rd Press - Turn LED lights OFF
4th Press - Turn diffuser OFF
Press + Hold - Switch between
continuous & intermittent mist modes
Note: If there is no water in the tank,
the diffuser will automatically shut off.

1. Do not fill over MAX level line.
2. Do not turn the aroma function on when the tank is empty.
3. Do not touch the inside base of the tank.
4. Clean regularly per the instructions in this user manual to
avoid malfunctions.
5. Always unplug from power source before maintenance.
6. Always pour any remaining oil out of the tank and wipe
with a clean, dry cloth.
7. Essential oils can stain. In the event of a spill or leakage,
please wipe away any water or oil with a soft cloth.
8. Do not let aroma blow directly onto furniture, clothing, art,
or any valuable objects.
9. Keep away from direct sunlight, heat sources, air conditioners,
and fans.
10. Always keep on a stable, flat surface. Do NOT place on a
carpet, bed, cushion or other non-flat, non-stable surface.
11. Keep away from electronic equipment.
12. Do not tip the product as it may cause water to enter the
mechanism and cause malfunction.
13. Do not use for more than 6 hours at a time.
14. Never move the product while in use.
15. Do not touch any part of the product with wet hands.
16. Keep out of reach of children and pets. Children should not
be left unsupervised near this product. This unit is not to be
used by children or any person(s) with reduced physical,
sensory, or mental capabilities, or lack of experience and
knowledge, unless they have been given express supervision
and instruction.
17. Keep the power cable clear of pathways, and do not
forcefully pull or remove from the unit.
18. If smoke or burning smell is detected, immediately unplug
the unit.
Precautions & Warnings

Compliance Information
READ CAREFULLY AND KEEP THIS MANUAL
FCC Information
This device complies with Part 15 of the FCC Rules.
Caution: Any changes or modifications not expressly approved could void
the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This product complies with the requirements for Part 18 of the FCC Rules.
Although this product complies with FCC, it may interfere with other
devices. If this product is found to interfere with another device, separate
the other device and this product.
Radiation Exposure Information
This device has been evaluated to meet general RF exposure requirements.
The device can be used in portable exposure conditions without restriction.
Rating Label Definitions
Direct Current
This symbol represents FCC Declaration of Conformity
and compliance.

Printed in China/Designed in the U.S.
v1. 09/2021
Warranty Information
All product names, trademarks, and registered trademarks are property of their
respective owners. All company, product, and service names used in this document are
for identification purposes only. Use of these names, trademarks, and brands does not
imply endorsement.
90-Day Limited Warranty
Territory: United States/Canada
LIMITED WARRANTY TO ORIGINAL CONSUMER
This product as supplied and distributed new by an authorized retailer is warranted by
Southern Telecom, Inc. to the original consumer purchaser against defects in materials and
workmanship (“Warranty”) as follows:
To obtain warranty service:
• Visit our customer support portal: www.customersupport123.com
• Select the brand and model of your device
• Select “Service Request” and fill out the form to begin your inquiry
• Exchanges require dated proof of purchase from an authorized retailer
Your product will be repaired or replaced, at our option, for the same or similar model of
equal value if examination by the service center determines this product is defective.
Products received damaged as a result of shipping will require you to file a claim with the
carrier.
Warranty service not provided
This warranty does not cover damage resulting from accident, misuse, abuse, improper
installation or operation, lack of reasonable care, unauthorized modification including
software modifications such as the installation of custom firmware. This warranty is voided
in the event any unauthorized person opens, alters or repairs this product. All products
being returned to the authorized service center for repair must be suitably packaged.
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY.
DISTRIBUTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS
WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY
GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE
BINDING ON DISTRIBUTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL
PURCHASE PRICE - AT DISTRIBUTOR’S SOLE DISCRETION - ARE THE EXCLUSIVE
REMEDIES OF THE CONSUMER. IN NO EVENT WILL DISTRIBUTOR OR ITS
MANUFACTURERS BE LIABLE FOR ANY INCIDENTAL, DIRECT, INDIRECT, SPECIAL,
PUNITIVE OR CONSEQUENTIAL DAMAGES (SUCH AS, BUT NOT LIMITED TO, DAMAGES
FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA OR RECORDS) CAUSED BY THE USE,
MISUSE OR INABILITY TO USE THE PRODUCT. EXCEPT AS STATED HEREIN, NO OTHER
WARRANTIES SHALL APPLY. NOTWITHSTANDING THE FOREGOING, CONSUMER’S
RECOVERY AGAINST DISTRIBUTOR SHALL NOT EXCEED THE PURCHASE PRICE OF THE
PRODUCT SOLD BY DISTRIBUTOR. THIS WARRANTY SHALL NOT EXTEND TO ANYONE
OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT
TRANSFERABLE.
Some countries, states or provinces do not allow the exclusion or limitation of incidental or
consequential damages or allow limitations on warranties, so limitation or exclusions may
not apply to you. This warranty gives you specific legal rights, and you may have other
rights that vary from state to state or province to province. Contact your authorized retailer
to determine if another warranty applies.
