Viessmann Vitocell-B 100 CVB Series User manual

VITOCELL-B 100
Installation Instructions
for use by heating contractor
Vitocell-B 100
CVB Series
Enameled dual-coil, indirect-fired domestic hot water storage tank
79 and 120 USG / 300 and 450 ltr capacity
This tank version is not suitable
for steam heating applications.
Read and save these instructions
for future reference.
IMPORTANT
THE HEAT TRANSFER
MEDIUM MUST BE WATER
OR OTHER NON-TOXIC
FLUID HAVING A TOXICITY
RATING OR CLASS OF 1,
AS LISTED IN CLINICAL
TOXICOLOGY OF
COMMERCIAL PRODUCTS,
5TH EDITION.
THE PRESSURE OF THE
HEAT TRANSFER MEDIUM
MUST BE LIMITED TO A
MAXIMUM OF 30 PSIG BY
AN APPROVED SAFETY
OR RELIEF VALVE (SEE
PAGE 2).
CAUTION
5285 658 v2.1 09/2008

Safety, Installation and Warranty Requirements
2
Safety, Installation and Warranty Requirements
Please ensure that this manual is read and understood before commencing installation. Failure to comply with the issues listed below
and details printed in this manual can cause product/property damage,severe personal injury, and/or loss of life. Ensure all
requirements below are understood and fulfilled (including detailed information found in manual subsections).
HLicensed professional heating
contractor
The installation, adjustment, service,
and maintenance of this equipment
must be performed by a licensed
professional heating contractor.
"Please see section
entitled “Important
Regulatory and
Installation
Requirements”.
HProduct documentation
Read all applicable documentation
before commencing installation. Store
documentation near product in a
readily accessible location for
reference in the future by service
personnel.
"For a listing of
applicable literature,
please see section
entitled “Important
Regulatory and
Installation Requirements”.
HAdvice to owner
Once the installation work is
complete, the heating contractor must
familiarize the system
operator/ultimate owner with all
equipment, as well as safety
precautions/requirements, shut-down
procedure, and the need for
professional service annually before
the heating season begins.
HWarranty
Information contained in
this and related product
documentation must be
read and followed. Failure
to do so renders warranty
null and void.
In solar applications:
5285 658 v2.1
THE HEAT TRANSFER
MEDIUM MUST BE EITHER
POTABLE WATER OR
CONTAIN ONLY
SUBSTANCES WHICH ARE
RECOGNIZED AS SAFE BY
THE U.S. FOOD AND DRUG
ADMINISTRATION.
THE PRESSURE OF THE
HEAT TRANSFER MEDIUM
MUST BE MAINTAINED
LESS THAN THE NORMAL
MINIMUM OPERATING
PRESSURE OF THE
POTABLE WATER SYSTEM.
CAUTION

Contents
3
Page
Safety Important Regulatory and Installation Requirements 4....
General Information About these Instructions 5.......................................................
Product Information 5................................................................
Set-up and
Connections
Tank Set-up 6................................................................................
Recommended installation clearances for
service access 7
...........................................................................
Minimum clearances to combustibles 7...............................
79 USG / 300 ltr Tank Installation
Thermometer installation 8
.......................................................
Temperature sensor installation for solar operation 8.......
Temperature sensor installation (when using a
Vitotronic 200 / 300 or Vitodens 200) 9
..............................
Checking the anode connection 9...........................................
120 USG / 450 ltr Tank Installation
Thermal insulation and thermometer installation 10
...........
Temperature sensor installation for solar operation 12.......
Temperature sensor installation (when using a
Vitotronic 200 / 300 or Vitodens 200) 13
..............................
Checking anode connection and fitting lid 13........................
Aquastat installation (when using a Vitotronic 100) 14.....
Grounding connection 14.............................................................
Boiler Water Connections (heat exchanger connection)
Individual DHW tank 15
...............................................................
Domestic Water Connections 16..............................................
Recirculation Connections 18......................................................
Installation of Inspection Opening Cover 19...........................
Appendix Pressure Drop Information 20....................................................
Post Installation ...
Start-up information 21
................................................................
Service Binder 21...........................................................................
5285 658 v2.1

Safety
4
Important Regulatory and Installation Requirements
Codes
The installation of indirect-fired hot
water storage tanks in boilers and solar
system applications might be governed
by individual local rules and regulations
for this type of product, which must be
observed. Always use latest editions of
codes.
In the Commonwealth of
Massachusetts, all plumbing work must
be done by a licensed plumber or
gas-fitter and for gas installations, all
gas piping must be done by a licensed
gas-fitter.
Mechanical room
Ensure the mechanical room complies
with the requirements of the system
design guideline and/or Technical Data
Manual (available from your Viessmann
sales representative).
Thetankmustbeinstalledina
mechanical room which is never subject
to freezing temperatures.
Ensure water in tank is drained if not in
use and danger of freezing exists in the
mechanical room.
Please carefully read this manual prior
to attempting installation. Any
warranty is null and void if these
instructions are not followed.
This product must be installed
observing not only the information
and instructions provided in the
pertinent product literature (see list on
following page), but also all local,
provincial/state plumbing and building
codes, as they apply to this product
and all periphery equipment.
For information regarding other
Viessmann System Technology
componentry, please reference
documentation of the respective
product (available from your
Viessmann sales representative).
We offer frequent installation and
service seminars to familiarize our
partners with our products. Please
inquire.
Working on the equipment
The installation, adjustment, service,
and maintenance of this equipment
must be done by a licensed professional
heating contractor who is qualified and
experienced in the installation, service,
and maintenance of hot water heating
systems. There are no user serviceable
partsonthisequipment.
Ensure main power supply to
equipment, the heating system, and all
external controls has been deactivated.
Close main oil or gas supply valve. Take
precautions to avoid accidental
activation of power during service
work.
The completeness and functionality of
field supplied electrical controls and
components must be verified by the
heating contractor. These include
low-water cut-offs, flow switches (if
used), staging controls, pumps,
motorized valves, air vents,
thermostats, temperature controls, etc.
5285 658 v2.1
If the heating system itself is to be
filled with Glycol or any other
antifreeze, the system fill must be of
non-toxic or food grade antifreeze. In
any circumstance, a non-toxic fluid
must be used. Ensure a copy of the
Material Safety Data Sheet (MSDS) is
supplied to the operator/ultimate
owner of the system. The use of
Viessmann supplied “Tyfocor-HTL”
solar fill is recommended for the solar
heating circuit.
WARNING

Safety/General Information
5
Important Regulatory and Installation Requirements (continued)
Technical literature
Literature applicable to all aspects of
the Vitocell:
- Technical Data Manual
- Installation Instructions
- Start-up/Service Instructions
- Operating Instructions
and User’s Information Manual
Leave all literature at the installation
site and advise the system
operator/ultimate owner where the
literature can be found. Contact
Viessmann for additional copies.
About These Instructions
Take note of all symbols and notations intended to draw attention to potential hazards or important product information.
These include ”WARNING”, ”CAUTION”, and ”IMPORTANT”. See below.
Warnings draw your attention to the
presence of potential hazards or
important product information.
Cautions draw your attention to the
presence of potential hazards or
important product information.
Helpful hints for installation, operation
or maintenance which pertain to the
product.
This symbol indicates that additional,
pertinent information is to be found in
column three.
This symbol indicates that other
instructions must be referenced.
Product Information
79 and 120 USG / 300 and 450 ltr capacity
Indirect-fired domestic hot water storage tank with dual heat exchanger coil for use
with hot water heating boilers, solar heating systems, residential heating plants,
and low-temperature heating systems. These tank versions are not suitable for
steam heating applications.
5285 658 v2.1
Indicates an imminently hazardous
situation which, if not avoided, could
result in substantial product/property
damage, serious injury or loss of life.
WARNING
Indicates an imminently hazardous
situation which, if not avoided, may
result in minor injury or
product/property damage.
CAUTION
IMPORTANT
5285 658 v2.1

Set-up and Connections
6
Tank Set-up
Thermometer probe
connection
MA Magnesium anode
DHW Domestic hot water supply
TS DHW temperature sensor or
aquastat of boiler control
(upper indirect coil)
BS1 Boiler water supply*1
R Recirculation tapping
F Fitting plug
BR1 Boiler water return*1
TS/TH DHW temperature sensor or
aquastat and thermometer
probe (lower indirect coil)
HS2 Solar collector supply*2
HR2/TS Solar collector return and
temperature sensor for solar
operation*2,3
DCW Domestic cold water supply
DDrain
*1 The upper indirect coil is provided for connection to a boiler or a heat pump.
*2 The lower indirect coil is provided for connection to solar collectors or heat pumps.
*3 Recommended arrangement of temperature sensor for solar operation:
With brass elbow and sensor well (accessory) in the solar collector water return.
5285 658 v2.1
MA
DHW
TS
BS1
R
BR1
HS2
HR2/TS
DCW/D
TS/TH
F
Fig. 1

Set-up and Connections
7
Tank Set-up (continued)
Provide sufficient clearances towards
the wall to allow the aquastat to be
operated (if installed).
Recommended installation clearances for service access
Rear inches
mm
18
460
Sides May be reduced if rear pipe connections can be reached with less clearance inches
mm
12
300
Top inches
mm
12
300
Front inches
mm
26
650
Minimum clearances to combustibles
All sides inches
mm
0
0
5285 658 v2.1
Install the DHW tank in a frost-
protected and draft-free room.
Otherwise it must be drained when
not in use, in order to reduce the risk
of damages caused by freezing.
CAUTION IMPORTANT
26” / 650 mm
Fig. 2

Set-up and Connections
8
79 USG / 300 ltr Tank Installation
Thermometer installation
1. Remove top panel and the thermal
insulation blanket.
2. Push sensor of upper thermometer all
the way into clamping bracket.
3. Guide the lower thermometer cable
through the insulation blanket and
the cable channel.
4. Position the thermometer probe on
the outside of the location spring (not
in the groove), so that it is flush with
the front of the spring.
5. Push the cable into the holder.
6. Insert the sensor mounting hardware
with the thermometer probe until it
bottoms out inside the sensor well.
Temperature sensor installation for solar operation
The solar DHW tank temperature sensor is included in the solar control unit package.
1. For solar operation, install the sensor
well into the brass elbow and
connect the assembly to the heating
return line (solar return).
The brass elbow with sensor well is
available as an accessory,
Part No. 7175 213.
2. Insert the temperature sensor until it
bottoms out inside the sensor well.
Never wrap insulating tape around the
sensor.
5285 658 v2.1
5.
4.
2.
3.
1.
6.
Fig. 3
1.
Fig. 4
1.
2.
IMPORTANT

Set-up and Connections
9
79 USG / 300 ltr Tank Installation (continued)
Temperature sensor installation (when using a Vitotronic 200 / 300 or Vitodens 200)
The primary DHW tank temperature sensor is included in the boiler control unit package.
1. Remove sensor mounting hardware
from sensor well.
2. Position the temperature sensor on
the outside of the location spring (not
inthegroove),sothatitisflushwith
the front of the spring.
3. Attach sensor cable to clip.
Never wrap insulating tape around the
sensor.
4. Insert the sensor mounting hardware
with the sensor until it bottoms out
inside the lower sensor well.
Note:
When using a Vitotronic 100 boiler
control, refer to page 14 for aquastat
installation.
Checking the anode connection
1. Ensure grounding cables are properly
connected to the magnesium anode.
When connecting an externally powered
anode to the top flange lid, separate the
magnesium anode in the bottom flange
lid from the grounding cable. The
magnesium anode may remain installed.
2. Install top insulation blanket.
3. Attach name plate to top cover and
secure cover with supplied screws.
5285 658 v2.1
2.
3.
4.
1.
Fig. 5
IMPORTANT
1.
2.
3.
Magnesium anode
Grounding cable
Fig. 6
IMPORTANT

Set-up and Connections
10
120 USG / 450 ltr Tank Installation
Thermal insulation and thermometer installation
All necessary parts for enclosure assembly are packaged in a separate carton.
1. If not already installed, fit the
thermal insulation blanket below the
tank prior to the installation of the
tank itself.
2. Position and level the DHW tank
with its leveling bolts.
3. Push the thermal insulation jacket at
the front into the flange.
4. Guide the two thermometer sensor
cables through the provided
openings and push in the
thermometers.
5. Push sensor of upper thermometer
all the way into the clamping
bracket.
6. Position the lower sensor on the
outside of the location spring (not in
the groove), so that it is flush with
the front of the spring. Insert the
lower sensor mounting hardware
with the sensor until it bottoms out
inside the well (see steps 4-6 on
page 8).
Note
If no thermometers are fitted, cap the
holes with plugs.
5285 658 v2.1
1.
Fig. 7
3.
4.
6.
5.5.5.
Fig. 8
The thermal insulation must not come
in contact with open flames. Exercise
extreme caution when welding and
soldering.
CAUTION

Set-up and Connections
9.
9.
8.
Fig. 10
11

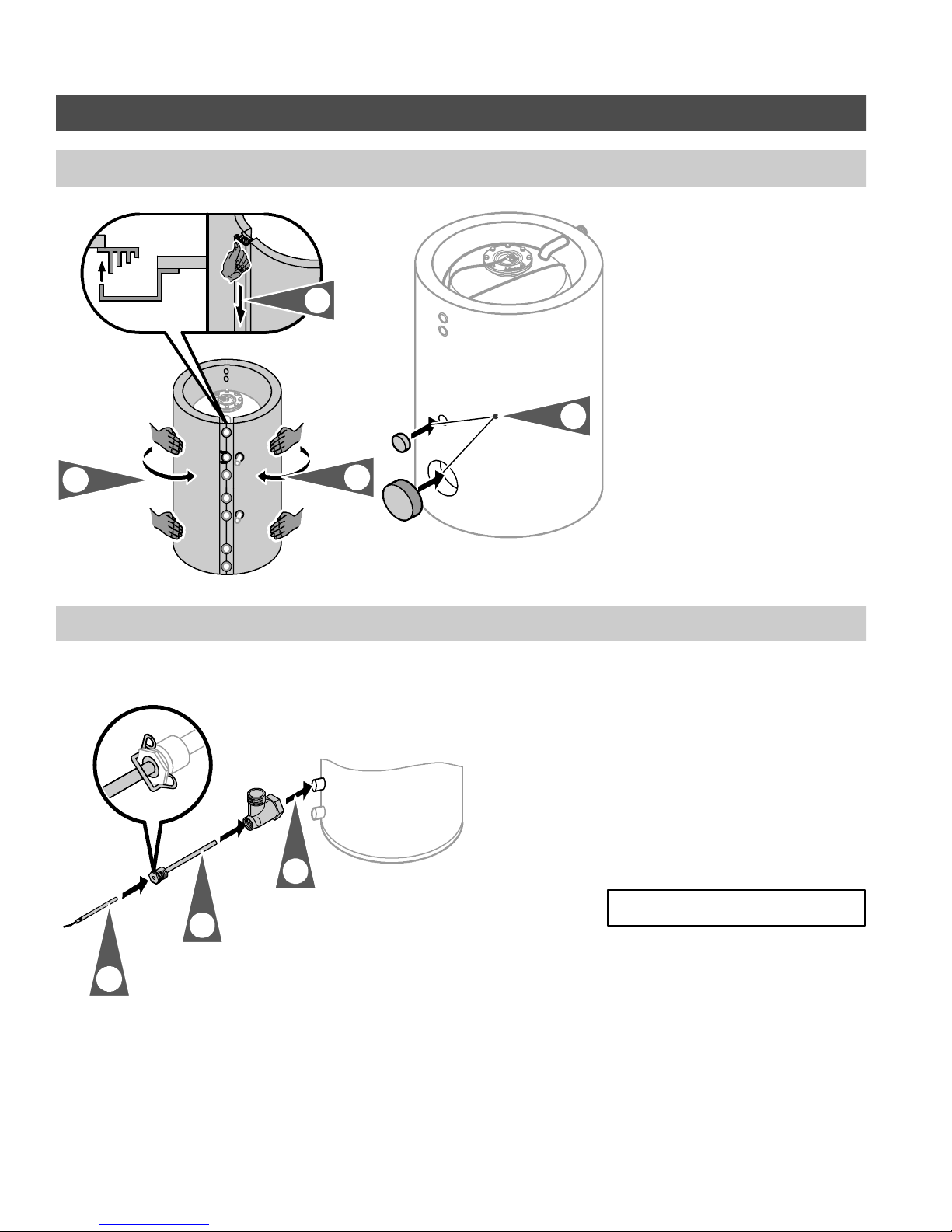

120 USG / 450 ltr Tank Installation (continued)
Thermal insulation and thermometer installation (continued)
7. Wrap the thermal insulation to
the left, slide over-top the sensor
nipples and hold in place with
supplied clip.
8. Continue to wrap the thermal
insulation around the tank.
9. Using your palms, gently press the
insulation tightly to the tank
andlockatthefirstnotch.
Do not punch with fists.
5285 658 v2.1
7.
8.
7.
7.
Fig. 9

Set-up and Connections
12
120 USG / 450 ltr Tank Installation (continued)
Thermal insulation and thermometer installation (continued)
10. After 30 minutes, squeeze the
jacket again and lock in the last
notch.
11. Re-install insulation cut-outs.
Temperature sensor installation for solar operation
The solar DHW tank temperature sensor is included in the solar control unit package.
1. For solar operation, install the sensor
well into the brass elbow and
connect the assembly to the heating
return line (solar return).
The brass elbow with sensor well is
available as an accessory,
Part No. 7175 214.
2. Insert the temperature sensor until it
bottoms out inside the sensor well.
Never wrap insulating tape around the
sensor.
5285 658 v2.1
Fig. 11
10.
10.
10.
10.
11.
1.
Fig. 12
1.
2.
IMPORTANT

Set-up and Connections
13
120 USG / 450 ltr Tank Installation (continued)
Temperature sensor installation (when using a Vitotronic 200 / 300 or Vitodens 200)
The primary DHW tank temperature sensor is included in the boiler control unit package.
1. Remove sensor mounting hardware
from sensor well.
2. Position the temperature sensor on
the outside of the location spring (not
inthegroove),sothatitisflushwith
the front of the spring.
3. Attach sensor cable to clip.
Never wrap insulating tape around the
sensor.
4. Insert the sensor mounting hardware
with the sensor until it bottoms out
inside the lower sensor well.
Note:
When using a Vitotronic 100 boiler
control, refer to page 14 for aquastat
installation.
Checking anode connection and fitting lid
1.Ensure the grounding wire is
properly secured to magnesium
anode .
Magnesium anode
Grounding wire cable
5285 658 v2.1
2.
3.
4.
1.
Fig. 13
IMPORTANT
1.
1.
2.
B
A
Fig. 14

Set-up and Connections
14
Connections
Aquastat installation (when using a Vitotronic 100)
Where a Vitotronic 100 and a
Viessmann Power/Pump Control Module
(accessory) are utilized to control DHW
production, follow these aquastat
mounting instructions:
1. Insert the extended capillary of the
aquastat (supplied with Viessmann
Power/Pump Control Module, not
illustrated) fully and completely into
sensor well. Mount aquastat
inconspicuously on tank paneling.
Follow instructions below with
regard to sensor and spring clip
installation.
... if aquastat is to be mounted remote
from the tank well,
2. Align sensor bulb with spring clip.
3. Slide assembly into well.
4. The retention spring clip must press
the bulb properly to ensure surface
contact with the well.
... if aquastat is to be mounted directly
onthetankwell,
5. Mount aquastat with holding clip
supplied directly onto well. Bend
capillary tube into groove opening to
allow for mounting of aquastat.
To ensure optimum, safe operation,
the supplied stainless steel well must
be installed. The well diameter is
large enough to accommodate a wide
variety of sensing bulbs.
Always use spring clip to ensure
proper contact of capillary bulb
against the stainless steel well for
proper sensing/heat transfer!
WARNING
Grounding connection
1. Connect the grounding in accordance
with the requirements stipulated by
your local electricity supply company
and current local regulations.
Installing aquastat
Fig. 15
Probe style aquastat
1.
2. 4. 2. 4.
5.
5285 658 v2.1

Set-up and Connections
15
Boiler Water Connections (heat exchanger connection)
Use a Loctite 55 string and pipe dope on
all threaded nipples on tank.
Individual DHW tank
T T
T
T
Y
T
DHW
B
DCW
T&P
HC
Fig. 16
Solar collector
Vitocell-B 100
Filling valve
Manual solar filling pump
Recirculating pump
HC Heating circuit
B Oil/Gas-fired boiler
DCW Domestic cold water
DHW Domestic hot water
T&P Temperature and pressure relief
valve
1. For boiler water supply temperatures
over 203°F / 95°C:
Remove plastic supply and return
grommets (grommets are
left-threaded).
2. Pipe supply line with an incline and
install an air vent valve at the highest
point.
3. Only for systems with solar heating:
Install an additional high limit safety
cut-out, if per m2absorber surface
area there is...
Hless than 12 USG / 45 liters water
volume when using Vitosol 100 flat
plate collectors
Hless than 26 USG / 100 liters water
volume heated when using Vitosol
300 tube collectors.
To do this, install the DHW tank
cap with R ¾” nipple (accessory).
Continued on the following page.
5285 658 v2.1
The operating aquastat and any
secondary high limit aquastat of the
tank must be set such that the DHW
temperature inside the tank never
exceeds 203°F / 95°C.
WARNING
Domestic hot water temperatures
over 125°F / 52°C can cause severe
burns instantly or death from scalds.
Children, disabled and elderly are at
highest risk of being scalded.
Feel water before bathing or
showering.
Temperature limiting valves are
available and must be used where
domestic hot water storage tank
temperatures exceed 140°F / 60°C.
DANGER IMPORTANT

Set-up and Connections
16
Boiler Water Connections (continued)
4. For boiler water supply temperatures
over 230°F / 110°C:
Install a type-tested high limit safety
cut-out, if no other has previously
been installed in this system. For this
purpose, install a dual thermostat
(high limit thermostat and high limit
safety cut-out).
5. Close off test nipples which are not
used for the installation of a probe or
sensor.
Use a Loctite 55 on all threaded steel
nipples on tank.
Domestic Water Connections
B
DHW
A
RP
RPU
D
T&P
DCW
SV FV PGC
BP1
D
SV SV
D
DW PR SV
BP2
DCW
DCW
E
DHW
C
Fig. 17
Spring-loaded flow check valve
Discharge pipe
Thermostatic mixing valve
SV Shut-off valve
FV Flow check valve
PR Pressure reducer
DDrain
This is a simplified conceptual drawing
only! Piping and necessary componentry
must be field verified. Proper installation
and functionality in the field are the
responsibility of the heating contractor.
DCW Cold water supply lines
PGC Pressure gage connection
E Precharged expansion tank
(required where backflow
preventer is installed; check local
plumbing codes and
requirements)
BP1 Backflow preventer
BP2 Backflow preventer / pipe
separator
T&P Temperature and pressure relief
valve
DW Drinking water filter
DHW Domestic hot water supply
RP Recirculation pipe
RPU Recirculation pump
Please note:
HConnect all pipework with detachable
fittings.
HSeal connections that are not
required, with red brass caps.
HEquip the DHW circulation pipe with
circulation pump, check valve and
time switch. Gravity operation is only
feasible to a limited degree.
HAlways install DHW tank batteries
with connected DHW circulation.
1. Pipe together boiler and tank as
illustrated. Connections must be
accessible for service (use factory
supplied adaptors).
2. Insulate domestic hot water supply
piping.
Due to the potentially high DHW
temperatures generated by the solar
heating system, the domestic hot water
temperature must be limited to a
maximum of 140ºF/60ºC by installing a
mixing device, e.g. thermostatic mixing
valve. The mixing device does not
completely eliminate the risk of scalding
at the tap. The installation of a mixing
tap is required.
DANGER IMPORTANT
5285 658 v2.1
IMPORTANT

Set-up and Connections
17
Domestic Water Connections (continued)
Always ensure the use of type approved devices. Safety devices include the following components:
HIsolation valves
HDrain valve
HPressure reducing valve
where required by local jurisdiction
HDrinking water filter
where required by local jurisdiction
HBackflow preventer
Where backflow preventers are
required, a domestic water expansion
tank installation is required in the cold
water inlet piping before the cold
water enters the tank. The backflow
device must be installed according to
the manufacturer’s installation
instructions. Observe local codes and
regulations.
HTempering valve
A tempering valve must be field
installed where storage tank
(domestic hot water temperature)
exceeds local restricted temperatures
or 140°F / 60°C. Check code
requirements.
In situations where a booster pump is
used to maintain DHW pressure,
Viessmann strongly recommends the
installation of an oversized expansion tank
to ensure longer, less frequent pump
cycles with less severe pressure
gradients. If possible, use flexible piping
before and after booster pump to isolate
system piping from vibration and shocks.
HTemperature and pressure
relief valve
A temperature and pressure relief
valve (T&P valve) is supplied with the
tank. The heating contractor must
install the valve on each tank in a
method meeting code requirements.
If local codes require a different relief
valve, consult Viessmann
Manufacturing for a substitute valve.
The tank is approved for 150 psig.
Maximum operating pressure is 150
psig.
The T&P valve supplied with the tank
is manufactured by Watts Industries
(Model 40XL-8), set to 150 psig for
US and Canadian installations (100
psig for Canadian installations for
120 USG / 450 ltr tank size only). The
valve is ASME pressure steam rated
for 998 MBH and CSA temperature
steam rated for 200 MBH.
It is tested under ANSI Z21.22 Code
for Relief Valves and Automatic Gas
Shut-off Devices for Hot Water
Supply Systems. The relief
temperature is set at 210°F / 99°C.
The valve has a male threaded inlet
and female threaded outlet, both ¾”
sizes.
Proper installation of the T&P valve
shall include all of the following:
- The T&P valve shall be installed in the
pipe connection point marked TPV in
the tank instruction manual.
- The discharge line from the T&P valve
shall be ¾” / 1.9 cm ∅and run to a
safe place of discharge approximately
1 ft / 30 cm above the floor, close to
a floor drain.
- The discharge line must be as short
as possible and pitch downward from
the T&P valve and terminate plain.
-Donot route discharge line to the
outdoors.
-Donot install any type of valve or an
obstruction of any kind between the
tank and the T&P valve, or between
the T&P valve and the discharge line
outlet.
5285 658 v2.1
IMPORTANT
The discharge line for the T&P valve
must be oriented to prevent scalding
of attendants.
WARNING
The valve test lever must be operated
at least once per year by a licensed
professional heating contractor to
ensure that waterways are clear. A
licensed professional heating
contractor shall reinspect the T&P
valveatleastonceeverythreeyears.
Failure to inspect can result in unsafe
temperature or pressure build-up,
which can result in death, serious
injury or substantial product/property
damage.
WARNING

Set-up and Connections
YYY
Fig. 18
YYY
Fig. 19
18
Recirculation Connections
HPipe domestic hot water supply piping
with tank as illustrated. Connections
must be accessible for service (use
factory supplied adaptors).
HInstall recirculation pump, flow check
valve and recirculation timer (for
shut-down during off-hours where
feasible) on the recirculation piping
side.
HGravity circulation of the recirculation
system is restricted due to the
upward-curved domestic hot water
discharge piping inside the tank.
HConnect tank battery to existing
recirculation piping. Cap off unused
recirculation connections of individual
tanks.
HSaving Energy
A timer on the recirculation pump
reduces the heat loss significantly in
commercial applications during times
when no or reduced demand for
domestic hot water occurs.
Connection of a recirculation system in a multiple tank installation
for systems utilizing boilers or remote heating plants without low temperature boiler return water.
Drawpoints
Recirculation piping
Circulation pump
Spring-loaded flow check valve
Domestic cold water supply
Domestic hot water supply
Secondary high limit aquastat
location
Connection of a recirculation system in a multiple tank installation
for remote heating plants with low temperature boiler return water limit
and/or for multiple recirculation lines.
Drawpoints
Recirculation piping
Circulation pump
Spring-loaded flow check valve
Domestic cold water supply
Domestic hot water supply
Secondary high limit aquastat
location
5285 658 v2.1

Set-up and Connections
19
Installation of Inspection Opening Cover
1. Install front insulation blanket.
2. Install plug cover and front cover.
Note:
Fixing screws only for 79 USG / 300
ltr capacity.
5285 658 v2.1
2.
1.
Fig. 20

Technical Data
20
Pressure Drop Information
Pressure drop on heating water side Domestic hot water pressure drop
of a single coil
79 USG / 300 ltr
120 USG / 450 ltr
Upper indirect coil, 79 USG / 300 ltr capacity
Lower indirect coil, 79 USG / 300 ltr capacity and upper indirect coil, 120 USG / 450 ltr capacity
Lower indirect coil, 120 USG / 450 ltr capacity
5285 658 v2.1
Waterflow
16
20
24
32
40
80
120
160
200
1.6
2
2.4
3.2
4
8
12
240
320
400
1.2
Pressure drop
2.2 500 2.6 600 3.5 800 4.4 1 000
9 2 000
13 3 000 18 4 000 22 5 000 26 6 000 31 7 000
ltr/h
GPM
44 10000
“w.c. mbar
C
Fig. 21
Waterflow
820
0.8 2
1.2 3
1.6 4
25
2.4 6
3.2 8
410
0.4 1
40 100
32 80
24 60
20 50
16 40
12 30
Pressure drop
2.2 500
3.5 800 4.4 1 000
9 2 000
13 3 000 18 4 000 22 5 000
“w.c. mbar
ltr/h
GPM
2.6 600
Fig. 22
