Viessmann Vitodens 200-W System User manual

VITODENS 200
Operating Instructions &
User’s Information Manual
Vitodens 200-W
WB2B Series
Wall-mounted, gas-fired condensing boiler
For natural gas and liquid propane
Heating input 31 to 370 MBH
8.5 to 105 kW

Read and save these instructions
for future reference.
IMPORTANT
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
WARNING
Improper installation, adjustment, and/or
operation could cause carbon monoxide
poisoning resulting in injury or loss of life.
This product must be installed and serviced by a
professional service technician who is
experienced and qualified in hot water boiler
installation and gas combustion.
WARNING
Do not store or use gasoline or other flammable
liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliances.
Do not touch any electrical switches, do not
use any phone in your building.
Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Please file in Service Binder
5369 299 v1.0 b 08/2009 This trademark is registered with the U.S. Patent and Trademark Office.

Safety, Installation and Warranty Requirements
2
Safety, Installation and Warranty Requirements
Please ensure that these instructions are read and understood before commencing installation. Failure to comply with the instructions
listed below and details printed in this manual can cause product/property damage,severe personal injury, and/or loss of life. Ensure
all requirements below are understood and fulfilled (including detailed information found in the manual subsections).
HLicensed professional heating
contractor
The installation, service, and
maintenance of this equipment must
be performed by a licensed
professional heating contractor.
"Please see section
entitled “Important
Regulatory and
Installation
Requirements” in the
Installation Instructions.
HProduct documentation
Read all applicable documentation
before commencing installation. Store
documentation near boiler in a readily
accessible location for reference in the
future by service personnel.
"For a listing of
applicable literature,
please see section
entitled “Important
Regulatory and
Installation Requirements”
in the Installation Instructions.
HAdvice to owner
Once the installation work is
complete, the heating contractor must
familiarize the system
operator/ultimate owner with all
equipment, as well as safety
precautions/requirements, shut-down
procedure, and the need for
professional service annually before
the heating season begins.
HCarbon monoxide
Improper installation, service and/or
maintenance can cause flue products
to flow into living space. Flue
products contain poisonous carbon
monoxide gas.
"For information
pertaining to the proper
installation, service and
maintenance of this
equipment to avoid
formation of carbon monoxide, please
see the Installation Instructions of the
Vitodens 200-W Direct Vent System.
HEquipment venting
Never operate boiler without an
installed venting system.Animproper
venting system can cause carbon
monoxide poisoning.
HWarranty
Information contained in
this and related product
documentation must be
read and followed. Failure
to do so renders warranty
null and void.
5369 299 v1.0 b
Installers must follow local
regulations with respect to
installation of carbon monoxide
detectors. Follow manufacturer’s
maintenance schedule of boiler.
WARNING

Index
3
Page
General Information About these Instructions 5........................................................
Safety ForyourSafety 5........................................................................
Inform Yourself Getting Started 9..........................................................................
Your Vitodens 200-W Boiler 10..................................................
Your System is Preset at the Factory 10...............................
Overview of Controls and Indicators 11..................................
Opening the control unit 11........................................................
Functions 12....................................................................................
Heating system with two heating circuits 14.......................
Start-up / Shutdown Starting the Heating System 15.................................................
Shutting Down the Heating System 16...................................
Starting a heating circuit and DHW heating 16....................
Shutting down a heating circuit and stopping
DHW heating 17
.............................................................................
Starting DHW heating only 17...................................................
Stopping DHW heating 17..........................................................
Adjusting the Room
Temperature
Setting a Permanent Room Temperature 18...........................
Selecting normal room temperature 18...................................
Selecting a reduced room temperature 19.............................
Selecting a time program (switching times) 20....................
Changing the room temperature for a few days only 21...
Selecting the holiday program 22.............................................
Changing the Room Temperature for a
Few Hours Only 23
.......................................................................
Selecting energy saving mode 23.............................................
Selecting party mode 24..............................................................
Selecting DHW Heating Selecting Constant DHW Heating 25......................................
DHW temperature setting 25.....................................................
Selecting a time program (switching times) 26.....................
Selecting automatic mode (if required) 26.............................
Setting up an individual time program 27................................
Selecting DHW Heating for a Few Hours Only 29...............
Selecting DHW heating only once 30......................................
Further Adjustments Time and Date 31...........................................................................
Language 31....................................................................................
Adjusting the display contrast 31.............................................
Standard setting 31.......................................................................
Scanning Options Scanning Information 32...............................................................
Order in which temperatures and operating
conditions can be scanned 32
...................................................
Scanning Time Programs 33........................................................
Central heating time program 33..............................................
DHW time program 33.................................................................
Scanning fault display 34............................................................
5369 299 v1.0 b5369 299 v1.0 b

4
Other Settings Changing the Heating Pattern of the Boiler 35......................
Rooms are too cold 35.................................................................
Rooms are too hot 35...................................................................
There is no hot water 36.............................................................
The DHW is too hot 36................................................................
”Select htg. circuit” flashes in the display 36......................
”Fault” flashes in the display 36...............................................
Thetimeflashesatthedisplay 36...........................................
“Service” is displayed 36.............................................................
”Remote control” is displayed 37.............................................
”Ext. control” is displayed 37....................................................
”Ext. program” is displayed 37..................................................
“Ext,roomt.setpt.”isdisplayed 37........................................
“Without function.” is displayed 37..........................................
Service Instructions Service Instructions for Your Heating System 38.................
How to Save Energy How to Save Energy 39................................................................
... by heating correctly 39...........................................................
... with regular maintenance 39.................................................
... with effective insulation 39....................................................
Information Lighting and Operating Instructions 40....................................

General Information/Safety
5
About these Instructions
Take note of all symbols and notations intended to draw attention to potential hazards or important product information.
These include ”WARNING”, ”CAUTION”, and ”IMPORTANT”. See below.
Warnings draw your attention to the
presence of potential hazards or
important product information.
Cautions draw your attention to the
presence of potential hazards or
important product information.
Helpful hints for installation, operation
or maintenance which pertain to the
product.
This symbol indicates that additional,
pertinent information is to be found in
column three.
This symbol indicates that other
instructions must be referenced.
For your Safety
HOperation
Before operating the boiler, make sure
you fully understand its method of
operation. Your heating contractor
should always perform the initial start-up
and explain the system. Any warranty is
null and void if these instructions are not
followed.
HWorking on the equipment
All personnel working on the equipment
or the heating system must have the
proper qualifications and hold all
necessary licenses.
Ensure main power to equipment,
heating system, and all external controls
has been deactivated.Close main gas
supply valve. Take precautions in all
instances to avoid accidental activation
of power during service work.
HMaintenance and cleaning
Regular inspection and service by a
qualified heating contractor is important
to the performance of the Viessmann
Vitodens 200-W. Neglected
maintenance impacts on warranty;
regular inspection ensures clean,
environmentally friendly and efficient
operation. We recommend a
maintenance contract with a qualified
heating contractor.
HFlue gas smell
- Deactivate heating equipment.
- Open windows and doors.
- Inform your heating contractor.
HDangerous conditions
- Deactivate main power immediately.
- Close gas supply valve.
HTechnical information
Literature applicable to all aspects of the
Vitodens 200-W:
- Technical Data Manual
- Installation Instructions
- Start-up/Service Instructions
- Operating Instructions
and User’s Information Manual
Additional applicable literature:
- Accessory manuals
5369 299 v1.0 b
Indicates an imminently hazardous
situation which, if not avoided, could
result in death, serious injury or
substantial product/property damage.
WARNING
Indicates an imminently hazardous
situation which, if not avoided, may
result in minor injury or
product/property damage.
CAUTION
IMPORTANT

SafetySafety
6
For your Safety (continued)
HCarbon monoxide
The U.S. Consumer Product Safety
Commission strongly recommends the
installation of carbon monoxide
detectors in buildings in which
gas-burning equipment is installed.
Carbon monoxide (CO) is a colorless,
odorless gas, which may be produced
during incomplete combustion of fuel
and/or when the flame does not receive
an adequate supply of combustion air.
Carbon monoxide can cause severe
personal injury or loss of life.
Therefore, carbon monoxide detectors
that are in compliance with a nationally
recognized standard (e.g. ANSI/UL
2034-2002, CSA 6.19-01) should be
installed and maintained in buildings that
contain gas-burning equipment.
Note:
Viessmann does not test any detectors
and makes no representation regarding
any brand or type of detector.
HFor safe operation
We recommend that you frequently:
- Check for debris which could obstruct
the flow of flue gases. The vent or
chimney must not be blocked. A
blocked or partially blocked vent or
chimney can cause flue gases to leak
into the structure. Flue gases leaking
into the house can cause injury or
death. Blocked or partially blocked
chimneys must have the blockage
removed by a qualified heating
contractor.
- Check pressure gage for correct
system (water) pressure. Check for
water on the floor from the discharge
pipe of the pressure relief valve or any
other pipe, pipe joint, valve or air
vent.
- Check for moisture, water, or
appearance of rust on the flue gas
pipes, their joints as well as vent
dampers, or side wall vent terminals
(if so equipped).
- Ensure that nothing is obstructing the
flow of combustion and ventilation air
and no chemicals, garbage, gasoline,
combustible materials, flammable
vapors and liquids are stored (not
even temporarily) in the vicinity of the
boiler.
-Donot allow unsupervised children
near the boiler.
Service/inspection of the boiler and the
system is recommended once a year.
Maintenance, service and cleaning are
specified in the Installation Instructions.
Before the heating season begins, it is
recommended that the boiler and burner
be serviced by a qualified heating
contractor. Service contracts may be
established through gas suppliers or
other licensed contractors in your area.
5369 299 v1.0 b5369 299 v1.0 b
As there are no user-serviceable parts
on the boiler, burner or control, the
end-user must not perform service
activities or adjustments of any kind on
system components. Failure to heed
this warning can cause property
damage, severe personal injury, or loss
of life.
WARNING
Improper installation, adjustment,
service, or maintenance can cause flue
products to flow into living space. Flue
products contain poisonous carbon
monoxide gas which can cause nausea
or asphyxiation resulting in severe
personal injury or loss of life.
WARNING
Should overheating occur or the gas
supply fail to shut off, do not
disconnect the electrical supply to the
pump. Instead, shut off the gas supply
at a location external to the appliance.
CAUTION
The operator/ultimate owner is required
to have the heating boiler, burners, and
controls checked, as a minimum once
per year, by the original installer or by a
competent heating contractor familiar
with the equipment. Defects must be
corrected immediately.
WARNING
Do not use this boiler if any part has
been under water. Immediately call a
qualified heating contractor to inspect
the boiler and to replace any part of the
control system and any gas control
which has been under water.
CAUTION

Safety
7
For your Safety (continued)
Frozen water pipe hazard
Your heating boiler is designed to provide
a warm and comfortable living
environment. It is not designed to ensure
against freezing of water pipes.
The boiler is equipped with several safety
devices that are designed to shut down
the boiler and to prevent it from restarting
in the event of various unsafe conditions.
If your boiler remains off for an extended
period of time during cold weather, water
pipes may freeze and burst, resulting in
extensive water damage and conditions in
which mold could grow. Certain molds are
known to cause respiratory problems, as
well as to pose other serious health risks.
In case of water damage, immediate
measures should be taken to dry out
affected areas as quickly as possible to
prevent mold from developing.
If your home will be unattended for an
extended period of time during cold
weather, you should...
HShut off the water supply to the
building, drain the water pipes and add
an antifreeze for potable water to drain
traps and toilet tanks. Open faucets
where appropriate.
Or..
HHave someone check the building
frequently during cold weather and call a
qualified service agency if required.
Or...
HInstall a reliable remote temperature
sensor that will notify somebody of
freezing conditions within the home.
5369 299 v1.0 b
Failure to protect against frozen pipes
could result in burst water pipes,
serious property damage and/or
personal injury. Boiler may shut down.
Do not leave your home unattended for
long periods of time during freezing
weather conditions without turning off
the water supply and draining water
pipes or otherwise protecting against
theriskoffrozenpipes.
WARNING

Safety
8
For your Safety (continued)
If you notice fire coming from the
appliance, call the fire department
immediately! Do not attempt to extinguish
the fire unless qualified to do so.
Installation area conditions
HEnsure ambient temperatures are higher
than 32°F / 0°C and lower than
104°F / 40°C.
HPrevent the air from becoming
contaminated by halogenated
hydrocarbons (e.g. as contained in paint
solvents or cleaning fluids) and
excessive dust (e.g. through grinding or
polishing work).
Combustion air for the heating process,
and ventilation of the boiler room must
be free of corrosive contaminants. To
that end, any boiler must be installed in
an area that has no chemical exposure.
The list to the right indicates the main,
currently known sources.
HAvoid continuously high levels of
humidity (e.g. through frequent drying of
laundry).
HNever close existing ventilation
openings.
Replacement components, spare and wear
parts
Components which are not tested with
the heating system may damage the
heating system, or affect its functions.
Installation or replacement may only be
carried out by a qualified heating
contractor.
Sources of combustion and ventilation air
contaminants
Areas likely to contain contaminants:
HNew building construction
HSwimming pools
HRemodelling areas, hobby rooms
HGarages with workshops
HFurniture refinishing areas
HDry cleaning/laundry areas and
establishments
HAuto body shops
HRefrigeration repair shops
HMetal fabrication plants
HPlastic manufacturing plants
HPhoto processing plants
HBeauty salons
Products containing contaminants:
HChlorine-type bleaches, detergents and
cleaning solvents found in household
laundry rooms
HPaint and varnish removers
HHydrochloric acid, muriatic acid
HChlorine-based swimming pool chemicals
HSpray cans containing
chlorofluorocarbons
HChlorinated waxes and cleaners
HCements and glues
HRefrigerant leaks
HCalcium chloride used for thawing
HSodium chloride used for water
softening salt
HPermanent wave solutions
HAdhesivesusedtofastenbuilding
products and other similar items
HAntistatic fabric softeners used in
clothes dryers
5369 299 v1.0 b
Fire causes a risk of burns and
explosion!
HShut down the boiler
HClose fuel shut-off valves
HUse a tested fire extinguisher, class
ABC.
WARNING
Incorrect ambient conditions can lead to
damage to the heating system and put
safe operation at risk.
WARNING
IMPORTANT

Inform Yourself
9
Getting Started...
The timer of the control unit switches between ”normal room temperature” and
”reduced room temperature” at the required times.
1. Normal room temperature
for the times you spend at home and
require a comfortably warm room
temperature (e.g. 68ºF / 20ºC).
2. Reduced room temperature
for the times you are away from
home. To save energy,
a lower temperature is typically
selected (e.g. 57ºF / 14ºC).
Times and duration of the two room
temperatures can be set on the
programming unit of your control.
The temperature settings for both the
”normal room temperature” and
”reduced room temperature” can be
set according to your personal
preference.
The timer of the control unit switches domestic hot water production on and off at
the required times.
1. Domestic hot water heating can be
set to take place
during the times you spend at home
and require hot water for your daily
DHW requirements (e.g. for
showering).
2. Domestic hot water heating can be
set not to take place
for the times you spend sleeping, for
example.
Times and duration of the domestic hot
water production period can be set on
the programming unit of your control.
You may select a DHW temperature
setting based on your personal
preference of up to 140ºF / 60ºC.
The domestic hot water recirculation
pump (if installed) ensures that
domestic hot water is readily available
when domestic hot water is drawn.
5369 299 v1.0 b

Inform Yourself
10
Your Vitodens 200-W Boiler
Please ask your heating contractor to check off the appropriate box ( ).
jVitodens 200-W
without domestic hot water tank
The control unit activates and
deactivates space heating and
supplies rooms with heat.
jVitodens 200-W
with separate domestic hot water
tank
Domestic hot water heating has
priority over space heating. The
control unit switches automatically to
space heating when the preset
domestic hot water temperature is
reached.
Your System is Preset at the Factory
The control unit is preset at the factory
for standard operation. Your heating
system is therefore ready to use:
HBetween 06:00 and 22:00 hrs. the
system provides central heating with
standard room temperature.
HDHW will be heated between 05:30
and 22:00 hrs. DHW will be heated to
the set temperature subject to a DHW
tank being installed. The DHW
circulation pump is switched ON (if
connected to the control unit).
HBetween 22:00 and 06:00 hrs. the
system provides central heating with
the reduced room temperature (set to
3ºC, frost protection).
HBetween 22:00 and 05:30 hrs. the
DHW tank temperature will not be
boosted. The DHW circulation pump is
switched OFF (if connected to the
control unit).
HThe system automatically changes
over between summer and winter
time.
You may change the factory settings in
accordance with personal requirements.
Note:
All data is saved in case of power
failure.
Press button ”D” to reset the
switching times to their factory
default settings.
Please note that this will reset all
altered values to their original factory
default setting.
5369 299 v1.0 b

Inform Yourself
11
Overview of Controls and Indicators
You can change all settings for your heating system, centrally, at the control unit. You may also make such adjustments for
the respective heating circuits at the remote control unit, if your system is equipped with such a unit.
See the remote control
operating instructions.
Opening the control unit
ACover
BControl unit flap (open to make
adjustments)
5369 299 v1.0 b
BA
Lift cover Aand pivot control unit flap
Bdown. All boiler controls are located
behind the control unit flap.

Inform Yourself
12
Overview of Controls and Indicators (continued)

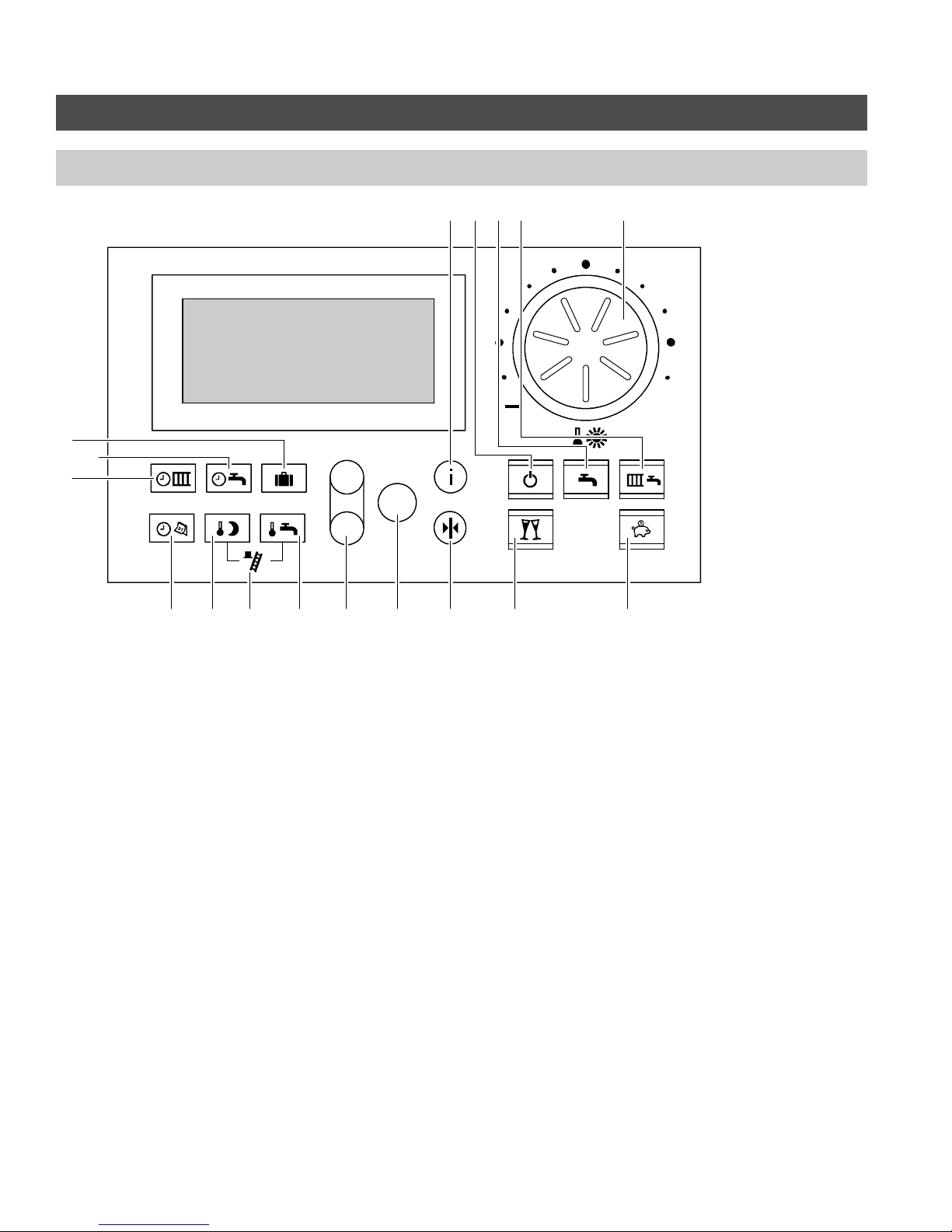

Functions
ATime program for central heating
BTime program for DHW heating
CHoliday program
DInformation
EStandby mode
FDHW only
GCentral heating and DHW
HNormal room temperature
KEnergy saving mode ON / OFF
LParty mode ON / OFF
MFactory default settings button
NConfirmation button
OAdjustment buttons
PDHW temperature
REmission test function (only for
heating engineers)
SReduced room temperature
TTime / date
5369 299 v1.0 b
A
B
C
+
OK
T S R P O N M L K
H
ED
+
F G
140
Boiler temp.
ºF
MO
sA
_

Inform Yourself
13
Overview of Controls and Indicators (continued)

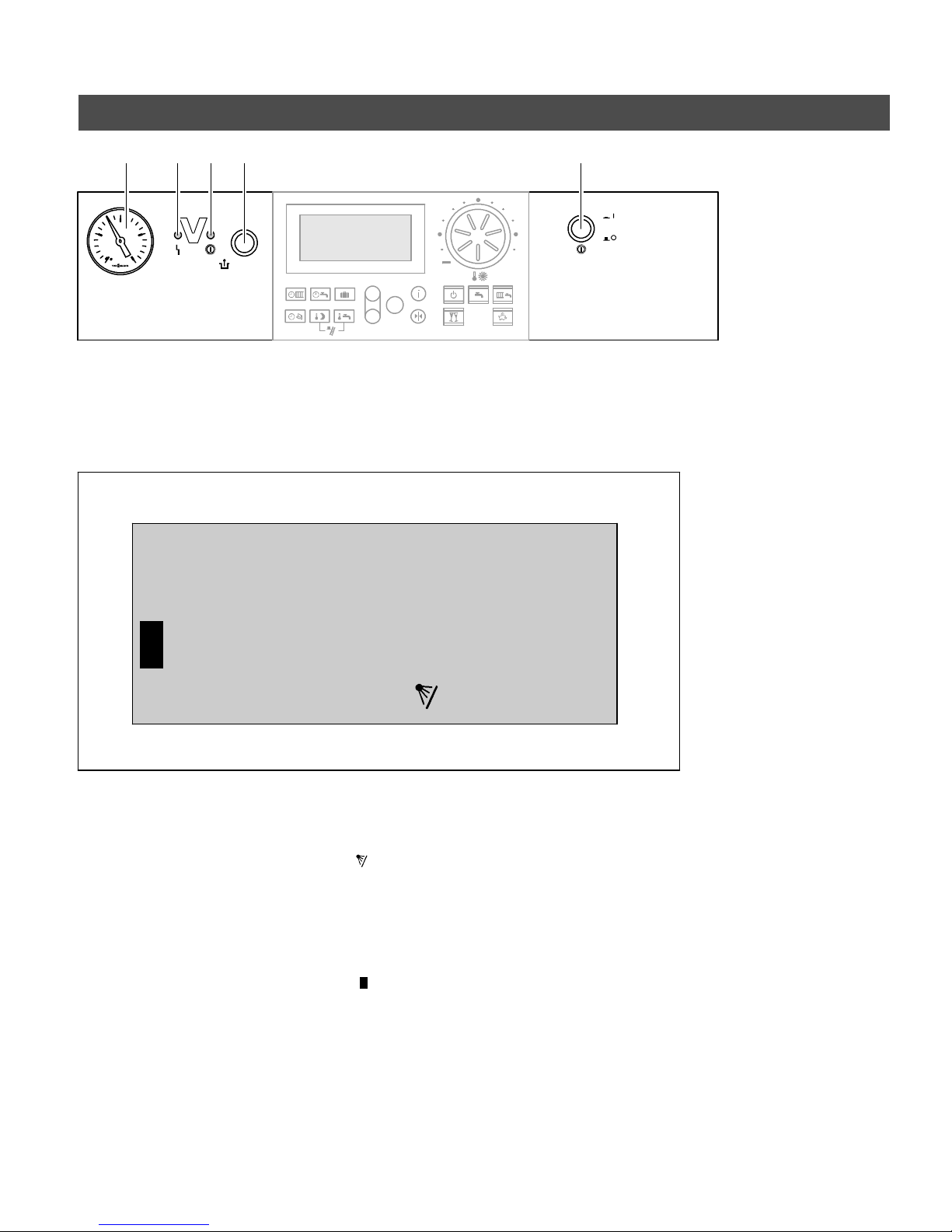

APressure gauge
BFault display (red)
COperating status display (green)
DReset button
EON / OFF switch
These symbols are not always displayed, but appear subject to the system version and the operating state.
eRisk of freezing
sCentral heating with normal
room temperature
mCentral heating with reduced
room temperature
pHeating circuit pump ON
|Mixing valve “OPEN”
~Mixing valve “CLOSED”
wDHW pump ON
pDHW heating via solar heating
system (accessories)
ABurner ON
uTime adjustment display
SEmissions test ON
EBurner fault (appears instead of
the day of the week)
1In case of two heating circuits:
Selected heating circuit
5369 299 v1.0 b
4
+
?
OK
0
1
2
3
0
+
RESET
s
?F
A
140
Mo
Boiler temp.
CD EAB
8888 : 88 :
Mo
Boiler temp.
1ºCF
esmp(wp upA
u
S
h

Inform Yourself
14
Overview of Controls and Indicators (continued)
Heating system with two heating circuits
When two heating circuits have been
connected to your heating system,
select the heating circuit to which the
setting should apply before making
adjustments at the control unit.
150
Mo
Boiler temp.
2ºF
empw A
Press the following keys:
1. ⊕“1r“flashes on the display.
2. for selecting heating circuit A1
(heating circuit without mixing
valve).
Or..
3. ⊕for heating circuit M2 (heating
circuit with mixing valve)
“2r“flashes on the display.
4. for selecting heating circuit M2
(heating circuit mixing valve).
5. Continue with the required
adjustment (e.g. activate rotary
selector “ts“orpressthe
appropriate key for the relevant
function).
Note:
“Select heating circuit” will be displayed
should you begin making adjustments
prior to selecting the relevant heating
circuit.
Note:
After approximately 4 seconds or if you
press again, the following will be
displayed:
The figure in front of the day indicates
which heating circuit has been selected.
Note:
If “Remote control” flashes in the
display, make the relevant adjustment
at the remote control.
See the remote control
operating instructions.
5369 299 v1.0 b

Start-up / Shutdown
0
1
2
3
4
Kesseltemperatur
?C
Mo
+
?
OK
+
C
A
B
15
Starting the Heating System

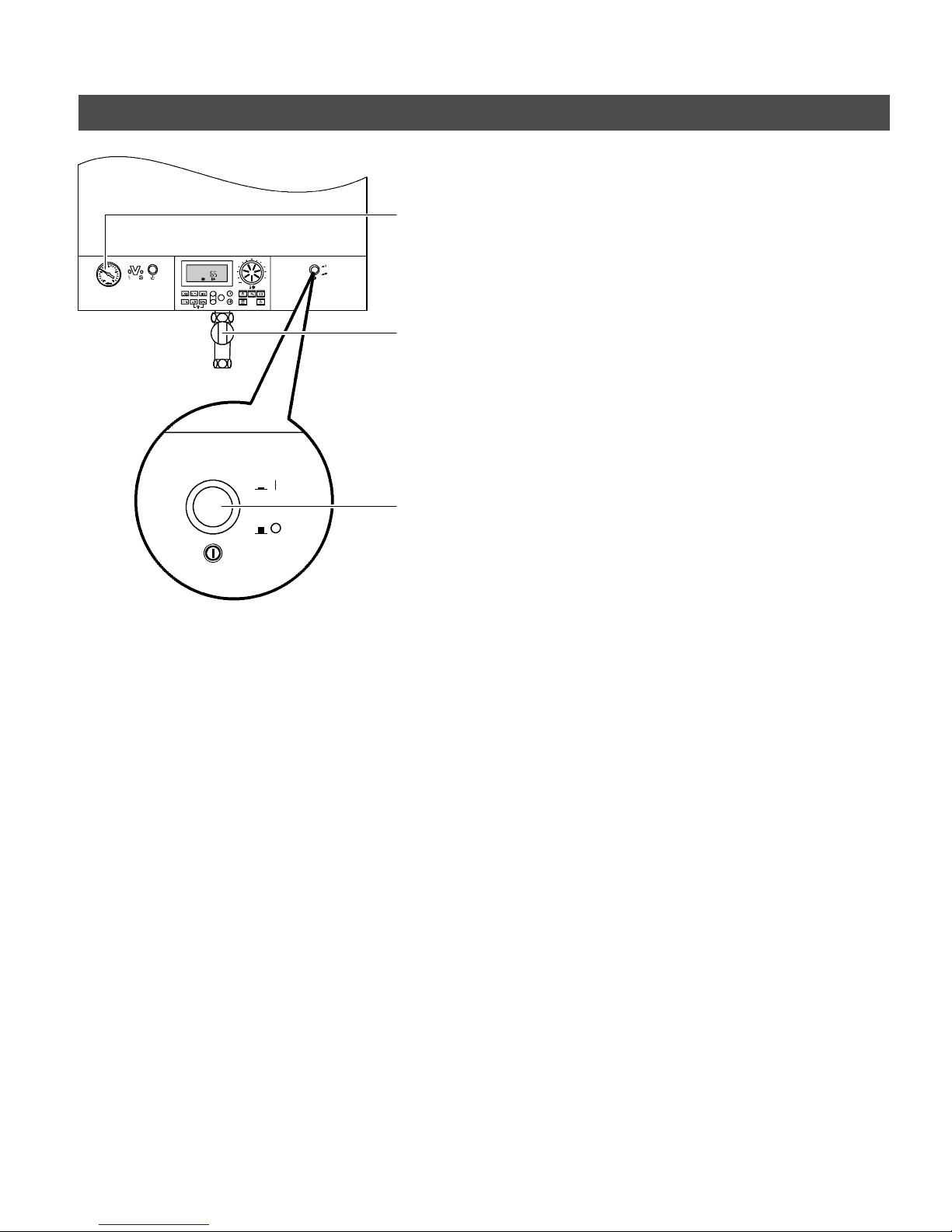

1. Check the pressure of the heating
system on the pressure gauge A:If
the pressure is below 12 psi / 0.8 bar
the system pressure is too low.
Notify your heating contractor if the
system pressure is too low.
2. For room air dependent operation:
Check whether the ventilation
apertures in the boiler room are open
and unobstructed.
Note:
For room air dependent operation:
This boiler requires fresh air for safe
operation. The boiler must be vented
andsuppliedwithairandexhaust
vents.
3. Open gas shut-off valve B.
4. Switch ON the power supply, (e.g. at
the breaker or electrical disconnect
switch. Energize power / pump
module).
5. Switch ON the heating system ON /
OFF switch “8”C; the operating
status is indicated (ON indicator) by
the green LED and the boiler water
temperature will appear in the
display.
5369 299 v1.0 b

Start-up / Shutdown
16
Shutting Down the Heating System
If you do not want to use your heating
system temporarily, (e.g. during your
summer holidays), switch to stand-by
operation (see ”Shutting down a heating
circuit and stopping DHW heating”).
Note:
The circulation pumps are briefly started
every 24 hours to prevent them from
seizing up.
If you do not want to use your heating
system for a long period (several
months), you should shut down the
system.
We advise you to contact your heating
contractor before shutting down the
heating system for long periods. Your
heating contractor will take any
necessary action, (e.g. for frost
protection of the system or to safeguard
the heat exchanger surfaces).
1. Switch the main ON / OFF switch
“8” OFF.
2. Close the gas shut-off valve.
3. Turn off the power supply switch or
disconnect power / pump module.
The power supply to the system is
now switched off.
There is no frost protection.
Note:
All control settings are retained.
Starting a heating circuit and DHW heating
You want to heat your rooms and have
DHW available.
Press “rw“for“Heating & DHW”.
If “Select heating circuit” is displayed
and “1r“flashes:
HSelect that heating circuit with ⊕/⊝,
to which the adjustment should apply.
HConfirm twice with .
Press “rw“for“Heating & DHW”
again.
HCentral heating will be provided with
normal or reduced room temperature
(frost protection) according to the set
time program. Standard setting: from
06:00 to 22:00 hrs. with the normal
room temperature, otherwise with the
reduced room temperature.
HDHW heating (if a DHW tank or
instantaneous water heater is
installed) and DHW circulation pump
running (if connected to the control
unit) according to the selected time
program. Standard setting: from
05:30 to 22:00 hrs., DHW is heated
to the selected set temperature and
the DHW circulation pump is switched
ON.
HFrost protection for the boiler and the
DHW tank is enabled.
Note:
“rw“ button illuminates:
HSymbol ”s” appears during central
heating with normal room
temperature.
HSymbol “m” appears during central
heating with a reduced room
temperature above 37ºF / 3ºC.
5369 299 v1.0 b

Start-up / Shutdown
17
Shutting Down the Heating System (continued)
Shutting down a heating circuit and stopping DHW heating
You do not want to heat your rooms or
have DHW available.
Press “9“for“Standby mode”.
If “Select heating circuit” is displayed
and “1r“flashes:
HSelect the heating circuit with ⊕/⊝,
to which the adjustment should apply.
HConfirm twice with .
HPress “9“againfor“Standby mode”.
Standby mode:
HCentral heating is disabled for the
selected heating circuit.
HNo DHW heating.
HFrost protection for the boiler and the
DHW tank is enabled.
Note:
The circulation pump is briefly started
every 24 hours to prevent it from
seizing up.
Starting DHW heating only
You do not want to heat your rooms but
have DHW available.
Press “w“for“DHW only”.
If “Select heating circuit” is displayed
and “1r“flashes:
HSelect the heating circuit with ⊕/⊝,
to which the adjustment should apply.
HConfirm twice with .
Press “w“for“DHW only” again.
HCentral heating is disabled for the
selected heating circuit.
HDHW heating (if a DHW tank or
instantaneous water heater is
installed) and DHW circulation pump
(if connected to the control unit) ON
according to the set time program.
Standard setting: from 05:30 to
22:00 hrs., DHW is heated to the
selected set temperature and the
DHW circulation pump is switched
ON.
HFrost protection for the boiler and the
DHW tank is enabled.
Note:
If “w“ is illuminated and DHW heating
is enabled in accordance with the
selected time program, then “w“ will be
displayed.
Stopping DHW heating
You want to heat your rooms but not
make DHW available.
Set the DHW temperature to 50ºF /
10ºC (see page 25).
5369 299 v1.0 b

Adjusting the Room Temperature
18
Setting a Permanent Room Temperature
Observe the following points if your
heating circuit should provide central
heating.
H“Heating & DHW” “rw”must be
illuminated, otherwise press “rw”.
If “Select heating circuit” is displayed
and “1r“flashes:,
- Select the heating circuit with ⊕/⊝,
to which the central heating should
apply.
- Confirm twice with .
-If“rw”does not illuminate, press
“rw”again.
HYou can select the normal room
temperature “ts“ (for day) and the
reduced room temperature (for night)
with “tm”.
HThe timing of when your heating
circuit operates to provide central
heating with normal or reduced room
temperature depends on the settings
ofthetimeprogram(seepage20).
- If no time phases are selected, central
heating will be enabled for the whole
day at reduced room temperature.
- If one or more time phases are
selected, central heating will be
enabled for those times with normal
room temperature.
You can scan the time program, (see
page 33).
For changing the time program, (see
page 20).
Selecting normal room temperature
Select the required temperature for the
“Normal room temp.” with selector dial
“ts”.
68
s
Normal room temp.
ºF
If “Select htg. circuit” is displayed and
“1r”flashes:
HSelect the heating circuit with ⊕/⊝,
to which the central heating should
apply.
HConfirm twice with .
HSet the required temperature for
“Normal room temp.” with selector dial
“ts”.
5369 299 v1.0 b
+

Adjusting the Room Temperature
19
Setting a Permanent Room Temperature (continued)
Selecting a reduced room temperature
Red. room temp.
ºF
57
m
Press the following buttons:
1. tm for “Red. room temp.”,the
current temperature will flash.
If “Select htg. circuit” is
displayed and “1r“flashes:
HSelect the heating circuit
with ⊕/⊝,towhichthe
central heating should apply.
HConfirm twice with .
Htm again for the “Red. room
temp.”, the current
temperature selection will
flash.
2. ⊕/⊝for the required temperature.
If “Select htg. circuit” is
displayed and “1r“flashes:
3. to confirm; the temperature no
longer flashes and is saved.
4. to exit the setting menu.
Note:
When setting the reduced room
temperature to 37ºF / 3ºC, “Frost
protection” will be displayed.
5369 299 v1.0 b

Adjusting the Room Temperature
20
Setting a Permanent Room Temperature (continued)
Selecting a time program (switching times)
For central heating, up to four changes can be made between normal and reduced
room temperature (four time phases). At the factory, time phase 1 is set for every
day from 06:00 to 22:00 hrs., ie. during that time, all rooms are heated to the
normal room temperature. You can set the time programs the same for every day or
for each day of the week individually.
When setting time programs, bear in mind that your heating system requires some
time to heat the rooms to the required temperature.
Forasequenceofstepstodeleteatimephase,(seepage21).
Steps for selecting a time program:
Central heating time prog.
1-7
Central heating time prog.
Mo
Press the following keys:
1. urfor “Htg. time program”.
If “Select htg. circuit” is
displayed and “1r“flashes:
HSelect the heating circuit
with ⊕/⊝,towhichthe
central heating should apply.
HConfirm twice with .
H“ur”again for the
“Heating time program”.
2. ⊕/⊝until “1-7” is displayed, if you
want to set up identical time
phases for every day.
Or..
3. ⊕/⊝until “Mo”, “Tu” etc. is
displayed, if you want to set up
different time phases for the
day displayed.
4. to confirm; “Htg. timer 1”
will then be displayed.
5. to confirm; “Htg. cycle 1 On”
will then be displayed.
6. ⊕/⊝for the heating phase starting
point.
7. to confirm; “Htg. cycle 1 Off”
will then be displayed.
8. ⊕/⊝for the heating phase end point.
9. to confirm; “Htg. cycle 2 On”
will then be displayed.
10. Proceed for adjusting the start and
end of heating phases 2 to 4 as
described under steps 6 to 8.
Note:
Ifyouwanttoterminatethetime
programming early, press “ur“again
and confirm with .
Note:
If different time phases are set for
individual days and you want to return
to identical time phases for every day,
press when “1-7” is displayed. All
time phases are returned to their original
condition.
Note:
Press ifyouwanttoskipatime
phase.
5369 299 v1.0 b
