Viessmann Vitodens series User manual

Operating instructions VIESMANN
for system users
Heating systems with Vitotronic 100 control unit
for constant temperature operation
VITODENS
5592 453 GB 3/2004 Please keep safe

Please follow these safety instructions closely to prevent accidents and
material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Important information
This symbol warns against the
risk of material losses and
environmental pollution.
Note
Details identified by the words "Note"
contain additional information.
Target group
These operating instructions are
designed for heating system users.
Danger
Incorrect work on the heating
system can lead to life-threa-
tening accidents.
&Work on gas equipment must
only be carried out by a
registered gas fitter.
&Electrical work must only be
carried out by a qualified
electrician.
If you notice a smell of gas
Danger
Escaping gas can lead to
explosions which may lead to
serious injury.
&Do not smoke. Prevent
naked flames and sparks.
Never switch electrical lights
or equipment.
&Open windows and doors.
&Close the gas shut-off valve.
&Remove all personnel from
the danger zone.
&Observe the safety regula-
tions of your local gas sup-
plier which can be found on
the gas meter.
&Notify your heating contrac-
tor from outside the building.
If you smell flue gas
Danger
Flue gas may lead to life-threa-
tening poisoning.
&Shut down the heating sys-
tem.
&Ventilate the boiler room.
&Closealldoorsleadingtothe
living space.
For your safety
2
Safety instructions
5592 453 GB

If you notice fire
Danger
Fire causes a risk of burns and
explosion.
&Shut down the heating sys-
tem.
&Close the fuel line shut-off
valves.
&Only use suitable approved
fire extinguishers.
Gas fired operation: Fire
class C
Boiler room requirements
!Important information
Incorrect ambient conditions
canleadtodamagetothe
heating system and put safe
operation at risk.
&Ensure temperatures higher
than 0 °C and lower than 35
°C.
&Prevent the air becoming
contaminated by haloge-
nated hydrocarbons (e.g. as
contained in paints, solvents
or cleaning fluids) and exces-
sive dust (e.g. through grind-
ing/polishing work).
&Avoid continuously high
humidity levels (e.g. through
frequent drying of washing).
&Never close existing ventila-
tion apertures.
Fuels
!Important information
Using incorrect fuel can
damage the heating system.
Use only the following types of
fuel:
Natural gas E and LL or LPG.
Ancillary components, spare and
wearing parts
!Important information
Components which are not
tested with the heating system
mayleadtodamagetothe
heating system or may affect
their functions.
Installation or replacement
must only be carried out by
qualified personnel.
For your safety (cont.)
3
Safety instructions
5592 453 GB

Introduction
Initial start-up ............................................................................................. 6
Your heating system is pre-set at the factory ............................................... 6
Where to find the controls
Summary of controls and indicators ............................................................ 7
&Opening the control unit ........................................................................... 7
&Functions ................................................................................................ 8
&Symbols in the display ............................................................................. 9
Start-up and shutdown
Heating system start-up .............................................................................. 10
Heating system shutdown ........................................................................... 10
Starting a heating circuit and DHW heating/loading ..................................... 11
Starting DHW only ...................................................................................... 12
Shutting down a heating circuit and DHW heating/loading ........................... 12
Adjusting temperatures
Room temperature...................................................................................... 13
Adjusting the boiler water temperature ........................................................ 13
Setting the DHW temperature ..................................................................... 14
Modifying and scanning time programs
General notes............................................................................................. 15
Central heating ........................................................................................... 16
DHW heating .............................................................................................. 17
Scanning options
Scanning information .................................................................................. 19
Special displays
Time and date............................................................................................. 21
Maintenance display................................................................................... 21
What to do if ...
... rooms are too cold? ................................................................................ 23
... rooms are too hot? .................................................................................. 24
... no DHW is available?.............................................................................. 24
... the DHW is too hot? ................................................................................ 25
Scanning fault display................................................................................. 25
Repairs
Cleaning..................................................................................................... 26
Index
4
Index
5592 453 GB

Inspection and maintenance ....................................................................... 26
Energy saving tips .................................................................................... 28
Keyword index .......................................................................................... 29
Index (cont.)
5
Index
5592 453 GB

The initial start-up and matching of
the control unit to local conditions and
the structural characteristics of the
building, must be carried out by your
heating contractor.
As the user of new combustion equip-
ment, you are obliged to notify the
installation to your local flue gas
inspector (check local regulations).
Your local flue gas inspector will also
inform you (where appropriate) about
work he may be required to perform
on your combustion equipment (e.g.
regular checks, cleaning).
Your heating system is pre-set at the factory
The control unit is preset at the fac-
tory for "heating and DHW", i.e. the
system delivers central heating and
DHW loading (subject to a DHW cylin-
der being installed). Your heating sys-
tem is therefore ready for use.
You may change the factory settings
in accordance with personal require-
ments.
Note
All data is saved in case of power fail-
ure.
Initial start-up
6
Introduction
5592 453 GB

You can change all settings for your heating system, centrally, at the control
unit.
You can change the room temperature and time program settings for central
heating at the remote control (see separate operating instructions), provided
your system is equipped with a remote control unit.
Opening the control unit
ACover
BControl unit flap (open to make
adjustments)
Lift up the cover A, and pivot the con-
trol unit flap Bdown. All boiler con-
trols are located behind the control
unit flap.
Ontheinsideofthecontrolunit
flap B, an abridged version of these
operating instructions can be found
behind a further flap. You may remove
the abridged operating instructions
with the flap.
Summary of controls and indicators
7
Wheretofindthecontrols
5592 453 GB

Functions
AHeating programs (page 11)
BInformation (page 19)
CBasic settings
DConfirmation/acknowledgement
ESetting values
FDHW temperature (page 14)
GEmissions test switch (only for
qualified personnel)
HBoiler water temperature (page
13)
KTime program, DHW heating/load-
ing (page 17)
and DHW circulation (if connected
to the control unit)
LTime/date (page 21)
MCentral heating time program
(page 16)
Basic settings
All modified values are reset to their
factorysettingsbypressinge.
Summary of controls and indicators (cont.)
8
Wheretofindthecontrols
5592 453 GB

Further displays and controls
APressure gauge
BFault indicator (red)
CON/OFF indicator (green)
DBurner fault reset
EON/OFF switch
Symbols in the display
These symbols are not permanently displayed, but appear subject to the system
version and the operating state. Flashing displays indicate that modifications
canbemade.
rCentral heating or "Boiler
enable" in a multi-boiler system
wDHW loading enabled
pCirculation pump running
Êp DHW loading through a solar
heating system
ABurner "ON"
SEmissions test "ON"
EBurner fault
UFault message
Summary of controls and indicators (cont.)
9
Wheretofindthecontrols
5592 453 GB

Position of the gas shut-off valve for
Vitodens 333
1. Check the heating system pressure
on the pressure gauge A: The sys-
tem pressure is too low if the nee-
dle indicates below 0.8 bar. In that
case, top up with water or contact
your local heating contractor.
2. For open flue operation:
Thecombustionairisdrawnfrom
the boiler room.
Check whether the ventilation/
exhaust apertures in the boiler
room are open and unobstructed.
3. Open the gas shut-off valve B.
4. Switch ON the mains power supply;
e.g. at a separate fuse or a mains
electrical isolator.
5. ON/OFF switch "8"C;
standby mode is then shown to be
running by the green indicator (ON
indicator); after a short time the boi-
ler temperature will be displayed.
Your heating system and, if
installed, your remote control unit
are now ready for use.
Heating system shutdown
If you temporarily have no need of your heating system, e.g. during a summer
holiday, switch the system to "standby mode"K(see page 12).
Note
The circulation pump will be started for short periods at regular intervals to pre-
vent it from seizing up. These intervals can be modified by your heating contrac-
tor.
Heating system start-up
10
Start-up and shutdown
5592 453 GB

Shut down your heating system if you do not intend using it for longer periods
(several months).
Before you shut down your heating system for short or longer periods, it would
be advisable to contact your local heating contractor.
Your heating contractor can then take any necessary measures, subject to
requirements, e.g. for frost protection of the system or to preserve the heating
surfaces.
1. ON/OFF switch "8".
The green indicator (ON/OFF indi-
cator) extinguishes.
2. Close the gas shut-off valve.
3. Switch OFF the mains power sup-
ply; e.g. at a separate fuse or a
mains electrical isolator.
As the system is now at zero volt,
the heating system has no frost
protection.
Note
All settings remain intact.
Starting a heating circuit and DHW heating/loading
Press G.
Central heating and DHW:
&Central heating active.
&DHW will be loaded (subject to a
DHW cylinder or instantaneous
water heater being installed).
&Frost protection for the boiler and
the DHW cylinder is active.
Heating system shutdown (cont.)
11
Start-up and shutdown
5592 453 GB

Press L.Only DHW:
&No central heating.
&DHW will be loaded (subject to a
DHW cylinder or instantaneous
water heater being installed).
&Frost protection for the boiler and
the DHW cylinder is active.
Shutting down a heating circuit and DHW heating/loading
Press K.
Standby mode:
&No central heating.
&No DHW heating.
&Frost protection for boiler and DHW
cylinder.
Note
The circulation pump will be started
for short periods at regular intervals to
prevent it from seizing up. These
intervals can be modified by your
heating contractor.
Starting DHW only
12
Start-up and shutdown
5592 453 GB

In addition to the boiler control unit, a separate room temperature controller (e.
g. Vitotrol 100) must be installed in one of the living rooms, if the heating system
is to be regulated in accordance with the required room temperature.
Make adjustments using the appropri-
ate operating instructions.
Please also note:
&The heating program selector of the
boiler control unit must be set to
"G".
&Set the boiler water temperature
high enough.
&All thermostatic radiator valves in
the room where the controller is
installed must be fully open.
Adjusting the boiler water temperature
If a remote control unit is connected:
Set the room temperature on the remote control unit.
Set the boiler water temperature high enough to be able to achieve the required
room temperature.
Press the following keys:
1. Ofor "set boiler water tempera-
ture"; the current temperature will
flash.
2. a/bfor the required tempera-
ture.
3. dto confirm; the temperature
no longer flashes and is
now saved.
Room temperature
13
Adjusting temperatures
5592 453 GB

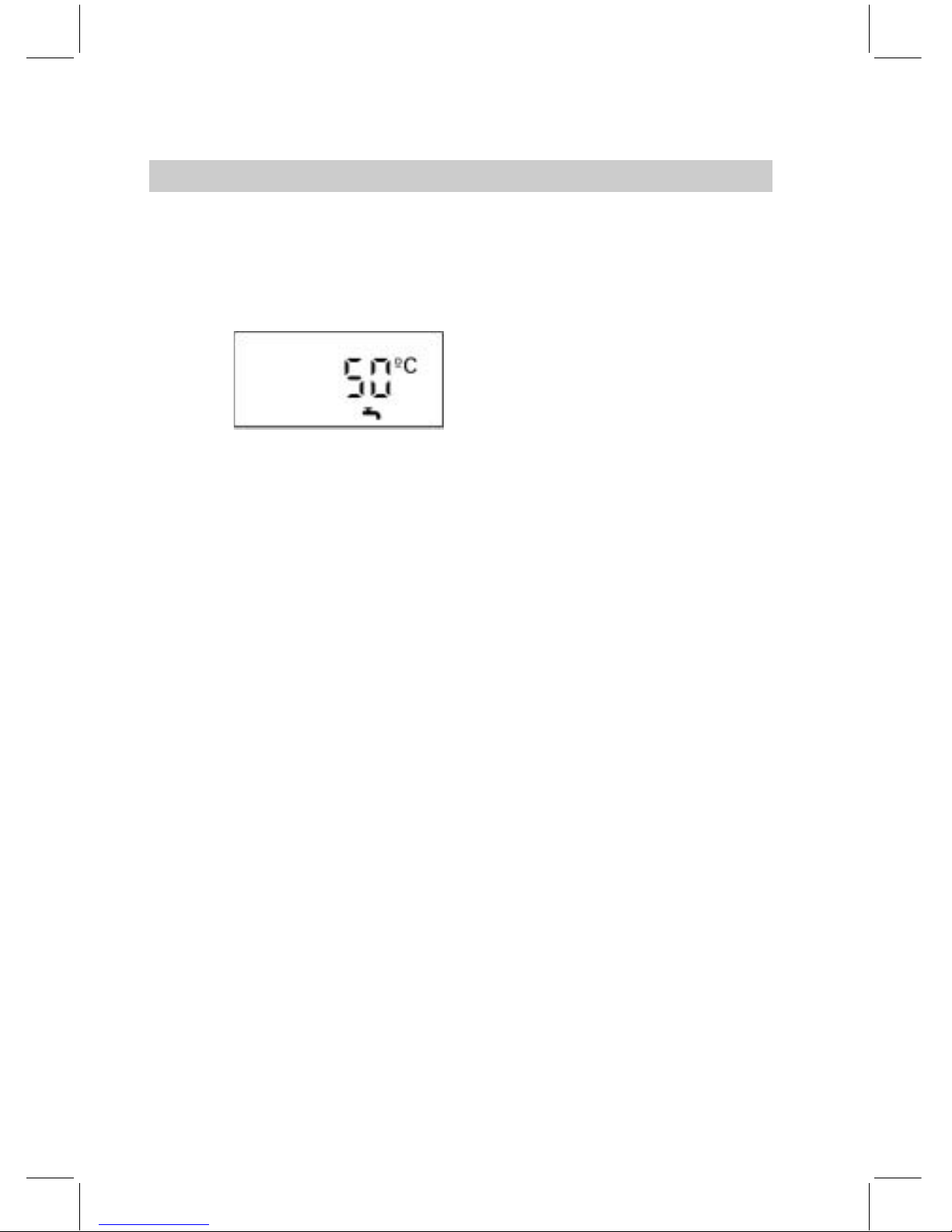

Press the following keys:
1. Ffor "set DHW temperature";
the current temperature
will flash.
2. a/bfor the required tempera-
ture.
3. dto confirm; the temperature
no longer flashes and is
now saved.
Setting the DHW temperature
14
Adjusting temperatures
5592 453 GB

You can set time programs for central heating and DHW loading with DHW cir-
culation (subject to a DHW cylinder or an instantaneous water heater being
installed).
Thetimeprogramcomprisesfourtime
phases, i.e.
&for central heating, up to four
changes per day between standard
room temperature and reduced
room temperature can be pro-
grammed.
&DHW heating and DHW circulation
pump (if connected to the control
unit) can be activated/deactivated
up to four times per day.
Atthefactory,timephase1issetfor
all weekdays. During that time
&rooms will be heated with standard
room temperature, and
&DHW will be loaded and the DHW
circulation pump started (if con-
nected to the control unit).
The following keys are allocated to
thetimeprograms:
Key Time program for Basic factory settings
ACentral heating Standard room temperature 6:00
to 22:00 h
BDHW loading and
DHW circulation pump (if con-
nected to the control unit)
ON: 05:30 to 22:00 h
You can select identical time pro-
grams for all weekdays or individual
programs for each day. Take the
response time of your heating system
into consideration when adjusting the
time programs. Select correspond-
ingly earlier start-up and shutdown
times.
General notes
15
Modifying and scanning time programs
5592 453 GB

Press the following keys:
1. Afor central heating time
program.
Note
If you want to terminate the time
program adjustment prematurely,
press Aagain.
2. a/buntil the arrows flash
below all days (1 to 7), if
youwanttosetthesame
time phases for every day
or
3. a/buntil one arrow flashes
below the required day (2
equals Tuesday), if you
want to set alternative
time phases for the
marked day.
Note
If different time phases are set for
individual days and you want to
set up identical time phases for all
days again press dwhen the
arrows flash below all days. All
time phases will then be returned
to their original condition.
4. dto confirm; time phase "1"
will then be displayed.
Press aif you want to
skipatimephase.
5. dto confirm; the time phase
start point will then be dis-
played.
6. a/bfor time phase start point.
7. dto confirm; the time phase
end point then flashes.
8. a/bfortimephaseendpoint.
9. dto confirm; the next time
phase is then displayed.
Central heating
16
Modifying and scanning time programs
5592 453 GB

10. For setting the start and end of
time phases 2 to 4, proceed as
under points 6 to 9.
Scan time phases
Proceed as per page 16, but without
pressing aand b.
Time phase deletion
You want to heat for the whole day
with a reduced room temperature.
Press the following keys:
1. Afor central heating time pro-
gram.
2. duntil the time phase end point
to be deleted flashes.
3. buntil the display "- -:- -" is
shownfortheendpoint.
4. dto confirm, until the basic dis-
play is shown.
DHW heating
Press the following keys:
1. Bfor DHW loading time pro-
gram.
Note
If you want to terminate the time
program adjustment prematurely,
press Bagain.
2. a/buntil the arrows flash
below all days (1 to 7), if
youwanttosetthesame
time phases for all days
or
3. a/buntil one arrow flashes
below the required day (2
equals Tuesday), if you
want to set alternative
time phases for the
marked day.
Note
If different time phases are set for
individual days, and you want to
set up identical time phases for all
days again, press dwhen the
arrows flash below every day. All
time phases will then be returned
to their original condition.
Central heating (cont.)
17
Modifying and scanning time programs
5592 453 GB

4. dto confirm; time phase "1"
will then be displayed.
Press aif you want to
skipatimephase.
5. dto confirm; the time phase
start point will then be dis-
played.
6. a/bfor time phase start point.
7. dto confirm; the time phase
end point then flashes.
8. a/bfortimephaseendpoint.
9. dto confirm; the next time
phase is then displayed.
10. For setting the start and end of
time phases 2 to 4, proceed as
under points 6 to 9.
Scan time phases
Proceed as per page 17, but without
pressing aand b.
Time phase deletion
Press the following keys:
1. BforDHWloadingtimepro-
gram.
2. duntil the time phase end point
to be deleted flashes.
3. buntil the display "- -:- -" is
shownfortheendpoint.
4. dto confirm, until the basic dis-
play is shown.
DHW heating (cont.)
18
Modifying and scanning time programs
5592 453 GB

Subject to connected components, you can scan current temperatures and
operating conditions.
Press the following keys:
1. cfor boiler water tempera-
ture.
2. a/bfor additional scans.
3. dto end scanning.
Display indication Explanation Notes
1 20°C Outside tempera-
ture
Display only if an outside tem-
perature sensor is connected.
3 65°C Boiler water tem-
perature
–
5 50°C DHW temperature Display only if a DHW cylinder is
installed.
16:35 uTime
2004 Year
:08 Month
23: Day With the arrow on the current day.
5□45°C DHW temperature
for solar operation
Display only if a solar heating
system is connected.
6 70°C Collector tempera-
ture
Display only if a solar heating
system is connected.
|003572 h Burner hours run The hours run can be reset to "0"
by pressing e. The hours run
displayed are only approximate
values.
||| 030417 Burner starts The number of burner starts can
be reset to "0" by pressing e.
Scanning information
19
Scanning options
5592 453 GB

Display indication Explanation Notes
|||||
000850 h
Hours run - solar
circuit pump
Thehoursruncanberesetto"0"
on the Vitosolic solar control unit.
The hours run displayed are only
approximate values.
||||||
002850
Solar energy in
kWh
The solar energy display can be
reset to "0" on the Vitosolic solar
control unit.
Scanning information (cont.)
20
Scanning options
5592 453 GB
