Viessmann Riello Supplement

Riello Burner
Installation and Operating
Instruction Supplement
Use in conjunction with the original technical literature supplied by Riello
Riello Burner
Gas or Oil-Fired Burner
for use with Vitola 200 boiler
Heating input 3 to 300 MBH
24 to kW
Read and save these instructions
for future reference.
IMPORTANT
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
WARNING
Improper installation, adjustment, and/or
operation could cause carbon monoxide
poisoning resulting in injury or loss of life.
This product must be installed and serviced by a
professional service technician who is
experienced and qualified in hot water boiler
installation and gas combustion.
WARNING
Do not store or use gasoline or other flammable
liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS


Do not try to light any appliances.


Do not touch any electrical switches, do not
use any phone in your building.


Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.


If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
5265 665 v2.5 12/2009

Safety, Installation and Warranty Requirements
2
Safety Installation and Warranty Requirements
Please ensure that this manual is read and understood before commencing installation. Failure to comply with the issues listed below
and details printed in this manual can cause product/property damage,severe personal injury, and/or loss of life. Ensure all
requirements below are understood and fulfilled (including detailed information found in manual subsections).
Each of the following issues is very important and is discussed in detail in the boiler technical literature. Ensure that the installation
complies fully and completely with all requirements set out in the boiler technical literature.
HLicensed professional heating
contractor
The installation, adjustment, service,
and maintenance of this equipment
must be performed by a licensed
professional heating contractor.
"
Please see section
entitled “Important
Regulatory and
Installation
Requirements”.
HProduct documentation
Read all applicable documentation
before commencing installation. Store
documentation near boiler in a readily
accessible location for reference in
the future by service personnel.
"
For a listing of
applicable literature,
please see section
entitled “Important
Regulatory and
Installation Requirements”.
HAdvice to owner
Once the installation work is
complete, the heating contractor must
familiarize the system
operator/ultimate owner with all
equipment, as well as safety
precautions/requirements, shut-down
procedure, and the need for
professional service annually before
the heating season begins.
HContaminated air
Air contaminated by chemicals can
cause by-products in the combustion
process which are poisonous to
inhabitants and destructive to
Viessmann equipment.
HCarbon monoxide
Improper installation, adjustment,
service and/or maintenance can cause
flue products to flow into living space.
Flue products contain poisonous
carbon monoxide gas.
HFresh air
This equipment requires fresh air for
safe operation and must be installed
ensuring provisions for adequate
combustion and ventilation air exist.
HEquipment venting
Never operate boiler without an
installed venting system.
HWarranty
Information contained in
this and related product
documentation must be
read and followed. Failure
to do so renders warranty
null and void.
5265 665 v2.5
Do not store chemicals containing
chlorine or other corrosive materials
near the boiler such as bleach
cleaning solvents detergents acids
hair spray spray cans paint thinners
paint water softener salt
refrigerants etc.
WARNING
Installers must follow local
regulations with respect to
installation of carbon monoxide
detectors. Follow manufacturer’s
maintenance schedule of boiler.
WARNING
Never operate the burner without an
adequate supply of fresh combustion
air. All the combustion and ventilation
air must be supplied from the outside.
Failure to heed this warning can
cause severe personal injury or loss
of life.
WARNING
Improper incomplete obstructed or
deteriorated vent system can present
a serious risk of flue gases leaking
into living space which could cause
carbon monoxide poisoning.
WARNING

Contents
3
Page
Safety
Important Regulatory and Installation Requirements 4 ....
Set-up
Product Delivery 4 .......................................................................
Mounting Burner 5 ......................................................................
Burner Set-up - Gas 6 .................................................................
Burner Set-up - Oil 10 ...................................................................
Oil Cartridge Assembly 13 ...........................................................
Burner Set-up - Gas and Oil 13 ..................................................
Start-up/Appendix
Start-up Information 14 ................................................................
Technical Data 15 ..........................................................................

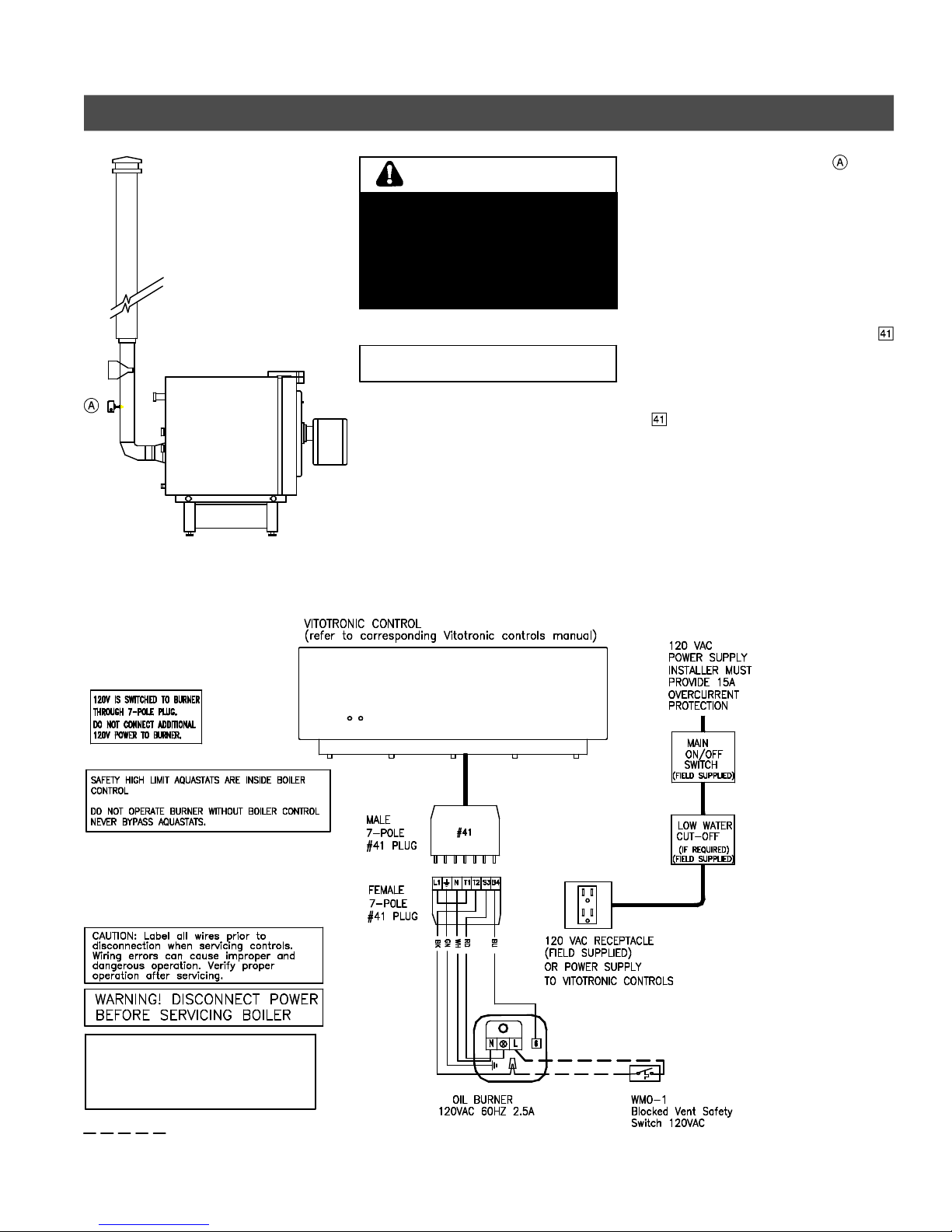

Wiring Diagram 1 .........................................................................
Maintenance Record 20 ...............................................................
Operation
Lighting Instructions 23 ...............................................................
5265 665 v2.5

Safety
4
Important Regulatory and Installation Requirements
Take note of all symbols and notations intended to draw attention to potential hazards or important product information.
These include ”WARNING” ”CAUTION” and ”IMPORTANT”.
Codes
The installation of this unit shall be in
accordance with local codes. In the
absence of local codes, use:
HCSA B-139 for oil installations in
Canada
HCSA-B149.1 or .2 for gas installations
in Canada
HNFPA 31 Standard for the Installation
of Oil Burning Equipment for oil
installations in the U.S.
HANSI Z223.1 National Fuel Gas Code
for gas installations in the U.S.
Always use latest editions of codes.
All electrical wiring is to be done in
accordance with the latest edition of
CSA C22.1 Part 1 and/or local codes. In
the U.S. use the National Electrical
Code ANSI/NFPA 70. The heating
contractor must also comply with the
Standard for Controls and Safety
Devices for Automatically Fired Boilers,
ANSI/ASME CSD-1 where required by
the authority having jurisdiction.
Working on the equipment
The installation, adjustment, service,
and maintenance of this boiler must be
done by a licensed professional heating
contractor who is qualified and
experienced in the installation, service,
and maintenance of hot water boilers.
There are no user serviceable parts on
the boiler, burner, or control.
Ensure main power supply to
equipment, the heating system, and all
external controls has been deactivated.
Close main gas or oil supply valve. Take
precautions in both instances to avoid
accidental activation of power during
service work.
Install the boiler as described in its
technical documentation before
installing or operating the burner.
Product Delivery
Riello burners shipped by Viessmann are factory tested and calibrated on the
correct boiler si e using combustion analysis equipment.
Product delivery
HCarton with gas or oil burner
5265 665 v2.5
IMPORTANT
Turn off electric power
supply before servicing.
Contact with live
electric components
can cause shock or
loss of life.
WARNING

Set-up
5
Mounting Burner
Installation
1. Remove burner from carton. The
universal mounting flange has been
installed on the burner at the factory.
2. Mount burner as shown in
Figs. 1 and 2.
5265 665 v2.5

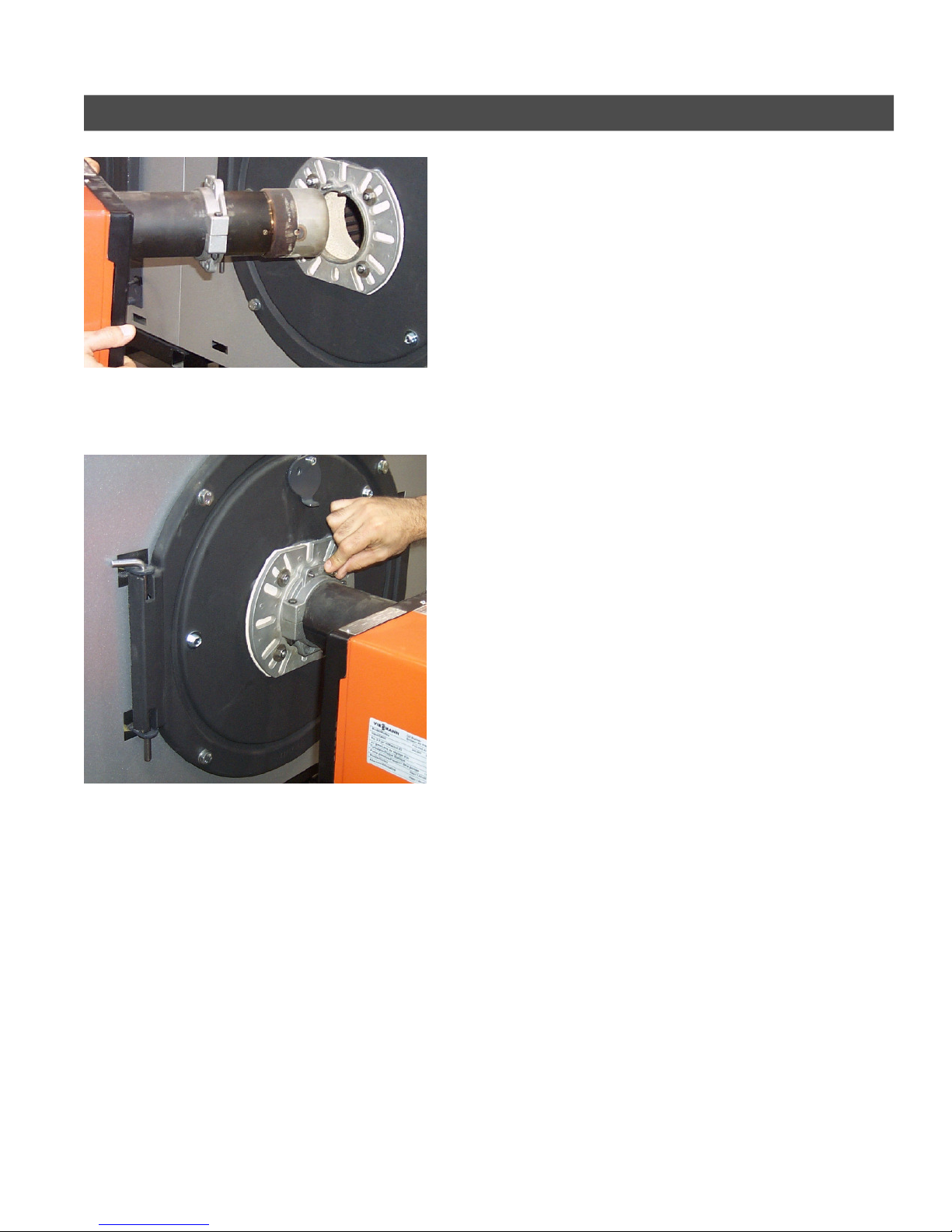

Fig. 1
Installing burner
Fig. 2
Securing burner flange to combustion chamber door

Set-up
6
Burner Set-up - Gas
Installation
The gas train may be mounted on the
left or on the right side of burner.
G200 burners have a ½” NPT female
gas connection.
G400 burners have a ¾” NPT female
gas connection.
Gas train
NG flow pressure: min. 4.0” w.c.
max. 10.5” w.c.
LP flow pressure: min. .0” w.c.
max. 13.0“ w.c.
Legend (Fig. 3)
Gas supply and gas flow direction
Gas shut-off valve (field supplied)
Gas supply pressure test point
(field supplied)
Gas train pipe diameter(s)
Burner G200 ½” NPT
Burner G400 ¾” NPT
Maxitrol RV52 with RV5210-13
(brown spring 1.0 to 3.5” w.c.)
gas appliance pressure regulator
Honeywell gas solenoid valve
V 295 N.C. (24 V operated)
Dungs MVD-LE model 200
G200= MVD-LE 205/6 (24 V)
G400= MVD-LE 207/6 (24 V)
Gas burner manifold test point
Gas piping pressure test
The burner and its gas connection must
be leak-tested before placing the
boiler/burner combination in operation.
The burner and its individual shut-off
valve must be disconnected from the
gas supply piping system during any
pressure testing of that system at
pressures in excess of 0.5 psig/3.5 kPa.
Unions and manifold have been
factory-tested. Leak test must be
repeated during initial operation of
burner by heating contractor. Never
check for gas leaks with an open flame.
Use approved spray liquid or soap water
solution for bubble test.
5265 665 v2.5
IMPORTANT

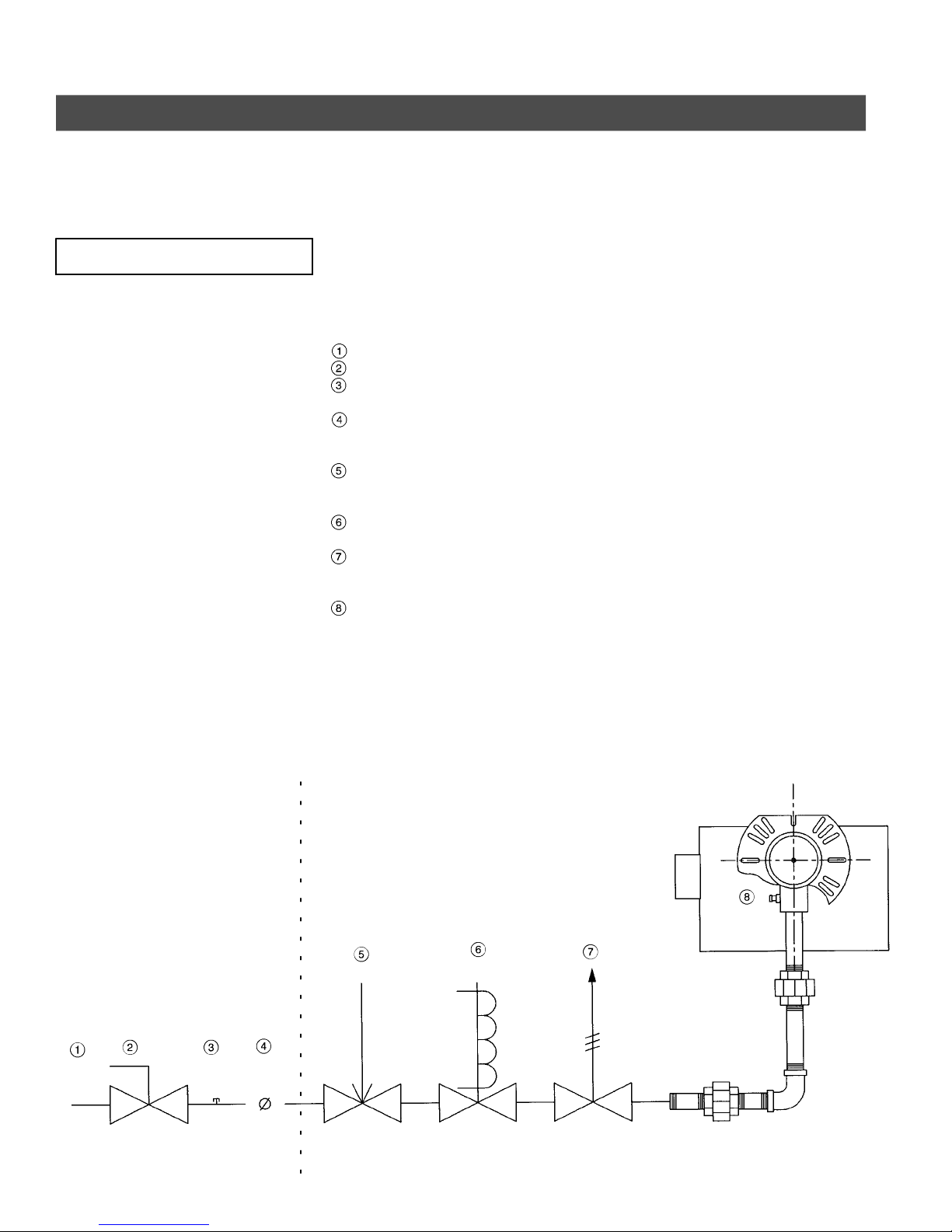

Fig. 3
Gas train
Field Supplied Viessmann Supplied
"

Set-up
7
Burner Set-up - Gas (continued)
Flow adjustment cap
Pan head screw
Sealing cap/adjustment cap tool
Burner manifold gas pressure
adjustment
The burner manifold gas pressure
settings must be performed using the
RV52 gas appliance regulator only.
In the event of low gas supply pressure,
increase gas supply pressure using the
RV52 gas regulator to required
minimum gas supply pressure.
Operating and Installation
Instructions for gas train
components (supplied)
No preliminary adjustments required for
Honeywell V8295 N.C. gas solenoid
valve.
Adjustment steps
1. Attach manometer to burner manifold
test point (combustion head ).
2. Start up burner and observe.
3. Wait until burner has stabilized to
adjust burner manifold pressure using
the RV52 gas appliance regulator,
and set to required burner manifold
pressure setting.
Use factory default settings (pages
15 and 16) as starting point only.
4. To adjust the initial lift gas pressure
remove sealing cap, exposing the lift
adjustment knob, turn over cap,
adjust knob to “+” to increase the
start pressure and set to approx. 0.7
to 0.9 “w.c. (manifold pressure).
Factory default setting is set to 100%
full flow.
5. Restart appliance at least three times
to finalize gas manifold setting and to
determine a smooth ignition.
6. If burner fails to ignite or ignition is
delayed or hard, one or more of the
following corrective actions may be
required:
H Adjust initial gas pressure setting
on Dungs gas valve.
H Ignition electrode and/or ionization
(flame) rod is not set within
specified range, adjust setting by
referring to original Installation
Instructions of Riello burner.
5265 665 v2.5

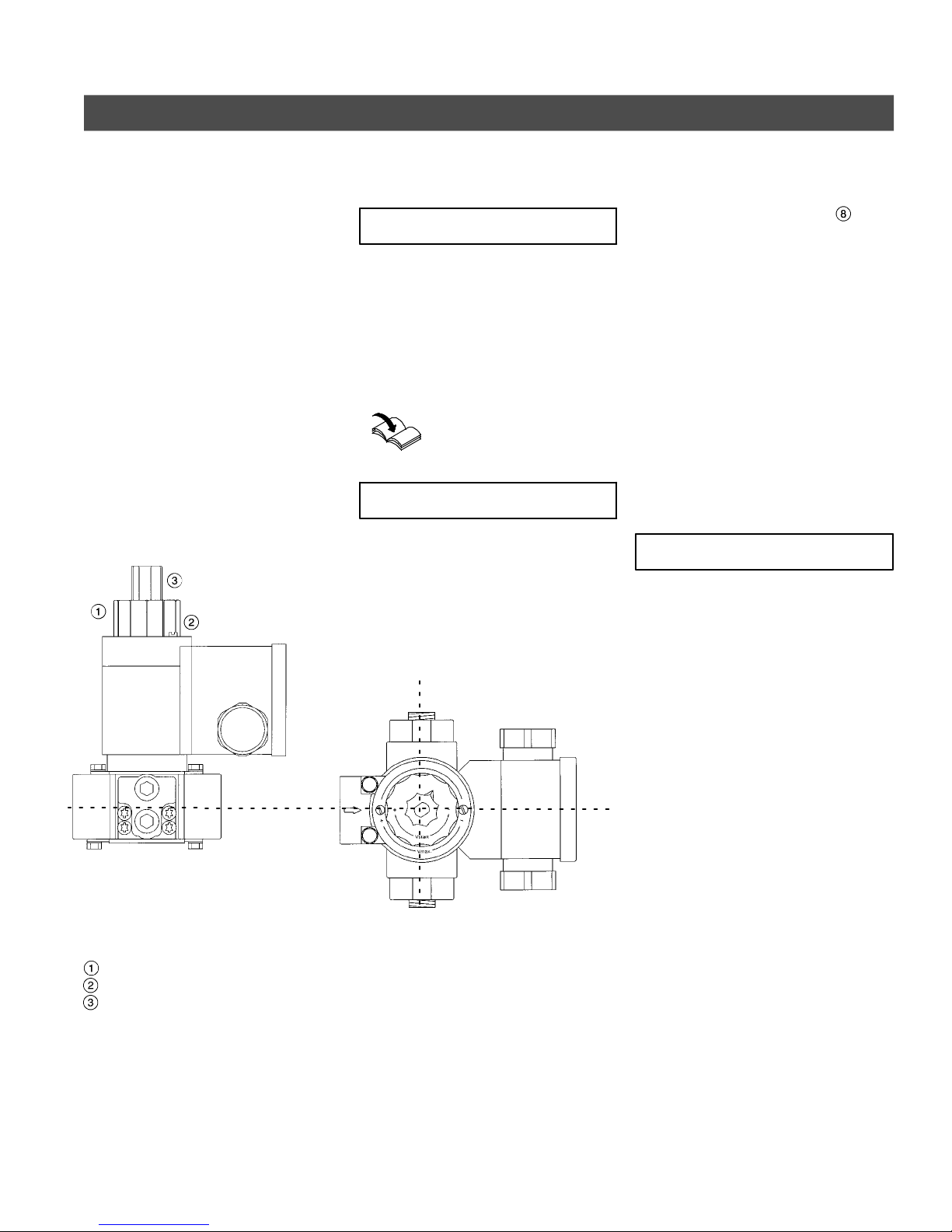

Fig. 4
MVD-LE valve, side view
Fig. 5
MVD-LE valve, top view
IMPORTANT
IMPORTANT
IMPORTANT

Set-up
8
Burner Set-up - Gas (continued)
Verifying input of gas boilers
Natural gas burners must have gas
input clocked using the gas meter.
Ensure there is no gas flowing through
the meter other than to the gas-fired
boiler being checked. See pages 15 and
16 for gas flow rate and values for time
(in seconds) for clocking gas meter.
Clock at least 10 revolutions on a one
ft
3
gas meter dial and divide time by
10. The value arrived at should be the
same as shown on pages 15 and 16.
If necessary manifold pressure must be
adjusted to make sure burner is firing at
nominal input. Do not exceed gas input
stated on rating plate. Turn adjustment
screw on gas pressure regulator (RV52)
clockwise to increase gas flow and
counterclockwise to decrease gas flow
(as per instructions on the previous
page).
If checking gas input with a manometer
only use manifold pressures given in
manual as a starting point, and use
combustion instruments to ensure safe
and efficient combustion values.
Be sure to turn gas off before attaching
or removing pressure taps. All plugs
removed for the purpose of gas
pressure measurements must be
replaced and leak-tested after
measurements.
Replacement of 24V gas valve
Use only replacement gas valves from
Viessmann Manufacturing. The 24 VAC
Dungs ¾” MVD-LE 207/6 and ½”
MVD-LE 205/6 direct spark valves are
special valves designed to operate at
the low manifold pressures required by
the Riello burner for both natural and
propane gas. Do not use other gas
valve unless specified by Viessmann.
Field measured combustion results
Use the combustion data label packed
with the gas burner to record field
measured combustion results and affix
label to gas burner.
Adjustment data tag
ANSI Z21-17b-1994
Input: C.F.H.
Manifold pressure
Air damper
Air/gas ratio No.
Flue gas temp.
O
2
level: %
CO
2
level: ppm
Date
Completed by
Installing
contractor
It is necessary to follow all safety
information in the Riello technical
literature as well as all other OEM
component instructions shipped with
this manual. The Viessmann factory
settings are an initial guide to be
verified or changed by the installer
based on field measured combustion
results. The burner settings arrived at
during field measurements may be
different from the generalized
conversion burner settings given in the
Riello technical literature.
5265 665 v2.5
IMPORTANT
Each Riello gas burner has a different
manifold pressure. When replacing a
gas valve a manometer and
instruments measuring combustion
must be used to ensure burner is
operating safely at its designed input.
An overfired burner is unsafe and can
cause severe personal injury or loss
of life if products of combustion are
allowed to enter living space through
incorrect procedures.
WARNING
Checking for a safe concentration of
carbon monoxide (below 50 ppm
air-free) will ensure continual safe
operation of boiler and burner. Annual
maintenance and cleaning as
described in this manual must be
done. Failure to heed this warning
may lead to severe personal injury or
loss of life.
WARNING
IMPORTANT

Set-up
9
Burner Set-up - Gas (continued)
Summary of changes to
original Riello burner
Note the following construction
differences between the general Riello
conversion burner and Riello burner
supplied for use on the Vitola boiler.
N200 and P200 burners for use with
Vitola 200 VB2-18 to VB2-40
The 40-(N,P)200 gas burners when
supplied by Viessmann for VB2-1 and
-22 are constructed with drawer
assembly diaphragm installed in the
combustion head assembly for natural
gas and propane.
Sleeve
Drawer assembly diaphragm
Orifice
The main gas orifice for natural gas is
changed from the 2.0 mm orifice
normally supplied with a 40-(N,P)200
aftermarket conversion burner to that
stated in the table below.
The differences in orifice size for the
VB2-1 , -22 cause the manifold
pressure adjustment information in the
Riello 40-(N,P)200 manual to be not
applicable. Use the manifold pressures
in this manual as a starting point for
burner adjustment for the VB2-1 , -22.
Do not change orifice, diaphragm or
sleeve-combination. Contact the
Viessmann Technical Department.
Burner Model Model No.
Boiler
G200
VB2-1
G200
VB2-22
G200
VB2-33
G200
VB2-40
Orifice NG 1.5 1.7 2.0 2.0
LP 1.3 1.3 1.3 1.3
Sleeve NG n.a. installed installed n.a.
LP installed installed installed installed
Diaphragm NG installed installed n.a. n.a.
LP installed installed n.a. n.a.
n.a. = not applicable
5265 665 v2.5
IMPORTANT
H: 15. mm
W: 19.5 mm
N
mm
19 mm

Set-up
10
Burner Set-up - Oil
The oil burner is provided with its own
oil filter and built-in flow check valve.
The flow check valve is located in the
return, and a manual shut-off is located
in the supply.
One-pipe systems
1. Connect as shown in Fig. 6.
5265 665 v2.5
Fig. 6
Connection to a one-pipe system

Set-up
11
Burner Set-up - Oil (continued)
2. Mount filter support bracket either on
the side of the boiler (Fig. 7) or on
the front of the boiler (Fig. ).
3. Mount filter and check valve
assembly to mounting bracket
(Fig. 9).
Filter is disposable type and must be
replaced with the filter cartridge
supplied by Viessmann.
5265 665 v2.5
Fig. 7
Side-mounting support bracket
Fig. 8
Front-mounting support bracket
Fig. 9
Mounting filter and check valve assembly

Set-up
12
Burner Set-up - Oil (continued)
oil line from tank
to oil pump on burner
from oil pump on burner
recirculation to filter
4. Connect flexible oil lines to the filter
check valve assembly. See Fig. 10.
Red: supply (connection with the red
manual valve)
Blue: return (connection with the
check valve).
The Riello burner shipped by Viessmann
comes with the bypass plug already
installed, ready for two-pipe connection.
For a one-pipe system (gravity system
where the oil tank is above the burner)
use the copper tee provided. This tee
converts the two-pipe system to a
one-pipe system. The oil not used by
the pump recirculates into the supply
line. Pipe sealant must be used on the
threaded ends of the flare fittings which
join the copper tee to the filter check
valve assembly.
5. Install tee as shown in Fig. 11.
5265 665 v2.5
Fig. 10
Connect oil supply and return lines
Fig. 11
C
o
n
v
e
r
t
i
n
g
t
w
o
-
p
i
p
e
s
y
s
t
e
m
t
o
o
n
e
-
p
i
p
e
s
y
s
t
e
m

Set-up
13
Oil Cartridge Assembly
1.Check that all surfaces are clean before
installing new O-ring supplied with
replacement filter cartridge.
2.Set O-ring in place and mount new filter
cartridge.
3.Attach clear plastic cup and tighten
brass nut.
Never tighten brass nut with a tool;
hand tighten only. Cap and O-ring might
deform and leak air.
The flare adaptors are tapped 3/8” BSP
(British straight pipe) at the factory.
Replacement flare adaptors must be
ordered from Viessmann. Do not use
3/8” NPT flare adaptor as replacement.
Burner Set-up - Gas and Oil
Refer to Riello instructions for adequate
fuel supply pipe sizing and sequence of
burner operation.
Ensure an adequate supply of fresh
combustion and ventilation air for safe
operation.
Refer to codes mentioned on page 4.
Electrical connections
1. Run the plug-in connector cable of
the Vitotronic control down behind
the front panel of the boiler and out
through the wire strain relief as per
the boiler installation instructions
(Electrical Connections).
2. Connect the female plug of the
burner to the male plug of the
Vitotronic control. See Fig. 13.
Installation Instructions
Riello gas or oil burner
5265 665 v2.5
Fig. 12
Oil cartridge assembly
IMPORTANT
IMPORTANT
When new cartridge assembly is
mounted remove brass nut and plastic
cup. Check for clean and proper O-ring
and O-ring seats before starting oil
flow.
CAUTION
Never use Teflon tape or compression
fittings in fuel oil piping.
CAUTION
IMPORTANT
Fig. 13
The quick-connect plug-in system

Start-up Information
14
Start-up Information
Boiler start-up
Start-up/Service Instructions
of boiler, as well as literature of burner, burner test sheet
and control literature.
Combustion analysis
This gas or oil burner requires
combustion measurements to be
performed at the final installation site
by a licensed heating contractor to
verify factory settings, or to be used as
a guide in changing burner settings to
suit local conditions.
Examples of local conditions which
influence combustion results include:
weather conditions, length of horizontal
vent pipe, diameter and height of the
chimney, side wall venting (power
vent), altitude above sea level, quality
and heating value of gas or oil used,
maximum number of other fuel burning
appliances running at the same time.
These conditions affect the burner
set-up. The burner must be adjusted for
acceptable combustion results under
local conditions of the installation.
When the boiler is fired for the first
time the ceramic fiber insulation at the
back of the combustion chamber door
will require ½ to 1 hour of firing time to
“cure”. An odor may occur during this
time. Final measurements of CO must
be done only after the “cure” is
complete.
Combustion measurements (CO
2
, stack
temperature, draft and CO) are taken in
the flue pipe between boiler and
barometric draft regulator before
dilution air (see the installation manual).
Overfire draft is measured at the
combustion chamber observation port
opening. The expected CO
2
products of
combustion are printed below. These
values are based on average results -
slightly higher or lower values may be
suitable depending on installation
conditions.
Fuel NG LP Oil
CO
2
9.5 to
10.2%
10.0 to
11.5%
11.0 to
13.0%
The CO concentration should be as
shown on the Viessmann quality control
burner test results. If the CO
concentration is above 50 ppm, then
measures should be taken to decrease
concentration to a value below 50 ppm.
Steps to be taken include: ensuring
sufficient supply of combustion air,
adjusting air gate settings, ensuring
chimney and vent are correct and meet
safety codes, verifying boiler input and
burner settings, replacing any defective
part on burner, contacting
manufacturer’s technical sales
representative for assistance.
5265 665 v2.5
IMPORTANT
Test port for combustion
analysis equipment
DO NOT USE GASOLINE
CRANKCASE DRAININGS OR ANY
OIL CONTAINING GASOLINE.
WARNING
Always keep the manual fuel supply
valve shut off if the burner is shut
down for an extended period of time.
WARNING
Do not tamper with the unit or
controls.
WARNING
DO NOT START THE BURNER
UNLESS THE COMBUSTION
CHAMBER DOOR IS SECURED IN
PLACE.
WARNING
DO NOT ATTEMPT TO START THE
BURNER WHEN EXCESS OIL HAS
ACCUMULATED WHEN THE UNIT IS
FULL OF VAPOR OR WHEN THE
COMBUSTION CHAMBER IS VERY
HOT.
WARNING

Appendix
15
Technical Data
Natural gas
Burner Model
Boiler
N200
VB2-18
N200
VB2-22
N200
VB2-33
N200
VB2-40
N400
VB2-50
N400
VB2-63
Input MBH
kW
90
26
116
34
146
42
1 5
54
23
69
300
Flow Rate ft
3
/h
m
3
/h
90
2.55
116
3.29
146
4.13
1 5
5.24
23
6.74
300
.5
Gas Valve Model MVD-LE 205/6 MVD-LE 205/6 MVD-LE 205/6 MVD-LE 205/6 MVD-LE 207/6 MVD-LE 207/6
Manifold
Pressure
“w.c. 1.6 2.1 2.0 1.5 1.2 1.1
T in seconds 1 ft
3
0.01 m
3
40.00
14.1
31.03
10. 6
24.65
.70
19.45
6. 6
15.12
5.34
12.00
4.23
Combustion
Head Setting
0.3 2.0 2.0 3.5 1.0 5.0
Air Gate
Setting
2.0 2.0 2. 3.5 2.5 2.
The above specifications are for 0-2000 ft. above sea level.
Burner test results
The indicated values for manifold and
air gate settings are the result of
production line testing under ideal
conditions.
Final burner adjustment to suit local
field conditions is necessary for safe
operation.
Observe the stated minimum and
maximum supply gas pressures.
Exposing the burner gas train to supply
pressures other than the stated values
can cause unsafe conditions.
Viessmann strongly recommends the
installation of an approved type CO
detector in the vicinity of any gas
burning equipment. Observe national
and/or local code requirements. If in
doubt consult your local gas company.
Verification of results
The burner adjustment values indicated
serve as a starting point only.
Combustion results must be field
verified using properly calibrated
Bacharach or equivalent instruments.
Each burner is certified for one input
only. Do not overfire or underfire
burner.
Technical data
Fuel natural gas ...........................................
Average
heating value 1000 MBH/ft
3
...................
Specifications
Inlet gas pressure min. 4.0” w.c. ...........
max. 10.5” w.c.
Draft regulator
VB2-1 to -40 MG1 6” ...........................
VB2-50 to -63 MG1 7” ...........................
Overfire draft +0.01” w.c. .....................
Max. breeching draft -0.02” w.c. ..........
INPUT = 3600/T x 1000
where
T = TIME (sec.) for 1 ft
3
natural gas
INPUT = (3600 x 0.01 x 1000 x 35.31)/T
where
T = TIME (sec.) for 0.01 m
3
natural
gas
5265 665 v2.5
Do not overfire or underfire burner.
Factory settings to be verified or
changed by qualified heating
contractor depending on field
measured combustion results.
CAUTION
The burner settings above do not
guarantee safe operation. Burner
settings serve to help provide smooth
operation at initial start-up.
CAUTION
IMPORTANT

Appendix
16
Technical Data (continued)
Liquid propane
Burner Model
Boiler
P200
VB2-18
P200
VB2-22
P200
VB2-33
P200
VB2-40
P400
VB2-50
P400
VB2-63
Input MBH
kW
90
26
116
34
146
42
1 5
54
23
69
300
Flow Rate ft
3
/h
m
3
/h
36
1.02
46.4
1.31
5 .4
1.65
74
2.10
95.2
2.70
120
3.40
Gas Valve Model MVD-LE 205/6 MVD-LE 205/6 MVD-LE 205/6 MVD-LE 205/6 MVD-LE 207/6 MVD-LE 207/6
Manifold
Press.
“w.c. 1.2 1.4 1.6 2.4 1.3 1.7
T in seconds 1 ft
3
0.01 m
3
100
35.31
77.5
27.40
61.64
21.76
4 .62
17.17
37. 0
13.35
30.00
10.59
Combustion
Head Setting
0.5 2.0 3.0 3.5 1.0 5.0
Air Gate
Setting
2.0 2.0 2.75 3.75 2.4 2.
The above specifications are for 0-2000 ft. above sea level.
Burner test results
The indicated values for manifold and
air gate settings are the result of
production line testing under ideal
conditions.
Final burner adjustment to suit local
field conditions is necessary for safe
operation.
Observe the stated minimum and
maximum supply gas pressures.
Exposing the burner gas train to supply
pressures other than the stated values
can cause unsafe conditions.
Viessmann strongly recommends the
installation of an approved type CO
detector in the vicinity of any gas
burning equipment. Observe national
and/or local code requirements. If in
doubt consult your local LP company.
Verification of results
The burner adjustment values indicated
serve as a starting point only.
Combustion results must be field
verified using properly calibrated
Bacharach or equivalent instruments.
Each burner is certified for one input
only. Do not overfire or underfire
burner.
Technical data
Fuel propane gas .........................................
Average
heating value 2500 MBH/ft
3
...................
Specifications
Inlet gas pressure min. ” w.c. ...........
max. 13” w.c.
Draft regulator
VB2-1 to -40 MG1 6” ...............
VB2-50 to -63 MG1 7” ...............
Overfire draft +0.01” w.c. ...................
Max. breeching draft -0.02” w.c. .....
INPUT = 3600/T x 2500
where
T = TIME (sec.) for 1 ft
3
propane gas
INPUT = (3600 x 0.01 x 2500 x 35.31)/T
where
T = TIME (sec.) for 0.01 m
3
propane
gas
5265 665 v2.5
Do not overfire or underfire burner.
Factory settings to be verified or
changed by qualified heating
contractor depending on field
measured combustion results.
CAUTION
The burner settings above do not
guarantee safe operation. Burner
settings serve to help provide smooth
operation at initial start-up.
CAUTION
IMPORTANT

Appendix
Fig. 14
Air tube insertion
(VB2-18, -22, -33)
aa
semi-flange
(VB2-40, -50, -63)
17
Technical Data (continued)
Fuel oil No. 2
Burner Model
Boiler
F3
VB2-18
F3
VB2-22
F5
VB2-33
F5
VB2-40
F10
VB2-50
F10
VB2-63
Input MBH
kW
3
24
107
31
135
39
170
50
219
64
300
Nozzle
Danfoss
n.a. n.a. 0. 5x60°xAH 1.00x60°xAH n.a. n.a.
Delavan
0.50x60°xSS 0.60x60°xA 0. 5x60°xW 1.00x60°xW n.a. n.a.
Hago
0.50x60°xB 0.60x60°xB n.a. n.a. 1.25x60°xB 1.65x45°xB
1.65x45°xSS
Steinen
n.a. n.a. n.a. n.a. n.a. 1.65x45°xS
Nozzle Flow USGPH
MBH
0.59
3
0.76
107
0.96
135
1.21
170
1.56
219
2.14
300
Pump
Pressure
psig
kPa
150
1034
170
1172
145
1000
170
1122
165
113
175
1207
Air Tube
Length
inches
mm
10
254
10
254
10
254
10
254
10
254
10
254
Air Tube
Insertion
inches
mm
9
3
/
4
24
9
3
/
4
24
9
3
/
4
24
5
3
/
4
146
5
3
/
4
146
5
3
/
4
146
See Fig. 14, dimension “a”
Turbulator
233
414
Air Gate
2.75 3.5 - 3.75 3.0
3.5 3.0 4.0
In multiple-boiler installations a booster
pump may be required.
F10 burners for use with Vitola 200
VB2-50 VB2-63
The F10 as supplied by Viessmann uses
the 10” long tube and a special
turbulator disc and end cone unique to
Viessmann. Order replacements from
Viessmann only.
5265 665 v2.5
IMPORTANT

Appendix
18
Vitotronic boiler control
Riello burner
120 VAC, 60 Hz, 2.5 A
Burner plug-in connector
(male and female)
Primary control connections;
connect blue wire to the following
terminal on the control box:
Fuel NG LP Oil
Terminal 776
Motorized air damper (gas burner
only)
Low water cut-off
(field supplied, if required)
Heating system ON/OFF switch
120 VAC, installer must provide
15 A overcurrent protection
Receptacle (site)
120 VAC
Install the boiler as described in its
technical documentation before
installing or operating the burner.
120 VAC is supplied to burner via
plug-in connector. Do not connect
additional 120 VAC to burner.
If any of the original wires as supplied
with the appliance must be replaced
replace with 221°F/105°C rated or its
equivalent. Minimum size 18 AWG.
Wiring Diagram
5265 665 v2.5
LWCO
Turn off electric power
supply before servicing.
Contact with live
electric components
can cause shock or
loss of life.
WARNING
Safety high limit aquastats are inside
boiler control. Do not operate burner
without boiler control. Never bypass
aquastats.
WARNING
Label all wires prior to disconnection
when servicing controls. Wiring errors
can cause improper and dangerous
operation. Verify proper operation
after servicing.
CAUTION
IMPORTANT
IMPORTANT
IMPORTANT

Appendix
19
Installation of Blocked Vent Safety Switch (for Canadian oil burning installations only)
There are additional parts supplied in
this kit. Refer to appropriate page for
specific instructions on burner/boiler
combination.
1. Install blocked vent switch
(see enclosed FieldControls WMO-1
Installation Instructions).
2. Run BX cable (armored cable) or any
other approved wire (required by
local authorities having jurisdiction)
from WMO-1 switch to burner base.
Use nominal ½” electrical knockout
provided on Riello plate for
connectors. If necessary, relocate
wiring harness strain relief to other
electrical opening provided.
3. Disconnect black wire (BK) of 7-pole
plug from oil burner primary
control base.
4. Rewire (wire nut included) the black
wire (BK) through WMO-1 safety
switch and back to terminal “L” of
the oil burner primary control.
5265 665 v2.5
120 VAC field wiring
If any of the original wire as supplied
with the appliance must be replaced, it
must be replaced with 221°F / 105°C
rated or its equivalent . Minimum
size 1 AWG.
Legend
BK Black
BU Blue
GN Green
RD Red
WH White
For use with chimney venting only.
Do not use in conjunction with
sidewall power venting or direct vent
application. These venting systems
will provide a safety shutdown in
case the vent system becomes
blocked.
CAUTION
IMPORTANT

Appendix
20
Start-up Maintenance/Service Maintenance/Service Maintenance/Service Maintenance/Service
on:
by:
Maintenance/Service Maintenance/Service Maintenance/Service Maintenance/Service Maintenance/Service
on:
by:
Service binder
1. File all Parts Lists, Operating and
Service Instructions in the Service
Binder.
2. Install a protective hanging case near
the boiler and store the Service
Binder in this location.
Maintenance
Before each heating season begins,
have the following service and
maintenance done by a licensed,
professional heating contractor:
1. Boiler heat exchanger inspected and
cleaned.
2. Vent system inspected for
deterioration, leaks, corrosion, proper
draft, and proper operation. Check
vent system for compliance with
local and national code requirements.
Repair or replace as required.
3. Burner checked and, if necessary,
adjusted for proper combustion and
operation. Check for adequate supply
of fresh outside combustion and
ventilation air.
Maintenance Record
5265 665 v2.5
Neglecting to perform necessary
maintenance can cause unsafe
operation.
WARNING
