VITOBLOC 200
Type EM-530/660 version SCR Part no. 7727282
Type EM-530/660 version SCR-ready Part no. 7727283
CHP unit for operation with natural gas

Company details
2 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB
This appliance meets all basic
requirements of the applicable standards
and guidelines. Conformity has been
verified. All associated documents and the
original Declaration of Conformity are
available from the manufacturer.
NOTE!
The Vitobloc 200 CHP unit is not suitable
for 60 Hz operation. It is therefore not
available for the American and Canadian
markets in particular.
Service partner
Viessmann Kraft-Wärme-Kopplung GmbH
D-86899 Landsberg am Lech
Tel.: [phone]
Fax: [phone]
Email: [email protected]
www.viessmann.de
These instructions are protected by copyright. All rights
derived from this copyright are reserved (even when only
excerpts are used), unless a contractual agreement is
reached in this regard.
Viessmann Werke GmbH & Co. KG reserves the right to
change the product described herein at any time and
without notice, in line with technological advances, unless
contractually specified otherwise
Original document

Table of contents
VITOBLOC 200 EM-530/660 version SCR Installation instructions 3
5841436 GB
1Introduction......................................................................................4
1.1 Structure of the safety instructions..............................................................................4
1.2 Depiction of safety instructions ...................................................................................4
1.3 Safety symbols..............................................................................................................5
1.4 Trademarks....................................................................................................................5
2Intended use.....................................................................................6
3Safety................................................................................................7
3.1 Legal disclaimer ............................................................................................................7
3.2 Safety equipment...........................................................................................................7
3.3 Personnel.......................................................................................................................8
3.4 General safety regulations............................................................................................9
3.5 Special safety regulations...........................................................................................10
3.6 Information regarding particular types of hazard......................................................11
4Product description.......................................................................14
4.1 Overview ......................................................................................................................14
4.2 Materials provided as standard..................................................................................15
5Transport, storage and siting .......................................................16
5.1 Transport......................................................................................................................16
5.2 Storage.........................................................................................................................17
5.3 Siting ............................................................................................................................17
6Installation at the installation site.................................................21
6.1 Ventilation provided by operator................................................................................21
6.2 Heating connection .....................................................................................................22
6.3 Gas connection............................................................................................................23
6.4 Exhaust gas connection..............................................................................................25
6.5 Condensate drain ........................................................................................................26
6.6 Connection of AdBlue™ and compressed air ...........................................................27
6.7 Fitting/removing noise attenuating elements............................................................28
6.8 Electrical connection...................................................................................................29
7Commissioning..............................................................................31
8Control and operation ...................................................................31
9Information regarding service and maintenance.........................31
10 Appendix ........................................................................................32
10.1 Engine lubricating oil ..................................................................................................32
10.2 Coolant.........................................................................................................................32
10.3 Permissible types of antifreeze ..................................................................................32
10.4 Heating water...............................................................................................................33
10.5 Gas quality...................................................................................................................34
10.6 AdBlueTM.......................................................................................................................34
10.7 Compressed air ...........................................................................................................34
10.8 Type testing in accordance with EU Gas Appliances Regulation............................35

Introduction
4 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB
1 Introduction
This document applies to the combined heat and
power (CHP) unit Vitobloc 200 EM-530/660 (versions
SCR and SCR-ready) –also referred to below as the
"machine". This document must always be kept within
easy reach of the system.
Constant development may result in minor changes to
the illustrations, functional steps and specifications.
Viessmann Werke GmbH & Co. KG expressly
disassociates itself from all content of all linked
websites and does not consider such content its own.
This declaration applies to all external links and
references to the internet specified within this
document.
1.1 Structure of the safety instructions
Safety instructions each consist of 5 elements.

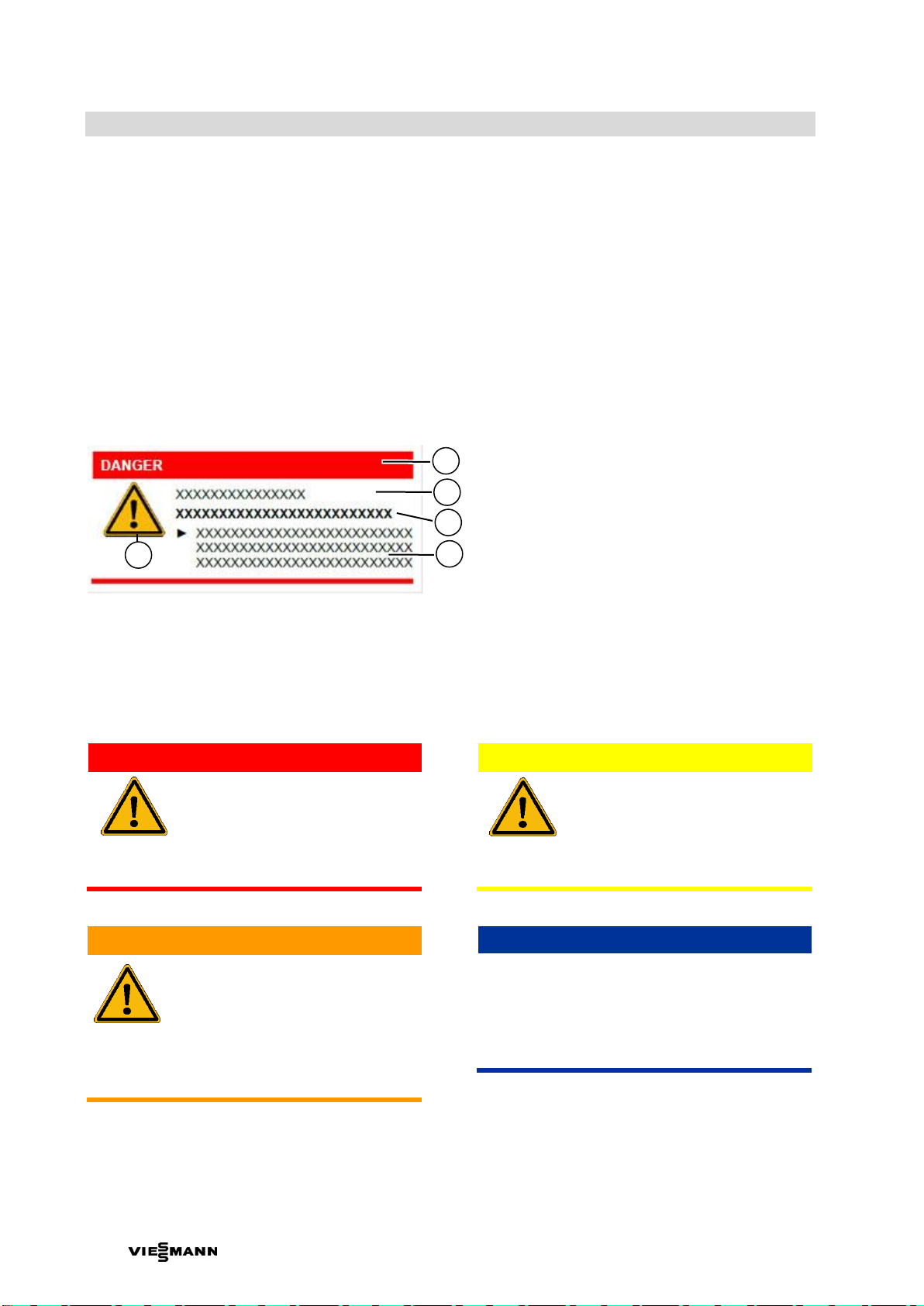

Fig. 1 Safety instructions structure
1 Keyword
2 Type and source of hazard
3 Potential consequences of the hazard
4 Avoidance of the hazard
5 Hazard symbol
1.2 Depiction of safety instructions
The safety instructions in this documentation are
important for safety and must be observed.
DANGER
Meaning
Designates an imminent danger
If the situation is not avoided, it will
result in death or serious, irreversible
injury.
WARNING
Meaning
Designates a potentially dangerous
situation
If the situation is not avoided, it will
result in death or serious, irreversible
injury.
CAUTION
Meaning
Designates a potentially dangerous
situation
If the situation is not avoided, it may
result in slight or minor, reversible
injury.
PLEASE NOTE
Meaning
Designates a potentially harmful
situation
If the situation is not avoided, the
machine or an object in its vicinity may
be damaged.
1
2
3
4
5

Introduction
VITOBLOC 200 EM-530/660 version SCR Installation instructions 5
5841436 GB
1.3 Safety symbols
The following signs (safety symbols) are attached to
the machine or must be affixed on/in the plant room
by the operator:
1.3.1 Prohibition signs
Access for unauthorised persons
forbidden!
Areas identified in this way may only
be accessed by people who have
been expressly authorised to do so,
e.g. in connection with work to be
performed there. Access is prohibited
for all other people.
Fire, naked flames and smoking
forbidden!
Identifies danger zones in which fire,
naked flames and smoking are
prohibited.
Access prohibited for persons with
active implants!
(e.g. cardiac pacemakers)
Identifies danger zones that must not
be accessed by persons with active
implants.
Access prohibited for persons with
passive implants!
(e.g. artificial joints)
Identifies danger zones that must not
be accessed by persons with metal
implants.
1.3.2 Warning signs
Warning of dangerous electrical
voltage!
Means "stop" before entering danger
zones containing live parts.
Warning of hot surfaces!
Means "stop" before entering danger
zones that may contain hot surfaces.
1.3.3 Command signs
Wear safety shoes!
Prescribes that protective footwear
must be worn during transportation
and installation.
Use ear defenders!
Requires ear defenders to be worn
during work in the installation room
while the CHP unit is in operation
1.4 Trademarks
Reference is made in this document to various
registered trademarks that are not specifically
identified as such within the text. The absence of any
identification does not necessarily mean that the
corresponding product name is free of third party
rights.

Intended use
6 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB
2 Intended use
The operator of the Vitobloc 200 EM-530/660 CHP
unit (versions SCR and SCR-ready) must observe the
relevant country-specific laws and regulations.
Target group
This document is intended solely for use by
contractors; see chapter 3.3 Personnel.
Application
The Vitobloc 200 EM-530/660 CHP unit (versions
SCR and SCR-ready) is intended exclusively for the
generation of three-phase current 400 V, 50 Hz and
DHW in natural gas mode.
It is only intended for industrial and commercial
applications.
Any use that differs from or goes beyond this is
considered inappropriate. The manufacturer rejects all
liability for any losses arising from such inappropriate
use. The operator alone bears the associated risks.
Intended use also includes observance of these
instructions and compliance with the inspection and
servicing conditions.
Incorrect use
All applications deviating from the intended use are
deemed to be impermissible incorrect use. This
includes:
●Application areas not listed under "Application".
●Use of operating fluids that do not correspond to
the manufacturer's specifications.
●Use outside the permissible technical operating
limits.
●Use in areas at risk of explosion.
●Use outdoors.
●Bypassing of safety equipment.
●Operation as an emergency generator.
●Operation in permanent island mode.
●Use only for heat generation if power is not drawn
off simultaneously.
●Siting in the same room as a boiler system with
atmospheric burner or an NH3refrigeration unit
with an interconnected air supply.
EC Declaration of Conformity and Declaration of
Incorporation
This CHP unit is considered a complete machine as
referred to in the EC Machinery Directive.
The machine complies with the EC Machinery
Directive. This has been established by means of a
conformity assessment process.
Declaration of Conformity
The Declaration of Conformity is the basis for the
system's CE designation. The CHP unit may only be
operated in accordance with country-specific
legislation, regulations and standards.
The controller has a CE designation in accordance
with the EMC Directive and the Low Voltage Directive.

Safety
VITOBLOC 200 EM-530/660 version SCR Installation instructions 7
5841436 GB
3 Safety
3.1 Legal disclaimer
The CHP unit is built in accordance with the latest
engineering standards and recognised safety
regulations. Nevertheless, impermissible use can still
result in risk to life and limb or to machine impairment
and other material losses.
Only use the CHP unit if it is in perfect technical
condition, in accordance with its intended use, and if
you are aware of all safety and risk-relevant factors.
Only use it with due regard to the operating
instructions. Faults that may have a detrimental
impact on safety must be corrected without delay.
Use of prescribed and/or approved operating fluids in
line with the specification is a prerequisite for the
recognition of warranty claims.
Operation of the CHP unit at levels exceeding the
limits invalidates the warranty. The manufacturer
accepts no liability for faults and/or damage
(corrosion, contamination, wear) caused by gases or
materials that were not known and agreed to at the
time the contract was concluded.
Safety information
Information concerning safety cannot be interpreted
against Viessmann Werke GmbH & Co. KG. Even if
all safety instructions are followed, there is no
guarantee that the CHP unit will not cause any injuries
or damage.
No modifications may be made to the CHP unit
without the approval of Viessmann Werke GmbH &
Co. KG. Additional components not included in the
standard delivery may be integrated into the system.
The operator is responsible for any damage to the
CHP unit or other material assets caused by such
components.
DANGER
Impermissible modifications to the
machine!
Risk to life, serious personal injury
resulting in irreversible damage
Never perform any modifications or
alterations to the machine without
permission.
3.2 Safety equipment
The installer protects the CHP unit from unauthorised
access by installing it in a locked plant room. The
installer is also responsible for ensuring that all safety
equipment is fully installed and fully functional.
Furthermore, the installer is responsible for attaching
the safety symbols.
DANGER
Missing or non-functional safety
equipment!
Risk to life, serious personal injury
resulting in irreversible damage
NEVER remove or disable safety
equipment.

Safety
8 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB
3.3 Personnel
All personnel working on the CHP unit must be
trained in its use. They must also have read and
understood the documentation, including the chapter
concerning safety. We recommend that this is
confirmed with their signature.
The term "personnel" includes the installer, the
operator and the user of the machine.
PLEASE NOTE
Failure to observe the installation
instructions!
Serious material damage to the
machine and its surroundings
The specifications in the installation
instructions must be observed.
Siting, replacement, adjustment,
servicing and maintenance may only be
carried out by personnel with specific
training on the relevant component of
the machine.
Installer (e.g. specialist company)
The installer must integrate the CHP unit safely into a
system.
DANGER
Missing or non-functional safety
equipment!
Risk to life, serious personal injury
resulting in irreversible damage
NEVER remove or disable safety
equipment.
PLEASE NOTE
Installation, control and operation by
unauthorised or unqualified persons!
Serious material damage to the
machine and its surroundings
No unauthorised persons are permitted
within the working area.
Only employ qualified, trained
personnel.
The installer is responsible for the following tasks:
●Installing the CHP unit.
●Connecting the CHP unit.
●Installing the prescribed safety and protective
equipment.
●Attaching the necessary safety symbols.
●Displaying the Declaration of Conformity for the
system.
●Preparing the operating instructions for the
system.
●Training the operator/user. The operator/user
must sign to confirm they have participated in this
training.
Installation personnel
The responsibilities of the installation and
commissioning personnel must be defined.
The personnel must meet the following requirements:
●They must have read and understood all the
documentation, including the chapter concerning
safety.
●They must be trained and instructed in the work to
be performed.
●They must use the personal protective equipment.
●Only qualified personnel may carry out work on
the machine. Qualified personnel are people who
can assess the work to be performed and identify
potential risks based on their technical training
and experience as well as their knowledge of
applicable standards.
●Depending on country-specific legislation,
regulations and standards, the installer may need
to adapt these conditions.
Operator
The operator of the CHP unit is responsible for it
being used as intended. The operator must ensure
safe, technically flawless operation of the machine as
well as define and comply with all safety regulations
for the personnel.
The operator is responsible for compliance with
country-specific legislation, regulations and
standards.

Safety
VITOBLOC 200 EM-530/660 version SCR Installation instructions 9
5841436 GB
3.4 General safety regulations
Only use the CHP unit if it is in perfect technical
condition in accordance with its intended use, and if
you are aware of all safety-relevant factors. Incorrect
handling may result in personal injury and material
damage.
In the event of any defects or faults being identified
with regard to operational safety or operational
reliability, the CHP unit must be shut down
immediately or not started up in the first place.
DANGER
Incorrect handling of the machine with
regard to operational reliability!
Risk to life, serious personal injury
resulting in irreversible damage
Refrain from all unsafe working methods.
Do not carry out any modifications,
additions or alterations to the machine
which may adversely affect safety.
Take measures to ensure safe, fully
functional operation.
Only operate the machine if all protective
and safety equipment is fully functional.
Comply with the safety regulations.
PLEASE NOTE
Unauthorised modification to
programmable control systems!
Serious material damage to the
machine and its surroundings
No unauthorised persons are permitted
within the machine's working area.
Only qualified, trained personnel may
operate the machine.
●In the event of malfunctions, shut down and
secure the machine immediately! Correct all faults
immediately.
●Spare parts must meet the technical requirements
stipulated by the manufacturer. This is always
guaranteed in the case of original spare parts.
●Appropriate workshop equipment is essential for
carrying out the installation work.
●The location of fire extinguishers and how they are
used must be made known!
●Observe the fire alarm and firefighting procedures.

Safety
10 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB
3.5 Special safety regulations
3.5.1 Siting and storage
PLEASE NOTE
Incorrect siting or storage!
Material damage due to corrosion
Protect the machine and its parts from
rust.
Prevent the formation of condensation.
3.5.2 Assembly work and installation
●Adhere to the settings prescribed in the installation
instructions! Only qualified personnel may perform
such work.
●For all work involved in operating or setting up the
machine and its safety equipment, observe the
start-up and shutdown procedures described in
the operating instructions!
●When replacing larger assemblies, attach them
carefully to lifting gear and secure them in such a
way that no risk can arise from this. Only use
appropriate, technically flawless lifting gear and
lifting accessories with sufficient load bearing
capacity! Do not stand or work under suspended
loads!
●Only entrust experienced personnel with the
fastening of loads and instruction of crane drivers!
The person providing guidance must remain within
sight of or in voice contact with the operator.
●When performing overhead installation work,
always use the intended or other safe climbing
aids and working platforms. Do not use machine
parts as climbing aids! Wear safety harnesses
when carrying out servicing work at a height!
●Always retighten any threaded connections that
have been loosened during installation work.
●If any safety equipment needs to be removed
during installation, it must be inspected
immediately after completing the installation work.
●Ensure the safe and environmentally responsible
disposal of operating fluids and fuels!
●Installation of the machine and its peripheral
connection systems may only be carried out by
authorised personnel from a specialist company,
who have been instructed in these tasks by the
manufacturer.
●Work on parts carrying gas must be carried out by
a licensed specialist.
●The applicable engineering standards as well as
all building and statutory regulations apply to the
practical execution of this work.
●Design the safety equipment in accordance with
all locally applicable regulations.
●Observe the accident prevention regulations.
3.5.3 Commissioning
●Observe start-up and shutdown procedures,
machine ramp-up and control displays!
●Before switching on/commissioning the machine,
ensure that no-one can be put at risk by the
machine starting up.
●Before commissioning the machine, check all
safety equipment and other protective devices for
completeness and correct function. Check all
machine parts for the presence of any foreign
bodies.
●Before commissioning, it is essential to check that
the operating fluids comply with the
manufacturer's specifications.
●No unauthorised people or objects are permitted
within the danger zone during commissioning.
PLEASE NOTE
Unsuitable operating fluids!
Serious material damage to the
machine
Gases and combustion air must meet
the manufacturer's specifications in
accordance with chapter 10.5.

Safety
VITOBLOC 200 EM-530/660 version SCR Installation instructions 11
5841436 GB
3.6 Information regarding particular types of hazard
3.6.1 Thermal hazards
WARNING
In the event of a fault, safety pressure
limiters can be triggered and discharge
hot coolant!
Risk of scalding
Take particular care in this area in the
event of faults!
Wear personal protective equipment
(e.g. protective gloves, safety
goggles).
CAUTION
Pipework and components can
become hot during operation!
Risk of burns!
Wear personal protective equipment
(e.g. protective gloves).
WARNING
Breakage and leaks due to load!
Risk of splashing with hot water or
engine oil
Wear personal protective equipment
(e.g. protective gloves, safety goggles,
safety shoes).
3.6.2 Hazard due to noise
WARNING
Loud noise when working in the CHP
unit installation room if the silencer
hood is open during operation
Irreparable hearing damage
Wear personal protective equipment
(e.g. ear defenders).
3.6.3 Hazard due to radiation
DANGER
The generator's electromagnetic fields
can cause faults in active implants
(e.g. cardiac pacemakers)!
Circulatory collapse
Observe prohibition signs.
Do not enter the danger zone.
DANGER
The generator's electromagnetic fields
can heat up passive implants made of
metal!
Severe internal burns
Observe prohibition signs.
Do not enter the danger zone.
3.6.4 Hazards caused by materials and
substances
DANGER
Leaks in the gas and exhaust system
can cause gas to escape!
Risk of poisoning
No naked flames.
Ventilate the area adequately.
If gas escapes, shut down the machine
and leave the danger zone.
WARNING
Batteries contain sulphuric acid!
Risk of chemical burns
Avoid contact with skin and eyes.
Wear personal protective equipment
(e.g. protective gloves, safety
goggles).

Safety
12 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB
3.6.5 Hazards during transportation
DANGER
Suspended loads!
Falling loads can cause death or
serious injury
Never stand under suspended loads.
Observe all transport instructions.
WARNING
Risk of slippage!
Serious personal injury due to
crushing or material damage to the
machine and its surroundings
Use transport brackets.
Wear personal protective equipment
(e.g. protective gloves, safety goggles,
safety shoes).
3.6.6 Gas, dust, steam, smoke
WARNING
Dust and dirt!
Restricted visibility
Cover the machine adequately.
Close or cover the control panels.
Wear personal protective equipment
(e.g. protective gloves, safety goggles)
during welding and grinding/polishing
work.
3.6.7 Oils, greases and other chemical
substances
WARNING
Take care when handling oils, greases
and other chemical substances!
Personal injury or irreversible
damage due to burns, scalding or
chemical burns
Observe safety instructions.
Wear personal protective equipment
(e.g. protective gloves, safety goggles,
safety shoes).
WARNING
Take care when handling AdBlue™!
Risk of contamination
Avoid contact with skin and eyes.
Wear personal protective equipment
(e.g. protective gloves, safety goggles,
safety shoes).
Observe the safety instructions applicable to the
product when handling oils, greases and other
chemical substances. The operator must procure
safety datasheets from the manufacturer and keep
them to hand.

Safety
VITOBLOC 200 EM-530/660 version SCR Installation instructions 13
5841436 GB
3.6.8 Electrical energy/equipment
DANGER
Live components!
Death by electrocution on contact
Only trained, authorised, specialist
personnel may perform work on the
machine.
Observe the safety instructions listed
in the machine.
Isolate the machine from its power
supply before commencing electrical
work.
Five safety rules specified in standard
series DIN VDE 0105 must be
observed!
DANGER
Incorrect fuses!
Increased risk of fire due to
incorrect or incorrectly installed
fuses
►Insert fuses without using any
force. Position the fuse correctly.
►Only use structurally identical types
with the specified response
characteristics.
PLEASE NOTE
Installation or repair work performed
incorrectly!
Serious material damage to the
machine and its surroundings
Only have service and repair work
carried out by authorised technical
personnel.
Only use the original components
permitted by the manufacturer.
Observe all safety instructions and
hazard warnings.
●Only equip and operate the machine with products
permitted by the manufacturer.
●Only use original fuses/MCBs with the prescribed
current strengths! Shut down the machine
immediately in the event of faults in the power
supply!
●Observe all safety instructions and hazard
warnings on the electrical equipment!
●Installation work on electrical equipment or
operating materials may only be carried out by a
qualified electrician or trained personnel under the
supervision and guidance of an electrician, in
accordance with the electrical regulations.
●All work on live parts is prohibited!

Product description
14 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB
4 Product description
4.1 Overview
The Vitobloc 200 EM-530/660 CHP unit (versions
SCR and SCR-ready) include the following
components fitted to a base frame:
●4-stroke gas engine
●Gas supply unit
●Synchronous generator
●Lubricating oil system
●Sealed unvented cooling circuit with heat
extraction
●Oxidation catalytic converter
(versions SCR and SCR-ready)
●SCR catalytic converter incl. metering system and
intermediate tank for AdBlue(TM)
The control panel with the programming and display
unit is mounted at the front.
Fig. 2 Overview –operating side
1 Control panel)
2 Programming and display unit
3 Heating mode selection switch
4 EMERGENCY STOP button
5 Cable entry points
6 Air filter
7 Control panel fan
Fig. 3 Overview –connection side
1 Gas connection GAS
2 Heating circuit flow connection HV
3 Heating circuit return connection HR
4 Mixture coolant flow GKV
5 Mixture coolant return GKR
6 Exhaust gas outlet AGA
7 Earth connection
8 UREA inlet UR
9 Compressed air inlet DL
10 Extract air outlet (extract air fan) AL
5
4
8
7
3
1
2
6
1
3
7
6
10
5
4
2
9

Transport, storage and siting
VITOBLOC 200 EM-530/660 version SCR Installation instructions 15
5841436 GB
4.2 Materials provided as standard
The following material is provided with the CHP unit as
standard:
-1 exhaust gas axial expansion joint –nominal
diameter DN 250, flange PN 10, with DVGW
approval, incl. connection elements
-2 corrugated heating lines –nominal diameter
DN 80, flange PN 10, nominal length NL 1000, with
loose-type flange PN 10, steel
-2 corrugated heating lines –nominal diameter
DN 50, nominal length NL 1000 for mixture
intercooling
-1 corrugated gas hose –nominal diameter DN 65,
nominal length NL 1000
-Sylomer pads for noise dampening
-Hoses for connecting compressed air and
AdBlue(TM) supply
Delivery as parts provided loose for on-site installation.
The material is inside a box labelled "Material for
commissioning EM-530/660".

Transport, storage and siting
16 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB
5 Transport, storage and siting
5.1 Transport
The EM-530/660 CHP unit (versions SCR and SCR-
ready) and its control panel are supplied by the
manufacturer, ex works, with a pack containing loose
accessories for on-site installation.
WARNING
Heavy loads, risk of tipping over!
Falling loads can cause death or
serious injury
NEVER stand under suspended loads.
Use appropriate lifting gear.
Observe all transport instructions.
WARNING
Non-central centre of gravity!
Death or crushing of body parts
Note the centre of gravity.
Observe markings for chains and lifting
straps.
PLEASE NOTE
Lifting straps or chains can come into
contact with machine components!
Damage to the machine
Use spacers.
Observe lifting instructions.
PLEASE NOTE
Missing or loose
transport brackets!
Material damage due to
uncontrolled contact with forklift
trucks

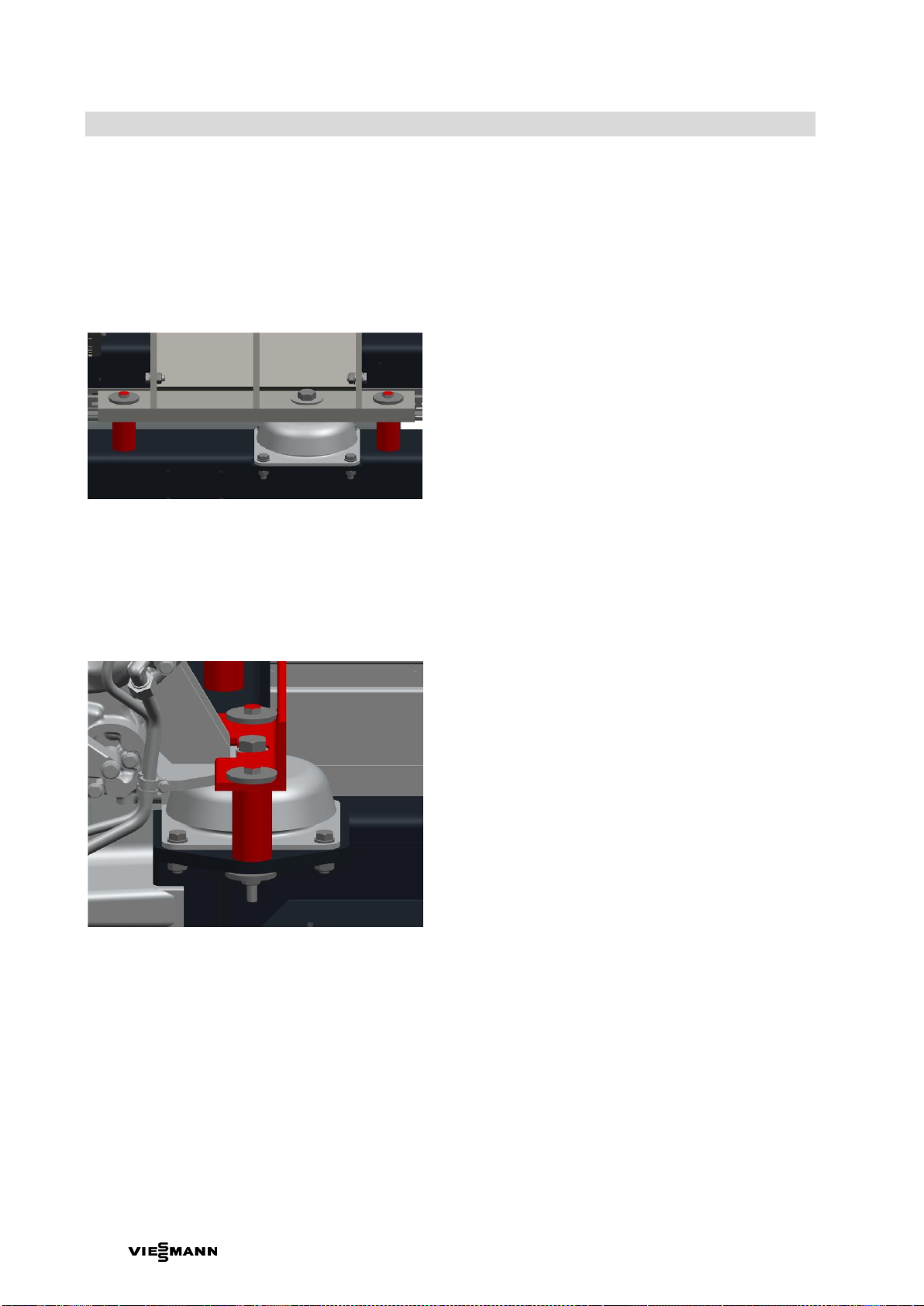

Mount the transport brackets on the
engine and generator before every
transportation.
Check that the transport brackets are
securely seated.
2
1
Fig. 4 Transport using transport eyes
1 Rope suspension gear
2 Transport eyes
The CHP unit must always be transported with
transport brackets.
The transport brackets are included in the standard
delivery and fitted in the CHP unit by the manufacturer
on delivery.
The machine is transported by crane, with ropes
attached at four additional transport eyes.
Screw the transport eyes tightly into the sides of the
base frame; see Fig. 4.
Always transport the machine in a vertical position.
It can also be unloaded and transported with a forklift
truck. In this case, ensure that the forks extend under
the entire CHP unit. Appropriate precautionary
measures must be taken to avoid damage to the
machine.

Transport, storage and siting
VITOBLOC 200 EM-530/660 version SCR Installation instructions 17
5841436 GB
5.2 Storage
PLEASE NOTE
Incorrect storage!
Material damage due to corrosion
Protect the machine and its parts from
rust.
Prevent the formation of condensation.
DANGER
Incorrect storage!
Risk of explosion
Never store any flammable materials in
the vicinity of the CHP unit.
Protect the Vitobloc 200 EM-530/660 CHP unit
(versions SCR and SCR-ready) from moisture during
storage and transportation.
Max. relative humidity: 70 %
The machine must not be exposed to dust, sulphur or
air contaminated with halogens.
Perform a warranty preservation no later than
24 weeks after delivery.
5.3 Siting
The Vitobloc 200 EM-530/660 CHP unit (versions
SCR and SCR-ready) is sited in a locked plant room.
5.3.1 Conditions for siting
Before siting the CHP unit, take into consideration the
following points:
●For servicing and maintenance purposes, maintain
a clearance as shown in the installation diagram
(Fig. 5).
●The installation surface must be level (inclination
0° ± 1°) and have a sufficient load bearing
capacity.
●The plant room must be equipped with a water
supply and a floor drain.
●The humidity in the plant room must not exceed
70 %.
●Any additional acoustic measures required must
be implemented by a suitable specialist contractor.
●Restrict externally acting vibrations, e.g. via the
building structure or electromagnetic interference,
to an absolute minimum and document all such
influences during commissioning.
●The installation room must be configured in
accordance with the applicable combustion
ordinance and applicable building
ordinances/regulations. For safe operation, it is
recommended that the CHP unit be integrated into
the relevant fire protection concept.
●Provide a fire extinguisher in the plant room.
●To increase safety for the operating personnel, we
recommend installing a CO detector in the
installation room.
DANGER
Differing ambient conditions!
Material damage due to malfunctions
Do not install in the same room as a
boiler system with atmospheric burner
or an NH3refrigeration unit with an
interconnected air supply.

Transport, storage and siting
18 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB

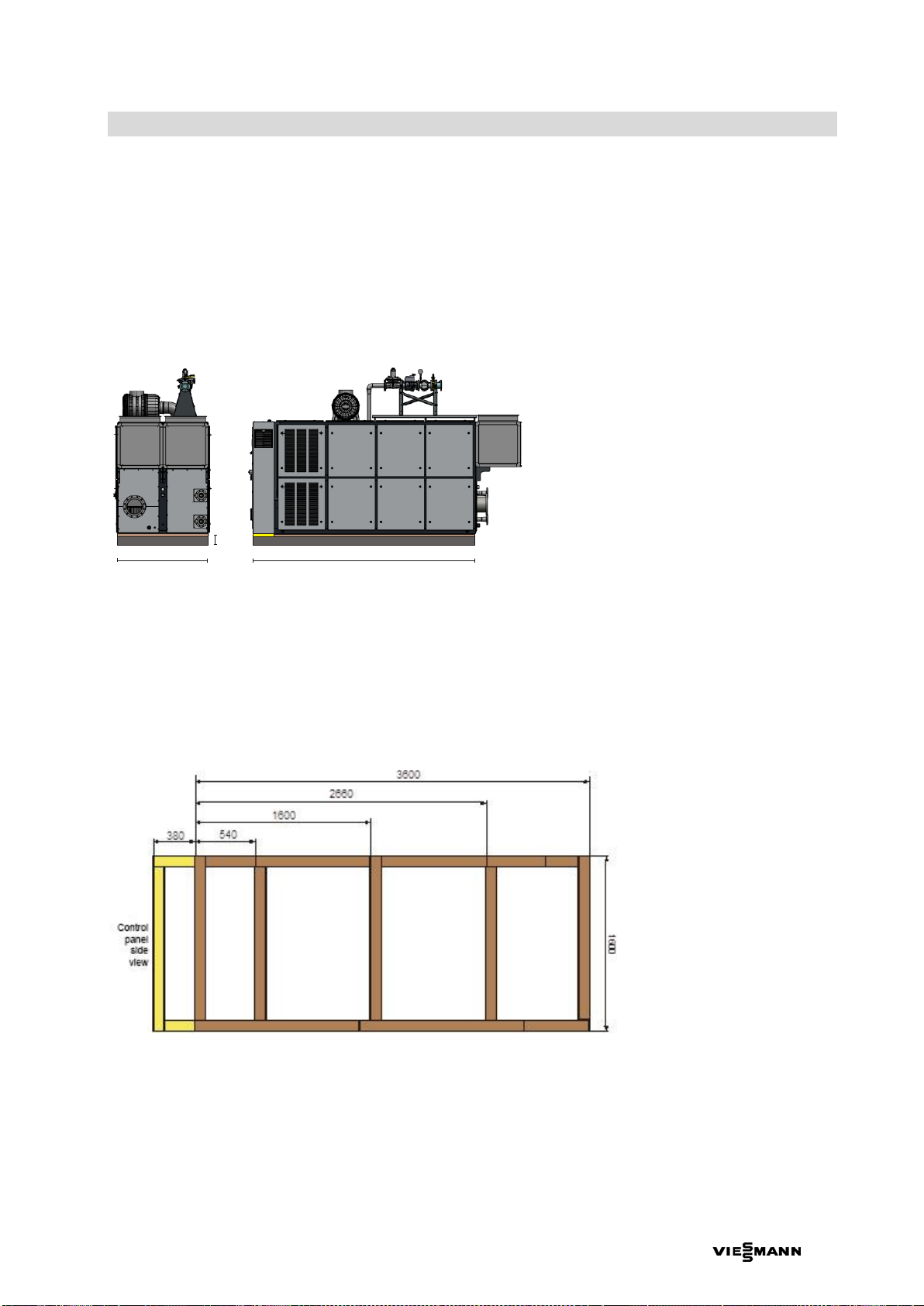

The plant room must meet the following requirements:
G
G
ZL
GAS
AL
KO
AGA
Plan view
AL
KO
H
I
D
C
AB
F
1m
AGA
AL
GAS
HV
KO
ZL HR
KO
Sectional view
EK
GKV/GKR
GKV/GKR
AGA
Exhaust gas
HR
Heating water return
AL
Extract air
HV
Heating water flow
GAS
Natural gas
GKR
Mixture coolant return
ZL
Supply air
GKV
Mixture coolant flow
KO
Condensate drain
Fig. 5 Minimum clearances in the plant room
Fig. 5
Note
A
2000 mm
Not installed
B
2000 mm
Recommendation
C
8000 mm
D
4850 mm
E
2070 mm
F
3800 mm
G
1500 mm
Not installed
H
1650 mm
I
4650 mm
K
1500 mm
Not installed
Tab. 1 Plant room dimensions
Designation
L x W x H [mm]
AdBlue™ supply tank
(e.g. 1000 litres IBC)
1200 x 1200 x 1200
Air compressor;
not required if there is a
compressed air supply on
site
500 x 500 x 500
Exhaust gas heat
exchanger, horizontal
3100 x 1000 x 1000
Exhaust gas heat
exchanger, vertical
1000 x 1000 x 3100
Tab. 2 Space required for additional components
(guide values; actual sizing may differ)
The CHP unit may only be positioned in the plant
room suspended from a crane with ropes attached to
the transport eyes or with suitable transport
equipment, such as a forklift or pallet truck.
WARNING
Heavy loads, risk of tipping over!
Falling loads can cause death or
serious injury
NEVER stand under suspended loads.
Use appropriate lifting gear.
Observe all transport instructions.

Transport, storage and siting
VITOBLOC 200 EM-530/660 version SCR Installation instructions 19
5841436 GB
5.3.2 Siting in the plant room
●The CHP unit is sited flexibly without fixed anchors
on a base with Sylomer pads (provided) for noise
attenuation.
●Cut the provided Sylomer pads to size on site
(see Fig. 7) and place them on the base.
H
BL
Minimum base dimensions
Vitobloc 200 EM-530/660
(versions SCR and SCR-ready)
L 4000 mm
W 1600 mm
H 150 mm
Fig. 6 CHP unit with base
Fig. 7 Sylomer pad placement diagram
●The standard delivery comprises:
10 Sylomer pads
SR 110 brown
2 Sylomer pads
SR11 yellow
(each 1500 x 100 x 50 mm)
●Sizing requirement (green):
7x 1500 mm long
2x 1400 mm long
1x 600 mm long
1x 300 mm long
●Sizing requirement (yellow):
1x 1500 mm long
1x 380 mm long
1x 280 mm long

Transport, storage and siting
20 Installation instructions VITOBLOC 200 EM-530/660 version SCR
5841436 GB
5.3.3 Removing the transport brackets
After installing the CHP unit in its final installation
location, remove the transport brackets from the
flexible supports of the engine and generator.
Note
The transport brackets are shown in red.
Transport brackets on the generator
Parts:
●4 pipes (2 pipes per anti-vibration mount)
●4 hexagon bolts M12x120
●4 hexagon nuts M12
●8 washers 12-200HV
Transport brackets on the engine
Parts:
●2 brackets (1 bracket per anti-vibration mount)
●4 pipes (2 pipes per anti-vibration mount)
●4 hexagon bolts M12x150
●4 hexagon nuts M12
●8 washers 12-200HV
Dismantling
●Required tools:
Spanner, size 19
●To remove the transport brackets, undo the bolts
and remove the brackets.
●It is essential to ensure that no parts fall into the
machine.
Note
Store the transport brackets in a safe place!
When taking the CHP unit away after final
decommissioning, it is essential that the transport
brackets are refitted. Otherwise, if the
engine/generator unit is not transported vertically, it
may break away from the base frame and endanger
the transport personnel.
