Vieta Vmd95ls User manual

Table of Contents

Before Connection ...................................................................................................................... 2

For your safety ..............................................................................................................................2

Precautions ...................................................................................................................................2

Wall Mounting Instructions ......................................................................................................... 4

Main Set ........................................................................................................................................4

Connection ................................................................................................................................. 5

Connecting the TV ........................................................................................................................5

Connecting to a TV with HDMI jack ............................................................................................. 5

Connecting the Antenna............................................................................................................... 6

Connecting Control Cable............................................................................................................6

Connecting AUX ........................................................................................................................... 7

Connecting the Speakers .............................................................................................................7

Connecting the AC Power Cord................................................................................................... 7

Installation of Batteries in the Remote Control .......................................................................... 8

Control Section ........................................................................................................................... 8

DVD Player (main set) ..................................................................................................................8

Sub-Woofer ...................................................................................................................................9

Remote Control .......................................................................................................................... 10

Normal playing ......................................................................................................................... 11

Use the Discs .............................................................................................................................. 11

Playing Picture CD disc ............................................................................................................. 16

Use the USB .............................................................................................................................. 17

Listening to Radio Broadcasts ................................................................................................. 17

RDS (Radio Data System) Reception....................................................................................... 18

Clock/Timer Functions ............................................................................................................. 19

Setting the Clock........................................................................................................................ 19

Setting the Daily Timer .............................................................................................................. 19

Setting the Sleep Timer ............................................................................................................. 20

DVD Menu Options .................................................................................................................. 21

Menu function setup .................................................................................................................. 21

General Setup Page .................................................................................................................. 21

Audio Setup Page ...................................................................................................................... 21

Video Setup Page ...................................................................................................................... 22

Preference Page ........................................................................................................................ 23

Password Setup Page ............................................................................................................... 23

Protect the Disc ....................................................................................................................... 24

Troubleshooting ........................................................................................................................ 24

Specification ............................................................................................................................ 25

Before ConnectionBefore Connection

Before Connection

Thank you for purchasing this DVD 2.1 channel component system, in order to fully utilize this

system, please read this instruction book carefully before use it.

For your safetyFor your safety

For your safety

Laser ProductLaser Product

Laser Product

This product is equipped with low power laser equipment inside. For your safety, don’t take

apart any covers or try to take apart the product inside. Please contact an authorized service

person for repairing.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accom-

panying this unit.

This symbol indicates that danger-

ous voltage constituting a risk of elec-

tric shock is present within this unit.

Caution:Caution:

Caution:

To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

Power RequirementPower Requirement

Power Requirement

Because the power requirement of electrical products is different in various places, before you

use this product, make sure that the power requirement of the product matches your household

power.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER. NO USER SERVICEABLE

PARTS INSIDE, REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

PrecautionsPrecautions

Precautions

1. Before operating this system, check the voltage of this system to see if it is identical with

the voltage of your local power supply.

2. Unplug the system from the wall outlet if it is not used for a long time. To disconnect

the cord, pull it out by grasping the plug.

3. To avoid electric shock, do not open the cabinet.

4. There is no user serviceable parts inside. In case of system failure, unplug the power

cord and consult your dealer.

5. Do not place this unit on an unstable cart or sloping surface. Ensure good ventilation

surrounding the product. To prevent fire, do not cover the ventilation of the apparatus

with news papers, tablecloths, curtains, etc.

Caution:Caution:

Caution:

This product is equipped with low power

laser equipment inside, for your safety, do

not open the laser radiation protective

equipment. Don’t look at the laser radiation

when the equipment is operating.

6. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on

the apparatus. And don’t place lighted candles on the apparatus.

7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain,

moisture or dust.

8. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink, or

laundry tub; in a wet basement; or near a swimming pool and the like.

9. Do not place this unit close to strong magnetic field.

10.Do not place this unit close to dampness, or the moisture will affect the life of the

laser head.

11. If the unit is brought directly from a cold to a warm location, or is placed in a very damp

room, moisture may condense on the lens inside the player. Should this occur, the unit will

not operate properly. Remove the disc and leave the unit turned on for about an hour until

the moisture evaporates.

12.Should any solid object or liquid fall into the unit, unplug the system and have it checked

by qualified personnel before operating it again.

13.Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning.

14.Do not use attachments not recommended by the product manufacturer as they may cause

hazards.

15.Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

16.Where the mains plug or a appliance coupler is used as the disconnect device, the disconnect

device shall remain readily operable.

Wall Mounting Instructionsall Mounting Instructions

all Mounting Instructionsall Mounting Instructions

all Mounting Instructions

1. Connect all cables and secure into place.

2. Fix the wall bracket in place using two screws ensuring the locking pin hole is facing upwards.

Then screw the second part of the bracket in place using the two screws, ensuring the locking

pin hole is facing upwards. Finally slide the unit onto the wall bracket and secure in place using

the locking pin.

3. The unit can also be mounted on a stand. Place the unit on the stand and secure into place

using the screws provided.

Main SetMain Set

Main Set

ConnectionConnection

Connection

Caution:Caution:

Caution: Please turn off all the equipment power before connecting.

Connecting the TVConnecting the TV

Connecting the TV

1. This DVD player has video output mode, you can choose it to connect with the TV terminal.

2. If your TV has component input terminal, then you can use the signal connecting cable to

connect with the DVD player’s component output terminal. By doing so, the picture will be

more clear.

3. To avoid affecting the picture output, do not connect video, component, HDMI at the same

time.

Connecting to a TV with HDMI jackConnecting to a TV with HDMI jack

Connecting to a TV with HDMI jack

Use a HDMI cable to connect the HDMI jack on the DVD Player to HDMI IN on a HDMI

compatible device (e.g.: TV, Projector, Adaptor).

Note:Note:

Note: If you use the HDMI, make sure that “HDMI SETUP” is set to “ON”. Please see “HDMI

SETUP” for further details.

Terminal board for the DVD player

Connecting the AntennaConnecting the Antenna

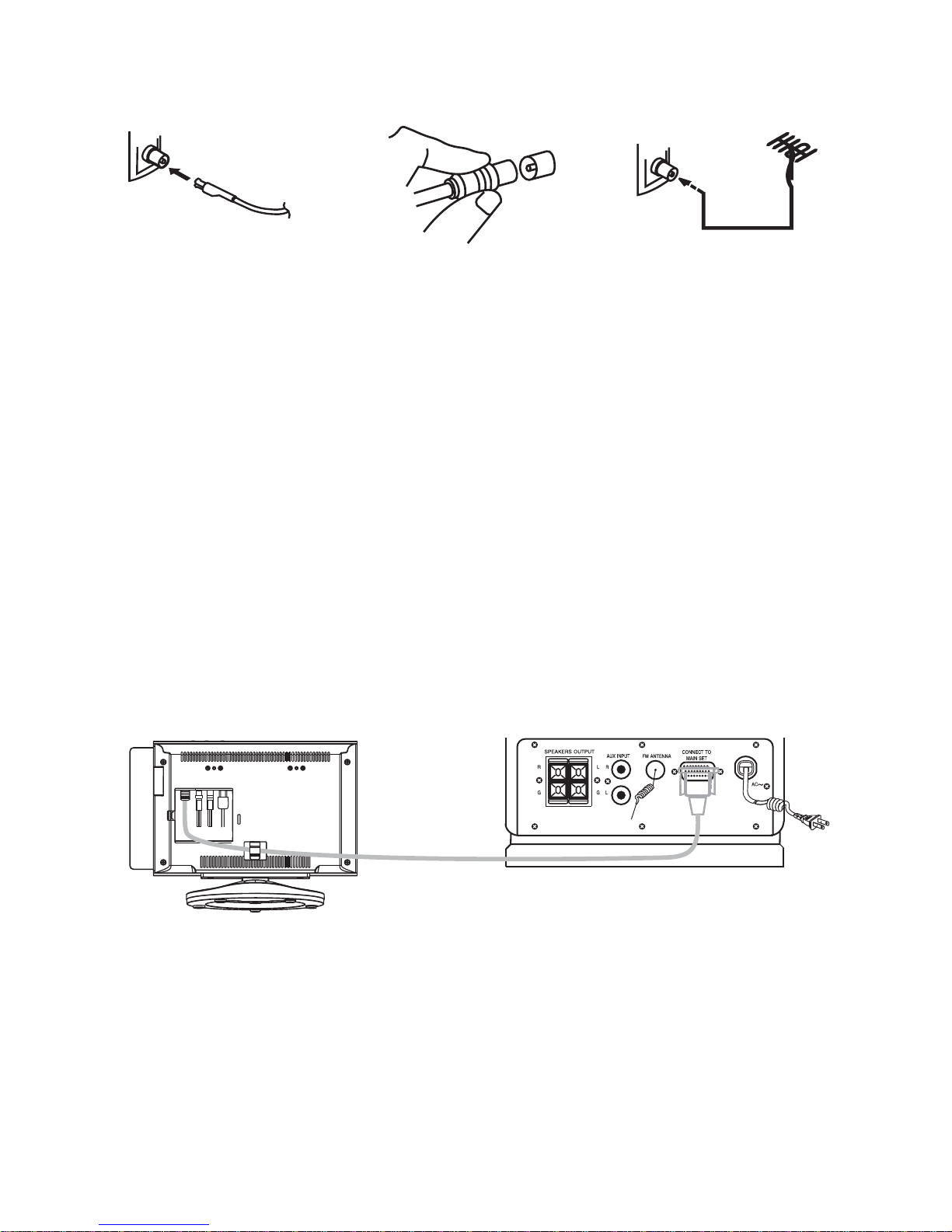

Connecting the Antenna

1. Using the supplied wire Antenna.

2. Using the coaxial type connector .

A 75Ohm antenna with coaxial type connector should be connected to the FM 75 ohm coaxial

terminal.

3. If reception is poor, connect the outside antenna.

Note:Note:

Note: Before attaching a 75 ohm coaxial lead (the kind with a round wire going to an outside

antenna), disconnect the supplied FM wire antenna.

Caution:Caution:

Caution: To avoid noise, keep antennas away from the system, the connecting cord and the AC

cord.

Connecting Control CableConnecting Control Cable

Connecting Control Cable

Connect signal line between the main set and the sub-woofer back board.

-/0

Terminal board for Sub-Woofer

Terminal board for Main Set

Connecting AUXConnecting AUX

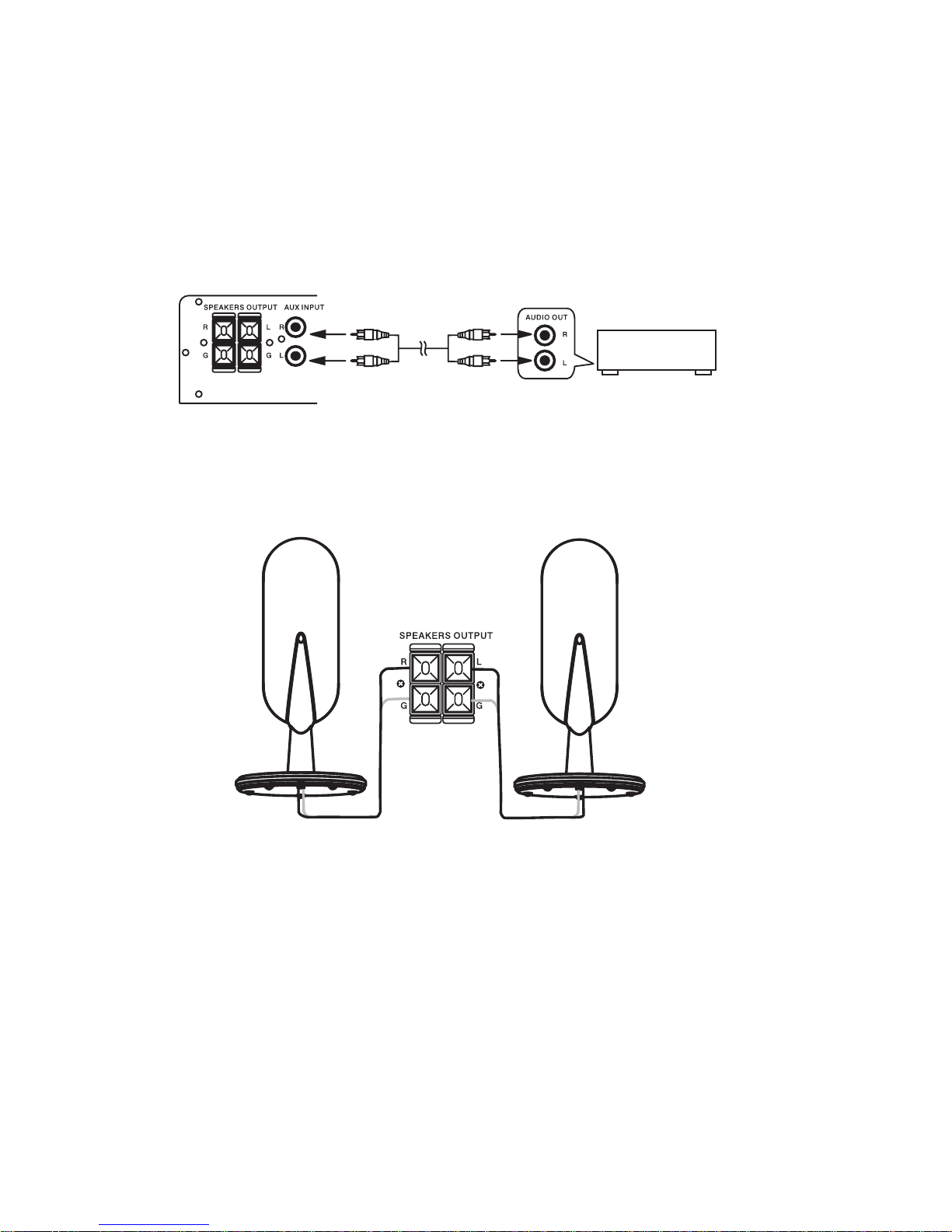

Connecting AUX

This sub-woofer has two audio input terminals, you can use signal line to connect audio input

terminals of this unit and audio output terminals of other equipment respectively, then you can

hear the sound sources.

Caution:Caution:

Caution: Press the function select button FUNCTIONFUNCTION

FUNCTIONFUNCTION

FUNCTION on the unit or on the remote control to

select AUX function. When you are connecting AUX audio terminals, please press

this function button.

Connecting the SpeakersConnecting the Speakers

Connecting the Speakers

Connect the speaker cords between the terminals as shown below.

Connect the cords with a gold line to the (+) (L) (R) terminals and cords with a silver line to the (-)

(G) terminals.

Right Speaker Box Back View Left Speaker Box Back View

Connection precautionsConnection precautions

Connection precautions

1. This unit has a high power output and wide dynamic range. If speakers other than those

supplied are used, they must be chosen according to speaker specification, or the speakers

can be damaged.

2. Before connecting or removing mains power, please turn off the power on the unit and turn

the volume to minimum or it may damage the speakers.

Connecting the AC Power CordConnecting the AC Power Cord

Connecting the AC Power Cord

Insert the AC power cord into a wall outlet, and your system is at your command!

Caution:Caution:

Caution: Be sure to unplug the power cord from the outlet when going away or the system is

not in use for an extended period of time.

Terminal board for Sub-Woofer

Auxiliary Equipment

Installation of Batteries in the Remote ControlInstallation of Batteries in the Remote Control

Installation of Batteries in the Remote Control

1. Remove the battery compartment cover.

2. Insert two batteries (size AAA) correctly, so that the + and - polarities match the polarity

diagrams in the battery compartment.

* About half a year of normal operation can be expected when using normal batteries.

* When the batteries are exhausted, the commander can no longer operate the system.

Replace both batteries at the same time with new ones.

* Don’t use an old battery with a new one.

* Don’t use different types of batteries together.

* When the unit is not used for a long period of time, remove the batteries to avoid damage

caused by battery leakage and corrosion.

Control Sectionontrol Section

ontrol Sectionontrol Section

ontrol Section

DVD Player (main set)DVD Player (main set)

DVD Player (main set)

Face ViewFace View

Face View

1. Play/Pause (BF)

Tuning Forward

2. Stop (LL

Tuning Backward

3. Next ( GG

Channel Select Forward

4. Previous (HH

Channel Select backward

5. Mode

6. S-Bass

7. Volume Up

8. Volume Down

9. VFD Display Lens

10.Disc Door

11. Eject

12.Function

13.Standby

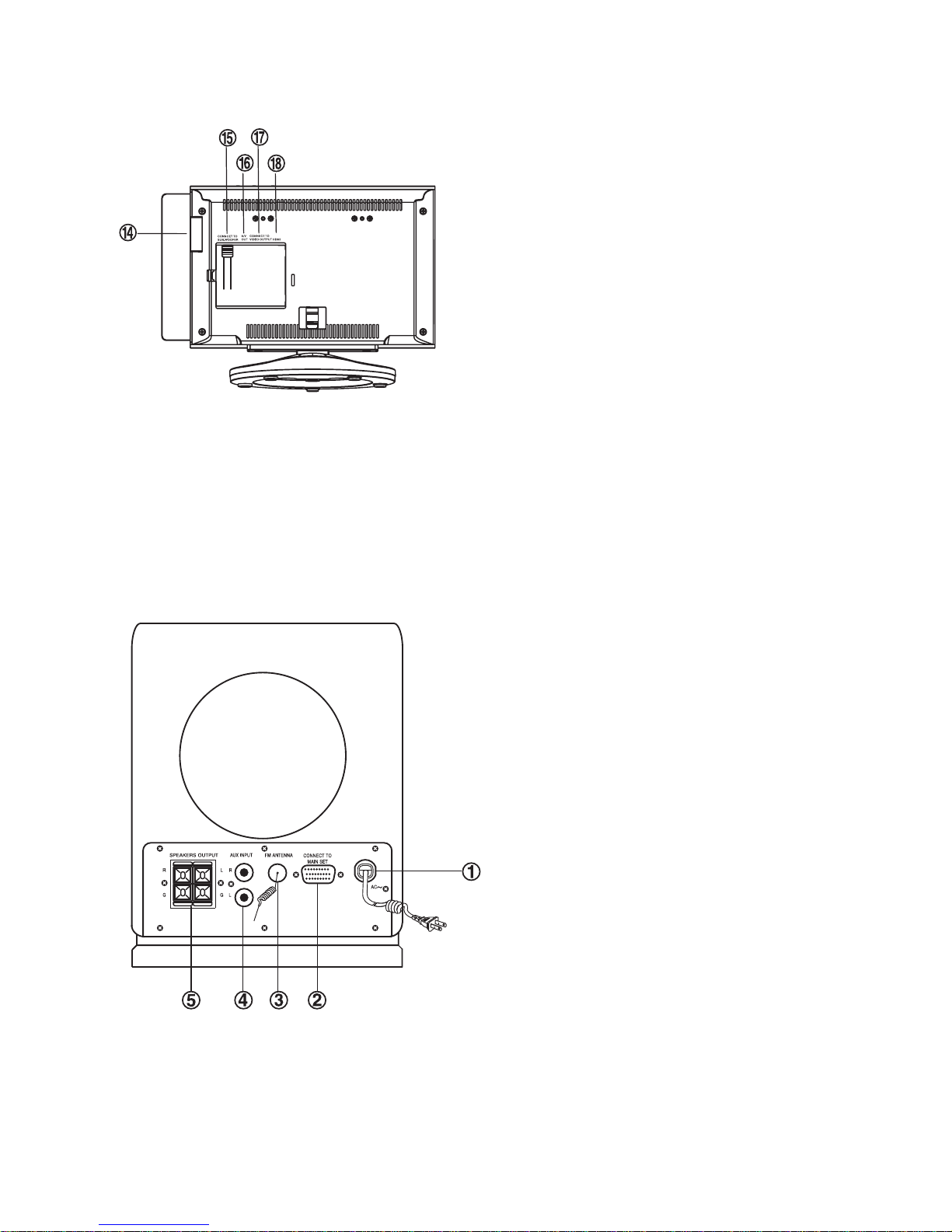

Top Vop V

op Vop V

op Viewiew

iewiew

iew

14. USB Jack

15. Power Control Cable Socket

16. A / V Out

17. Component Video Output

18. HDMI Jack

1. AC Power Cord

2. Power Control Cable Socket

3. FM Antenna

4. AUX Input Terminal

5. L&R Speaker Output Terminals

Sub-WooferSub-Woofer

Sub-Woofer

Back ViewBack View

Back View

Remote ControlRemote Control

Remote Control

1. Standby Button

2. Function Select Button

3. Mute Button

4. Preset Equalizer Button

5. Clock Button

6. Super Bass Button

7. Mode Button

8. Loudness Button

9. Subtitle Button

10.Clock Dim Button

11. Title Button

12.Zoom Button

13.Direction Button ( , , , )

14.Menu Button

15. Ok Button

16.Setup Button

17.Previous Button (H)

18.Fast Backward Button (D)

19.Volume Up Button

Volume Down Button

20.Sleep Button

Timer Button

21.Play/Pause Button (BF)

22.OSD Button

RDS Button

23.Audio Button

24.Angle Button

25.Time Search Button

26. Program Button

27.Number Buttons

28.Fast Forward Button (C)

29.Next Button (G)

30.Stop Button (L)

Normal playingNormal playing

Normal playing

Use the DiscsUse the Discs

Use the Discs

Place the disc into the disc tray (with the printed side face to you) ,then press it

downward lightly. The unit will read the disc and the disc type will display on the

TV screen then play it automatically. When the disc playing , press the eject

button (Kon the unit) to take the disc out ,press this button again , the disc will

goes into the disc tray . The unit will read the disc and play it automatically .

1. You can use all the functions on the panel of the unit or the remote control after

turning the system power on.

Turning the System Onurning the System On

urning the System Onurning the System On

urning the System On

Press the standby button ((

((

(STST

STST

STANDBYANDBY

ANDBYANDBY

ANDBY))

))

) to turn the system on from standby

mode.

Caution:Caution:

Caution: When turning the system on, the system will continue in the mode it

was in when it was turned off last time.

Turning the System Ofurning the System Of

urning the System Ofurning the System Of

urning the System Offf

Press the standby button ((

((

(STST

STST

STANDBYANDBY

ANDBYANDBY

ANDBY))

))

) again to turn the system off (called

Standby Mode), the clock will display on the VFD.

Caution:Caution:

Caution: Be sure to unplug the power cord from the outlet when going away or

the system is not in use for an extended period of time.

2. In power on mode, press the function select button (FUNCTIONFUNCTION

FUNCTIONFUNCTION

FUNCTION) to select DVD

function.

3. Press the mute button, the sound will be muted, press the button again to

resume sound.

Note:Note:

Note: The mute function applies to amplifier unit only, it is not available for

optical fiber output.

4. You can adjust the sound reproduced simply by choosing from different preset

equalizations. Press the preset equalizer button once by once to select cycli

cally one of the following different preset equalizations:

5. In standby mode, press the clock button to set the clock.

FLAT : Normal sound

ROCK : For rock

CLAS : For classic

JAZZ : For jazz

POPS : Vocal sound is intensified

6. Press the super bass button to reinforce the bass sound to maintain rich, full

bass at low volume, press this button again to cancel the effect.

7. One title, one chapter, one track or all the disc repeat play can be set by

pressing the mode button.(You can also operate the key “MODEMODE

MODEMODE

MODE” on the unit.)

When playing a DVD disc, this function can be used to play a title, chapter or

disc repeatedly. Repeatedly press the mode button, the screen shows orderly:

When playing MP3 or WMA disc, this function can be used to play a track or

folder repeatedly. Repeatedly press the mode button, the screen shows orderly:

When playing CD or VCD disc, this function can be used to play a track or folder

repeatedly. Repeatedly press the mode button, the screen shows orderly:

8. This unit has loudness function, it can automatically increase the bass sound

effect at low volume (the higher volume, the smaller bass increase), which

improves the output sound. You only need to press the loudness button

((

(LOUDNESSLOUDNESS

LOUDNESSLOUDNESS

LOUDNESS))

))

) to obtain the loudness function when it is playing

9. When you are playing the DVD disc which are recorded with several subtitles,

you can repeatedly press the subtitle button to select one of subtitle to display

on the TV screen.

10. This unit has several brightness levels for you to adjust the VFD screen to light

or dark. Press the VFD darkness select button (DIMDIM

DIMDIM

DIM), then you can choose the

lighting level you desire.

11. In the disc normal playing mode, press the title button, this system will stop

playing and enter the display mode of title menu.

12. This function can be used to enjoy a motion or motionless picture.

Press the zoom button when playing, the screen shows orderly:

Use the ,,, buttons to move the enlarged picture.

Note:Note:

Note: This function is not available for CD or MP3 playback.

13. Correspondingly press the direction buttons ( ,,,) to move the cursor to

illuminate the desired menu to up, to down, to left, to right direction.

14. If a VCD has a menu, you can set the playback control function to “PBC ON”

mode by pressing the PBC button (MENUMENU

MENUMENU

MENU ). The unit read the disc and the

menu will display on the TV screen, then use the 0/10, 1-9,10+0/10, 1-9,10+

0/10, 1-9,10+0/10, 1-9,10+

0/10, 1-9,10+ buttons to

select the desired track playing.

When playing DVD disc, press the root button (MENUMENU

MENUMENU

MENU ) to return to the root

menu for previous layer.

15. Press the confirmation button (OKOK

OKOK

OK) to enter menu you selected.

16. You can use this button to set the function of this unit.

17. When playing DVD disc, press the previous button (H) to skip the previous

chapter or title.

When playing a CD, press the previous button (H) to skip the previous track.

(You can also operate the key “H” on the unit.)

18. Press the fast reverse button (D) once by once to select one of the variety

different speed to fast backward play or select normal speed to play. Each time

you press the button, the screen shows orderly.

Note:Note:

Note: Press the BF button to resume normal playback.

19. Press the volume down button (VOL -)(VOL -)

(VOL -)(VOL -)

(VOL -)

to decrease the volume. Press the

volume up button (VOL +VOL +

VOL +VOL +

VOL +) to increase the volume.

(You can also operate the key “VOLVOL

VOLVOL

VOL --

- ,VOL,VOL

,VOL,VOL

,VOL ++

+” on the unit.)

20.

21. In stop mode, press the play/pause button (BF) to start playing the disc.

When playing disc, press the play/pause button (BF) to temporarily stop the

playing, press the button again, it will continue to play.

(You can also operate the key “BF” on the unit.)

22. Press the OSD button (OSDOSD

OSDOSD

OSD) to display the playing information of the disc on

the TV screen. Press this button once by once until the information disappears.

When tuned to an FM station, use this button to alter the RDS display.

If you want to set the daily timer or the sleep timer, press the sleep/timer button

(SLEEP/TIMERSLEEP/TIMER

SLEEP/TIMERSLEEP/TIMER

SLEEP/TIMER).

23. When playing a CD, you can choose MONO (Left Mono, Right Mono),

“STEREO” audio output by pressing vocal mode select button (AUDIOAUDIO

AUDIOAUDIO

AUDIO).

When playing DVD disc recorded with several languages, you can repeatedly

press the language select button (AUDIOAUDIO

AUDIOAUDIO

AUDIO) to select one of language to play.

24. You can use this function to view a DVD in different angles, if it has been

recorded with this function.

If the DVD disc which you are playing is recorded by three angles, then you can

repeatedly press the angle select button to select one angle to watch.

25. You may directly enter a time, title or chapter number to search quickly on a

disc. The unit will play from this point.

26. If your DVD disc has one or more music chapters or titles, you can setup

playing order for the disc by this button. Press the program button, TV set

display is as following:

Note:Note:

Note: Use the 0/10,1-9,10+ buttons to input the sequence number which you

want to program playing (the first selection is title and the second

selection is chapter of the programs menu.). After finishing program,

Press the

S,T,W,X

buttons to select “START” then press the OK

button to start programmed play or select “STOP” and “EXIT” to exit

the program. (If you setup disc playing order over 10, press the “ ” to

setup.)

If you are playing the general disc, the TV display is as following:

Note:Note:

Note: Use the 0/10,1-9,10+ buttons to input the sequence number you want to

program playing. After the program has been entered, Press the

S,T,

W,X

buttons to select “Start” then press the OKOK

OKOK

OK button to start

Audio 1/4 Audio 2/4 Audio 3/4 Audio 4/4

JJJ

Note: TT: Title

CH: Chapter

programmed play or select “EXIT” to exit the program. (If you setup a

disc playing order over 10, press the “ ”to continue to the next

program screen.)

If you are playing the MP3 disc, when Filelist is on the screen, select the files

and press program button (PROGRAMPROGRAM

PROGRAMPROGRAM

PROGRAM) to add the files to the program list.

Press menu button (MENUMENU

MENUMENU

MENU) to display the program list then press program

button (PROGRAMPROGRAM

PROGRAMPROGRAM

PROGRAM) to delete unwanted files from the program list.

27. Load a Video CD disc in PBC OFF mode (the MENU button turns the PBC

function ON/OFF), you can select tracks or chapters by number buttons (0/10,0/10,

0/10,0/10,

0/10,

1-9,10+1-9,10+

1-9,10+) and play.

If the track or chapter number is less than 10, press the 0/10,1-90/10,1-9

0/10,1-90/10,1-9

0/10,1-9 buttons.

If the track or chapter number is over 10, press 10+10+

10+10+

10+ button and press the one

of the 0/10,1-90/10,1-9

0/10,1-90/10,1-9

0/10,1-9 buttons.

Note:Note:

Note: If the track or chapter number over 20, press

10+10+

10+ button twice and

press the one of the 0/10,1-90/10,1-9

0/10,1-90/10,1-9

0/10,1-9 buttons. If the search track or chapter

number exceeds the total number on the disc, the “ ” will display on TV

screen, indicating the operation is invalid or incorrect.

28. Press the fast forward button (C) once by once to select one of the variety

different speed to fast forward play or select normal speed to play. Each time

you press the button, the screen shows orderly.

Note:Note:

Note: Press the BF button to resume normal playback.

29. When playing DVD disc, press the next button (G) to skip the next chapter or

title.

When playing a CD, press the next button (G) to skip the next track.

(You can also operate the key “G” on the unit.)

30. Press the stop button (L) to stop playing, the unit will store the last playing time

in the memory automatically, then press the play/pause button (BF), the unit

will resume to last memory time and continue playback automatically.

If you press the stop button (L) twice to stop the disc playing.

(You can also operate the key “L” on the panel of the unit.)

Slide Show Menu WPrev NextX

Playing Picture CD discPlaying Picture CD disc

Playing Picture CD disc

Place the picture CD on the disc tray correctly, the unit will read the disc and play it automatically,

if the disc can not play automatically, press the button BF to play.

When the picture is displayed on the TV screen, you can press the 0/10,10+, 1-90/10,10+, 1-9

0/10,10+, 1-90/10,10+, 1-9

0/10,10+, 1-9 buttons on the

remote control to select the desired picture on the disc then press the ENTERENTER

ENTERENTER

ENTER button to start

playing.

Note:Note:

Note: Play will continue until the final picture or when the selected pictures have been played.

When playing, use the MENUMENU

MENUMENU

MENU button or Lbutton to select different play mode. These play modes

list as the following:

Note:Note:

Note: When playing a picture CD, press the Lbutton to enter the “THUMBNAIL MODE”, use the

S,T,W,X

buttons to move the cursor to illuminate the “MENU” then press the ENTERENTER

ENTERENTER

ENTER

button to enter the “REMODE KEY FUNCTION” list.

STOP : THUMBNAIL MODE

: NEXT PICTURE

: PREVIOUS PICTURE

PLAY : PICTURE MODE

C: ZOOM IN

D: ZOOM OUT

ZOOM : SWITCH ZOOM MODE

S,T,W,X: PAN IN ZOOM MODE

Note:Note:

Note:

Slide Show : Selections played in a random order

Menu : Display “Remote Key Function” list

Prev : Display previous 12 pictures of disc

Next : Display next 12 pictures of disc

You may need use the Kbutton on the unit to stop playing and open the disc tray.

Use the USBUse the USB

Use the USB

You can connect the USB flash to the USB jack at the front panel of unit. The unit will play MP3

music or the pictures from the flash directly.

1. Plug the USB flash into the USB jack.

2. Press the FUNCTIONFUNCTION

FUNCTIONFUNCTION

FUNCTION button on unit or the USBUSB

USBUSB

USB button on remote control to select the USB

function.

3. Display shows the word “USB” .

4. MP3 music or the pictures will be played automatically.

USB Storage Device Data ProtectionUSB Storage Device Data Protection

USB Storage Device Data Protection

- Always insert the USB device in the correct direction. Failure to do so may result in damage

to the USB device and this product.

- Do not remove the USB device while it is being accessed.

- Electrical interference and electrostatic discharges may cause the USB device to

malfunction and suffer damage, resulting in data loss.

It is strongly recommended that any important data is backed up on a PC to protect against

corruption, data loss or device malfunction. Please note that our company shall not accept any

liability for damage or loss of stored data.

Note:Note:

Note: USB connection is not compatible with all hard drive models.

Listening to Radio BroadcastsListening to Radio Broadcasts

Listening to Radio Broadcasts

Caution:Caution:

Caution: Before listening to the radio, please check if FM antenna is correctly connected.

Press the function select button (FUNCTIONFUNCTION

FUNCTIONFUNCTION

FUNCTION) on the unit or on the remote control to

select FM function.

Press the button (C)repeatedly to move from frequency to frequency until the next

station is found.

Press and hold the button (C)for one second or more, the frequency will change

up automatically until a right station is found.

(You also can operate the tuning forward key (TU+TU+

TU+TU+

TU+) on the panel of the unit.)

Press the button (D)repeatedly to move from frequency to

frequency until the next station is found.

Press and hold the button (D)for one second or more, the frequency will change

down automatically until a right station is found.

(You also can operate the tuning backward key (TU-TU-

TU-TU-

TU-) on the panel of the unit.)

You can store the well tuned station by pressing the program button (PROGRAMPROGRAM

PROGRAMPROGRAM

PROGRAM ) on

the remote. (You can preset up to 16 FM stations .)

Tune in the desired station, then press the program button (PROGRAMPROGRAM

PROGRAMPROGRAM

PROGRAM).

Use CH-CH-

CH-CH-

CH- button or CH+CH+

CH+CH+

CH+ button on the unit or the buttons (H

G) on the remote

control once by once to select the preset number.

Press the program button (PROGRAMPROGRAM

PROGRAMPROGRAM

PROGRAM ) to store the station.

Note:Note:

Note:If the system is unplugged or if a power failure occurs, the preset stations will

remain stored in the memory.

Press the button (G) once by once to select preset number after preset

presetting station. Its band and frequency are displayed on the VFD.

Press the button (G) once by once to select the preset number when in store the

station.

Press (on the unit) or the button (H) on the remote once by once to select

preset number before presetting station. Its band and frequency are displayed on

the VFD.

Press the button (H) once by once to select the preset number when in store the

station.

(You also can operate the channel select forward button (CH+CH+

CH+CH+

CH+) and the channel

select backward button (CH-CH-

CH-CH-

CH-) on the panel of the unit.)

Press the mode button (MODEMODE

MODEMODE

MODE) to select the Stereo or MONO channel to receive the

FM radio mode, it can get the best effect.

RDS (Radio Data System) ReceptionRDS (Radio Data System) Reception

RDS (Radio Data System) Reception

Many FM stations are broadcasting added data compatible with RDS. This radio set offers

convenient functions using such data.



PS (Program Service Name)PS (Program Service Name)

PS (Program Service Name)PS (Program Service Name)

PS (Program Service Name)

When an RDS station is received, the RDS indicator lights and automatically displays the

name of that station instead of the frequency. When RDS display button (RDS)(RDS)

(RDS)(RDS)

(RDS) on the remote

control is pressed during PS display, the CT is displayed for 3 seconds, then PS display

returns.



PTYPTY

PTYPTY

PTY (Program T(Program T

(Program T(Program T

(Program Type)ype)

ype)ype)

ype)

Program type identification signal. (Example: News, Rock, Classical music.)



CTCT

CTCT

CT (Clock T(Clock T

(Clock T(Clock T

(Clock Time System)ime System)

ime System)ime System)

ime System)

The CT system may not properly operate in areas where RDS CT service is not available.

Once CT service is received, the CT system keeps operating. “RDS CLOCK” is displayed in

areas where no CT services are available.



Changing DisplayChanging Display

Changing DisplayChanging Display

Changing Display

During PS display, press the RDS display button ((

((

(RDSRDS

RDSRDS

RDS))

))

) on the remote control repeatedly to

select the CT, PTY or Frequency. They will be displayed for 3 seconds, then the PS display

returns.

Clock/TClock/T

Clock/Timer Functionsimer Functions

imer Functionsimer Functions

imer Functions

Setting the Clock

The built-in clock shows the correct time in the display.

- In standby mode, press the clock button (CLOCKCLOCK

CLOCKCLOCK

CLOCK) , the hour indicator will blink.

- Set the hour with the VOL-VOL-

VOL-VOL-

VOL- button or VOL+VOL+

VOL+VOL+

VOL+ button.

- Press the clock button (CLOCKCLOCK

CLOCKCLOCK

CLOCK), the minute indicator will blink.

- Set the minute with the VOL-VOL-

VOL-VOL-

VOL- button or VOL+VOL+

VOL+VOL+

VOL+ button.

- Press the clock button (CLOCKCLOCK

CLOCKCLOCK

CLOCK), the built-in clock starts operating and the

seconds start counting from 0.

Note:Note:

Note:

If you tune to a station that has RDS, (CT) clock time will be set

automatically.

You can only set the clock in standby mode.

The operating time of every step shouldn’t be longer than 10 seconds or it will

return to the original display.

If there is a power failure or the power system is turned off, the clock will lose its

setting.

To confirm the clock timeo confirm the clock time

o confirm the clock timeo confirm the clock time

o confirm the clock time

When you press the clock button (CLOCKCLOCK

CLOCKCLOCK

CLOCK), the clock time is displayed. Wait for a few

seconds until the display returns to the original display.

Setting the Daily TSetting the Daily T

Setting the Daily Timerimer

imerimer

imer

In standby mode with the clock time having been set, you can use the daily timer

setting to turn the unit on automatically at a certain time everyday under standby

mode. When the setting timer is on, the timer indictor “ ” will display on the VFD,

however the clock must be set correctly for the timer function to work.

- In standby mode, press the timer button (TIMERTIMER

TIMERTIMER

TIMER), the hour indicator will blink.

- Set the hour with the VOL-VOL-

VOL-VOL-

VOL-

button or VOL+VOL+

VOL+VOL+

VOL+ button.

- Press the timer button (TIMERTIMER

TIMERTIMER

TIMER), the minute indicator will blink.

- Set the minute with the VOL-VOL-

VOL-VOL-

VOL-

button or VOL+VOL+

VOL+VOL+

VOL+ button.

- Press the timer button (TIMERTIMER

TIMERTIMER

TIMER), the selected time is set. Then set the daily timer

to “ON” (daily timer set is in effect) or “OFF” (daily timer set is to cancel) by

pressing the

Note:Note:

Note:

You can only set the daily timer only in standby mode and the clock timer had been

set.

The operating time of every step shouldn’t be longer than 10 seconds or it will

return to time display.

VOL-VOL-

VOL- button or VOL+VOL+

VOL+VOL+

VOL+ button.

Table of contents

Other VIETA Home Theater System manuals

VIETA

VIETA VMD650IP User manual

VIETA

VIETA VMD500 User manual

VIETA

VIETA VMD600 User manual

Popular Home Theater System manuals by other brands

Samsung

Samsung HT-E6730W user manual

LG SH86SH-S Simple manual

Sinotec

Sinotec HTS-517 instruction manual

Philips

Philips HTS 3610 quick start guide

LG S76T1-C owner's manual

Sony

Sony HT-CT100 operating instructions

Samsung

Samsung HT-BD2EX user manual

Samsung

Samsung HT-E3500 user manual

Bose

Bose CineMate 15 owner's guide

Prismasonic

Prismasonic Fixed Assembly instructions

LG BH6740TK owner's manual

Altec Lansing

Altec Lansing ADA104 user guide

Panasonic

Panasonic SA-HT530GCP Service manual

Samsung

Samsung HT-A100 user manual

Sharp

Sharp HT-SB602 Operation manual

Sony

Sony BDV-N9200W Quick setup guide

Epson

Epson Powerlite user guide

Audiovox

Audiovox VD1400HT owner's manual

VIETA VMD95LS User manual

Popular Home Theater System manuals by other brands
