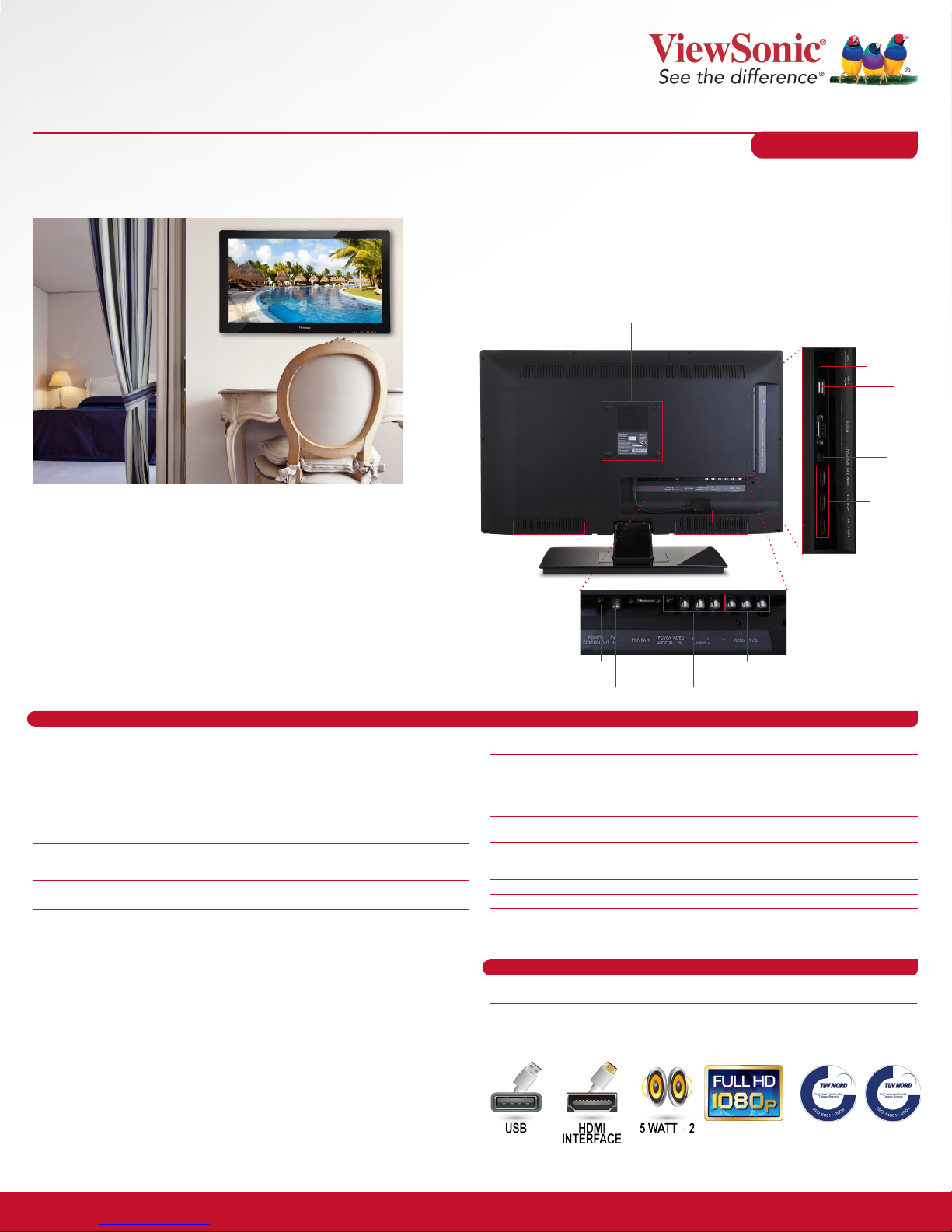

ViewSonic VT2756-L User manual

High-Definition Television for Hospitality Environments
27" Full HD LED Premium Display
VT2756-L
The ViewSonic®VT2756-L is a premium 27" LED monitor
with an HDTV-tuner to display HDTV programming. It
features a glossy bezel design, as well as 1920x1080
native resolution, very fast response times, and a high
contrast ratio for superior image and color performance.
Versatile connectivity options include HDMI, PC, and
traditional YPbPr and CVBS inputs. A RS-232 control
port with IR pass-through provides automated control
for hospitality and commercial installations. Plus, HDMI
CEC pass-through support provides one-touch-play and
other control features for multiple connected devices.
Users can select favorite channels and parental control
settings for customized TV channel and hospitality mode
programming. The VT2756-L includes a USB cloning
function for music and photo playback, as well as for
easier content duplication. Dual integrated 5-watt stereo
speakers and SPDIF functionality make this display
solution a complete multimedia entertainment package
for hotels, restaurants, bars and other hospitality venues.
27" Full HD 1920x1080 Display Resolution
The VT2756-L features Full HD 1920x1080 resolution to deliver superior
pixel-by-pixel performance for a more realistic viewing experience. With Full
HD resolution, experience greater image clarity and detail that bring high-
denition TV programs, HD movies, and other multimedia content to life.
Hospitality Mode for Automated Multi-screen Control
The VT2756-L is great for multi-screen setups in hotels, restaurants, sports
bars, or retail outlets that require automated control and customizable
presets. With a programmable hospitality setting, each television can have
the same customized channel default, audio level, front-panel lockout, and
auto power-up settings.
USB Multimedia Playback & Cloning
With the handy PC-less USB playback feature, photos and music can be
immediately played and shared by plugging a USB drive into the display.
In addition, the VT2756-L includes USB cloning for easy duplication in
multi-screen environments.
IR Pass-through for Multi-device Control
The VT2756-L features a RS-232 control port with IR pass-through
to provide automated control for hospitality and commercial display
installations. IR pass-through offers local control for set-top boxes or other
connected devices, directly from the display’s remote controller.
HDMI CEC Delivers More Viewing Possibilities
With HDMI CEC functionality, remote controller signals can be transmitted
via HDMI cable to connected HDMI devices. This enables out-of-sight DVD
players, sound systems, and other devices to be directly controlled with the
display’s remote controller for a wider range of viewing possibilities.

Specications
Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
Specications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. HDMI, the HDMI Logo, and High-Denition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. TruSurround HD and the SRS Logo are trademarks or registered trademarks of SRS Labs.
Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2013 ViewSonic Corporation. All rights reserved. [16880-00B-09/13]
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
PANEL Type 27" color TFT active matrix, wide LCD with WLED Backlight
Display Area 23.5" horizontal x 13.2" vertical; 27" diagonal
Optimum Resolution 1920x1080
Contrast Ratio 1200:1 (typ)
Viewing Angles 170º horizontal, 160º vertical
Response Time 3.4ms
Light Source Long life, 50,000 hrs. (typ)
Brightness 300 cd/m2(typ)
Aspect Ratio 16:9
Panel Surface Anti-glare, hard coating (3H)
INPUT Video Input HDMI, component, VGA, S-video, CVBS (BNC)
Video Output VGA, component
Control Input/Output RS-232
AUDIO OUTPUT Speakers Internal 5-watt (x2)
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
CONNECTOR Analog 15-pin mini D-sub (VGA), RF (TV) in, RCA Audio In,
headphone out
Digital HDMI (x3), YPbPr, CVBS, SPDIF, USB
Power 3-pin plug
CONTROLS Panel Menu, VOL -/+, Down/Up, Input, Power
Picture Picture Mode, Brightness, Contrast, Color, Tint, Sharpness,
Backlight, Screen Size, Auto Adjust, H. Position, V.Position,
Clock, Phase, Color Temperature, Dynamic Contrast, Film
Mode, Noise Reduction, MPEG Noise Reduction
Sound Sound Setting, Digital Audio Output, Equalizer Setting,
SRS Setting
Parental Lock Parent Control, V-Chip, Movie Rating, English Rating,
French Rating, Block UnRated Show, Change Password,
Keypad Lock, Source Lock, System Lock
Setup Closed Caption, Menu Language, Clock, OSD Transparency,
Time Zone, Auto Clock, Setup Time, Day of Week, Daylight
Saving Time, Time Format, OSD Timer
Others Blue Back, No Signal Power Off, No Operation Power Off, All
Reset, Audio Only, Display ID, Usage Monitor
POWER Voltage AC 100–240V (universal), 50–60Hz
Consumption 50W (max) / 35W (typ)
OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 20–80% (non-condensing)
DIMENSIONS Physical With Stand 26.1 x 18.2 x 7.1 in. / 661.6 x 463 x 180 mm
(W x H x D) Physical Without Stand 26.1 x 16.1 x 1.95 in. / 661.6 x 409.2 x 49.5 mm
Packaging 33.5 x 21.3 x 5.2 in. / 735 x 540 x 132 mm
BEZEL Left/Right 32mm / 32mm
DIMENSIONS Top/Bottom 30.1mm / 42.4mm
WEIGHT Net With Stand 12.1 lb. / 5.5 kg
Net Without Stand 11.2 lb. / 5.1 kg
Gross 15.6 lb. / 7.1 kg
WALL MOUNT VESA®100mm x 100mm
REGULATIONS FCC, CE, UL, RoHS
RECYCLE/DISPOSAL Please dispose of in accordance with local, state
or federal laws.
WARRANTY Three-year limited warranty on parts, labor and backlight
VT2756-L
VT2756-L display, power cord, remote control with batteries, Quick Start Guide,
ViewSonic Wizard CD (with User Guide)
What's in the box?
RS-232
Headphone
VGA Component
Video/Audio
In
TV In
HDMI (x3)
USB
SPDIF
Wall Mount-Ready
Applications
• Hospitality / Entertainment display
• Business / Educational display – boardroom and classroom
• Digital signage – small to mid-size business
• Medical ofce and waiting room entertainment displays
• Hotel guest room entertainment
• Sports bar and restaurant entertainment displays
27" Full HD LED Premium Display
Remote
Control Out
Internal Speaker Internal Speaker
Versatile Input Connectivity
VGA, YPbPr, and USB inputs provide extreme exibility, while 3 HDMI ports
allow connection to HD set-top-boxes, media players, and Blu-ray players.
