Feel the action in movies, games and sports on the 24" (23.6"
viewable) VT2430 widescreen LCD HDTV. Full HD 1080p resolution
delivers 100% of your HD signal for incredibly precise images.
High brightness combines with 10,000:1 dynamic contrast ratio for
unparalleled definition and detail. Super-fast video response and
advanced image processing ensures extreme clarity in all your HD
entertainment. The integrated ATSC/NTSC/QAM tuner and multiple
connectivity options including HDMI 1.3 give you all the inputs you
need for game consoles, DVD and Blu-Ray™players and computers.
Get maximum enjoyment in your smaller spaces or on your desktop
with the stylish, versatile VT2430 LCD HDTV.
Big entertainment
in a small package.
IDEAL FOR SMALL LIVING SPACES
16:9 Full HD 1920x1080 resolution panel>
Experience a new dimension in movie viewing and gaming with
Full HD 1080p super resolution for the optimum richness and
clarity in picture quality
Advanced image processing delivers clearer, crisper,>
sharper images
Advanced ClearPicture™ image processing eliminates noise,
increases contrast and detail and optimizes color for rich, vibrant
images. High-definition images look amazing and even standard
television images are unbelievably smooth and sharp.
Vivid graphics, clear text, stunning TV>
Ultra-high brightness of 250-nit (typ), dynamic contrast ratio of
10,000:1 and 1920x1080 optimum PC resolution provide vibrant
video and crisp data images in the living room or on the desktop.
OptiSync>®technology now features HDMI
Add versatility to your LCD TV with support for HDMI with
high-definition content protection (HDCP) and analog
(VGA) signals, plus component, S-video,
composite, and TV/cable input.
VT2430
24" (23.6" VIEWABLE)
FULL 1080P LCD HDTV
WITH 10,000:1 DYNAMIC CONTRAST RATIO

VT2430
24" (23.6" VIEWABLE) FULL 1080P LCD HDTV WITH 10,000:1 DYNAMIC CONTRAST RATIO
For more product information, visit us on the web at ViewSonic.com
Sales: [phone] • [email protected] • ViewSonic.com
*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and
programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the
property of their respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [14209-02B-10/09] VT2430-1
ViewSonic Corporation’s QMS & EMS have been
registered to ISO 9001 & ISO 14001, respectively,
by the British Standards Institution.

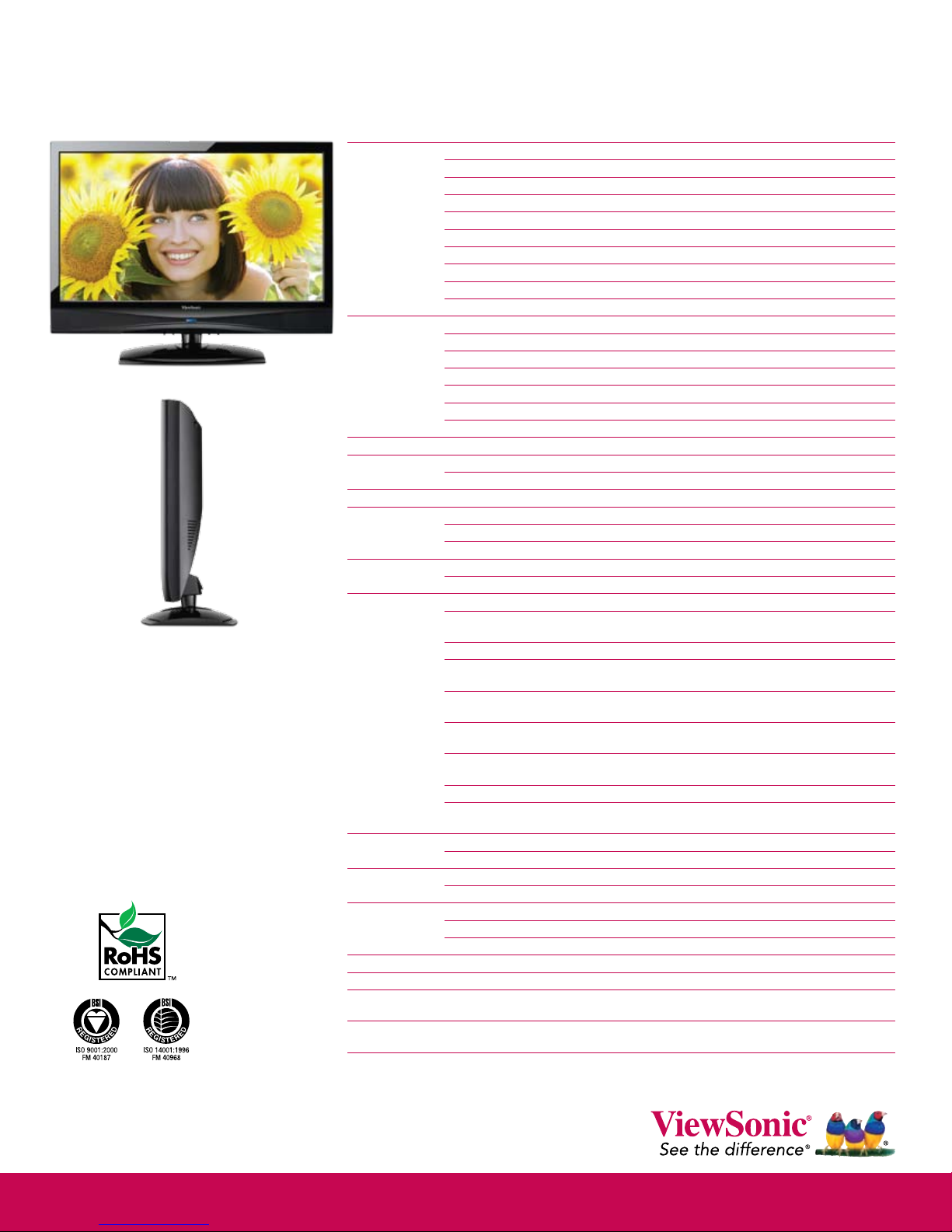

LCD Type 24" (23.6" viewable) Wide Color TFT Active Matrix LCD
Display Area 20.5" horizontal x 11.5" vertical; 23.6" diagonal
Optimum Resolution 1920x1080
Contrast Ratio 1000:1 static (typ), 10,000:1 dynamic
Viewing Angles 170º horizontal, 160º vertical
Response Time 5ms
Light Source Long life, 40,000 hrs. (typ)
Brightness 300 cd/m2(typ)
Aspect Ratio 16:9
Glass Surface Anti-glare, anti-reflective coat
INPUT PC RGB analog (75 ohms, 0.7 Vp-p)
TV TV/cable, composite (RCA), component YPbPr/YCbCr, S-Video
Audio 3.5mm mini stereo audio in, earphone out and RCA (left/right) audio in
Frequency Fh: 30~64kHz, Fv: 60~75Hz
Sync H/V separated (TTL)
Digital HDMI (with HDCP and audio support)
Tuner ATSC/NTSC/QAM
AUDIO OUTPUT Speakers 2x5-watt
COMPATIBILITY PC 1920x1080 @ 60Hz (preferred), 1920x1080 @ 60Hz
Mac®* G3/G4/G5 up to 1920x1080
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
CONNECTOR Analog 15-pin mini D-sub (VGA)
Digital HDMI
Power 3-pin AC plug
POWER Voltage AC 100–240V (universal), +/-10% Wide Range
Consumption 60W (typ) / 75W (max.)
CONTROLS Basic Vol -/+, menu, channel down/up, source, power
Picture Picture mode, contrast, brightness, sharpness, tint, color,
color mode, zoom mode, NR
Picture (Video mode) Picture mode, contrast, brightness, sharpness, color mode
Picture (PC mode) Picture mode, contrast, brightness, sharpness, color mode,
advanced
Channel TV source, auto scan, favorite, show/hide, channel number,
channel label, DTV signal
Lock Change password, system lock, unrated lock, input block,
US, Canada, RRT setting, reset RRT
Option Menu language, transparency, OSD time out, closed caption,
dynamic contrast ratio (DCR), restore default
Time Sleep timer, time zone, DST, time format, auto sync, clock
Audio Sound mode, treble/bass, prefer language, surround sound,
audio only
OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 10–65% (non-condensing)
DIMENSIONS Physical with stand 22.3" x 17.4" x 8.3" (567mm x 442mm x 211mm)
(W x H x D) Physical without stand 22.3" x 15.2" x 3.3" (567mm x 387mm x 85mm)
WEIGHT Net with stand 15.4 lb. (7.0 kg)
Net without stand 14.3 lb. (6.5 kg)
Gross with stand 19.8 lb. (9.0 kg)
VESA®MOUNT 100mm x 100mm
REGULATIONS FCC, cUL (UL), RoHS, NOM, BETS-7, CB
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS LCD TV display, power cable(s), remote control with batteries,
Quick Start Guide, User Guide
WARRANTY One-year limited warranty on parts and backlight
