ViewSonic VA702-1 User manual

ViewSonic VA702-1
VA702b-1
Model No. VS10781
17” Color TFT LCD Display
(VA702-1_ VA702b-1_SM Rev. 1b Sep. 2006)
ViewSonic 381 Brea Canyon Road, Walnut, California 91789 USA - [phone]
Service Manual

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
i
Copyright
Copyright © 2006 by ViewSonic Corporation. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of ViewSonic
Corporation.
Disclaimer
ViewSonic makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranty of merchantability or fitness for any
particular purpose. Further, ViewSonic reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation of ViewSonic to notify any
person of such revision or changes.
Trademarks
Optiquest is a registered trademark of ViewSonic Corporation.
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.
Revision History
Revision SM Editing Date ECR Number Description of Changes Editor
1b9/12/2006 Add 2nd panel V7 & VA (updated RSPL, BOM) Jamie Chang
1a Initial Release G. Han
10/20/05

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
ii
TABLE OF CONTENTS
1. Precautions and Safety Notices 1
2. Specification 4
3. Front Panel Function Control Description 13
4. Circuit Description 18
5. Adjustment Procedure 29
6. Troubleshooting Flow Chart 35
7. Recommended Spare Parts List 42
8. Exploded Diagram and Exploded Parts List 47
9. Block Diagram 49
10. Schematic Diagrams 50
11. PCB Layout Diagrams 58

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
1
1. Precautions and Safety Notices
1. SAFETY PRECAUTIONS
This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However,
improper used or installation may cause damage to the monitor as well as to the user.
WARNINGS:
zThis monitor should be operated only at the correct power sources indicated on the label on the rear of the
monitor. If you’re unsure of the power supply in you residence, consult your local dealer or Power
Company.
zUse only the special power adapter that comes with this monitor for power input.
zDo not try to repair the monitor by yourself, as it contains no user-serviceable parts. Only the qualified
technician can repair it.
zDo not remove the monitor cabinet. There are high-voltage parts inside that may cause electric shock to
human bodies.
zStop using the monitor if the cabinet is damaged. Have it checked by a service technician.
zPut your monitor only in a lean, cool, dry environment. If it gets wet, unplug the power cable immediately
and consult your closed dealer.
zAlways unplug the monitor before cleaning it. Clean the cabinet with a clean, dry cloth. Apply
non-ammonia based cleaner onto the cloth, not directly onto the glass screen.
zDo not place heavy objects on the monitor or power cord.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety visual inspections and the
protection afforded by them cannot necessarily be obtained by using replacement components rated for
higher voltage, wattage, etc. Before replacing any of these components read the parts list in this manual
carefully. The use of substitute replacement parts, which do not have the same safety characteristics as
specified in the parts list, may create shock, fire, or other hazards.
3. SERVICE NOTES
zWhen replacing parts or circuit boards, clamp the lead wires around terminals before soldering.
zKeep wires away from high voltage, high temperature components and sharp edges.
zKeep wires in their original position so as to reduce interference.
zAdjustment of this product please refers to the user’ manual.

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
2

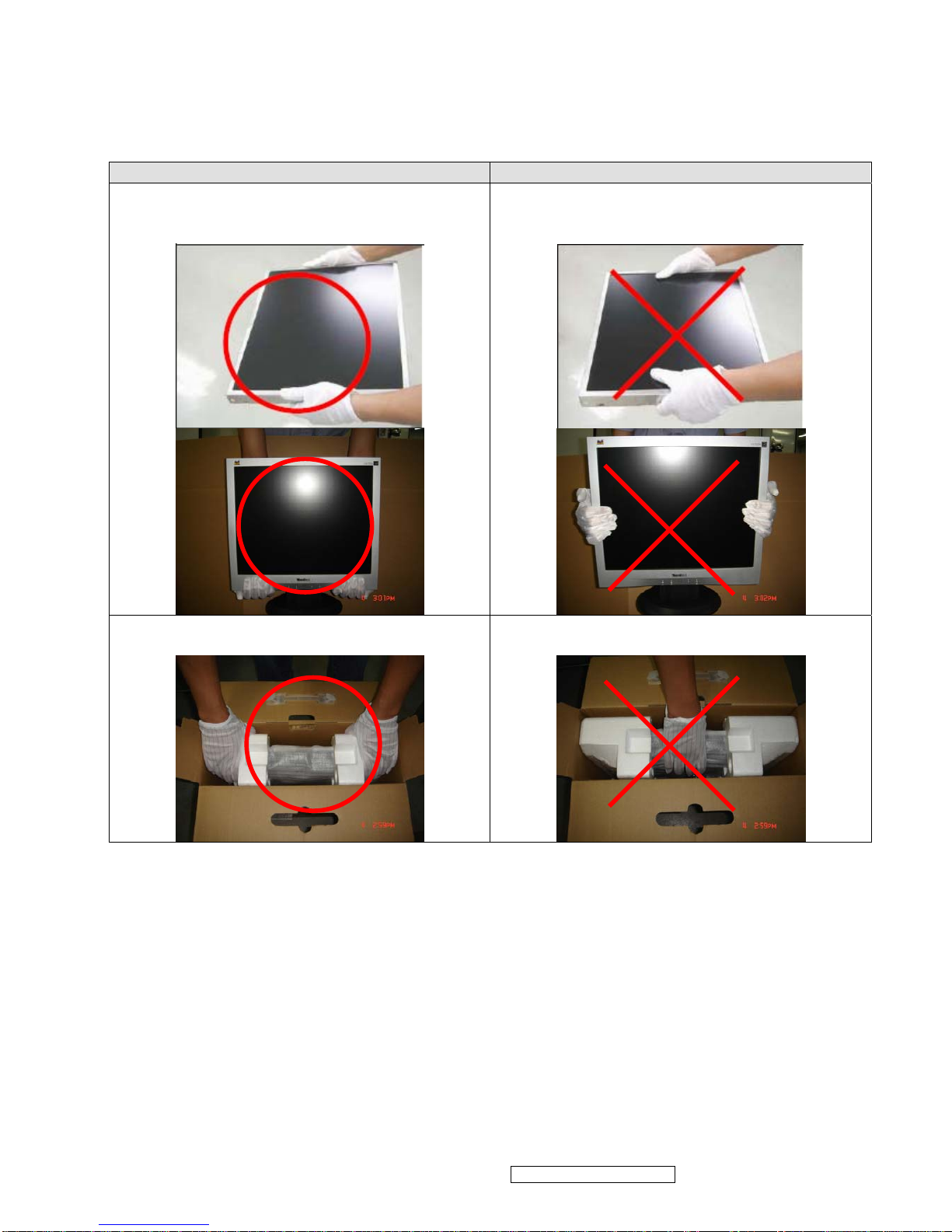

4. Handling and Placing Methods
Correct Methods: Incorrect Methods:
Only touch the metal of the LCD panel or the front
cover of he monitor. Do not touch the surface of the
polarizer.
Surface of the LCD panel is pressed by fingers and
that may cause "Mura".
Take out the monitor with cushions. Taking out the monitor by grasping the LCD panel.
That may cause "Mura".

Correct Methods: Incorrect Methods:
Place the monitor on a clean and soft foam pad. Placing the monitor on foreign objects, That could
scratch the surface of the panel or cause "Mura".
The panel is placed facedown on the lap. That may
cause "Mura".
ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
3

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
4
2. Specification
INTRODUCTION
FEATURES VA702/b
Size 17 “
Luminance (Typ) 300 cd/㎡
Contrast Ratio (Typ) 500:1
Colors (6 bits + 2 bits FRC) 16.2 M
Response Time (Typ) 12 ms
Viewing Angle (H/V) 140 ° / 125 °
TFTLCD PANEL
Recommend resolution 1280x1024@60Hz
Size 17 “
Luminance (Typ) 300 cd/㎡
Contrast Ratio (Typ) 500:1
Colors (6 bits + 2 bits FRC) 16.2 M
Response Time (Typ) 8 ms
Viewing Angle (H/V) 150 ° / 135 °
2nd
TFTLCD PANEL
Recommend resolution 1280x1024@60Hz
Size 17 “
Luminance (Typ) 280 cd/㎡
Contrast Ratio (Typ) 600:1
Colors (6 bits + 2 bits FRC) 16.2 M
Response Time (Typ) 8 ms
Viewing Angle (H/V) 150 ° / 135 °
3rd
TFTLCD PANEL
Recommend resolution 1280x1024@60Hz
Analog (75ohms, 0.7/1.0 Vp-p) Yes
Input Signal Digital No
Separate Sync Yes
Composite Sync No
Sync Compatibility
Sync on Green No
PC Yes
Power Mac Yes
Compatibility
TV Box (NextVision 6) Yes
Power Voltage AC 100-240V, 50/60Hz Yes
On Mode(Max / Typ) 36 W/ 35 W
Power Consumption Off Mode (Max) ≦1 W
Tilt ( 20 ° - -5 °) Yes
Swivel No
Pivot No
Ergonomics
Height Adjust No
OSD Control [ 1 ] [▼] [▲] [ 2 ] [ ] Yes
Physical (W x H x D) 378 x 374 x 196 mm
Dimension Package (W x H x D) 440 x 511 x 132 mm
Physical (Net Weight) 4.5 kg
Weight Package (Gross Weight) 6.2 kg
Operating Condition Temperature ( / )℉℃ 32℉-104℉/ 0℃-40℃
Humidity (%) 10 % - 90 %
Temperature ( / )℉℃ -4℉-140℉/ -20℃-60℃
Storage Condition Humidity (%) 5 % - 90 %
Regulation
UL, cUL, FCC-B, CB, CE, ENERGY, NOM, TUV/GS, TUV ERGO
(covers ISO13406-2 & MPRII), TCO’03, GOST-R+20 ORIGINAL
COPIES HYGIENIC, SASO, PCBC, VCCI, BSMI, CCC, (PSB), (C-
TICK), TUV-S, Green Mark, Energy Star, RoHS, WEEE

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
5
GENERAL specification
Test Resolution & Frequency 1280x1024 @ 60Hz
Test Image Size Full Size
Contrast and Brightness Controls Factory Default:
Contrast = 70%, Brightness = 100%
VIDEO INTERFACE
Analog Input Connector DB-15 (Analog), refer the appendix A
Video Cable Strain Relief Equal to twice the weight of the monitor for
five minutes
Video Cable Connector DB-15 Pin out Compliant DDC 1/2B
Video Signals Video RGB (Analog) - Separate
Video Impedance 75 Ohms (Analog)
Maximum PC Video Signal 950 mV with no damage to monitor
Maximum Mac Video Signal 1250 mV with no damage to monitor
Sync Signals LVDS
DDC 1/2B Compliant with Revision 1.3
Sync Compatibility Separate Sync
Video Compatibility
Shall be compatible with all PC type
computers, Macintosh computers, and after
market video cards
Resolution Compatibility
640 x 350, 640 x 480, 720 x 400 (640 x
400*), 800 x 600, 832 x 624, 1024 x 768,
1152 x 870, 1280 x 720, 1280 x 1024
Exclusions Not compatible with interlaced video

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
6
POWER SUPPLY
Internal Power Supply Part Number: ILIPI-004
Input Voltage Range 90 TO 264 VAC
Input Frequency Range 47.5 TO 63 HERTZ
Short Circuit Protection Output can be shorted without damage
Over Current Protection 2.4 A typical at 14.2 VDC
Leakage Current 3.5mA (Max) at 254VAC / 60Hz
Efficiency 80% typical at 115VAC Full Load
Fuse Internal and not user replaceable
Power Dissipation 35 Watts (typ)
Max Input AC Current 0.8 Arms @ 90VAC, 0.4 Arms @265VAC
INRUSH CURRENT (COLD START) 30 A @ 120VAC, 50 A (max) @ 220VAC
Power Supply Cold Start
Shall start and function properly when
under full load, with all combinations of
input voltage, input frequency, and
operating temperature
Power Supply Transient Immunity
Shall be able to withstand an ANSI/IEEE
C62.41-1980 2000V 200 ampere ring wave
transient test with no damage
Power Supply Line Surge Immunity
Shall be able to withstand 1.5 times
nominal line voltage for one cycle with no
damage
Power Supply Missing Cycle Immunity
Shall be able to function properly, without
reset or visible screen artifacts, when ½
cycle of AC power is randomly missing at
nominal input
Power Supply Acoustics
The power supply shall not produce audible
noise that would be detectable by the user.
Audible shall be defined to be in compliance
with ISO 7779 (DIN EN27779:1991) Noise
measurements of machines acoustics.
Power Switch noise shall not be considered
US Type Power Cable
Separate 3-prong NEMA 5-15P type plug.
Length = 1.8m. Connects to display.
Color = Black
European Type Power Cable
Schuko CEE7-7 type plug.
Length = 1.8m, Connects to display.
Color = Black
CCC Type Power Cable
Separate 3-prong type plug.
Length = 1.8m. Connects to display.
Color = Black
PSE Type Power Cable
Separate 2-prong NEMA 1-15P type plug.
Length = 1.8m. Connects to display.
Color = Black
Power Saving Operation(Method) VESA DPMS Signaling
Power Consumption On Mode < 36 W (max) / 35 W(typ)
Off Mode< 1W
Recovery Time On Mode = N/A, Active Off < 3 sec

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
7
ELECTRICAL REQUIREMENT
Horizontal / Vertical Frequency
Horizontal Frequency 30 – 82 KHZ
Vertical Refresh Rate 50 – 85* HZ.
* WHEN THE RESOLUTION IS SET TO 1280 X 1024, THE
VERTICAL REFRESH RATE MAY BE UP TO 75 HZ; FOR ALL
OTHER RESOLUTIONS, THE VERTICAL REFRESH RATE MAY
BE UP TO 85HZ.
Maximum Pixel Clock 140 MHz
Sync Polarity Independent of sync polarity.
Timing Table
Item Timing Analog
1 640 x 350 @ 70Hz, 31.5kHz Yes
2 640 x 400 @ 60Hz, 31.5kHz Yes
3 640 x 400 @ 70Hz, 31.5kHz Yes
4 640 x 480 @ 50Hz, 24.7kHz Yes
5 640 x 480 @ 60Hz, 31.5kHz Yes
6 640 x 480 @ 67Hz, 35.0kHz Yes
7 640 x 480 @ 72Hz, 37.9kHz Yes
8 640 x 480 @ 75Hz, 37.5kHz Yes
9 640 x 480 @ 85Hz, 43.27kHz Yes
10 720 x 400 @ 70Hz, 31.5kHz Yes
11 800 x 600 @ 56Hz, 35.1kHz Yes
12 800 x 600 @ 60Hz, 37.9kHz Yes
13 800 x 600 @ 75Hz, 46.9kHz Yes
14 800 x 600 @ 72Hz, 48.1kHz Yes
15 800 x 600 @ 85Hz, 53.7kHz Yes
16 832 x 624 @ 75Hz, 49.7kHz Yes
17 1024 x 768 @ 60Hz, 48.4kHz Yes
18 1024 x 768 @ 70Hz, 56.5kHz Yes
19 1024 x 768 @ 72Hz, 58.1kHz Yes
20 1024 x 768 @ 75Hz, 60.0kHz Yes
21 1024 x 768 @ 85Hz, 68.67kHz Yes
22 1152 x 870 @ 75Hz, 68.7kHz Yes
23 1280 x 1024 @ 60Hz, 63.4kHz Yes
24 1280 x 1024 @ 75Hz, 79.97kHz Yes
25 1280x 720 @ 60Hz, 45kHz (HDTV) Yes
Primary Presets
1280x1024 @ 60Hz
User Presets
Number of User Presets (recognized timings) Available: 10 presets total in FIFO
configuration
Changing Modes
● Maximum Mode Change Blank Time for image stability: 3 seconds (Max), excluding
“Auto Image Adjust” time.
● Under DOS mode (640 x 350, 720 x 400 & 640 x 400), it should recall factory setting
when execute “Auto Image Adjust”.
● The monitor needs to do “Auto Image Adjust” the first time when a new mode is
detected. (See section “0-Touch™ Function Actions”)

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
8
Panel Characteristics:
1st Source Panel
Model number Innolux MT170EN01 V1
Type TN type with LVDS interface
Active Size 337.9 (H) x 270.3 (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.264 mm
GLASS TREATMENT Anti Glare (Hard coating 3H)
# OF BACKLIGHTS 4 CCFL edge-light (2 top / 2 bottom)
BACKLIGHT LIFE 40,000 Hours (Min) / 50,000 (Typ)
Luminance (Center) –
Condition:
CT = 6500K, Contrast = Max, Brightness =
Max
300 cd/m2 (Typ after 30 minute warm up)
250 cd/m2 (Min after 30 minute warm up)
Brightness Uniformity (13 points) 0.8 (Typ), 0.75(Min)
δ= Min Luminance of 13 points/Max Luminance
of 13 points
Contrast Ratio 500:1 (Typ), 400:1 (min)
Color Depth 16.2 million colors (6 bits + 2 bits FRC)
Viewing Angle (Horizontal) @ CR>=10
Typical: 140º
Minimum: 130º
@ CR>= 5
Typical: 160º
Minimum: 150º
VIEWING ANGLE (VERTICAL) @ CR>=10
Typical: 130º
Minimum: 120º
@ CR>= 5
Typical: 160º
Minimum: 150º
Response Time
10%-90% @ Ta=25°C
12 ms (Tr= 3 ms, Tf = 9 ms) (typ)
16 ms (Tr= 5 ms, Tf = 11 ms)(max)
Panel Defects Please see Panel Quality Specifications.
AUDIO INTERFACE (SPEAKER SPECIFICATION)
No Audio function
TFT LCD PANEL

ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
9
2nd Source Panel
Model number Innolux MT170EN01 V4
Type TN type with LVDS interface
Active Size 337.9 (H) x 270.3 (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.264 mm
GLASS TREATMENT Anti Glare (Hard coating 3H)
# OF BACKLIGHTS 4 CCFL edge-light (2 top / 2 bottom)
BACKLIGHT LIFE 40,000 Hours (Min) / 50,000 (Typ)
Luminance (Center) –
Condition:
CT = 6500K, Contrast = Max,
Brightness = Max
300 cd/m2 (Typ after 30 minute warm up)
250 cd/m2 (Min after 30 minute warm up)
Brightness Uniformity (13 points) 0.8 (Typ), 0.75(Min)
δ= Min Luminance of 13 points/Max
Luminance of 13 points
Contrast Ratio 500:1 (Typ), 400:1 (min)
Color Depth 16.2 million colors (6 bits + 2 bits FRC)
Viewing Angle (Horizontal)
@ CR>=10
Typical: 150º
@ CR>= 5
Typical: 170º
VIEWING ANGLE (VERTICAL)
@ CR>=10
Typical: 135º
@ CR>= 5
Typical: 155º
Response Time
10%-90% @ Ta=25°C
8 ms (Tr= 2 ms, Tf = 6 ms) (typ)
18 ms (Tr= 7 ms, Tf = 11 ms)(max)
Panel Defects Please see Panel Quality Specifications.

3rd Source PAnel
Model number Innolux MT170EN01 V7
Type TN type with LVDS interface
Active Size 337.9 (H) x 270.3 (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.264 mm
GLASS TREATMENT Anti Glare (Hard coating 3H)
# OF BACKLIGHTS 4 CCFL edge-light (2 top / 2 bottom)
BACKLIGHT LIFE 40,000 Hours (Min) / 50,000 (Typ)
Luminance (Center) –
Condition:
CT = 6500K, Contrast = Max,
Brightness = Max
280 cd/m2 (Typ after 30 minute warm up)
250 cd/m2 (Min after 30 minute warm up)
Brightness Uniformity (13 points) 0.8 (Typ), 0.75(Min)
δ= Min Luminance of 13 points/Max
Luminance of 13 points
Contrast Ratio 600:1 (Typ), 400:1 (min)
Color Depth 16.2 million colors (6 bits + 2 bits FRC)
Viewing Angle (Horizontal) @ CR>=10
Typical: 150º
@ CR>= 5
Typical: 170º
@ CR>=10
Typical: 140º
Minimum: 130º
VIEWING ANGLE (VERTICAL) @ CR>=10
Typical: 135º
@ CR>= 5
Typical: 155º
@ CR>=10
Typical: 130º
Minimum: 120º
Response Time
10%-90% @ Ta=25°C
8 ms (Tr= 2 ms, Tf = 6 ms) (typ)
16 ms (Tr= 6 ms, Tf = 10 ms)(max)
Panel Defects Please see Panel Quality Specifications.
ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
10

IMAGE PERFORMANCE
Factory Defaults
Item Defaults Item Defaults
Contrast 70% OSD H. Position 50%
Brightness 100% OSD V. Position 50%
Color Temperature 6500K OSD Time Out 15 Sec
Sharpness 33% OSD Background On
720x400/640x400 720x400 Resolution Notice Enabled
Luminance
Lv (Max) –
Condition:
Contrast = 100%
Brightness = 100%
Color Temperature = 6500K
Same as the Luminance in section
4-7 “TFT LCD PANEL”
Lv (Def) –
Condition:
Contrast = Default
Brightness = Default
Color Temperature = 6500K
Lv (Def) / Lv (Max) x 100% ≧85%
Display Size
Horizontal Display Size, Primary Preset Full Screen
Vertical Display Size, Primary Preset Full Screen
Saturation
Contrast = Default
Brightness = Default
Test Pattern = 32-Gray
No visible saturation
Contrast = 100%
Brightness = 100%
Test Pattern = 32-Gray
6 – 8 level saturation (Max)
Preset Color Temperatures
SRGB It should meet IEC 61966-2-1 (1999-10) standard
Preset 1 9300K
CCT (Max) = 10250K.
CCT (Min) = 8500K
Wx= 0.283 +/- 0.02,
Wy= 0.298 +/- 0.02
Preset 2 6500K (Primary)
CCT (Max) = 6950K
CCT (Min) = 6100K
Wx= 0.313 +/- 0.02
Wy= 0.329 +/- 0.02
Preset 3 5400K
CCT (Max) = 5915K
CCT (Min) = 4935K
Wx= 0.335 +/- 0.02
Wy= 0.350 +/- 0.02
Preset Color Temperature
Adjustability
Each color preset shall be adjustable. Red, Green,
and Blue shall be individually controlled.
ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
11

MECHANICAL
Dimension (Desktop)
Width 378mm (14.9 inch)
Height 374 mm (14.7 inch)
Depth 196 mm ( 7.7 inch)
Monitor Weight 4.5 Kg (9.9 lbs)
*Refer to Figure 1
Dimension (Head Only / Wall Mount) – Unfolding the Monitor Stand
Width 378 mm (14.9 inch)
Height 424 mm (16.7 inch)
Depth 61 mm (2.38 inch)
Monitor Weight 4.5 Kg (9.9 lbs)
*Refer to Figure 1
Ergonomics
Tilt Up From 0º up to ≧20º
Tilt Down From 0º down to -3º ~ -5 º
Cabinet Material
Display Head Plastic Material ABS UL94-HB
Neck/Base Plastic Material ABS UL94-HB
Internal Plastic Cabinet Components All internal plastic cabinet components shall be
in compliance with the requirements of TCO’03
Front Bezel Color
The reference for the bezel is the silver color
(VA702) and the midnight gray color (VA702b)
chip provided by ViewSonic
Neck, Base, and Rear Cover Color
The reference for the bezel is the black color
(VA702) and the midnight gray color
(VA702b) chip provided by ViewSonic.
The color difference between any two cabinet
components shall be less than 0.80 “Delta E”, in
the 1976 CIE L*a*b Colorspace.
Rear logo color
The rear logo is silver color with the black color
background (VA702) and midnight gray color
and background (VA702b) chip provided by
ViewSonic
Cabinet Color Drift Due To UV-Light
The color drift due to UV-Light shall be less than
3.0 “Delta E” in the 1976 CIE L*a*b colorspace.
Testing shall be performed according to the
requirements of ASTM Test Method D4459-93.
Cabinet Texture Mold-Tech # 11010 used on all external textured
surfaces.
Samples
The supplier shall submit textured color chips,
plastic material specifications, and Material
Safety Data Sheets for approval.
ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
12

3. Front Panel Function Control Description
Adjusting the Screen Image
Use the buttons on the front control panel to display and adjust the OSD controls which display
on the screen. The OSD controls are explained at the top of the next page and are defined in
“Main Menu Controls” on page 10.
Main Menu
with OSD controls
Front Control Panel
shown below in detail
Scrolls through
menu options and
adjusts the
displayed control.
Also a shortcut to
display the
Contrast
adjustment control
screen.
Displays the control screen
for the highlighted control.
Also toggles between two
controls on some screens.
Also a shortcut to Auto
Image Adjust.
Power light
Green = ON
Orange = Power Saving
Standby Power
On/Off
Displays the
Main Menu or
exits the
control screen
and saves
adjustments.
ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
13

Do the following to adjust the display setting:
1. To display the Main Menu, press button [1].
NOTE: All OSD menus and adjustment screens disappear automatically after about 15
seconds. This is adjustable through the OSD timeout setting in the setup menu.
2. To select a control to adjust, pressSorTto scroll up or down in the Main Menu.
3. After the desired control is selected, press button [2]. A control screen like the one shown
below appears.
4. To adjust the setting, press the upSor downTbuttons.
5. To save the adjustments and exit the menu, press button [1] twice.
The following tips may help you optimize your display:
• Adjust the computer's graphics card so that it outputs a 1280 x 1024 @ 60Hz video signal to
the LCD display. (Look for instructions on “changing the refresh rate” in the graphics card's
user guide.)
• If necessary, make small adjustments using H. POSITION and V. POSITION until the
screen image is completely visible. (The black border around the edge of the screen should
barely touch the illuminated “active area” of the LCD display.)
The line at the bottom of the screen shows
the current functions of buttons 1 and 2:
Exit or select the Brightness control.
ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
14

Main Menu Controls
Adjust the menu items shown below by using the upSand downTbuttons.
Control Explanation
Auto Image Adjust automatically sizes, centers, and fine tunes the video signal
to eliminate waviness and distortion. Press the [2] button to execute Auto Image
Adjust.
NOTE: Auto Image Adjust works with most common video cards. If this
function does not work on your LCD display, then lower the video refresh rate
to 60 Hz and set the resolution to its pre-set value.
Contrast adjusts the difference between the image background (black level)
and the foreground (white level).
Brightness adjusts background black level of the screen image.
Color Adjust provides several color adjustment modes, including preset color
temperatures and a User Color mode which allows independent adjustment of
red (R), green (G), and blue (B). The factory setting for this product is 6500K
(6500 Kelvin).
sRGB - This is quickly becoming the industry standard for color management,
with support being included in many of the latest applications. Enabling this
setting allows the LCD display to more accurately display colors the way they
were originally intended. Enabling the sRGB setting will cause the Contrast and
Brightness adjustments to be disabled.
9300K - Adds blue to the screen image for cooler white (used in most office
settings with fluorescent lighting).
6500K - Adds red to the screen image for warmer white and richer red.
5400K - Adds green to the screen image for a darker color.
ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
15

Control Explanation
User Color - Individual adjustments for red (R), green (G), and blue (B).
1. To select color (R, G or B) press button [2].
2. To adjust selected color, pressSorT.
3. When all color adjustments are complete, press button [1] twice.

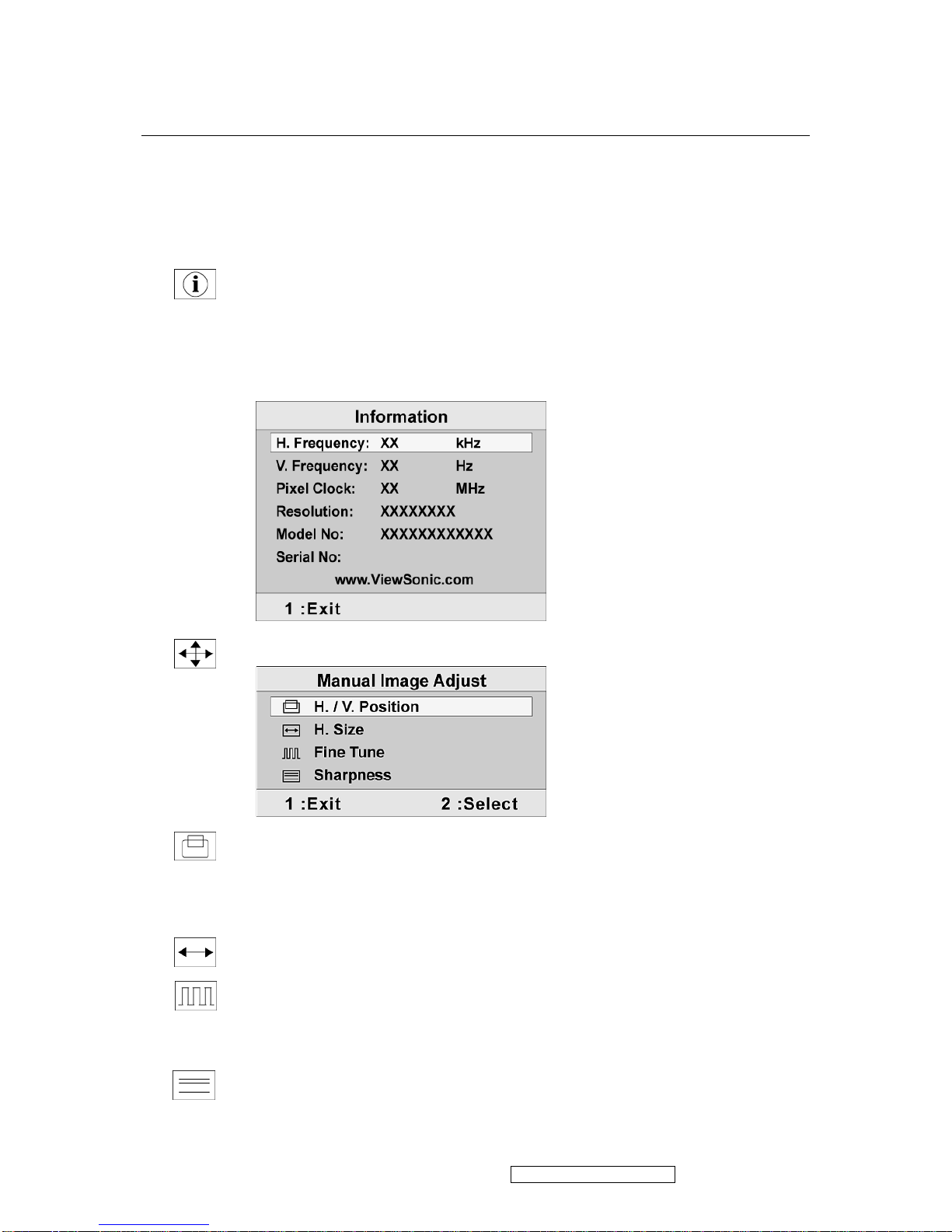

Information displays the timing mode (video signal input) coming from the
graphics card in the computer, the LCD model number, the serial number, and
the ViewSonic®website URL. See your graphics card’s user guide for
instructions on changing the resolution and refresh rate (vertical frequency).
NOTE: VESA 1280 x 1024 @ 60Hz (recommended) means that the resolution
is 1280 x 1024 and the refresh rate is 60 Hertz.
Manual Image Adjust
H./V. Position (Horizontal/Vertical Position) moves the screen image left or
right and up or down. Press button [2] to toggle between Horizontal and
Vertical. The Horizontal setting moves the screen image to the left or to the
right. The Vertical setting moves the screen image up and down.
H. Size (Horizontal Size) adjusts the width of the screen image.
Fine Tune sharpens the focus by aligning text and/or graphics with pixel
boundaries.
NOTE: Try the Auto Adjust function before using the Fine Tune control.
Sharpness adjusts the clarity and focus of the screen image.
ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
16

Control Explanation

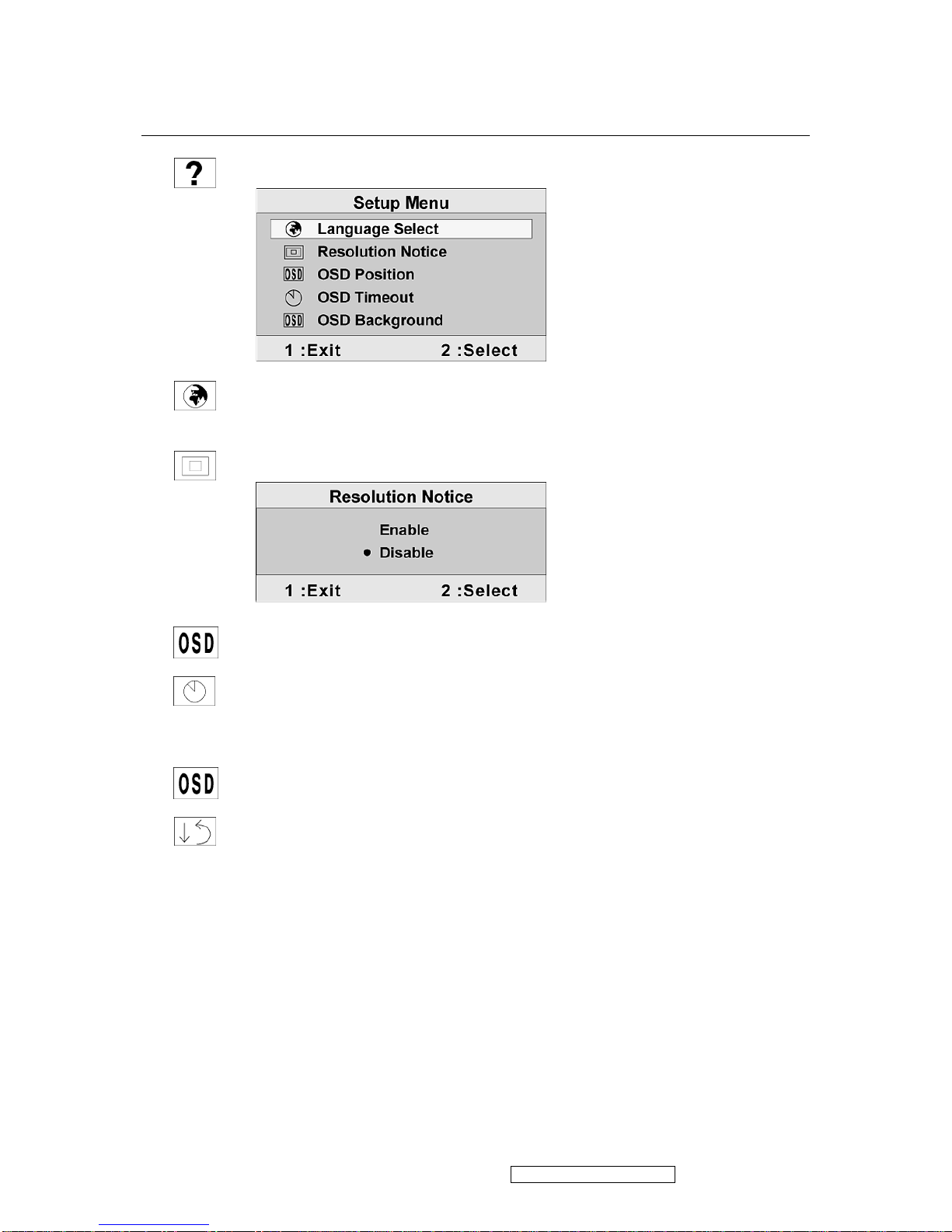

Setup Menu displays the menu shown below:
Language Select allows the user to choose the language used in the menus and
control screens.
Resolution Notice advises the optimal resolution to use.
OSD Position allows the user to move the OSD menus and control screens.
OSD Timeout sets the length of time the OSD screen is displayed. For example,
with a “15 second” setting, if a control is not pushed within 15 seconds, the
display screen disappears.
OSD Background allows the user to turn the OSD background On or Off.
Memory Recall returns the adjustments back to factory settings if the display is
operating in a factory Preset Timing Mode listed in the Specifications of this
manual.
ViewSonic Corporation Confidential - Do Not Copy VA702-1_VA702b-1
17
