ViewSonic VG2239m-LED User manual

VG2239m-LED / VG2239m-TAA
Widescreen with DisplayPort Input
22" (21.5" Viewable)
Ergonomic LED Monitor
The VG2239m series widescreen monitor is one
of two new members of ViewSonic’s new VG39
family. Its 22" (21.5" viewable) display with a native
1920x1080 resolution is big enough to replace dual-
monitor setups. What makes it even more appealing
is the LED backlight for up to 50%* energy savings.
Monitor is also fully ergonomic with 90º pivot, height
adjust, swivel and tilt. The slim bezel design coupled
with hidden stereo speakers make the VG2239m a
space saver. You can put it on your desk or mount
on your wall or on any VESA compliant monitor
stand. With ViewSonic’s strongest pixel performance
guarantee and 3-year limited warranty, you will have
peace of mind in your investment.
Planet-Friendly Mercury-Free LED Backlighting
The LED backlight further conserves up to 50%* more energy when
compared to conventional displays and allows a slimmer panel prole for a
most pleasing entertainment experience.
Full HD 1080p for Superlative Pixel Performance
The VG2239m features Full HD 1080p 1920x1080 resolution for
unbelievable pixel-by-pixel image performance. You’ll experience the most
amazing clarity and detail whether it be for working, gaming, or enjoying
the latest in multimedia entertainment. A 16:9 widescreen ratio minimizes
eye fatigue even after hours of viewing and is perfectly compatible with
multi-window viewing without toggling.
Full HD 1080pNormal
DisplayPort Connectivity
Achieve easy data transfer of high definition video and
audio with DisplayPort. For great connectivity at home ofce
or even gaming get the best refresh rate, highest resolution
and richer colors.

Specications
Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
*Energy savings may vary based on cost, actual usage and other factors. Specications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic
representative for complete details.Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2012 ViewSonic Corporation. All rights reserved. [16227-00B-06/12] VG2239m_LED
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
LCD PANEL Type 22" (21.5" Viewable) Wide Color TFT Active Matrix LED
Display Area 18.8" horizontal x 10.6" vertical; 21.5" diagonal
Optimum Resolution 1920x1080
Brightness 250 cd/m2(typ)
Contrast Ratio 1000:1 static (typ)
Dynamic Contrast Ratio 20,000,000:1 dynamic
Viewing Angles 170º horizontal, 160º vertical
Response Time 5ms (typ.)
Backlight White-light LED
Backlight Life 30,000 hours (min)
Aspect Ratio 16:9
Panel Surface Anti-glare, hard-coating (3H)
INPUT Analog RGB analog (75 ohms, 0.7 / 1.0 Vp-p)
Digital DVI-D (TMDS, 100 ohms), Display Port
Sync H/V separated (TTL)
Frequency Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz
AUDIO OUTPUT Speakers 2 watt (x2)
COMPATIBILITY PC VGA up to 1920x1080 @ 60Hz (preferred)
Mac®Power Mac (up to 1920x1080)
CONNECTOR Analog 15-pin mini D-sub (VGA)
Digital DVI-D (with HDCP), DisplayPort
Audio 3.5mm Audio In
3.5mm Headphones
Power Internal Power Board, 3-pin plug (CEE22)
POWER Voltage AC 100–240V (universal), +/-10% Wide Range
Consumption 22W (typ)
Optimize: 18W (typ)
Conserve: 15W (typ)
CONTROLS Basic Power, 1, down, up, 2
OSD Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB,
DVI, DisplayPort), Audio adjust (Volume Mute), Audio Input,
Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User
Color [R, G, B]), Information, Manual Image Adjust (H/V
Position, Horizontal Size, Fine Tune, Sharpness, Dynamic
Contrast, Response Time, Aspect Ratio, Eco-mode), Setup
Menu (Language, Resolution Notice, OSD Position, OSD
Timeout, OSD, Background, Auto Power Off), Memory Recall
ERGONOMICS Tilt -5-20º
Swivel 360º
Height Adjust 5.3" (0-135mm)
Pivot 0-90º
OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 10–90% (non-condensing)
DIMENSIONS Physical with stand 20.2 x 16.5 x 9.4 in. / 512.4 x 418 x 239.6 mm
(W x H x D) Physical without stand 20.2 x 12 x 2.2 in. / 512.4 x 304.4 x 56.4 mm
Packaging 22.9 x 19 x 7.4 in. / 581 x 483 x 187 mm
WEIGHT Net with stand 10.3 lb. / 4.7 kg
Net without stand 7.1 lb. / 3.2 kg
Gross 14.8 lb. / 6.7 kg
WALL MOUNT VESA®100 x 100 mm
REGULATIONS UL/cUL, FCC-B, ENERGY STAR®, EPEAT(Gold),
Mexico Energy, NOM, WEEE, RoHS, CE, CB
RECYCLE/DISPOSAL Please dispose of in accordance with local,
state or federal laws.
WARRANTY Three-year limited warranty on parts, labor and backlight
COUNTRY OF ORIGIN VG2239m-LED China
VG2239m-TAA Mexico
22" (21.5" Viewable)
Ergonomic LED Monitor
VG2239m LED Display, Power Cable, VGA Video Cable, DVI Cable, Audio Cable, USB Cable,
ViewSonic Wizard CD-ROM, Quick Start Guide
What's in the box?
VG2239m-LED / VG2239m-TAA
20,000,000:1 MEGA Dynamic Contrast Ratio
Dynamic contrast ratio detects the brightness of an image, and automatically
adjusts the backlight to maximize the monitor’s color range and contrast.
Dynamic contrast ratio technology enables the accurate reproduction of
images, producing vibrant and rich visual effects.

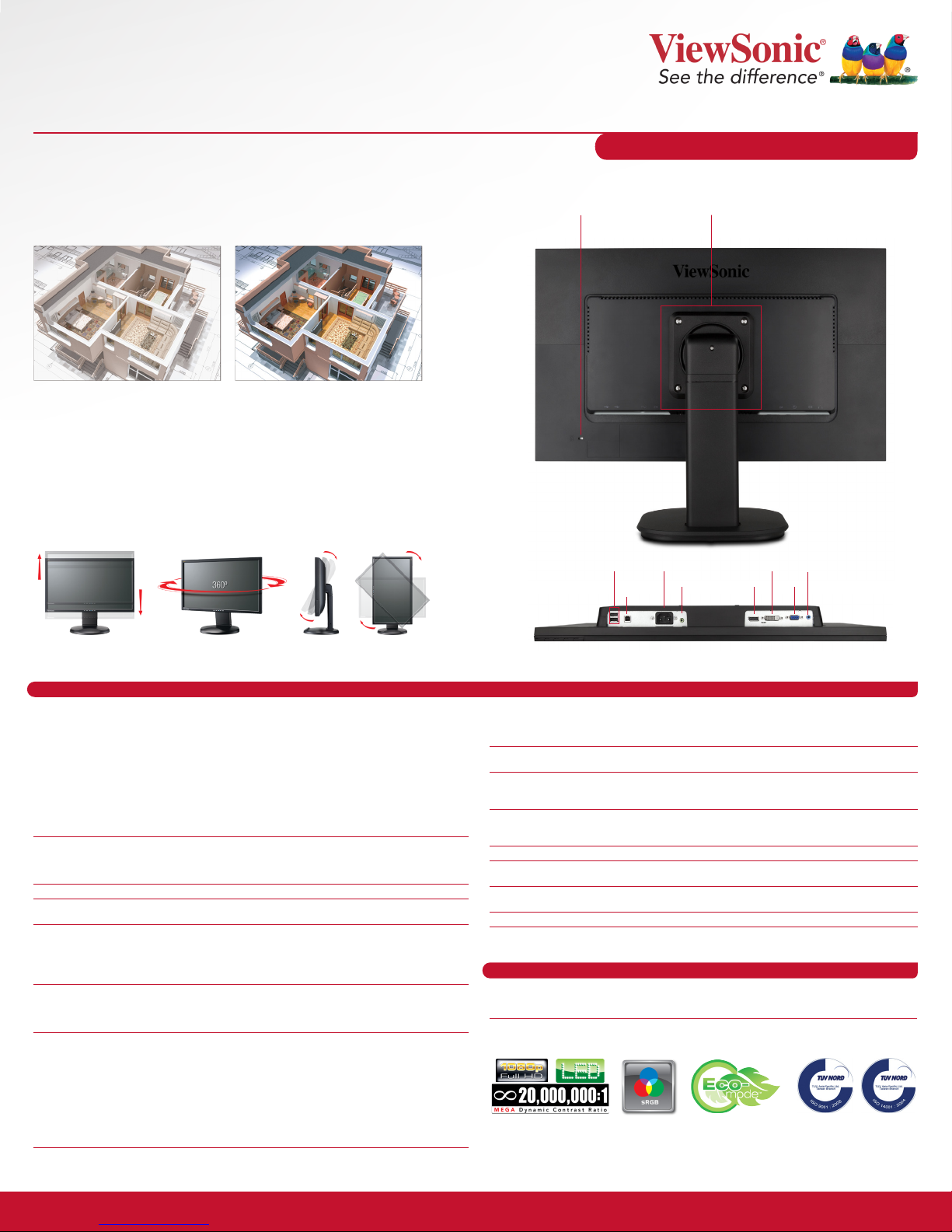

VESA Wall MountKensington Security Lock
AC In
Dynamic Contrast RatioNormal
Height Swivel Tilt Pivot
Efciency & Comfort
The VG2239m is one of the great examples of an ergonomically designed
tool. Based on your height, chair and desk conditions, you can adjust it up and
down for 5.3 inches, swivel it 360°, or tilt it 20° degrees, whatever makes you
more comfortable.
USB x2 DVI-D Headphone
USB
Upstream
Audio In VGADisplayPort
