Vigilate VIGGDS User manual

User Manual
VIGGDS Wireless Garage Door
Sensor

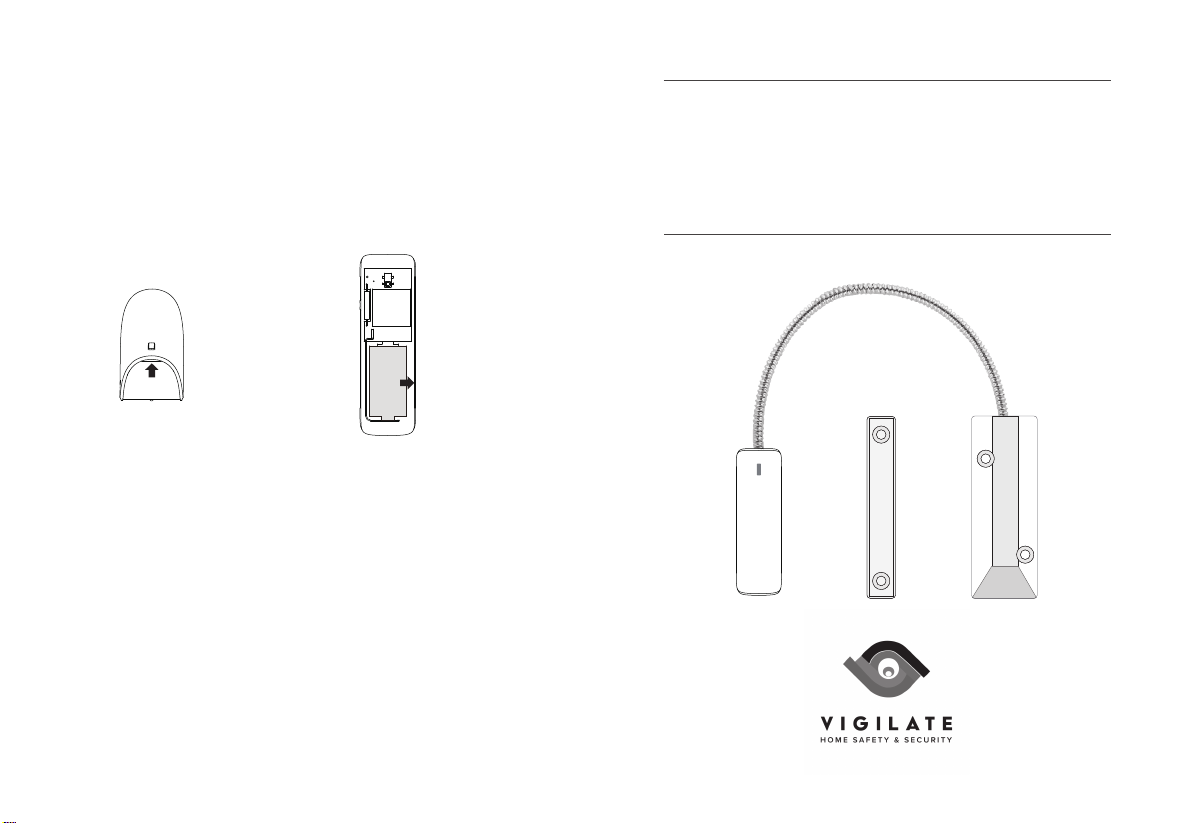

Battery replacement instructions
Insert the flat blade of a small screw-driver
into the pry-o slot of transmitter, pry up
to open the back cover.
①
CR123A 3V
Replace with 1x CR123A battery.
②
Entry Delay, Home Arm and Ready to Arm
This sensor supports Entry Delay, Home Arm and Ready to Arm features which can be adjusted in the App.
Entry Delay feature : When the sensor is triggered while the system is in Arm/Home Arm status, the system will wait
for the specified time before going into alarm.
Home Arm feature : When the sensor is triggered while the system is in Home Arm status, the alarm will go off.
Ready to Arm feature :
1. The system will check and show the status of doors and windows in real time in the App.
2. The App will pop up and remind you of all the unclosed doors and windows when you Arm/Home Arm the system.
3. The system will be forced to Arm/Home Arm if you are using remote controller, keypad or RFID to operate the
system, and you’ll also get a push notification of unclosed doors and windows.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
①This device may not cause harmful interference,
②This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.

Appearance
Features
The wireless garage door sensor is an accessory of the VIGILATE smart alarm system.
RF supervision, anti-tamper protection, energy saving, and low battery warning are supported.
When the door is opened under armed status, the sensor will trigger an alarm.
Parameters
• Working Voltage DC 3V
• Battery
• Working Current ≤100mA
• Standby Current ≤15µA
• Transmission Distance Up to 1000m line of sight
• Transmission Frequency 433.92MHz
• Working Temperature
• Humidity ≤90%rh (non-condensing)
• Weight 169g(battery not included) 185g(battery included)
• Dimension
1 × CR123A battery (3V)
-10℃~50℃
Reed Part: 105x37x9.5mm
Magnetic Part: 105x15x14.5mm
Transmitter: 84x26x22.5mm
Connecting Line: 290mm (LxWxH)(±0.1mm) Installation & Notice
1. Working principle
The transmitter sends trigger signal to the main panel when the magnet is moved away.
2. Pairing with main panel
①Scan the QR code on the sensor.
②The pairing result can be confirmed on APP.
• Pull out the battery insulative strip.
• Pairing to main panel by the App before installing.
•Installthe magneticparton garage door and reed
parton the ground with the screws provided.
Attachthe transmitter on the wall using double-
side tapel. In case of an uneven installation
surface, remove the back cover of the transmitter
and fix it with screws on the mounting surface,
then install the transmitter.
•Make sure the distance between reedpartand
magnetic part is less than 1cm.
Hint: How to trigger
①Remove the battery insulative strip.
②Move the magnet away from the reed part until the green LED indicator lights up
Metal Canula
Magnetic Part
Reed Part
Transmitter
Screw Mounting Hole
LED Indicator
and Test Button
Battery Insulative Strip
Tamper
Screw Mounting Hole
Screw Mounting Hole
LED Indication
LED flashes once: Garage door is opened and transmitter sends signal to the main panel.
The LED indicator will light up once in 15 seconds in case of low battery. Please replace the battery in time.
Push notification will be sent to your App.
Operating Instructions
