VigilLink VLSP-12CTH14 User manual

VLSP-12CTH14
1x2 HDMI 1.4 Splitter over CAT 70m 10.2Gbps
VER 1.0

Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety
before connecting, operating, or adjusting this product. Please keep this
manual for future reference.
A surge protection device is recommended.
This product contains sensitive electrical components that electrical spikes
may damage, surges, electric shocks, lightning strikes, etc. The use of surge
protection systems is highly recommended to protect and extend the life of
your equipment.
Table of Contents
1. Introduction.............................................................................. 1
2. Features. ................................................................................... 1
3. Package Contents. .............................................................
1
4. Specifications. ...................................................................
2
5. Operation Controls and Functions.......................................
3
5.1 Transmitter Panel. ............................................................... 3
5.2 Receiver Panel. .............................................................
4
5.3 IR Pin Definition .................................................................. 5
6. EDID Mode. ........................................................................
6
7. Application Example...........................................................
7

-1-
1. Introduction
This HDMI 1x2 Splitter can distribute 1 HDMI source signal to any 2 display
devices. Support video resolution up to 4K2K@30Hz 4:4:4. It is designed with
1 HDMI input, 1 HDMI loop output, and 2 CAT outputs. The HDMI signal
transmission distance can be extended up to 131ft / 40 meters at the
resolution of 4K30Hz, or 230ft / 70 meters at 1080P@60Hz via a single CAT6
cable. The product supports one-way IR control signal pass-through and
advanced EDID management.
2. Features
☆HDMI 1.4 and HDCP 1.4 compliant
☆Video resolution up to 4K2K@30Hz (4:4:4) 8-bit
☆Support audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD
Master Audio
☆Extend the signal transmission distance up to 40m/131ft at the resolution
of 4K30 or 70m/230ft at 1080P@60Hz via a single CAT6 cable
☆Support 1 HDMI input, 1 HDMI loop output, and 2 CAT outputs
☆Advanced EDID management
☆Support 12V one-way POC function (only from transmitter to receiver)
☆Compact design for easy and flexible installation
3. Package Contents
① 1 × HDMI 1×2 Splitter
② 2 × CAT Receiver
③ 1 × IR Blaster Cable (1.5 meters)
④ 2 × IR Receiver Cable (1.5 meters)
⑤ 2 × Mounting Ear
⑥ 1 × 12V/1A DC Locking Power Adapter
⑦ 4 × Machine Screw (KM3*4)
⑧ 1 × User Manual

-2-
4. Specifications
Technical
HDMI Compliance
HDMI 1.4
HDCP Compliance HDCP 1.4
Video Bandwidth
297MHz/10.2Gbps
Video Resolution
480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)
Color Depth
8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K30Hz)
Color Space
RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0
Audio Formats
LPCM 7.1CH, Dolby True HD, and DTS-HD Master
Audio
ESD Protection
Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connection
Transmitter
Input: 1 × HDMI IN [Type A, 19-pin female]
Outputs: 1 × HDMI OUT [Type A, 19-pinfemale]
2 x CAT OUT [RJ45]
Controls: 1 × IR OUT [3.5mm Stereo Mini-jack]
1 x EDID DIP switch [4-pin]
1 x UPDATE [Micro USB]
Receiver
Inputs: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x CAT IN [RJ45, 8-pin female]
Output: 1 x HDMI OUT [Type A, 19-pin female]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter: 175mm (W) × 82mm (D) × 18mm (H)
Receiver: 79.5mm (W) × 69mm (D) × 16.5mm (H)
Weight Transmitter: 366g; Receiver: 130g
Power Supply
12V/1A DC Locking Power
(US/EU standards, CE/FCC/RoHs certificated)
Power Consumption
5.4W
Operation Temp. 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)

-3-
1/
2 3 4 5
6
7 8 9 10 11
1
5. Operation Controls and Functions

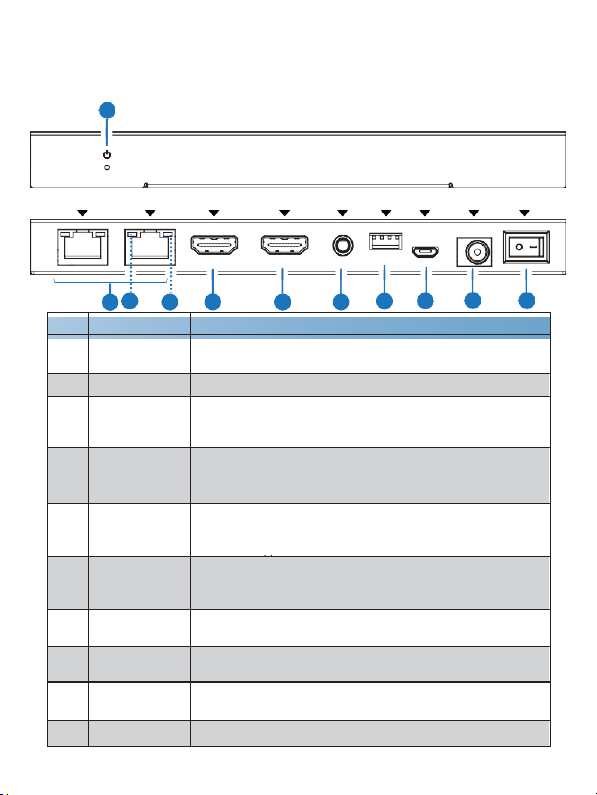

5.1 Transmitter Panel
CAT OUT2 CAT OUT1
HDMI OUT HDMI IN IR OUT EDID UPDATE DC 12V POWER
No.
Name
Function Description
1POWER LED The red power LED will be on when the Transmitter is
powered on.
2
CAT OUT (1~2)
Connect to the CAT port of the Receiver with a CAT6 cable.
3Power LED
(Green)
The transmitter supports a one-way POC function. When
it supplies power to the Receiver through a CAT cable,
the Power LED will be on.
4
Data Signal
Indicator
(Yellow)
▪Illuminating: HDMI signal with HDCP.
▪Flashing: HDMI signal without HDCP.
▪Dark: No HDMI signal.
5HDMI OUT The HDMI signal loop output port connects to the HDMI
display device, such as a TV or Monitor, with an HDMI
cable.
6HDMI IN
HDMI signal input port, connect to HDMI source
devices such as DVD or set-top box with an HDMI
cable.
7IR OUT IR signal output port. Connect to IR blaster cable; the IR
signal is from the “IR IN” port of the Receiver.
8
EDID DIP
Switch
Used to set EDID mode. Please refer to Section “6. EDID
Mode” for details.
9UPDATE Mini USB update port. Connect to PC for firmware
updating.
10
DC 12V
DC 12V Power input port.

-4-
11 POWER
Switch
Press the switch to power on/off the device (“-” for on,
“o” for off).

-5-
HDMI OUT
IR IN
CAT
1
2
4 3 5
5.2 Receiver Panel
No.
Name
Function Description
1HDMI OUT
HDMI signal output port. Connect to an HDMI display
A device such as HDTV.
2IR IN
Connect to the IR receiver cable; the IR signal will emit to
the IR OUT port of the transmitter.
3CAT
CAT input port. Connect to the CAT output port of the
transmitter with a CAT6 cable.
4Power LED
(Green)
When the Receiver is powered on, the LED will be on.
The device supports the POC function, so the
Receiver is powered by the Transmitter through a
CAT cable.
5
Data Signal
Indicator
(Yellow)
▪Illuminating: HDMI signal with HDCP.
▪Flashing: HDMI signal without HDCP.
▪Dark: No HDMI signal.

-6-

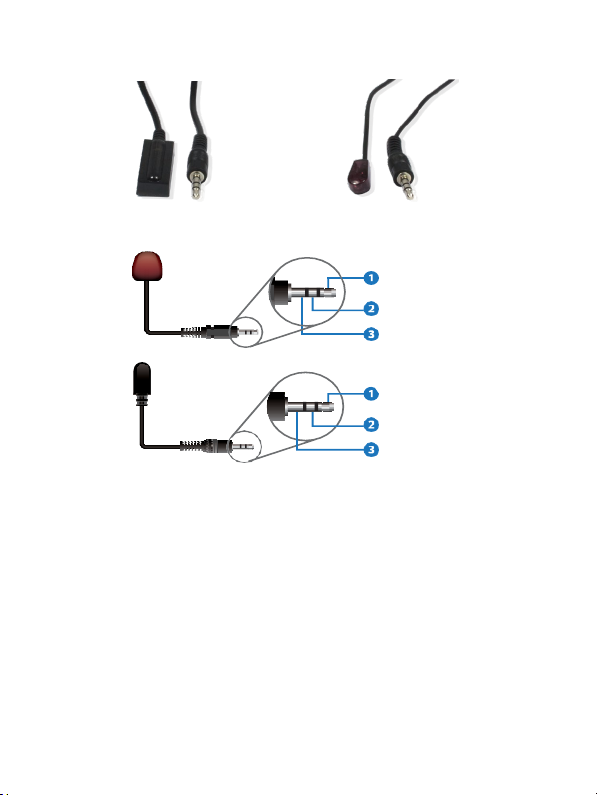

5.3 IR Pin Definition
IR Receiver IR Blaster
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding
Note:
When the angle between the IR receiver and the remote control is ± 45 °, the transmission
distance is 0-5 meters;
When the angle between the IR receiver and the remote control is ± 90 °, the transmission
distance is 0-8 meters.
IR Blaster
IR Receiver

-7-
6. EDID Mode
The defined EDID setting list of the product is shown below:
EDID Mode
EDID Description
0000
1080P, 2CH AUDIO
0001
1080P, DOLBY/DTS5.1
0010
1080P, HD AUDIO
0011
1080i, 2CH AUDIO
0100
1080i, DOLBY/DTS5.1
0101
1080i, HD AUDIO
0110
3D,1080P, 2CH AUDIO
0111
3D,1080P, DOLBY/DTS5.1
1000
3D,1080P, HD AUDIO
1001
4K30, 2CH AUDIO
1010
4K30, DOLBY/DTS5.1
1011
4K30, HD AUDIO
1100
Copy Loop Out
1101
720p, 2CH AUDIO
1110
720p, DOLBY/DTS5.1
1111
720p, HD AUDIO

-8-

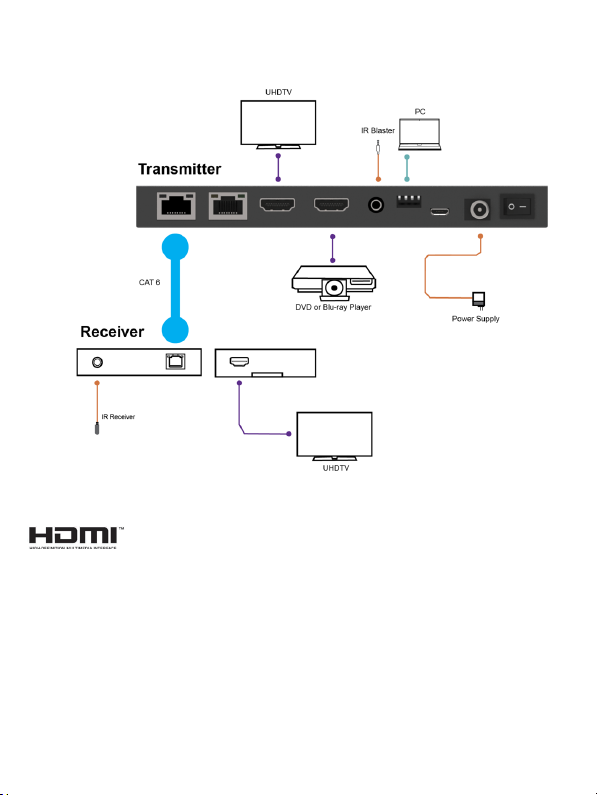

7. Application Example
HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries.
