VIGO INDUSTRIES INSTALLATION GUIDE FOR
SHOWER DOOR (MODEL VG06041)
SAFETY PRECAUTIONS
This Installation Guide uses the following symbols to indicate important information.
Always observe the instructions indicated by these symbols.
WARNING
Instructions that, if ignored, could result in death or serious personal injury caused by
incorrect handling or installation of the product. These instructions must be observed for
safe installation.
CAUTION
Instructions that, if ignored, could result in personal injury or material damage caused by
improper handling or installation of the product. These instructions must be observed for
safe installation.
IMPORTANT
Maintenance and other important non-personal injury and non-material damage instructions
or statements that should be observed.

MODEL VG06041 2
VIGO INDUSTRIES INSTALLATION GUIDE FOR
SHOWER DOOR (MODEL VG06041)
PACKING LIST:
1. Wall mount bracket (2pc)
2. Fixed panel holders (2pc)
3. Rollers (4pc)
4. Fixed panel (1pc)
5. Door (1pc)
6. Handle assembly (1pc)
7. Fixed panel bottom clip
(1pc)
8. Door bottom guide (1pc)
9. Door threshold (1pc)
10.Door stopper (2pc)
11.Structural rail (1pc)
12.Door and fixed panel seal
strip (2pc)
13.Door seal strip (4pc)
14.Threshold extension clip
(1pc)
15.Phillips screw 2” (2pc)
16.Phillips screw 3/4” (4pc)
17.Plastic anchors (6pc)

MODEL VG06041 3

MODEL VG06041 4
WARNING
WE STRONGLY RECOMMEND THAT A LICENSED PLUMBER INSTALL THIS STANDING SHOWER
CABIN AND INCLUDE THE ASSISTANCE OF A SECOND PERSON TO INSTALL THE DOOR UNIT.
INSTALLATION OF THE SHOWER DOORS BY AN INEXPERIENCED PERSON MAY RESULT IN
GLASS BREAKAGE AND, CONSEQUENTLY, CAUSE PERSONAL INJURY OR DEATH.
BEFORE STARTING
Compare items on your invoice with what you have received. Carefully review the Packing List on page 2.
If any item is missing, please call Vigo Industries at 1-866-591-7792.
REQUIRED TOOLS
oSquare and/or Phillips #1 and #2 screwdriver
oFlat head screwdriver
oElectric drill plus a 1/8”, 3/16”, or 7/32” drill bit (depending on wall)
oLevel
oMeasuring Tape
oPencil (non-permanent; HB)
oClear silicone caulking
oUtility knife
WARNING
•Handle fragile items with care to prevent personal injury or material damage.
•Glass on panels and doors is tempered glass and must never be cut to prevent personal injury.
IMPORTANT
•Fiberglass or acrylic construction might not be sufficiently strong enough to support the shower door
enclosure. You should use the wood framing from behind the face edge of the stall to provide a secure
mounting to the door. Apply a bead of silicone between the walls and base of the stall.
•For optimum performance, you should install the shower door perfectly level on a level surface.

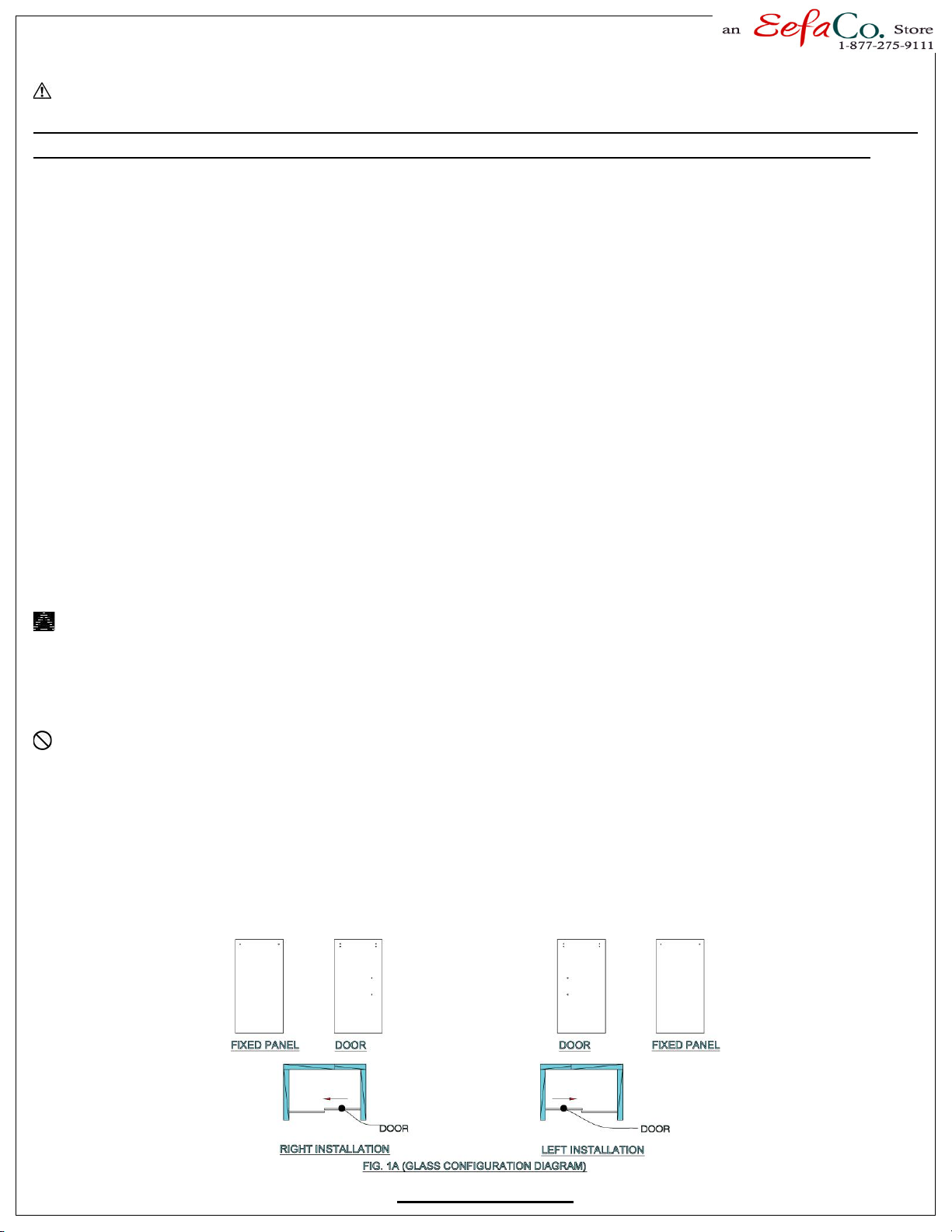

MODEL VG06041 HAS A REVERSIBLE DOOR AND CAN THEREFORE BE INSTALLED TO EITHER
THE RIGHT OR LEFT SIDE (SEE CONFIGURATION DIAGRAM BELOW)

MODEL VG06041 5
PREPARATION STEPS TO FOLLOW BEFORE INSTALLATION
1. Remove the plastic layer from the base border (if needed). Do NOT remove the plastic layer
off the plastic platform of the base.
2. Properly apply silicone to the wall and base joints.
IMPORTANT
•Verify that the overall size of the shower door opening is appropriate for the shower enclosure.
If necessary, cut the structural rail to match the length of the opening (see page 3 diagram).
•Due to individual site variations, exact guidelines for every situation cannot be supplied. The
recommended framing and dimensional requirements are shown for a typical application and
may vary depending on the site requirements.
•To prevent damage to the finish, you should protect the
shower cabin bottom with a cardboard protector before
beginning the installation.

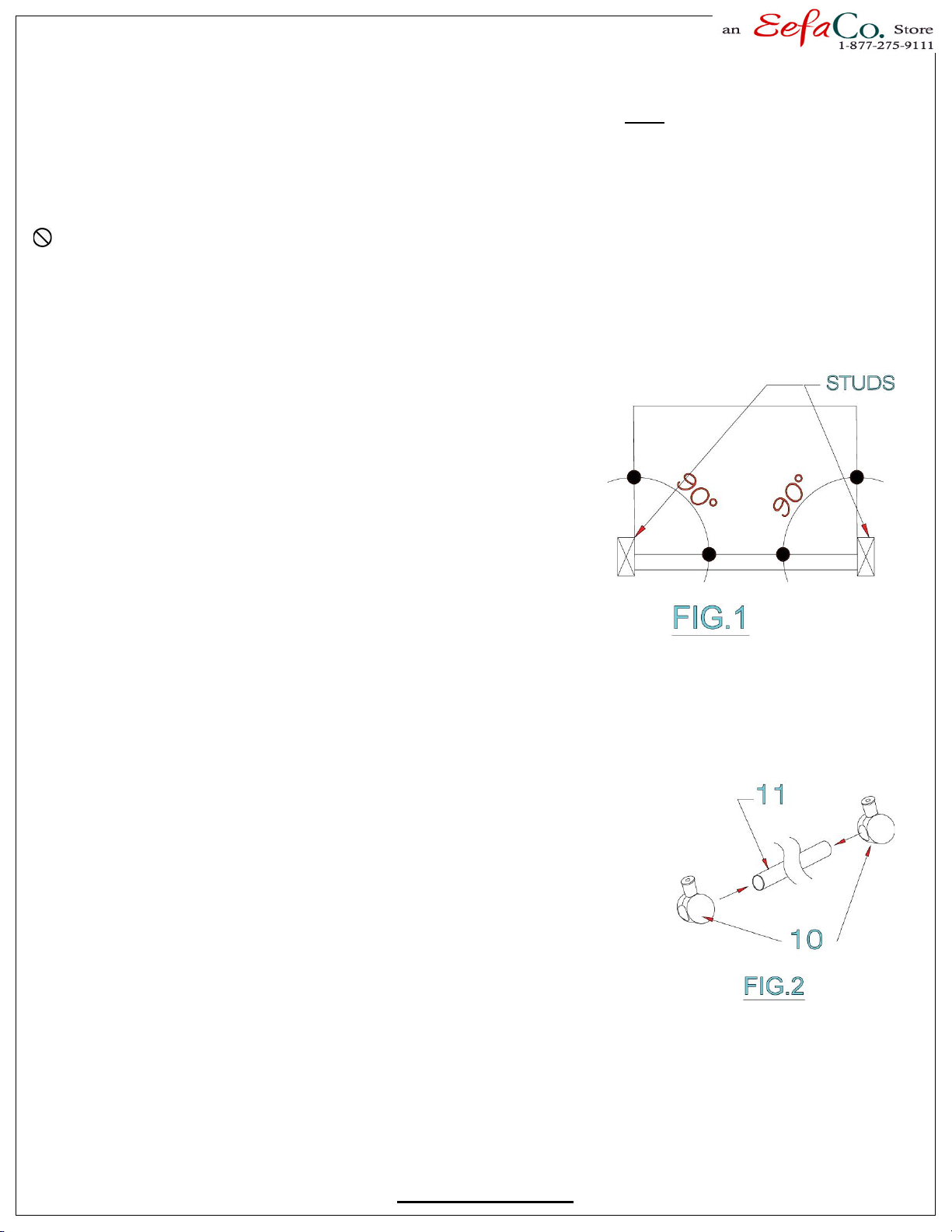

•Ensure that there is sufficient structural support behind the
shower wall to hold the weight of the shower door. If there is
not sufficient enough support, then reinforce the shower
walls with wooden studs prior to shower door installation.
[SEE FIG.1]
INSTALLATION STEPS
A. INSTALLING THE STRUCTURAL B AR
1. Slide stoppers (#10) onto the structural rail (#11). [SEE FIG.2]
2. Place the wall mount brackets (#1) on both ends of the
structural rail. Place rail into the cabin opening (FIG.4). If the
rail is too long, then cut it with the hacksaw to fit in the
opening. Make sure to cut the rail on the shower door side
only.
3. Screw the structural rail (#11) to the fixed panel (#4) with the
fixed panel holders (#2). [SEE FIG.3]
4. Place seal strip (#12) to the fixed panel from the side of the
wall.
5. Position the fixed panel and structural rail assembly in the shower door opening. [SEE
FIG.4]

MODEL VG06041 6
6. Position the fixed panel bottom clip (#7) and the door bottom guide (#8) approximately 4
inches from the wall from the bottom of the fixed panel. The edge of the fixed panel
should be even with the middle of the door bottom guide.
7. Position the fixed panel and the structural rail assembly correctly using the level. Mark
the circumference location of the wall mount brackets on the wall. Mark the fixed panel
bottom clip location and bottom door guide on the floor.
B. INSTALLING THE FIXED P ANEL
1. Remove the fixed panel (#4) and structural rail (#11) assembly from the shower door
opening. Find the center of the marked circumference on the wall.
2. Mark holes on the wall for the mounting screws.
Drill holes and place plastic anchors (#17) inside
them.
3. Remove the wall mount bracket assembly (#1)
from the structural rail assembly. Unscrew the
plate from the bracket assembly body. [SEE
FIG.5]

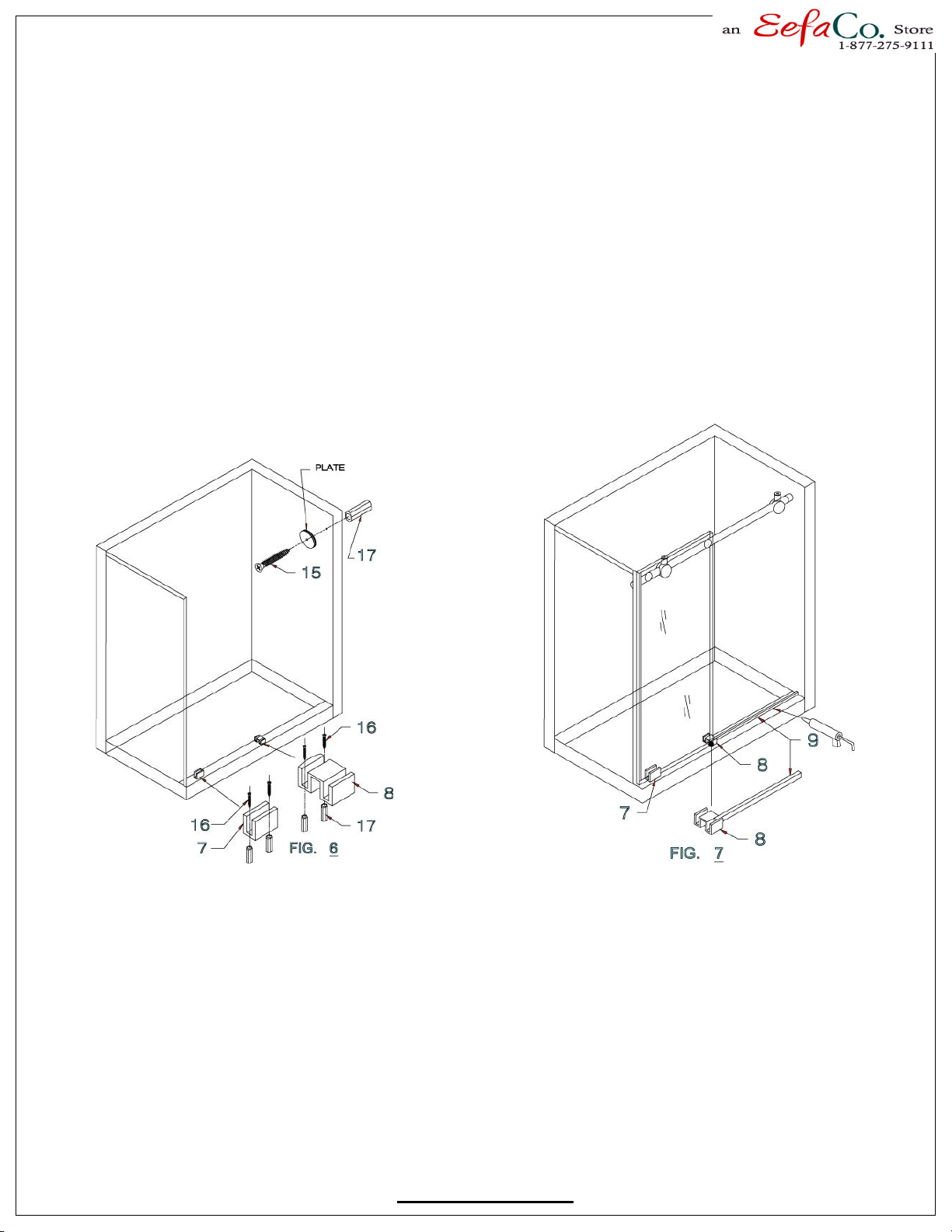

4. Place plates to the wall opposite to the plastic
anchors. Screw plates in with 2” screws (#15).
[SEE FIG.6]

MODEL VG06041 7
5. Place the fixed panel bottom clip (#7) and the door bottom guide (#8) to the marked
locations on the floor. Mark holes on the floor for the mounting screws. Drill the holes
and place the plastic anchors inside them.
6. Screw in the fixed panel bottom clip and the door bottom guide to the floor with 3/4”
screws (#16). Place the bracket body back to the rail.
7. Place bracket body back on the rail.
8. Place the fixed panel with the structural rail assembly in its proper position and screw
the bracket body to the plates.
9. Tighten the hex screws on the brackets with the hex key (supplied).

MODEL VG06041 8
C. INSTALLING THE THRESHOLD
IMPORTANT
IN CASE THE THRESHOLD IS CUT TOO SHORT, USE THE THRESHOLD EXTENSION CLIP
(#14) TO EXTNED THE THRESHOLD ACCORDINGLY.
1. Place the threshold (#9) to the bottom door guide (#8). If the threshold is too long, then
cut it with the hacksaw until it fits in the opening. [SEE FIG.7]
2. Line up the threshold with the outside edge of the shower base. Mark its location on the
shower base.
3. Remove the threshold. Apply silicone to the underside of the threshold. Place the
threshold back to its shower base location. Align the threshold and press firmly down.
4. Apply silicone to the threshold around the inside and outside of the shower panel.
Remove any excess silicone from the threshold.
D. INSTALLING THE DOOR

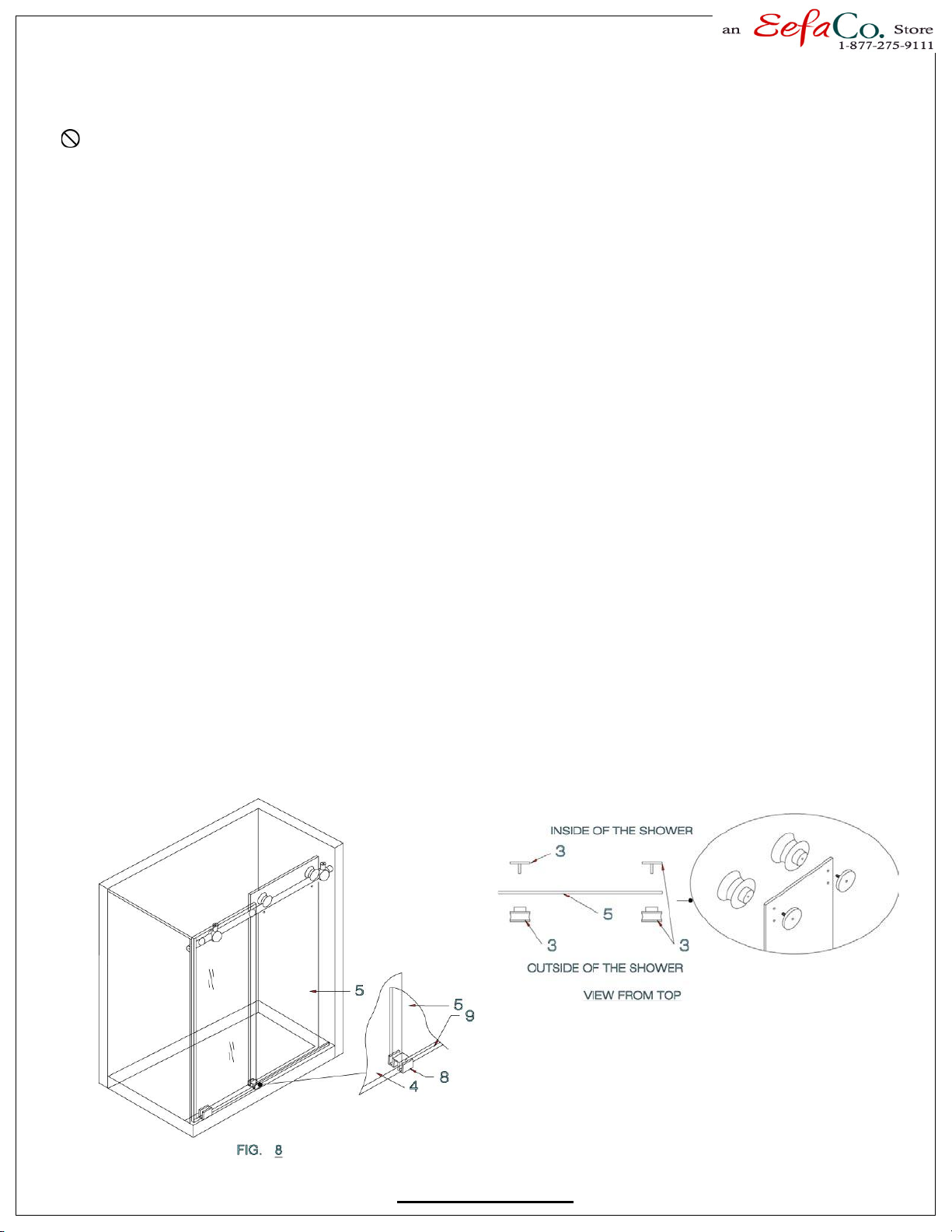

1. Screw the top rollers (#3) to the door (#5). [SEE FIG.8]
2. Place the structural rail (#11) assembly onto the door.
3. Verify that the bottom of the door aligns with the notch in the bottom door guide (#8).
4. Screw the bottom rollers (#3) to the door.
5. Adjust the stoppers’ positions on the structural rail and tighten the hex screws.

MODEL VG06041 9
E. INSTALLING THE HANDLE
1. Unscrew the handle holders from the handle assembly (#6).
2. Place the handle to the position on the door. Place plastic washers
(supplied) on each side of the door. [SEE FIG.9]
3. Tighten the handle nuts from inside the shower.
F. INSTALLING THE WATER SEAL STRIP
Place the seal strip (#12, #13) to the door and to the fixed panel,
respectively. [SEE FIG.10]

MODEL VG06041 10
G. APPLYING THE SILICONE
1. Apply clear silicone caulking along the wall
and floor of the shower enclosure interior.
[SEE FIG.11]
2. Apply clear silicone caulking along the fixed
panel and threshold of the shower enclosure
interior.
IMPORTANT
•WAIT 24 HOURS BEFORE USING SHOWER.
•DO NOT ALLOW WATER TO DIRECTLY HIT
DOOR SEAL STRIP.
CLEANING INSTRUCTIONS FOR THE SHOWER CABIN AND DOOR PANEL
A. Use mild liquid household cleaners to keep metal surface bright and clean. Rinse well and dry
with a clean cloth.
B. Remove dust with a soft, damp cloth.
C. Use rubbing alcohol to clean and remove grease, oil, paint, and ink.
D. Accidental scratches or stains will rarely show. If they do show, they can be easily removed
with a liquid automobile polish.
IMPORTANT
•Do NOT use abrasive cleaners, scrapers, metal brushes, or any items/products that would
scratch and/or dull surface.
•Do NOT allow surface to come into contact with acetone (nail polish remover), dry cleaning
solution, lacquer thinner, gasoline, or any other similar product.
