Features

The Viking SA-X12 expander / adapter is an

economical way to expand an existing paging

system, while adding remote control to the new

speakers. The SA-X12 can be connected to any

existing paging audio source including 600 ohm

line level, 4, 8, or 16 ohm speaker level, or even

25 volt and 70 volt paging systems. It can also be

connected directly to the 2-wire protocol (40VDC

+ Audio) of another SA-X12 or the Viking SA-25

paging controller to add even more self amplified

speakers.

The SA-X12 takes audio from any paging or

background music source, and combines it with 40

volts DC to run Viking self amplified speakers. The

added Viking SA Series speakers will have the

features of the existing paging system, plus have

the added feature of being remote controllable.

The SA-X12 can directly drive up to 12 Viking self

amplified speakers which include the model SA-1S

self amplifier ceiling speaker, and the SA-1H self

amplified paging horn. Viking self amplified

speakers have these advantages: 1) Audio and

power are on the same pair (less copper). 2)

• Powers up to 12 Viking self amplified

speakers

• Viking SA Series speakers are remote

controllable

• Expand existing paging systems

• Adapts to any paging system

• 600 ohm line level paging systems

• 4, 8, or 16 ohm paging systems

• 25 volt and 70 volt paging systems

• Expand a Viking SA-25 paging system

Power: 120V AC/13.8V AC 1.25A, UL listed adapter pro-

vided

Dimensions: 135mm x 90mm x 45mm (5.25” x 3.5” x

1.73”)

Shipping Weight: 0.9kg (2 lbs)

Environmental: 0°C to 32°C (32°F to 90°F) with 5% to

95% noncondensing humidity

Paging Output: Viking 2-wire protocols (40VDC + Audio)

Speakers: Up to 12 Viking self amplified speakers

Maximum Wire Run Length: See chart on page 3

Connections: (1) 2.1mm barrel jack, (6) cage clamp

screw terminals

SA-X12

Self Amplified Paging

Expander/Adapter

November 7, 2017

Applications

Specifications

www.VikingElectronics.com

Information: 715-386-8861

VIKING

Power is 40VDC for lower current and smaller

gauge wire (less copper then older 4-wire 24 volt

systems). 3) Non-Polarity sensitive for easier

wiring. 4) Each speaker is infrared remote

controllable so there is no need to install volume

controls on the walls, or climb up ladders to adjust

the volume.

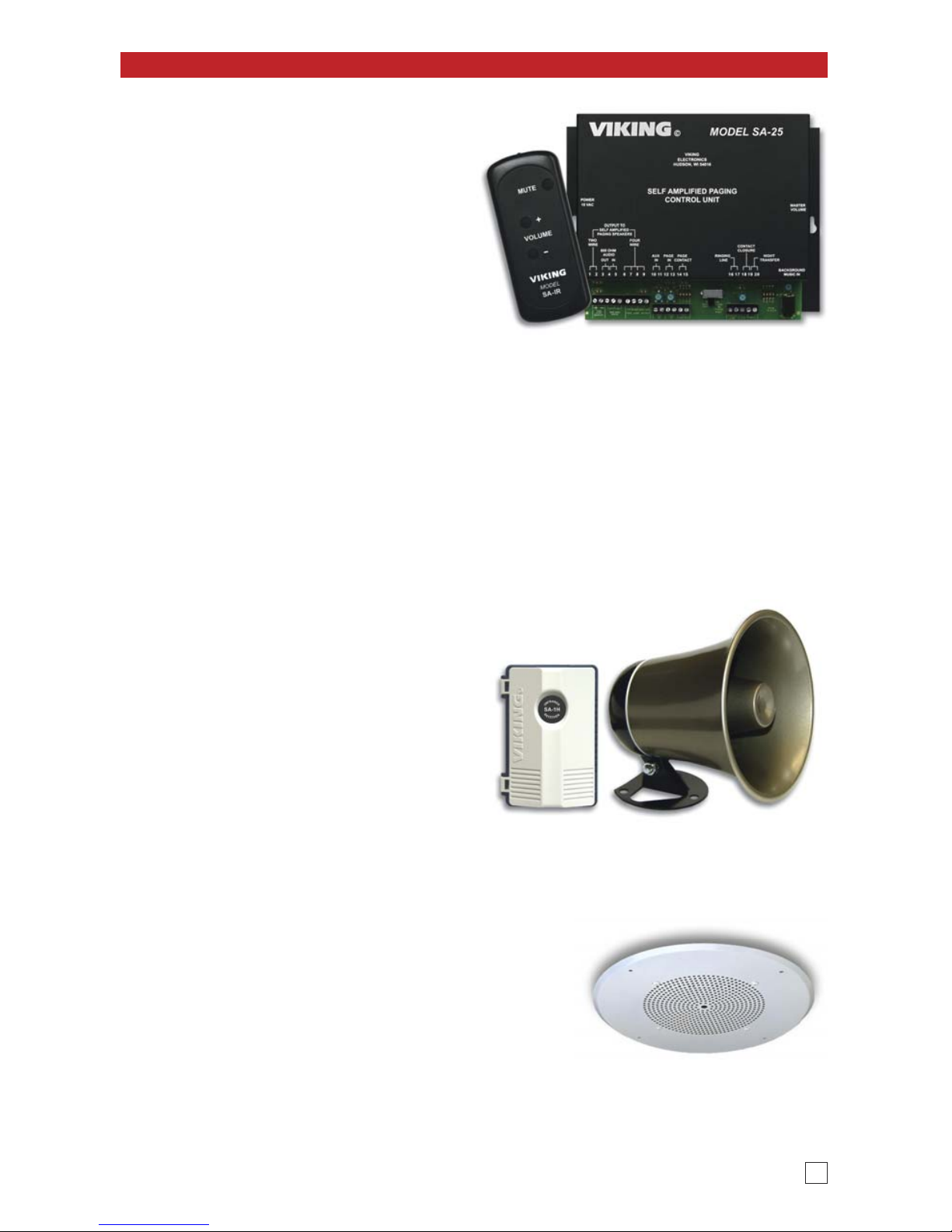

The SA-IR Infrared Remote and SA Series

speakers are available separately.

Recommended Minimum AWG (American Wire Gauge) Size

for Viking SA Series Self-Amplified Speakers on a Two-Wire Run

Number of Speakers on the Two-Wire Run

Total Distance of Two-Wire Run in Feet

100

200

250

300

400

500

600

800

1000

1200

1600

2000

2500

#24

#22

#24

#18

#20

#22

#24

#18

#20

#24

#16

#18

#22

#24

#16

#20

#22

#24

#16

#18

#20

#24

#16

#18

#22

#24

#16

#20

#22

#24

#16

#18

#20

#24

#16

#18

#24

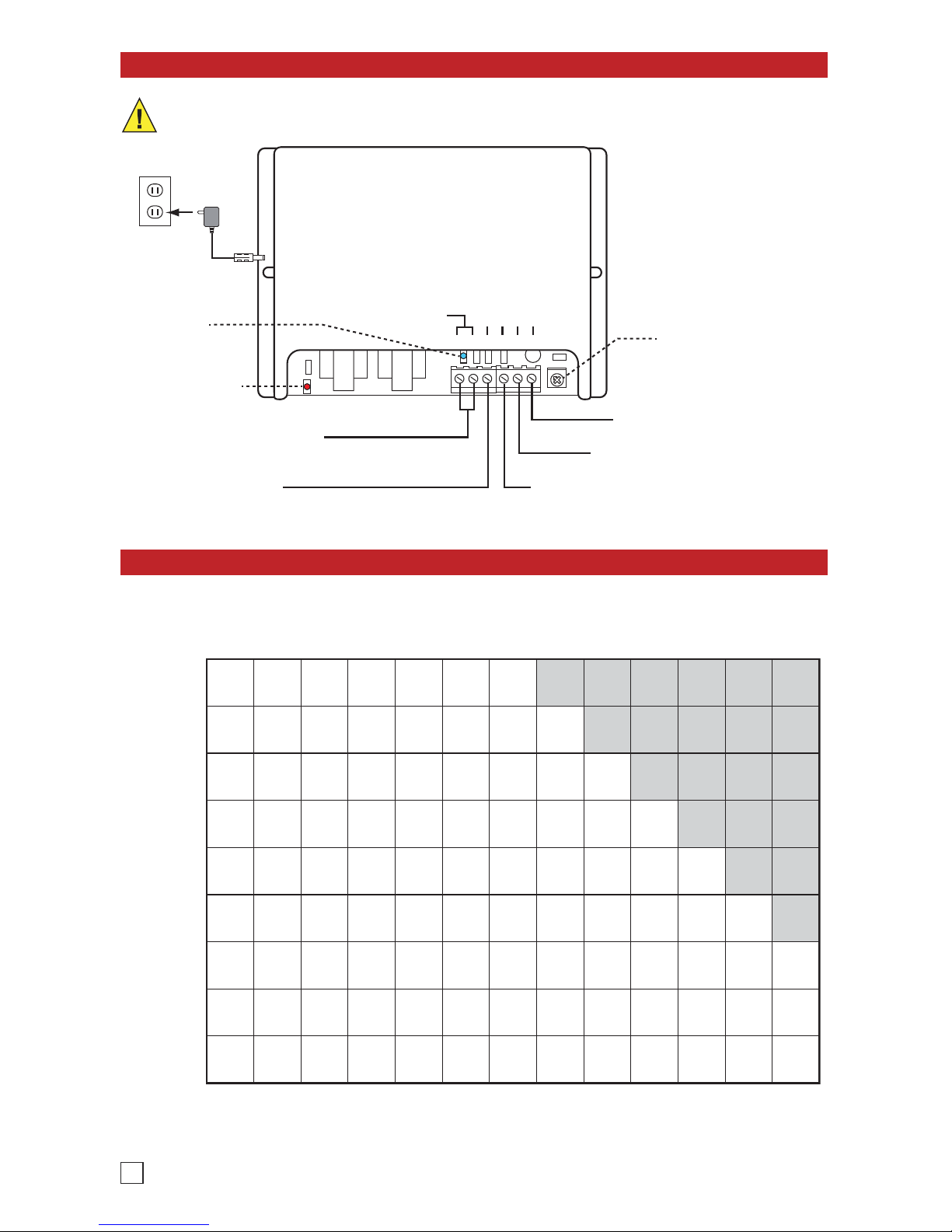

Features Overview

VIKING©MODEL SA-X12

VIKING

ELECTRONICS

HUDSON, WI 54016

SELF AMPLIFIED PAGING

EXPANDER / ADAPTER

OUTPUT TO

SELF AMPLIFIED

PAGING SPEAKERS

25V / 70V

4 / 8 / 16 OHM

600 OHM

GAIN

COMMON

POWER

LED

POWER 13.8 VAC

231546

Output to Viking 40V 2-wire

self-amplified speakers

25V / 70V Audio Input

600 Ohm Line Level Audio Input

Common for all Audio Inputs

Red Power LED

4 / 8 / 16 Ohm Speaker Level Audio Input

Blue Fault

Protection LED Gain Control: To limit

the maximum volume

setting of the speakers

13.8V AC

Adapter

(included)

120V AC

IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC

outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.

Wire Gauge Chart

VIKING©MODEL SA-X12

VIKING

ELECTRONICS

HUDSON, WI 54016

SELF AMPLIFIED PAGING

EXPANDER / ADAPTER

OUTPUT TO

SELF AMPLIFIED

PAGING SPEAKERS

25V / 70V

4 / 8 / 16 OHM

600 OHM

GAIN

COMMON

POWER

LED

POWER 13.8 VAC

231546

600 ft 250 ft

Example: Eight (8) SA-1S speakers on a 600 ft long

wire run. Use at minimum #18 AWG copper wire pair

as recommended in the Wire Gauge Chart on page 2.

VIKING®

Gain

Control

Example: Three (3) SA-1H horns on a

250 ft long wire run. Use at minimum #24

AWG copper wire pair as recommended in

the Wire Gauge Chart on page 2.

Installation

A. Wiring Viking SA Series Two-Wire Self-Amplified Speakers

Step 1 Determine the wire run length and number of self-amplified speakers for each run

Step 2 Use the Wire Gauge Chart on page 2 to determine the minimum recommended wire gauge to use.

Step 3 Wire each run to pins 1 and 2.

Step 4 Adjust the volume of each speaker with the Viking SA-IR Infrared remote Control.

Step 5 Use the gain control to limit the maximum speaker volume when the infrared remote has them turned

up all the way.

B. Wiring Input Audio

1. 25V / 70V [Paging System

The SA-X12 can be connected to any existing paging audio source including 600 ohm line level, 4, 8, or 16 ohm

speaker level, or even 25V and 70V paging systems. It can also be connected directly to the 2-wire protocol

(40VDC + audio) of another SA-X12 or the Viking SA-25 paging controller. The added Viking SA Series speakers

will have the features of the existing paging system, plus have the added feature of being remote controllable.

VIKING©MODEL SA-X12

VIKING

ELECTRONICS

HUDSON, WI 54016

SELF AMPLIFIED PAGING

EXPANDER / ADAPTER

OUTPUT TO

SELF AMPLIFIED

PAGING SPEAKERS

25V / 70V

4 / 8 / 16 OHM

600 OHM

GAIN

COMMON

POWER

LED

POWER 13.8 VAC

231546

Gain

Control

70V Speakers

(not included)

25V or 70V

Paging Amplifier

(not included)

25V / 70V

Common

LED5

LED3

LED4

LED2

CLED

123

TPG

VIKING©

VIKING

ELECTRONICS

HUDSON, WI 54016

30 WATT TELECOM

PAGING AMPLIFIER

PWR 15 VAC

MODEL PA-30

MASTER

VOLUME

MIN MAX

SPKRS

600 OHM

OUTPUT

AUX IN

PAGE IN

PAGE

CONTACT

LINE IN

CONTACT

CLOSURE

NIGHT

TRANSFER

BACKGROUND

MUSIC IN

70V OUT

LOUD RINGING

1234567 8 9 1011121314151617

Step 1 Connect the output of any 25V or 70V paging amplifier to screw terminals 3 & 6 of the SA-X12.

Step 2 Add up to 12 Viking 2-wire self amplified remote controllable speakers as shown above.

Step 3 Use the GAIN CONTROL to limit the maximum speaker volume when the infrared remote has

them turned up. 3

VIKING©MODEL SA-X12

VIKING

ELECTRONICS

HUDSON, WI 54016

SELF AMPLIFIED PAGING

EXPANDER / ADAPTER

OUTPUT TO

SELF AMPLIFIED

PAGING SPEAKERS

25V / 70V

4 / 8 / 16 OHM

600 OHM

GAIN

COMMON

POWER

LED

POWER 13.8 VAC

231546

VIKING

MODEL SA-25

VIKING

ELECTRONICS

HUDSON, WI 54016

SELF AMPLIFIED PAGING

CONTROL UNIT

POWER

15 VAC

1 2 3 4 5 18

19 20

OUTPUT TO

SELF AMPLIFIED

PAGING SPEAKERS

16 17

6 7 8 9

600 OHM

AUDIO

INOUT

AUX

PAG E

CONTACT

CLOSURE

TWO

WIRE

FOUR

WIRE

NIGHT

TRANSFER

MASTER

VOLUME

10 11 12 13 14 15

RINGING

LINE

BACKGROUND

MUSIC IN

Gain

Control

Model SA-25

(not included)

600 Ohm

Common

3. 600 ohm Line Level Audio

Step 1 Connect the 600 Ohm line level of any pre-amplifier or paging system to screw terminals 5 & 6 of

the SAX-12.

Step 2 Add up to 12 Viking 2-wire self amplified remote controllable speakers as shown on page 3.

Step 3 Use the GAIN CONTROL to limit the maximum speaker volume when the infrared remote has

them turned on.

VIKING©MODEL SA-X12

VIKING

ELECTRONICS

HUDSON, WI 54016

SELF AMPLIFIED PAGING

EXPANDER / ADAPTER

OUTPUT TO

SELF AMPLIFIED

PAGING SPEAKERS

25V / 70V

4 / 8 / 16 OHM

600 OHM

GAIN

COMMON

POWER

LED

POWER 13.8 VAC

231546

Gain

Control

4 / 8 / 16 Ohm

Speakers

(not included)

Paging

Amplifier

(not included)

4 / 8 / 16 Ohm

Common

LED5

LED3

LED4

LED2

CLED

123

TPG

VIKING©

VIKING

ELECTRONICS

HUDSON, WI 54016

30 WATT TELECOM

PAGING AMPLIFIER

PWR 15 VAC

MODEL PA-30

MASTER

VOLUME

MIN MAX

SPKRS

600 OHM

OUTPUT

AUX IN

PAGE IN

PAGE

CONTACT

LINE IN

CONTACT

CLOSURE

NIGHT

TRANSFER

BACKGROUND

MUSIC IN

70V OUT

LOUD RINGING

1234567 8 9 1011121314151617

2. 4 / 8 / 16 ohm Speaker Volume

Step 1 Connect the output of any amplifier directly driving 4, 8 or 16 Ohm speakers to screw terminals 4

& 6 of the SA-X12.

Step 2 Add up to 12 Viking 2-wire self amplified remote controllable speakers as shown on page 3.

Step 3 Use the GAIN CONTROL to limit the maximum speaker volume when the infrared remote has

them turned on.

VIKING©MODEL SA-X12

VIKING

ELECTRONICS

HUDSON, WI 54016

SELF AMPLIFIED PAGING

EXPANDER / ADAPTER

OUTPUT TO

SELF AMPLIFIED

PAGING SPEAKERS

25V / 70V

4 / 8 / 16 OHM

600 OHM

GAIN

COMMON

POWER

LED

POWER 13.8 VAC

231546

Gain

Control

Example: Bogen or Valcom speakers (not included) Red & Green

(Tip and Ring)

Yellow & Black

(24V power)

4 Wire Self-Amplified Paging System (not included)

600 Ohm

Common

4. Valcom or Bogen 4-Wire Speakers

5. Expand a Viking 2-Wire Speaker Run

VIKING©MODEL SA-X12

VIKING

ELECTRONICS

HUDSON, WI 54016

SELF AMPLIFIED PAGING

EXPANDER / ADAPTER

OUTPUT TO

SELF AMPLIFIED

PAGING SPEAKERS

25V / 70V

4 / 8 / 16 OHM

600 OHM

GAIN

COMMON

POWER

LED

POWER 13.8 VAC

231546

VIKING

MODEL SA-25

VIKING

ELECTRONICS

HUDSON, WI 54016

SELF AMPLIFIED PAGING

CONTROL UNIT

POWER

15 VAC

1 2 3 4 5 18

19 20

OUTPUT TO

SELF AMPLIFIED

PAGING SPEAKERS

16 17

6 7 8 9

600 OHM

AUDIO

INOUT

AUX

PAG E

CONTACT

CLOSURE

TWO

WIRE

FOUR

WIRE

NIGHT

TRANSFER

MASTER

VOLUME

10 11 12 13 14 15

RINGING

LINE

BACKGROUND

MUSIC IN

Up to 25

self-amplified

speakers

Up to 12

self-amplified

speakers

Model SA-25

(not included)

600 Ohm

Common

Gain

Control

Step 1 Connect the audio output pair anywhere along a 4 wire self-amplified paging system speaker run

to screw terminals 5 & 6 of the SAX-12.

Step 2 Add up to 12 Viking 2-wire self amplified remote controllable speakers as shown on page 3.

Step 3 Use the GAIN CONTROL to limit the maximum speaker volume when the infrared remote has

them turned on.

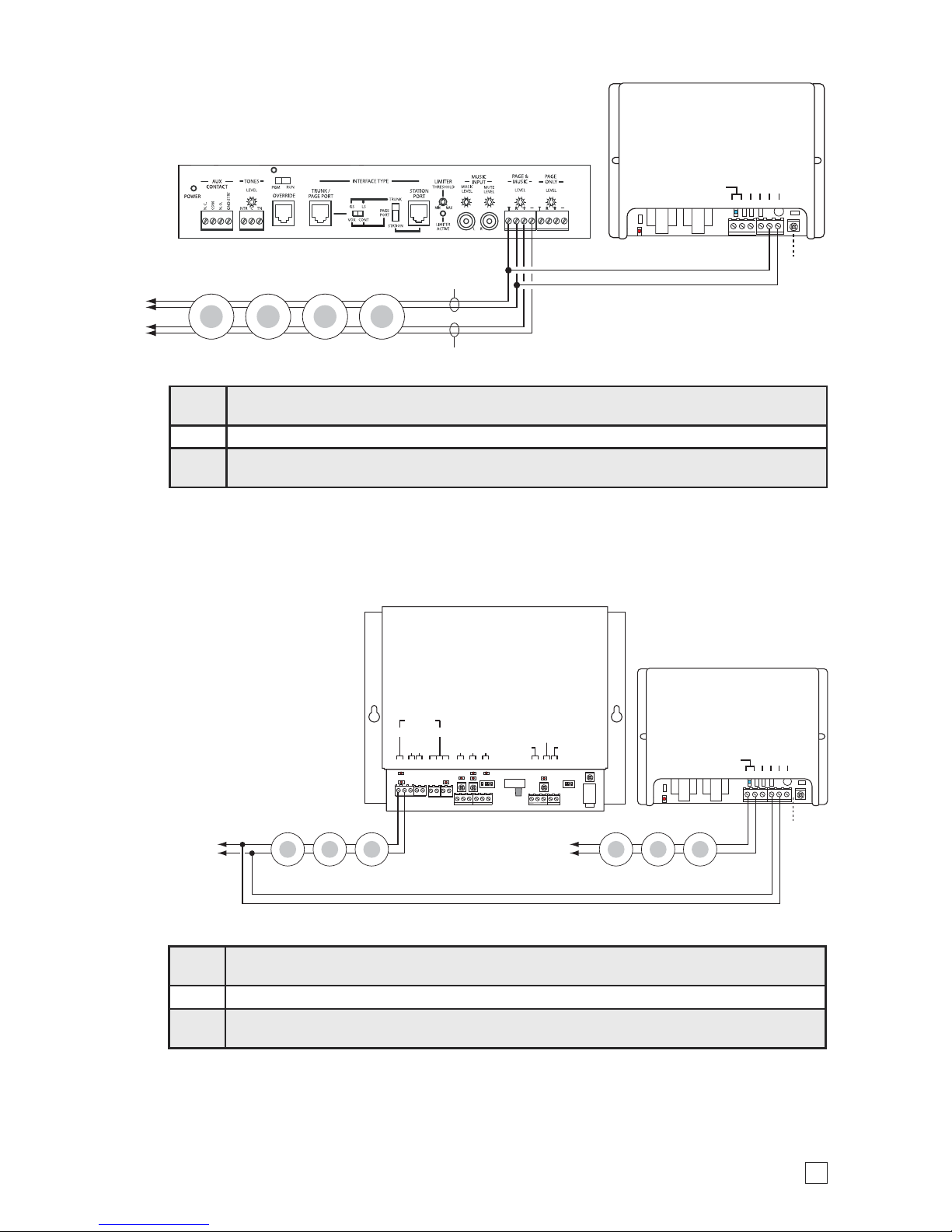

Step 1 Connect anywhere along a Viking 2 wire self-amplified paging system speaker run to screw ter-

minals 5 & 6 of the SAX-12.

Step 2 Add up to 12 Viking 2-wire self amplified remote controllable speakers as shown on page 3.

Step 3 Use the GAIN CONTROL to limit the maximum speaker volume when the infrared remote has

them turned on.

Operation

The SA-X12 takes audio from any paging or background music source, and combines it with 40VDC to run Viking

self amplified speakers. The added Viking SA Series speakers will have the features of the existing paging system,

plus have the added feature of being remote controllable.

The SA-IR remote control functions essentially like a TV remote control. Point the remote at the Viking SA Series

speaker you wish to control and push the buttons. The speaker volume can be stepped up or down, or the speaker

can be totally muted. When the speaker is muted, pressing the mute button again, or the volume up or down buttons,

will release the mute. A short “beep” will be heard through the speaker when the mute is activated. A long “beep” will

be heard through the speaker when the “MUTE” button is pressed again releasing the mute.

If the SA-X12 is used to expand more speakers to a Viking SA-25 paging control unit, the added speakers will be

compatible with the SA-25’s “Smart Mode” feature. In this special “Smart Mode” the SA-IR Remote Control “MUTE”

button functions as a “mute background music button”. All paging and loud ringing sound will be amplifier through the

speaker, but the speaker then mutes the background music. This feature is useful for speakers which are mounted in

a meeting room in which pages need to be heard, but background music would be obstructive. This feature enables

an office with background music to become a quite meeting room with the bush of a button.

The Viking model SA-1S is an 8 inch paging speaker that has a built in

1.5 watt power amplifier, an infrared remote control detector, and an inte-

grated digital volume control, all built into an attractive off-white grill for

flush mounting in office ceilings. The SA-1S self amplified paging speaker

uses a proprietary two wire protocol in which both 40 volts DC power and

audio are combined on the same pair of wires. It is designed for direct con-

nection to the Viking model SA-25 Self Amplified Paging Control unit, or

use the Viking model SA-X12 expander/adapter to connect it to virtually

any existing paging system.

The SA-1S speaker includes an infrared receiver to accept volume control

signals from a Viking model SA-IR remote control. Aim the infrared trans-

mitter at the speaker and press the buttons. The up/down buttons allow users to set the appropriate volume level for

each speaker. The speaker provides an audible “beep” feedback tone to let the user gauge the volume level even when

there’s no background music (or page) playing at the time.

Infrared Remote Controllable Paging Horn for the SA-Series

For more information,

see DOD 525

Compatible Products

The SA-25 can directly drive up to 25 self amplified

speakers. Speakers can be Viking’s 2 wire self amplified

ceiling speaker model SA-1S, the SA-1H self amplified

paging horn, the older 4 wire legacy Valcom and Bogen self

amplified speakers, or any combination of the above. Viking

self amplified speakers have these advantages: 1) Audio and

power are on the same pair (less copper). 2) Power is 40VDC

for lower current and smaller gauge wire (less copper). 3)

Non-Polarity sensitive for easier wiring. 4) Each speaker is in-

frared remote controllable so there is no need to manage and

wire “background music zones”, install volume controls on the

walls, or climb up ladders to adjust the volume. The provided SA-

IR Infrared Remote controls volume, mute, and enable/disable

background music at each speaker as required.

The SA-25 provides paging, loud ringing, and background music when connected to electronic or 1A2 Key systems,

PABX’s, No-KSU phones, multi-line phones, as well as IP phone systems (that have an analog FXS or FXO port). The

SA-25 paging control unit can interface with a paging port or a ringing analog FXS, CO/Centrex line, PABX/KSU station

port or an FXO, unused telephone line input (trunk port).

The SA-25 will generate loud ringing from a ringing analog line or from a dry contact closure. Either a loud electronic

warble sound or one of three other soft chime sounds may be selected. An external “night transfer” switch (such as

Viking model NS-1) can be added to turn loud ringing on or off in night bell applications. If a music source is connected

to the SA-25, background music can be enabled or disabled at any Viking self amplified speaker using the provided SA-

IR infrared remote control. Background music is inhibited during paging. The SA-25 is easy to install and comes complete

with a power supply.

Self Amplified Paging Control Unit with IR Remote

For more information, see DOD 520

The Viking model SA-1H is a 5 inch paging horn that in-

cludes a 1.5 watt power amplifier, an infrared remote control

detector, and an integrated digital volume control. The SA-

1H self amplified paging horn uses a proprietary two wire

protocol in which both 40 volts DC power and audio are com-

bined on the same pair of wires. It is designed for direct con-

nection to the Viking model SA-25 Self Amplified Paging

Control unit, or use the Viking model SA-X12

expander/adapter to connect it to virtually any existing pag-

ing system.

The SA-1H includes an infrared receiver to accept volume

control signals from a Viking Model SA-IR remote control.

Aim the infrared transmitter at the receiver and press the

buttons. The up/down buttons allow users to set the appro-

priate volume level for each speaker. The speaker provides an audible “beep” feedback tone to let the user gauge the

volume level even when there’s no background music (or page) playing at the time.

Infrared Remote Controllable Ceiling Speaker for the SA-Series

For more information,

see DOD 526

IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, CONTACT: VIKING TECHNICAL SUPPORT AT (715) 386-8666

Our Technical Support Department is available for assistance Monday 8am - 4pm and Tuesday through Friday 8am - 5pm central time. So that we can give you

better service, before you call please:

1. Know the model number, the serial number and what software version you have (see serial label).

2. Have your Technical Practice in front of you.

3. It is best if you are on site.

RETURNING PRODUCT FOR REPAIR

The following procedure is for equipment that needs repair:

1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA) number. The customer MUST have a

complete description of the problem, with all pertinent information regarding the defect, such as options set, conditions, symptoms, methods to duplicate problem,

frequency of failure, etc.

2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static sensitive equipment such as a circuit board

should be in an anti-static bag, sandwiched between foam and individually boxed. All equipment should be wrapped to avoid packing material lodging in or stick-

ing to the equipment. Include ALL parts of the equipment. C.O.D. or freight collect shipments cannot be accepted. Ship cartons prepaid to: Viking Electronics,

1531 Industrial Street, Hudson, WI 54016

3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.

4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.

RETURNING PRODUCT FOR EXCHANGE

The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):

1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The customer MUST be able to step

through recommended tests for diagnosis.

2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input and troubleshooting, a Return Authoriza-

tion (R.A.) number will be issued. This number is valid for fourteen (14) calendar days from the date of issue.

3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your distributor will then replace the Viking

product using the same R.A. number.

4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't followed the steps listed in 1, 2 and

3, be aware that you will have to pay a restocking charge.

Warranty

TWO YEAR LIMITED WARRANTY

Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two

years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed

defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact

Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.

This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence

or any damage caused by use of the product by the purchaser or others. This warranty does not cover non-EWP products that have been

exposed to wet or corrosive environments. This warranty does not cover stainless steel surfaces that have not been properly maintained.

NO OTHER WARRANTIES. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THAN AS DESCRIBED ABOVE

AND DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.

EXCLUSION OF CONSEQUENTIAL DAMAGES. VIKING SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER,

OR ANY OTHER PARTY, FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAMAGES ARISING OUT OF OR RELATED

TO THE SALE OR USE OF THE PRODUCT SOLD HEREUNDER.

EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY. WHETHER IN AN ACTION BASED ON CONTRACT, TORT (INCLUDING NEG-

LIGENCE OR STRICT LIABILITY) OR ANY OTHER LEGAL THEORY, ANY LIABILITY OF VIKING SHALL BE LIMITED TO REPAIR OR RE-

PLACEMENT OF THE PRODUCT, OR AT VIKING'S OPTION, REFUND OF THE PURCHASE PRICE AS THE EXCLUSIVE REMEDY AND

ANY LIABILITY OF VIKING SHALL BE SO LIMITED.

IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT EACH AND EVERY PROVISION OF THIS AGREEMENT WHICH PROVIDES

FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF CONSEQUENTIAL DAMAGES, AND EXCLUSIVE REMEDYAND LIMITATION OF

LIABILITY, ARE SEVERABLE FROM ANY OTHER PROVISION AND EACH PROVISION IS A SEPARABLE AND INDEPENDENT ELEMENT

OF RISK ALLOCATION AND IS INTENDED TO BE ENFORCED AS SUCH.

Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates

and/or subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued

to incorporate such changes.

Printed in the U.S.A.

DOD 529

ZF303080 Rev B

Table of contents
