Viking VEDV1200 User manual

READ AND SAVE THESE INSTRUCTIONS
MODEL VEDV1200
EXTERIOR MOUNTED BLOWER
FOR USE WITH VIKING MODEL VIPR181 AND VIPR181R
48" DOWNDRAFT VENTILATOR ONLY.
WARNING
TOREDUCETHERISKOFFIRE,ELECTRICSHOCK,OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manu-
facturer. If you have questions, contact the manufac-
turer or your distributor.
2. Before servicing or cleaning unit, switch power off at
servicepanelandlock the service disconnecting means
to prevent power from being switched on accidentally.
Whentheservicedisconnectingmeans cannotbelocked,
securely fasten a prominent warning device, such as a
tag, to the service panel.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable
codes and standards, including fire-rated construction
codes and standards.
4. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent backdrafting. Follow the
heating equipment manufacturer's guideline and safety
standards such as those published by the National Fire
ProtectionAssociation (NFPA), and the American Soci-
etyforHeating, Refrigeration and Air Conditioning Engi-
neers (ASHRAE), and the local code authorities.
CAUTION
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive material and vapors.
2. To avoid motor bearing damage and noisy and/or unbal-
anced impellers, keep drywall spray, construction dust, etc.
off power unit.
3. Please read specification label on product for further informa-
tion and requirements.
4. Electrical circuit, including speed control, (if used), must be
rated 6 AMPS minimum.
PLANTHE
INSTALLATION
1. Locate the blower so the
length of the duct run and
numberofelbowsneeded
are kept to a minimum.
2. Where possible, blower
should be centered be-
tween wall studs or roof
rafters.
3. Avoid pipes, wires, or
other ductwork that may
berunningthroughthewall.
ALL INSTALLATIONS
MODEL VOLTS AMPS CFM DUCT SIZE
VEDV1200 120 3.0 1200 10" DIA.
SPECIFICATIONS
INSTALLER: Leave This Manual With The Homeowner
HOMEOWNER: Use And Care Information On Page 4
TYPICAL ROOF MOUNTED INSTALLATION TYPICAL WALL MOUNTED INSTALLATION
5. When cutting or drilling into wall, or ceiling, do not
damage electrical wiring or other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce risk of fire, use only metal ductwork.
8. This unit must be grounded.
WARNING
10" ROUND
DUCT
TO
DOWNDRAFT
MODEL VEDV1200
EXTERIOR BLOWER
MODEL
VEDV1200
EXTERIOR
BLOWER
10" ROUND DUCT
TO
DOWNDRAFT
Blower Dimensions
22 x30.828 x12.724

11" dia.
hole
22"
Guide hole
(centered between studs)
22"
29½"29½"
1411 / 16 "
1113 / 16"1113 / 16"
17"
Wall Stud
Wall Stud
11" dia.
hole
17"
1¼" dia. hole1¼" dia. hole
3 "
ØØ
ØØ
REMOVE
SIDING
REMOVE
SIDING
Guide hole
(centered between studs)

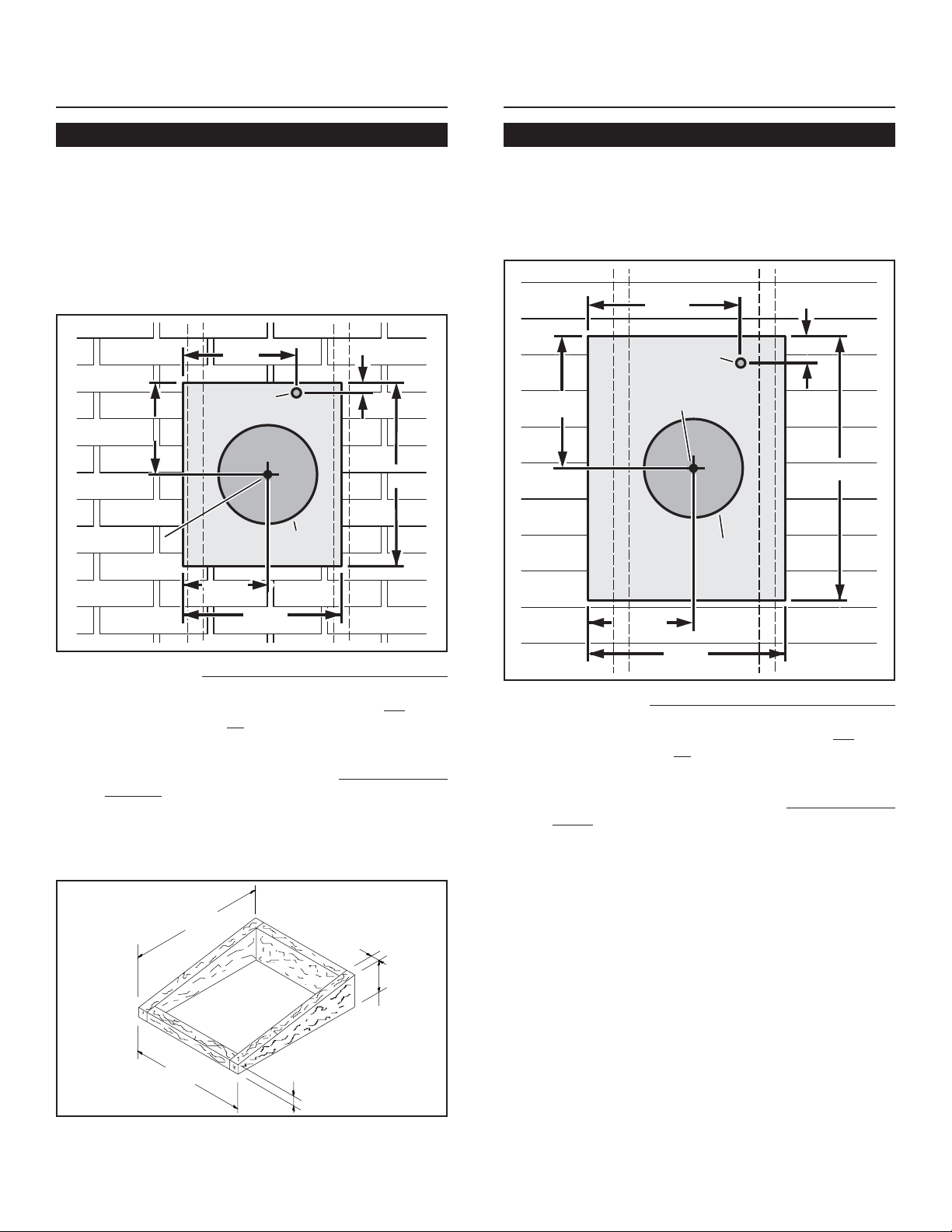

1. Choose a position on the outside wall. Make sure that
no wall studs, pipes or wires run through the opening
area.
2. From inside, mark and drill a guide hole centered
between wall studs.
PREPARE THEINSTALLATION
LOCATION
ROOFINSTALLATIONS
22" 2"
7"
29-1/2"
2"
WALLINSTALLATIONS
1. Locate the blower on the rear slope of the roof. Place
it in a location to minimize duct run. The location should
be free of obstacles (T.V. leads, electrical lines, etc.).
If the blower top is level with the roof peak, it will not be
seen from the street. Keep this approximate location in
mind as you work from within the attic.
2. Mark and drill a guide hole centered between roof
rafters.
2
3. From the outside, use the guide hole as a starting point
to lay out the installation:
A. Use a T-square to measure 913/16" to the left of the
guide hole, then up 1211/16" to locate the top-left
corner of the layout.
B. Starting from the top-left corner, mark the rectan-
gular cutout (18" W x 20½" H) and remove only the
shingles in this area.
C. Mark an 11" diameter hole centered on the guide
hole. Cut this hole through the roof board(s).
D. Mark and cut a 1¼" diameter hole through the roof
board(s) where shown.
4. For flat roof installations, build a curb that will mount the
blower at a minimum pitch of 2/12. Discharge end of the
blower should be pointed away from prevailing winds.
PREPARE THEINSTALLATION
LOCATION
11" dia.
hole
20½"
11" dia.
hole
1"
Ø
Ø
9
11
/ 16"
20½"
Ø
Ø
15"
9
13
/ 16"
18"
1211
/ 16"
1¼" dia. hole
1¼" dia. hole
Roof Rafter
Roof Rafter
Roof Rafter
REMOVE SHINGLES
REMOVE SHINGLES
Roof Rafter
Guide hole
(centered
between rafters)
Guide hole
(centered
between rafters)
1211 / 16"
18"
3. From the outside, use the guide hole as a starting point
to lay out the installation:
A. Use a T-square to measure 1113/16" to the left of the
guide hole, then up 1411/16" to locate the top-left
corner of the layout.
B. Starting from the top-left corner, mark the rectan-
gular cutout (22" W x 29½" H) and remove only the
siding in this area.
C. Mark an 11" diameter hole centered on the guide
hole. Cut this hole through the roof board(s).
D. Mark and cut a 1¼" diameter hole through the roof
board(s) where shown.

1. Remove the cover and screws.
2. Attach an appropriate U.L. approved cable connector
in the hole at the rear of the wiring box.
3. Remove roofing nails from shingles around the TOP and
SIDES of the cutout area only.Carefully lift the shingles
to allow the back flashing sheet on the blower housing
to fit under them.
4. Center the blower ring in the 11" diameter hole, making
sure that the 1¼" diameter electrical wiring hole aligns
with the hole in the wiring box.
5. Attach the blower to the roof with six (6) screws
provided. It is recommended that the screws be located
inside the blower housing. Drill pilot holes if necessary.
6. Using a good grade of roofing cement, seal all of the
shingles around the housing and flashing sheet as well
as the mounting screw heads.
7. Bring electrical wiring through the hole in the wiring box
and secure it according to local codes.
8. Make the electrical connections with the proper connec-
tor for the type of wiring being used. Connect black to
black, white to blue, and the green or bare wire to
grounding screw.
9. Replace cover and screws. Do not pinch wiring under the
cover.
10. Make sure damper opens and closes freely.
1. Place a large bead of caulk on the back side of the
housing all along the outer edges.
2. Center the blower ring in the 11" diameter hole, making
sure that the 1¼" diameter electrical wiring hole aligns
with the hole in the wiring box.
3. Attach blower to the wall with the six (6) screws
provided. It is recommended that the screws be located
inside the blower housing. Drill pilot holes if necessary.
4. Using a good grade of caulk, seal all around the
mounting screw heads.
5. Bring electrical wiring through the hole in the wiring box
and secure it according to local codes.
INSTALL THE BLOWER
ROOFINSTALLATIONS
INSTALL THE BLOWER
WALLINSTALLATIONS
3

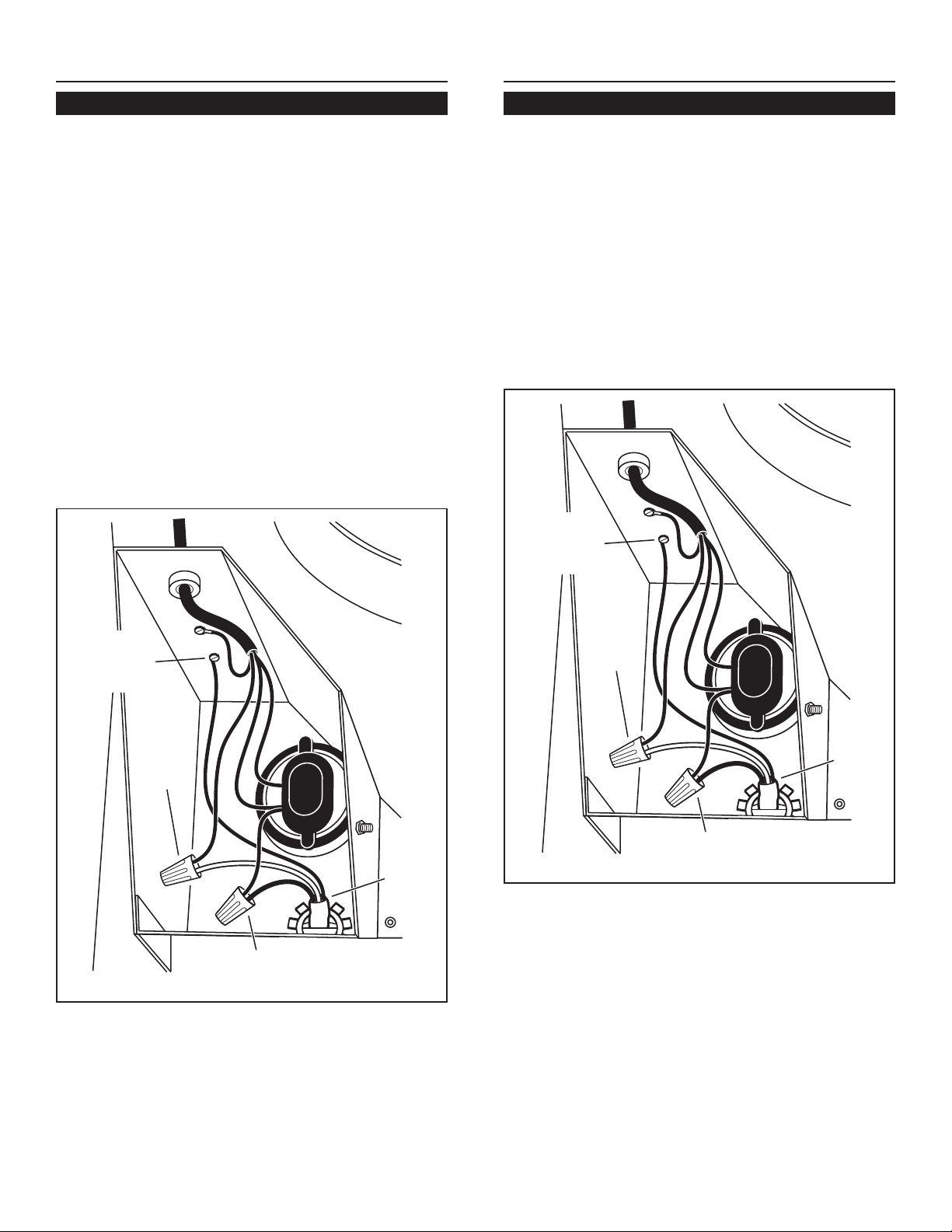

BLACK
TO
BLACK
120 VAC
LINE
IN
WHITE
TO
BLUE
GROUND
TO
GROUNDING
SCREW
6. Make the electrical connections with the proper con-
nector for the type of wire being used. Connect black
to black, white to blue, and green or bare wire to
grounding screw.
7. Replace cover and screws. Do not pinch wiring under
cover.
8. Make sure damper opens and closes freely.
9. Top and side flanges of the back plate may be covered
with trim strips. Do not block grille opening at bot-
tom with trim. It will adversely affect performance of the
blower.
LINE IN
FROM
DOWNDRAFT
VENTILATOR
BLACK
TO
BLACK
120 VAC
LINE
IN
WHITE
TO
BLUE
GROUND
TO
GROUNDING
SCREW
LINE IN
FROM
DOWNDRAFT
VENTILATOR

99042941C
VIKING RANGE CORPORATION
GREENWOOD, MISSISSIPPI 38930 USA
Disconnect electrical power supply and lock out service
panel before cleaning or servicing this unit.
CLEANING
Remove cover and carefully vacuum blower and inside of
housing. Be careful not to bend or otherwise damage
blower wheel.
MOTOR LUBRICATION
The motor is permanently lubricated. Do not oil or
disassemble motor.
CONNECT 10" ROUND DUCTWORK
2. Refertodowndraftventilatormanualforinstructions
on how to:
• Locate and cut holes in cabinet.
• Attach 10" round duct to downdraft.
USE AND CARE
1. Connect 10" round ductwork to blower. Run ductwork to
downdraftlocation.
NOTE:Use duct tapeto make ductworkconnections secure
and air tight.
