Viking VKFS 330 15R User manual

Viking VKFS 330
15R Followspot
__________________
User Manual

Content
1. Contents ............................................................................................ 02
2. Caution ............................................................................................. 03
3. Dimensions ........................................................................................ 04
4. Product info ...................................................................................... 05
5. Parts info ........................................................................................... 06
6. Lamp replacement .......................................................................... 07
7. Operation & Control Panel ............................................................. 08
8. Inside structure .............................................................................. 10
9. PCB ................................................................................................... 10

2 Caution
2.1 Before installation, please check the unit for any damage in transport, and in
particular that no foreign objects have become lodged in the end of the lens tube.
2.2 The unit should be mounted on the stand supplied using the spigot (or similar)
and stood on even ground. The light should be raised up to shoulder height for
operation.
2.3 The unit should be switched on in advance of it being required and left on for the
duration of the performance. It is not suitable for frequent switching on and off which
will damage the starter circuit and shorten the lamp life considerably.
2.4 You must wait for ten minutes after the lamp has been turned off to let it
completely cool before the unit can be re-struck and used again as the lamp is of the
‘Cold Restrike’ variety.
2.5 In order to ensure the service life of the product, please keep it dry and ventilated.
2.6 There are no user serviceable parts inside the unit with the exception of lamp
replacement. The product should only be serviced by professionals.
2.7 The Powercon mains lead must be plugged into the rear of the Followspot and
into a permanent mains feed (13a socket outlet). This unit MUST NOT be plugged
into a dimmer.
2.8 Do not stare at the lamp light source directly so as not to damage the eyes or
down the lens tube, the lamp is extremely bright.
2.9 The Followspot is cooled by a quiet running fan in the rear of the unit. If this fan
should fail the unit must NOT ber used, but refer to a service agent for repair.
2.10 Make sure the power is disconnected prior and during the installation of a new
lamp or service.

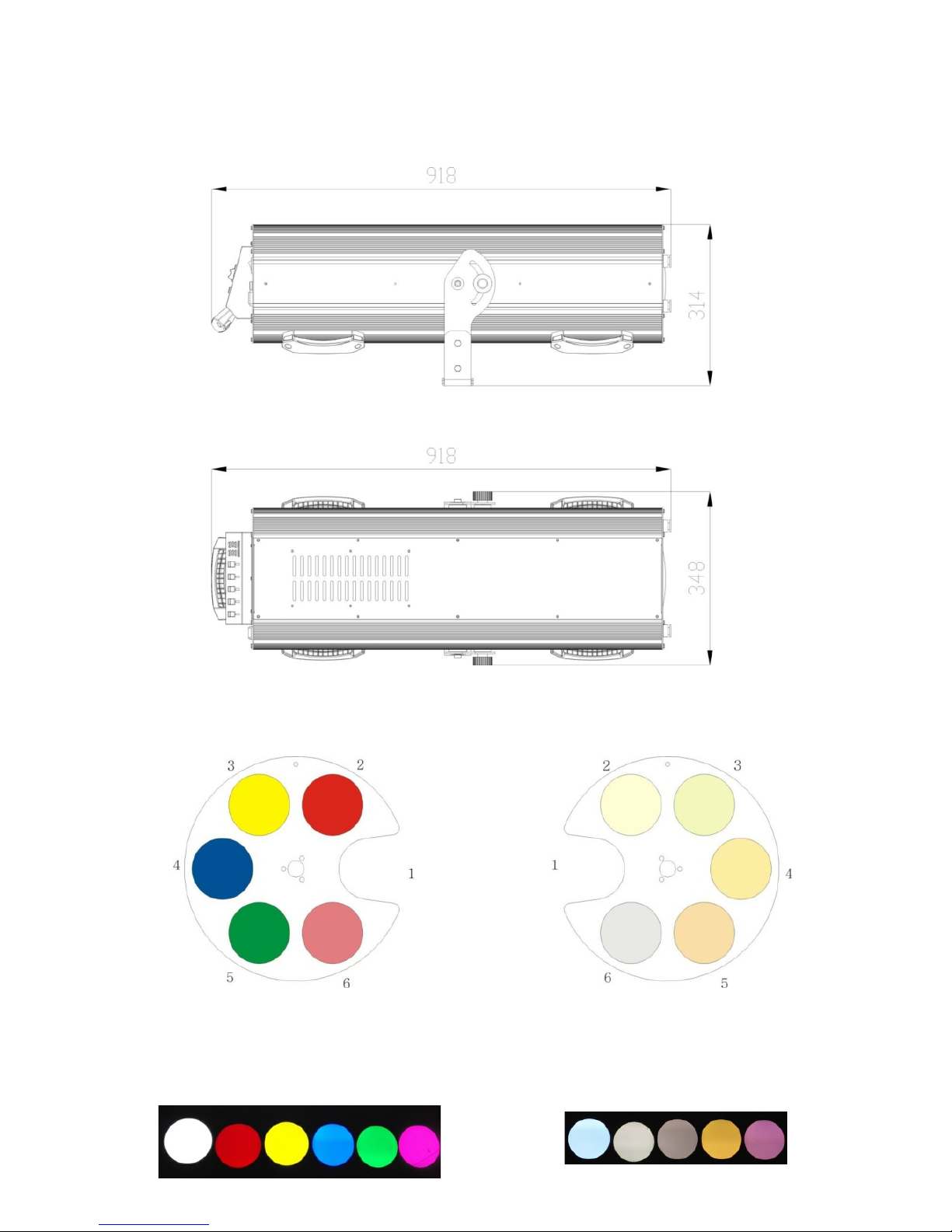

3. Dimensions: (mm)
Colour Wheel:
01—White 02—Red
03—Yellow 04—Blue
05—Green 06—Magenta
01—6500K 02—5600K
03—4300K 04—3800K
05—3200K 06—Frost
Colour Temperature Wheel:

4. Product information
1. Technical Specifications
Lamp : YODN 15R 330W or SIRIUS HRI330W
Lamp life span：1500hours
Output：33486 Lumen at 5m - see chart below
Dimmer：Linear Electronic Dimmer
Colour wheel: Electronically Adjustable - 5 colours plus White
Iris: Electronically Adjustable from Small to Large Spot
Colour temperature：Electronically Adjustable: 3200-6500K plus Frost
Focus：Electronically Adjustable
Zoom Lens: Electronically Adjustable: 5-10 degrees
Rating: IP20 : For Indoor Use only
Power：100-240V 50-60Hz Auto switching
Total power：420w
External Fuse: 20ma 6.35a Ceramic Fuse
Light size：918 x 348 x 314mm
Product weight：26kg
Stand weight：6kg
Flight case size：1022×580×490mm
2. Output

5. Parts information
5.1 Control panel
02
01 —display screen
02 —Channels rod
03 —Colours key
04 —Power switch
05 —Fuse
06 —
Power input
01
03
04
05 01 —control panel
02 —handle
03 —stand handle
04 —light
05 —lens
01
03
04
05
06
02

6. Lamp replacement
1. Remove the rear handle 2. Remove the control panel box
3. Remove the lamp rear panel 4. Remove the screws for the lamp
5. Use the screwdriver to hold the metal. 6. Remove the lamp power cable
7. Replace the lamp and rebuild in reverse order

7.0 Control panel
Iris
There is a hidden On/Off switch to prevent unauthorised use of the light. When the
lamp is off, press the red key for 3 seconds, the display will show (on) and will strike.
The lamp will take a few minutes to reach maximum brightness.
To turn the lamp off, press the white key for 3 seconds, the display will show (OFF) and
will extinguish but the cooling fan will continue working.
Once the lamp is turned off, please wait about 10 minutes if needed on again. (This
protects the unit and lamp from damage)
Fader Display Value Function
1 White
2 Red
3 Yellow
4 Blue
5 Green
6 Pink
Dimmer
Dimmer
0-50 Close
51-130 Open - dim to full
0-255 Iris - small to big
0-255 Zoom - big to small
0-255 Focus
0-42 6500K
43-84 5600K
85-126 4300K
127-168 3800K
169-210 3200K
211-255 Frost
7.1 Operation
Colour
Button
Colour
Temperature
Zoom
Focus

2. Menu Operation - This option is for service use only.
Access to the menu is by pressing both the green and pink buttons simultaneously.
Blue Key: SELECT (Save the updated value and return back to the main menu)
White Key: DOWN (or +),can plus continually if pressed for more than 1 second
Red Key: UP (or -), can minus continually if pressed for more than 1 second
Yellow key: EXIT (Back to the menu & do not save the data)
Function
Info set
< 1nfo >
< t4PE > Lights kind
< FAn1 > Fan 1 status（r19H:normal Erro:
Error）
< FAn2 > Fan 2 status（r19H:Normal Erro:
Error）
< d15U > Version（xxx）
< dr1U > Motor version（xxx）
< rEtn > Enter
Display set
<d15P >
Display delay
close
< LoFF >
oN Lamp on
L001 Close after 1 min
L002 Close after 2 min
L003 Close after 3 min
Menu display
enter
< NEN8 >
oFF No enter
N001 Enter after 1 min
N001 Enter after 2 min
N001 Enter after 3 min
< rEtn > Enter
Readress
< rEdr >
< CoLo >color motor
Motor reset（0-255）
< CoLt >color motor
Feature
SET
< 5PEC >
< 2oon >focus motor
< FocU >focus motor
< rEtn > Enter
Run mode
< rUod >
r001 manual
r002 auto
default
< dEFA >
oFF no
oN Default set
<rEtn> enter
< LANP >
default
< LAPd >
oFF Lamp off after reset
oN Lamp on after reset
Lamp control
< NAnL >
oFF Lamp off by manual
oN lamp on by manual
< rEtn > Enter
< ALLr>
oFF No Reset
oN Reset
rEtn Menu exit

8. Internal structure
9. PCB
05 06
02
03
04
01 07
01 —Lamp socket
02 —Fan
03 —Driving board
04 —Focus module
05 —Slide bar
06 —zoom module
07 —belt
