Viking VGR304B User manual

Installation
Professional Freestanding Ranges

2
Warnings & Important Safety Instructions ______________________________________________3
Dimensions ________________________________________________________________________6
Specifications ______________________________________________________________________8
Clearance Dimensions (Proximity to Cabinet __________________________________________10
Clearance Dimensions (Wood/Composite Overlay) ____________________________________11
Electrical & Gas Requirements ______________________________________________________12
General Information________________________________________________________________14
Installation ________________________________________________________________________15
Door Removal ________________________________________________________________15
Leg Installation ________________________________________________________________16
Leveling/Adjustments/Alignment ________________________________________________16
Anti-tip Device Installation ______________________________________________________18
Connecting Gas & Electric ______________________________________________________19
Standoff Spacer Removal ______________________________________________________20
Final Installation________________________________________________________________20
Door Replacement ____________________________________________________________21
Final Preparation __________________________________________________________________22
Performance Checklist______________________________________________________________22
Service & Registration ______________________________________________________________23
Table of Contents

3
• Before beginning, please read these
instructions completely and carefully.
• DO NOT remove permanently affixed
labels, warnings, or plates from product.
This may void the warranty.
• All local and national codes and ordinances
must be observed. Installation must
conform with local codes or in the absence
of codes, the National Fuel Gas Code ANSI
Z223.1 INFPA54.
• The installer must leave these instructions
with the consumer who should retain for
local inspector’s use and for future
reference.
In Canada: Installation must be in accordance
with the current CAN/CGA B149.1 & 2 Gas
Installation codes and/or local codes. Electrical
installation must be in accordance with the
current CSA C22.1 Canadian Electrical Codes
Part 1 and/or local codes.
In Massachusetts: All gas products must be
installed by a “Massachusetts” licensed
plumber or gasfitter. A “T” type handle
manual valve must be installed in the gas
supply line to the appliance.
An air curtain or other overhead range hood
which operates by blowing a downward
airflow onto the range, shall not be used with
a gas range
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. ALWAYS read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded by
the safety alert symbol and the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
Hazards or unsafe practices
which WILL result in severe personal injury or
death.
DANGER
Hazards or unsafe practices
which COULD result in severe personal injury or
death.
Hazards or unsafe practices which COULD result
in minor personal injury or property damage.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
WARNING
CAUTION
IMPORTANT– Read and Follow!

4
DANGER
FIRE/EXPLOSION HAZARD
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED EXACTLY, A
FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY, OR
DEATH.
• DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
–DO NOT try to light any appliance.
–DO NOT touch any electrical switch;
DO NOT use any phone in your building.
–Immediately call your gas supplier from a
neighbor’s phone.
–Follow the gas supplier’s instructions.
–If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local
laws, or local ordinances.
• The required use of a GFI is normally related to the location of a receptacle with respect to
any significant sources of water or moisture.
• Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not
installed properly or do not meet the requirements below.
If the use of a GFI is required , it should be:
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard
• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible
WARNING
To prevent possible damage to cabinets and
cabinet finishes, use only materials and finishes
that will not discolor or delaminate and will
withstand temperatures up to 194°F (90°C).
Heat resistant adhesive must be used if the
product is to be installed in laminated
cabinetry. Check with your builder or cabinet
supplier to make sure that the materials meet
these requirements.
IMPORTANT– Read and Follow!
CAUTION
This appliance is not to be used by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
the use of the appliance by a person responsible
for their safety. Children should be supervised to
ensure that they do not play with the appliance.

5

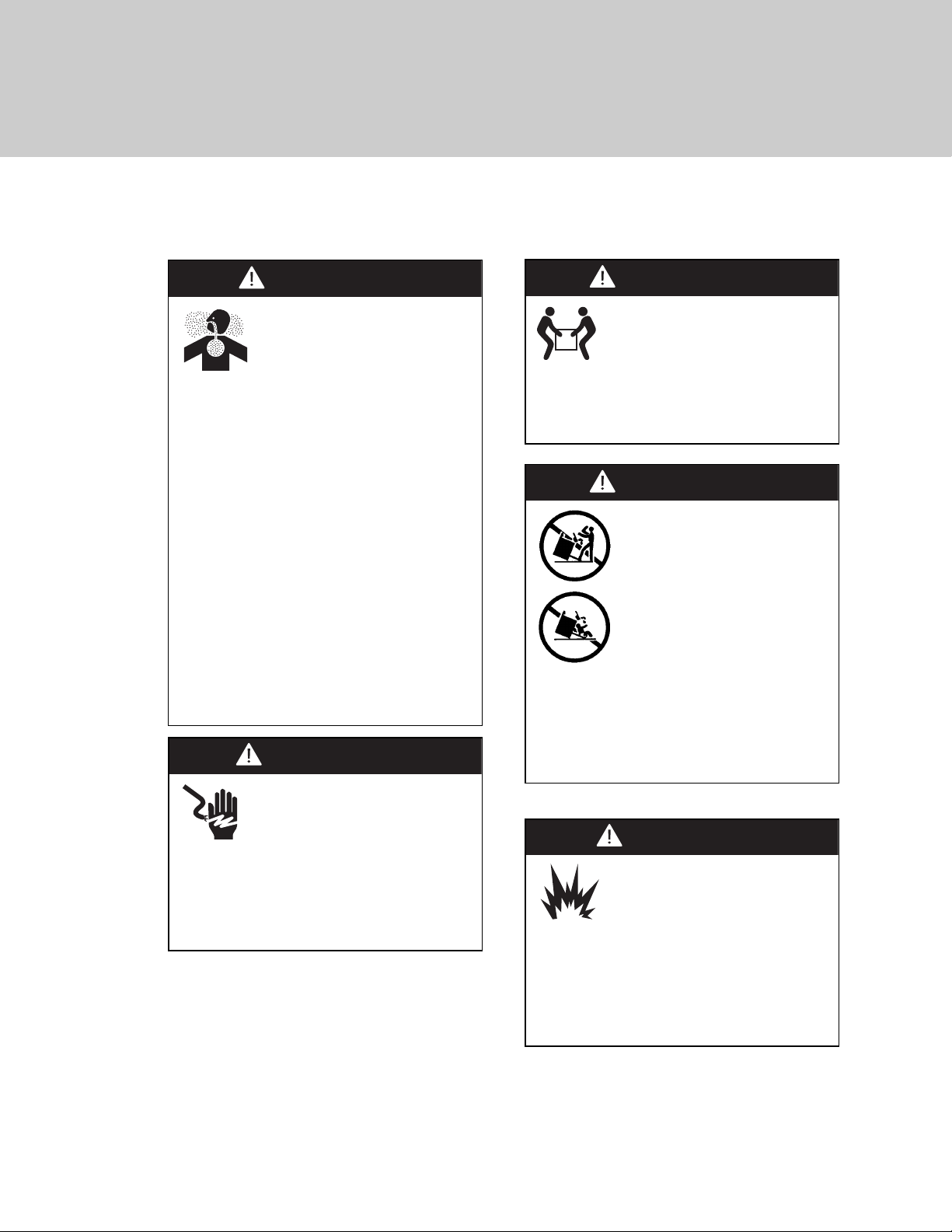

DANGER
GAS LEAK HAZARD
To avoid risk of personal injury or
death; leak testing of the
appliance must be conducted
according to the manufacturer’s instructions.
Before placing appliance in operation, always
check for gas leaks with soapy water solution.
• DO NOT USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS.
DANGER
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock,
personal injury or death; verify your
appliance has been properly grounded in
accordance with local codes or in absence of
codes, with the National Electrical Code
(NEC) ANSI/NFPA-70 – latest edition.
WARNING
MOVING HAZARD
To avoid risk of severe personal
injury; this appliance requires two
or more personnel while handling
and moving. Possible use of
appliance moving devices is
recommended.
DANGER
CHEMICAL HAZARD
To avoid risk of property damage
and/or personal injury or death;
this appliance is not too be used
as a heating source.
• Benzene is a chemical which is part of the
gas supply to this cooking product, which is
consumed in the flames during combustion.
Exposure to a small amount of benzene is
possible if a gas leak occurs. Formaldehyde
and soot are by-products of incomplete
combustion.
• This appliance contains or produces
chemicals which can cause serious injury or
death and which are known to the state of
California to cause cancer, birth defects or
other reproductive harm. To reduce the risk
from substances in the fuel or from fuel
combustion make sure this appliance is
installed, operated, and maintained in
accordance to the instructions in this
document.
WARNING
TIPPING HAZARD
To reduce the risk of property
damage or personal injury; install
anti-tipping device provided in
accordance with the installation
instructions in this document.
Device must be engaged properly
to prevent product from tipping
over.
• THIS RANGE CAN TIP
• INJURIES TO PERSONS CAN RESULT
• INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
• SEE INSTALLATION INSTRUCTIONS
IMPORTANT– Read and Follow!

6
Dimensions
30” and 36” W. Models
35-7/8”
(91.1 cm)
35-7/8”
(91.1 cm min.)
to
37”
(94 cm max.)
1”(2.5 cm)
29-7/8” (75.9 cm)
Note: Unit shown with standard island trim.
47-7/8”
(121.6 cm)
1”(2.5 cm)
35-7/8”
(91.1 cm) min.
to
37”
(94 cm) max.
60”
(152.4 cm)
48” and 60” W. Models

7
Dimensions
25-3/4”(65.4 cm)
45-1/8” (114.6 cm)
19-3/8”
(49.2 cm)
8-1/8”
(20.6 cm)
26-7/16”(67.2 cm)
1-5/8”
(4.1 cm)
1”(2.5 cm)
35-7/8”
(91.1 cm) min.
to
37”
(94.0 cm) max.
24-5/16”(61.8 cm)
28-1/16”(71.2 cm)
Note: Unit shown with standard island trim.

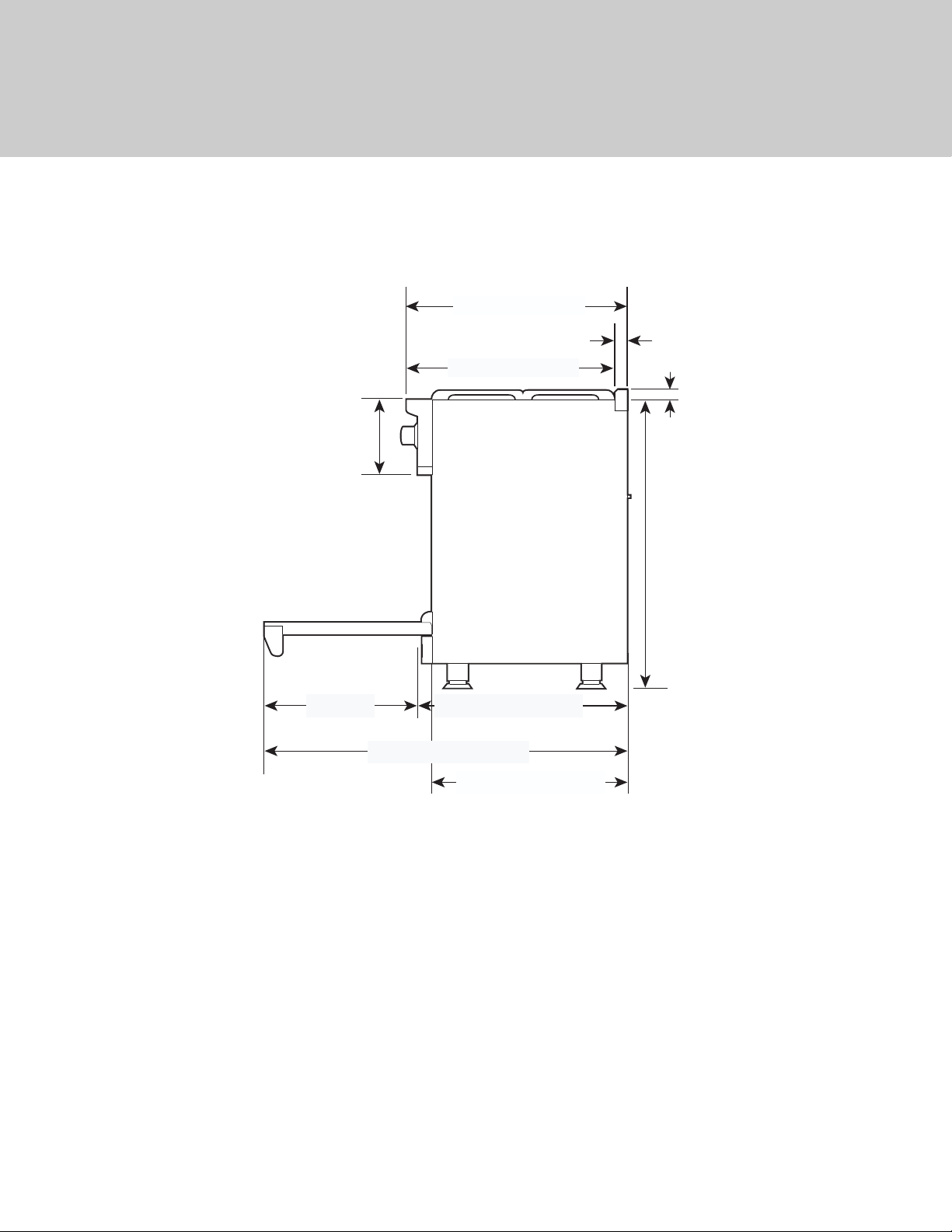

Side View

8
Specifications

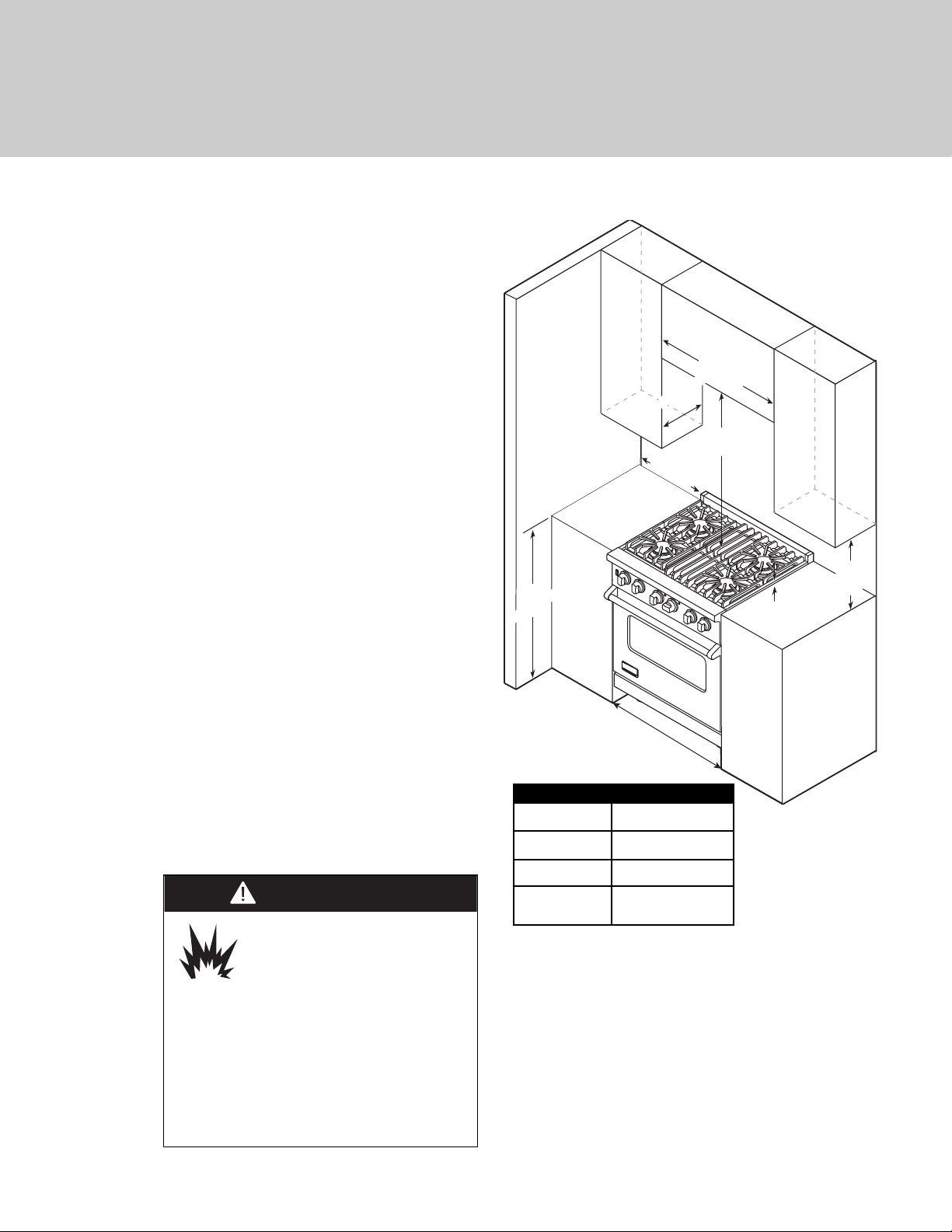

Minimum clearances from adjacent combustible construction:
Below cooking surface (36” [91.4 cm] and below)
• Sides - 0”
• Top grate support - 36” (91.4 cm)
Above cooking surface (above 36” [91.4 cm])
• Sides - 6” (15.2 cm)
• Within 6” (15.2 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm)
above cooking surface
• Wall cabinets directly above product must be a minimum of 42” (106.7 cm) above cooking surface, unless a
range hood is installed above the cooking surface.
• Rear - 0” with 8” backguard or high shelf; 0” with island trim and non-combustible rear wall;
• 6” (15.2 cm) with island trim and combustible rear wall
VGR530 VGR536
Overall width 29-7/8” (75.9 cm) 35-7/8” (91.1.6 cm)
Overall height To top of side trim –35-7/8” (91.1 cm) min. 37” (94.0 cm) max.
Legs adjust – 1-1/8” (2.8 cm)
Overall depth from
rear*
To end of side panel - 24-5/16” (61.8 cm)
To front of door - 25-3/4” (65.4 cm)
To end of door handle - 28-11/16” (72.9 cm)
Additions to Base
Height
To top of island trim – add 1” (.5 cm)
To top of backguard – add 8” (0.3 cm)
To top of high shelf – add 23-1/2” (59.7 cm)
Gas requirements Shipped Natural or LP/Propane, accepts standard residential 1/2” (1.3 cm) ID gas
service line. Unit is field convertible with proper conversion kit
Gas manifold pressure Natural 5.0” W.C.P./ Liquid Propane L/P 10.0” W.C.P.
Electrical
requirements
120VAC/60 Hz; 4 ft. (121.9 cm), 3-wire cord with grounded
3-prong plug attached to unit
Maximum amp usage 1.0 amps 1.5 amps
Surface burner rating
Natural gas/LP
18,500 BTU (5.4 kW)/16,600 BTU 4.9 kW) power burner
15,000 BTU (4.4 kW)/12,500 BTU (3.7 kW)
Griddle burner rating N/A 15,000 BTU (4.4 kW) / 12,500 BTU (3.7 kW)
Oven burner rating 30,000 BTU (8.8 kW) Nat / LP
Oven interior width 23” (58.4 cm) 29” (73.7 cm)
Oven interior height 16-1/8” (40.9 cm)
Oven interior depth
Overall
AHAM
18-3/4 (47.6 cm)
17” (43.2 cm)
Oven volume
Overall
AHAM
4.0 cu. ft.
3.7 cu. ft
5.1 cu. ft.
5.1 cu. ft.
Approximate
shipping weight 410 lbs. (184.5 kg) 500 lbs. (225 kg)
Note: Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and not certified by
CSA. Clearances to non-combustible materials must be approved by the authority having jurisdiction.

9
Specifications
Note: Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and not certified by
CSA. Clearances to non-combustible materials must be approved by the authority having jurisdiction.
VGR548 VGR560
Overall width 47-7/8” (121.6 cm) 60” (152.4 cm)
Overall height To top of side trim –35-7/8” (91.1 cm) min. 37” (94.0 cm) max.
Legs adjust – 1-1/8” (2.8 cm)
Overall depth from
rear*
To end of side panel - 24-5/16” (61.8 cm)
To front of door - 25-3/4” (65.4 cm)
To end of door handle - 28-11/16” (72.9 cm)
Additions to Base
Height
To top of island trim – add 1” (.5 cm)
To top of backguard – add 8” (0.3 cm)
To top of high shelf – add 23-1/2” (59.7 cm)
Gas requirements Shipped Natural or LP/Propane, accepts standard residential 1/2” (1.3 cm) ID gas
service line. Unit is field convertible with proper conversion kit
Gas manifold pressure Natural 5.0” W.C.P./ Liquid Propane L/P 10.0” W.C.P.
Electrical
requirements
120VAC/60 Hz; 4 ft. (121.9 cm), 3-wire cord with grounded
3-prong plug attached to unit
Maximum amp usage 2.0 amps 2.0 amps
Surface burner rating
Natural gas/LP
18,500 BTU (5.4 kW)/16,600 BTU 4.9 kW) power burner
15,000 BTU (4.4 kW)/12,500 BTU (3.7 kW)
Griddle burner rating 15,000 BTU (4.4 kW)/12,500 BTU (3.7 kW)
Grill burner rating N/A 18,000 BTU (5.3 kW)/16,000 BTU (4.7 kW)
Oven burner rating Right oven - 30,000 (8.8 kW) BTU Nat/LP
Left oven - 15,000 (4.4 kW) BTU Nat/LP
Both ovens - 30,000 (8.8 kW) BTU Nat/LP
Oven interior width Right oven - 23” (58.4 cm)
Left oven - 12-1/8” (30.8 cm)
Both ovens - 23” (58.4 cm)
Oven interior height 16-1/8” (40.9 cm)
Oven interior depth
Overall
AHAM
18-3/4 (47.6 cm)
17” (43.2 cm)
Oven volume
Overall
AHAM
Right 4.0 cu. ft. / Left 2.1 cu. ft.
Right 3.7 cu. ft. / Left 2.0 cu. ft.
Both Ovens 4.0 cu. ft.
Both Ovens 3.7 cu. ft.
Approximate
shipping weight 575 lbs. (258.5 kg) 750 lbs. (337.5 kg)
Minimum clearances from adjacent combustible construction:
Below cooking surface (36” [91.4 cm] and below)
• Sides - 0”
• Top grate support - 36” (91.4 cm)
Above cooking surface (above 36” [91.4 cm])
• Sides - 6” (15.2 cm)
• Within 6” (15.2 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm)
above cooking surface
• Wall cabinets directly above product must be a minimum of 42” (106.7 cm) above cooking surface, unless a
range hood is installed above the cooking surface.
• Rear - 0” with 8” backguard or high shelf; 0” with island trim and non-combustible rear wall;
• 6” (15.2 cm) with island trim and combustible rear wall

42”min.
(106.7 cm)
13”max.
(
33.0 cm)
6”min.
(15.2 cm)
18” min.
(45.7 cm)
3/8”
(0.95 cm)
36”
(
91.4 cm)
29-7/8”
(75.9 cm)
A
10
• This range may be installed directly adjacent
to existing 36” (91.4 cm) high base cabinets.
IMPORTANT: The side trim MUST be
3/8” (.95 cm) above the adjacent base
cabinet countertop. This can be
accomplished by raising the unit using
the adjustment spindles on the legs.
• The range CANNOT be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical surfaces
above 36” (91.4 cm) high. There must be a
minimum of 6” (15.2 cm) side clearance from
the range to such combustible surfaces
above the 36” (91.4 cm) counter height.
• Within the 6” (15.2 cm) side clearance to
combustible vertical surfaces above 36” (91.4
cm), the maximum wall cabinet depth must
be 13” (33.0 cm) and wall cabinets within this
6” (15.2 cm) side clearance must be 18”
(45.7 cm) above the 36” (91.4 cm) high
countertop.
• Wall cabinets above the range must be a
minimum of 42” (06.7 cm) above the range
cooking surface for the full width
of the range. This minimum height
requirement does not apply if a range hood
is installed over the cooking surface.
Note: Minimum clearance for back wall is 0”
with backguard or high-shelf.
Note: If a range hood is installed, wall cabinets above
the range have a different minimum clearance height.
Note: Clearances from non-combustible materials are
not part of the ANSI Z21.1 scope and not certified by
CSA. Clearances to non-combustible materials must be
approved by the authority having jurisdiction.
CAUTION
BURN HAZARD
To avoid risk of personal injury;
the use of cabinets for storage
above the appliance may result
in a potential burn hazard. Combustible
items may ignite, metallic items may
become hot and cause burns. If a cabinet
storage is to be provided the risk can be
reduced by installing a rangehood that
projects horizontally a minimum 5
" (12.7 cm)
beyond the bottom of cabinets.
Clearance Dimensions (Proximity to Cabinets)
Range WIdth “A” Dimension
30” 30” (76.2 cm)
36” 36” (9.4 cm)
48” 48” (121.9 cm)
60” 60-1/4”
(153.0 cm)

11
The bottom of a standard hood should be
30” (76.2 cm) min. to 36” (91.4 cm) max.
above the countertop. This would
typically result in the bottom of the hood
being 66” (167.6 cm) to 72” (182.9 cm)
above the floor. Refer to the range hood
installation instructions for additional
information. These dimensions provide for
safe and efficient operation of the hood.
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
30”
(76.2 cm)
6”
(15.2 cm)
Wood/Composite
Overlay
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
24”
(61.0 cm)
Wood/Composite
Overlay
0”
(
0 cm)
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
Wall Installation
Island Installation
Note: This range comes standard with an
Island Trim. There must be a minimum of
6” (15.2 cm) clearance from rear of range
to a combustible wall or 0” clearance to
a non-combustible wall.
Note: Clearances from non-combustible
materials are not part of the ANSI Z21.1
scope and not certified by CSA.
Clearances to non-combustible materials
must be approved by the authority
having jurisdiction.
Note: Minimum clearance for back
wall is 0” with backguard or high-
shelf.
Clearance Dimensions (Wood/Composite Overlay)

12
Electrical Requirements - Gas Ranges
Check your national and local codes regarding
this unit. This range requires 120VAC/60 Hz; 4 ft.
(121.9 cm), 3-wire cord with grounded 3-prong
plug attached to unit. See “Electrical
Connection” section for grounding instructions.
Must be fused seperately from any other circuit.
Gas Connection
The gas supply (service) line must be the
same size or greater than the inlet line of the
appliance. This range uses a 1/2” (1.3 cm) ID
NPT (Sch40) inlet. Sealant on all pipe joints must
be resistive to LP gas.
The range is designed specifically for natural
gas or liquid propane (LP) gas. Before
beginning installation verify that the model is
compatible with the intended gas supply.
Manual shut-off valve:
This installer-supplied valve must be installed in
the gas service line before the appliance in the
gas stream and in a location where it can be
reached quickly in the event of an emergency.
Any opening behind the range shall be sealed.
In Massachusetts: A “T” handle type manual
valve must be installed in the gas supply line to
the appliance.
Pressure Regulator:
• All heavy-duty, commercial type cooking
equipment must have a pressure
regulator on the incoming service line
for safe and efficient operation, since
service pressure may fluctuate with local
demand. External regulators are not
required on this range since a regulator
is built into each unit at the factory.
Under no condition bypass this built-in
regulator.
• Manifold pressure should be checked
with a manometer, natural gas requires
5.0” W.C.P. and LP gas requires 10.0”
W.C.P. Incoming line pressure upstream
from the regulator must be 1” W.C.P.
higher than the manifold pressure in
order to check the regulator. The
regulator used on this range can
withstand a maximum input pressure of
1/2” PSI (14.0” W.C.P.). If the line
pressure is in excess of that amount, a
step down regulator will be required.
• The appliance must be disconnected
from the gas supply piping system
during any pressure testing of that
system.
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid the risk of electrical
shock, personal injury or death;
verify electrical power is turned off at the
breaker box and gas supply is turned off until
the range is installed and ready to operate,
installation by an authorized installer only.
Electrical & Gas Requirements

13
4”
(10.2 cm)
1-1/16”
(2.7 cm)
31-1/16”
(78.9 cm)
Gas or electrical
connection in
this area
Gas connection
in this area
3-3/4”
(9.5 cm)
Flexible Connections:
If the unit is to be installed with flexible
couplings and/or quick-disconnect fittings, the
installer must use a heavy-duty AGA
design-certified flexible connector of at least
1/2” (1.3 cm) ID NPT (with suitable strain
reliefs) in compliance with ANSI Z21.41
and Z21.69.
In Canada: CAN 1-6, 10-88 metal connectors
for gas appliances and CAN
1-6.9 M79 quick disconnect devices for use
with gas fuel.
In Massachusetts: This appliance must be
installed with a 36” (3-foot) long flexible
gas connector.
Electrical & Gas Requirements

NOTICE
DO NOT use the handle or oven door
to lift the oven. Remove door before
installation to ensure that it is not used
to lift the unit. DO NOT lift or carry the
door by the handle.
Removing the door must be done by
your dealer, a qualified licensed plumber,
or certified gas installer.
14
READ AND FOLLOW ALL WARNING AND CAUTION INFORMATION WHEN
INSTALLING THIS APPLIANCE.
• All openings in the wall behind the appliance and in the floor under the appliance must be
sealed.
• DO NOT obstruct the flow of combustion and ventilation air.
Moving, Handling, and Unpacking
Remove and discard all packing materials,
including cardboard and tape on the outside
and inside of the range.
Remove the burner grates, burner heads, and
bases from the cardboard top packaging.

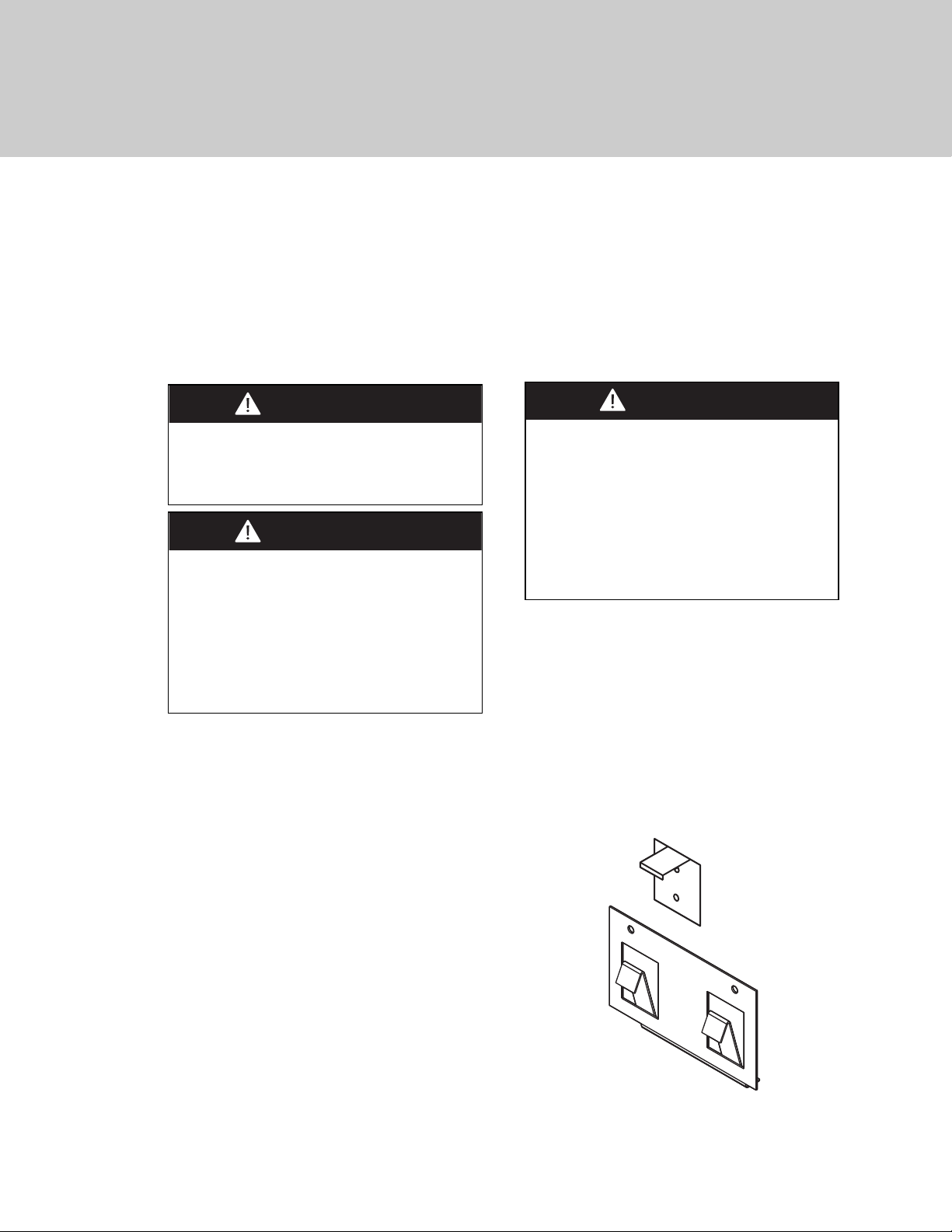

DO NOT discard the metal brackets supplied
with the range. These are the anti-tip devices
and must be installed with the unit.
Refer to
“Anti-tip Device Installation” section.
Some stainless steel parts may have a plastic
protective wrap which must be peeled off.
The interior should be washed thoroughly
with hot, soapy water to remove film residues
and any dust or debris before being used,
then rinsed and wiped dry. Solutions stronger
than soap and water are rarely needed.
CAUTION
Avoid any damage to oven vents. The
vents need to be unobstructed and open to
provide proper airflow for optimal oven
performance.
CAUTION
The cooling fan should be operating when
the unit is in operation. If you notice the
cooling fan is not operating or you observe
unusual or excessive noise coming from
the cooling fan, contact an Authorized
Service Center before continuing operation.
Failure to do so can result in damage to
the oven or surrounding cabinets.
General Information
DO NOT DISCARD ORIGINAL PACKING
MATERIALS UNTIL UNIT HAS BEEN
INSTALLED AND IS WORKING PROPERLY.
IF UNIT IS RETURNED FOR ANY REASON,
IT MUST BE PACKED IN ORIGINAL
PACKAGING

15
1
step
2
3
4
Open door completely. Fold latches backward until locked in place.
Slowly close until latches stop door. Lift door up and out.
Door Removal

16
1
step
1
1
2
3
2
step
Legs are packed in cardboard top pack. Note: Legs
should be installed near to where appliance is to be
used, as they are not secure for long transit.
Note: It is strongly recommended
that a pallet or lift jack be used rather than tilting. Raise
unit about a foot.
Unscrew shipping bolts from couplings on
all four corners
.
4
step
Lower range gently to keep any undue strain from
legs and internal mounting hardware.
3
step
Screw legs into couplings on all four corners. The 48” W.
ranges have two additional legs located in the center of
the unit.
Leg Installation
1
2
Measure the four corners in cutout area to verify
if flooring is level.
For uneven or sloped floors, level unit with metal
shims only, as the adjustment required may exceed
the thread available in the legs.
Leveling/Adjustments/Alignment

17
Installation
3
step
4
0.95 cm
step
Move unit into opening.
5
step
Check that unit is level side to
side and front to back. Side trim of the lowest
corner must be 3/8” (0.95 cm) above countertop.
If leveling is required, move unit out of opening.
6
1
2
1
step
Lift unit and prop on wood blocks.
7
step
Set the high corner of range so that the top of side trim is
3/8” (0.95 cm) above countertop. Level range to high
corner.

4
step
Attach bracket with
mounting hardware provided.
18
1
step
Measurement (A)
Measurement (A)
Measurement (A)
step
2
Measurement (A)
Measurement (A)
+1/2”
+1/2”
(1.3 cm)
(1.3 cm)
Measurement (A)
+1/2”
(1.3 cm)
X
X
Y
Y
Measure from floor to bottom
of the anit-tip opening located on the back of
range. This will be measurement (A).
Locate anti-tip bracket on rear wall with the top left corner at
measurement (A) plus 1/2” (1.3 cm) from the floor and “X” dimension
(see chart) from where the right side of range (facing range) is to be
located and “Y” dimension (60” ranges only-see chart) from where the
left side of the range (facing range) is to be located.
WARNING
TIPPING HAZARD
To reduce the risk of property
damage or personal injury;
install anti-tipping device
provided in accordance with
the installation instructions
in this document. Device
must be engaged properly to
prevent product from tipping
over.
Anti-tip Device Installation (Wall Mount)
3
step
Mark and drill holes where bracket will be located.
Installation
Dimension
“X”
Dimension
“Y”
30” 21-1/2”
(54.6 cm) N/A
36” 24-1/2”
(62.2 cm) N/A
48” 21-1/2”
(54.6 cm) N/A
60” 21-3/4”
(55.2 cm)
5-1/2”
(14.0 cm)

19
Installation
1
A
Ø 1/8”
Ø 1/8”
(.32 cm)
(.32cm)
Ø 1/8”
(.32 cm)
1-1/4”+ B*
1-1/4”+ B*
1-1/4”+ B*
1
1
2
2
Anti-tip Device Installation (Floor Mount)
2
1
x2
3
1
2
4
1
Locate anti-tip bracket hook on the floor Dim A from side cabinet
and 1-1/4” (3.2 cm) from rear wall when using an island trim or high
shelf. If using an 8” (20.3 cm) backguard, add Dim B to the 1-1/4”.
Mark and drill 1/8” (.32 cm) holes where bracket will be located.
Mount anti-tip bracket hook to floor using screws
provided. Remove two screws from back of range.
Attach bracket to back of range using two screws.
A B
*(Add only when
using 8” backguard)
30” 12-3/4”
(32.4 cm)
3/8”
(.95 cm)
36” 16”
(40.6 cm)
1/2”
(1.3 cm)
48” 16”
(40.6 cm)
1/2”
(1.3 cm)
60” 16”
(40.6 cm)
1”
(2.5 cm)

20
1
step
Slide range into place. Be sure
wall anit-tip bracket slides into the anit-tip
opening and floor anti-tip hook and bracket are
engaged.
Final Installation
DANGER
FIRE HAZARD
Backguards come standard with
standoff spacers which provide
a barrier between back of range and rear
wall. These must be in place for adequate
ventilation. Standoff spacers can only be
removed if range is installed against a
Non-Combustible wall.
Standoff Spacer Removal
Installation
2
step
Make sure rear trim is properly installed.
1
step
Connect gas and electrical. Before placing appliance in
operation, always check for gas leaks. This must be
performed by your dealer, a qualified licensed plumber, or
gas service company.
DANGER
GAS LEAK HAZARD
To avoid risk of personal injury or
death; leak testing of the
appliance must be conducted
according to the manufacturer’s instructions.
Before placing appliance in operation, always
check for gas leaks with soapy water solution.
• DO NOT USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS.
Connecting Gas & Electric
