Vine TJ-225 User manual

Smart Wi-Fi Thermostat
with Nightlight
TJ - 225
User Manual
R

TJ-225 Smart Wi-Fi Thermostat with NightlightInstallation Guide
Wi-Fi Thermostat
Two screws and anchors
Flathead screwdriver
Wire labels
Jumper wire
First things first. Here ’s what you ’ll find in the box
01

You may also need these tools:
Compatibility Section
For conventional ( gas / oil / propane / electric ) heat-pump and dual fuel systems.
> 2-Heat & 2-Cool > 1-Heat & 1Cool > Heat Only > Cool Only
> Heat Pump W W/O Emerg. Heating or Aux. Heating
C-Wire required to power the thermostat
Note: If you’re uncertain about your wiring, get Professional help please!
Phillips screwdriver
Pencil
Level
02
Home Wi-Fi Password

Incompatible wiring and voltage
Please check your old thermostat’s wall plate have any below indicators?
• Does not work with electric baseboard heat ( 110VAC~240VAC )
• Does not work with millivolt systems
• Does not support S terminals for indoors and outdoors sensors.
NOTE : If you are unsure, please contact a professional or double check at www.VINECONNECTED.com
03
110 VAC
or
120 VAC
or
240 VAC
L1 L2

04
Download the App
iOS/Android
There are three ways to download the
Vine App for your smart device:
App Download
1. Search Vine Smart Control in the App Store or Google Play
Store,then download;
2. Use your smart device to scan the QR code on the left for an
automatic download;
3. Go to www.vineconnected.com, click App from the menu to
download.

05

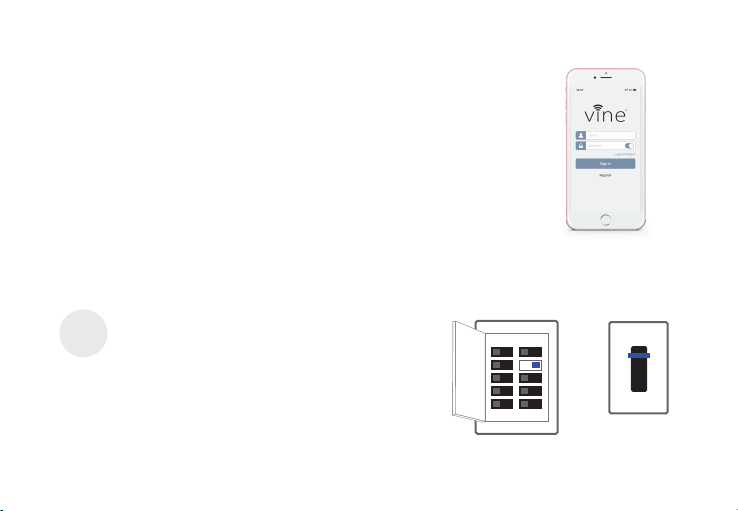

Create an account
When you download the Vine Smart Control app, you will be prompted to
create an account. This is required to access your thermostat remotely and use
all the features Vine offers. Use a valid email address and a password of your
choosing to create an account. Remember this email address and password.
Your Vine thermostat will be linked to this email address once it is registered.
Installation
Switch off power
Step 1
This TJ-225 thermostat is designed to work on most 24V-AC low voltage heating and cooling systems
such as gas and oil furnaces, heat pumps, and single or dual-stage systems.
This protects you and avoids blowing a fuse in your
equipment. To make sure the power is off, change the
temperature with your current thermostat and wait at least
five minutes to be sure that your system doesn’t turn on. Breaker Box
Switch
or
OFF
ON

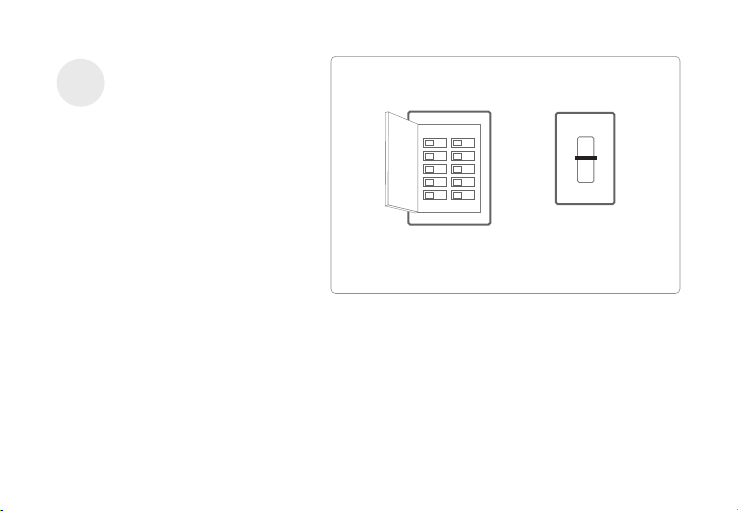

Switch off power
Step 2
This protects you and avoids
blowing a fuse in your
equipment. To make sure the
power is off, change the
temperature with your current
thermostat and wait at least
five minutes to be sure that
your system doesn’t turn on.
Breaker Box
Switch
or
06
OFF
ON

Check that your system is off
Step 3
Remove your old thermostat from the wall plate
Step 4
Confirm your system is off by turning on your heat ( during winter ) or your AC ( during
summer ). Wait a few minutes—you should not feel air coming from your vents.
NOTE : If you have a digital
thermostat that has a
blank display, skip this
step.
Most thermostats allow you to remove the main unit and provide
access to a wall plate which holds the wiring terminals, you can
take off the thermostat by grasping and gently pulling. Some
thermostats may have screws, buttons, or clasps.
NOTE : Do not remove any wires from your thermostat at
this time!
07

G
C
Y
R
Take a picture of the wires
Step 5
Label the wires
Step 6
Take a picture of your existing wall plate’s
wiring and save it for reference. Make sure
you can read the wire terminal labels.
Use the wire label provided with your new
thermostat to label each wire on your old wall
plate.
NOTE : If you have an Rc or Rh wire, put the R
label on it.
08
G
C
Y
R

Disconnect the wires from the old thermostat
one by one, you may need a screwdriver to
release wires from terminals.
NOTE : Wrap the wires around a pen or
pencil so they don’t fall back into the hole in
the wall.
Use the enclosed screws and anchors to
mount the new wall plate. In most cases, you
can utilize the same mounting position of
your old thermostat. Be sure to check the
alignment of your wall plate pre and post
installation of the thermostat unit.

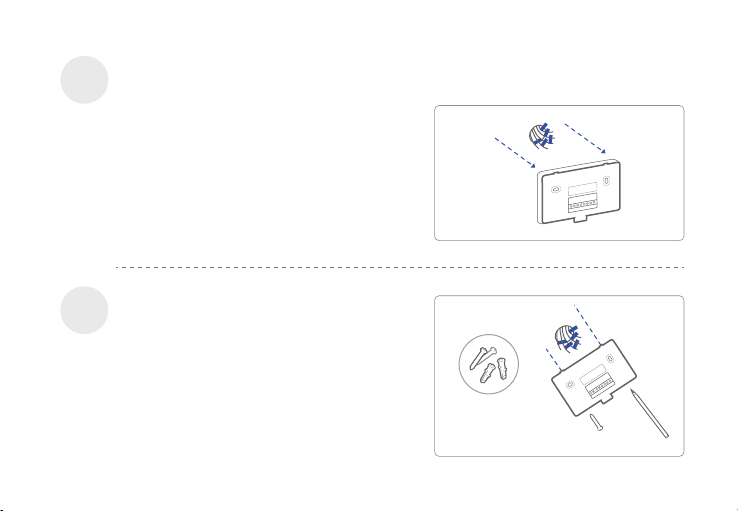

Disconnect the wires and remove the old wall plate
Step 7
Mount the New Wall Plate
Step 8
Compatibility
Checker
09

Look at the thermostat wiring photo you took. The following are wiring diagrams for common
systems, please confirm you have a C connected to your old thermostat.
Terminal
RC
RH
C
G
Y
Y2
W/E
O/B/W2
Conventional System
Power for cooling, 24V
Power for heating, 24V
Common wire, 24V
Fan
Power for cooling, 24V
Power for heating, 24V
Common wire, 24V
Fan
1st Stage Cool
2nd Stage Cool
1st Stage Heat
2nd Stage Heat
1st outdoor Stage Heat
2nd outdoor Stage Heat
1st Stage Auxiliary/Emergency Heat
Changeover (reversing valve)
connection for heat pump
Heat Pump System
10

Thermostat
RC RH GW/E
1st Stage Heat 2nd Stage Heat
Y C Y2 O/B/W2

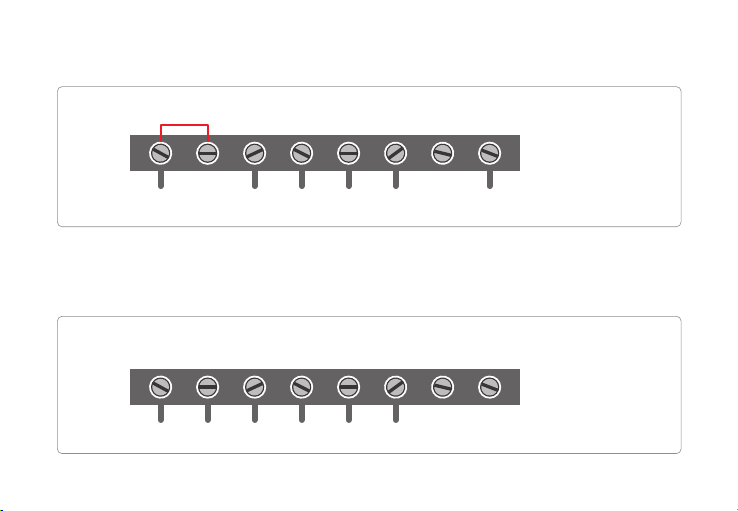

Single Stage Heat / Two Stage Heat- Furnace / Boiler with C wire
Thermostat
RC RH GW/E Y C Y2 O/B/W2
Combined Single Stage Heat and Single Cool Stage with C wire
（ Remove Pre-installed Jumper ）
Cool Furnace and Air Conditioner
11

1st Stage Cool
1st Stage
Heat
Thermostat
RC RH GW/E
Emerg./AUX
Heating 2nd Stage Heat
2nd Stage Cool
Y C Y2 O/B/W2

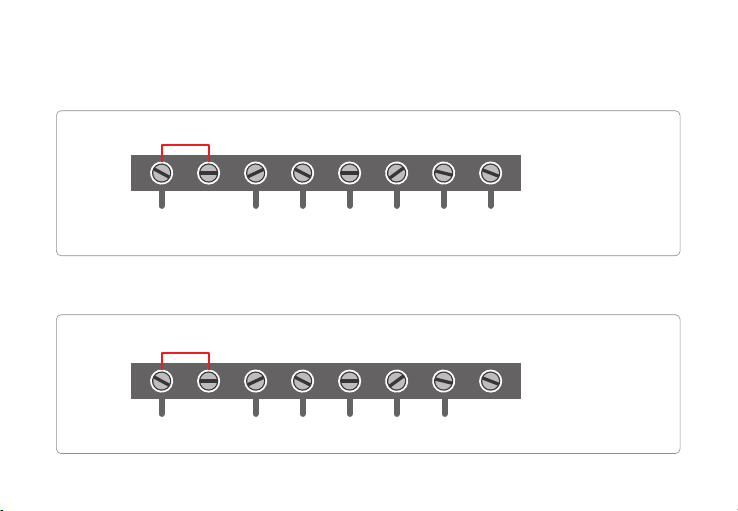

Single Stage / Two Stage Heat Pump with Emergency Heat and Auxiliary
Heat with C wire
Thermostat
GW/E Y C Y2 O/B/W2
Single Stage Cool / Two Stage Cool‒Air conditioner
RC RH
12

Dual Fuel System-Combined Single Stage Heat Pump and Single Stage
Furnace with C wire
Thermostat
RC RH GW/E Y C Y2 O/B/W2
13

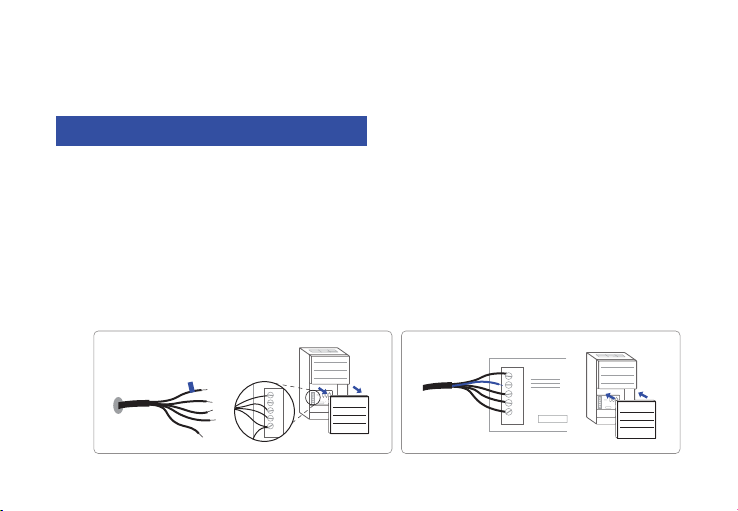

If you do not have a C-wire connected to your old thermostat, please
check below wiring diagram.
Check for spare wire behind your wall plate or old thermostat, if you have a spare wire, connect
it to the C terminal on the new wall plate.
Remove cover from furnace or heating system, open the heating and cooling system’s cover to
find the control board. You should see the same terminal labels that are on your thermostat.
Find the other end of the unused wire, locate the bundle of wire that are the same as the ones
at your thermostat.
Connect the unused wire to the C-terminal.
Close the cover to the furnace or heating system.
Do you have a spare wire? Yes.
1 .
2 .
3 .
4 .
5 .
G
C
R
W/E
Y
G
C
R
W/E
Y
c
14

Conventional system without the C wire ( also commonly called a 4-wire system )
Remove cover from furnace or heating system, open the heating and cooling system’s cover to
find the control board. You should see the same terminal labels that are on your thermostat,
move the G wire to the C terminal, then use the included jumper wire to connect G with Y.
At the thermostat, connect C with the G wire;
With this configuration the thermostat will have no fan control.
NOTE : You may need to unscrew the cover. The control board may be at the top or bottom.
Thermostat
RC RH GW/E Y C O/B
Furnace wiring
termind
Move G wire to C terminal
Move G wire to C terminal
R
G
W/E
Y
CO/B
1 .
2 .
3 .
Furnace
jumper
G
C
R
W/E
Y
15

Heat only 3-Wire system
Heating wiring
terminal
R
GW/E
Y C O/B
Thermostat
RC RH
GW/E Y C O/B
Move G wire to C terminal
Move G wire to C terminal
16

Move G wire to C terminal
Cool only 3-Wire system
A/C wiring terminal
R
G
W/E
Y
CO/B
Thermostat
RC RH
GW/E Y C O/B
Move G wire to C terminal
17

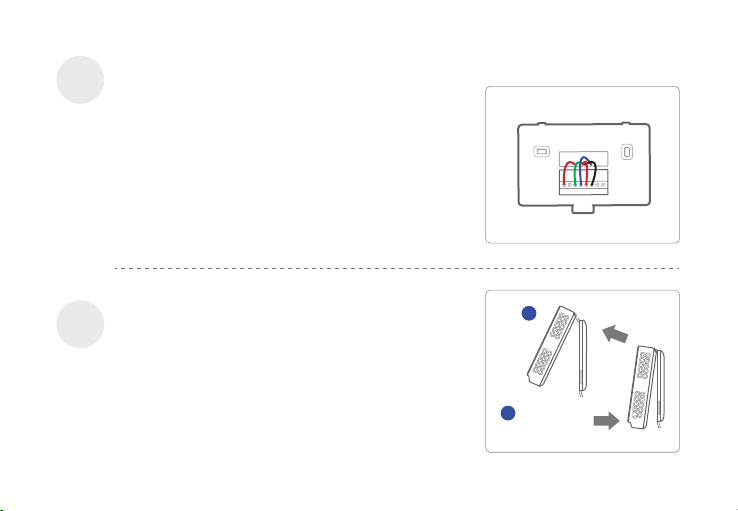

Refer to the above wiring diagram, insert all wires
vertically from the open socket into the proper
terminal. Ensure each wire is inserted into the
matching terminal (refer to the photo taken previously
if needed). Pull wires gently to ensure wires are
securely fastened.
When all wire connections have been completed, place
any excess wire back inside the wall.
First align the two clips on the back of the TJ-225 into
the corresponding slots on the top of the wall plate.
push
Connect the wires to the new wall plate
Step 9
Attach Thermostat to the Wall
Step 10 1
2
clips
push
RC RH G W/E Y C Y2 O/B
/W2
Firmly press
forward to secure it
into position.
18

Turn on the switch that controls your heating and cooling system, the thermostat will
power on and prompt you to start the setup. If you are having trouble, please refer to our
help guide.
We are here to help.
WEBSITE : www.VINECONNECTED.com (online)
EMAIL : [e-mail]
Breaker box
Switch
Power on and Enjoy
Step 11
ON
ON
OFF
19
