PEDESTAL
3320
MAINTENANCE MANUAL
AND
ILLUSTRATED PARTS LIST
PUBLICATION PART No. 3320-9
ISSUE 9
Copyright © Vinten Broadcast Limited 1989-1998
All rights reserved throughout the world. No part of this document may be stored in a retrieval system,
transmitted, copied or reproduced in any way including, but not limited to, photocopy, photograph, magnetic or
other record without the prior agreement and permission in writing of Vinten Broadcast Limited.
Vinten and Vision are registered trademarks of Vinten Broadcast Limited.

3
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Foreword
This manual provides full and detailed maintenance and spare parts information for the Vinten®Vision®
pedestal.
It is recommended that this manual is read carefully and the illustrations studied prior to operating or servicing
the pedestal. Attention to the details contained herein will ensure that the pedestal will operate efficiently with
the minimum of attention over a long service life. Particular attention must be paid to cleaning, especially after
use in adverse conditions.
To order spare parts or to obtain further information, application should be made to Vinten Broadcast Limited
or to your local distributor.
WARNING!: Read the Safety Section on page 7 before using this pedestal or attempting
any adjustment or repair
NOTE: Information contained in this document is subject to change.
Vinten Broadcast Ltd reserves the right, without notice, to make changes in equipment
design or performance as progress in engineering, manufacturing or technology may
warrant.

4
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Notes to readers
This is the on-line version of ‘Vision Pedestal Maintenance Manual’ (3320-9). Readers should be aware that
the pagination differs between on-line and printed versions.
Navigation
Clicking the mouse on any blue text will move you around the document. For example, if you click on one of
the blue call-outs on an exploded drawing, you will be taken to the appropriate line in the relevant parts list.
Clicking here will take you to the Contents Page.
Clicking here will take you to the first page.
Clicking here will take you to the previous page.
Clicking here will take you to the next page.
Click here to go back to the previous view.
Alternatively, you may use the Acrobat Reader navigation buttons.
Contents

5
Contents
Page
Previous
Page
First
Page
Next
Page
Previous
View
Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Notes to readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety - Read This First! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Design Improvements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Section 1 -
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Section 2 - Operation
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Assembling the pedestal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pressurizing the pedestal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Using the pedestal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Transportation and storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Section 3 - Tools and Materials
Special tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Consumable materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Section 4 - Servicing
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Routine checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Minor repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Section 5 - Repair
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Disassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6
Contents (Cont) Page
Previous
Page
First
Page
Next
Page
Previous
View
Section 6 - Illustrated Parts List
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Ordering spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Main assembly part numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Illustrations Page
Fig 1.1 Vision Pedestal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fig 2.1 Control Valve. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fig 4.1 Bottom clamp adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fig 4.2 Elimination of radial and side play on the top stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fig 6.1 Vision Pedestal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Fig 6.2 Vision Pedestal Top Stage (Sheet 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Fig 6.2 Vision Pedestal Top Stage (Sheet 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Fig 6.3 Vision Pedestal - Elevation Tube. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Fig 6.4 Vision Pedestal - Outer Tube. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Fig 6.5 Vision Pedestal - Skid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
ASSOCIATED PUBLICATION
Vision Pedestal Operators Guide - Publication Part No. 3320-8

7
Contents
Previous
Page
First
Page
Next
Page
Previous
View

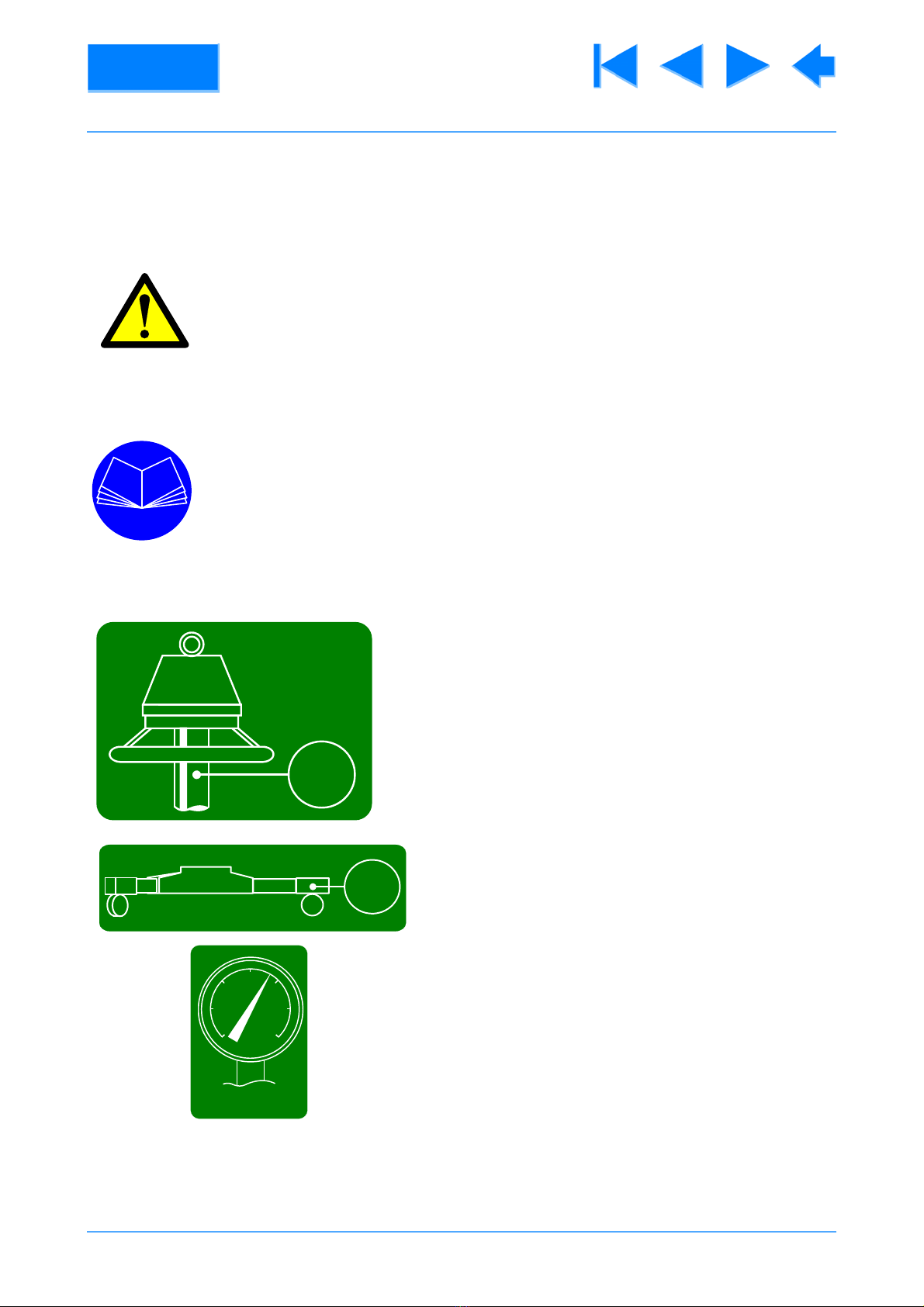

Safety - Read This First!
Warning symbols in this maintenance manual
Where there is a risk of personal injury, injury to others, or damage to the pedestal or
associated equipment, comments appear, highlighted by the word WARNING! and
supported by the warning triangle symbol.
Warning symbols on the pedestal
On encountering the warning triangle and open book symbols it is imperative that you
consult this maintenance manual before using this pedestal or attempting any adjustment or
repair.
Critical data
Mass
Column 6 kg (13 lb)
Skid 5.5 kg (12 lb)
Load
Maximum Load 20 kg (44 lb)
Pressure
Maximum Pressure 9.6 bar (140 psi)
≤20 KG
6 KG
≤9.6 BAR
5.5

8
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Abbreviations
The following abbreviations are used in this publication:
ac alternating current
AAmps
AF across flats
A/R as required
ASME American Society of Mech Engineers
assy assembly
BS British Standard
BA British Association thread
BSF British Standard Fine thread
BSP British Standard Parallel Pipe thread
BSW British Standard Whitworth thread
btn button
chs cheese
C of G centre of gravity
comp compression
csk countersunk
cu cubic
c/w complete with
dc direct current
dia diameter
ft foot
hd head
hex hexagon
Hz Hertz (frequency)
IC integrated circuit
ID inside diameter
in. inch
kg kilogram
lb pound (weight)
LF Lubricated Friction
LH left hand
MISO metric thread
mmetre
mm millimetre
NNewton
NPT National Pipe thread
NI not illustrated
No. number
OD outside diameter
PCB printed circuit board
PCD pitch circle diameter
pozi Pozidriv
psi pounds per square inch
pt point
PTFE Polytetrafluoroethylene
PVC Polyvinyl chloride
RH right hand
sect section
skt socket
SWG standard wire gauge
thk thick
UNC Unified Coarse thread
UNF Unified Fine thread
VVolts
WWatts

9
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Technical Specification
STUDIO OB
Payload 20 kg (44 lb) 20 kg (44 lb)
Column weight 6 kg (13 lb) 6 kg (13 lb)
Skid weight 5.5 kg (12 lb) 5.5 kg (12 lb)
Total pedestal weight 11.5 kg (25 lb) 11.5 kg (25 lb)
Minimum height to 100 mm bowl adaptor mounting face 743 mm (30.2 in.) 768 mm (29.2 in.)
Maximum height to 100 mm bowl adaptor mounting face 588 mm (63.5 in.) 1613 mm (62.5 in.)
Minimum height to flat mounting face 628 mm (25.7 in.) 653 mm (24.7 in.)
Maximum height to flat mounting face 1473 mm (59 in.) 1489 mm (58 in.)
On-shot stroke 414 mm (16.3 in.) 414 mm (16.3 in.)
Wheel diameter 100 mm (4 in.) 125 mm (5 in.)
Skid leg radius 500 mm (19.7 in.) 500 mm (19.7 in.)
Doorway tracking width 991 mm (39 in.) 991 mm (39 in.)
Transit doorway width 686 mm (27 in.) 686 mm (27 in.)
Steering ring diameter 280 mm (11 in.) 280 mm (11 in.)
Max working pressure 9.6 bar (140 psi) 9.6 bar (140 psi)
Relief valve pressure 11.3 bar (165 psi) 11.3 bar (165 psi)

10
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Design Improvements
DETAILS
SERIAL No.
INFORMATION
New design relief valve 582
‘CE’ marking 1245
