Vinten pro-touch Pro-10 System User manual

Contents
Vinten
Camera Control Solutions
Next
Page
Previous
View
pro-touch

2
Contents
Previous
Page
First
Page
Next
Page
Previous
View
protouch
Pro-10 System
MAINTENANCE MANUAL
AND
ILLUSTRATED PARTS LIST
PUBLICATION PART No. 3809-9
ISSUE 3
Copyright © Vinten Broadcast Limited 2005
All rights reserved throughout the world. No part of this document may be stored in a retrieval system,
transmitted, copied or reproduced in any way including, but not limited to, photocopy, photograph, magnetic or
other record without the prior agreement and permission in writing of Vinten Broadcast Limited.
Vinten is a registered trademark of Vinten Broadcast Limited.

3
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Foreword
This manual provides full and detailed maintenance and spare parts information for the Vinten®protouch Pro-
10 system, comprising a Pro-10 pan and tilt head, a Pozi-Loc tripod, floor spreader and case.
It is recommended that this manual is read carefully and the illustrations studied prior to operating or servicing
the equipment. Attention to the details contained herein will ensure that the equipment will operate efficiently
with the minimum of attention over a long service life. Particular attention must be paid to cleaning, especially
after use in adverse conditions.
To order spare parts or to obtain further information, application should be made to Vinten Broadcast Limited
or to your local distributor, or visit our website at www.vinten.com.
Associated Publication
protouch Pro-10 System Operators Guide
Publication Part No. 3809-8
WARNING!: Read the Safety Section on page 5 before using this pan and tilt head or
attempting any adjustment or repair.
NOTE: Information contained in this document is subject to change.
Vinten Broadcast Ltd reserves the right, without notice, to make changes in equipment
design or performance as progress in engineering, manufacturing or technology may
warrant.

4
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Notes to readers
This is the on-line version of ‘protouch Pro-10 System Maintenance Manual’ (3809-9). Readers should be
aware that the pagination differs between on-line and printed versions.
Navigation
Clicking the mouse on any blue text will move you around the document. For example, if you click on one of
the blue call-outs on an exploded drawing, you will be taken to the appropriate line in the relevant parts list.
Clicking here will take you to the Contents Page.
Clicking here will take you to the first page.
Clicking here will take you to the previous page.
Clicking here will take you to the next page.
Click here to go back to the previous view.
Alternatively, you may use the Acrobat Reader navigation buttons.
Contents

5
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Safety - Read This First!
Warning symbols in this maintenance manual
Where there is a risk of personal injury, injury to others, or damage to the system or
associated equipment, comments appear, highlighted by the word WARNING! and
supported by the warning triangle symbol.
Critical data
Mass
Pro-10 pan and tilt head (complete with pan bar and bowl clamp) 2.7 kg (5.9 lb)
Pozi-Loc tripod 3.2 kg (7.0 lb)
Floor spreader 0.7 kg (1.5 lb)
Load
Pro-10 pan and tilt head
Optimum payload 7.5 kg (16.5 lb)
Maximum payload 10 kg (22 lb)
Pozi-Loc tripod - maximum payload 25 kg (55 lb)

6
Contents
Page
Previous
Page
First
Page
Next
Page
Previous
View
Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Notes to readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety - Read This First! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Design Improvements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Introduction and Description
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mounting the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pan and tilt brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pan and tilt drag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Tools and Materials. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Servicing
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Routine maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Repair
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
‘Pozi-Loc’ tripod leg clamp adjustment
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Assembly
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Replacing tripod legs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Replacing the components of the top clamp assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Replacing the components of the bottom clamp assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Illustrated Parts List
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Ordering spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Main assembly part numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Illustrations Page
Fig 1.1 Pro-10 pan and tilt head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fig 1.2 Pozi-Loc tripod and floor spreader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fig 2.1 Balance graph. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fig 4.1 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fig 4.2 Pan brake knob and camera slide plate knob adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Fig 4.3 ‘Pozi-Loc’ tripod leg - top clamp adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fig 6.1 Pro-10 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Fig 6.2 Pro-10 Pan and Tilt Head - Main Castings and Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Fig 6.3 Pro-10 Pan and Tilt Head - RH Side Plate, Tilt Drag and Pan Bar . . . . . . . . . . . . . . . . . . . . . . . . . 43
Fig 6.4 Pro-10 Pan and Tilt Head - Pan Drag and Ball Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Fig 6.5 Pozi-Loc Two-Stage Tripod (3819-3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fig 6.6 Leg Assembly (3819-11). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Fig 6.7 Floor Spreader (3818-3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

8
Contents
Previous
Page
First
Page
Next
Page
Previous
View
ac alternating current
AAmps
AF across flats
A/R as required
ASME American Society of Mech Engineers
assy assembly
BS British Standard
BA British Association thread
BSF British Standard Fine thread
BSP British Standard Parallel Pipe thread
BSW British Standard Whitworth thread
btn button
chs cheese
C of G centre of gravity
comp compression
csk countersunk
cu cubic
c/w complete with
dc direct current
dia diameter
ft foot
hd head
hex hexagon
Hz Hertz (frequency)
IC integrated circuit
ID inside diameter
in. inch
kg kilogram
lb pound (weight)
LF Lubricated Friction
LH left hand
MISO metric thread
mmetre
mm millimetre
NNewton
NPT National Pipe thread
NI not illustrated
No. number
OD outside diameter
PCB printed circuit board
PCD pitch circle diameter
pozi Pozidriv
psi pounds per square inch
pt point
PTFE Polytetrafluoroethylene
PVC Polyvinyl chloride
RH right hand
sect section
skt socket
SWG standard wire gauge
thk thick
UNC Unified Coarse thread
UNF Unified Fine thread
VVolts
WWatts
Abbreviations
The following abbreviations are sued in this publication:

9
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Technical Specification
Pro-10 pan and tilt head
Weight
Head 2.32 kg (5.1 lb)
Pan bar 0.28 kg (0.6 lb)
Bowl clamp 0.1 kg (0.2 lb)
Height to mounting face 13.8 cm (5.4 in.)
Length 16 cm (6.3 in.)
Width 15.8 cm (6.2 in.)
Load capacity 10 kg (22 lb)
Tilt range +90° -60°
Pan range 360°
Tripod fixing 75 mm ball
Pozi-Loc tripod
Levelling bowl diameter 75 mm
Maximum height with floor spreader 156.2 cm (61.5 in.)
Minimum height with floor spreader 41.6 cm (16.4 in.)
Weight 3.2 kg (7.0 lb)
Transport length 71 cm (28.0 in.)
Recommended maximum load 25 kg (55 lb)
Floor spreader
Maximum leg radius 77 cm (22.5 in.)
Minimum leg radius 38 cm (15 in.)
Weight 0.7 kg (1.5 lb)

10
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Design Improvements
DETAILS
SERIAL No.
INFORMATION
Improvements to tripod bottom clamp adjuster Tripod 3810-03515

11
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Section 1
Introduction and Description
Contents Para
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Description
Pro-10 pan and tilt head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Pozi-Loc tripod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Floor spreader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Introduction
1 The protouch Pro-10 system from Vinten comprises a Pro-10 pan and tilt head, a Pozi-Loc two-stage
tripod, an adjustable floor spreader and a soft case.
Description
Pro-10 pan and tilt head
2 The Pro-10 pan and tilt head (Fig 1.1) is designed to support the latest professional digital video
cameras, up to 10 kg (22 lb) in weight. It embodies fluid drag assemblies for pan and tilt motions with brakes
on each axis to lock the head in any position. An illuminated levelling bubble is fitted to the rear of the head
and a quick-release, adjustable slide plate is provided for camera mounting. A single fixed pan bar is supplied.
Balance
3 The balance spring in the Pro-10 pan and tilt head is set for an optimum payload of 7.5 kg (16.5 lb) at a
centre of gravity (C of G) height of 12.5 cm (4.9 in.), but the head will support a payload of up to 10 kg (22 lb).
Pan and tilt drag
4 Both the pan and tilt mechanisms incorporate fluid drag assemblies to ensure smooth movement of the
camera about these axes and are fitted with control knobs (8)(17) to adjust the drag setting.
Pan and tilt brakes
5Brakes(4)(11) on each axis are provided to lock the head in any position.
Illuminated levelling bubble
6 To enable the head to be levelled, an illuminated levelling bubble (10) is fitted to the rear of the head.
When the switch (13) is pressed, the bubble will be illuminated for approximately 15 seconds. The battery for
the illuminated bubble is contained in a battery compartment (16).

12
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Fig 1.1 Pro-10 pan and tilt head
(1)
(2)
(3)
(4)
(6)
(5)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(16)
(17)
(18)
(15)

13
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Camera mounting
7 The camera is attached to the head by means of a slide plate (14), which is provided with a spring-
loaded locating pin (5) and 1/4 in. (18) and 3/8 in. (1) screws. When not in use the screws are stowed in the
camera mounting platform (6). A clamp (7) is provided to hold the slide plate in position and a lock (2) prevents
its inadvertent removal from the head.
Pan bar
8 Pan bar mounting points (12) are located at the rear of the head, on either side of the camera mounting
platform. The pan bar is attached using a pan bar clamp, with angular adjustment available on the mount
serrations. A single fixed pan bar (3) is supplied. A second pan bar may be fitted.
Pozi-Loc tripod
9 The Pozi-Loc two-stage tripod (Fig 1.2) has aluminium legs and a 75 mm levelling bowl (19). It is fitted
with the highly-efficient Pozi-Loc leg clamps (20), which provide quick set-up and easy adjustment.
10 An optional ‘Spread-Loc’ mid-level spreader may be fitted to mounting points (25) on the legs.
Floor spreader
11 The floor spreader (Fig 1.2) increases rigidity of the tripod. Being flexible, the spreader compensates for
uneven ground, protects floors and carpets and prevents the tripod legs sinking into soft ground. It should be
used at all times.
12 Each arm is of the spreader is adjustable for length (22) and the tripod feet are secured by rubber
straps (24).

14
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Fig 1.2 Pozi-Loc tripod and floor spreader
(19)
(20)
(21)
(22)
(24)
(23)
(25)
(26)

15
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Section 2
Operation
Contents Para
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Assembly
Tripod and spreader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pan and tilt head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mounting the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pan and tilt brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Pan and tilt drag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
General
1 To identify components, please refer to Fig 1.1 and Fig 1.2.
Assembly
2 If not already done, assemble the system as follows:
Tripod and spreader
3 Lift the tripod out of the case using the finger holes just below the top clamps.
4 Release the leg tie strap (24) and spread the legs.
5 Secure the spreader to the tripod feet with the rubber straps (23).
6Adjust the operating height by undoing the leg clamps (20) and pulling the tripod up to the desired
height. Adjust the spreader (22) if necessary.
7 Tighten the clamps (20) until an audible click is heard and the knob is in the horizontal, locked position.
8 In adverse conditions secure the tripod using the tie-down hook (26), or suspend a weight from the
hook.
NOTE: Once assembled, keep the spreader attached to the tripod
WARNING!: Use care when the tripod is fully extended and the floor spreader is in the
closed position, as stability will be reduced.

16
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Pan and tilt head
9 The Pro-10 pan and tilt head is supplied with a removable 75 mm ball mount. Adaptors are available
which enable the head to be installed on tripods or pedestals fitted with other mountings. These are listed
under ‘Optional Accessories’.
10 To install the head, remove the bowl clamp assembly (9) from the head, position the head on the tripod
and refit the bowl clamp assembly from below. Level the head with the aid of the level bubble (10) and tighten
the bowl clamp. The level bubble may be illuminated by pressing the switch (13). The light will extinguish after
approximately 15 seconds.
Mounting the camera
11 The balance spring in the Pro-10 pan and tilt head is set for an optimum payload of 7.5 kg (16.5 lb) at a
centre of gravity (C of G) height of 125 mm (4.9 in.), but the head will support a payload of up to 10 kg (22 lb).
The balance graph (Fig 2.1) shows the relationship between C of G height and payload for optimum
performance.
12 Remove the slide plate (14) from the head by releasing the slide plate clamp (7), pressing the slide lock
release (2) and pulling the plate out to the rear.
13 Install the required camera fixing screw (1) or (18) in the slide plate and retain with the rubber bung
(15). Stow the unused screw in the appropriate stowage (6) in the platform
14 Attach the slide plate to the camera or camera mounting plate under the approximate centre of the
camera's weight using the mounting screw and locating pin (5)(if appropriate).
15 Set the platform level and apply both the pan (11) and tilt brakes (4).
16 Push the slide plate and camera into the track in the platform, ensuring the slide lock release (2) snaps
into position.
17 Tighten the slide plate clamp (7).
Pan and tilt brakes
18 Brakes on each axis allow the head to be locked at any chosen position. The operating lever for the pan
brake (11) is at the rear of the head. The tilt brake (4) is operated by a lever on the left-hand side of the head.
19 To apply the brake, turn the lever fully clockwise. To release the brake, turn the lever counter--clockwise.
WARNING!: When the brakes are not in use, always turn the levers counter-clockwise.
DO NOT use the brakes to supplement drag.

17
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Pan and tilt drag
20 Both the pan and tilt mechanisms incorporate a fluid drag system to ensure smooth movement of the
camera about these axes.
21 The tilt drag adjustment knob (8) is on the right -hand side of the head, the pan drag knob (17) is on the
top of the body.
22 To increase drag, turn the appropriate knob clockwise. To decrease drag, turn the knob counter-
clockwise.
Fig 2.1 Balance graph
NOTE: Reduce drag to a minimum when the head is out of use for long periods.
20 0
19 0
16 0
18 0
170
15 0
14 0
13 0
12 0
11 0
10 0
90
80
70
60
50 34567 kg
2
3
4
5
6
7
8
in. mm
68101214 lb
Payl oa d
Centre of Gravity (C of G) Height
2
4
8910
16 18 2 0 2 2

18
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Section 3
Tools and Materials
Special tools
1 No special tools are required.
Consumable materials
2 The following consumable materials are required for certain procedures detailed in Sections 4 and 5.
Item Use
AGIP PV (NLGI 2) grease (white) General lubrication
Kluberlub BE41-501 grease (black) General lubrication
Shell Darina R2 grease (yellow) General lubrication
PTFE dry lubricant (Aerosol) Pan drag ball bearing
Optalus A0 140 Pan and tilt friction
White bearing grease (Vinten Part No. Z150-085) Tripod clamps
Loctite 221 (Vinten Part No. Z002-026) Screw locking

19
Contents
Previous
Page
First
Page
Next
Page
Previous
View
Section 4
Servicing
Contents Para
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Routine maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Battery replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjustments
Pan brake knob adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Camera slide plate knob adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
‘Pozi-Loc’ tripod leg clamp adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
General
1 Protouch products are robustly made to high engineering standards and little attention is required to
maintain serviceability save regular cleaning. Attention to the following points will ensure a long and useful
service life with minimum need for repair.
Cleaning
2 During indoor use, the only cleaning required should be a regular wipe over with a lint-free cloth. Dirt
accumulated during storage may be removed using a semi-stiff brush. Particular attention should be paid to
the ball mounting face of the head, the space between the tilting assembly and the base and the mounting
bowl of the tripod.
3 Use out-of-doors under adverse conditions will require special attention. Salt spray should be washed
off with fresh water at the earliest opportunity. Sand and dirt acts as an abrasive and should be removed using
a semi-stiff brush or vacuum cleaner.
Routine maintenance
4 During use, check the following:
4.1 Check the illumination of the level bubble. Replace battery if necessary.
4.2 Check the effectiveness of the pan brake. Reset as necessary.
4.3 Check the effectiveness of the camera slide plate clamp. Reset as necessary.
4.4 Check the effectiveness of the tripod leg clamps. Reset as necessary.
NOTE: Use only detergent-based cleaners. DO NOT use solvent- or oil-based cleaners, abrasives
or wire brushes to remove accumulations of dirt, as these damage the protective surfaces.

20
Contents
Previous
Page
First
Page
Next
Page
Previous
View
4.5 Check for ageing and cracking of the rubber foot securing straps on the spreader and renew if
necessary.
5 No further routine maintenance is required.
Battery replacement
6 The battery illuminates the level bubble (10) when the switch (13) is pressed. The level bubble remains
lit for approximately 15 seconds.
7 The battery should be replaced yearly or whenever the illumination is considered inadequate.
8 To replace the battery (Fig 4.1):
8.1 Tilt the head backwards to allow access to the battery cover (16) and apply the tilt brake (4).
8.2 Push down on the top of the battery cover (16) and pull forward.
8.3 Pull the battery (16.1) out of the battery compartment.
8.4 Push the replacement battery into the battery compartment, observing the correct polarity, as
indicated on the inside of the compartment
8.5 Refit the battery cover (16).
8.6 Press the switch (13) and ensure that the level bubble (10) is lit for approximately 15 seconds.

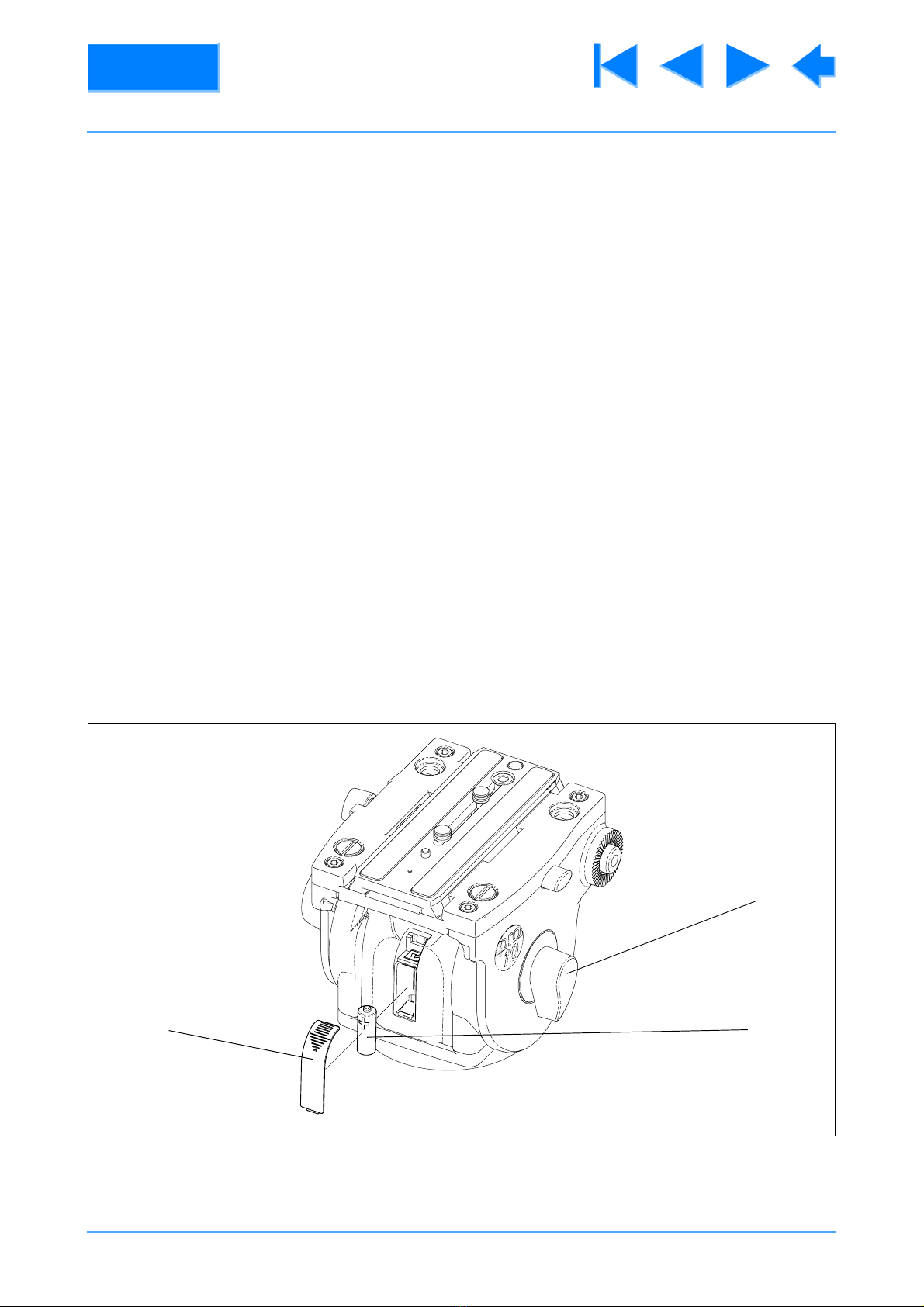

Fig 4.1 Battery replacement
(4)
(16.1)
(16)
