VIORE LCD22VXF7MPT User manual

2

1
2
Caution
Safety Information
3
3
4
5
Unit and Accessory
Product Feature
Getting Started-Front View
Getting Started-Rear View
6-7 Remote Control Key Functions
8-10
10-11
11-12
12-13
13-15
16
17
Basic operation
Picture menu options
Sound menu options
Channel menu options
Settings menu options

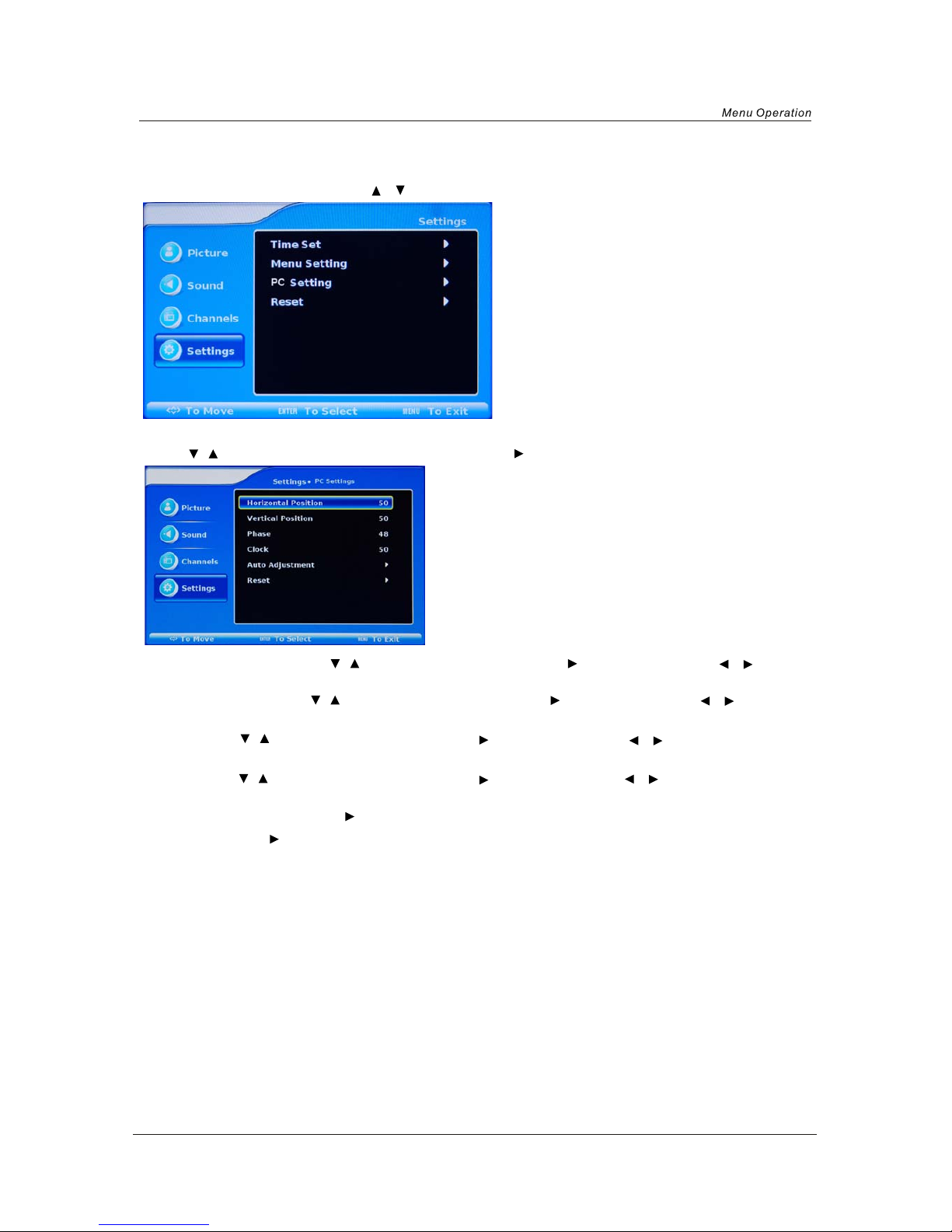

Settings menu options in VGA/PC

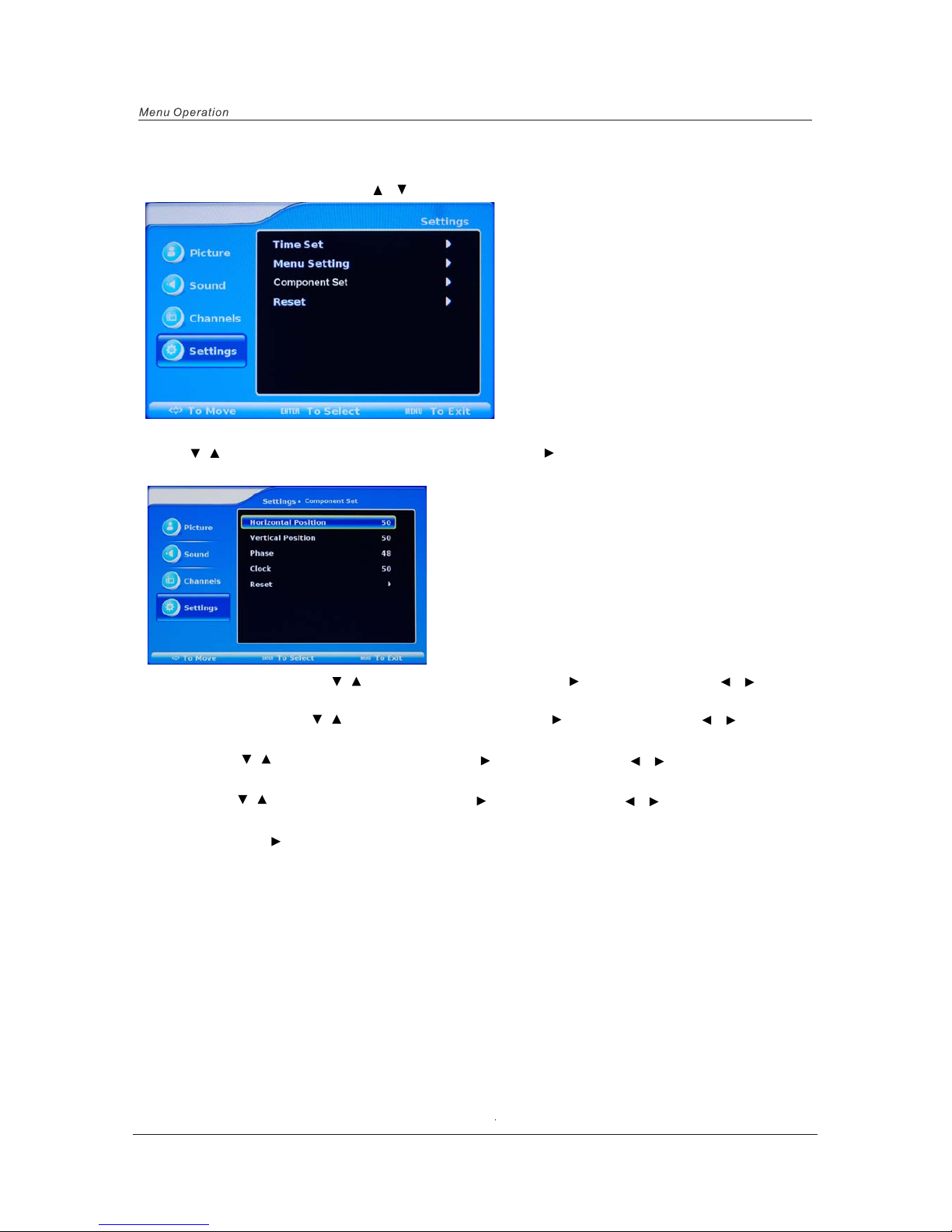

Settings menu options in Component

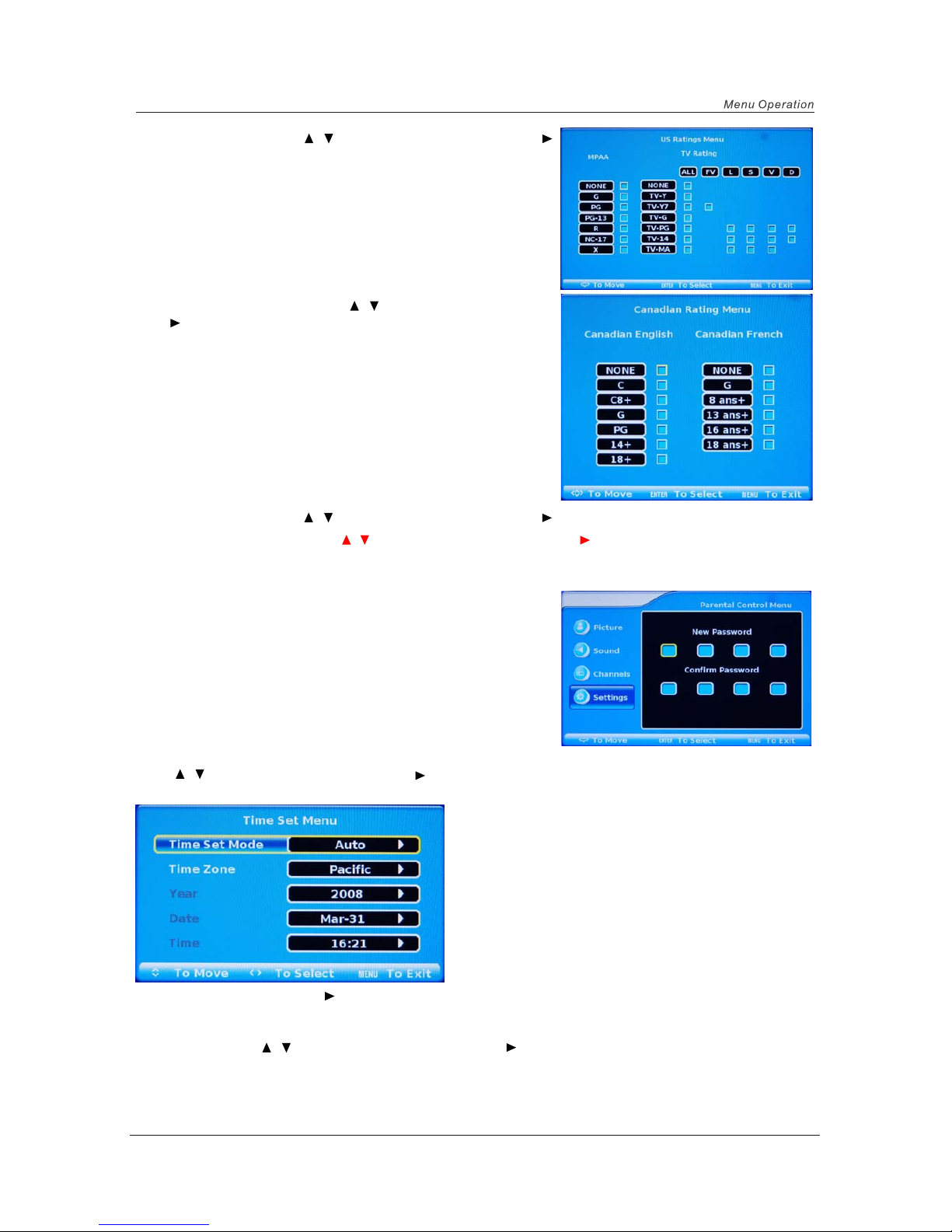

18 Parental Control
19-24 IPOD Operation
25-26 DVD basic operation
27-28 DVD System Setup
26 Disc Care
31
32
Simple Troubleshooting
Technical Specification
Caution
Remote
control
Menu
operation
DVD
operation
Troubleshooting
Specification
TV
information
Contents
IPOD
operation
29-30 Playing Flash Media
Playing
Flash Media

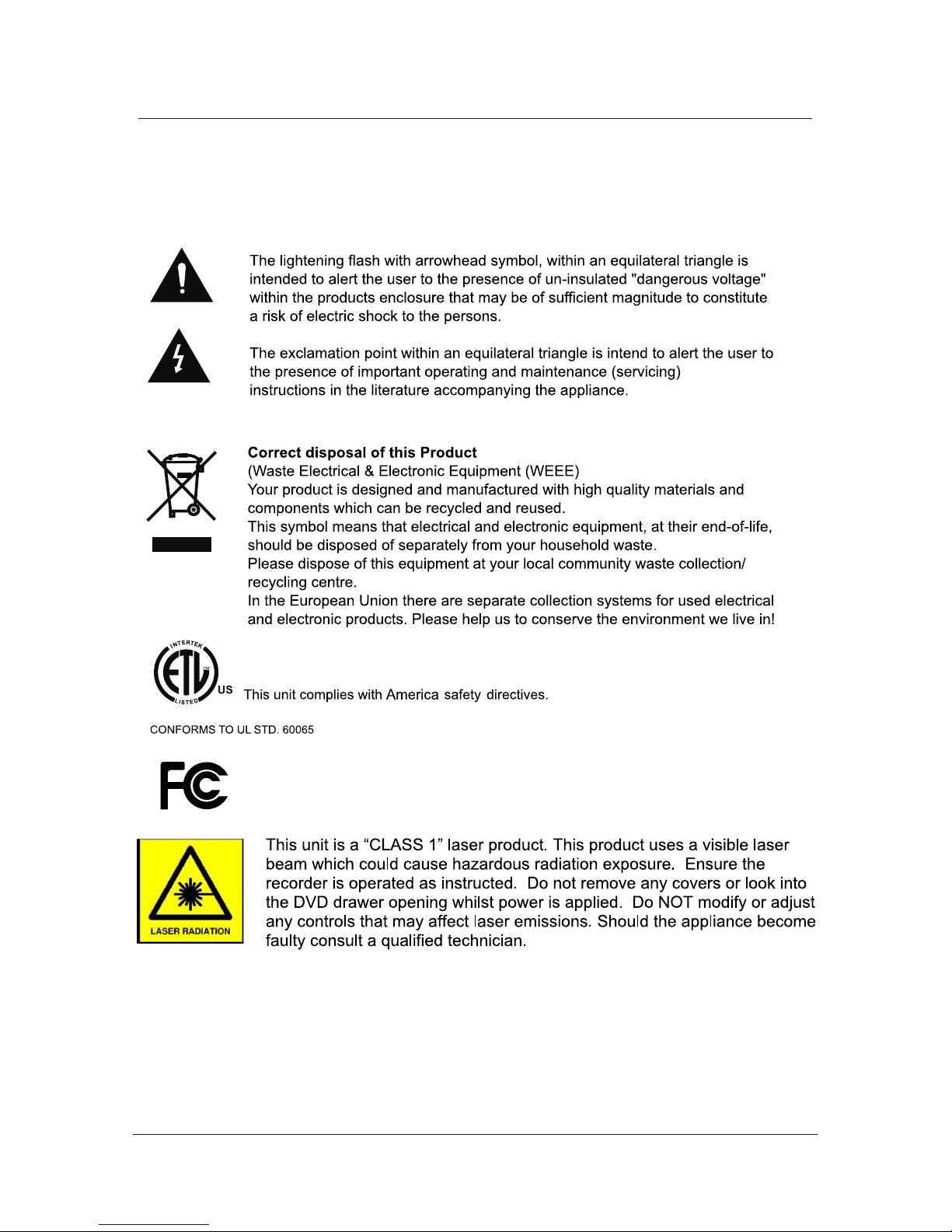

Caution
Caution
This unit complies with FCC directive.
3124140
1

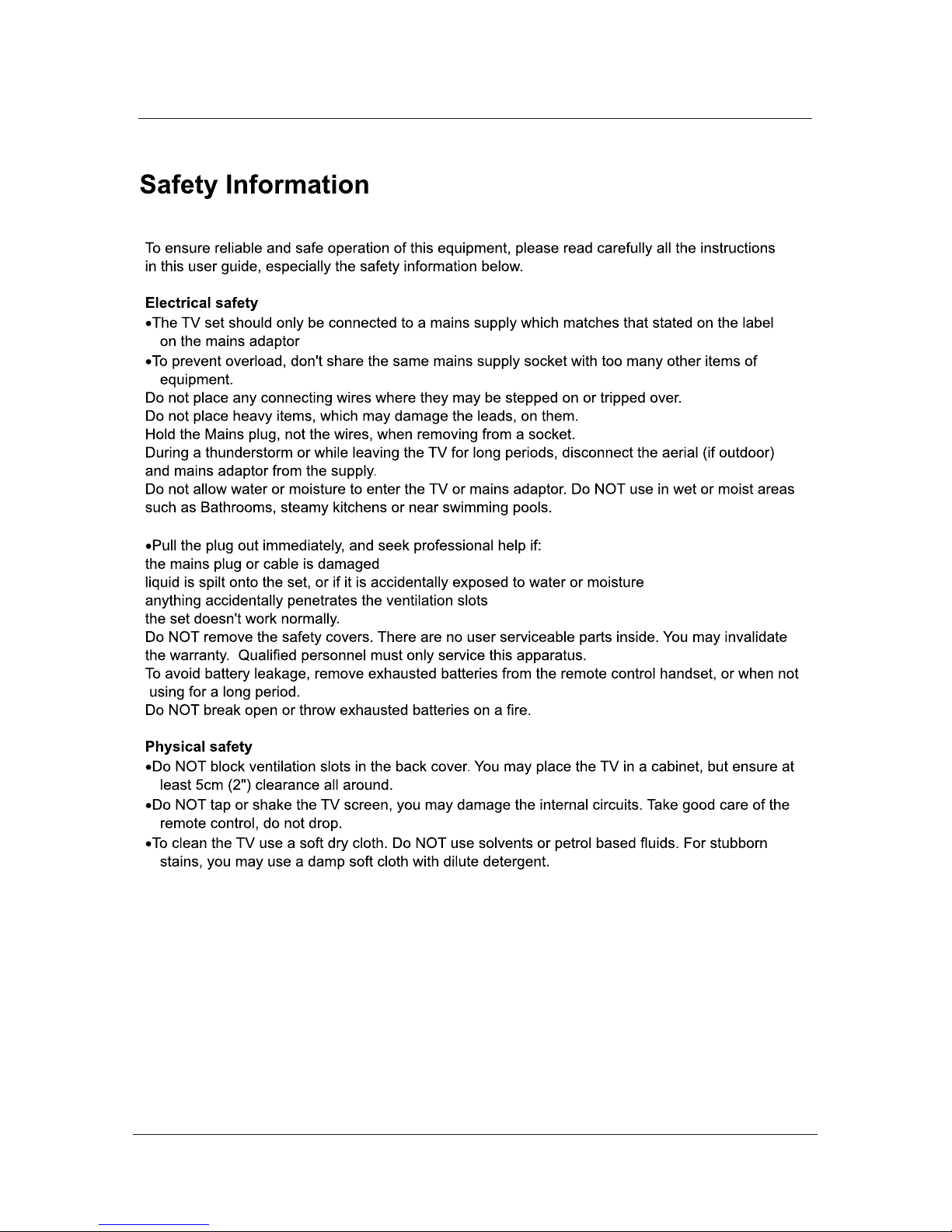

Safety Information
2

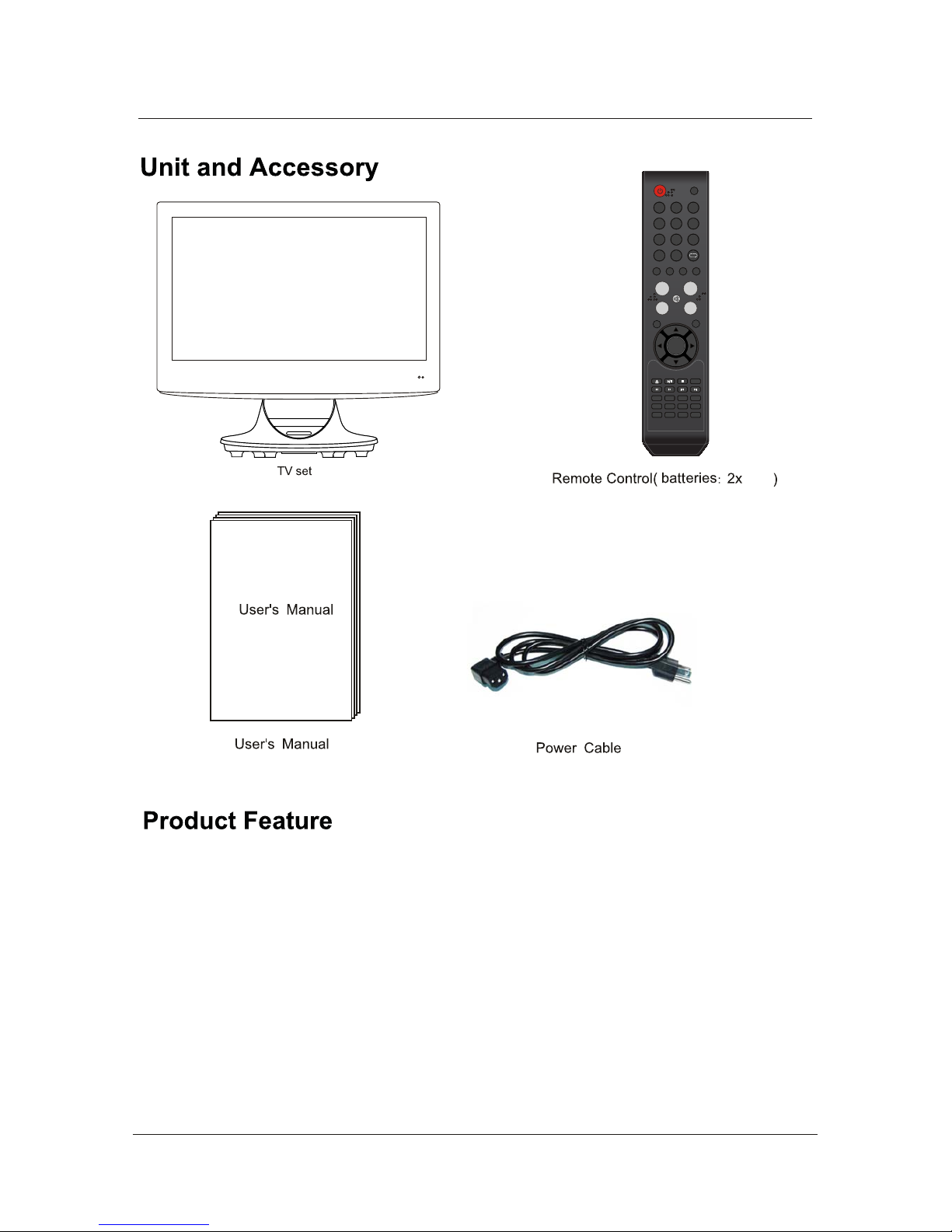

Unit and Accessory and Product Feature
• 21.6” wide screen (measured diagonally) Full-HD 1080p LCD Television
• Built-in progressive scan DVD player
• iPod Dock for playback of music and video from iPod
• Integrated ATSC/NTSC/QAM TV tuner
• Integrated 3-in-1 Card Reader (SD, MS, MMC) and USB Port for playing digital media files
• HDMI input for true digital connection
• VGA port for connection to PC
• Built-in 2.1-channel speaker system with 20W output power
AAA
3
PICTURE SOUND SLEEP DISPLAY
NOW PLAYING
AUDIO ONLY
PG
UP
PG
DN
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0 -/--
CC MTS EPG FAV
SETUP
MENU
ZOOM SLOW
PROGRAM
INTRO
ANGLE TITLE
GOTO
LANGUAGE SUBTITLE
A-B
REPEAT
REPEAT
SHUFFLE
MENU

Getting Started
Getting Started
4
The effective receiving range for the signal is 5-8 metres from the front of the remote control window,
and 30 degrees to the left or right side and 20 degrees above or below the remote control Window.
8. The functions of the buttons:
MENU : Press to display the OSD menu, press again to exit the menu.
CH+/- : Press to scan through channels.
VOL+/- : Press to adjust the volume.
INPUT : Press to display the input source menu.
PLAY: Play/Pause the disc playing.
EJECT : Eject the disc.
POWER : Turn on/standby the TV set.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
1. LED Power Indicator (Power on/Standby)
7
1
2
3
4
6
5
8
2. Infrared Remote Receiver
3. Universal iPod Dock
- Audio/Video Playback
- Charging iPod
4. 2.1 Channel Speaker System
- Mid-range/tweeters located on upper section of TV stand
- Woofer located on underside of TV stand
CAUTION: A sensitive low-frequency speaker (woofer) is located on the underside of this multimedia
TV. Please remove the protective film covering the woofer before use. Please take care
when handling the unit by the base – do not press on or damage woofer.
5. Disc Slot
Insert a 12 cm disc with the label side facing back as indicated by the label next to the slot.
6. 3-in-1 Card Slot (SD/MMC/MS)
7. USB Port

Getting Started
5
1. Switch: Switch on/off the power supply.
2. AC Power IN: Connect to an earth 100-240V, 50/60Hz AC outlet with the Power Cable.
3. HDMI: Connect it to the HDMI of DVD or other equipment.
4. PC-IN: Connect it to the audio output terminal of PC.
5. VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC.
6. YPbPr: (Component) Connect them to the video output terminals of DVD or other equipment.
(used in Component mode).
7. S-VIDEO: Connect it to S-Video output terminal of DVD or other equipment.
8. VIDEO: (Composite) Connect it to video output terminal of DVD or other equipment.
9. L/R Audio in: Connenct them to audio output terminals(For Video-Composite/S-Video/YPbPr-Component).
10. RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
12
DVD
HDMI VGA Y Pb Pr S-VIDEO VIDEO R L
Audio in
RF
PC-IN
34 5 6 78 9 10
- To turn on the LCD TV
- Be sure to turn off the power and unplug both units
from the wall outlet before making any connections.
Power on
Power off
Wall Mounting
The TV is provided with mounting holes for a VESA approved wall mounting bracket(NOT
SUPPLIED). Remove the Posi screws holding the base to the base bracket and lift the
base away (do not remove the base mounting bracket). Mount the VESA bracket using
4 x M4 x10 Iso metric threaded screws (not supplied). Do not use screws longer than 10 mm,
damage will occur to the internal parts. Fit the wall bracket securely following the manufacturers
instructions.

PICTURE SOUND SLEEP DISPLAY
NOW PLAYING
AUDIO ONLY
PG
UP
PG
DN
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0 -/--
CC MTS EPG FAV
SETUP
MENU
ZOOM
PROGRAM INTRO
ANGLE TITLE
GOTO
SLOW
LANGUAGE SUBTITLE
A-B REPEAT
REPEAT
SHUFFLE
MENU

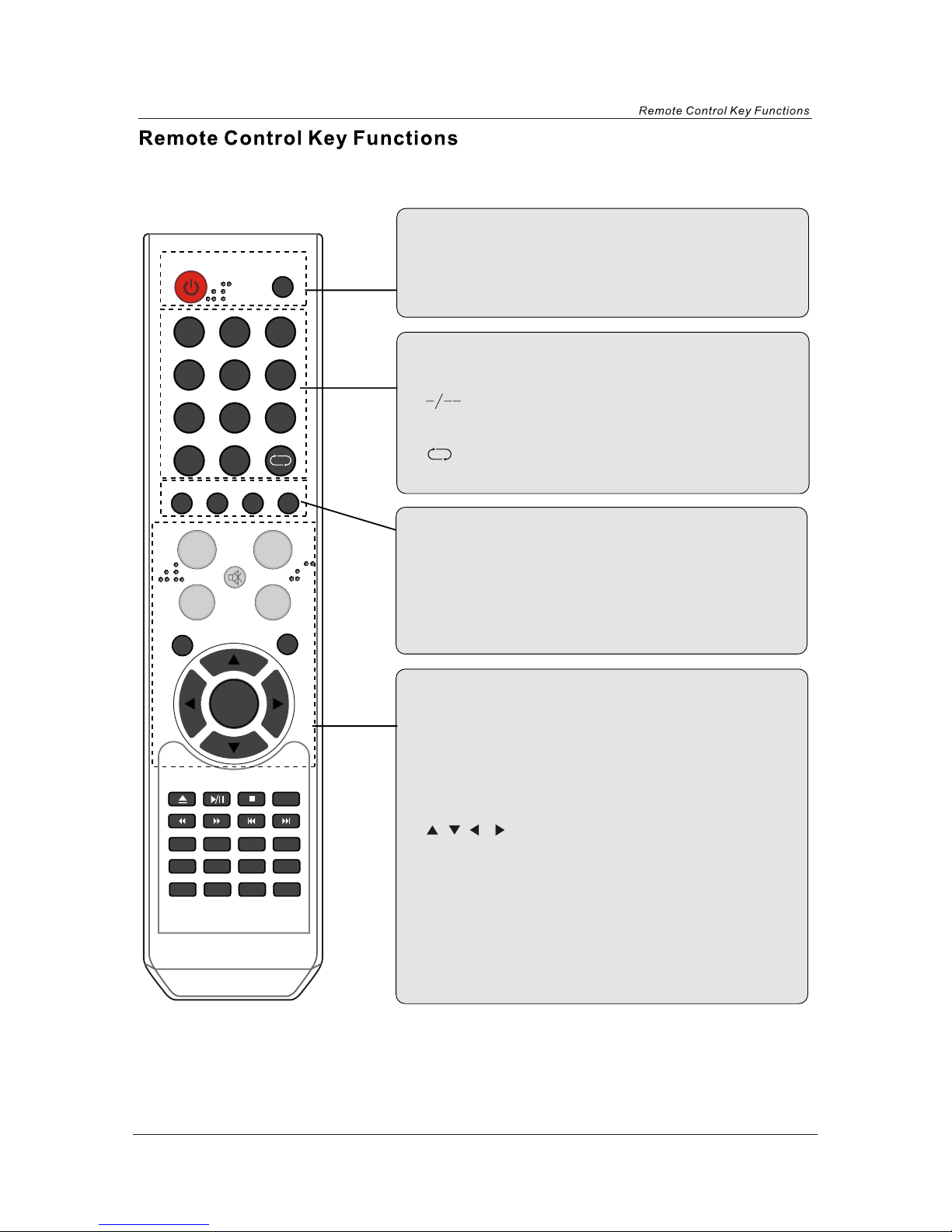

Switch on LCD TV when at standby mode or vice versa.
POWER
Press to mute the sound. Press again or press VOL+/- to unmute.
MUTE
INPUT
Press to cycle through the input source.
EXIT
Clears all on-screen displays and returns to TV viewing from any
menu.
MENU
Brings up the main menu to the screen.
Return to the previous channel viewed.
Allows you to navigate the on-screen menus and adjust the
system setting to your preference.
OK
CH+/-
Press to scan through channels. To scan quickly channels, press
and hold down either +/- button.
VOL+/-
Press to increase / decrease the sound level.
NUMBER BUTTONS
Press 0-9 to select a TV channel directly when you are watching
TV. Then press “OK” key to confirm.
Press this button to enter a program number for multiple program
channel such as 2-1,etc.
Select the picture mode.
SOUND
Select the sound mode.
SLEEP
Time shutting down
6
DISPLAY
Press to display the source and channel’s information.
Note: Buttons labeled in yellow are for controlling iPod-specific functions

7
PICTURE SOUND SLEEP DISPLAY
NOW PLAYING
AUDIO ONLY
PG
UP
PG
DN
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0 -/--
CC MTS EPG FAV
SETUP
MENU
ZOOM
PROGRAM INTRO
ANGLE TITLE
GOTO
SLOW
LANGUAGE SUBTITLE
A-B REPEAT
REPEAT
SHUFFLE
MENU
Press to select the audio channels.
MTS
CC
Press to display the closed caption.
Press to add or remove favorite channel.
FAV
Press to enter the EPG menu directly.
EPG
Buttons for DVD operating
SETUP: DVD system setup.
ZOOM: Adjust picture size in DVD mode.
LANGUAGE: Select the DVD disc language.
SUBTITLES: Turn on/off the DVD subtitle display.
SLOW: Play DVD program at slow speed.
MENU: DVD play list / Disc menu.
TITLE: DVD title.
INTRO: If you play CD, it will scan program with 3S.
REPEAT: Repeat playing the title or chapter.
A-B: Select and play the preferable paragraph of DVD program by
pressing this button twice at the beginning and end of it.
GOTO: Play your favorite title/chapter/track.
PROGRAM: Edit the DVD program and play.
ANGLE: Select DVD picture angle.
: DVD fast forward.
: DVD fast reverse.
: DVD next chapter.
: DVD previous chapter.
: Play/pause DVD program.
: Stop DVD program.
: Load/eject DVD disc.
Note: Buttons labeled in yellow are for controlling iPod-specific functions

8
1. Connecting to the AC intput cable, at this time the TV will enter standby mode and indicator show red.
2. Use the POWER button can turn ON LCD TV from standby mode.
Press the POWER button on TV or on the remote control to enter standby mode. The indicator is red.
TURN ON LCD TV
TURN OFF LCD TV
Language
Press / button to select this item, then press OK / button to select the OSD language.
1. Press the VOL+/- button to adjust the volume.
2. If you want to switch the sound OFF, press the MUTE button.
You can cancel this function by pressing the MUTE or VOL+/- button.
Select on screen language

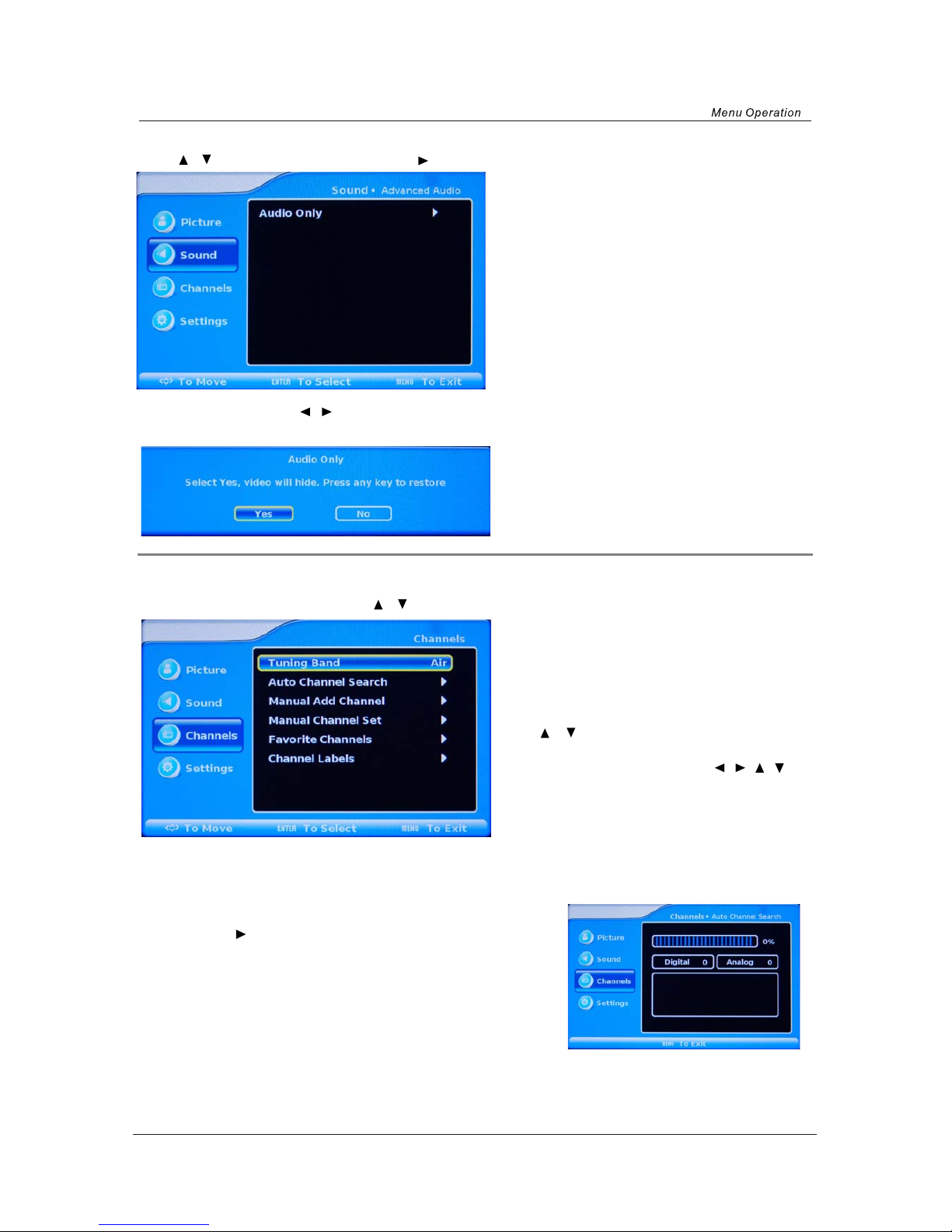

Auto Channel Search
Press / button to select this item, then press OK / button to enter the Auto Channel Search
Program.
Tuning Band
Press OK / button to select Tuning Band mode. (Available tuning band mode: Air, Cable)
Volume
NOTE: If this is the first time you run the LCD TV, the Initial Setup Menu will appear in the picture,
and the items of this menu also exist in other menus, so you are able to change the values
after you set them up.

9
- Press the MENU button to display the mains menu.
- Use / / / / OK buttons to operate the available menus.
1. Using the CH+/CH- button on the TV set or on the remote control.
- Press CH+ button to increase channel number.
- Press CH- button to decrease channel number.
2. Using 0-9 number buttons and -/-- button.
You can select the channel number by pressing 0 to 9 or -/-- button, and press OK button to confirm.
3. Example
- Select channel 5: press “5” button, then press OK button.
- Select channel 62: press “6” button, and press “2” button, then press OK button.
- Select channel 152: Press “1” button, and press “5” button, and press “2” button, then press OK
button.
- Select channel ‘5-1’: press “5” button, and “-/--”button, and “1” button, then press OK button.
Note: After select the number button, the number will be memorized.

10
You can select the input source by pressing the INPUT button on
the remote control or on the TV set.
Picture menu options
Press the MENU button, and use / button to select the Picture menu as below.
1. Use / button to select what you want to
adjust in the Picture menu.
2. Press OK button, and adjust by / / /
/ OK buttons.
3. When you adjusted to your preference, press
MENU button to exit.
Picture Mode
Select the type of picture which best corresponds to your viewing requirements by selecting picture mode
in Picture menu. You may select the picture mode directly by pressing the PICTURE button on the remote
control, and change picture mode to User then you can adjust.
Brightness
Press / button to select and press OK/ button to enter, then press / button to adjust the
brightness of the picture.
Contrast
Press / button to select and press OK/ button to enter, then press / button to adjust the
contrast of the picture.
Color
Press / button to select and press OK/ button to enter, then press / button to adjust the color
saturation.
Tint
Press / button to select and press OK/ button to enter, then press / button to adjust the tint
of the picture. (In NTSC mode only)
Sharpness
Press / button to select and press OK/ button to enter, then press / button to adjust the
sharpness level of the picture.

Audio Channel
Press / button to select and press OK/ button to enter, and select the Audio channel mode: Mono
Stereo, SAP.

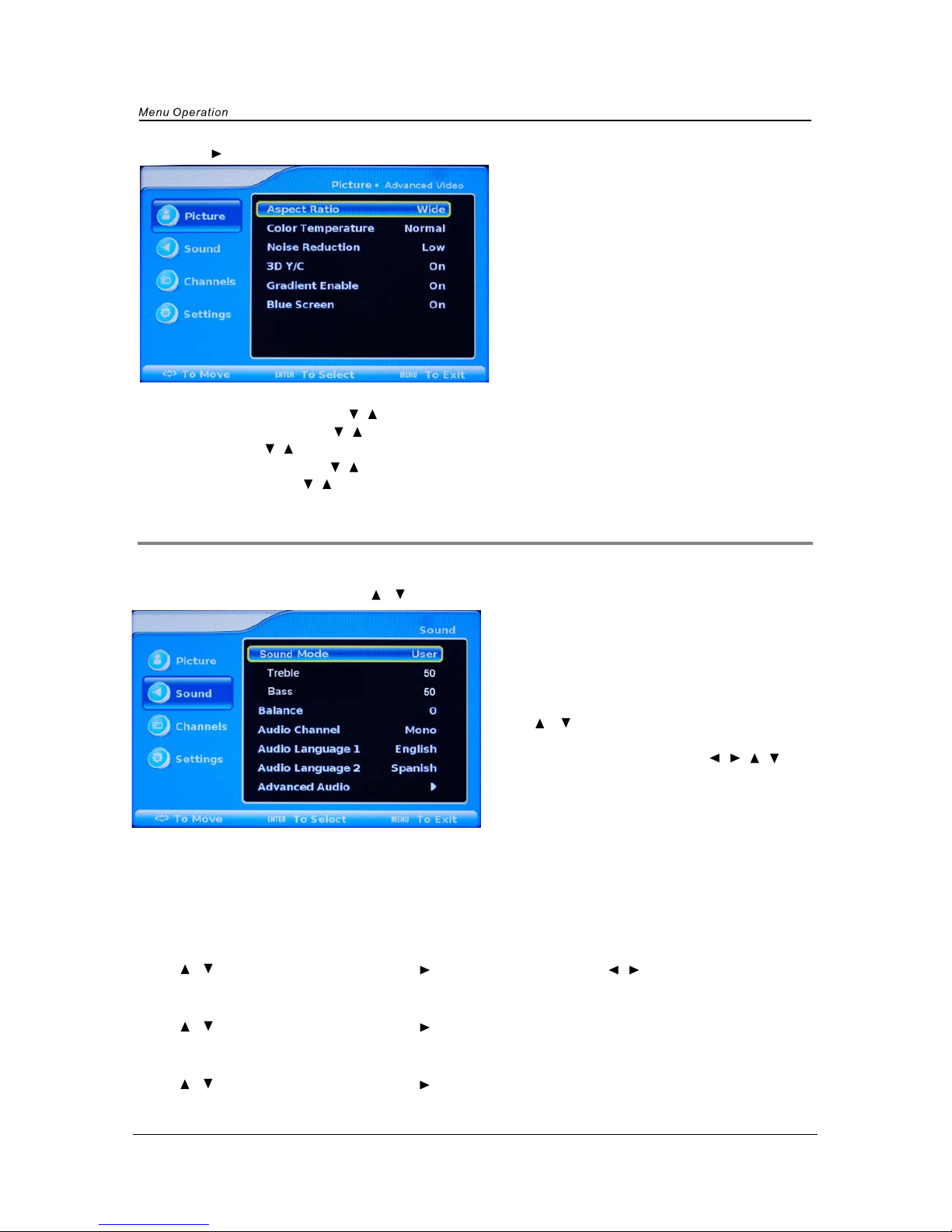

Advanced Video
Press OK/ button to enter the submenu as below:
Aspect Ratio: Select the ratio of picture display.
Color Temperature: Press OK/ / button to select the color temperature from Cool/Normal/Warm.
Noise Reduction: Press OK/ / button to select the level of noise reduction from Off/Low/Medium/High.
3D Y/C: Press OK/ / button to set the 3D/YC on/off.
Gradient Enable: Press OK/ / button to set the Gradient Enable on/off.
Blue Screen: Press OK/ / button to set the Blue Screen on/off.
If the function is turned on, the TV will display blue screen when there’s no signal.
11
Sound menu options
Press the MENU button, and use / button to select the Sound menu as below.
1. Use / button to select what you want to
adjust in the Sound menu.
2. Press OK button, and adjust by / / /
/ OK buttons.
3. When you adjusted to your preference, press
MENU button to exit.
Sound Mode
Select the Sound mode in Sound menu. You may select the Sound mode directly by pressing the
SOUND button on the remote control.
Treble: High frequencies intensity.
Bass: Low frequencies intensity.
When you select “User” as the Sound mode, you could operate the Treble and Bass item.
Balance
Press / button to select and press OK/ button to enter, then press / button to adjust the
sound balance.
Audio Language
Press / button to select and press OK/ button to enter, and select the Audio language.
Note: The function will be unavailable if the program system does not provide the audio language.

12
Advanced Audio
Press / button to select and press OK/ button to enter the submenu.
Tuning Band
Select Tuning Band mode.(Available tuning band mode: Air/Cable)
If select Air, the range of channel is 2-69, and if select Cable, the range of channel is 1-135.
Auto Channel Search
Press the OK / button on the item to start Auto Channel Search.
Note: 1. It will search all the channels include digital and analog
channels.
2. You could cancel the auto searching by pressing MENU
button.
Audio Only: Press OK / / button to set the video on/off. Select “YES”, the video will hide, hold down
power 3 sec. to restore.
Channels menu options
Press the MENU button, and use / button to select the Channels menu as below.
1. Use / button to select what you want to
adjust in the Channels menu.
2. Press OK button, and adjust by / / /
/ OK buttons.
3. When you adjusted to your preference, press
MENU button to exit.

13
Manual Add Channel
When the channels are found, use OK button to add it to the channel list.
Manual Channel Set
Press OK button to display a channel list that you can select
channel as below:
Favorite Channels
Press OK button to display the channel list that you can select
channel as below:
Parental Control Menu
You need to enter the password for the submenu. And the original password is 0000.
Channel Labels
Allows you to name the channel that is selected. Use /
button to move the cursor and use / button to input the
name and then press OK button to confirm.
Settings menu options
Press the MENU button, and use / button to select the Settings menu as below.
1. Use / button to select what you want to
adjust in the Settings menu.
2. Press OK button, and adjust by / / /
/ OK buttons.
3. When you adjusted to your preference, press
MENU button to exit.

Time Zone: Press / button to select, and press OK / button to select the time zone for your TV.
14
US Ratings Menu: Press / button to select and press OK /
button to enter the US Ratings Menu.
Canadian Ratings Menu: Press / button to select and press
OK / button to enter the Canadian Ratings Menu.
Advanced Rating Lock: Press / button to select and press OK / button to enter the Advanced
Rating Lock Menu.
Note: You could not operate the menu if you turn the Advanced Rating function off.
Advanced Rating: Press / button to select and press OK / button to set advanced rating on/off.
Password Set: You need to enter the correct old password
before setting a new password, and after set the new password,
you need to enter it again to confirm it.
Time Set Mode: Press OK / button to select the time set mode from AUTO and MANUAL.
You should set the Time Set Mode to “Manual” first if you want to change the value of Time Zone/Year/Date
/Time.
Time Set Menu
Press / button to select and press OK / button to enter the Time Set Menu as below that allows you
to set the time the TV will display.

15
Closed Caption
Press / button to select and press OK / button to enter the Closed Caption.
CC Mode: Press OK / button to enter and select CC mode.
Language: To select language of the OSD.
Transparency: To select the transparency of the OSD.
Sleep Timer: Press OK / button to select the number of minutes to set your TV sleeps automatically.
Analog CC: Press OK / button to enter and select analog CC mode.
Digital CC: Press OK / button to enter and select digital CC mode.
Advanced CC Settings: Press OK / button to enter Advanced CC
Settings menu.
Style: Press button to select CC style between Automatic and
custom. You need to set it to Custom first if you want to
change the value of items below.
Size: Normal/Large and Small.
Font: From Font 1 to Font 7.
Text Color: Red/Green/Blue/Yellow/Magenta/Cyan/Black/White.
Text Opacity: Solid/Flashing/Transparent/Translucent.
Background Color: Black/White/Red/Green/Blue/Yellow/Magenta/Cyan.
Background Opacity: Solid/Flashing/Transparent/Translucent.
Edge Effect: None/Raised/Depressed/Unifrom/Left Shadow/Right Shadow.
Edge Color: Black/White/Red/Green/Blue/Yellow/Magenta/Cyan.
Menu Setting
Press / button to select and press OK / button to enter the Menu Setting submenu.
Reset
Press / button to select and press OK / button to reset all the settings above.

16
Settings menu options in VGA/PC
Press the MENU button, and use / button to select the Settings menu as below.
Select input source “VGA/PC”.
PC Setting
Press / button to select PC Setting, then press OK / button to enter the PC Setting menu.
Horizontal Position: Press / button to select and press OK / to enter, then press / to
adjust the horizontal position of the picture.
Vertical Position: Press / button to select and press OK / to enter, then press / to adjust
the vertical position of the picture.
Phase: Press / button to select and press OK / to enter, then press / to adjust the phase
of the picture.
Clock: Press / button to select and press OK / to enter, then press / to adjust the clock of
the picture.
Auto Adjustment: Press OK / to auto adjust the VGA settings.
Reset: Press OK / to reset the VGA settings to factory default.

17
Settings menu options in Component(YPbPr)
Press the MENU button, and use / button to select the Settings menu as below.
Select input source “Component”.
Component Set
Press / button to select Component Set, then press OK / button to enter the Component Set
menu.
Horizontal Position: Press / button to select and press OK / to enter, then press / to
adjust the horizontal position of the picture.
Vertical Position: Press / button to select and press OK / to enter, then press / to adjust
the vertical position of the picture.
Phase: Press / button to select and press OK / to enter, then press / to adjust the phase
of the picture.
Clock: Press / button to select and press OK / to enter, then press / to adjust the clock
of the picture.
Reset: Press OK / button to reset the Component Settings to factory default.
