Responder LE 2-Way & 1-Way
Transmit
LED
Internal
Antenna
Ghost
LED’s*
AUX
1
2
3
4
5
1
2
3
4
5
Transmit
LED
Internal
Antenna
Ghost
LED’s*
Transmit
LED
Ghost
LED’s*
Internal
Antenna
1
2
3
4
5

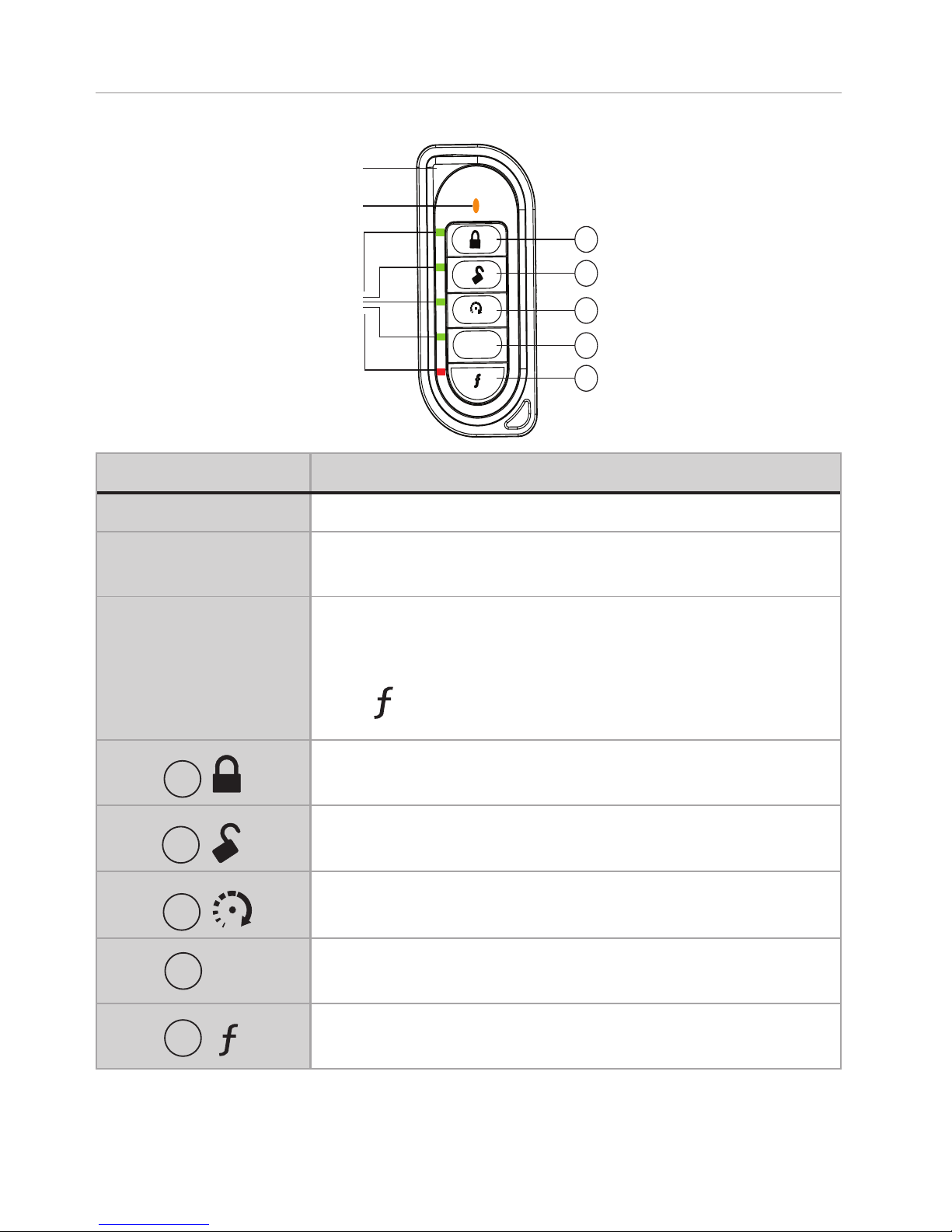

Feature Description
Internal Antenna Used for transmitting and receiving* information
Transmit LED Transmit LED flashes once when transmitting and receiving*
information.
Ghost LEDs
(Term denotes that
these LEDs are only
visible when On.)*
Each button has an associated LED next to it that are active
during related operations. These LEDs are labeled respec-
tively as: Lock LED, Unlock LED, Remote Start LED, Aux LED,
and
AUX
LED
1
AUX
Press for one second to lock.
2
AUX
Press for one second to unlock.
3
AUX
Press for one second to activate remote start.
4AUX Press and hold for 5 seconds to activate optional trunk
release or other optional accessory.
5
AUX
Allows access to programming and modifies operation of
the other buttons.
* Ghost LEDs and 2-way communications are only applicable to the
Responder LE 2-way remote control.

4© 2012 Directed. All rights reserved.
Advanced Remote Control Commands
Refer to the Quick Reference Guide for more information
on advanced remote start commands that are specific to
each vehicle.
Fault Condition Alerts
If, when performing a command, a condition exists that does not al-
low activation of a Remote Start feature*, the
AUX
LED and a fault tone
plays to alert of the fault condition**.
* Remote Start feature not available when the Remote Start status is
incorrect upon receiving the command. (Example: Runtime reset
command received when remote start is off).
Refer to the notes included in the command descriptions that ad-
dress these faults or go to Remote Start Faults under the Remote
Start Features section for more details.
** Confirmation
AUX
LED and tone are only applicable to the Re-
sponder LE 2-way remote control.

5
© 2012 Directed. All rights reserved.
Basic Commands
Remote Start
Press and release
AUX
AUX
Activates (or if On, deactivates) the remote starter. The engine and
parking lights turn On and the Remote start LED and On tones play1,
or the engine and parking lights turn Off and the Remote start LED
and Off tones play to confirm1. The runtime on the remote starter is
predetermined based on vehicle application. The remote starter will
shut down when the preset runtime times out or when any shutdown
zone becomes active.
Note Refer to the Quick Reference Guide for more information.
Lock
Press and release
AUX
AUX
The doors lock (if connected) and parking lights flash once. The Lock
LED and beeps play to confirm1.
Unlock
Press and release
AUX
AUX
The doors unlock (if connected) and parking lights flash twice. The
Unlock LED and beeps play to confirm1.
AUX/Trunk
Press and hold AUX
The Trunk opens (if connected) when this button is pressed for 5 sec-
onds. The Aux LED and tones play to confirm1.
1Confirmation LEDs, beeps and tones are only applicable to the Responder LE 2-way
remote control.

6© 2012 Directed. All rights reserved.
Advanced Commands
Refer to the Quick Reference Guide for more information
on advanced commands that are specific to each vehicle.
Runtime Reset
Press the
AUX
button 1 time and then
AUX
AUX
.
Re-starts the remote start runtime counter if remote start is active.

7
© 2012 Directed. All rights reserved.
Remote Control Configuration
Remote Programming
The Responder LE 2-way and 1-way remote control have operations
that can be configured to a user’s personal preferences. The following
instructions will direct you through the available programming options.
Remote Pairing
The following instructions will step you through the remote pairing
operation.
1. Press and hold the
AUX
button for 8 seconds, the remote emits one
long beep and the transmit LED turns on.
2. Press and hold the
AUX
AUX
button for 1 second, 3 transmit LED flash-
es and 3 beeps indicate remote is ready to pair.
3. Press and release 1 time the Integrated Programming Button (IPB)
on the XL202.
4. Within 5 seconds, press and hold the IPB. The status LED will
flash one time to confirm the system is ready for remote pairing.
5. Press the
AUX
AUX
button,
• Responder LE: the remote will emit several tones to confirm
pairing is complete. If the remote does not emit the tones
repeat step 5.
• 1-way remote control: there is no confirmation for this remote
control.
6. Release the IPB. Remote programming will exit by itself after
30 seconds and the transmit LED will turn off.
Note Consult the installation center for the location of the XL202
or refer to dealer for programming.

8© 2012 Directed. All rights reserved.
Remote Features
1. Press and hold the
AUX
button for 8 seconds, the remote emits one
long beep and the transmit LED turns on.
2. Press the
AUX
AUX
button to access the remote operation features, 2
transmit LED flashes and 2 beeps indicate the remote features
menu is accessed. Press the buttons indicated in the tables
below to set the feature option.
Responder LE 2-way remote control
The Ghost LEDs next to the button indicate the feature settings.
1-way remote control: The 1-way remote will flash the transmit
LED to indicate the setting.
Feature Button
Press
LED on LED off LED Flash
Keypad Lock
AUX
AUX
Auto Off
Remote Beeps*
AUX
AUX
Beeps On Beeps Off Triggers only
* This feature is not available on 1-way remote control.
3. Remote programming will exit by itself after 30 seconds and the
transmit LED will turn off.

9
© 2012 Directed. All rights reserved.
Keypad Lock
Options: Off, Auto
When Off, the buttons do not lock and always perform a command
when pressed. When set to Auto, the remote buttons lock after a 20
second lapse between buttons presses to prevent unintentional opera-
tions. If a button is pressed when locked the
AUX
LED and a fault tone
play as an alert*. To unlock the buttons, press the
AUX
button followed
by the
AUX
AUX
button. The Ghost LEDs flash and tones play to confirm
unlocking.*
* LED will flash on triggers on the Responder LE 2-way remote con-
trol only.
Remote Beeps*
Options: On, Off, Triggers Only (not available)
The Responder LE will emit a beep as confirmation of button presses
and command responses. When set to Off, beeps are not emitted for
any operations except programming.
* This feature is not available on 1-way remote control.

10 © 2012 Directed. All rights reserved.
Remote Start Features
Refer to the Quick Reference Guide for more information on
remote start features that are specific to each vehicle.
Disabling Remote Start
Remote start can be disabled by moving the Toggle Switch to the Off
position. If remote start is attempted while Off, the engine will not start.
Move the switch back to the On position to resume normal operation.
Note Consult the installation center for the location of Toggle
switch.
