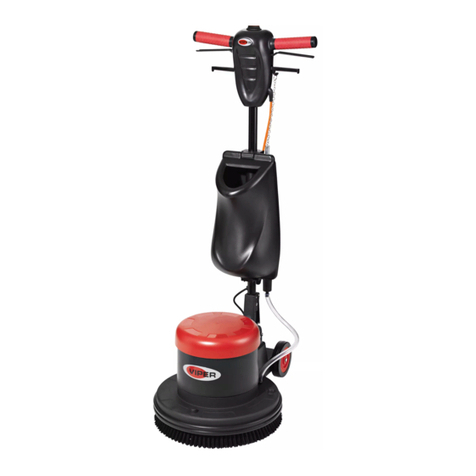

Viper EZ-DF-17A User manual

CONGRATULATIONS on your purchase of a Viper product
and welcome to the V.I.P. family. We appreciate your
business and will do everything in our power to keep you happy
with your purchase for many years to come.
As part of the V.I.P. family, you are entitled to the best
protection by one of the most comprehensive warranties in
the industry.
Thank-you for purchasing Viper products!
Tom Vander Bie, CEO
TABLE OF CONTENTS
SafetyPrecautions 3
MachineOperation 4
Machine Maintenance & Storage 4
Parts List 5---13
Operating（Chinese）14---16
WiringDiagram 17

SAFETY PRECAUTIONS
!!! This machine must be grounded!
Grounding provides a path of least resistance
for electrical current. To reduce the risk of
electrical shock should the machine
malfunction, the machine has a special
grounding plug. Don’t remove the ground pin
under any circumstances!
This machine is intended for commercial use.
It is constructed for use in an indoor
environment and is not intended for any other
use. Use only recommended accessories.
All operators shall read, understand and
exercise the following safety precautions:
1] Do not operate machine:
-Unless trained and authorized.
-Unless you have read and understand
operators manual.
-In flammable or explosive areas.
-With a damaged cord or plug.
-If not in proper operating condition.
-In outdoor areas.
-In standing water
-With the use of extension cords.
2] Before operating machine:
-Make sure all safety devices are in
place and operate properly.
3] When using machine:
-Do not run machine over cord.
-Do not pull machine by cord or plug
-Do not pull cord around sharp edges or
corners.
-Do not unplug by pulling on the cord.
-Do not stretch cord.
-Do not handle plug with wet hands.
-Keep cord away from heated surfaces.
-Do not pick up burning or smoking
debris such as cigarettes, matches or
hot ashes.
-Report machine damage of faulty
operation immediately.
4] Before leaving or servicing machine:
-Turn off machine.
-Unplug cord from outlet.
5] When servicing machine:
-Unplug cord from outlet.
-Use manufacturer supplied or approved
replacements parts.

Operation of Floor Machine
* Read operators manual thoroughly prior to
operating or servicing this machine.
GENERAL USE
1] Remove any obstructions or other
obstacles in the area which is to be cleaned.
2] Place the handle in the upright position and
tilt machine back until handle rests on the
floor.
lBe sure the machine is not plugged
into an outlet.
3] Attach the pad driver or brush to the machine
by placing the clutch plate over the gearbox
hub and turning the driver / brush 1/4 turn.
4] Place machine back into its upright position.
5] Plug power cord into grounded outlet.
* Never use an extension cord in
conjunction with the standard power cord.
6] The handle height may be adjusted by
lifting up on the handle release lever,
located on the right side of the switch
housing. Pull trigger and lower handle to
desired operating position. Release
trigger to lock the handle into position.
7] To start the machine, press the red safety
button on the top of the upper switch
housing, and then squeeze either of the
operating triggers. [the safety button must
be depressed prior to squeezing the
operating triggers].
8] When the machine is in operation, both
hands should be placed on the switch
housing [upper handle].
9] During operation, to make the machine go
right, gently raise the handle. To make the
machine to left, gently lower the handle.
10] To stop the machine at any time, simply
release the operating trigger [s] and the machine
will stop automatically.
MAINTENANCE
To keep the machine performing well for many
years, please follow the following maintenance
procedures.
*Always confirm that the machine is
unplugged prior to performing any
maintenance or repairs.
1] Unplug machine as soon as you are done
using it.
2] Tilt machine back and remove pad driver or
brush.
*Never store a low speed machine with the
pad driver or brush mounted to the
machine
3] Clean the outside of the machine with a mild
cleaner.
4] Check power cord for any damage. If
damage is detected, replace the cord
immediately.
5] Lubricate wheels with a water resistant
lubricant once a month.
6] Check machine for loose or missing nuts and
bolts, and replace as necessary.
7] If the machine is used in a dusty environment,
you may remove the motor cover and blow
the motor clean with compressed air. This
will ensure proper ventilation, and allow the
motor to run cooler.
STORAGE
1] Unplug machine from power source and wrap
cord on handle.
2] Tilt machine back and remove pad driver or
brush.
3] Store machine in upright position and in a dry
area.

DIA
NO PART NUMBER NO REQ'D
1 VF46710 FRONT COVER,GEAR SEAT
铝 套 座前罩
1
2 GV40229 COVER,GEAR
齿轮端盖
1
3 VF47029 GEAR SEAT
扁管铝 套 座
1
4 VF40125B GEAR
调位齿轮
1
5 GV40227 BIG WASHER ,NYLON
尼龙垫片
2
6 GV40228 "O"RING
齿轮“ O” 型密封圈
2
7 GT13019 SCREW,M6 X 45
外六角不锈钢螺丝 M6 X 45 4
8 VF46711 REAR COVER,GEAR SEAT
铝 套 座后罩
1
9 VF14087 ST4 X 35
十字盘头平尾自攻丝 ST4 X 35 4
10 VF47046 GASKET,HOOK
铝 套 座后罩壳密封圈
1
11 VF47045 HOOK,CABLE
提手绕线架
1
12 VF13616 HEX SOCKET,M10 X 55
内六角螺丝 M10 X 55 1
13 VF47052 INSERT
调位齿杆
1
14 GT13013 NUT,M4
六角螺母 M4 1
15 GV40220B ROD,LEVELING
调节拉杆
1
16 VF47007 SPRING,ROD
拉杆弹簧
1
17 VF47033 RETAINER,SPRING
扁管弹簧座
1
DESCRIPTION
HANDLE GROUP FOR DF-17A
18 VF47008 SEAL,GEAR SEAT
防水盖
1
19 VF45117 CORD,HANDLE
电源线
1
20 VF50120 GROMMET,CORD
电源线保护胶圈
1
21 VF46709 HANDLE TUBE,ALU
扁主管
1
22 VA13474 SCREW,M5 X 16,PH
十字盘头螺钉 M5 X 16 1
23 VA13476 SCREW,M5 X 40,PH
十字盘头螺钉 M5 X 40 1
24 VF41085 SERIAL TAG
连续号贴纸DF-17A
1
25 VF45118 POWER CORD
电源线
1
26 VF46708 LEVER,SOLUTION
放水拉把
1
27 VF51141
OUTLET,DRY FOAM GENERATOR
插座
1
28 VV13616 SCREW,M3 X 16,PH
十字沉头螺丝 M3 X 16
1
29 VF46715 1
30 VF46717 WASHER
平垫
1
31 VF14212 SCREW,M3 X 25,PH
十字盘头螺丝 M3 X 25
3
32 VF46718 SPRING
扭簧
1
33 VF46716 SPACER
台阶轴 套1
34 VF44005 METAL STRAIN RELIEF,CORD
线尾 套1
35 VF46703 SWITCH LEVER,LEFT
左拉把
1
36 VF48306 PIN
定位销
4
37 VF46702 REAR COVER
手柄后壳
1
38 VF40994 READ MANUAL LABEL
头像贴纸
1
39 VF14226 SCREW,M6 X 35,PH
十字沉头螺丝 M6 X 35
4
40 VF46705 SAFETY LOCK
保险键
1
41 GV40218 SPRING,SAFETY LOCK
保险弹簧
1
CLICK RING PLUG, FOAM GENERATOR 插座保护钩

DIA
NO PART NUMBER NO REQ'D
DESCRIPTION
HANDLE GROUP FOR DF-17A
42 VV13617 NUT,M3
六角螺母 M3
2
43 VF46704 SWITCH LEVER,RIGHT
右拉把
1
44 VV13650 SCREW,M4 X 10,PH
十字盘头螺钉 镀锌 M4 X 10
3
45 VF48309 CLAMP BLOCK
压线块
1
46 VF99023 SWITCH,20A
开关 20A/250V
1
47 VF13511 WASHER,EXTERAL TOOTH,Ø3
齿形垫圈 Ø 3
2
48 GT13014 NUT,M4,NYLON INSERT
防松螺母 M4
1
49 VF46707 LEVER,ROD
调位拉把
1
50 GT13017 WASHER,Ø4,PLAIN
平介子 Ø 4
1
51 VF46706 HANDLE GRIP
手柄护 套2
52 VF46701 FRONT COVER
手柄前盖
1
53 VF47035A "VIPER" LOGO
“VIPER”铭牌
1
54 VF47032
CLAMP PLATE,SOLUTION TANK
水箱扣
1
55 VV20150 HEX SOCKET,M5 X 12
内六角不锈钢螺丝 M5 X 12
2
56 VF47034 SPACER,CLAMP PLATE
水箱扣柱
2
57
VV20275
WASHER PLAIN 3/16
平垫片
3
/
16
2
57
VV20275
WASHER
,
PLAIN
,
3/16
平垫片
3
/
16
2
58 VF13600
WASHER,PLAIN, Ø6 X Ø16 X 1
不锈钢平介子 Ø 6 X Ø 16 X 1
4
59 VF13502 NUT,M6,NYLON INSERT
防松螺母 M6
4
60 VF47031 TANK,SOLUTION
水箱壳体
1
61 VF40142 NUT,M14
螺母
1
62 VF40132 BARB,HOSE,SOLUTION
放水阀接头
1
63 VF40139 HOSE,SOLUTION
溶液管
1
64 VF41020 "O"RING
密封圈
1
65 VF40131 VALVE BODY
放水阀体
1
66 VF40155 NUT,M5
六角元台螺母
1
67 VF40134 SEAL,GEAR SEAT
锥形密封堵
1
68 VF40138 WASHER,PLAIN,Ø5
垫圈
1
69 VF40144 NUT,M5
螺母
2
70 VF40135 SPRING
弹簧
1
71 VF40133 SCREW
放水阀螺堵
1
72 VF40148 LOWER PULLING ROD
拉杆
1
73 VF40137 UPPER PULLING ROD
拉钩
1
74 VF40147 GROMMET,ROD
水箱拉杆密封圈
1
75 VF40156 SEAT,CHAIN
链条座
1
76 VF41021 CHAIN
链条
1
77 MF-EZ-001 SOLUTION TANK ASSY
水箱组件
1

DIA
NO PART NUMBER NO REQ'D
1 VF13498 HEX SOCKET SCREW,M6 X 20
内六角圆柱头螺丝 M6 X 20 14
2 VF46104 ALU COVER,GEAR
铝盖板
1
3 VF13490 SCREW,FLAT HEAD,M4 X 12
十字槽沉头螺丝 M4 X 12 3
4 VF46106 COVER,GASKET
防尘端盖
1
5 VF14089 SEAL FB30 X 40 X 7
唇形密封圈
1
6 VF14052 RETAINING RING,EXTERNAL,￠30
轴用弹性挡圈
1
7 VF46111 WASHER
垫圈
1
8 VF14061 BEARING,6006ZZ
双面防尘盖球轴承 6006ZZ 2
9 VF46110 SPACER,BEARING
轴承隔 套1
10 VF14050 RETAINING RING,INTERNAL,￠55
孔用弹性挡圈
1
11 VF46107 CLUTCH PLATE
卡扣座
1
12 VF46114 GASKET
密封圈
1
13 VF46103 PLATE
挡板
1
14 VF46119 GASKET,PLATE
橡胶密封圈
1
15 VF46109 PIN
销轴
6
BASE GROUP FOR DF-17A
DESCRIPTION
16 VF46102 GEAR,PLASTIC
塑料齿轮
1
17 VF46108 SEAT,GEAR
齿轮座
1
18 VF14208A HEX SCREW,M6 X 12
内六角螺丝 M6 X 12 5
19 VF46105 SHAFT 铜轴 1
20 VF14055 "O"RING,￠2.65 X ￠44.7 “O”
型密封圈
1
21 VF47023 BUMPER,TOP COVER
电机上盖密封圈
1
22 VA13474 SCREW M5 X 16,PH
十字盘头不锈钢螺丝 M5 X 16 5
23 VF44001 COVER,MOTOR
折叠式电机上盖
1
24 VF999849
START-UP CAPACITOR(BIG),100UF/300V
起动电容 100UF/300V 1
25 YCQ10615
MOUNTING FRAME(BIG),CAPACITOR
大电容罩
1
26 VF14214 SCREW,M5 X 8,PH
不锈钢十字槽盘头螺钉 M5 X 8 4
27 YCQ16000 MOTOR,220V,1HP
电机 1HP,220V,50HZ 1
28 VF13604 WASHER,LOCK,EXTERNAL TOOTH
齿形垫片 ￠ 54
29 YLQ14601
MOUNTING FRAME(SMALL),CAPACITOR
小电容罩
1
30 YCQ10406 RUNNING CAPACITOR,10UF/500V
运行电容
1
31 VF46713 LABEL
银丝龙贴纸
1
32 GT13080 SCREW M6 X 30 HEX SOCKET
内六角螺丝 M6 X 30 4
33 GV40240C MOUNTING BASE,SEAT,GEAR 铝套
座支座
1
34 VF13514 WASHER,PLAIN,￠8
平介子 ￠ 8 X ￠ 16 X 1.5 3
35 VF13503 NUT,M8,NYLON INSERT
防松丝母 M8 X 7.5 3

DIA
NO PART NUMBER NO REQ'D
BASE GROUP FOR DF-17A
DESCRIPTION
36 VF46714 FRAME
壳体
1
37 GT13032 WASHER,PLAIN,￠6 X ￠16 X 1.5
平介子 ￠ 6 X ￠ 16 X 1.5 4
38 VF13502 NUT,LOCK,M6
防松丝母 M6 4
39 GV40235 CLAMP BLOCK,AXLE
轮轴固定块
2
40 VV13621 SELF-TAPPING SCREW ST5 X 20
十字平尾金属自攻丝 ST5 X 20 2
41 VF13474A WASHER,PLAIN,￠5 X ￠16
不锈钢平介子 ￠ 5 X ￠ 16 X 1 2
42 VF46118 BUMPER,FRAME
防撞边
1
43 VF14053 HEX SCREW,M6 X 25
内六角螺丝 ( 发黑 ) M6 X 25 6
44 VF14067 SCREW,M8X25
内六角螺丝 M8 X 25 2
45 VF46131 IRON BAR
配重块
1
46 VA13490 NUT,M8
皇冠螺母 M8
2
47 VF40152 BARB HOSE
机体水管接头
2
48 VF46120 AXLE,WHEEL
轮轴
1
49 VF13520 RETAINING RING,￠12
开口挡圈 ￠ 12 2
50
VF50119
WAVING WASHER
￠
12
鞍型垫圈
2
50
VF50119
WAVING
WASHER
,
￠
12
鞍型垫圈
2
51 VF99004 WHEEL,NON-MARKING 4" RED
红色 4" 轮子
2
52 VF13666 WASHER,PLAIN ￠6X￠22X1.5
平介子 ￠ 6 X ￠ 22 X 1.5 2
53 VF44012 SCREW M6X12.7
防松螺钉 M6X12.7 2
54 GT13016 SCREW M8 X 60,HEX SOCKET
内六角圆柱头螺丝 加硬 M8 X 60 3
55 VF41079 LABEL,VIPER 1

DIA
NO PART NUMBER NO REQ'D
1 VF46403 UPPER COVER 上罩 1
2 VF14227 "O"RING,Ø4.1 x Ø58.1 O型密封圈Ø4.1 x Ø58.1 1
3 VF46404A KIT,TANK KNOB,INTAKE 水箱盖手把套装（连放气阀)1
4 VF14120 RETAINING RING EXTERNAL,Ø8开口挡圈 Ø81
5 VF46457 WASHER,SST 不锈钢垫 1
6 VF46422-3 "Y"RING,Ø12 Y型密封圈 D12 1
7 VF46422-2 NUT,ADJUSTING VALVE 阀芯螺母 1
8 VF46422-4 PIN,ADJUSTING VALVE 药水调节阀芯 1
9 VF46456 WASHER,BRASS 铜垫 1
10 VF46455 BIG NUT 六方轴 1
11 VV13616 SCREW,M3 X 16,PH 十字槽盘头螺钉 M3 X 16 2
12 VF46422-12 90 DEG BLBOW, 90˚管接头4
13 VF46422-19 SPRING,SHORT 短限位弹簧 1
14 VF46422-11 VALVE 气阀（软） 2
15 VF46422-15 NUT,M14 开槽紧固螺母 M14*2 1
16 VF46422-5 PIN 连接轴 1
17 VF46422-10 COVER 封堵卡 5
18 VF46422-9 "O"RING,Ø1.8 x Ø3.15 O型密封圈Ø1.8 x Ø3.15 5
19
V
F46422-8
V
ALVE BODY
发泡控制座
1
FOAM GENERATOR FOR DF-100A
DESCRIPTION
发泡控制座
20 VF46422-18 SPRING,LONG 长限位弹簧 1
21 VV10114 CLAMP,HOSE 喉箍 2
22 VF46422-13 BARB,HOSE 直管接头 1
23 VF46422-17 VALVE 气阀（硬） 1
24 VF46422-6 MICRO SWITCH 开关 1
25 VF46454 FILTER,INTAKE,TANK 滤网 1
26 VF46426 INTAKE,TANK 水箱注水口 1
27 VF46462 GASKET,INTAKE,TANK 注水口密封垫 1
28 VF46400 CLAMP,HOSE 喉箍 3
29 VF46467 HOSE 清水管 1
30 VF47034 SPACER, 水箱扣住 4
31 VA13475 SCREW,M5 X 25,PH 十字盘头螺丝 M5 X 25 4
32 VF46450 CORD,MICRO SWITCH 开关电缆 1
33 VF46452 CORD,PUMP 电源电缆 1
34 VF47032 CLAMP,PLATE 水箱扣 1
35 VV20276 WASHER,PLATE 平垫圈 3/16 2
36 VF46419 COVER,FILTER,OUTLET,TANK 过滤器盖 1
37 VF46420 WASHER,COVER,OUTLET 过滤器平垫片 1
38 VA13473 SCREW,M4 X 16,PH 十字槽盘头螺钉 M4 X 16 2
39 VV20509 SCREW,M5 X 10,PH 十字槽盘头螺钉 M5 X 10 4
40 VA13477 ST4 X 16 十字盘头平尾自攻螺钉 ST4 X 16 2
41 VF46410 COVER,WIRING BOX 电器箱盖板 1
42 VA21578A CONNECTOR 接线座 1
43 VF13474A WASHER,PLAIN,Ø5 X Ø15 大垫片 Ø5 X Ø15 8
44 VF50120 GROMMET 电源线保护胶圈 1

DIA
NO PART NUMBER NO REQ'D
FOAM GENERATOR FOR DF-100A
DESCRIPTION
45 VF46453 GROUNDING WIRE 地线 1
46 VF45117 POWER CORD 电源线 1
47 VF14300 SCREW,M4 X 8,PH 十字沉头螺丝 M4 X 8 6
48 GT13022 NUT,M5,NYLON INSERT M5 防松螺母 6
49 VV30125 RUBBER STAND 橡胶支脚 4
50 VA13482 WASHER,PLAIN,Ø5 X Ø11 垫圈 Ø5 X Ø11 X 0.7 14
51 VF46402 REAR COVER 后罩 1
52 VF46445 HOSE,FOAMING,FRAME END 联接偏心洗地机出泡管 1
53 VF46441 BLBOW,HOSE,FOAMING 出泡弯结头 1
54 VF46442 NUT,BLBOW,HOSE 出泡弯头螺母 1
55 VF46437 HOSE,SL,INLET,VALVE 进水管 1
56 VF46408 COVER,FRESH AIR,PUMP 过滤网罩 2
57 VF46407 FILTER,FRESH AIR,PUMP 空气过滤网 2
58 VF46401 FRONT COVER 前罩 1
59 VF47035A VIPER LOGO 标牌 1
60 VF13491 SCREW,M4 X 12 ,PH 十字槽盘头螺钉 M4 X 12 8
61 GT13014 NUT,M4,NYLON INSERT 防松六角螺母 M4 4
62 VV13664 WASHER,PLAIN,Ø4 X Ø12 垫圈 Ø4 X Ø12 X 1 10
63
V
F46418 FILTER HOLDER,OUTLET,TAN
K
过
滤器
1
滤器
64 VF46465 BARB，FILTER 铜接头 2
65 VF46435 FILTER,OUTLET,TANK 过滤器网 1
66 VF46438 HOSE,OUTLET,VALVE 出泡管 1
67 VF46463 MOUNTING SCREW,PUMP 电机固定螺丝套装 1
68 YQ10000 PUMP 电机 1
69 VF46405 1
70 VF46444 1
71 VF46449 SHIELD,PUMP 挡水板 1
72 VV20501 SCREW,M5 X 14 ,PH 十字槽盘头螺钉 M 5 X 14 8
73 VF46413 SURPORT RIB,TANK 水箱支撑筋 4
74 VV13601 WASHER,SPRING Ø5弹簧垫圈 Ø52
75 VV13633 NUT,M5 螺母 M5 2
76 VF46425 TANK 水箱 1
77 VF46475 BLBOW,R1/4 R1/4弯管接头 1
78 VF46439 1
79 VF46428 ICON,ADJUSTING 调节图标 1
80 VF46427 ICON,FOAMING 发泡图标 1
81 VF14301 SCREW,M4 X 12,PH 十字沉头螺钉 M4 X 12 5
82 VF46415 KNOB,ADJUSTING 调节手把 1
83 VF46406 FOAMING GENERATOR 发泡过滤器 1
84 VF46411-3 GASKET 密封垫 1
85 VF46411 KNOB ASSY,FOAMING 发泡旋纽组合件 1
86 VF46468 FAN 风扇 1
87 VF46469 BRACKET，FAN 风扇支架 1
88 VF14077 SCREW,M4 X 35 ,PH 十字盘头螺钉 M4 X35 2
HOSE,COMPRESSED AIR,INLET,TANK 水箱进气管
BARB,OUTLET,COMPRESSED AIR,PUMP 电机管接头
HOSE,COMPRESSED AIR,OUTLET,PUMP 进气管

安全预防
本机必须接地！
为减少机器因故障而引起的触电危险，本机电
源线插头带有一接地插脚，任何情况下不得去
除该插脚。
本机仅作商业用途，并限于户内使用。务必使
用推荐的附件，操作者应阅读，理解并掌握以
下安全预防措施：
1、以下情况不得操作本机：
z未经培训取得相应资格；
z未仔细阅读和理解操作手册；
z在易燃易爆场所；
z电源线或插头损坏；
z机器存在问题不适合操作；
z在户外时；
z在水中；
z使用延长线；
2、操作机器前：
z务必确保所有安全装置动作正常；
3、使用机器时：
z不得碾压电线；
z不得靠牵拉电线的方式移动机器；
z不得将电线置于物件锋利的边、角；
z不得用拉电线的方式拔取插头；
z切勿用湿手拔取插头；
z始终使电源线远离发热的物件表面；
z应立刻报告机器任何之异常及损坏情
况；
4、离开机器或进行维护前：
z务必关机并拔下电源插头；
5、进行维护时：
z应拔下电源插头；
z使用产商推荐的或认可的配件；
储存时
1、拔下电源插头；
2、取下针座或刷子；
3、直立存放于干燥的场所；
维护与保养
为使本机始终保持良好的性能，请遵循以下程
序保养本机
进行任何维护、保养工作前，必须确保
机器已断开电源
1、机器一经使用完毕，立即拔下电源插头；
2、取下针座或刷子；
存放机器时，切勿忘记取下针座或刷子
3、用中性清洁剂清洁机器；
4、检查机器电源线有无破损，如有应立即进
行更换；
为避免危险，若电源线破损，必须联系
当地售后服务部进行更换；
5、每月用防水润滑剂润滑轮子、轴；
6、检查机器有否遗失螺母、螺栓并进行更换；
7、机器在粉尘的场所使用后，应取下电机顶
盖，用压缩空气吹净附着在电机上的灰尘
以保证良好的通风。
操作说明
使用或维护本机前务必仔细阅读说明书
1、使用前应清理工作区域内的杂物、纸屑等；
2、将手柄置于垂直位置后，将机器倾斜使手
柄靠在地面；
确认机器此时未接通电源；
3、松开螺母，取下中心定位器；
4、取合适的抛光垫粘在针座上，并用中心定
位器压紧；
5、将机器置于垂直位置；
6、将电源线插头插入带接地的插座中；
切勿使用与电源线不一致的延长电缆；
7、拉住调节拉把将机器手柄调节至合适操作
位置；
8、按下位于手柄上方的红色按钮同时拉住
左、右拉把即可启动机器；
9、操作时、双手必须牢牢握住操作手柄；
10、操作时，只要轻轻地抬起手柄，机器便
会向右移动，轻轻按下手柄，机器便会向
左移动；
11、停机时，只需松开左、右拉把即可；
