VIPowER VP-9059 User manual

VP-9059VP-9059
VP-9059VP-9059
VP-9059
FireWire 1394, 3.5-inch
Portable External Enclosure
USER MANUAL

TRADEMARKS
MS-DOS, Windows, Windows 98SE/NT/2000/Me/XP are trademarks of Microsoft
Corporation.
PC is a trademark of International Business Machines Corporation.
Macintosh and Mac are trademarks of Apple Computer, Inc.
All of the third-party brands and names are the property of their respective owners.
FireWire1394,3.5” ProtableExternalEnclosureVP-9059USERMANUAL
Rev. 1.0 Date: June, 16, 2004
PROPRIETARY NOTICE
Wemakesnowarrantyofanykind withregardtothis material,including,
but not limited to, the implied warranties of merchantability and fitness
for a particular purpose. We shall not be liable for errors contained
herein or for incidental or consequential damages in connection with
the furnishing, performance, or use of this material.
This document contains proprietary information which is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced, or translated to another language without
our written consent. The information contained in this document is
subject to change without notice.

Contents
1. Introduction .............................................................................. 4
1-1 Features ............................................................................... 4
1-2 Package Checklist................................................................ 5
2. Hardware Installation............................................................... 5
2-1 System Requirements ......................................................... 5
2-2 Power LED indicator............................................................. 5
2-3 Assembly.............................................................................. 6
2-4 Connect the Firewire 1394, 3.5” portable External
Enclosure VP-9059 to Your Computer................................. 9
3. Drivers Installation................................................................. 10
3-1 Windows 98/Me/2000/XP ................................................... 10
3-2 Mac OS 10.1X or Above...................................................... 11
3-3 Linux Kernel 2.4 orAbove ................................................... 11
4. Using The FireWire 1394 External Enclosure..................... 11
4-1 Connect the FireWire 1394 External Enclosure VP-9059
to Computer........................................................................ 11
4-2 Disconnect the FireWire 1394 External Enclosure VP-9059
from Computer ................................................................... 12
5. Partitioning the External Hard Disk ..................................... 14
5-1 Partition Under Windows 98/ME ......................................... 14
5-2 Partition under Windows 2000/XP...................................... 16

VP-9059 USER MANUAL
4
1.Introduction
TheVP-9059isahigh-performance1394toATA/ATAPInativebridge
with an embedded SBP-2 target solution. It supports a solution for
link/transaction layer controller conforming to the IEEE Std 1394
(IEEE 1394-1995 and IEEE 1394.a) up to 400Mbps transfer rate.
Compatibles with all 3.5” hard disk drives (HDDs).
Through the SBP-2 port driver, supported by Microsoft Windows 98
SE/2000/ME/XP, SCSI class drivers can use SBP-2 to communi-
cate with IEEE 1394 device using the SCSI command set.
The VP-9059 is ideally suited to hard disk drives (HDDs).It allows
IDE drives being able to connect to a 1394 serial bus in a plug-and-
play fashion. The ATA/ATAPI interface of VP-9059 supports signal
timing up to Ultra-DMA mode 5.
1-1 Features
• ATA/ATAPI to 1394 Native Bridge Two in One Solution.
• Data transfer rates of S100,S200 and S400.
• Fully interoperable with implementation of IEEE-1394(1995) and
IEEE 1394.a-2000 compliant.
• Firmware support for SBP-2 target agent.
• Fully ATA/ATAPI-6 compliant.
• Supports IDE PIO modes and DMA modes and Ultra DMA modes
up to UDMA 100.
• 4K bytes of FIFO for bi-directional transmit/receive data.
• External Flash ROM interface for easy updating firmware code.

VP-9059 USER MANUAL 5
1-2 Package Checklist
The external enclosure VP-9059 package contains the following
items:
1) The VP-9059 Case
2) A User’s Manual
3) One FireWire 1394 6-pin to 4-pin Converter Cable
4) One FireWire 1394 Cable
5) One +5V/+12V Power Adapter
6) One Power Adapter Power Cord
7) Screws bag
If any of these items are missing or damaged, please contact
your dealer or sales representative for assistance.
2. Hardware Installation
2-1 System Requirements
Hardware
Notebook or desktop computer with support for Firewire 1394.
Operating System
Windows 98SE/Me/2000/XP, and Mac OS 10.1X or above.

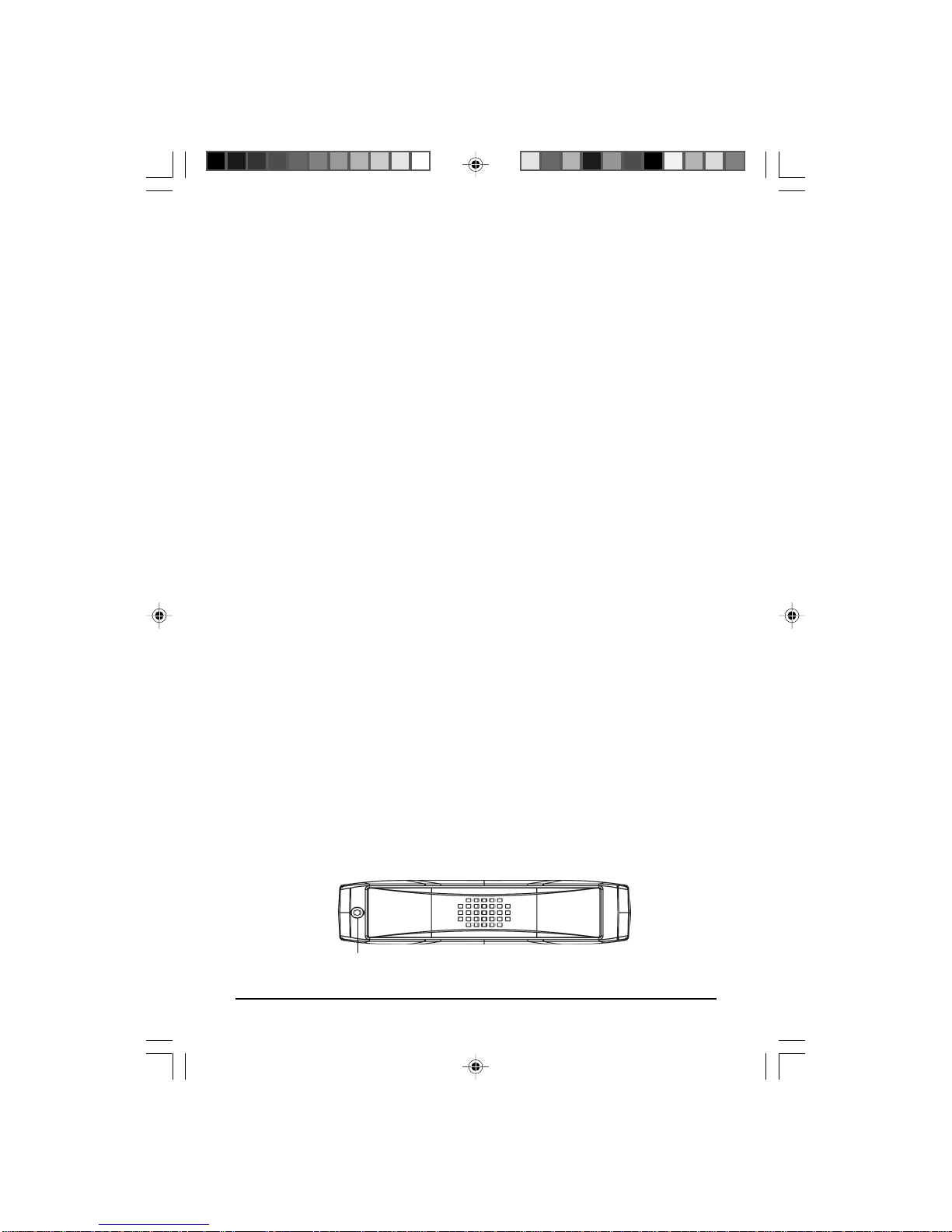

2-2 Power LED indicator
The power LED indicator is located on the front panel of the
VP-9059. The power LED will be green light when connect with
the power cable. When you write the data to the VP-9059, the
power LED will be orange light.
Power LED

VP-9059 USER MANUAL
6

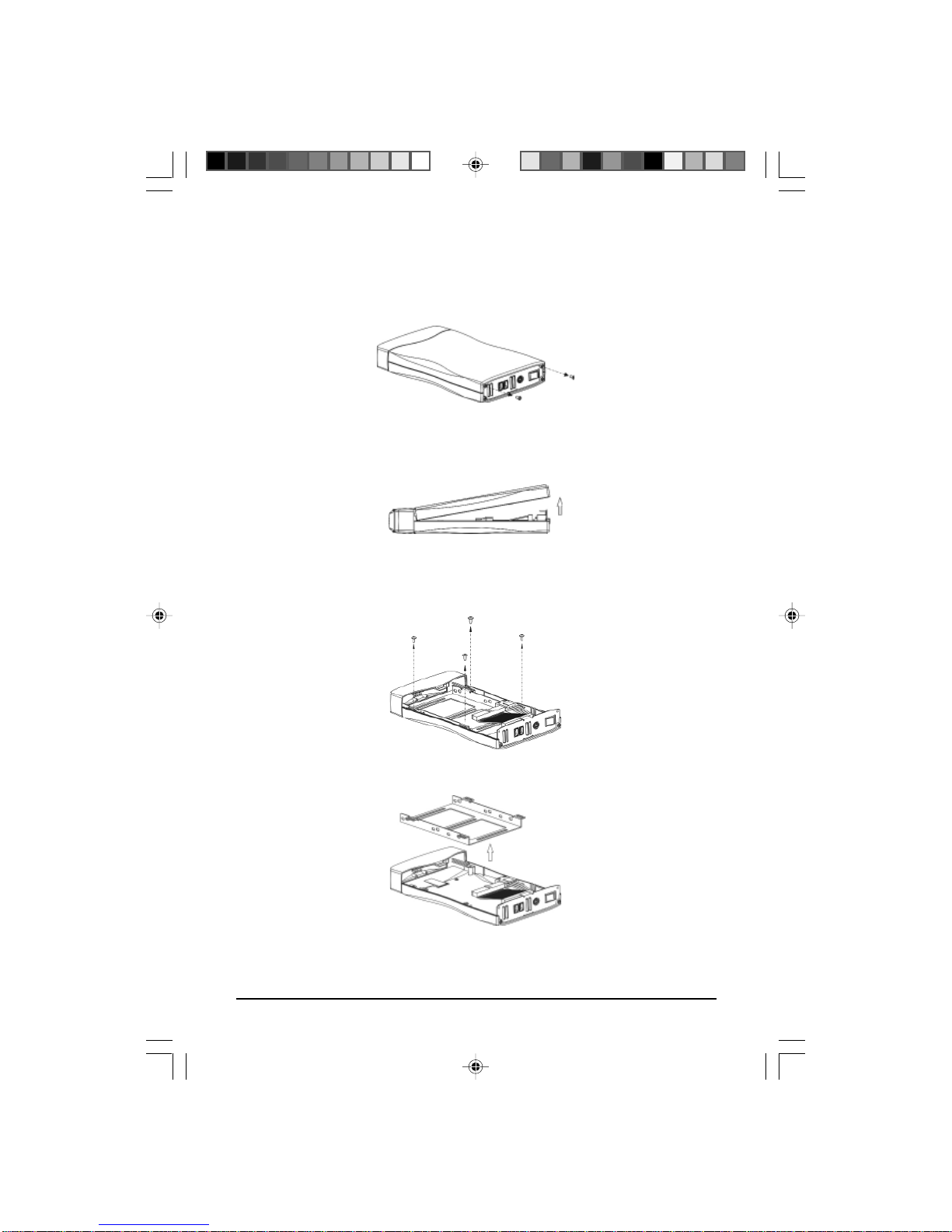

2-3 Assembly
1. Remove the two retaining screws securing the upper case of
the Enclosure to the rear face.
2. Carefully lift the rear of the case. Then, slide it away from the
rear face of the front panel.
3. Remove the four screws retaining the hard drive cradle to the
base unit of the Enclosure.
4. Lift out the cradle.

VP-9059 USER MANUAL 7
7. Locate the IDE port and power port situated on the rear face of
the hard drive. Plug the IDE cable and power cable into the
appropriate port ensuring that they fit securely.
5. Position the hard drive into the cradle.
6. Secure the hard drive into the cradle using the four retaining
screws.
8. Position the cradle/hard drive onto the Enclosure base unit.

VP-9059 USER MANUAL
8
12. Finally, secure the upper case with the two retaining screws.
9. Secure the cradle with the four retaining screws.
10. Replace the upper case. Note Ensure that the groove in the
upper case aligns with the slot in the base unit.
11. Slide the upper case forward ensuring that it abuts the rear
face of the front panel.

VP-9059 USER MANUAL 9
2-4 Connect the Firewire 1394, 3.5” portable External Enclosure
VP-9059 to Your Computer
Step1:
Boot-upyour computer. Make sure the host adapter anddriver are
installed in your computer.
Step2:
Connect one 1394 connector end of the FireWire 1394 cable into
the 1394 Port of your External Enclosure VP-9059.
Step3:
Connect the Power Adapter Power Cord to the +5V/+12V Power
Adapter. Then, plug one end of power cord into an AC power
outlet, and the other end to the power inlet of your FireWire 1394
3.5” Portable External Enclosure VP-9059.
Step4:
Power ON your FireWire 1394 3.5” Portable External Enclosure
VP-9059.
Step5:
Proceed to the next “Driver Installation” section and follow the
instructions for your operating system after plugging the 1394
connector end of the FireWire 1394 cable into a 1394 port on your
computer.
Note:
This device will auto-detect the speed of your 1394 port
once the driver is installed.

VP-9059 USER MANUAL
10
3. Drivers Installation
3-1 Windows 98/Me/2000/XP
Step1:
If you are plugging the FireWire 1394 External Drive into your
computer for the first time, the system will detect a FireWire 1394
Storage Device and install the [IEEE 1394 Storage Device] from
system files automatically.
Step2:

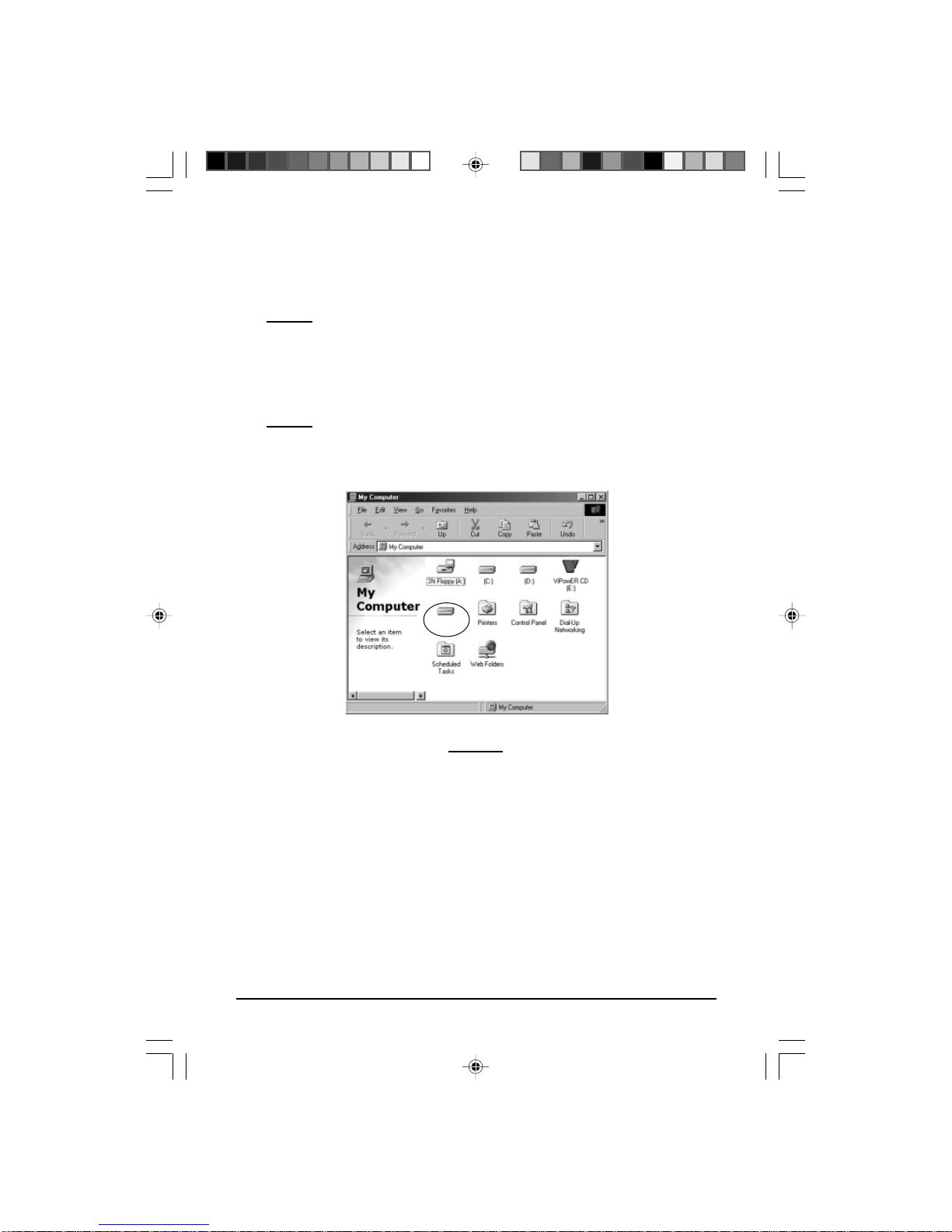

Double click on [MyComputer]. A new drive [1394disk] icon should
have been added. It is the FireWire 1394 External Drive which just
installed.
Notes:
1. This FireWire 1394 External Drive is supported by the
IEEE 1394 Storage Device in Windows 98/Me/2000/XP oper-
ating systems. You do not need to install any drivers.
2. If the new drive does not appear in [My Computer], it
means this FireWire 1394 External Drive is a brand new hard
disk drive which does not contain a partition. Please refer to
Chapter 5 “Partitioning an External Hard Disk” to prepare
your FireWire 1394 External Disk.
1394disk[F:]

VP-9059 USER MANUAL 11
3-2 Mac OS 10.1X or Above
1. This FireWire 1394 External Drive is supported by IEEE 1394
Storage Support Mac OS 10.1X or above. You do not need to
install any drivers.
2. When you plug this external Hard Disk into the 1394 port of your
Mac computer, the mass storage volume should automatically
appear on the desktop in a few seconds.
3-3 Linux Kernel 2.4 or Above
This FireWire 1394 External Drive is supported by IEEE 1394
Storage Support Linux Kernel 2.4 or above. You do not need to
install any drivers.
4. Using The FireWire 1394 External Enclosure
After the first time installation, you can connect or disconnect the
FireWire 1394 External Enclosure VP-9059 without powering off
the computer.
Please follow the steps below when using the VP-9059.
4-1 Connect the FireWire 1394 External Enclosure VP-9059 to
Computer
Step1:
Plug the first 1394 port connector of the FireWire 1394 cable into
the 1394 port of your Firewire 1394 External Enclosure VP-9059.
Step2:
Plug the second 1394 port connector of the FireWire 1394 cable
into an 1394 port on your computer.
Step3:
Plug the power adapter power cord to the power inlet of your
FireWire 1394 External Enclosure VP-9059. Turn the power of the
VP-9059 ON.
Step4:
FireWire 1394 3.5” Portable External Enclosure VP-9059 is ready
for use immediately.

VP-9059 USER MANUAL
12
4-2 Disconnect the FireWire 1394 External Enclosure VP-9059
from Computer
4-2.1 Windows 98:
Step1:
Double click the green Unplug or Eject hardware icon in system
tray and click the drive that you want to remove and click on
[STOP].
Step2:
When the system prompts ‘Confirm device to be stopped’, click
[OK]. When the green arrow icon disappears, you may safely
unplug the 1394 cable from the 1394 port of computer.
4-2.2 Windows Me/2000/XP
Step1:
Double-click on the [Unplug or Eject Hardware] icon in the system
tray. A dialog box appears.
Step2:
Highlight the [IEEE 1394 Storage Device] in the dialog box, click
[STOP]. Choose the FireWire 1394 External Enclosure VP-9059
that you want to disconnect, then click [STOP] again on the next
screen.

VP-9059 USER MANUAL 13
Step3:
Wait a few seconds until the system prompts “You may safely
remove this device”. Then, disconnect the FireWire 1394 External
Drive from the computer.
4-2.3 Mac OS 10.1X or Above
When disconnecting your FireWire 1394 External Drive from a
Mac computer, first close all windows and quit all running applica-
tions that are stored on the FireWire 1394 External Drive. Next,
drag the FireWire 1394 External Drive’s icon into the “Trash” to
dismount it from the Desktop. You can now safely disconnect the
FireWire 1394 External Drive from the 1394 port.
CAUTION!!
Do not unplug the FireWire 1394 External Drive from the
1394 port of your computer or HUB while copying files to/
from the device or while files or applications stored on the
FireWire 1394 External Drive are in use.
DOING SO MAY RESULT IN LOSS OF DATA.

VP-9059 USER MANUAL
14

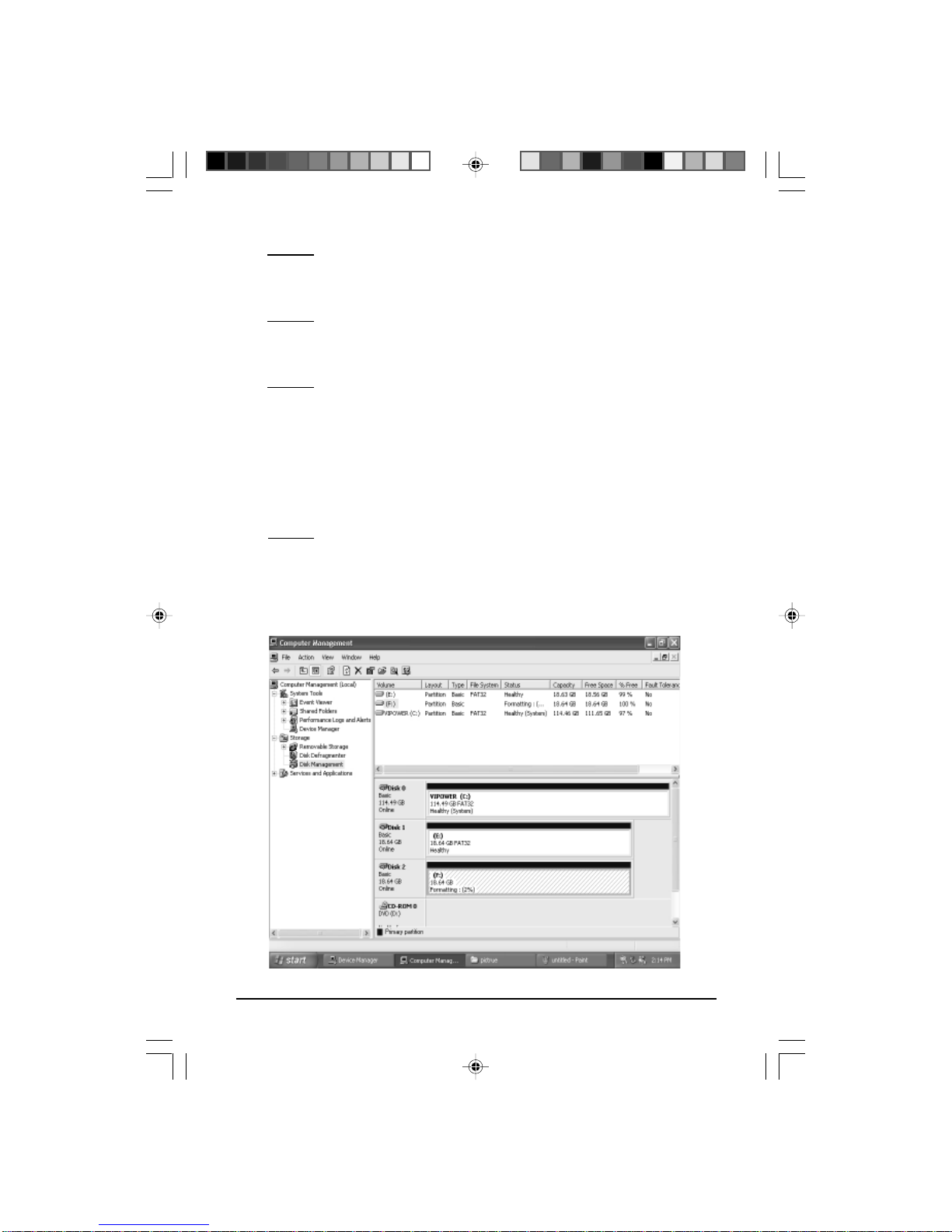

5. Partitioning the External HardDisk
5-1 Partition Under Windows 98/ME
Boot-up the computer into Windows 98/ME. Next, connect your
external Hard Disk Drive to the 1394 port.
There are two methods to partition and format your external Hard
Disk Drive.
Method 1
Step1:
Click on [Start], select [Control Panel] in [Settings], double click
[System] and open [Hard disk controllers].
Step2:
You should see the external Hard Disk you just added. Highlight
the external Hard Disk and choose [Properties], select [Settings].
Set the external Hard Disk to [Removable].
Step3:
After restarting the system, a removable HDD is added to [My
Computer]. Choose the removable HDD and right click button of
mouse. Select [Format] to format your external Hard Disk Drive.
Youcan onlyset theexternal HardDisk Driveto onepartition using
this method.
Method 2
Step1:
Go into MS-DOS mode by clicking on [Start], then choose the
[MS-DOS Prompt] in [Programs].
Step2:
At the DOS prompt, type [FDISK] and press Enter.

VP-9059 USER MANUAL 15
Step3:
If FDISK quits without any message, go back to the Windows 98
screen, disconnect the external Hard Disk and re-boot the
computer. Reconnect the external HDD and go back to Step 1 to
proceed.
Step4:
For the first screen of FDISK, answer the question:
Do you want to enable large disk support?
[Y] if you want to build a partition larger than 2GB.
[N] if you want to build a partition small than 2GB.
Step5:
The next screen is [FDISK OPTIONS]. Type [5] to select the disk.
Important:
You must type [5] in this screen to change the current fixed
disk drive to build a partition. The default fixed drive set by
FDISK is your internal hard disk drive.
WARNING!!
If you don’t change the fixed disk drive to the
external Hard Disk, the data of your internal
hard disk will be destroyed!

VP-9059 USER MANUAL
16
Step6:
In the [Change Current Fixed Disk Drive], type the disk drive num-
ber that is assigned to the external Hard Disk.
Step7:
Go back to [FDISK OPTIONS] screen, Now you can create or
delete a partition of the external Hard Disk.
Step8:
After you finish FDISK, go back to the Windows screen, discon-
nect and then reconnect the external Hard Disk again to activate
these changes. Double click on [My Computer]. The external Hard
Disk Drive icon that you have now partitioned should be seen.
5-2 Partition under Windows 2000/XP
Step1:
To partition the external Hard Disk Drive under Windows 2000,
connect the external Hard Disk to the 1394 port on your computer.
Next, click [Start], select [Control Panel], [Settings], open [Admin-
istrative Tools] and double click [Computer Management].

VP-9059 USER MANUAL 17
Step2:
Click on [Disk Management]. All connected disk drives will be
listed. Find the external Hard Disk that you added and to the right
of the disk, view the status of the partitions of this disk drive. You
can create a new or delete an existing partition by right-clicking on
this area.
Step3:
Right-click on the partition status area of the external Hard Disk
Drive. Click on [Create Partition….] and the “Create partition wiz-
ard” will appear.
Step4:
Follow the instructions of the wizard to partition and format your
external Hard Disk Drive.
After you have completed the partitioning and formatting of the
external Hard Disk Drive, you can write data to it.
