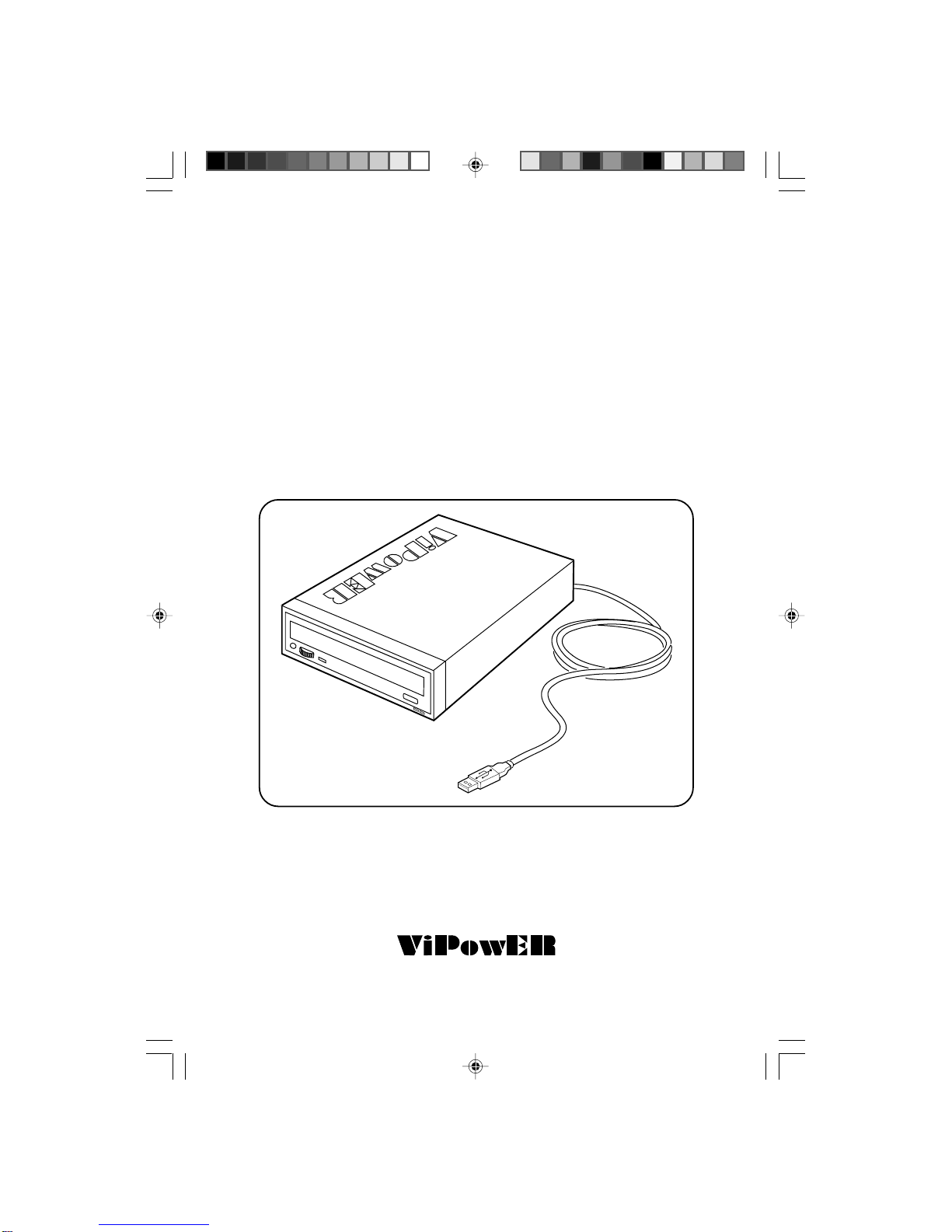

VIPowER VPM-6228H User manual

User’s Manual
We are your DataBridgeTM
http://www.vipower.com
VPM-6228H
Ture Metal USB 2.0 External
Enclosure with 3 ports HUB
for 5.25-inch CD/DVD ROM, CD/DVD-RW,
DVD+RW and 3.5-inch HDD

TRADEMARKS
MS-DOS, Windows, Windows 98SE/NT/2000/Me/XP are
trademarks of Microsoft Corporation.
PC is a trademark of International Business Machines
Corporation.
Macintosh and Mac are trademarks of Apple Computer, Inc.
All of the third-party brands and names are the property of their
respectiveowners.
VPM-6228H -Ture Metal USB 2.0 External Enclosure with 3
ports HUB for 5.25-inch CD/DVD ROM, CD/DVD-RW,
DVD+RW and 3.5-inch HDD User’s Manual
Rev. 1.0 Date: October 27, 2004
© Copyright 2004 ViPowER, Inc. All rights reserved.
PROPRIETARY NOTICE
We make no warranty of any kind with regards to this material,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. We shall not be liable for errors
contained herein or for incidental or consequential damages in connec-
tion with the furnishing, performance, or use of this material.
This document contains proprietary information which is
protected by copyright. All rights are reserved. No part of this document
may be photocopied, reproduced, or translated to another language
without our written consent. The information contained in this document
is subject to change without notice.

Content
1. Features and Specifications........................................... 4
1-1 VPM-6228H external enclosure................................................ 4
1-2 USB 2.0 External Drive............................................................. 6
1-3 Package Checklist.................................................................... 7
2. Hardware ......................................................................... 8
2-1 LEDindicators located on the front panel................................. 8
2-2 Connectors located on Back panel........................................... 8
2-3 Installation ................................................................................ 9
2-4 Connecting the VPM-6228H to a Computer ........................... 18
3. Drivers Installation ........................................................ 20
3-1 Windows 98SE ...................................................................... 20
3-2 Windows Me/2000/XP ............................................................ 24
3-3 Mac OS .................................................................................. 25
3-4 Linux 2.4................................................................................. 25
4. Use The USB 2.0 External Enclosure VPM-6228H ..... 25
4-1 Connect the USB 2.0 External Enclosure VPM-6228H
Computer................................................................................ 25
4-2 Disconnect the USB 2.0 External Enclosure VPM-6228H from
Computer................................................................................ 27
5. Partition the External USB 2.0 Hard Disk..................... 29
5-1 Partition Under Windows 98/ME............................................. 29
5-2 Partition under Windows 2000/XP ......................................... 31

VPM-6228H USER MANUAL4
Specifications:
1. Complete Metal case design maximizes and aides heat
dissipation.
2. Compatible with all 5.25” devices and 3.5” HDD.
3. One special High-power USB port for USB 2.5” HDD, slim CD/
DVD-ROM, slim CD/DVD±RW, and USB Reader, etc..
4. Worldwide Patented 3 in one integrated USB 2.0 HUB for easy
USB expansions.
5. Stackable design for multiple connection between external USB
devices (USB HDD, Card reader etc.) and extra USB
expansions.
6. USB 2.0/1.1 compliant with data transfer rate up to 480Mbit/sec.
1. Features and Specifications
1-1 VPM-6228H external enclosure
Features
1. USB 2.0/1.1 compliant with data transfer rate up to 480Mbit/sec.
2. Worldwide Patented 3 in one integrated USB 2.0 HUB for easy
USB expansions.
3. Compatible with all 5.25” devices and 3.5” HDD.
4. One special High-power USB port for USB 2.5” HDD, slim CD/
DVD-ROM, slim CD/DVD±RW, and USB Reader, etc..
5. Native hardware Plug-n-Play supports under Windows Me/2000/
XP, Mac OS 9.1X and above and Linux Kernel 2.4 and above, no
software driver required (driver for Windows 98SE).
6. Stackable design for multiple connection between external USB
devices (USB HDD, Card reader etc.) and extra USB
expansions.
7. Complete Metal case design maximizes and aides heat
dissipation.

VPM-6228H USER MANUAL 5
7. USB 2.0 / IDE compliant:
a) Integrated USB transceiver.
b) High speed (480 Mbit) and full speed (12 Mbit) support.
c) USB suspend / resume, remote wake up support.
8. SupportsATA PIO modes 0-4 : ATAinterface operation mode is
automatically selected during device initialization or manually
programmed with configuration data.
9. Supports UDMA modes 0-4 of operation.
10. Supports 48-bit LBA (large HDD), when the VPM-6228H con-
nects with one 3.5” HDDinstalled in the Mobile Rack.
11. Native hardware Plug-n-Play supports under Windows Me/2000/
XP, Mac OS 9.1X and above and Linux Kernel 2.4 and above, no
software driver required (driver for Windows 98SE).
12. LEDindicator displayed power and drive activity are located on
the front panel of the VPM-6228H external enclosure.
13. One Screw secure the top enclosure cover and locate on the
back panel of the VPM-6228H can easy disassemble without
any screwdriver and has a beautiful outlook.
14. Provide the diagram ”Eye-Pattern” fo proving the best transmis-
sion signal. In other words “The VPM-6228H has the best high-
quality”.
Operating Systems
•Windows Me/2000/XP – no drivers required (software drivers
for Windows 98SE included)
•Mac OS 9.0 or later – no drivers required
•Linux 2.4 – no drivers required

VPM-6228H USER MANUAL6
1-2 USB 2.0 External Drive
The USB 2.0 External Drive is a portable compact storage drive
that incorporates the USB 2.0 (Universal Serial Bus 2.0) high
speed interface. The USB 2.0 External Drive provides a fast and
easy way to add more storage space to your computer.
Its hot-swapping and Plug-n-Play features gives you a great
convenienceontheroad,whereitcanbeconnected/disconnected
without powering down your system. The VPM-6228H USB 2.0
External Drive is compatible with Apple Macintosh and Windows
computers. Note:
In order to reach USB 2.0 speed, your computer must have
a host adapter card with USB 2.0 support. The VPM-6228H
will auto detect the speed of your USB port and adjust be-
tween USB 1.0 and USB 2.0 speed.

VPM-6228H USER MANUAL 7
1-3 Package Checklist
The VPM-6228H / True Metal USB 2.0 External Enclosure with
3 ports HUB package contains the following items:
1) The VPM-6228H external enclosure
2) One USB 2.0 Cable
3) One +5V/+12V Power Adapter
4) One Power Adapter Power Cord
5) One “Drivers and Utility Installation” CD
6) VPM-6228H User’s Manual
If any of these items are missing or damaged, please contact
your dealer or sales representative for assistance.
Package Contents
VPM-6228H enclosure
USB 2.0 Cable
Driver CD
+5V/+12V Power
Adapter
Power adapter
Power Cord

VPM-6228H USER MANUAL8
2-2 Connectors located on Back panel
2. Hardware
2-1 LED indicators located on the front panel
The Red and Green indicators are located on the front panel of the
VPM-6228H.
The Green LED is lit when the power ON.
TheRedLEDflasheswhenconnectwithone HDD.ButtheRedLED
does NOT flashes when connect with one 5.25” device.
Fan Power
Jack
USB
Port Power
Switch
HUB
(x3)
LEDIndicators
RedLED
(Device Access)
Green LED
(Power)

VPM-6228H USER MANUAL 9

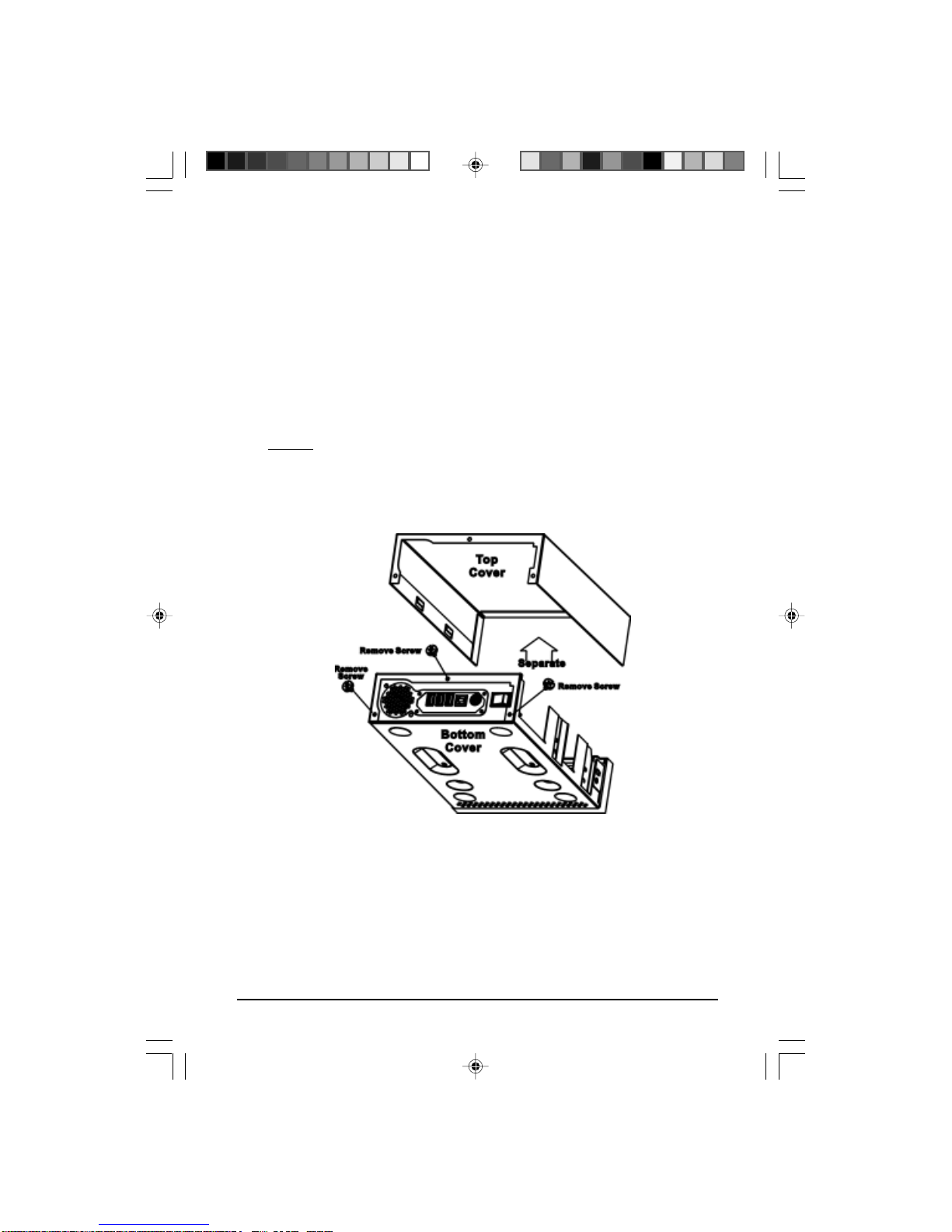

2-3 Installation
Assemble with one 5.25” Device
Step1.
Remove the three retaining screws on the back of the external
enclosure. Separate the top and bottom enclosure covers.
The following sections will guide you trough the installation of one
5.25” device or one 3.5” HDD assembled with the VPM-6228H
enclosure. There are two parts to the installation:
1. Assembly with one 5.25” IDE device.
2. Assembly with one 3.5” HDD.
A small screwdriver is the only tool required.

VPM-6228H USER MANUAL10

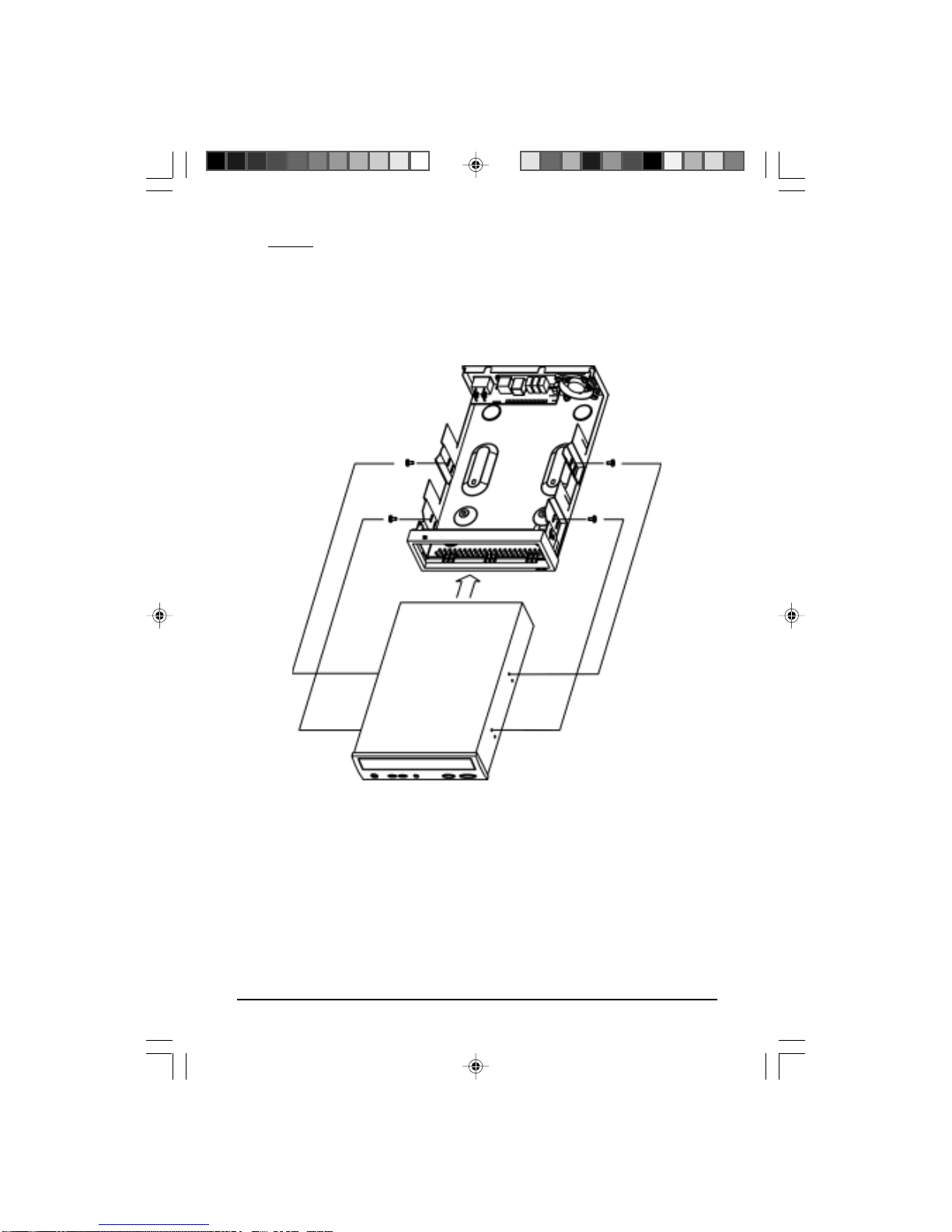

Step2.
a) Place one 5.25” IDE device in the bottom enclosure cover. Align
the 5.25” IDE device mounting holes with the mounting holes on the
bottom cover and secure with four screws (two on each side).

VPM-6228H USER MANUAL 11

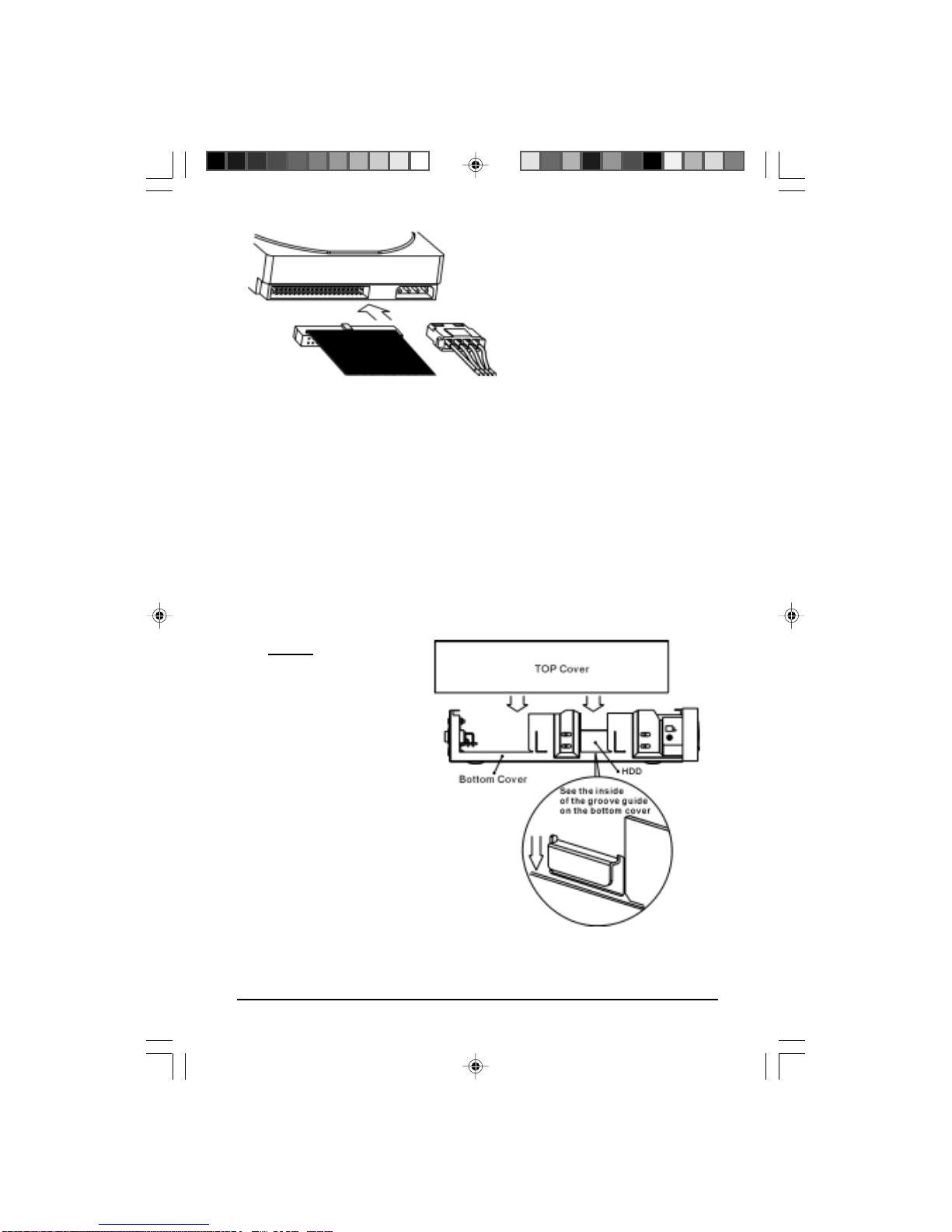

Step3.
a) Replace the top
cover over the drive
assembly, making
sure the side groove
guideofthetopcover
slides within the side
groove guide of the
bottom cover.
c) Attach the 4-pin
power cable from the
rearpanelofthebottom
cover to the 4-pin con-
nector on the back of
the 5.25” device.
b)Attachthe 40-pinIDE
cable from the rear
panel of the bottom
cover to the 40-pin con-
nector on the back of
the 5.25 “ device to en-
sure pin-1 to pin-1
connection, orient the
cable so the colored
stripe edge is closest to
the power connector.

VPM-6228H USER MANUAL12
c)Makesurethetopandbottomgrooveguidesarematched
and form a tight fit.

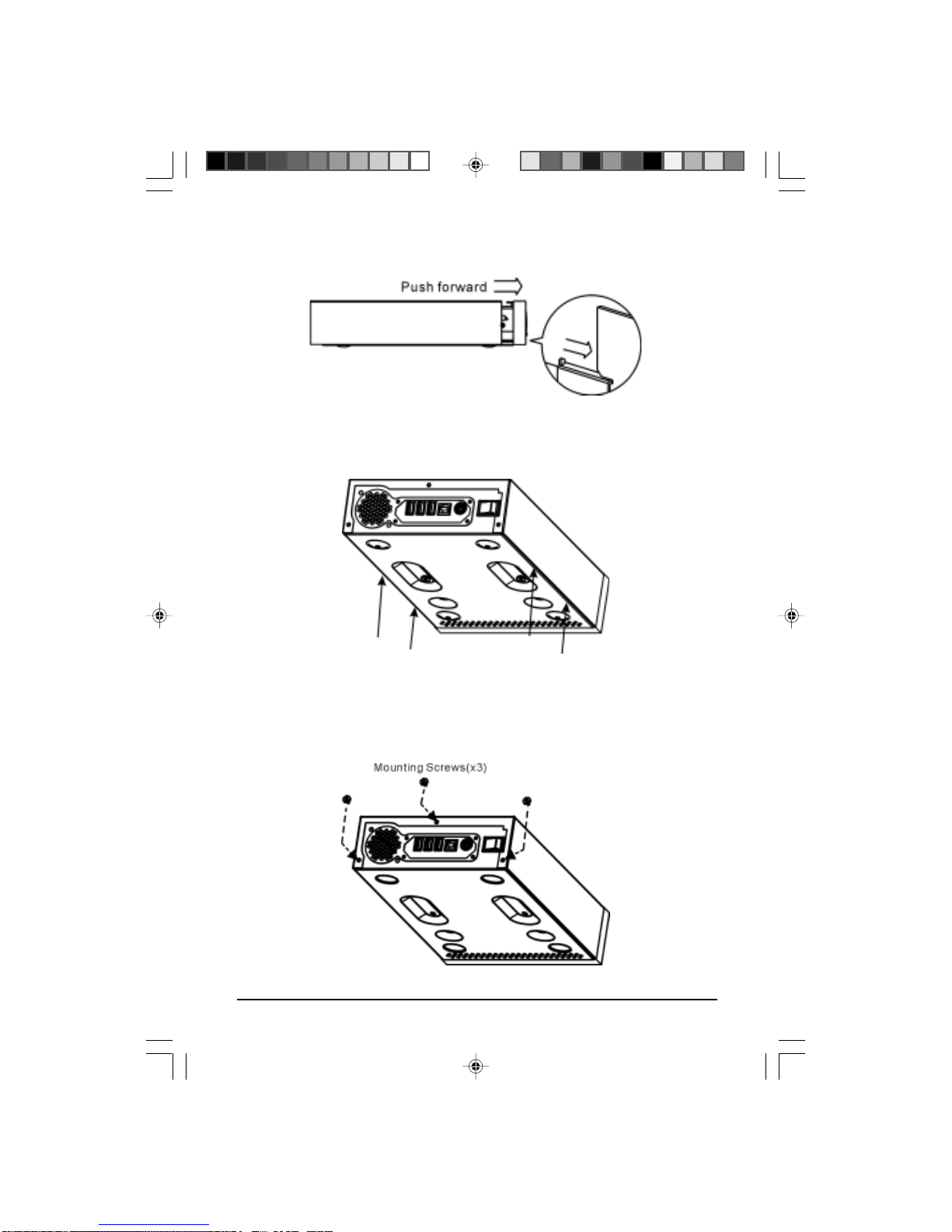

b)Slidethetopcoverforwarduntilitfitstightwithinthefront
grooveguide.
d)ReplacethethreescrewswhichwereremovedinStep1
fromthebackoftheenclosure.
Make sure form a tight fit. Make sure form a tight fit.

VPM-6228H USER MANUAL 13

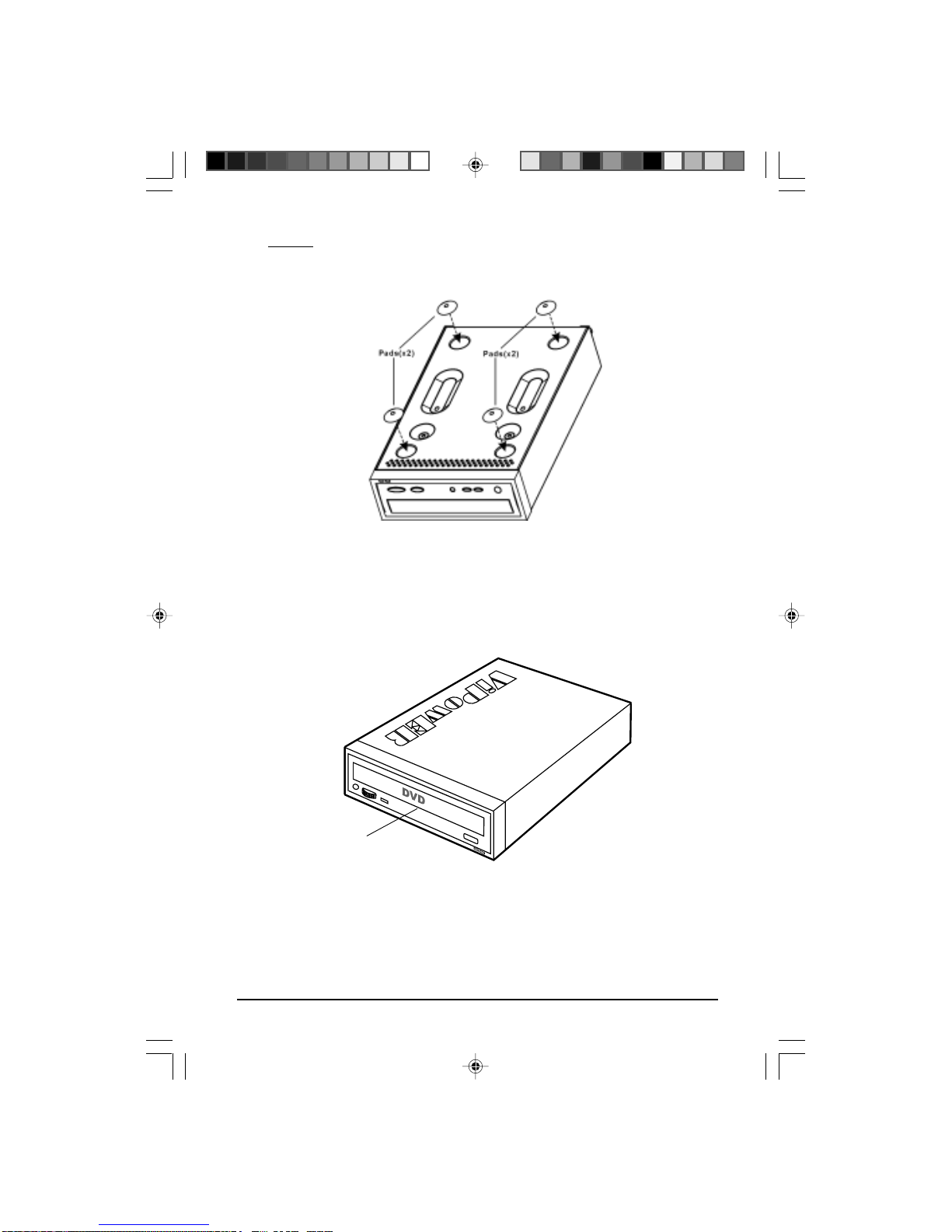

Step4.
Adhere the four pads on the bottom of the drive assembly.
The installation is complete and the VPM-6228H external enclosure
is now read to use.
5.25-inchIDEDe-
vice

VPM-6228H USER MANUAL14

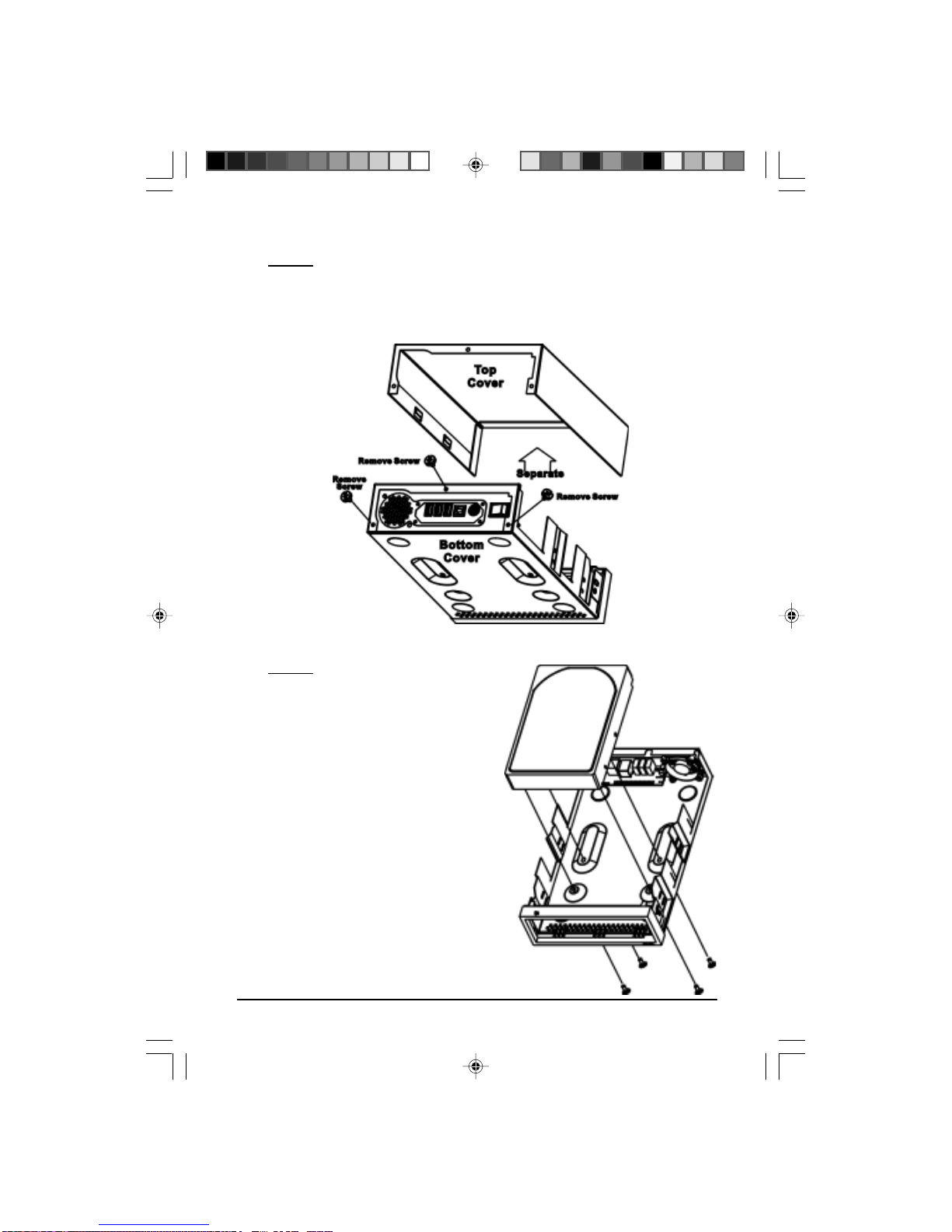

Assemble with one 3.5” HDD
Step1.
Remove the three retaining screws on the back of the external
enclosure. Separate the top and bottom enclosure covers.
Step2.
a) Place the HDD in the bottom
enclosure cover. Align the HDD
mounting holes with the mounting
holes on the bottom cover and se-
cure with four screws (through the
bottom cover).

VPM-6228H USER MANUAL 15
Step3.
a) Replace the top
cover over the drive
assembly, making
sure the side groove
guideofthetop cover
slides within the side
groove guide of the
bottom cover.
c) Attach the 4-pin power
cable from the rear panel
of the bottom cover to the
4-pin connector on the
back of the 5.25” device.
b) Attach the 40-pin IDE
cable from the rear panel
of the bottom cover to the
40-pin connector on the
backof the 5.25 “ deviceto
ensure pin-1 to pin-1
connection,orientthecable
so the colored stripe edge
is closest to the power
connector.

VPM-6228H USER MANUAL16
b)Slidethetopcoverforwarduntilitfitstightwithinthefront
grooveguide.
c)Makesurethetopandbottomgrooveguidesarematched
and form a tight fit.
d)ReplacethethreescrewswhichwereremovedinStep1
fromthebackoftheenclosure.
Make sure form a tight fit. Make sure form a tight fit.

VPM-6228H USER MANUAL 17
Step4.
Place the front cover into the drive assembly, and adhere the four
pads on the bottom of the drive assembly.
The installation is complete and the VPM-6228H external enclosure
is now read to use.

VPM-6228H USER MANUAL18

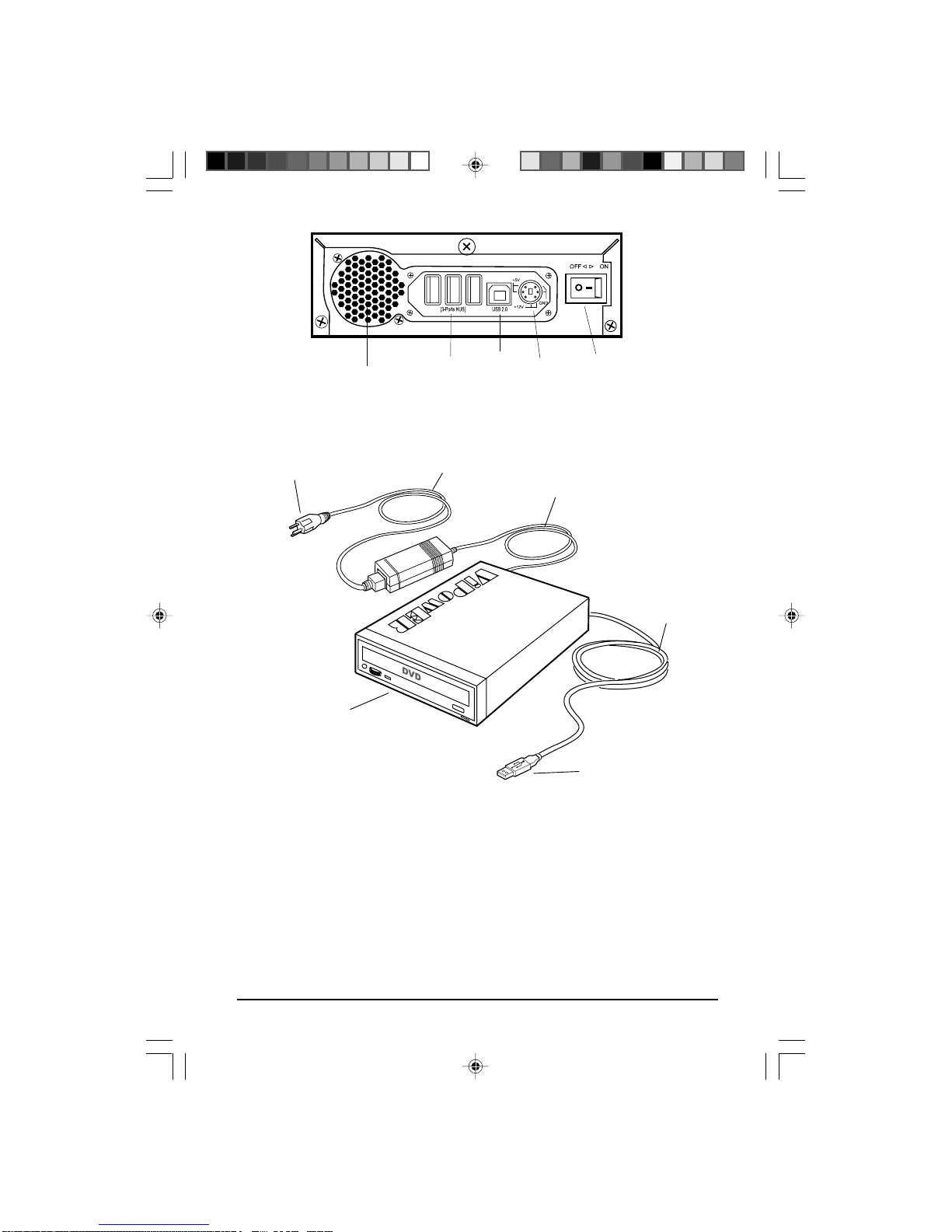

2-4 Connecting the VPM-6228H to a Computer
Computer Requirements
•USB equipped notebook or desktop computer
•Windows 98SE/Me/2000/XP, or Mac OS 9.0 or above
Proceed with the following steps to connect the
VPM-6228H to your computer.
Step1:
Boot-upyourcomputer.Makesure the USB/USB 2.0 host adapter
and driver are installed in your computer.
Step2:
Connect one USB connector end of the USB cable into the USB
Port of your USB 2.0 External Enclosure VPM-6228H.
Step3:
Connect the Power Adapter Power Cord to the +5V/+12V Power
Adapter. Then, plug one end of power cord into an AC power
outlet,andtheotherendtothepowerinletofyourUSB2.0External
Enclosure VPM-6228H.
Step4:
Power ON your USB 2.0 External Enclosure VPM-6228H.
Step5:
Proceed to the next “Driver Installation” section and follow the
instructions for your operating system after plugging the USB
connectorendof the USB cable into a USBportonyourcomputer.
Note:
This device will auto-detect the speed of your USB port and
adjust between USB 1.0 and USB 2.0 speed once the driver
is installed.

VPM-6228H USER MANUAL 19
VPM-6228H Connects to USB Port on computer
PlugintoAC
Power Outlet
Power Adapter
Power Cord
USB 2.0
Cable
+5V/+12V
Power Adapter
Plug into USB Port
on Computer
VPM-6228H
Assembly with
5.25” Device
Fan Power
Jack
USB
Port Power
Switch
HUB
(x3)

VPM-6228H USER MANUAL20
3. DriversInstallation
3-1 Windows 98SE
If this is the first time using your USB 2.0 External Drive, you must
first run the [SETUP.EXE] from the USB 2.0 “Drivers and Utility
Installation” CD after you connect your USB 2.0 External Drive to
your computer. Then proceed with the following:
1. Connect your USB 2.0 external drive to an available USB port
on your computer.

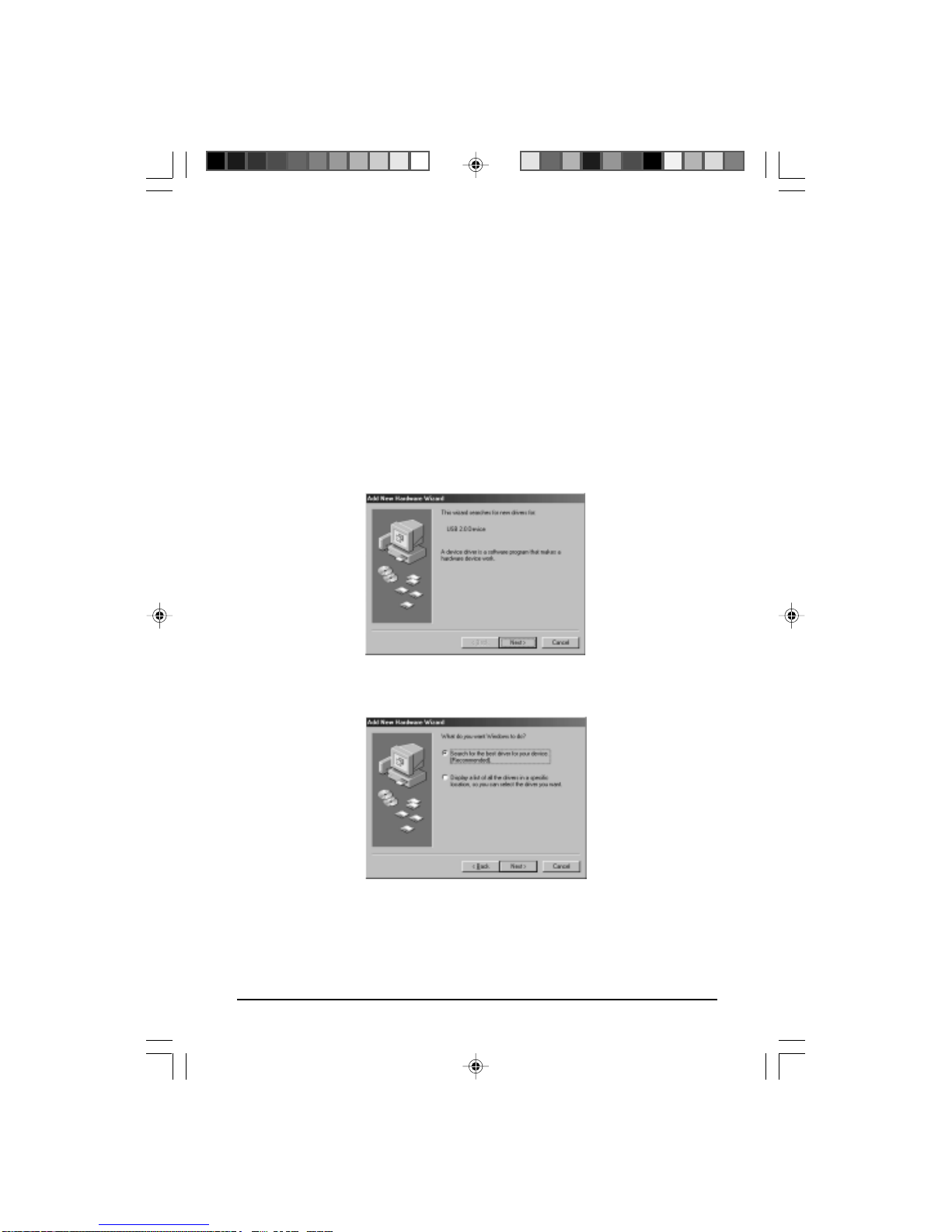

2.An“AddNewHardwareWizard”screenwillappear.Click[Next].
3. Select “Display a list of all drivers” then click [Next].
