Virage VirageSwitch KS-602H FW 3.2 User guide

virage laborato r i e s inc.
Home Automation
Systems
Systèmes
domotiques
Private
Locally Managed
Secure
Privé
Géré localement
Sécurisé
v
VirageSwitch
Installation and Setup
Manual
Model KS-602H FW v3.2

Before you install, some things to check:
1. This device requires a neutral (white) wire to function.
2. This device replaces a single-pole switch only. It cannot
be used with standard 3-way switch wiring. To create
a virtual 3-way switch, please consult our online FAQ.
3. The total wattage controlled by this device cannot
exceed 1650 watts.
4. A 2.4 GHz 802.11b/g wireless network is required to
connect the device. It is not compatible with 5 Ghz
802.11 a wifi systems.
5. As with all wireless and wired networks, please ensure
your wifi connection uses at least WPA2 PSK level
wireless security, a strong wifi password, and ensure
there is a firewall on your internet connection.
Risk of electric shock or fire if installed improperly.
If you are unsure how to safely install this device
please consult a licensed electrician.
WARNING - ATTENTION
2

Get to know your new switch
On / Off Switch
Status LED
LED
State
Meaning
Status
Flashing Green
Not connected to WiFi
Solid Green
Connected to WiFi / Light is off
Solid Red
Light is on
3

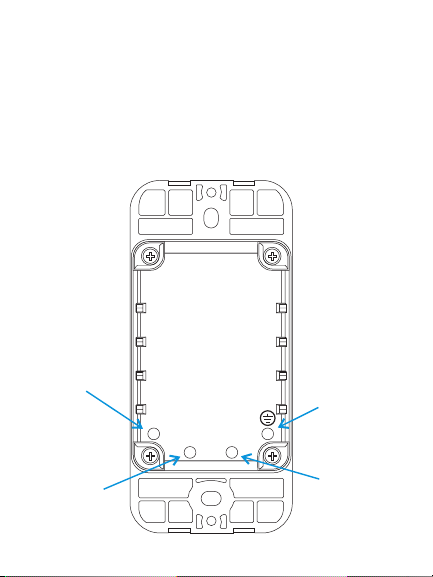

OUT
L-IN N-IN
Wiring
Load (red wire
leading to the
light(s) ) Ground
(green wire)
Neutral (white
wire, leading
back to your
panel and
connected to
light fixture)
Line (black
wire, leading
back to your
panel)
(note that wires are attached to the device but have
been omitted for clarity).
Wire colors may vary with the age of your home and who did
the wiring. Please verify the function of each wire before
connecting the device and energizing the circuit.
4

Installation
It is recommended that installation be completed by a
licensed electrician.
1. Locate and turn off the circuit breaker for the switch
you want to replace.
2. Check that the wires in the device box where you are
installing the switch are de-energized. Note: some wires
may be connected to different circuit breakers.
3. Identify the wires in the device box leading to the switch
you want to replace (see diagram).
Typical wiring - note that not all wiring will look like this.
Ground wires in are often bare copper, but are shown as
green here for clarity.
GR
OU
N
D
To Light
From Panel
E
N
I
L
L
O
A
D
5

OUT
L-IN N-IN
Installation Continued
It is recommended that installation be completed by a
licensed electrician.
4. Disconnect the wires from the existing switch, making
sure to remember which wire is which (labeling the wires
with tape before disconnecting them can be useful).
5. Using the existing and/or supplied wire nuts, connect the
wires of your new switch as appropriate to your wiring
configuration (see diagram).
Typical wiring - note that not all wiring will look like this.
GR
OU
N
D
To Light
From Panel
6. Bend the wires into the device box, taking care to not
loosen the wire nuts. Push the switch into the box and
attach it using the screws provided.
7. Turn the breaker back on and check that the Status
LED on the switch is flashing green.
LINE
L
O
A
D
6

Installation Continued
8. On your smart phone or computer, open the WiFi
connection list. You should see a connection called
VirageSwitch_XXXXXXXX (the Xs are the unique ID of
your switch). Connect to this access point. If you
receive a warning that the connection has no internet
access, please ignore it as this is normal.
9. Once you have connected to the VirageSwitch access
point, your web browser should automatically open the
device configuration page. If this does not happen, please
navigate to http://192.168.4.1 (not https://).
You will be prompted to enter a username and
password. The default is:
username: admin
password: admin
It is recommended you change the password during the
configuration process.
10. You should now see the Network Settings page for your
switch. Click Scan for wifi networks to see available
WiFi connections and select the WiFi connection you
normally use. Enter the corresponding WiFi password in
the space provided (check the box to use plain text entry).
11. Change the Web Admin password (check the box to
enable plain text entry).
7

Installation Continued
12. If you will be using a hub to control your switch, ensure
that the Hub Address is correct and that the Hub Support
and mDNS checkboxes are enabled.
13. If you are configuring multiple switches at the same time,
click Identify Device, and the switch will turn on and
off five times allowing you to easily locate it.
14. Give your switch a unique Device Name.
15. Click Save. The switch will restart and connect to your
WiFi network. The WiFi Connection will be lit solid green
once connected.
16. The built-in web page of your switch should now be
accessible at: http://device_name.local (spaces in the
Device Name are replaced with underscores ( _ ) and
capital letters changed to lower case).
17. Configure your home automation hub to connect to
the switch using MQTT (your hub provider should offer
instructions, or refer to the Virage website).
18. You can modify the MQTT settings on your switch
from the Configuration menu on the web interface.
The default MQTT username and password are:
username: mqttuser
password: mqttpass
8

Using your VirageSwitch
The switch can be controlled using the physical buttons
on the switch or remotely using either the built-in web
interface or one of several home automation hubs.
Direct Control
Press the button on the switch to turn the light(s) on and off.
Remote Control
Using a web browser, navigate to the URL for your switch
(see Step 16). Click Toggle to turn the light(s) on or off.
If you are using a home automation hub, please follow the
instructions from the hub provider for information on how
to control your switch from the hub. You may also refer to
the Virage website for information on setting up Virage
products with selected home automation hubs.
9

Troubleshooting
Issue
Solution
No white (neutral) wire
Ask an electrician if a neutral wire can be installed,
otherwise the device cannot be used in that location.
No ground wire
It is not recommended to operate any electrical device
without proper grounding, however a ground wire is not
necessary for operation.
Status LED does not
flash after installation or
light does not work
Ensure there is power getting to the device. Double
check that the correct breaker is turned on and that the
wiring was connected correctly.
Status LED continues to
flash after configuration
Reconnect to the device access point (Step 8), repeat
steps 9 through 15 and ensure the WiFi connection (SSId)
and password are correct. Note that if the Device Name
has been configured, the name of the WiFi connection will
change to device_name.
Device is connected to
WiFi, but
http://device_name.local
URL is not accessible
Check that multicast, mDNS or similar options are
enabled on your network. Not all routers and/or access
points support LAN name resolution. Look in the DHCP
table on your router to identify the IP address assigned to
your device and connect to it at http://ip_address (e.g.
http://192.168.1.123) if name resolution fails.
Lost web admin
password
Perform a factory reset: Push and hold the switch button
for approximately 30 seconds, release it, then press and
hold it again for 30 seconds. You should hear the switch
click when it resets. Repeat steps 8 - 15.
Lost Network Name, or
to erase configuration
and start over
Perform a factory reset as detailed above.
10

Specifications
Model: KS-602H FW 3.2
Rated Voltage: 110 - 125V AC, 50-60 Hz
Rated Power Capacity: 1650W
Wireless Compatibility: IEEE 802.11 b/g/n
Wireless Frequency: 2.4 Ghz
FCC ID: 2AHRE-KS602
Certifications: ETL 5010526 (conforms to UL 60730-1,
CSA E60730-1)
Country of Origin: Hardware manufactured in China,
Firmware designed in Canada based on
open-source code.
Firmware License: The firmware on this product is licensed
under GPL v3.0. See device Info page for
full details. The source code may be
downloaded free of charge from:
https://www.viragelabs.com/source-code
Note: To reduce the risk of overheating and/or possible
damage to this or other equipment, do not install
this device to control a receptacle, a motor or
motor-operated appliance, or a transformer-supplied
appliance.
11

This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications or changes to this equipment.
Such modifications could void the user's authority to operate the
equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
·Reorient or relocate the receiving antenna.
·Increase the separation between the equipment and receiver.
·Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
·Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with the FCC RF exposure guidelines, this
device should be installed and operated with a minimum separation
distance of 20 cm (8 inches) between the equipment and a person's
body.
