Virgin Hitman HD-3 User manual

HD-3
Electronic Drum Kit
ASSEMBLY GUIDE
EASY ASSEMBLY GUIDE
IF YOU HAVE ANY QUESTIONS
CALL OUR TOLL FREE HELPLINE
888-998-9848
DO NOT RETURN TO THE STORE

1. Carefully unpack all contents of box
Not Pictured:
(1) Labeled Wiring Harness
(1) Pair Drumsticks
(1) Drumstick Holder
Velcro Strips
RIDE CRASH HH HHC MASTER OUT
TOM2 TOM1 SNARE AUX INTOM3 KICK
TO TOM1 TO TOM2
TO TOM3
TO RIDE
TO KICK
USB
TO HOST
TO CRASH
TO HH
TO SNARE
Drum Frame
Cymbal Arms
Hi-Hat Control Pedal Kick Pedal
Snare
Toms
Cymbals
Sound Module
UNBOXING YOUR DRUM KIT
(1) Hi-Hat Cymbal
(1) Crash Cymbal
(1) Ride Cymbal
(1) Sound Module (1) Snare Drum
(3) Tom Drums
Kick Pedal
Hi-Hat Control Pedal
Drum Kit Components

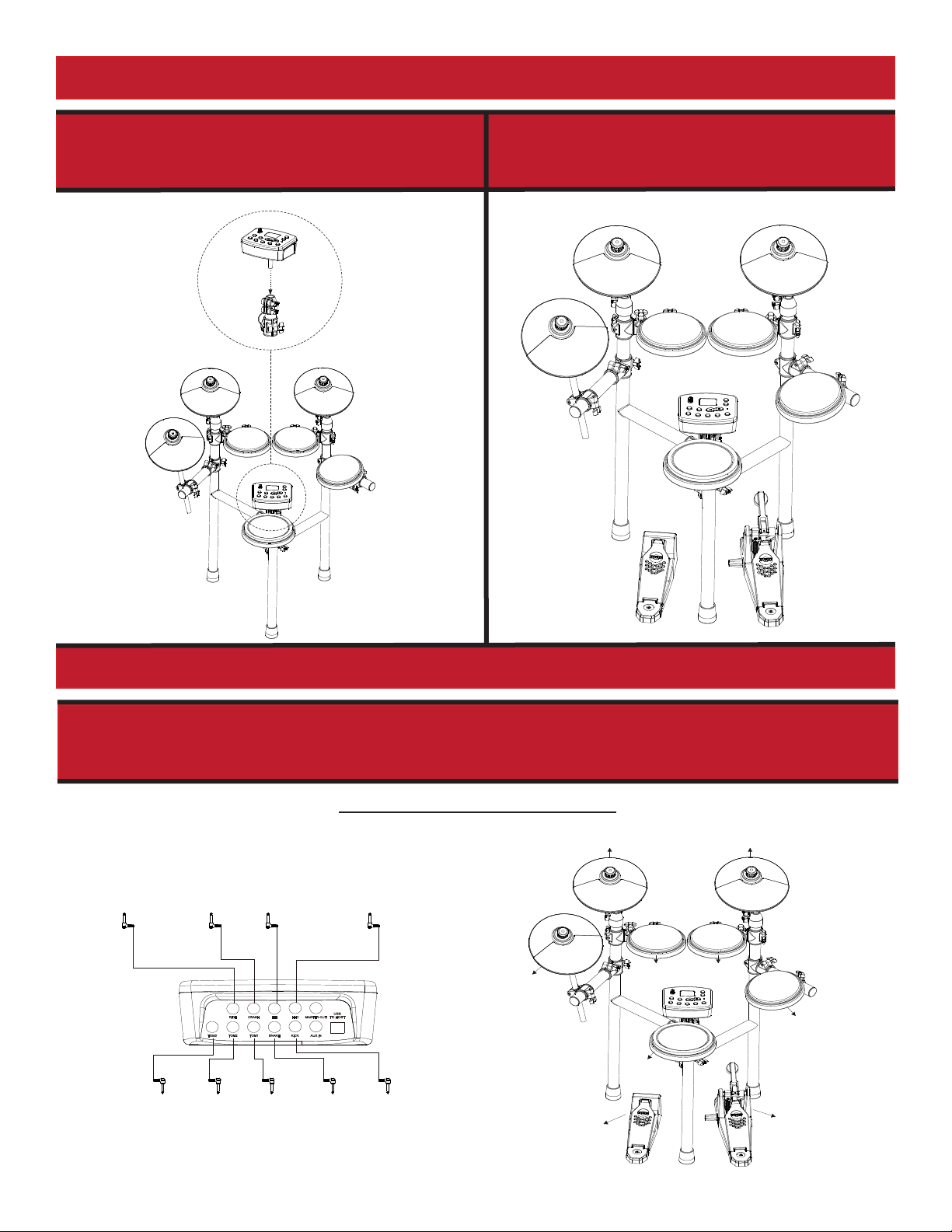

DRUM KIT ASSEMBLY
2. Attach the cymbal arms to the drum frame
indicated positions .
3. Attach the cymbals to the cymbal arms as
shown.
4. Align the holes in Snare Drum Pad and the
three Tom Drum Pads and insert them into
the pole on the Drum Frame as shown.
5. Attach the Drum Pads in the positions
hown below.

DRUM KIT ASSEMBLY (CON’T)
6. Insert the rod of sound module stand into
the Drum Frame clamp as shown, then tight-
en.
7. Please put Hi-hat control pedal on the
left and Kick pedal on the right.
RIDE CRASH HH HHC MASTER OUT
TOM2 TOM1 SNARE AUX INTOM3 KICK
USB
TO HOST
TOM1 TOM2
TOM3
RIDE
KICK
CRASH
Hi-hat
SNARE
Hi-hat control
RIDE CRASH Hi-hat Hi-hat control
TOM1TOM2TOM3 SNARE KICK
DRUM KIT WIRING DIAGRAM
8. Connect the wiring harness to the interface at the bottom of the drum sound module, then
connect the labeled cables to their corresponding drum pads, cymbals and pedals, as show
below.
Drum Module Connector Panel

10. Attach the included power supply adapter and the headphones to drum sound
module connector panel.
AC POWER
POWER
ON OFF
PHONES
DC 9V
17 18
9. Extend the drum throne legs and secure the legs with the wingut. (g 1) Fasten the drum
throne stool to the height adjustment rod and secure the stool with the wingnut. (g 2) Set up
the drum throne at the desired height as shown below. (g 3)
DRUM THRONE ASSEMBLY
(g. 3)(g. 2)(g. 1)
