Viruserv VHProtector User manual

User’s Manual

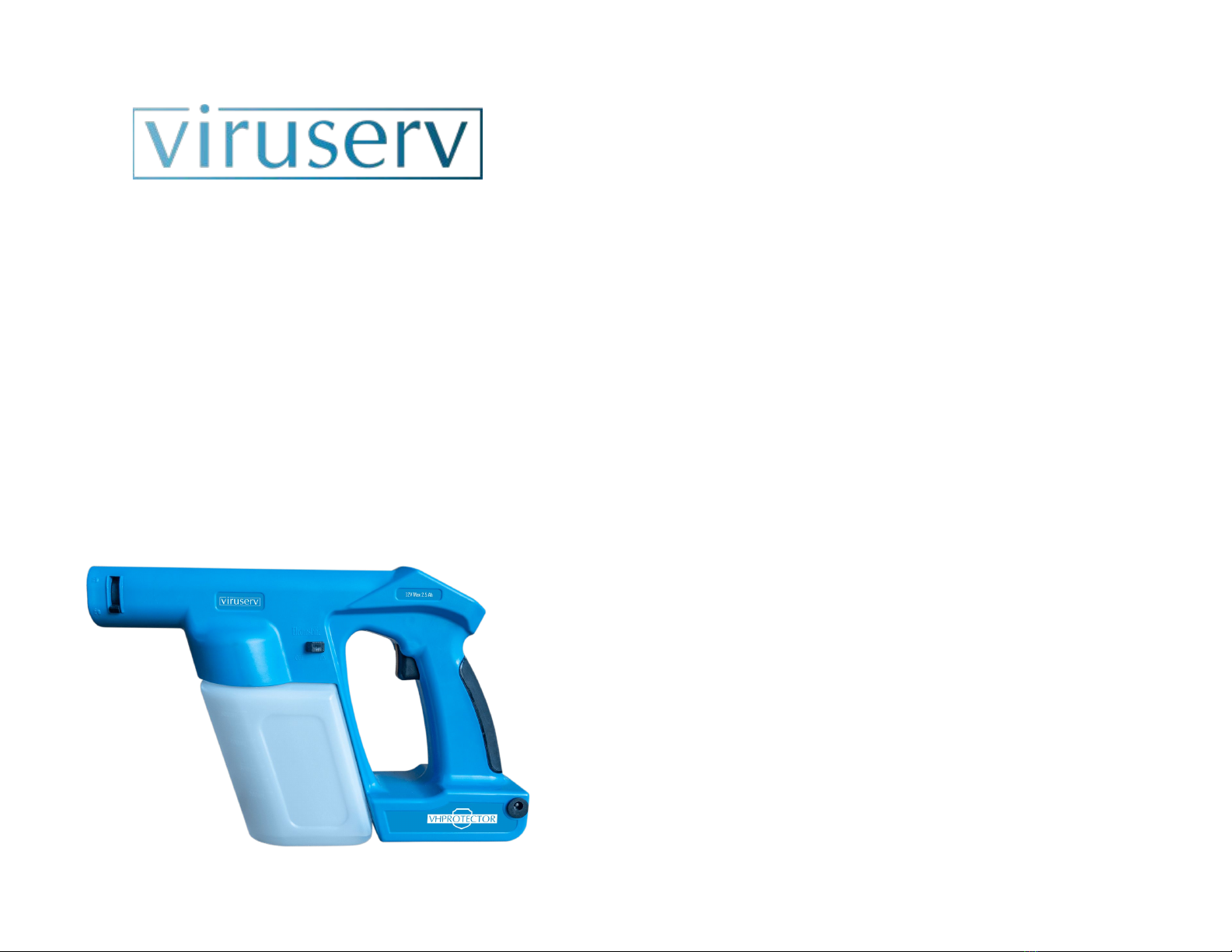

Handheld
Electrostatic Sprayer
Model:
VHProtector
NOTICE TO USERS
The User’s Manual is a part of the
electrostatic sprayer. Please keep it in good
condition. To use and maintain the
VHProtector in good working condition,
please read this User’s Manual carefully
before operation. If you have any doubt,
contact your supplier.
The electrostatic sprayer shall be operated,
maintained, and repaired by persons
familiar with it, and know how to operate it
safely. Viruserv shall not be liable for
decreased reliability, machine damage, or
personal injury arising from unauthorized
modifications to the electrostatic handheld
sprayer.
1.

PACK LIST
● VHProtector
● 2.5 Ah DC battery charger
● 14mm plastic nozzle removal tool
● Collapsible funnel
● User Manual
2.
FUNCTIONS
Electrostatic On/Off Switch
12V, 2.5Ah Battery Charge Port
Spray Trigger
Atomization
Adjustment
Lever
3.
FUNCTIONS
Tank Lock
Switch
17 Ounce Tank
Spray Trigger
Comfort Grip
Battery Charge
Indicator

5.
WARNING
The metal ring around the nozzle applies the electrostatic
charge to the droplets. Touching the metal ring while
spraying will cause a shock.
I) Safety and Operational Considerations
● Attention must be paid to the filtration of liquid and
water to avoid clogging the nozzle and affecting
operation. If the nozzle is blocked, the particles
must be removed before starting operation.
● Operators must be aware of the properties and
protective methods used to avoid direct physical
contact with chemicals. Spraying with chemicals
that have a corrosive effect on plastics and metals
should be avoided. Do not spray with wettable
powder to prevent clogging the nozzle.
● After the electrostatic sprayer has been used, the
exterior shall be cleaned and wiped down with
water promptly before being placed in an
appropriate storage location.
● Cleaning method: fill the reservoir with water and
spray the machine for 15-seconds, pour out the
remaining rinse water and wipe clean.
4.
OPERATION
1. Plug the lithium battery charger (12V, 2.5Ah) into
charging port and charge until red light turns green.
2. Detach Tank from gun.
3. Use funnel and pour disinfectant into Tank.
4. Slide Tank back into position until the Tank Lock
clicks and secures the Tank to the gun..
5. Pull Spray Trigger to start disinfecting.
6. Place Atomizing Adjustment Lever in the lowest
position for the finest spray setting.
7. When finished, pour any remaining disinfectant out
of Tank.
8. Pour in some water and spray for a minimum of
15-seconds to clean out any disinfectant.
9. Pour out any unused rinse water.
10. Return to storage location and plug lithium battery
charger into charging port.
SPRAYING METHOD
● Do not walk into the chemicals as you are spraying.
● Typically, keeping the electrostatic gun 2~3 feet
away from the object with the Atomization
Adjustment Lever at the finest setting, provides
adequate coverage, but your application may
require adjustments.
● Always follow the chemical manufacturers
guidelines for PPE, disposal, and other safety
measures.

6.
● Do not submerge the electrostatic gun in water. Do
not use the electrostatic sprayer in a flammable or
explosive environment.
● Care should be taken to keep the exterior in a
clean and dry condition during operation and limit
physical contact with passers-by during spraying.
● Do not touch the metal ring during operation.
● After charging, leave it for 10-minutes before using.
● The battery should be charged for maintenance at
least once-a-month.
● Proper use and maintenance of the battery can
significantly extend the life of the battery.
● The electrostatic spray gun is equipped with tens of
thousands of high-voltage electricity and
disassembly of the machine is strictly prohibited.
● The use of special working fluids, such as strong
acids and bases, is not permitted.
● Chemicals should be used following the safety
instructions provided by the manufacturer.
7.
WORKING PRINCIPLES
● The sprayer uses a 12V 2.5 Ah lithium battery as
the power source to drive the water pump and
high-voltage electrostatic generator at the same
time. When the high-speed pump squeezes out the
electrostatic charge from the nozzle, the droplets
are sprayed under the combined action of gravity,
external force, and electrostatic force directly to the
target.
SCOPE OF APPLICATIONS
● The VHProtector can be used for sanitary epidemic
prevention and disinfection of factories,
warehouses, schools, airports, hospitals,
restaurants, retail locations, and more.
SPECIFICATIONS
● Empty weight: 1.5 lbs
● Size: 11.5 x 7 x 3 inches
● Tank Capacity: 17 ounces
● Battery capacity: 12V, 2.5Ah Lithium
● Charger Input: AC 110
● Continuous working time: 3~3.5 hours
● Electrostatic voltage output: 1.5 - 3 kV
● Pressure: 0.15 - 0.4 mpa
● Median droplet diameter: 90 microns (60~120)
● Flow Rate: 3-ounces per minute
● Spray distance: 1.5~3 feet

AFTER-SALES SERVICE
● This VHProtector has been strictly inspected and
passed factory quality-control. If the new device is
unable to operate as designed, please contact your
supplier.
WARRANTY COVERAGE
● One-year warranty for the whole machine and
one-year for major parts, except for normal
wear-and-tear. The main components include the
battery, charger, high-voltage generator, and water
pump. One-month warranty on all wear parts. Wear
parts include seals, nozzles, etc.
● The battery IS NOT covered under warranty if it is
over-discharged, or improper charging
maintenance causes a shortened battery life.
Additionally, the battery IS NOT covered under
warranty if there is an electrical surge while
charging the battery.
● The pump IS NOT covered under warranty due to
external forces, corrosive liquid immersion, or
chemical impurities.
● If repairs are required, please contact your supplier.
● In the event of human-caused damage during the
warranty period, warranty personnel may charge
for the cost of repair.
9.8.
No Problems Causes Fixes
1
The nozzle is
not spraying,
or low
flow-rate
1) The filter at the
bottom of the inlet
hose is blocked.
1) Clean the filter at the
bottom of the inlet hose.
2) The inlet valve is
blocked.
2) Pass the inlet valve
with thin wire.
3) The nozzle is
blocked.
3) Replace or clean the
nozzle.
4) The battery has low
power.
4) Charge or replace the
battery.
5) The pipeline is
blocked.
5) Have a professional
disassemble gun to
clean or replace the
pipeline.
2Spray is not
normal
1) The nozzle is not
tightened properly.
1) Tighten/Loosen nozzle
with supplied tool.
2) The nozzle is
damaged. 2) Replace the nozzle
3) Diaphragm pump
problem
3) Repair the diaphragm
by a professional.
3Spray not
working
1) Battery has no
charge.
1) Charge or replace the
battery.
2) The fuse is loose 2) Replace the fuse.
3) Poor spray trigger
contact.
3) Repair or replace the
trigger switch.
PROBLEMS / CAUSES / FIXES
