Visa Lighting SYMMETRY Series User manual

2x2 SYMMETRY BEHAVIORAL HEALTH
PAGE 2: FIXTURE OVERVIEW
PAGE 3: RECESSED DIMENSIONS
PAGE 4: INSTALL FIXTURE
PAGE 5: INSTALL FIXTURE (cont.)

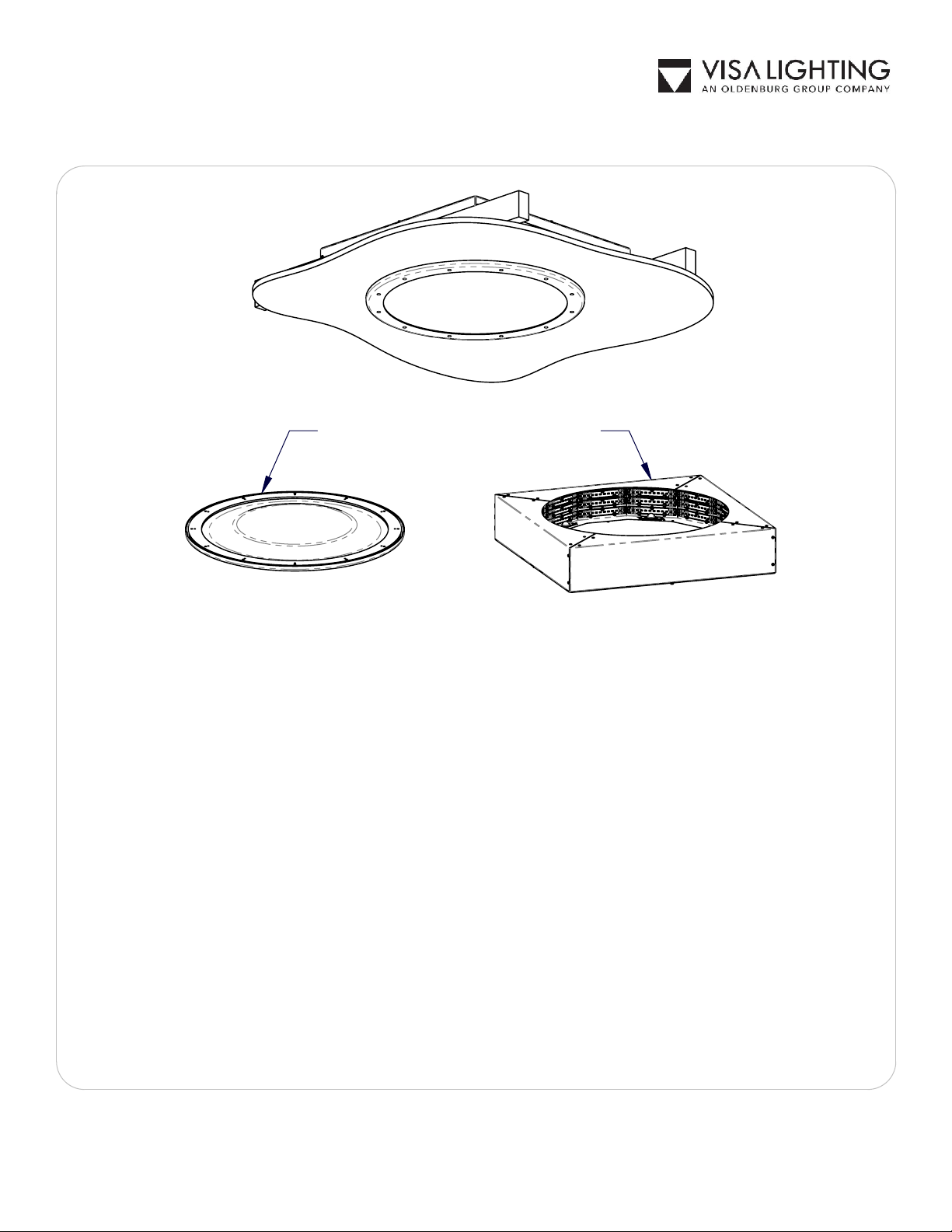

SHIPPED SEPARATELY
Drawing:
762330XX
Rev:
A
Sheet:
1 of 5
Eng:
DMM
Date Drawn:
8/25/19
INSTALLATION INSTRUCTIONS
Model: CM1986-W, CM1988-W,-T
Fixture Family: 2X2 SYMMETRY BEHAVIORAL HEALTH
1717 West Civic Drive Milwaukee, WI 53209
414-354-6600
Design Modification Rights Reserved
© Visa Lighting 2016
!
When using electrical equipment, basic safety precautions should always be followed, including the following:
Read all instructions carefully before installing and save for future use. •
Make sure all connections are in accordance with the National Electrical Code and local regulations. •
To avoid possible electric shock, be sure the power supply is turned off before servicing or installing the fixture •
Service should be performed by qualified personnel. •
These instructions may not cover all details or variations. If additional information is needed, please contact Visa Lighting. •
Document Description: Installation Instructions for
SYMMETRY Series Luminaires

10"
HOUSING
ASSEMBLY
FIXTURE
SUPPORT FRAME
(by others)
#8-32 LENS MOUNTING
PIN-IN TORX SCREWS (12)
(provided)
LENS FRAME ASSEMBLY
SHEET METAL SCREWS (12)
(provided)
LENS ANCHOR PLATE
SHEETROCK
SHEET METAL SCREWS
TO SECURE HOUSING TO STRUCTURE
(by others)
(4) FIXTURE SUPPORT CABLES
(by others)
FIXTURE
WIRING
ENTRANCE
23-1/2"
19-3/4"
6-5/8"
TOTAL
RECESSED
DEPTH
5"
HOUSING
DEPTH
FIXTURE SIDE:
23-1/2"
23-1/2"
5-1/2"
10"
FIXTURE TOP:

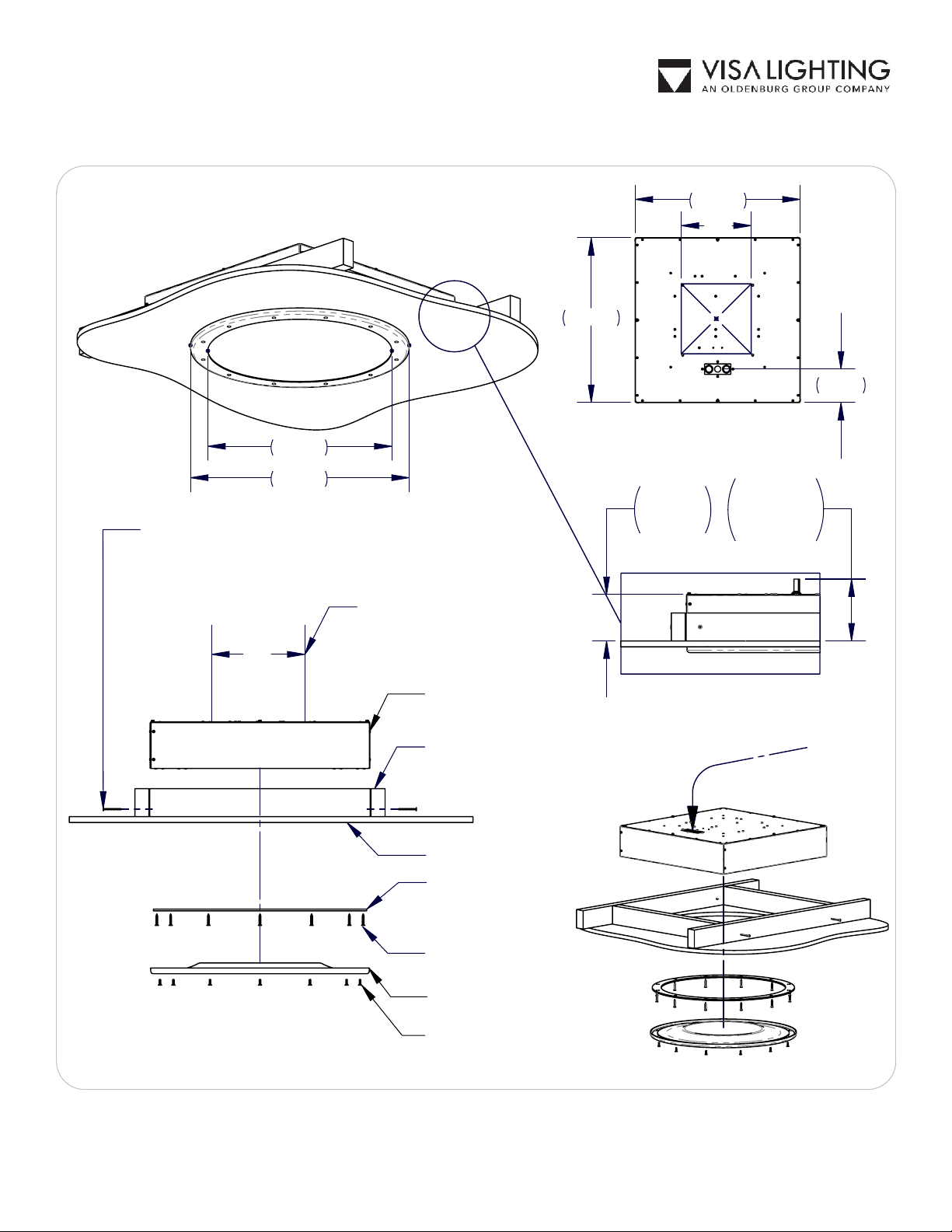

FIXTURE OVERVIEW:
Drawing:
762330XX
Rev:
A
Sheet:
2 of 5
Eng:
DMM
Date Drawn:
8/25/19
INSTALLATION INSTRUCTIONS
Model: CM1986-W, CM1988-W,-T
Fixture Family: 2X2 SYMMETRY BEHAVIORAL HEALTH
1717 West Civic Drive Milwaukee, WI 53209
414-354-6600
Design Modification Rights Reserved
© Visa Lighting
!
When using electrical equipment, basic safety precautions should always be followed, including the following:
Read all instructions carefully before installing and save for future use. •
Make sure all connections are in accordance with the National Electrical Code and local regulations. •
To avoid possible electric shock, be sure the power supply is turned off before servicing or installing the fixture •
Service should be performed by qualified personnel. •
These instructions may not cover all details or variations. If additional information is needed, please contact Visa Lighting. •
Document Description: Installation Instructions for
SYMMETRY Series Luminaires

5" HOUSING DEPTH
6-5/8" TOTAL RECESSED DEPTH
FOR FIXTURE WIRING SPACE
SHEETROCK
(5/8" MAX)
STRUCTURE

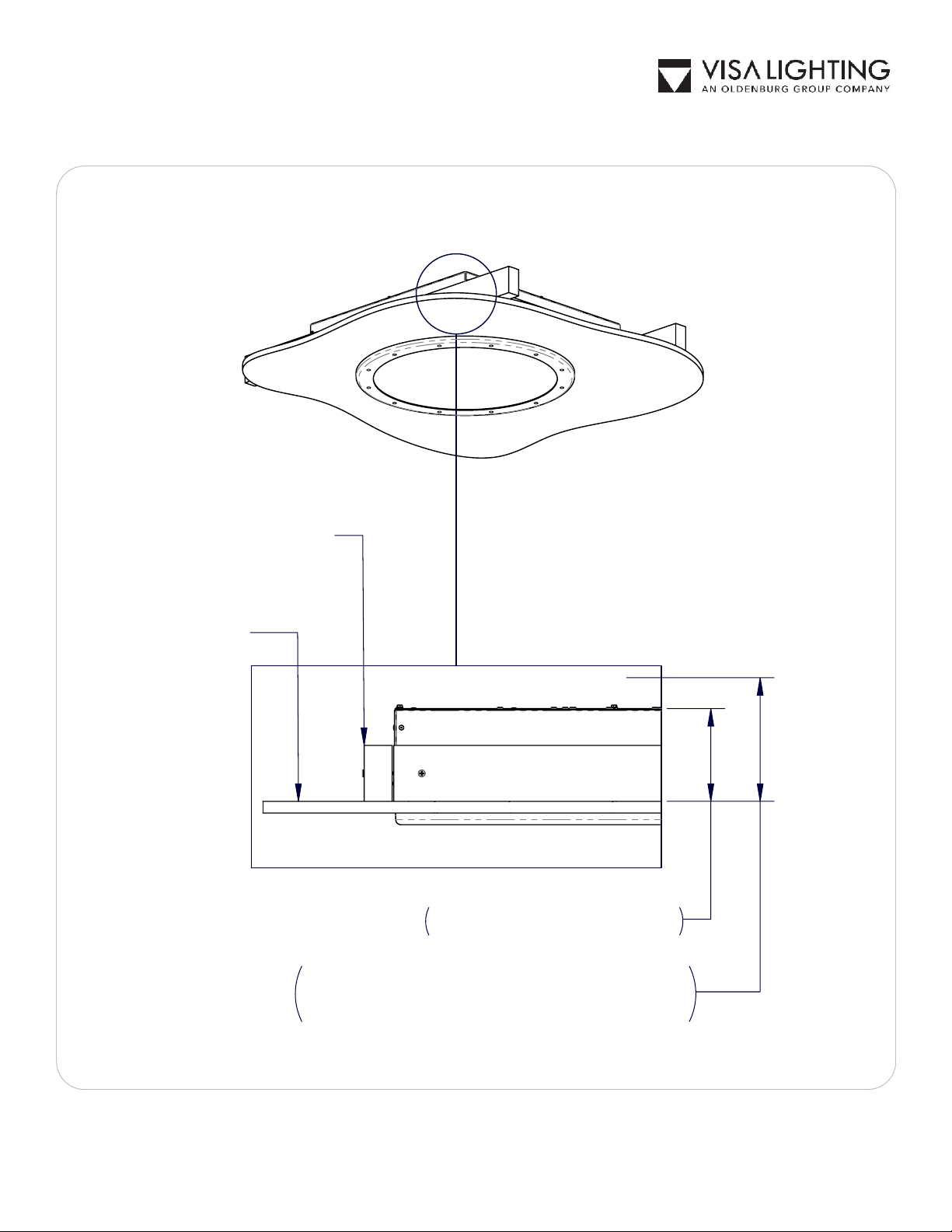

RECESSED DIMENSIONS:
Drawing:
762330XX
Rev:
A
Sheet:
3 of 5
Eng:
DMM
Date Drawn:
8/25/19
INSTALLATION INSTRUCTIONS
Model: CM1986-W, CM1988-W,-T
Fixture Family: 2X2 SYMMETRY BEHAVIORAL HEALTH
1717 West Civic Drive Milwaukee, WI 53209
414-354-6600
Design Modification Rights Reserved
© Visa Lighting
!
When using electrical equipment, basic safety precautions should always be followed, including the following:
Read all instructions carefully before installing and save for future use. •
Make sure all connections are in accordance with the National Electrical Code and local regulations. •
To avoid possible electric shock, be sure the power supply is turned off before servicing or installing the fixture •
Service should be performed by qualified personnel. •
These instructions may not cover all details or variations. If additional information is needed, please contact Visa Lighting. •
Document Description: Installation Instructions for
SYMMETRY Series Luminaires

-HOUSING MUST SIT FLUSH AGAINST STRUCTURE
-HOUSING MUST CONTACT SHEETROCK
(5/8" MAX SHEETROCK)
20" DIA
CUTTING TOOL
(by contractor)
CUT HOLE AGAINST
FIXTURE EDGE
3/8" MAX SCREW
PENETRATION
INSTALL FIXTURE:
STEP 1: SECURE HOUSING TO STRUCTURE WITH SUPPORT
CABLES AND SCREWS
THAT PENETRATE FIXTURE HOUSING SIDES
STEP 2: INSTALL (5/8" MAX) SHEETROCK ONTO FIXTURE
STEP 3: CUT A 20" DIA. HOLE INTO SHEET ROCK
USING FIXTURE HOUSING AS CUTTING EDGE GUIDE
SECURE FIXTURE BY SUPPORT CABLES (by others)
AND
SECURE FIXTURE BY SHEET METAL SCREWS
THAT PENETRATE FIXTURE HOUSING (by others)
(5/8" MAX SHEETROCK)
Drawing:
762330XX
Rev:
A
Sheet:
4 of 5
Eng:
DMM
Date Drawn:
8/25/19
INSTALLATION INSTRUCTIONS
Model: CM1986-W, CM1988-W,-T
Fixture Family: 2X2 SYMMETRY BEHAVIORAL HEALTH
1717 West Civic Drive Milwaukee, WI 53209
414-354-6600
Design Modification Rights Reserved
© Visa Lighting
!
When using electrical equipment, basic safety precautions should always be followed, including the following:
Read all instructions carefully before installing and save for future use. •
Make sure all connections are in accordance with the National Electrical Code and local regulations. •
To avoid possible electric shock, be sure the power supply is turned off before servicing or installing the fixture •
Service should be performed by qualified personnel. •
These instructions may not cover all details or variations. If additional information is needed, please contact Visa Lighting. •
Document Description: Installation Instructions for
SYMMETRY Series Luminaires

NOTE:
SEAL PERIMETER LENS FRAME
TO CEILING WITH PICK-PROOF CAULK
AS REQUIRED. CONSULT OWNERS
REPRESENTATIVE
3/8" MAX SCREW
PENETRATION
PAGE 4: INSTALL FIXTURE (cont.)
STEP 5: INSTALL LENS ASSEMLY ONTO LENS ANCHOR PLATE
STEP 6: (SEE NOTE)
STEP 4: INSTALL SHEET METAL SCREWS (by others)
THROUGH ANCHOR PLATE AND THROUGH SHEETROCK AND
INTO BOTTOM SIDE OF FIXTURE HOUSING
SHEET METAL SCREWS (by others)
PENETRATE HOUSING FACE
Drawing:
762330XX
Rev:
A
Sheet:
5 of 5
Eng:
DMM
Date Drawn:
8/25/19
INSTALLATION INSTRUCTIONS
Model: CM1986-W, CM1988-W,-T
Fixture Family: 2X2 SYMMETRY BEHAVIORAL HEALTH
1717 West Civic Drive Milwaukee, WI 53209
414-354-6600
Design Modification Rights Reserved
© Visa Lighting
!
When using electrical equipment, basic safety precautions should always be followed, including the following:
Read all instructions carefully before installing and save for future use. •
Make sure all connections are in accordance with the National Electrical Code and local regulations. •
To avoid possible electric shock, be sure the power supply is turned off before servicing or installing the fixture •
Service should be performed by qualified personnel. •
These instructions may not cover all details or variations. If additional information is needed, please contact Visa Lighting. •
Document Description: Installation Instructions for
SYMMETRY Series Luminaires
