VISION BUMBLEBEE ST800 User manual

ST800 AIRCRAFT MANUAL
Thank you for choosing the Vision Bumblebee. This is not a toy, please read and follow these instructions
carefully to guarantee proper function and safety.
Distributed by HiModel.com

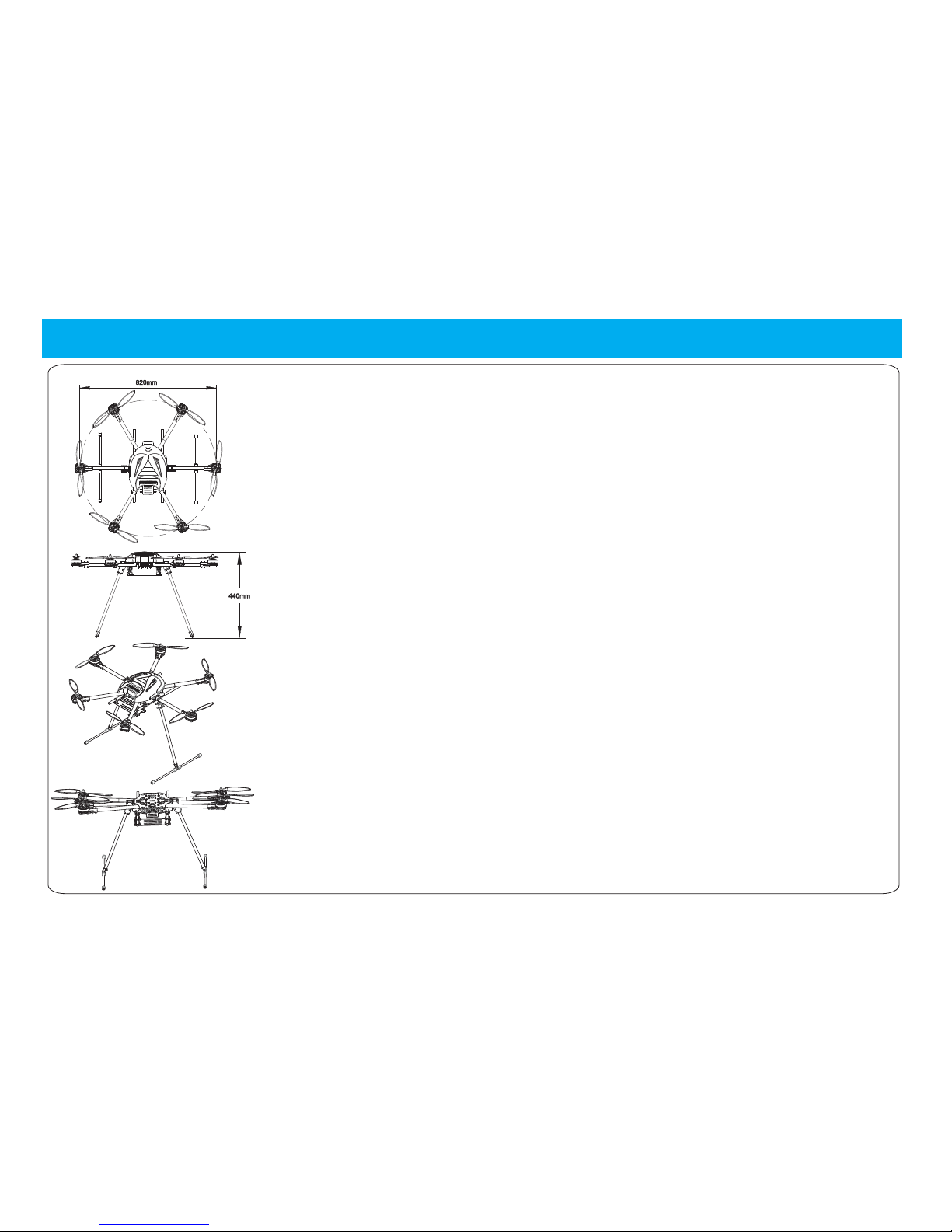

Details of ST800 产品简介
Diameter(电机轴距)：820mm
Height(整机 高度)：440mm
(空机重量,无 头罩, )：950g
(电池要求)：6S 5000mAh~10000mAh
Brushless Motor(搭 配电 机)：ST4708 360KV
Brushless ESC(无刷 电 调): 兼容6S锂电池 的30A或40A电调.
Flight time(飞行时间)：> 10 mins
Flight Weight(起飞 重 量)：4000g
loading Weight(载重量)：2000g
1.整机以碳纤 维复 合材 料为 主， 搭配 铝 合金 连接 件， 保证 机身 强度 的同 时有 效的 减轻 了重 量。
The machine mainly consists of carbon fiber composite materials, matching joints of aluminum alloy to
ensure the strength of body as well as to effectively reduce the weight.
2.六条支臂为18mm碳纤管和加强型电机固定座。
The six arms are with 18mm carbon fiber tubes and enhanced motor mount.
3.起落架连接件采用14mm碳纤 管以 金属 件和 碳纤 维合 成板 连， 方便 装配 和维 修 。
The connections of landing gear are formed with 14mm carbon fiber tube, which is composed with metal
and carbon fiber, to be assembled and repaired easily.
4.支撑管采用12mm碳纤 管， 管间 距为155mm，兼容市面 上 主流 云台 。
Supporting tubes are made from 12mm carbon fiber tube, the span between tubes is 155mm, it
accommodates with mainstream camera gimbal in the market.
5.前后各延伸一个拓展板，方便安装GPS、接收机及其他一些设备。
There are two extended boards in front and rear of the fuselage, it is convenient for the installation of
GPS, receivers and other equipments.
6.电池板采用金属连接件固定，可以通过前后滑动来调节飞行器的重心。
Battery frame is fixed by metal connectors, the hexacopter of gravity of the aircraft can be adjusted by
sliding the battery frame back and forth
kit(not including the canopy) w ei gh
Battery requirement
30A\40A (compatible with 6s li-poly)

Screw M2.5×6
半圆头 内六 角 螺丝
支撑管连接件
Supporting tube fittings
Screw M3×6
半圆头 内六 角 螺丝
Screw M2×6
半圆头 内六 角 螺丝
Screw M2×6
半圆头 内六 角 螺丝
Curved buckle
曲形卡 扣
Screw M3×6
半圆头 内六 角 螺丝
Fuselage lower plate
机身下 板
Fuselage u
机身上 板
pper plate

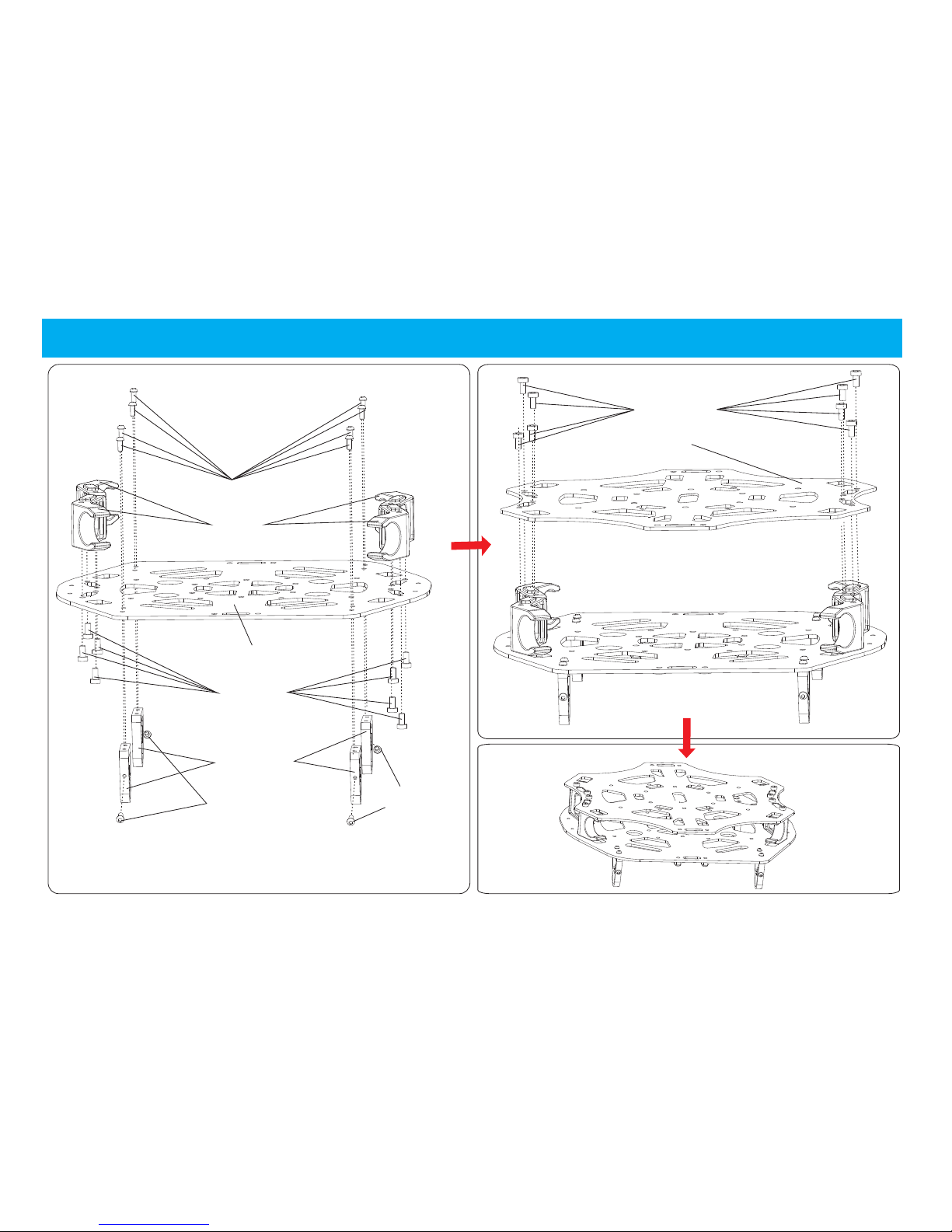

Fuselage plate installtion 机身板的安装
1. 2.
3.

Fuselage plate installtion 机身板的安装
25 mm
25 mm
The size for the Motor
fixed plate is 25mm,
please choose motors whose outside
diameter is less than 55mm and the
mounting hole space is 25mm.(more
than 55mm ones may cause collision).
电机 固 定 板 安 装 尺 寸 为25mm，请选择电机外
径小 于55mm安装 孔 距 为25mm的无刷电机，外
径大于55mm的电 机 可能会发生干涉。
!
WARNNING
Motor:
fixed plate:
25 mm
25 mm
Brushless motor
无刷电 机
Screw M2.5×12
杯头内 六角 螺 丝
Screw M3×28
杯头内 六角 螺 丝
motor fixed plate
电机固 定板
Nylon washer
尼龙垫 片
motor Mount
电机固 定座
Screw M3×4
半圆头十字螺丝
Nut M2.5
自锁螺 母
Nut M3
自锁螺 母
Nylon washer
尼龙垫 片 18 Arm tube
18碳纤管
Landing gear connecting piece-18
起落 架 连接 件- 18
Screw M3×28
半圆头 内六 角 螺丝
Nut M3
自锁螺 母
Arm tube mount
支臂碳管固定座
Be careful not to damage the wires when you install these screws.
安装 螺 丝 时 ， 请 注 意 不 要 损 伤 电 调的电源线。
!
WARNNING
请在安装支臂组件时，提前将“起落架连接件-18”安装在其中
两支支臂组件上,以方便后面起落架的组装。
Notice:Before installing the support arm components,
please fix the landing gear connection piece 18 on two of
them for the sake of the landing gear's assembly.

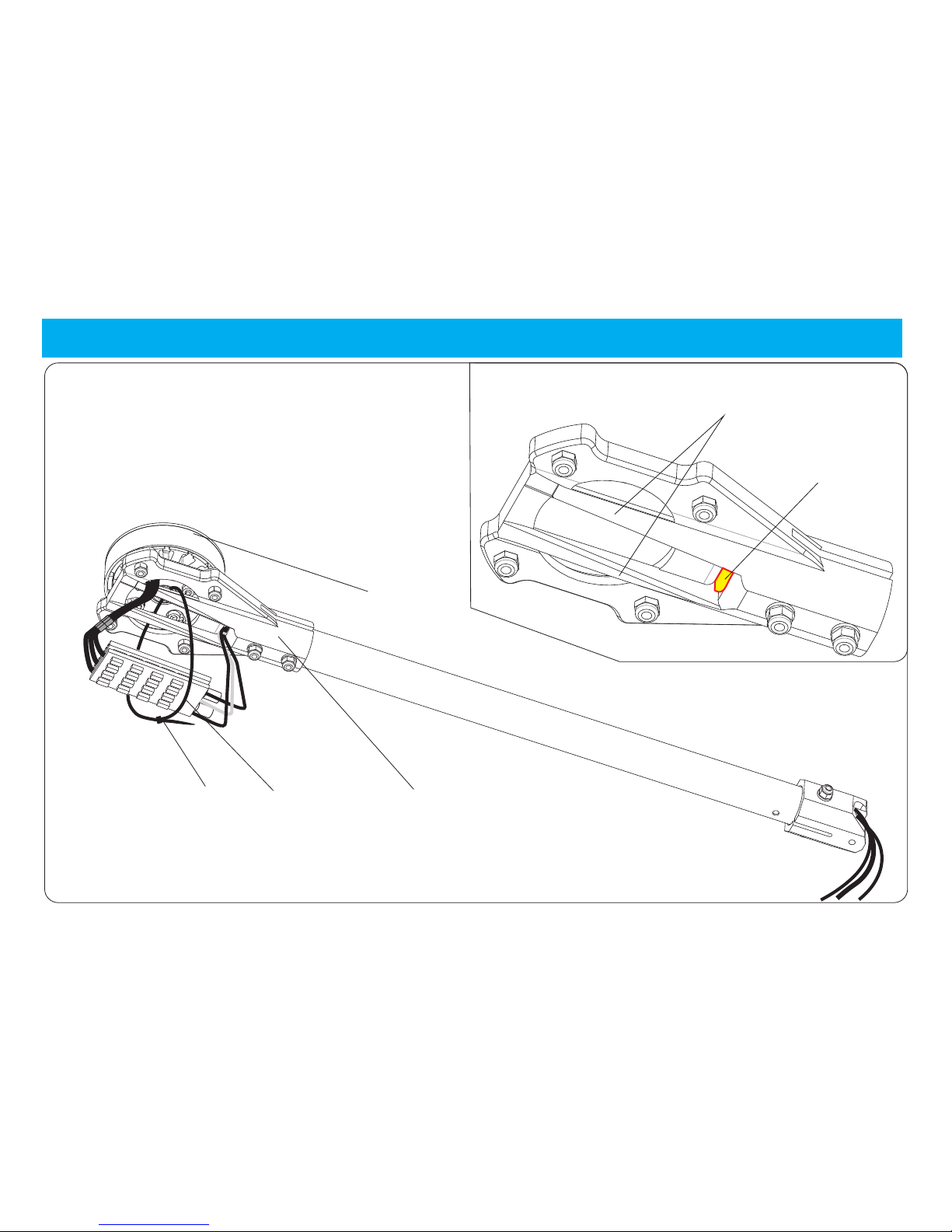

Brushless ESC install 安装电子调速器
Firstly connect the brushless motor with the ESC.
In order to make it easy to assemble, line and
signal wire of the ESC traverse the carbon tube
via the port under the plastic motor mount.
首先将无刷电机连接在电调上，如下图所示把电调的电源线和信号线
通过塑胶电机固定座下方的进线口穿过碳管，方便后面装配。
Ribbon tied
扎带
Brushless motor
无刷电 机
motor Mount
电机固 定座
Brushless ESC
无刷电子调速器
Motor Mount
电机固 定座
Power line and siganal line entrance
电源线 和信 号 线进 口
Fix the ESC on this two reinforcing rib by
using the cable tie
装电调 用扎 带 固定 在这 两 个加 强筋 上 。

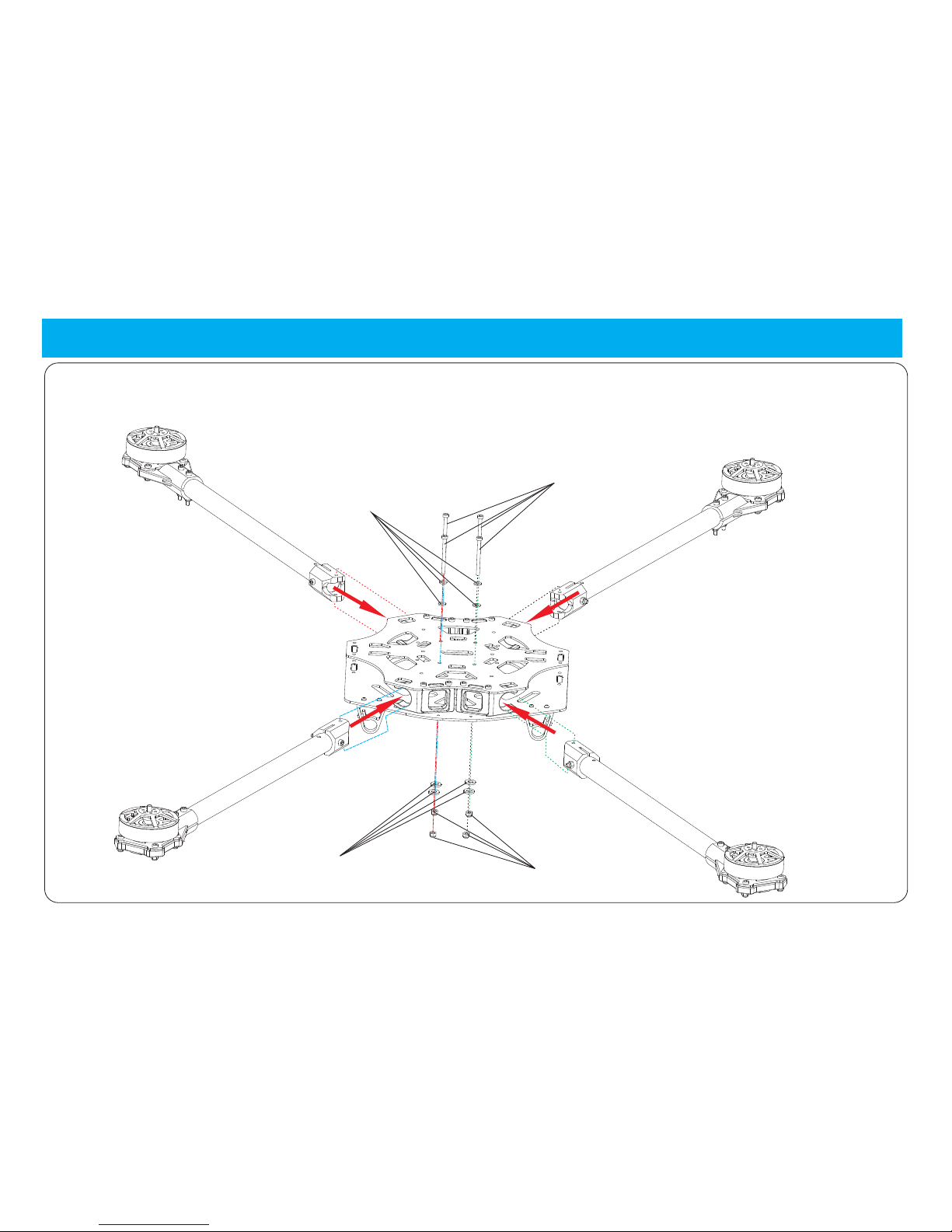

旋翼臂组件的安装 Installation of the arm components
Nylon washer
尼龙 垫片 Nut M3
自锁 螺母
Scr ew M 3×35
杯头 螺丝
Nylon washer
尼龙 垫片
将支 臂 组 件 沿 箭 头 方 向 插 入 机 身 板中，用螺丝将它固定在机身板上。
Insert the arm into the fuselage along the direction of the arrow, and secure it in the fuselage plate with screws.

Screw M2.5×6
半圆头 螺丝
支撑管连接件
Supporting tube fittings
Scr ew M 2×6
杯头螺 丝
Screw M2.5×6
半圆头 螺丝
Screw M2.5×6
半圆头 螺丝
Nut M2.5
自锁螺 母
Landing gear connecting piece
起落架 连接 件
Sillcon case
硅胶减震垫
Sillcon case
硅胶减 震垫
Sillcon case
硅胶减 震垫
8 landing gear tube
8脚架管
14 landing gear tube
14脚架管
Scr ew M 2×6
杯头螺 丝
Battery plate
电池板
Landing gear assembly(起落 架组件):Battery plate assembly（电池板组件 ）:
Screw M3×35 杯头螺 丝
Nylon washer
尼龙垫片
Nylon washer
尼龙垫片
Nut M3
自锁螺 母
Arm tube mount-B
旋翼碳 管固 定 座-B
Landing gear connecting piece-18
起落 架 连接 件- 18
Arm tube assembly
旋翼臂 组件
Arm assembly install 旋翼 臂 组 件 的 安 装2:
旋翼臂组件的安装 Installation of the arm components

Landing gear and battery plate 起落架和电池板
The center distance between the two supporting tubes is 155mm.please
match the right gimbal according to the size.
when adjusting the gravity of the aircraft, loosen the set screws, slid the
battery component to the appropriate location, tighten the screws and the
battery.
支撑 管 之 间 中 心 距 离 为155mm,请据据尺寸搭配合适的云台；调节飞行器重
心时，松开固定螺丝，滑动电池板组件到合适位置，拧紧固定螺丝固定电池
板。
Screw M2.5×30
杯头内六 角螺 丝
Nut M2.5
自锁螺 母
Landing gear connecting piece-18
起落 架 连接 件- 18
Landing gear
connecting piece-14
起落架连接件-14
Landing gear connecting plate
起落 架 连接 板
18 Arm tube
18碳纤管
14 landing gear tube
14起落架管
Supporting Tube
支撑碳 管
Battery plate assembly
电池板 组件 Fi x ed s cr e w
固定螺 丝
Fixe d sc r ew
固定螺 丝
Installing landing gear
安装 起 落 架:

Screw M2.5×6
半圆头 十字 螺 丝
Nut M2.5
自锁螺 母
Expand pl at e
拓展板
canopy
头罩
the plastic cover can effectively protect the electronic equipment, and reduce
both the cost amd the risk of flight.
塑胶 头 罩 可 以 有 效 保 护 飞 行 器 的 电子设备，减小飞行风险，降低飞行成本 。

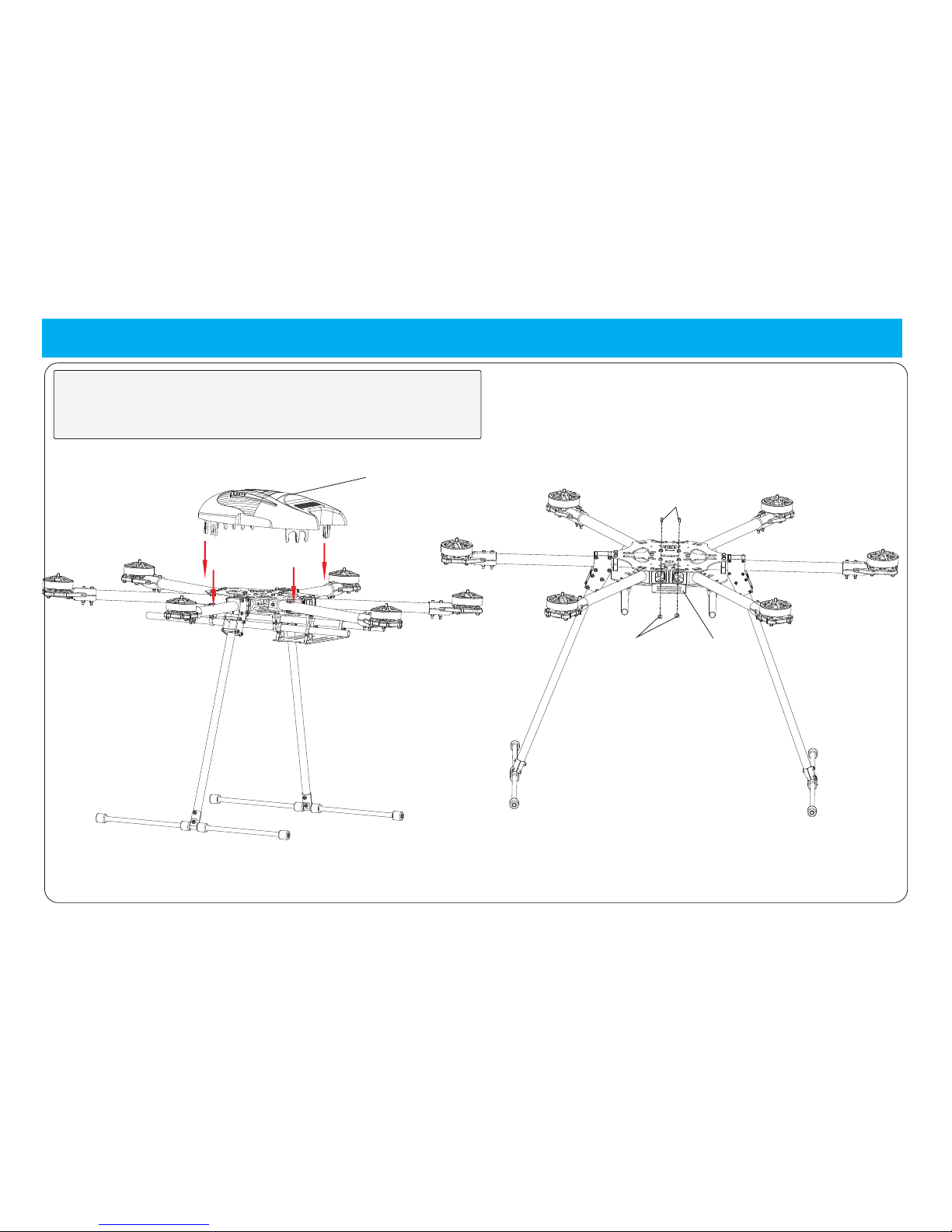

Canopy and expand plate 头罩和拓展板:

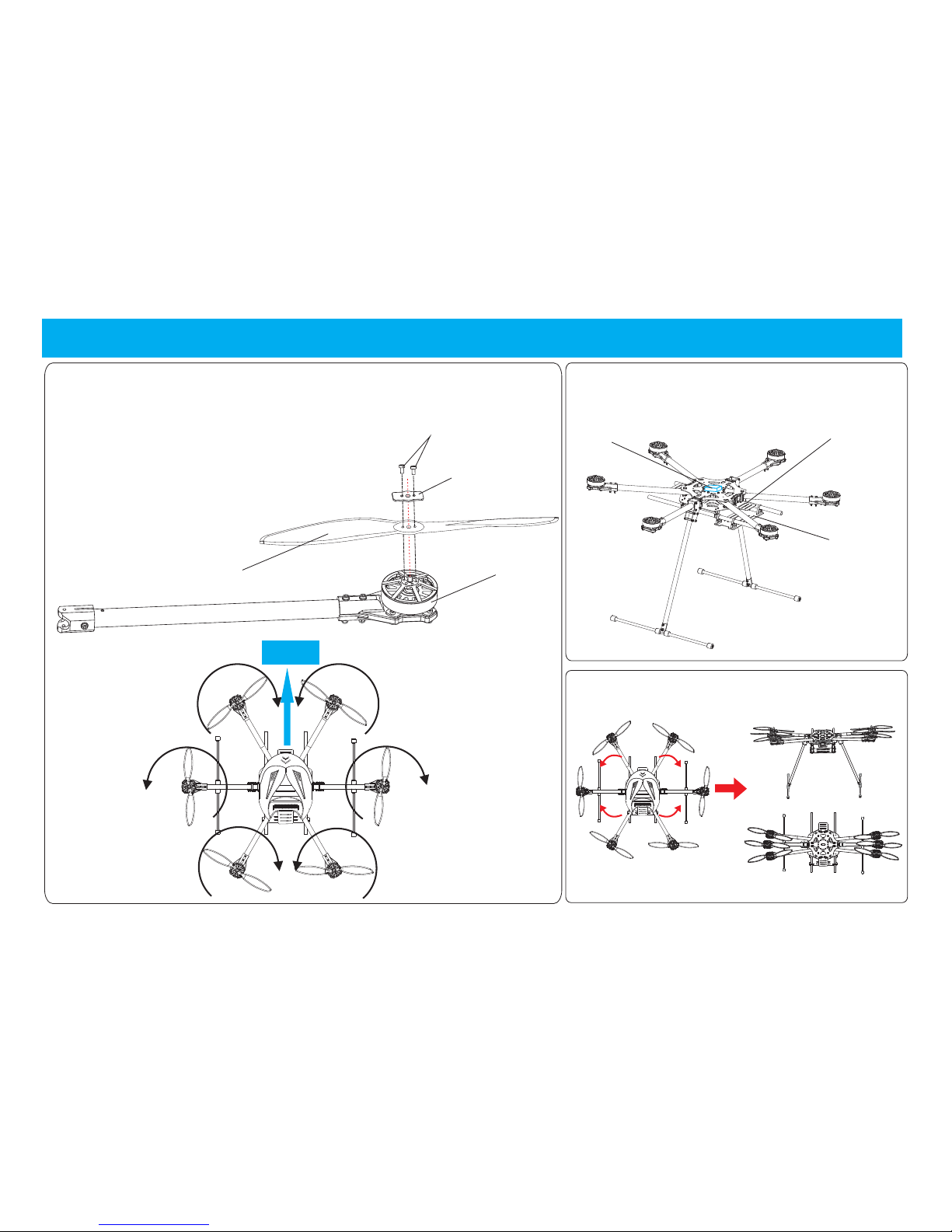

Propeller and other set install 螺旋桨和其他组件的安装
There are difference of pros and cons in the
propeller, please identify it carefully before
installation !
M1、M3、M5 is the same,
M2、M4、M6 is the same too.
螺旋桨有正反之分 ，安装 前请仔 细辨认！
M1、M3、M5相同，M2、M4、M6相同。
Screw M2.5×6
杯头螺 丝
Brushless motor
无刷电 机
Propeller
螺旋桨
Propeller washer
压桨垫 片
M1
M6
M5M4
M3
M2
Front
前
Place battery
放置电 池
Place receiver or GPS or other set
放置接 收机 或GPS模块或者 其他 设 备
Flight Co nt r ol l er
飞行控制器
Fold(折叠方式)：
Device for placing（ 设 备 放 置 ） ：
