Installation & Operation Manual
ZP3112IN-5
ZP3112MY-5
ZP3112EU-5
ZP3112RU-5
ZP3112US-5
ZP3112IL-5
ZP3112KR-5
ZP3112HK-5
ZP3112BR-5
ZP3112JP-5
Wireless PIR Motion Sensor
ZP 3112-5 V0 1050113

Introduction
Thanks for choosing the Vision’s wireless Motion sensor of the home security device. This
sensor is a Z-Wave TM enabled device (interoperable, two-way RF mesh networking
technology) and is fully compatible with any Z-Wave TM enabled network and it’s security
framework. Every mains powered Z-Wave TM enabled device acts as a signal repeater and
multiple devices result in more possible transmission routes which helps eliminate “RF
dead-spots”.
Z-Wave TM enabled device displaying the Z-Wave TM logo can also be used with it
regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave
TM enabled networks. This sensor monitors movement, and send Z-Wave TM signal when
movement is detected inside the building. When the device is secure included into Z-Wave
network, above communication will be encrypted.
Product Description and Specification
*** For indoor use only ***
Specification: Package Content:
Protocol: Z-Wave™ (ZM5202)
Frequency Range:
865.22MHz (ZP3112IN-5)
868.10MHz (ZP3112MY-5)
868.42MHz (ZP3112EU-5)
869.00MHz (ZP3112RU-5)
908.42MHz (ZP3112US-5)
916.00MHz (ZP3112IL-5)
919.80MHz (ZP3112HK-5)
920.00MHz~923.00MHz (ZP3112KR-5)
921.42MHz (ZP3112BR-5)
922.00MHz~926.00MHz (ZP3112JP-5)
Operating Range: Up to 100 feet line of sight
Operating Temp.: -10°C~ 40°C (5°F~104°F)
Battery: AAA x 2
1pc
1pc
2pc
1pc
ZP 3112 Motion sensor
Adhesive tape for sensor
AAA Alkaline Battery
Installation & Operation Manual
Z-Wave Command Classes:
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_BATTERY
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_NOTIFICATION_V4
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SENSOR_MULTILEVEL_V7
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE_UP_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
- 2 -- 1 -

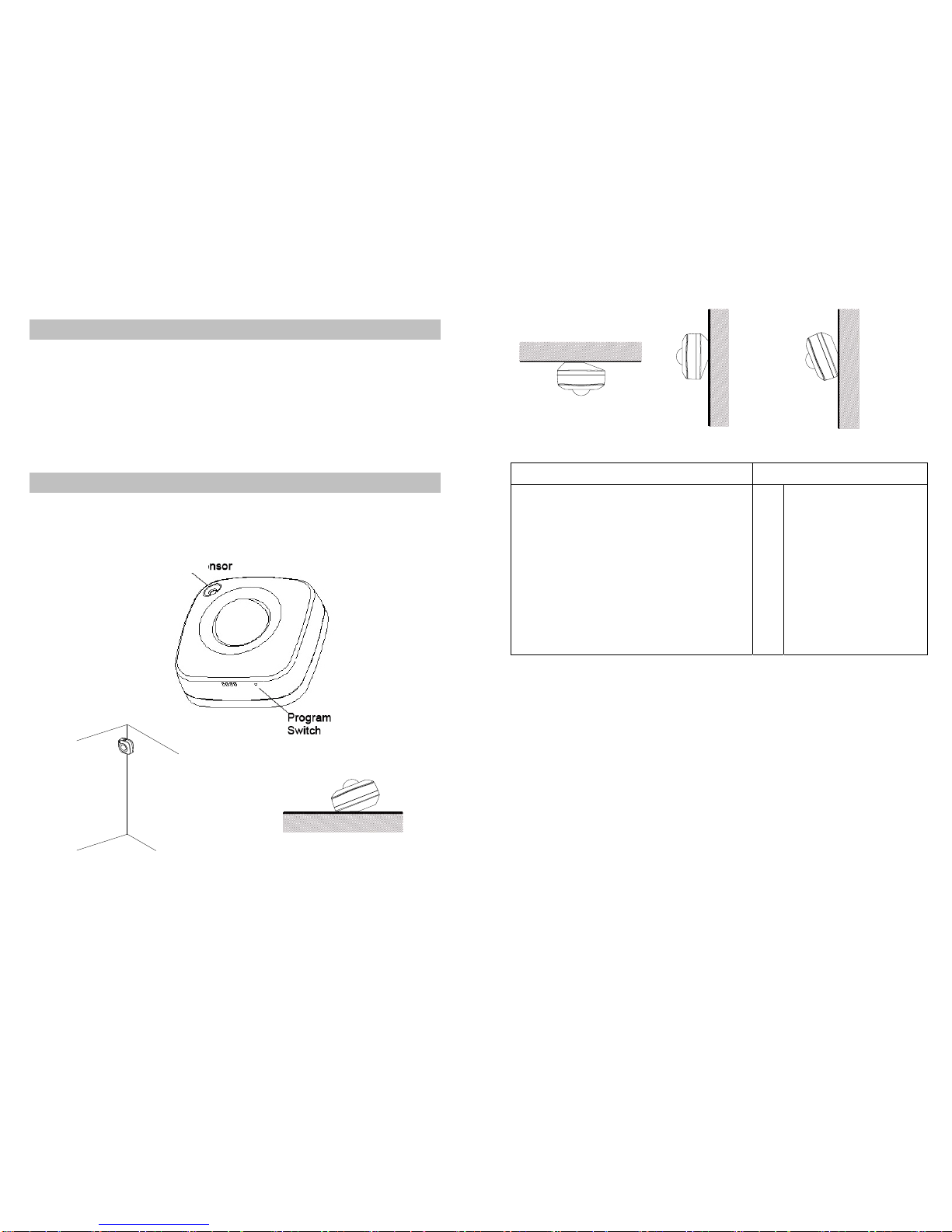

(A)– Wall Corner
(C) - Ceiling (D) – Vertical (E) - Angled
(B) – Table

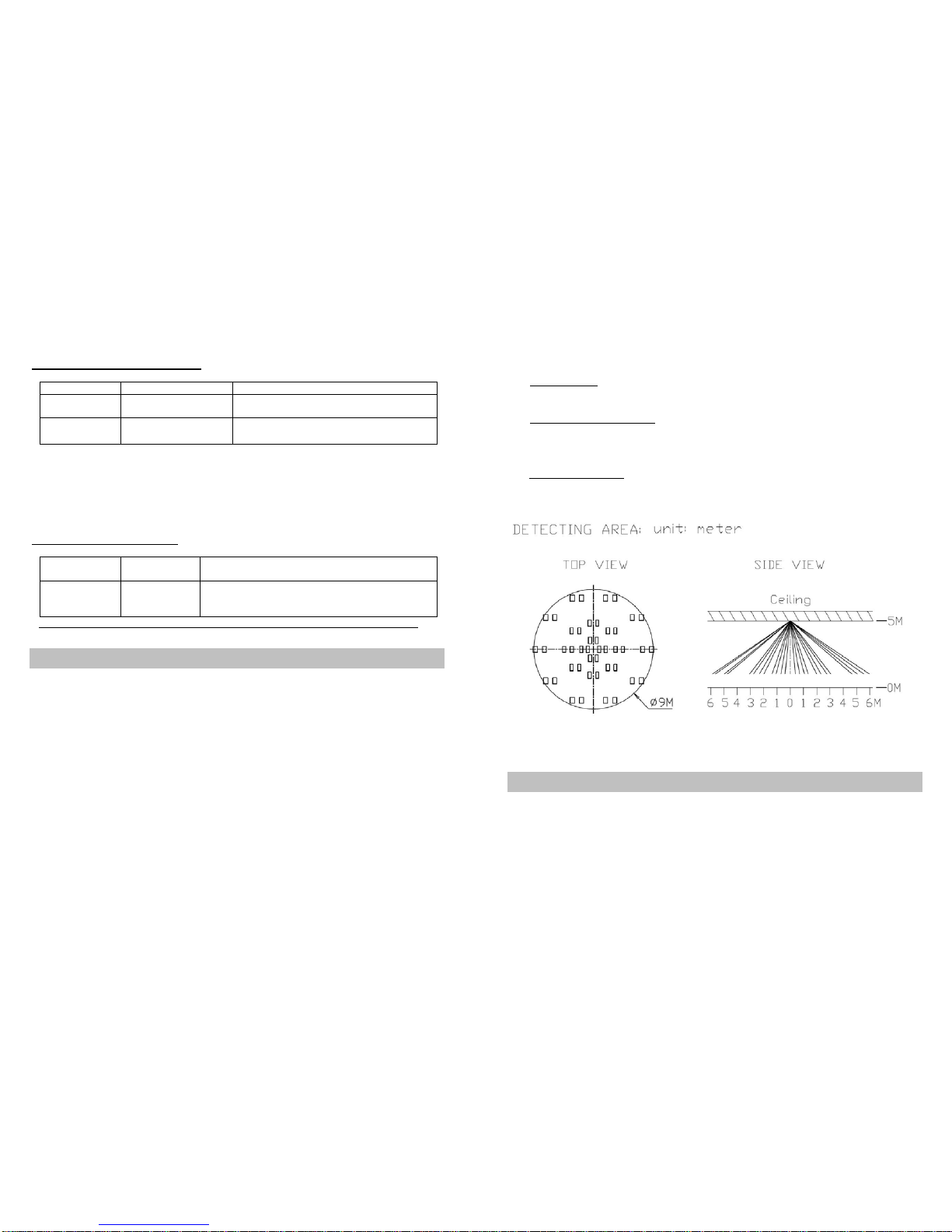

Configuration – Motion Sensor:
Size Value
Parameter 1 1 1 ~ 255 (unsigned decimal) Minutes
(default: 3 minutes)
Parameter 2 1 1 ~ 7
(default: 4)
(Table1)
(Parameter 1) Re-trigger duration: User can change value from 1 to 255 minutes to setup
the re-trigger time when there is no movement detected in the period of time. Default is 3
minutes.
(Parameter 2) Infrared sensor sensitivity adjustment, 7 levels sensitivity, 1 = most
sensitive, 7 = most insensitive, default values= 4
Configuration – LED Mode:
Size Value
(Default: Mode 3)
Parameter 3 1 1 ~ 3 (Mode 1 ~ Mode 3)
Mode 1 ÎLED Turn Off (Both Temp./PIR Trigger)
Mode 2ÎLED Quick Flash (Temp./PIR Trigger)
(Caution: Mode 2 will shorten the battery life due to the Breathing Light Mode.)
Installation
Notice: If you are installing the entire Z-Wave TM system for the first time, please refer to the
installation guide of Z-Wave TM Interface Controller before installing ZP3112.
1. Release cover tab to open the cover and insert two AAAbattery into the battery
compartment and close the cover back to sensor.
2. Press the program switch, the LED will flash 5 times which means the sensor has not been
“included” yet or flash once which means the sensor has been “included” already.
3. For “Inclusion (Auto-Inclusion)” in (adding to) a network: To add the ZP311 2to your
Z-Wave network (inclusion), place your Z-Wave primary controller into inclusion mode and
the distance between sensor and controller is suggested to be in one meter. Press the
Program Switch of ZP3112 for sending the NIF. After sending NIF, Z-Wave will send the
auto inclusion, otherwise, ZP3112 will go to sleep after 20 seconds.
4. For “Exclusion” from (removing from) a network: To remove the ZP3112 from your
Z-Wave network (exclusion), place your Z-Wave primary controller into “exclusion” mode,
and following its instruction to delete the ZP3112 to your controller. Press the Program
Switch of ZP3112 once to be excluded.
For “Association”: Press the program switch for sending NIF, the LED will flash once and
send the Wake Up Notification in 5 seconds. Put the Z-Wave TM Interface Controller into
“association”, and following its instruction to associate the ZP3112 with other device.
Support grouping identifier=1. Support one association group (5 nodes). “Association” is
used for other grouping devices chain reaction. Red LED will flash once when trigger.
5. Auto Wake Up:
Use “Wake Up” command to set up the awaking time (from 10 minutes to 1 week) and send
the wake up notification to controller
6. Battery Capacity Detection:
* Use “Battery Get” command to have the battery capacity back in %
* It will detect the battery capacity automatically
* Low Battery Auto Report when power is lower than 2.6V +/- 0.1V
9. Factory Default Reset: Remove cover to trigged tamper switch, LED flash once & send out Alarm
Report. Press Program Switch 10 times within 10 seconds, ZP3112 will send the “Device Reset
Locally Notification” command and reset to the factory default. (Remark: This is to be used only
in the case of primary controller being inoperable or otherwise unavailable.)
10. All the rest commands depend on Z-Wave standard.
Operation
1. Using adhesive tape to mount ZP3112 at 2 meters above surface. To enhance proper
operation, place ZP3112 on the location which can detect the room widely.
2. Walk in front of ZP3112, sensor will send Basic set On (0xFF) , Red LED willl flash
once and please refer to status report as table below.
3. If no movement detected in three minutes (default is 3 minutes - based on user’s
- 3 - - 4 -

configuration setting, refer Table 1 (Parameter 1) will send Basic Set OFF (0x00), Red
LED will flash once, and refer to table for status.
4. The ZP3112 sensor equipped with tamper switch. If the tamper switch is triggered (or
remove the cover), the ZP3112 sensor will send Alarm Report, LED will flash once and
refer to table for status.
5. If the tamper switch is closed (or closed the cover), ZP3112 will send Alarm Report,
and refer to table for status.
Alarm V1
(Movement & Tamper
Switch) Notification V4
(Movement) Notification V4 (Tamper Switch)
Alarm Type 0x07
Alarm Level
0x00 (No movement
after 3 mins)
0xFF (Motion
detected)
Notification Type 0x07 0x07
Notification
Event
0x08(Motion
Detected)/
0x00 (no movement
after 3 mins)
0x03(remove cover)/
0x00 (cover closed)
Notification
Event Parameter 0x08
0x03
6. Support OTA Firmware update from controller. Please refer to your controller manual
and use COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2. To proceed the OTA
process.
- 5 -
