VISIONARY DESIGNS VK-8008 Manual

© 2018
Order #XXXXX VK-8008 Frame Assembly
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at [email protected]

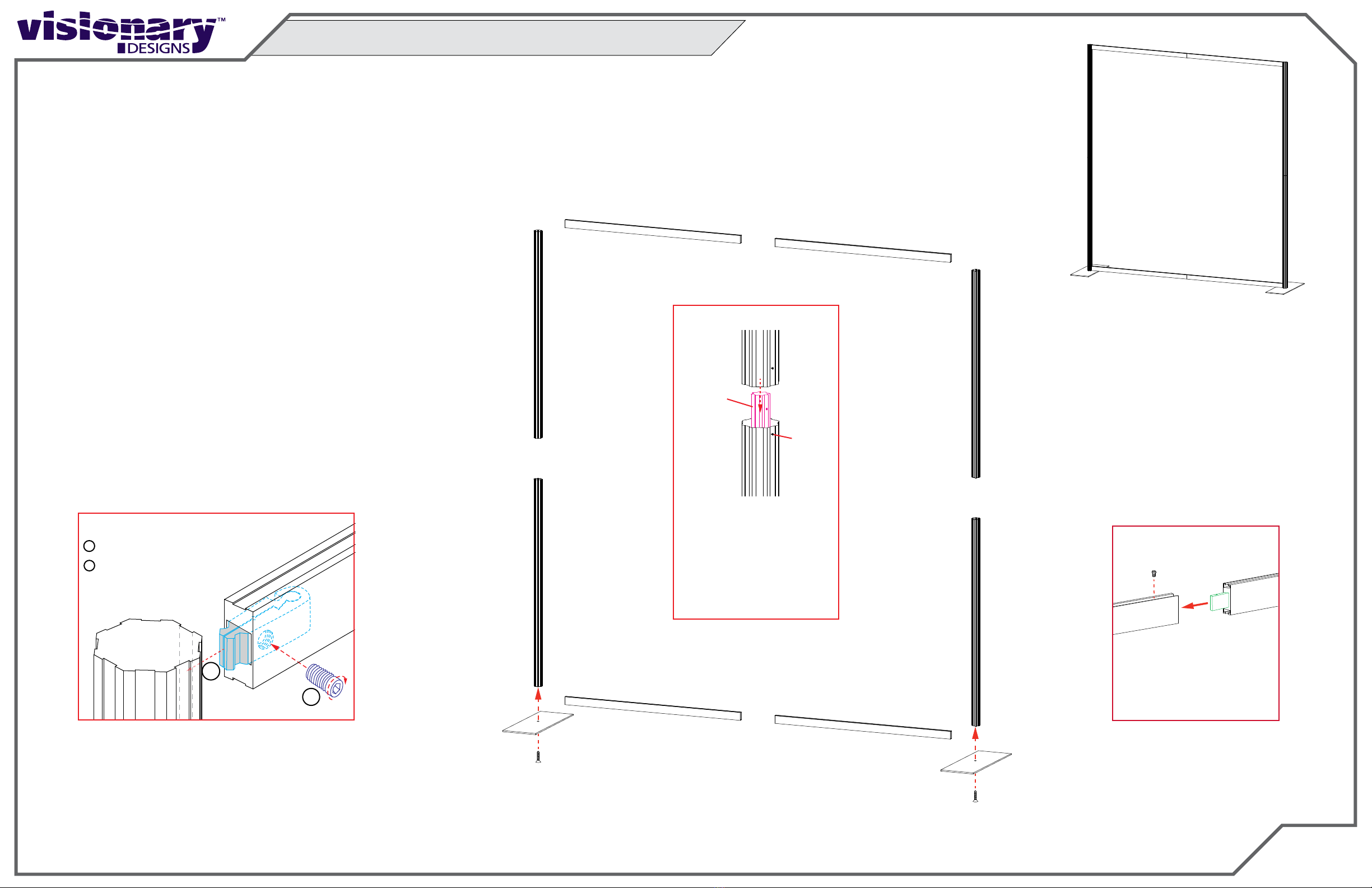

Steps:
1) Attach base plates to verticals [2] and [3], using bolts.
2) Connect verticals [2] to [2A] and [3] to [3A].
See V7 Connector detail.
3) Connect horizontals [4] to [4A] and [5] to [5A].
See PR53 Connector detail.
4) Attach horizontal assemblies [4/4A] [5/5A] between
vertical assemblies [2/2A] [3/3A].
See Cam Lock Connector detail.
5) Apply pillowcase fabric over assembled frame then zip closed.
Item
1
2/2A
3/3A
4/4A
5/5A
Qty.
2
1/1
1/1
1/1
1/1
Description
Base Plate
47.75” S80 Vertical Extrusion
47.75” S80 Vertical Extrusion
42.847” Z45 Horizontal Extrusion
42.847” Z45 Horizontal Extrusion
1
1
2
2A
3
3A
4
4A
5
5A
Completed Assembly
Set
Screw
V7
Connector
V7 Connector
1) Insert V7 Connector into
lower vertical extrusion.
2) Slide upper vertical over
connector then tighten
set screws to secure.
*
To prevent product loss, keep
all screws attached to connector
after disassembling.
PR53 Connector
*
PR53
Connector
Set Screw
Slide extrusion over PR53
connector then tighten set
screw to secure.
To prevent product loss, keep
all screws attached to connector
after disassembling.
Tighten set screw to lock in place
Insert lock into groove of extrusion.
Cam Lock Connector
1
1
2
2
*
*
*
*
*
*
**
*

© 2018
Order #XXXXX
DO NOT USE POWER TOOLS
ALL CONNECTIONS MUST
BE TIGHTLY SECURED
Part Identification - Numbering
Spline Connection Base Plate & Extrusion Connection
General Setup Instructions
- Read entire setup instruction manual prior to
unpacking parts and pieces.
- The setup instructions are created specifically
for this configuration.
- Setup instructions are laid out sequentially in
steps, including exploded views with detailed
explanation for assembly.
WARNING
Cleaning & Packing
- For Cleaning Metal, Plex, & Laminate Parts:
Use a MILD NON-ABRASIVE cleanser and
soft cloth/paper towel to clean all surfaces.
- Keep exhibit components away from heat
and prolonged sun exposure.
Heat and UV exposure will warp and
fade components.
- Retain all provided Packing Materials.
All provided packing materials are for
ease of repacking & component protection.
Disassembly
- For loss prevention, tighten all setscrews
and locks during disassembly
7A
Hex Tool - Essential for Assembly
Extrusion & Lock Connection Engaged Lock
LADDERS OR LIFTS
MAY BE REQUIRED
General Information

© 2018
Case 1 of 1
Order #XXXXX Case Packing
Base
Plate
Base
Plate
4,4A
5,5A
2 2A 3 3A
Graphic
Setup Hardware
Top View of Each Level
Level 1 Level 2
