Feelworld FW759 User manual

7'' 4K HDMI On-Camera Monitor
User Manual

1
Product Overview
Thank you for purchasing our photography, broadcast color LCD
Monitor kit. This product adopts proprietary digital signal processing
circuit and professional IPS LCD screen. It's high brightness, low
power consumption, stable performance. It's with HDMI, AV inputs,
which make it wide application, casing compact, simple operation,
and portable convenient. Advanced features include Peaking Focus,
Screen Marker, Zoom All, Image Flip and Color Temp. etc. It is an
ideal portable light weight frame supporting the monitor.
The monitor built-in battery plate, you can use the power adapter
supply or use the external battery for power supply.
To insure best use of the unit, please read the
user’s manual carefully
CAUTION
1. Do not use any damaged or leaking battery and please replace
the battery immediately if its working life becomes short
significantly
2. Do not expose this product to direct sunlight, heat or humid
conditions
3. Keep away from strong light while using this product so as to
obtain the clearest and the most colorful picture. Please use sun
shade for the outdoor necessary
4. Please avoid heavy impact or drop on the ground.
5. Do not use chemical solutions to clean this unit. Please simply
wipe with a clean soft cloth to keep the brightness of the surface.
6. Without adjustable component in the unit, please do not take
apart or repair the unit by yourself, to avoid damage the product.

2
Features
●High brightness, contrast, high resolution with sun shade, visible
under the sunshine
●Built-in 4K HDMI/ AV inputs, enable for a various of signal
●External remote control, to control the functions of the monitor
in distance.
●Optional for external battery plate and various batteries for
outdoor usage
●4 F Buttons can be self-defined for different function
●Support a variety of different types of battery brands
(F970, LP-E6, D28S, U60)
●Picture Zoom can be operated Zoom All, U/D Zoom, L/R Zoom
●Contain Focus Assist , Anamorphic, Nine Grid,Center Marker,
Histogram, Image Freeze, Image Flip, Embedded Audio, etc.
CONTENTS
1. Product Description ---------------------------3
2. Menu Operation Instruction -----------------9
3. Menu Function Instruction ---------------- 10
4. Technical Parameters -------------------------18
5. Trouble Shooting -------------------------------19

3
1. Product Description

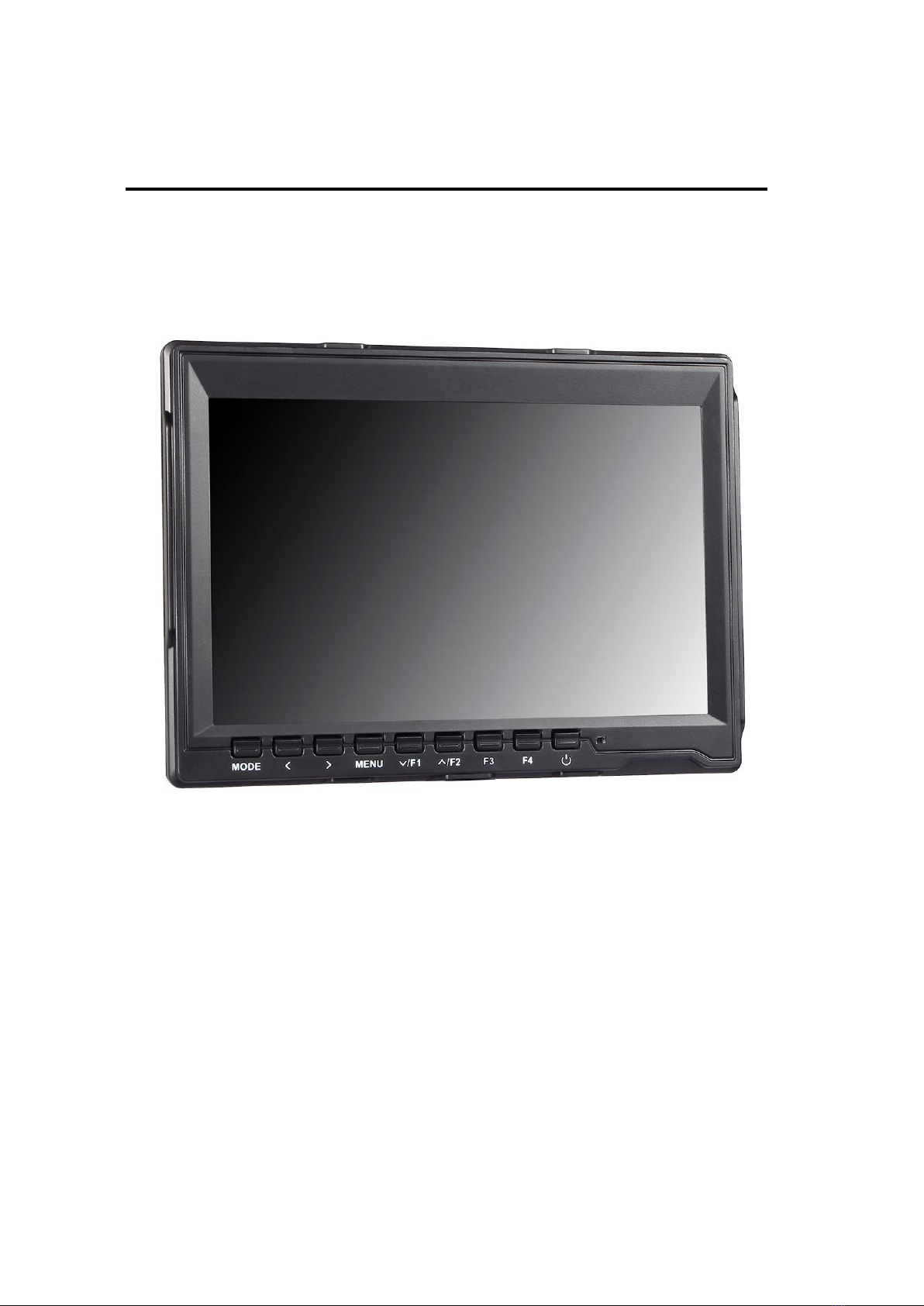

1.1 Front Panel Features
1. Power Indicator light: when power on/standby, it turns red;
when signal in, it turns green!
2. : Power on/off
3. F4: Custom button, enter secondary menu item F
(self-defined button), then self-define the function that user
need
4. F3: Custom button, same as F4 operation
5. : Multi button. In OSD Menu is for up adjustment. It
can be custom button when not in OSD. See F4.
6. : Multi button. In OSD Menu is for down adjustment.
It can be custom button when not in OSD. See F4.

4
7. MENU: Menu button
8. >: Volume up, in OSD menu to increase the value of
analog on the menu.
9. <: Volume down, in OSD menu to decrease the value of
analog on the menu.
10. MODE: Signal Switch Button
11. LCD Display

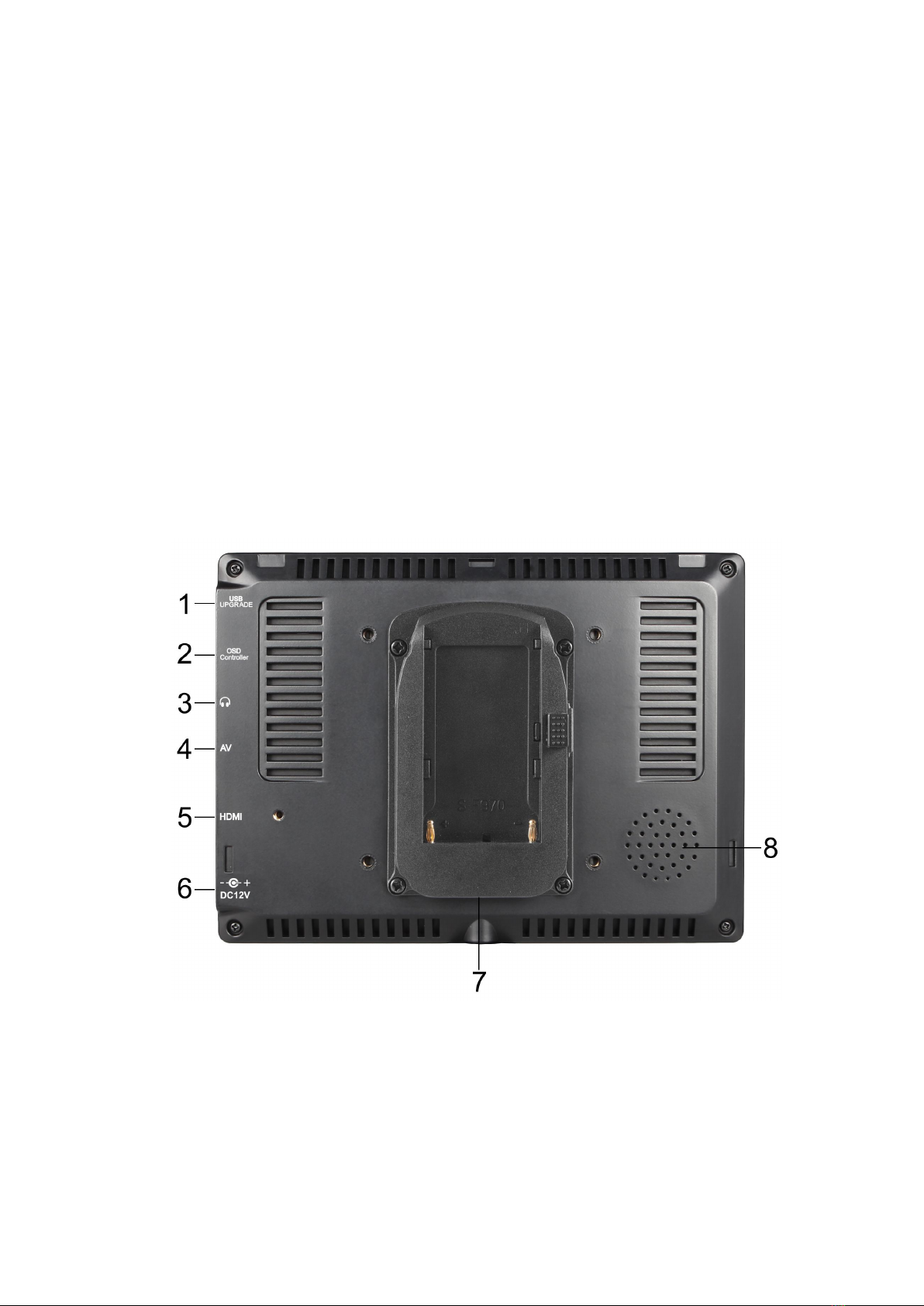

1.2 Rear Panel Features
1. USB Upgrade Port
2. OSD Controller input. Can insert OSD Controller into this
port, to have a remote operation on the parameters of the
monitor

5
3. : Earphone insert
4. AV: AV signal input, to input the AV signal into the monitor
through the assorted port
5. HDMI: HDMI(High Definition Multimedia Interface) signal
input
6. : DC power input interface, pole of the power should
match the image.
7. Battery Plate
8. Built-in Speaker
1.3 VIDEO Matched Cable (option)
The input of the VIDEO signal is 3.5mm four section plug (as the
picture above)
When use，
Insert the black plug (1) into the video input of the monitor
White RCA jack (2) for L Audio input
Red RCA jack (3) for R Audio input
Yellow RCA jack (4) for Video input

6

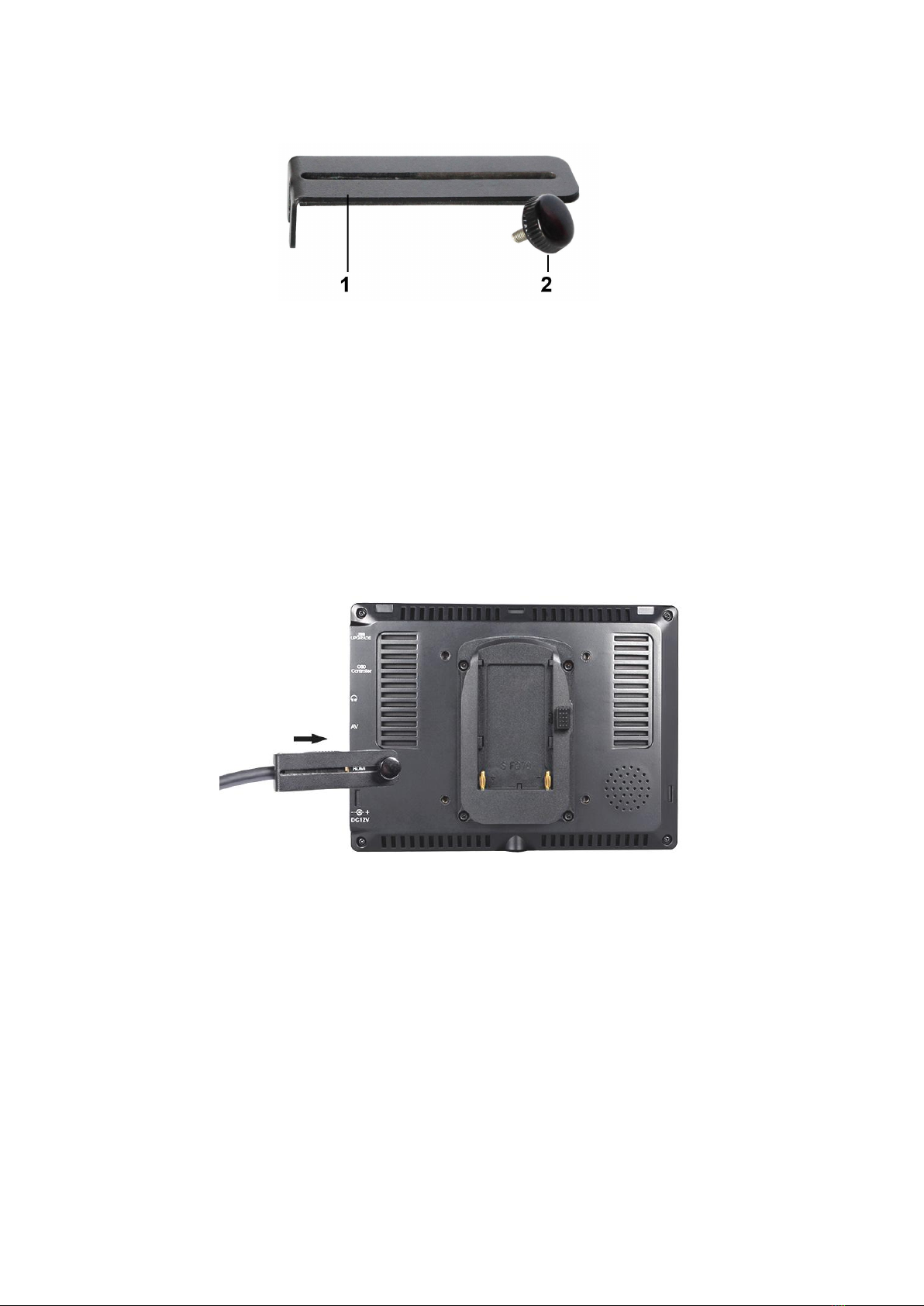

1.4 HDMI Lock
1. HDMI locking plate
2. Locking Screw
To use HDMI locking plate to lock the plug of HDMI cable, then
put the locking plate close to the monitor, and finally bolt the locking
screw to lock the plate with the monitor. As the picture below (arrow
direction)

7

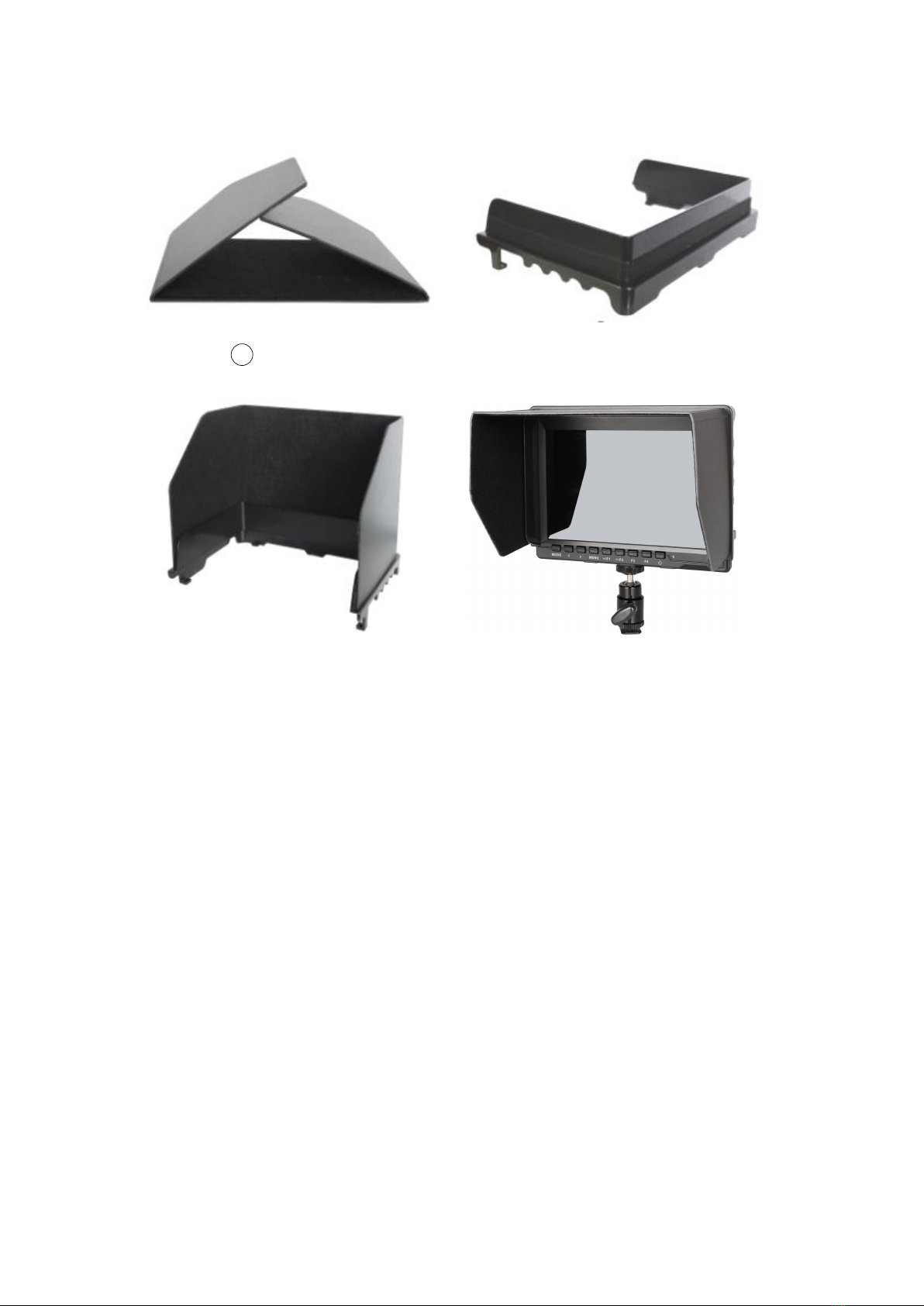

1.5 Sunshade
1Sunshade ②Sunshade Frame
③Complete Shape ④Sunshade Application
First to open the sunshade ①，and match the sticker on the
sunshade inside to the marked part of the sunshade frame，press
the side of the sunshade frame，③smooth and press 3 sides on
the sunshade, ④to lock the sunshade with the monitor tight.
1.6 Battery Plate
There is a battery plate installed on the back of the monitor, can
assemble the corresponding battery to power the monitor. There
are many different battery plates. The customers can choose the
suitable battery plate according to the battery.

8

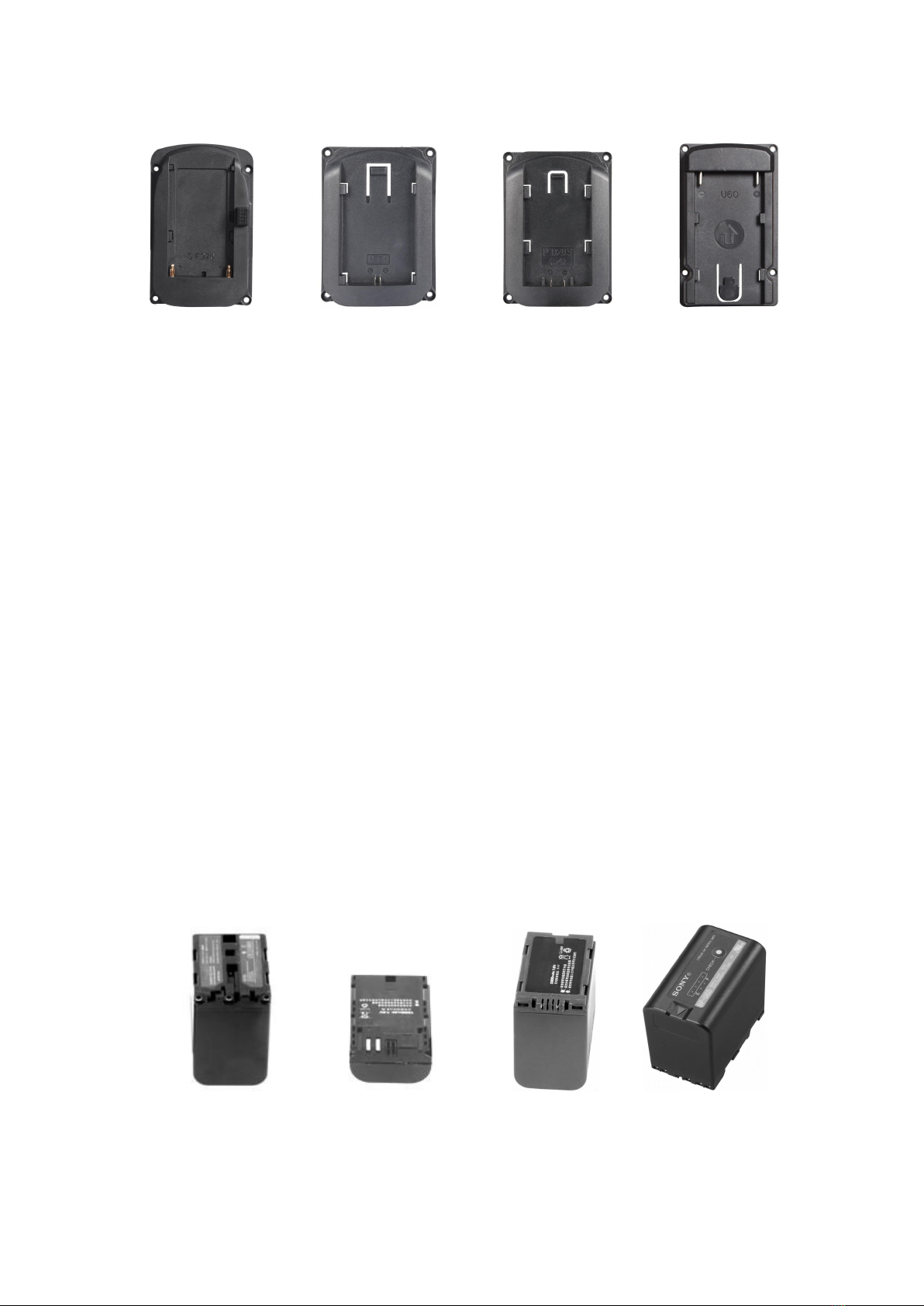

Battery Plates in different model as below:
F970 LP-E6 D28S U60
●Sony F970 battery plate for battery of Sony DV:
Sony F970 F960 F950 F930 F770 F750 F730 F570 F550 F530
QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70
QM51D QM51 FM71 FM70 series
●LP-E6 battery plate for battery of Canon DV:
Canon LP-E6
●D28S battery plate for battery of Panasonic DV:
Panasonic D55 554S D54SE D40 D35 D33 D32 D28 D25 D22
series
●U60 battery plate for battery of Sony DV:
SONY BP-U30/U60/U90, domestic U62/U65/U66/U95/U98 series.
●Four types of batteries corresponding to the upper battery
plates.
F970 LP-E6 D28S U60

9
Remark: Different specifications of the battery, capability is
different. The working time for the monitor will be different. Higher
capability (working time) will be longer. Please take off the battery
from the monitor if you don’t use the monitor in a long time
2. Menu Operation Instruction
After correctly connect to the power supply, the indicator will turn
(Red), press to turn on monitor power, the indicator will be
Yellow, and then input AV or HDMI signals, the indicator will turn
Green from Yellow.
2.1 Press “MENU” button in the front of panel to enter OSD main
menu, and press“＜”or“＞”button to go through the contents of
main menu and secondary menu function.
2.2 Then press “∨/F1” button to enter secondary menu (cursor
move to secondary menu position).
If users need to go through or select the items in the secondary
menu, then press this button “∨/F1” or “∧/F2” button to move
the cursor.

10
2.3 After select the items in the secondary menu, then press
“＜”or“＞” button to adjust the item parameters.
2.4 Press “∨/F1”or “∧/F2” button to choose another parameter
adjustment after confirm the item adjustment.
2.5 Press “MENU” button to exit the menu.
3. Menu Function Instruction

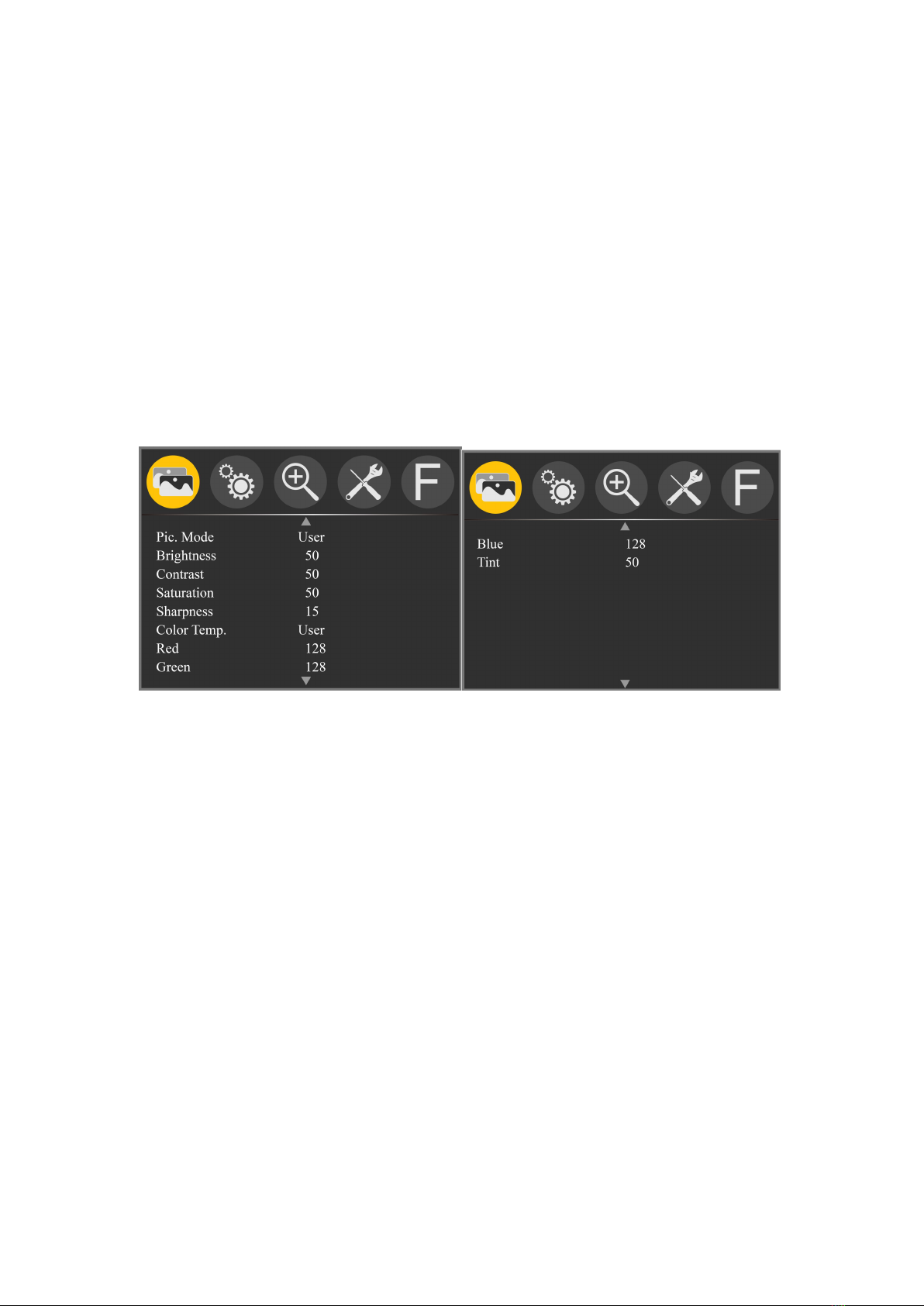

Image (Including 2 pages)
★Pic. Mode: Standard, Mild, User, Dynamic
Select ‘user’ to adjust Brightness, Contrast, Saturation,
Sharpness.
★Brightness: 0～100
To adjust image's brightness.
★Contrast: 10～100
To adjust the brightest and the darkest ratio of
the image, please note the sense of picture when adjust,
proportion too high or too low will make the picture lose
the color.
★Saturation: 0～100
To adjust color concentration.

11
★Sharpness: 0～100
Also called ‘Resolution’, is an indicator for the image plane
definition and image edge sharpness. If sharpness is
higher, then the details contrast on the image is higher, the
image is more clearly.
★Color Temp.: 6500, 9300, User
Select image white color temperature of the monitor.
When select ‘user’, adjust the Red, Green, Blue to meet
the different user's requirement for the different Color
Temp.
★Tint: 0～100
To adjust the image cool and warm hue.

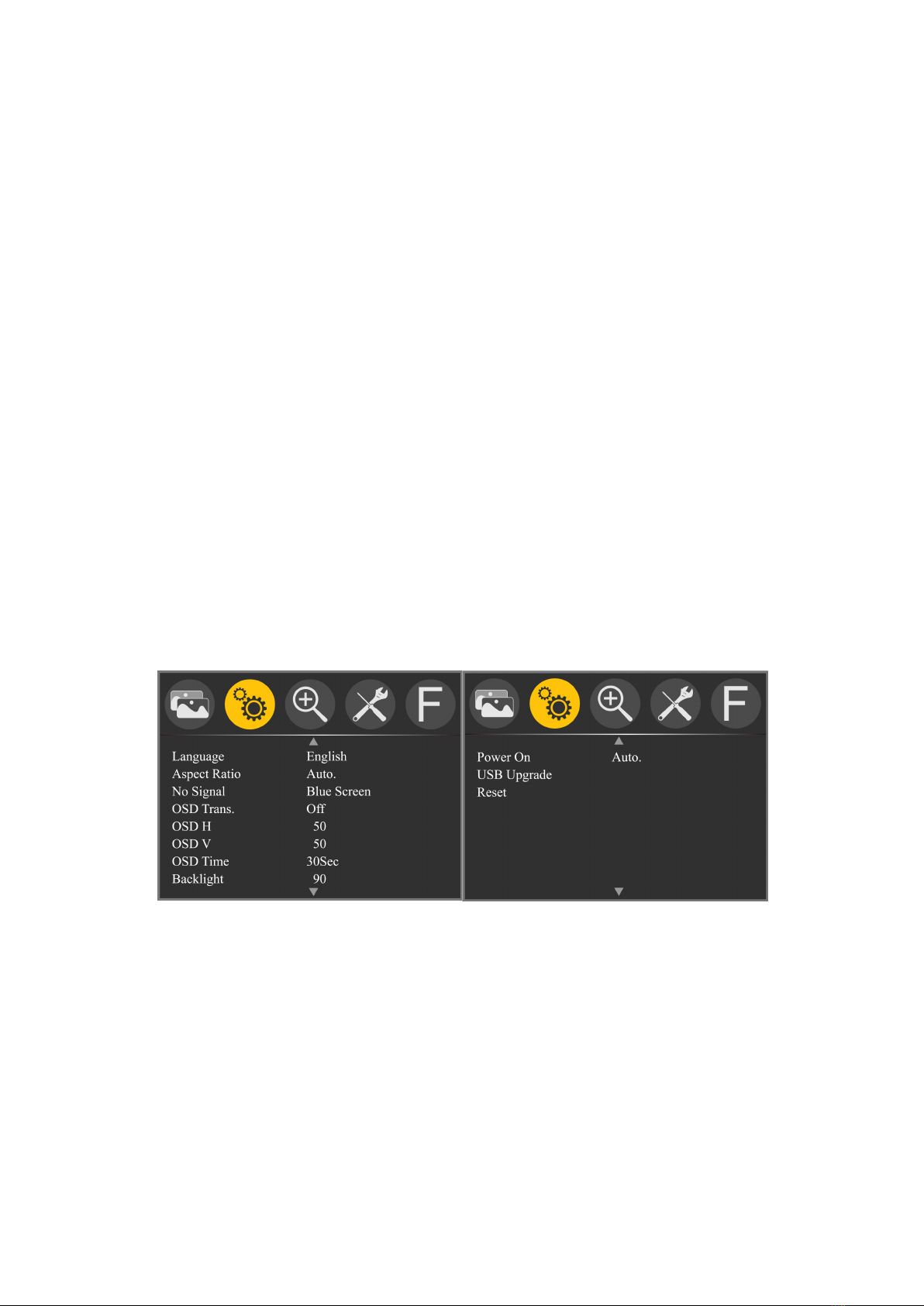

Setting (including 2 pages)
★Language: English, 简体中文, Español, Português,
Français, Nederlands, Deutsch,日本語,繁體中文
To select the display menu language.
★Aspect Ratio: Auto., 4:3, 16:9, Just Scan,
Panorama, P2P
To select the image aspect ratio.

12
★No Signal: Blue Screen, Red Screen, Green Screen,
Black Screen, White Screen
To select the screen background color when no signal.
★OSD Trans.: Off, Low, Middle, High
The transparent of image background when menu display.
★OSD H: 0～100
To adjust the OSD position in horizontal.
★OSD V: 0～100
To adjust the OSD position in vertical.
★OSD Time: Off, 10Sec, 20Sec, 30Sec
The function is to adjust the menu time.
★Backlight: 0～100
To adjust the brightness of screen backlight.
★Power On: Auto., Manual
When select the Auto., the monitor will turn on when input
power. But if select the manual, it is standby when input
power, need to press button to turn on the power.
★USB Upgrade
When need to upgrade the native data application
software, copy the file to the U disk, connect the USB
cable with upgrade USB port, press “＞” button to confirm.
After the upgrade, monitor will automatically restart.
★Reset
Press “＞” button to confirm, back to original setting.

13

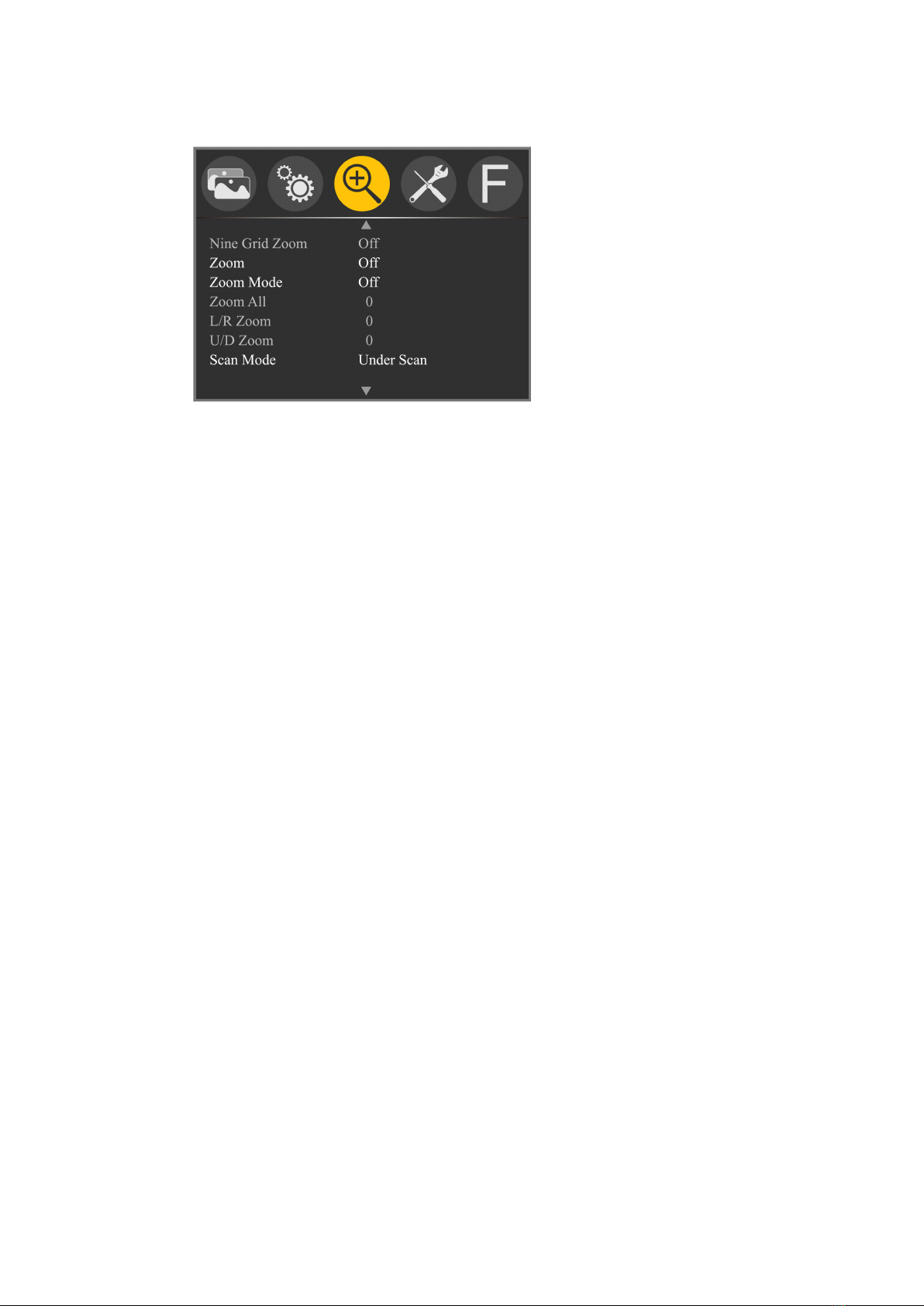

Zoom
★Nine Grid Zoom: Off, On
After turning on the Nine Grid function, then turn on this
function, you can press “＜” or “＞” button to choose a
image, and then press “∨/F1” or “∧/F2” button to zoom
the image to full screen. Press “∨/F1” or “∧/F2” to exit
the local zoom function. (To achieve this function, you
need to first open the Nine Grid function.)
★Zoom: Off, 4X, 9X, 16X
Image Zoom function, to help the photographer observe
more careful image by changing it.
★Zoom Mode: Off, Mode1, Mode2
Zoom All, L/R Zoom, U/D Zoom can be customized.
Zoom All: 0～100
To adjust the image to zoom in or zoom out.
L/R Zoom: 0～100
To adjust the proportion of the image Left and Right to
Zoom In or Zoom Out.
U/D Zoom: 0～100
To adjust the proportion of the image Up and Down to

14
Zoom In or Zoom Out.
★Scan Mode: Under Scan, Over Scan
The scan mode can be selected.
Function (Including 3 pages)
★Center Marker: Off, On
To set center mark (cross mark) display.
★Safe Frames: Off, 80%, 85%, 90%, 96%, 93%, 2.35:1
To select the screen marker.
★Nine Grid: Off, On
To make the image segmented into nine grids.
★Image Freeze: Off, On

15
The current picture still (capture function).
★Image Flip: Off, H_V Flip, H Flip, V Flip
Image Flip function.
★OSD Flip: Off, On
After turning on the Image Flip, turn on this function again
to achieve the OSD Flip function.
★Anamorphic: Off, 1.3X, 2.0X, 2.0X MAG, User
It uses together with some side screen film lens to restore
the real proportion of scene. Under the "user" adjustment
item, the Anamorphic nX can be customized.
★Anamorphic nX: 1.20X~2.00X
Customizable anamorphic adjustment is available.
★Check Field: Off, Mono, Red, Green, Blue
To switch among Color, Mono, Red, Green, Blue.
★Histogram: Off, On
It stands for the image pixels numbers in each level of
brightness and shows the brightness distribution of pixels
in the image.
★False Colors: Off, On
It is the analysis of the whole image brightness and
display False Color. It is convenient to guide using light
when shooting and post production.
★Focus Assist: Off, On
By sharpening the edge of images to help photography for
focusing operation.
★Peaking Color: Red, Green, Blue
Due to the image color is colorful when shooting in natural

16
light, so the user may react to the edge of the single line
not too sensitive, at this time to change the auxiliary focal
edge line color will improve the sensitivity of the image
contour. It is convenient during filming tracking in focus.
★Over Exposure: Off, On
To turn on or off this function.
★Exposure Level: 1～100 IRE
When exposure exceeds the preset value, the monitor
screen appear the twill, it is to reflect the picture exposure
conditions, so as to suggest the photographer adjust the
aperture to obtain proper exposure.
★Embedded Audio: Off, On
The Audio Level Meters provide numerical indicators and
headroom levels. The audio meter is green, and will turn
yellow when exceeds -20dB, and turn red when exceeds
-9dB.
★Ratio Marker: Off, 4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1,
2.35:1
Image display ratio marker.
★Mark Color: Red, Green, Blue, Black, White
To select the above high contrast mark color according to
different image.
★Mark Width: 1～7
To select the above mark color display width.
★Modified Mark: 0～6
Adjust the brightness of the image outside tag line to
highlight the inside tag line of image.

17
Custom Button Setting F1～F4
★F1/ F2/F3/F4: Center Marker, Safe Frames, Check Field,
Focus Assist, Aspect Ratio, Image Flip, Image Freeze,
Histogram, False Colors, Over Exposure, Embedded
Audio, Nine Grid, Zoom, Anamorphic
To set the 4 shortcut custom button F1, F2, F3, F4 on the
panel.
For example: When in OSD menu “ ”, press “∨/F1”
button to select F1, press “＜” or “＞” button to pop-up
function items and press “∨/F1” or “∧/F2” button to select
one of them, such as “Focus Assist”, and press “MENU”
button to confirm.
So when you exit OSD menu, you could press F1 directly
on the front of panel to turn on “Focus Assist” function.
Same setting for F2, F3 and F4.

18
4. Technical Parameters
Panel Size
7.0 inch
Resolution
1280×800 pixels
Backlight
LED
Dot Pitch
0.11775(W) x 0.11775 (H) mm
Aspect Ratio
16:10
Brightness
400cd/㎡
Contrast Ratio
800:1
Response Time
25ms
Viewing Angle
89°/89°(L/R) 89°/89°(U/D)
Input Signal
HDMI/ AV
Video Color System
PAL-4.43 / NTSC-3.58
HDMI Support Format
480i /480p /576i /576p
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98)
4096×2160p (24Hz)
Headphone Output
stereo 3.5mm
Input Voltage
DC 6.5~35V
Power Consumption
≦5W
Unit Size (mm)
176(L)x130(H)x17(D) mm
Unit Weight
300g
Installation Method
1/4 inch bracket screw holes, can be easily connected to the
hot shoe mount, tripod fixed installation
Working Temperature
－20～50℃
Storage Temperature
－30～60℃

19
5. Trouble Shooting
5.1 Only black and white or monochrome picture
①Please check saturation, brightness & contrast adjustment.
②Please check monitor "color" from the menu "monochrome" is in
black and white or monochrome image or other condition.
5.2 NO Image after put on the power
①Check signal cable contact are in good condition, a monitor is
synchronized with the input signal, and can press the "MODE"
give it a try.
②Check signal cable connecting, and make sure use the standard
adapter connect the monitor. If power supply by battery, please
check the battery whether fully charged.
5.3 No sound
①Volume control did not open, can press the volume button, and
try increasing the volume.
②Check the AUDIO input and ensure there have AUDIO signal
■Remark: If there are still other problems, please contact with our
related deals.
★If there are changes without prior notice.
