INTRODUCTION
Thank you for choosing a Vissari Superior Series Rangehood.
You are moments away from your silent cooking experience.
We are a New Zealand owned and operated rangehood supply company now offering
our Vissari Superior Series Range.
Why Superior…
Superior Silence
Unlike any standard onboard type rangehood, we have removed the fan/motor from
the actual rangehood at kitchen level, a powerful inline fan is installed in your ceiling
space away from you and your kitchen area. This creates a quiet and pleasant cooking
experience for you and your family.
Superior Airow
With the removal of noise from your kitchen we have certainly not reduced any of our
rangehoods airflow performance, in fact we have enhanced it.
Our remote inline fans come in two excellent airflow sizes 1030m3/hr & 1800m3/hr.
We have ensured that whichever your cooking style you will be more than satisfied
with these powerful extraction levels.
Superior silence and superior airflow, let your Vissari cooking experience begin.
Superior Style
With the following Superior series rangehood models to choose from we are confident
that your rangehood design and style preference are covered.
03

VISSARI SUPERIOR SERIES
INSTALLATION AND OPERATING MANUAL
MODELS & RATING LABELS
04
Inline Fan options – Steam Eater
SE1030m3/hr
SE1800m3/hr
Model: VISBCS900/SS
Voltage: 220 - 240v - 50Hz
Lights: 2 x 3.5W LED
Model: VISBC900/SS
Voltage: 220 - 240c - 50Hz
Lights: 2 x 3.5W LED
Model: VISC900/SS
Voltage: 220 - 240v - 50Hz
Lights: 2 x 3.5W LED
Model: VISC900B/SS
Voltage: 220 - 240v - 50Hz
Lights: 2 x 3.5W LED
Vissari Superior Series Rangehoods
Model: VISPP750D/SS
Voltage: 220 - 240v - 50Hz
Lights: 2 x 3.5W LED
Model: VISPP900S/SS
Voltage: 220 - 240v - 50Hz
Lights: 2 x 3.5W LED

SPECIFICATIONS
Model: Vissari Superior Series VISBCS900/SS
05
SG40 Control Panel
High performance 5 speed silent inline fan motor
Twin 2 x 3.5w Led Lights (GU10 Cool White)
Airflow options 1030m3/hr or 1800m3/hr
5-year New Zealand parts failure warranty
200mm Duct outlet
Suitable to reach 2.7m ceiling heights
Flue cover heights: Base 500mm - Top 500mm
Underside of rangehood to top of fan outlet: 420mm
Wall Fixing dimensions: 410mm from rangehood
base @ a span of 280mm
Auto timer 1-15 mins
900mm
320mm
505mm
295mm
80mm
80mm
Base
500mm
Top
500mm
Press + to switch on the fan. The timer will only operate when the fan is switched on.
Press – to decrease the fan speed
Press + to increase the fan speed
To switch on or off the lights
Up to 15 minutes timer setting and fully adjustable. When you press the timer
button the digital display will change to “00” timer mode. You can adjust your
timer mode (up to 15 minutes) by pressing “–” or “+”

VISSARI SUPERIOR SERIES
INSTALLATION AND OPERATING MANUAL
Model: Vissari Superior Series VISBC900/SS
900mm
320mm
505mm
295mm
80mm
80mm
Base
500mm
Top
500mm
SG14 Control Panel
High performance 3 speed silent inline fan motor
Twin 2 x 3.5w Led Lights (GU10 Cool White)
Airflow options 1030m3/hr or 1800m3/hr
5-year New Zealand parts failure warranty
Suitable to reach 2.7m ceiling heights
Flue cover heights: Base 500mm - Top 500mm
Underside of rangehood to top of fan outlet: 420mm
Wall Fixing dimensions: 410mm from rangehood
base @ a span of 280mm
Auto off timer 5mins
Turn on/off
and Delay
1
Turn on/off
LED
2
Low speed
setting
3
Medium speed
setting
4
High speed
setting
5
06

Model: Vissari Superior Series VISC900/SS
High performance 5 speed silent inline fan motor
Twin 2 x 3.5w Led Lights (GU10 Cool White)
Airflow options 1030m3/hr or 1800m3/hr
5-year New Zealand parts failure warranty
Suitable to reach 2.7m ceiling heights
Flue cover heights: Base 500mm - Top 500mm
Underside of rangehood to top of fan outlet: 470mm
Wall fixing dimensions: 415mm from rangehood
base @ a span of 255mm
Auto off timer 1-15mins
SG40 Control Panel
900mm
315mm
500mm
290mm
30mm
Base
500mm
110mm
Top
500mm
07
Press + to switch on the fan. The timer will only operate when the fan is switched on.
Press – to decrease the fan speed
Press + to increase the fan speed
To switch on or off the lights
Up to 15 minutes timer setting and fully adjustable. When you press the timer
button the digital display will change to “00” timer mode. You can adjust your
timer mode (up to 15 minutes) by pressing “–” or “+”

VISSARI SUPERIOR SERIES
INSTALLATION AND OPERATING MANUAL
Model: Vissari Superior Series VISC900B/SS
High performance 5 speed silent inline fan motor
Twin 2 x 3.5w Led Lights (GU10 Cool White)
Airflow options 1030m3/hr or 1800m3/hr
5-year New Zealand parts failure warranty
200mm Duct outlet
Suitable to reach 2.7m ceiling heights
Flue cover heights: Base 500mm - Top 500mm
Underside of rangehood to top of fan outlet: 470mm
Wall fixing dimensions: 415mm from rangehood
base @ a span of 255mm
Auto off timer 1-15mins
SG40 Control Panel
900mm
315mm
500mm
290mm
30mm
Base
500mm
110mm
Top
500mm
08
Press + to switch on the fan. The timer will only operate when the fan is switched on.
Press – to decrease the fan speed
Press + to increase the fan speed
To switch on or off the lights
Up to 15 minutes timer setting and fully adjustable. When you press the timer
button the digital display will change to “00” timer mode. You can adjust your
timer mode (up to 15 minutes) by pressing “–” or “+”

Model: Vissari Superior Series VISPP750D/SS
High performance, 5 speed silent inline fan motor
Twin 2 x 3.5w Led Lights (GU10 Cool White)
Airflow options 1030m3/hr or 1800m3/hr
5-year New Zealand parts failure warranty
200mm duct outlet
Auto off timer 1-15 mins
Cut out dimensions: 715mm x 320mm
Underside of rangehood to top of fan outlet: 385mm
SG40 Control Panel
750mm
385mm
320mm
715mm
120mm
330mm
Total height
450mm
09
Press + to switch on the fan. The timer will only operate when the fan is switched on.
Press – to decrease the fan speed
Press + to increase the fan speed
To switch on or off the lights
Up to 15 minutes timer setting and fully adjustable. When you press the timer
button the digital display will change to “00” timer mode. You can adjust your
timer mode (up to 15 minutes) by pressing “–” or “+”

VISSARI SUPERIOR SERIES
INSTALLATION AND OPERATING MANUAL

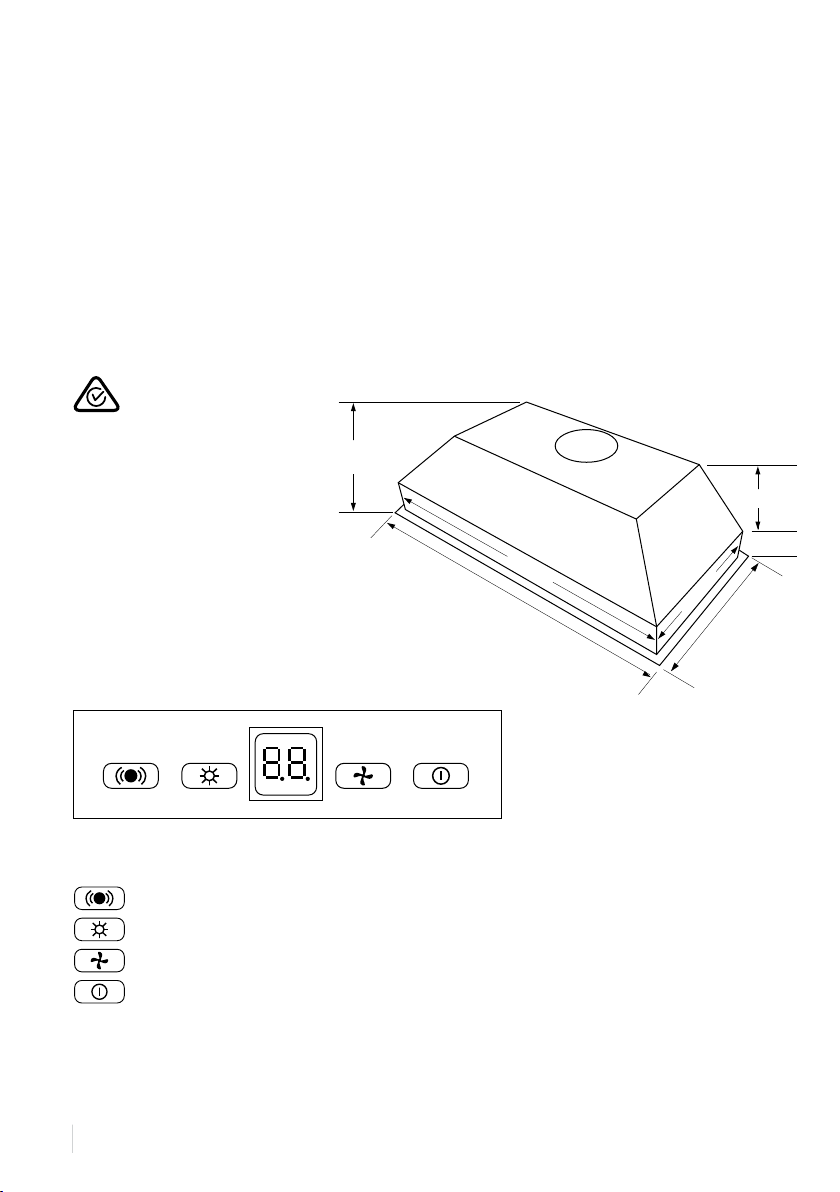

Model: Vissari Superior Series VISPP900S/SS
High performance, 5 speed silent inline fan motor
Twin 2 x 3.5w Led Lights (GU10 Cool White)
Airflow options 1030m3/hr or 1800m3/hr
5-year New Zealand parts failure warranty
200mm duct outlet
Auto off timer 10 mins
Cut out dimensions: 830mm x 265mm
Underside of rangehood to top of fan outlet: 385mm
SG40 Control Panel
860mm
385mm
265mm
830mm
125mm
305mm
Total height
430mm
Operation – manually at rangehood
10
Infrared sensor
Press to switch on off lights
Press to increase fan speed
Press once to engage 10min timer
Press twice to turn fan off

Operation – remote control
11
Press once to engage 10min timer
Press twice to turn fan off
Press to switch on or off the lights
Press + to increase the fan speed
Press - to decrease the fan speed
Press to engage the 10min timer
Press once to engage fan speed 5
Press twice to turn fan off

VISSARI SUPERIOR SERIES
INSTALLATION AND OPERATING MANUAL
Please check your Vissari rangehood and inline fan motor for any damages prior to installation,
do not install any damaged rangehood or inline fan motor.
Please contact Vissari Rangehoods in the event of a damaged rangehood or inline fan motor at
installation time.
Vissari superior series rangehoods must be installed to the specifications below using only
Vissari ducting and ducting components. Vissari is not responsible for any substandard
installation that is carried out differently to the installation guidelines below.
Please contact Vissari for a list of recommended trained installers.
Please read the entire instructions before installing the rangehood.
Always switch power off prior to installation.
All electrical work must be carried out in accordance with local building codes and regulations.
All ducting roof penetrations must be carried out in accordance with local building codes
and regulations.
The socket must be accessible and enable the end user to isolate the rangehood from the power
for the purpose of internal cleaning or maintenance.
Heavy lifting – Please take care when lifting and installing the Rangehood to prevent any
personal injury.
Suitable solid in wall fixings will be required to mount this rangehood, the rangehood must not
be installed to gib board with no solid timber fixings behind the wall lining.
Contents of box
1x Vissari Superior Series Rangehood
(choose your SE 1030 or SE 1800 fan motor & ducting option)
12
PRE-INSTALLATION

13
Required equipment for installation
We recommend Vissari rangehoods are installed by a recommended installation tradesperson.
Variety of battery drill tools
Variety of hand tools
Variety of drill bits and hole saws
Ladders / drop sheets
Installation
Unwrap the rangehood and inspect for damage, plug in, and test the power and operation while
planning the installation.
The optimum installation height is 750mm from benchtop to underside of the rangehood.
Mark the centre line of the hob below on to the installation wall above and mark a horizontal
finished installation height line (Optimum 750mm).
Relay the rangehoods main body hanging points on to the installation wall.
Screw and fix the rangehoods main body to the wall, ensure all screws are fixed into timber
framework behind the gib wall lining.
Cut (depending on the model) a 150mm or 200mm hole for the ducting in the ceiling.
Draw the ducting down from ceiling and connect to the rangehood outlet with tape and cable ties.
Plug in the rangehood and test.
Install the two flue covers.
Clean and commission rangehood.
INSTALLATION

VISSARI SUPERIOR SERIES
INSTALLATION AND OPERATING MANUAL

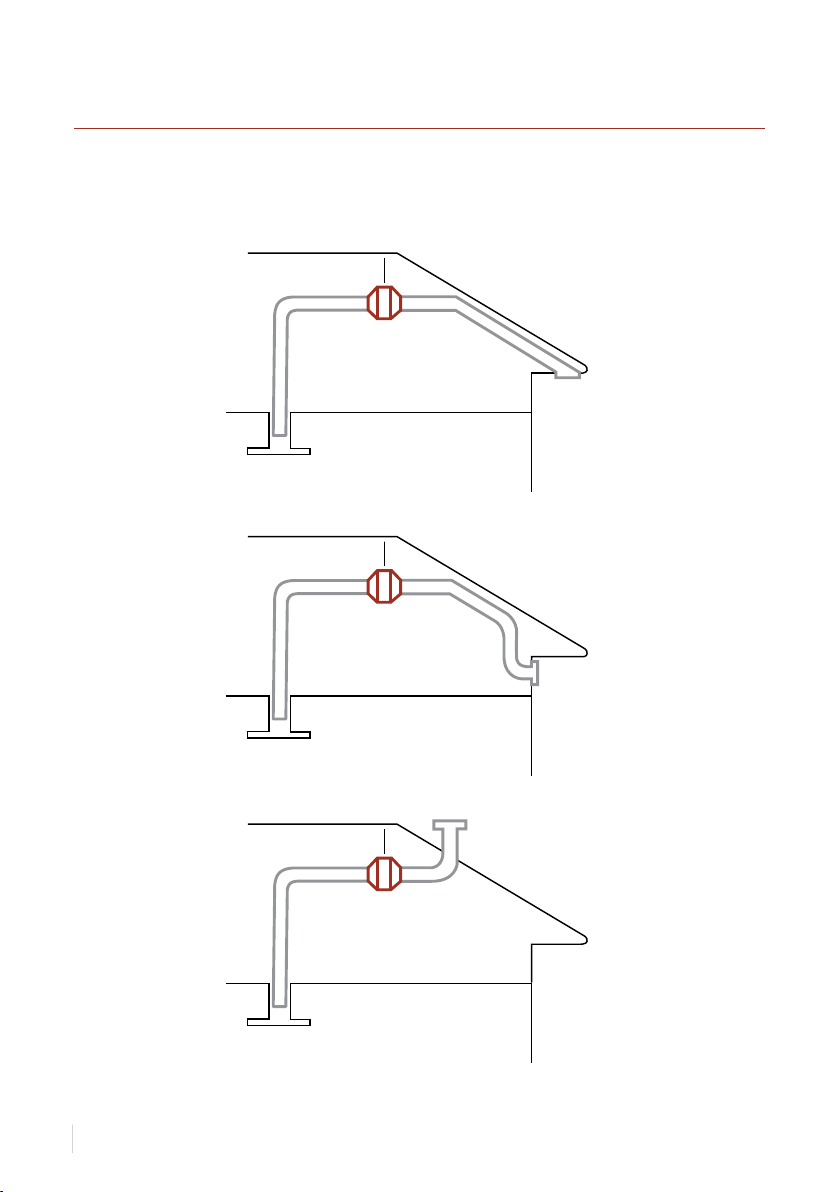

Recommended ducting options
Soffit
14
DUCTING OPTIONS
Wall
Roof

15
CLEANING
Interior
Clean the interior of the rangehood with a neutral detergent and a damp cloth.
Exterior
We recommend using spray on ‘Steel Kleen’ applied to a soft cloth and then gently
applied to the rangehood body and flue covers.
Filters
Filter should be cleaned every 3-6 weeks or after approximately every 40 hours of use.
Clogged and dirty filters will restrict airflow and lower your rangehoods performance.
Hand Washing
Use detergent and hot soapy water, rinse after soaking with hot water.
Dishwasher
Wash separately, the colour of the mesh filters can change after several washes, this is
normal and is not a necessary indication for new replacement filters.

VISSARI SUPERIOR SERIES
INSTALLATION AND OPERATING MANUAL
16
MAINTENANCE
Replacing the Light Bulb
DANGER
Always switch off and disconnect power before replacing the light.
Failure to do so may cause serious injury. Please be aware that the light
bulb will retain heat for a short period of time after being switched off.
Step 3
Insert a new bulb by lining up
the pins of the light bulb with the
larger holes inside the light holder.
Once the pins are in place, turn
clockwise to secure the light bulb.
Step 2
Gently turn light bulb anti-
clockwise, pull the light
bulb down and remove it
from the light holder.
Step 1
Remove the filters
from the rangehood.

CONDENSATION
An induction cooktop is designed to provide rapid heating, improved thermal efficiency and
greater heat consistency. For some customers with an induction cooktop, condensation can
form on their rangehood filters while using their cooktop.
The induction cooktops heat source is contained in the conductive base of the pot.
When compared with a gas, electric or wok burner, the heat is not isolated or contained
to one area and therefore gradually rises on all sides of the pot or fry pan. This
combination allows the rangehood filters to warm up slowly and eliminate the formation
of condensation. For induction cooktops, the immediate and contained heat source
can produce vapours rapidly. This prevents the filters from gradually warming up and
increases the chance of condensation forming.
Some variables that can contribute to condensation forming on rangehoods & filters
above induction cooktops are:
Location in New Zealand and variable daily temperatures
The position of your home, relative to morning and afternoon sun
The quality of cookware being used
The height of the installed rangehood
Rapid heating
Filter type and size
Condensation avoidance tips:
Turn on the rangehood 10 mins before starting to cook and turn off the rangehood
10-15mins after finishing cooking.
Do not cook at high/full power straight away, start on low or medium heat so the
rangehood can warm up slightly.
Keep the filters clean and grease free.
There must be a constant flow of air into the cooking area to avoid the creation of a
depression which can affect the rate of extraction.
Optimum rangehood installation height is 750mm above the cooking surface area.
Neither the rangehood nor the induction cooktop are faulty. That in some circumstances,
the combination of the rangehood, the induction cooktop and the many variables within
your home, can lead to condensation forming on your rangehood filters. With a gas or a
standard electric cooktop, you should not have or at least have very minimal condensation.
17 17

VISSARI SUPERIOR SERIES
INSTALLATION AND OPERATING MANUAL
WARRANTY
Vissari Rangehoods Superior Series Warranty
This Warranty is provided by Rangehood Solutions Ltd – Distributor for Vissari Rangehoods.
This warranty covers the following Vissari Superior Series Rangehoods used and installed in
domestic and household applications.
VISBCS900/SS
VISBC900/SS
VISC900/SS
VISC900B/SS
VISPP750D/SS
VISPP900S/SS
Vissari Superior Series rangehoods are covered with a 5 year warranty from the original date
of purchase, this is applicable for only the original purchaser.
Vissari Superior Series inline fans are covered with a 10 year warranty from the original date
of purchase, this is applicable for only the original purchaser.
This warranty applies in New Zealand only.
The customer must produce the original invoice to make any warranty claim.
The inline fan warranty is a changeover warranty, the purchaser is responsible for any
associated change over labour costs.
18

Warranty Exclusions
The warranty does not apply were, in Vissari Rangehoods opinion:
The product has been repaired or serviced by an unauthorised appliance service agent.
The Rangehood and was not installed in accordance with our instructions.
The Rangehood/Product was not cared for in accordance with our instructions.
The defect is caused by misuse, wear and tear, dirt, fire or accidental damage.
LED Light replacements are not covered.
Service agents call out costs, if the rangehood is found to be in normal working order.
The customer must provide the original invoice as proof of the original purchase date.
Costs incurred on installation or removal of a product, or any reinstallation or any associated
costs are not covered by this warranty.
The repairs relate to the replacement of consumable parts such as fuses in plugs.
Damage of defects have not been reported within 48 hours of delivery, otherwise no claim will
be recognised.
The breakdown occurs after the expiry of the warranty period.
How to make a claim
You may make a claim under this warranty by emailing us at: [e-mail]
Please email a copy of your original invoice as proof of purchase.
19

SHOWROOMS
Auckland – East Tamaki
Bay Of Plenty – Mount Maunganui
Waikato – Te Rapa
P0800 RANGEHOODS / [e-mail] / www.vissari.co.nz
