vissonic VIS-HE Series User manual

VIS-HE Series HDBaseT Video Extender
User Manual
V1.0
VISSONIC ELECTRONICS LIMITED

www.vissonic.com
1 VISSONIC Electronics Limited
The meaning of symbols
■ Safety instructions
For your safe and correct use of equipments, we use a lot of symbols on the equipments and in the
manuals, demonstrating the risk of body hurt or possible damage to property for the user or others.
Indications and their meanings are as follow. Please make sure to correctly understand these
instructions before reading the manual.
This isA level product, which may cause radio
interference in the living environment. In this case,
users may need to take the feasible measures to get
around the interference.
Remind users that the dangerous voltage without
insulation occurring within the equipment may cause
people suffer from shock.
CE certification means that the product has reached
the directive safety requirements defined by the
European Union. Users can be assured about the use
of it.
SGS certification means that the product has reached
the quality inspection standards proposed by the
world's largest SGS.
This product passed the ISO9001 international
quality certification (certification body: TUV
Rheinland, Germany).
Warning: in order to avoid electrical shock, do not
open the machine cover, nor is the useless part
allowed to be placed in the box. Please contact the
qualified service personnel.
The ground position of equipment housing can
shield interference and protect equipment and
personal safety.
Heavy metal elements, do not put into the trash can,
must be professional recycling.
■ General information instructions
It lists things that could cause an operation or setting
to fail, along with some relevant information to be
aware of.

www.vissonic.com
2 VISSONIC Electronics Limited
Important notes
Warning
In order to ensure the reliable performance of
the equipment and the safety of the user,
please observe the following matters during
the process of installation, use and
maintenance:
The matters needing attention of
installation
◆Please do not use this product in the
following places: the place of dust, soot and
electric conductivity dust, corrosive gas,
combustible gas; the place exposed to high
temperature, condensation, wind and rain; the
occasion of vibration and impact . Electric
shock, fire, wrong operation can lead to
damage and deterioration to the product,
either;
◆In processing the screw holes and wiring,
make sure that metal scraps and wire head will
not fall into the shaft of controller, as it could
cause a fire, fault, or incorrect operation;
◆When the installation work is over, it should
be assured there is nothing on the ventilated
face, including packaging items like dust
paper. Otherwise this may cause a fire, fault,
incorrect operation for the cooling is not free;
◆Should avoid wiring and inserting cable
plug in charged state, otherwise it is easy to
cause the shock, or electrical damage;
◆The installation and wiring should be strong
and reliable, contact undesirable may lead to
false action;
◆For a serious interference in applications,
should choose shield cable as the high
frequency signal input or output cable, so as to
improve the anti-jamming ability of the
system.
Attention in the wiring
◆Only after cutting down all external power
source, can install, wiring operation begin, or
it may cause electric shock or equipment
damage;
◆This product grounds by the grounding
wires .To avoid electric shocks, grounding
wires and the earth must be linked together.
Before the connection of input or output
terminal, please make sure this product is
correctly grounded;
◆Immediately remove all other things after
the wiring installation. Please cover the
terminals of the products cover before
electrification so as to avoid cause electric
shock.
Matters needing attention during operation
and maintenance
◆Please do not touch terminals in a current
state, or it may cause a shock, incorrect
operation;
◆Please do cleaning and terminal tighten
work after turning off the power supply. These
operations can lead to electric shock in a
current state;
◆Please do the connection or dismantle work
of the communication signal cable , the
expansion module cable or control unit cable
after turning off the power supply, or it may
cause damage to the equipment, incorrect
operation;
◆Please do not dismantle the equipment,
avoid damaging the internal electrical
component;
◆Should be sure to read the manual, fully
confirm the safety, only after that can do
program changes, commissioning, start and
stop operation;
Matters needing attention in discarding
product
◆Electrolytic explosion: the burning of
electrolytic capacitor on circuit boards may
lead to explosion.

www.vissonic.com
3 VISSONIC Electronics Limited
Version
This manual describes the performance parameters of the VISSONIC VIS-HE Series HDBaseT
Video Extender and how to use and troubleshoot them.
If the technical parameters and system usage in this manual are changed, the manufacturer will
update the version of the manual. Please use the latest user manual.
The copyright of the manual belongs to VISSONIC ELECTRONICS LIMITED. This manual is
protected by the Copyright Law of the People's Republic of China and other intellectual property
laws and regulations. Without permission, it is not allowed to copy part or all of the manual or
modify this manual.
Version
Update
Date
1.0
Released
2023.7.18

www.vissonic.com
4 VISSONIC Electronics Limited
Contents
Chapter 1 Product description .........................................................................................................5
1.1 Overview.............................................................................................................................5
1.2 Panel introduction...............................................................................................................5
1.2.1 VIS-HE7H-T transmitter (front and rear panels) .....................................................5
1.2.2 VIS-HE7H-R receiver (front and rear panels)..........................................................6
1.2.3 VIS-HE10H-T transmitter (front and rear panels) ...................................................7
1.2.4 VIS-HE10H-R receiver (front and rear panels)........................................................8
1.3 Function ..............................................................................................................................9
1.4 Mode selection..................................................................................................................10
1.4.1 Test mode ...............................................................................................................10
1.4.2 Def mode................................................................................................................10
1.4.3 Pass mode...............................................................................................................10
Chapter 2 Connection and configuration.......................................................................................11
2.1 System connection ............................................................................................................11
2.2 Configuration....................................................................................................................12
Chapter 3 Specifications................................................................................................................13
3.1 Transmitter parameter .......................................................................................................13
3.2 Receiver parameter ...........................................................................................................14

www.vissonic.com
5 VISSONIC Electronics Limited
Chapter 1 Product description
1.1 Overview
The VIS-HE series HDBaseT video extender can be integrated with VISSONIC video
matrix/processor to extend the transmission of HDMI video, audio, bidirectional RS232 and IR
signals through shielded CAT6 cables. It is capable of input 4K@60Hz 4:4:4 signal, complies with
HDMI 2.0 and HDCP 2.2/2.3, has three application modes, compatible with X9/M5/VS series
matrix/processor twisted pair cards.
The extender including transmitter and receiver.
1.2 Panel introduction
1.2.1 VIS-HE7H-T transmitter (front and rear panels)
12 3 4 5 6
78910 11 12 13
1. HDMI input.
2. Mode selection dial (Test: test image mode; Def: custom mode, using internal EDID,
supporting 4K@60 4:4:4 input; Pass: direct mode, using the receiving end EDID).

www.vissonic.com
6 VISSONIC Electronics Limited
3. SWITCH button (in Test mode, short press to switch different test images, long press 3s to
switch different resolutions, and release the button to output).
4. Power LED indicator.
5. RJ45 link LED indicator.
6. Video input LED indicator.
7. 5 pin phoenix connector: 1× RS232 control, 1×RS232 bidirectional transmission.
8. 3.5mm infrared input.
9. 3.5mm infrared output.
10. HDMI loop-out.
11. 3.5mm audio de-embedding output.
12. RJ45 twisted pair port (support 1080P 70m; 4K60Hz 40m).
13. DC 12-48V power port.
1.2.2 VIS-HE7H-R receiver (front and rear panels)
4 5 6 7 8910
123
1. Power LED indicator.
2. RJ45 link LED indicator.
3. Video input LED indicator.

www.vissonic.com
7 VISSONIC Electronics Limited
4. 5 pin phoenix connector: 1× RS232 control, 1×RS232 bidirectional transmission.
5. 3.5mm infrared input.
6. 3.5mm infrared output.
7. HDMI output.
8. 3.5mm audio de-embedding output.
9. RJ45 twisted pair port (support 1080P 70m; 4K60Hz 40m).
10. DC 12-48V power port.
1.2.3 VIS-HE10H-T transmitter (front and rear panels)
12 3 4 5 6
78910 11 12 13
1. HDMI input.
2. Mode selection dial (Test: test image mode; Def: custom mode, using internal EDID,
supporting 4K@60 4:4:4 input; Pass: direct mode, using the receiving end EDID).
3. SWITCH button (in Test mode, short press to switch different test images, long press 3s to
switch different resolutions, and release the button to output).
4. Power LED indicator.
5. RJ45 link LED indicator.
6. Video input LED indicator.

www.vissonic.com
8 VISSONIC Electronics Limited
7. 5 pin phoenix connector: 1× RS232 control, 1×RS232 bidirectional transmission.
8. 3.5mm infrared input.
9. 3.5mm infrared output.
10. HDMI loop-out.
11. 3.5mm audio de-embedding output.
12. RJ45 twisted pair port (support 1080P 100m; 4K60Hz 70m).
13. DC 12-48V power port.

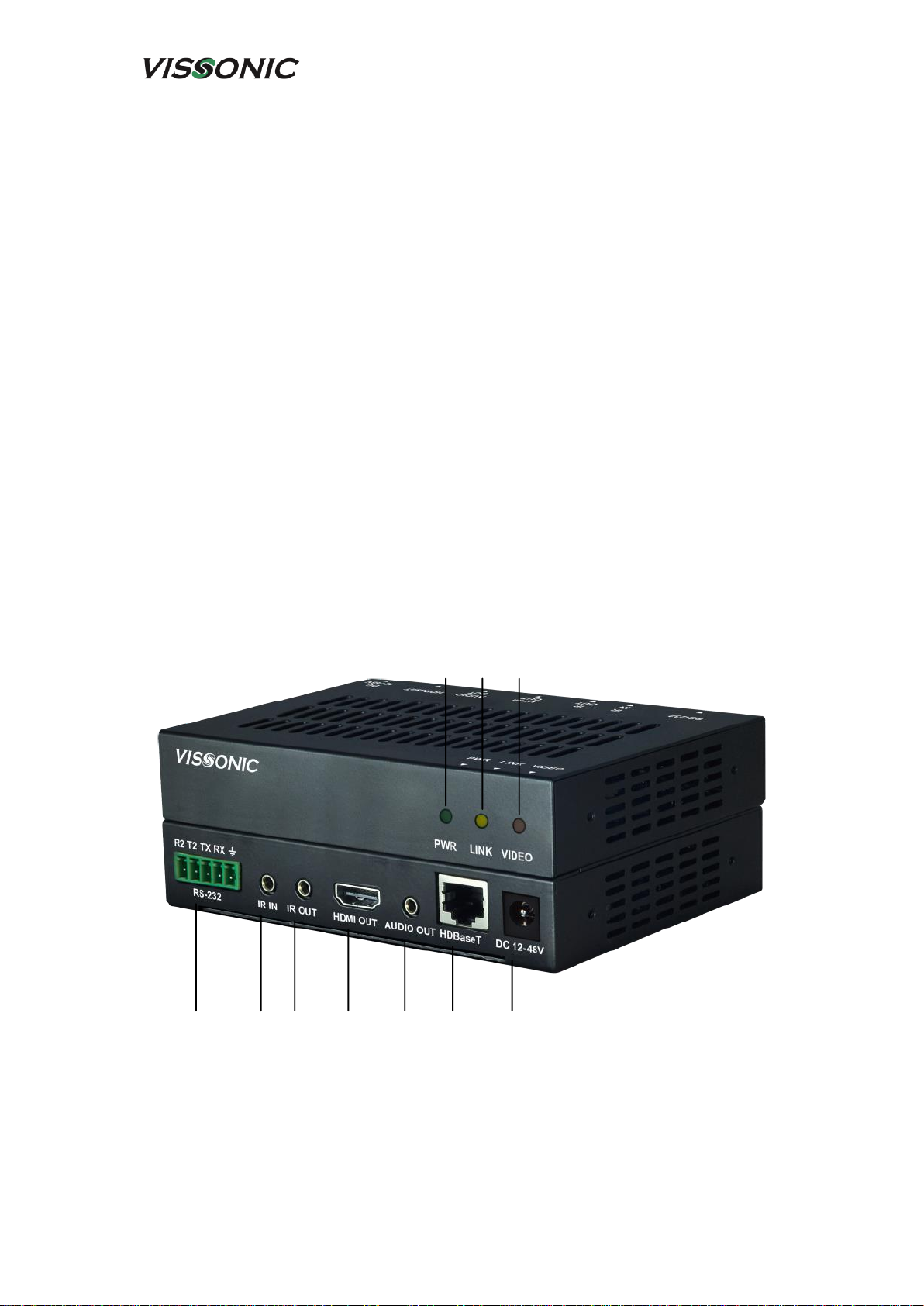

1.2.4 VIS-HE10H-R receiver (front and rear panels)
4 5 6 7 8910
123
1. Power LED indicator.
2. RJ45 link LED indicator.
3. Video input LED indicator.
4. 5 pin phoenix connector: 1× RS232 control, 1×RS232 bidirectional transmission.
5. 3.5mm infrared input.
6. 3.5mm infrared output.
7. HDMI output.
8. 3.5mm audio de-embedding output.

www.vissonic.com
9 VISSONIC Electronics Limited
9. RJ45 twisted pair port (support 1080P 100m; 4K60Hz 70m).
10. DC 12-48V power port.
1.3 Function
Transmit HDMI video, audio and control signal through shielded CATX cable,
VIS-HE7H-T/R realizes 1080Ptransmission up to 70m and 4K60Hz up to 40m;
VIS-HE10H-T/R realizes 1080Ptransmission up to 100m and 4K60Hz up to 70m.
VIS-HE7H/10H-T complies with HDMI 2.0b, including data rates up to 18 Gbps, 3D images;
VIS-HE7H/10H-R complies with HDMI 1.4b, including data rates up to 10.2 Gbps, 3D
images.
VIS-HE7H/10H-T is compatible with HDCP 2.2/2.3, and earlier such as HDCP 1.4, etc.;
VIS-HE7H/10H-R is compatible with HDCP 1.4.
VIS-HE7H/10H-T has a internal signal generator, which can output various resolutions and
test images in Test mode.
In Def mode, VIS-HE7H/10H-T supports maximum 4K/60 @4:4:4 input; VIS-HE7H/10H-R
supports maximum 4K/30 @4:4:4 transmission.
VIS-HE7H/10H-T has scaler function. In Test mode, the 4K test image can be set to 1080P
output; in Def mode, the input 4K@60 4:4:4 is automatically converted to 4K@60 4:2:0.
In Pass mode, VIS-HE7H/10H-T can output images synchronized with the signal source.
Provides de-embedding HDMI audio for 3.5mm audio port output.
Audio output frequency 32KHz–192KHz. Supports all compressed and uncompressed audio
formats, such as 2.0/2.1/5.1/7.1 channel LPCM, Dolby, AC3, DTS, etc.;
Through the RS232 interface, VIS-HE7H/10H-T allows version query, work mode setting,
resolution setting, EDID management, firmware update, factory reset, etc.;
VIS-HE7H/10H-R allows version query, EDID management, update Firmware, factory reset,
etc.
Bidirectional RS232 control and IR signals can be transmitted together with video signals,
remote control of AV equipment without additional wiring.

www.vissonic.com
10 VISSONIC Electronics Limited
Compatible with shielded CAT5e/CAT6/CAT6a.
Power supply can be provided by the transmitter or receiver POC.
Has LED indicators with video input, power and link status, conveniently real-time feedback
and monitor of key performance parameters.
With a small case, allows to be discreetly installed wherever it is needed.
Wide voltage power supply, permits to use DC 12V to 48V power adapter.
1.4 Mode selection
The VIS-HE series video extender has three application modes (Test/Def/Pass mode), which can
be selected through the MODE dial on the transmitter VIS-HE7H/10H-T. After selecting mode,
the extender needs to be restarted to take effect.
In Test mode, use the SWITCH button on the transmitter VIS-HE7H/10H-T to switch different test
images and different resolutions to output.
1.4.1 Test mode
Turn the MODE dial on the transmitter VIS-HE7H/10H-T to "Test", and there are 13 test images
available for output.
In Test mode, the SWITCH button on the transmitter VIS-HE7H/10H-T, short press to switch
different test images, long press 3 seconds to switch different resolutions, and release the button
to take effect.
1.4.2 Def mode
Turn the MODE dial on the transmitter VIS-HE7H/10H-T to "Def", which can use the internal
EDID. In Def mode, the transmitter supports 4K@60 4:4:4 input which is automatically converted
to 4K@60 4:2:0.
1.4.3 Pass mode
Turn the MODE dial on the transmitter VIS-HE7H/10H-T to "Pass". This mode uses the EDID of
the receiving end, and the signal passes through directly.

www.vissonic.com
11 VISSONIC Electronics Limited
Chapter 2 Connection and configuration
2.1 System connection

www.vissonic.com
12 VISSONIC Electronics Limited
2.2 Configuration
Main configuration: VIS-HE7H-T, VIS-HE7H-R, VW-VM0808; or VIS-HE10H-T,
VIS-HE10H-R, VW-VM0808.
Configure VIS-HE7H/10H-T with HDBaseT input card (VW-HD4I), configure
VIS-HE7H/10H-R with HDBaseT output card (VW-HD4O), others according to project
conditions.
VIS-HE series video extender can also be used in pairs without matrix.

www.vissonic.com
13 VISSONIC Electronics Limited
Chapter 3 Specifications
3.1 Transmitter parameter
Parameter
VIS-HE7H-T
VIS-HE10H-T
Maximum data rate
18 Gbps (6 Gbps per color)
Maximum pixel clock
600 MHz
Input resolution range
All VESAresolutions, up to 4096x2160p (18 G);All 3D formats and
downward compatibility;
All PC resolutions including 3840x2160P and downward
compatibility.
Format
RGB/YCbCr444/YCbCr422/YCbCr420
Protocol
HDMI 1.4/2.0b; HDCP 1.4/2.2/2.3
Video input
Quantity/Signal type
1×HDMI input
Quantity/Connector
1×Female HDMI Type A
Horizontal frequency
15 KHz to 150 KHz
Vertical frequency
24 Hz to 120 Hz, resolution up to 18 Gbps
Video loop out
Quantity/Signal type
1×HDMI loop out
Quantity/Connector
1×Female HDMI Type A
Horizontal frequency
15 KHz to 150 KHz
Vertical frequency
24 Hz to 120 Hz, resolution up to 18 Gbps
Transmitter-Receiver connection
Connector
One female RJ45 per unit
Termination standard
TIA/EIAT568B
Transmission distance
Use shielded
CAT5e/CAT6/CAT6a cable,
1080p@60Hz up to 70 m,
2560x1600@60Hz up to 40 m,
4K/UHD@30Hz and 60Hz up to
40 m.
Use shielded
CAT5e/CAT6/CAT6a cable,
1080p@60Hz up to 100 m,
2560x1600@60Hz up to 70 m,
4K/UHD@30Hz and 60Hz up to
70 m.
Cable requirement
Solid conductor, 24 AWG or better
Cable recommendation
400 MHz bandwidth, STP (shielded twisted pair)
Audio
Format
All compressed and uncompressed audio formats, such as
2.0/2.1/5.1/7.1 channel LPCM, Dolby, AC3, DTS, etc.
De-embedded output
3.5mm analog stereo (left/right)
Extender-Peripheral connection
Serial control port
Via screw of 3.5mm and 5-pin to hold the RS232 connector

www.vissonic.com
14 VISSONIC Electronics Limited
RX/TX baud rate
9600 to 115200 baud
R2/T2 baud rate
115200 baud
Infrared control port
A pair of 3.5mm audio jacks
TTL
(0 to 5 V) Modulation infrared control, from 25 KHz to 60 KHz
Universal
External power supply
(supplied)
Input: AC 100–240 V, 50–60 Hz;
Output: DC 12 V, 3 A, 36 W.
Power consumption
Maximum 12 W (Tx 4 W, Rx 8 W), remote power budget 20 W.
Temperature/Humidity
Storage: -40 to +158 °F (-40 to +70 °C)/10% to 90%,
non-condensing;
Operating: +32 to +104 °F (0 to +40 °C)/10% to 90%,
non-condensing.
Heat dissipation
Cooling,Air convection through vents
Installation
Furniture bracket
With optional under-table mounting kit
Shell type
Metal
Dimensions (H×W×D)
20×108×67 mm (excluding connector)
Weight
TX 0.185 kg
Compliance
CE, ROHS
Rated ventilation space
Conform to UL standards of heat and smoke release, excluding
power supply.
Product quality assurance
3 years
3.2 Receiver parameter
Parameter
VIS-HE7H-R
VIS-HE10H-R
Maximum data rate
10.2 Gbps (3.4 Gbps per color)
Maximum pixel clock
300 MHz
Output resolution range
Maximum 4K@30 Hz 4:4:4 and downward compatibility
Format
RGB digital video
Protocol
HDMI 1.4b, HDCP 1.4
Video output
Quantity/Signal type
1×HDMI output
Quantity/Connector
1×Female HDMI Type A
Transmitter-Receiver connection
Connector
One female RJ45 per unit
Termination standard
TIA/EIAT568B
Transmission distance
Use shielded
CAT5e/CAT6/CAT6a cable,
1080p@60Hz up to 70 m,
2560x1600@60Hz up to 40 m,
Use shielded
CAT5e/CAT6/CAT6a cable,
1080p@60Hz up to 100 m,
2560x1600@60Hz up to 70 m,

www.vissonic.com
15 VISSONIC Electronics Limited
4K/UHD@30Hz and 60Hz up to
40 m.
4K/UHD@30Hz and 60Hz up to
70 m.
Cable requirement
Solid conductor, 24 AWG or better
Cable recommendation
400 MHz bandwidth, STP (shielded twisted pair)
Audio
Format
All compressed and uncompressed audio formats, such as
2.0/2.1/5.1/7.1 channel LPCM, Dolby, AC3, DTS, etc.
De-embedded output
3.5mm analog stereo (left/right)
Extender-Peripheral connection
Serial control port
Via screw of 3.5mm and 5-pin to hold the RS232 connector
RX/TX baud rate
9600 to 115200 baud
R2/T2 baud rate
115200 baud
Infrared control port
A pair of 3.5mm audio jacks
TTL
(0 to 5 V) Modulation infrared control, from 25 KHz to 60 KHz
Universal
External power supply
(supplied)
Input: AC 100–240 V, 50–60 Hz;
Output: DC 12 V, 3 A, 36 W.
Power consumption
Maximum 12 W (Tx 4 W, Rx 8 W), remote power budget 20 W.
Temperature/Humidity
Storage: -40 to +158 °F (-40 to +70 °C)/10% to 90%,
non-condensing;
Operating: +32 to +104 °F (0 to +40 °C)/10% to 90%,
non-condensing.
Heat dissipation
Cooling,Air convection through vents
Installation
Furniture bracket
With optional under-table mounting kit
Shell type
Metal
Dimensions (H×W×D)
20×108×67 mm (excluding connector)
Weight
RX 0.185 kg
Compliance
CE, ROHS
Rated ventilation space
Conform to UL standards of heat and smoke release, excluding
power supply.
Product quality assurance
3 years
