VIS-QUAD41 Video Multiplexers
1PRODUCT OVERVIEW
VIS-QUAD41 quad video multiplexer is a high-performance image processor, and it's main
function is turn 4 BNC、VGA、HDMI input signal into 1 HD HDMI and VGA signal, which make 4
digital signal display in one HD screen unit synchronously and HDMI signal with USB(like mouse、
keyboard) can be switched synchronously. VIS-QUAD41 video multiplexers support various kinds
display unit with HDMI, such as: projector、LCD、DLP、plasma、full color LED.
VIS-QUAD41 video multiplexers is chief applied to video conference、teaching、display and
demonstration、stock etc, where need single display unit display multi HD signal synchronously,
and it generally used in the market at present.
Meanwhile,VIS-QUAD41 video multiplexers is the only product that add USB synchronous
switch, so when case or IR controller switch to fully display one signal ,correspondingly, USB of
computer host also synchronous switch. It meet the demand of video conference which need
with mouse and keyboard synchronously.
2MAIN FUNCTION
Support single display unit display 4 HD or analog signal synchronously;
Support 4 composite video、4VGA、4 HDMI, 12 input signal in total;
Support 1 VGA and 1HDMI synchronic output;
4 input USB signal,2 output USB, and USB connect mouse and keyboard;
Support KVM function, that is USB、mouse、keyboard with video synchronous switch;
Compatibility all kinds of input resolution and support output ultrahigh resolution of
1920*1080;

Size and position of image can be adjust arbitrarily, and other functions, such as
windowing、superposition、roaming、PIP、POP.
Support regulatory image transparency, therefore you can see base picture though upper
image;
Can be commonly used in any nation in the world due to support ultra wide input alternating
voltage of 90V to 264V ;
It's draw bench case is standard dimension of 19inch 1U ,so it can be put on normal
equipment cabinet;
Can be controlled by case key、IR、RS-232 serial port and center control.
High quality HD quad video multiplexers is especially customized generate for video
engineering;
3MORE DETAIL ABOUT VIS-QUAD41
3.1PURE HARDWARE CONSTRUCTION
Adopt pure hardware construction ,without CPU and memory, so booting only need 3 to 5
minutes, system stability, without crash, virus and system breakdown; can uninterrupted work
for 24 hours a day of 365 days a year .
3.2 FPGA IMAGE PROCESS
Adopt FPGA that is the most powerful image chip process technology at present. FPGA support
various world's leading image processing technology, for example: DCDI edge smooth、ACM
color automatically adapt 、CSS light crosstalk suppression 、SHARPNESS enhancement 、
dynamic contrast ratio enhancement、the real six axis color overlap、eliminate the noise
amplification ect.
In addition, possess many advanced function like 3D comb filter video decoding function,3D
noise reduction and automatic adapt moving compensation's remove isolation technology, skin
color adjust, enhance color brightness, GAMMA adjust and frame frequency switch ect. Which

make output image texture smooth and sharp、clear and fluent、bright color without sawtooth
and trailing .
3.3POWERFUL OPERATION CAPABILITY
Data use parallel processing, output port occupy one channel and data bandwidth reach
10.2G/S of each channel .So It can fully achieve high resolution of 1920*1080 display. High speed
dynamic image without trailing、delayed、tear、frame loss、image catch up phenomenon.
3.4SUPPORT INPUT AND OUTPUT 1920*1080 HD SIGNAL
VIS-QUAD41 video multiplexers support 4BNC、4VGA、4HDMI, in total 12 input signal and HD
video support interlaced and line-by-line input. It support highest input ultrahigh resolution of
1920*1080 and downward compatibility all kinds of resolutions; The highest output resolution
support 1920*1080 after all input signal go though professional image processing chips and
line-by-line export HDMI signal of 60HZ and it also can customize output resolution according to
user demand.
3.5USB SWITCH
VIS-QUAD41 video multiplexers is the only product that built-in USB switch in the market,
which perfectly solute the question that previous product can't synchronous switch video with
USB connecting device(like USB mouse、keyboard).It will be widely used in various kinds video
conference situation , will more convenient、more efficient、save more display equipment and
operating space for user.
3.6 REGULATORY TRANSPARENCY

Support PIP, so you can regulatory transparency for upper picture, therefore you can see base
picture though upper image
4CONTROLLER
4.1 SOFTWARE CONTROL

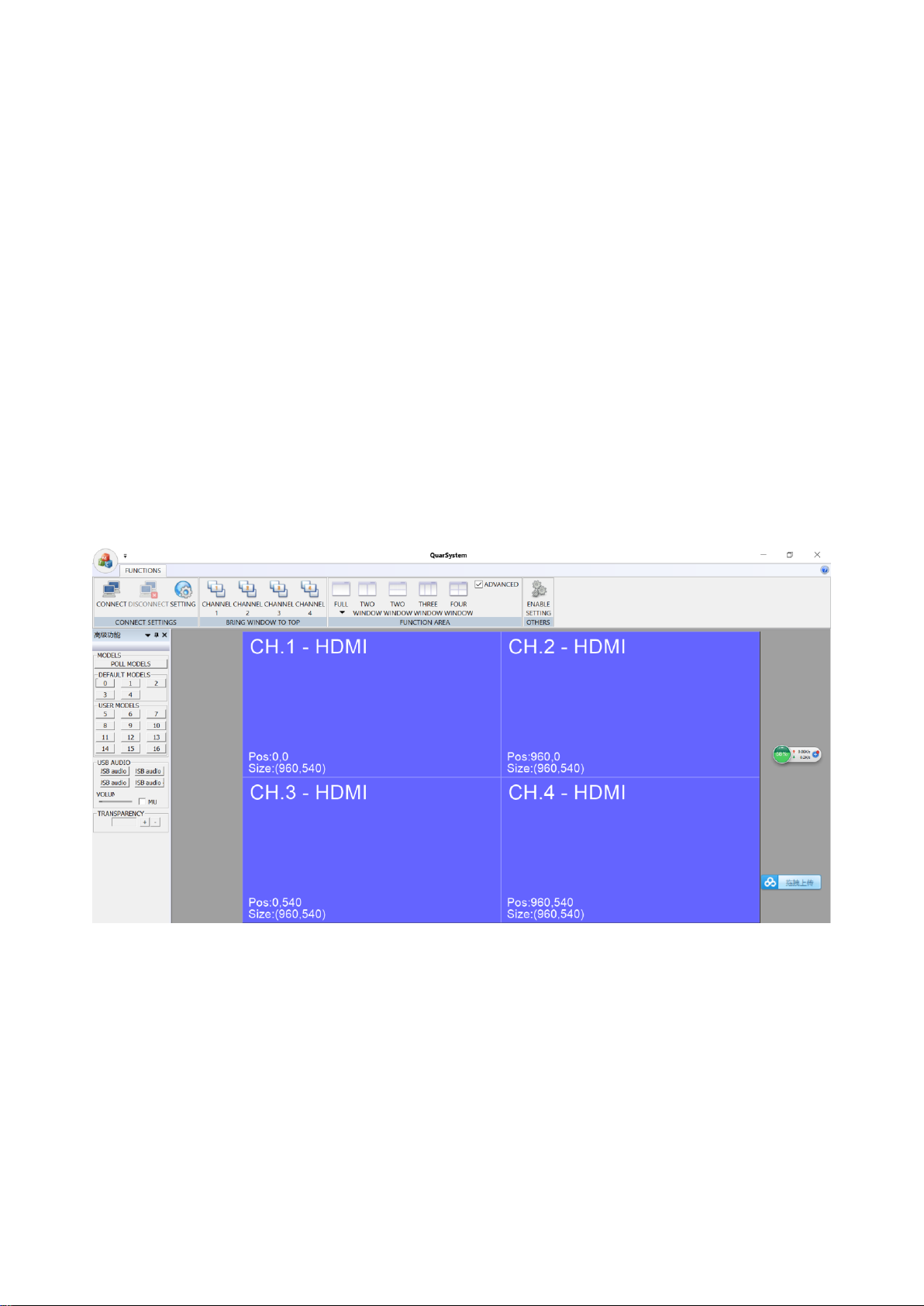

VIS-QUAD41 video multiplexers contain green control visual interface VIS-QUAD41
sofeware.exe, available when starting up ,can achieve global function like switch input signal、
Size and position of image adjust arbitrarily by using the mouse、save or invoke shortcut、fastly
switch after custom 16 shortcut etc.
4.2 IR CONTROL
IR control can invoke 10shortcut mode without staring up computer;

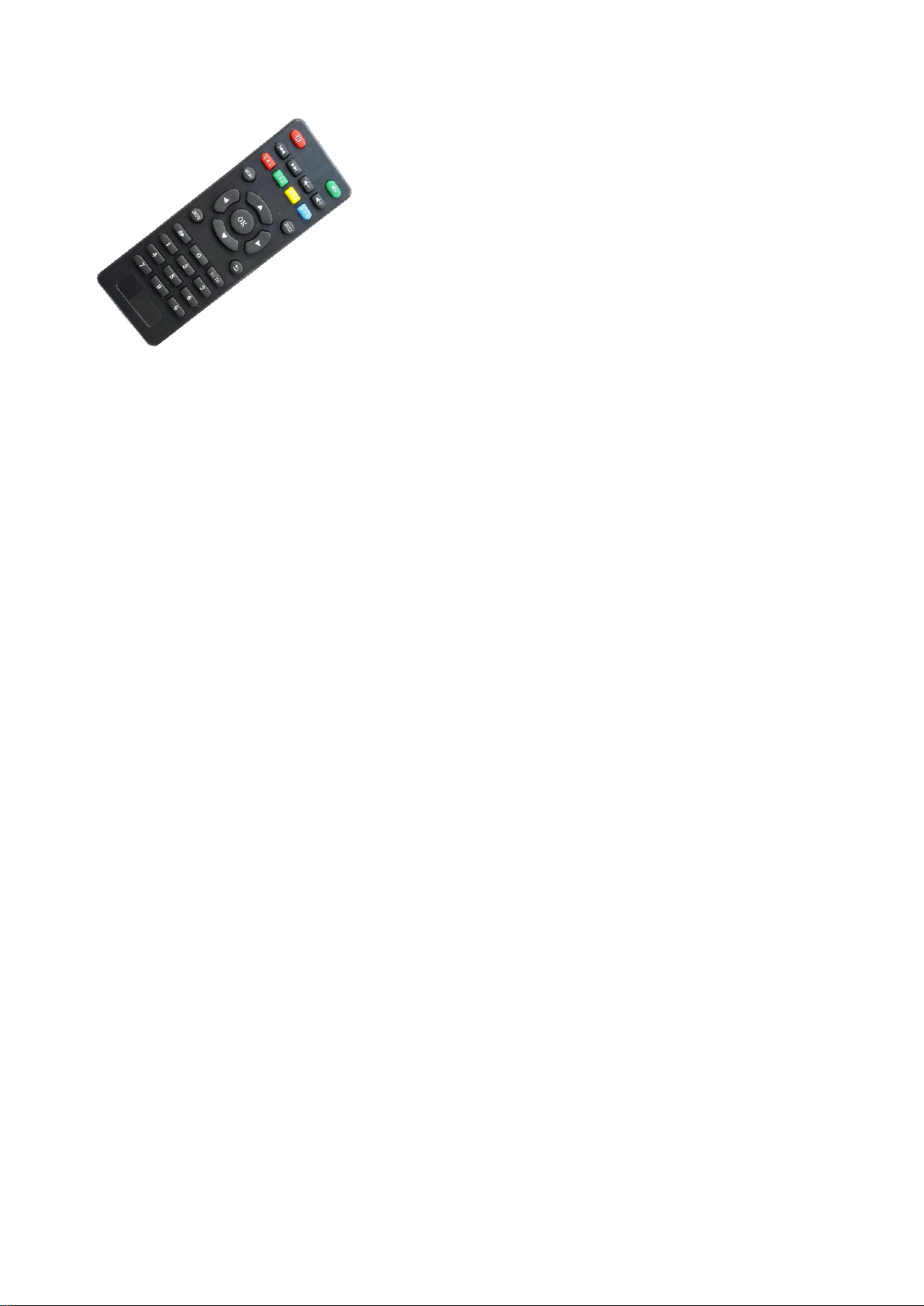

Through IR can choose input signal of each channel, and adjust output resolution.

4.3 CASE KEY CONTROL
There have 14 shortcut keys in the front panel, can realize 10 shortcut switch which are
correspondent with IR control ,and mouse、keyboard switch alone.
4.4 CENTER CONTROL
VIS-QUAD41 adopt frequently-used control code, user using center control after write control
code into center processor according to demand;
5COMMONLY DISPLAY MODE
Our product solidify some frequently-used switch and display mode in order to make client
more easier use it, and user can custom some common use pattern according to different
individuate demand ,following are some common and practical mode:
5.1 DIVISION DISPLAY
4 HDMI or VGA image signal display in one screen unit in quartering at the same time,can
simultaneously monitor 4 HD HDMI or VGA signal ,as following:

5.2 FULLY DISPLAY ONE SIGNAL
It can switch to fully display whichever input signal like HDMI、VGA and BNC though switching
control. As following:
5.3 USB SWITCH UNDER QUARTERING MODE
It realize mouse、keyboard KVM division function though control software or UA1、UA2、
UA3 and UA4 keys, that is can control and operate whichever host under quartering mode by
means of a set of mouse and keyboard.
5.4 FULL SCREEN AND USB SYNCHRONOUS SWITCH
When you choose fully display certain HDMI or VGA,USB video signal also switch to this image
signal which binding with it,so you can operate the host binding with fully display image through
USB mouse、keyboard；

5.5 OTHER MODE
By control software, it can achieve other multi individual display mode, like PIP、POP、
window overlap、roaming、any size, any position;

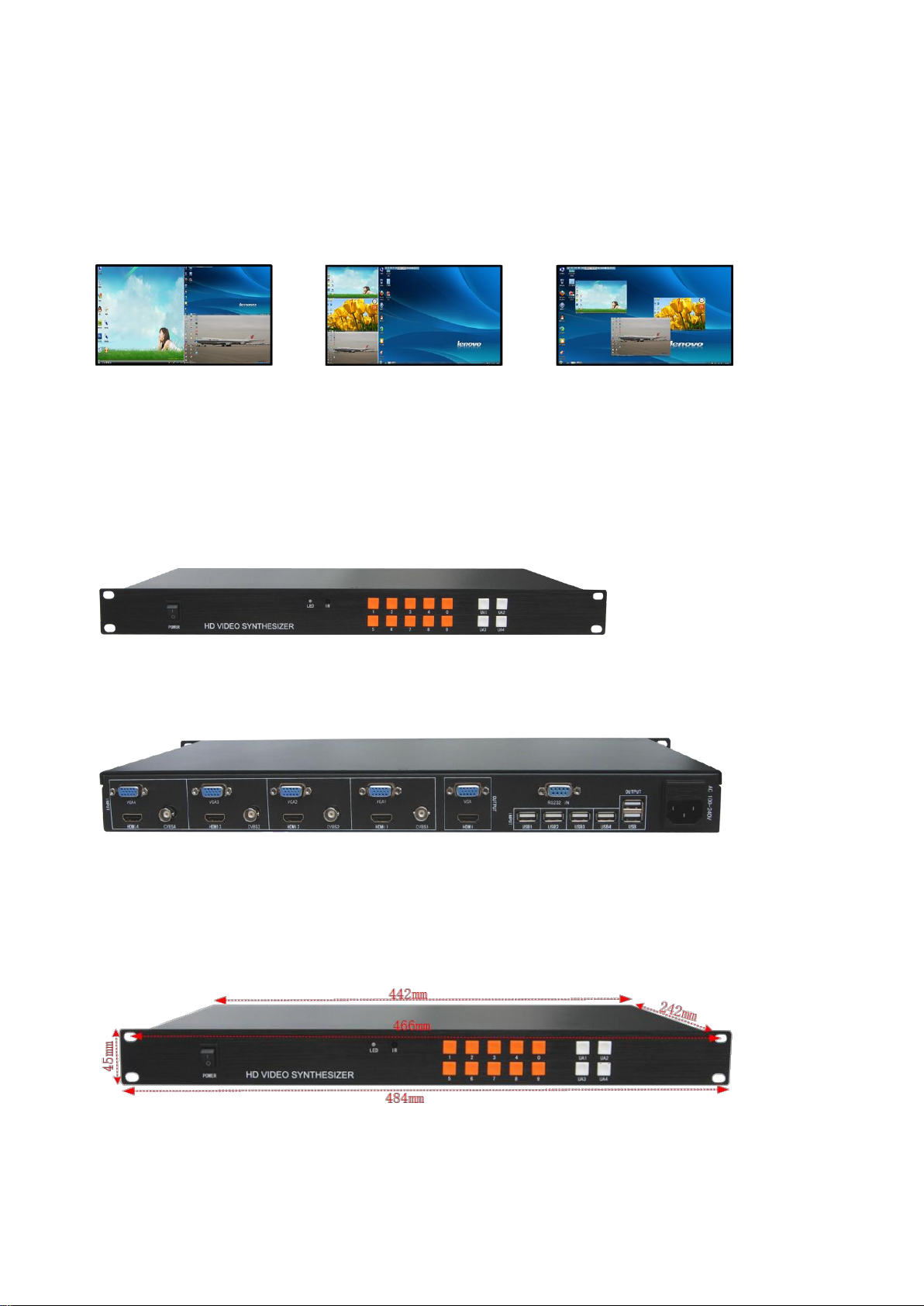

Thirds division mode custom mode PIP mode
6PRODUCT PICTURE
7DIMENSION FIGURE

8SYSTEM TOPOLOGY
9VIS-QUAD41 VIDEO MULTIPLEXERS TECHNICAL PARAMETERS
Name
Specification
HDMI/DVI input
Input port
4BNC、4VGA、4HDMI、4USB
Resolution
Support 1920*1080 ultrahigh highest resolution and
downward compatibility all kinds of resolutions
Color depth
24bit,1677 ten thousand
Zoom and display
unlimited

Video input
Identify pattern
automatic
Image adjust
Move 、transformate 、brightness 、contrast 、color
temperature;
output
interface
1 HDMI 、1VGA synchronic output;2USB connecte
mouse、keyboard or other equipment
Resolution
1920*1080/60HZ,can customize downward this
resolution
frequency
60HZ
Color depth
24bit,1677 ten thousand
Control mode
RS232、IR、case key
Cotrol software
HD video multiplexers professional control sofeware
voltage
AC 90~260V
dimension
442mm(L)*45mm(H)*242mm(W)
Power
No more than 15w
10.CONTROL COMMAND
Serial Port: baud rate 115200
1. Full Screen
Channel 1:FF 92 00 00 23 25 FF

Channel 2:FF 93 00 00 23 25 FF
Channel 3:FF 94 00 00 23 25 FF
Channel 4:FF 95 00 00 23 25 FF
2. Vertical 2 screen mode
FF C5 00 00 23 25 FF
3. Horizontal 2 screen mode
FF C6 00 00 23 25 FF
4. Third Screen Mode
FF C7 00 00 23 25 FF
5. Quad Mode
FF 91 00 00 23 25 FF
6. Input Setting
Input Channel selection
Channel one HDMI: FF 85 00 00 00 78 79 FF
Channel one VGA: FF 85 00 00 01 78 79 FF
Channel one CVBS: FF 85 00 00 02 78 79 FF
Channel Two HDMI:FF 86 00 00 00 78 79 FF
Channel Two VGA: FF 86 00 00 01 78 79 FF
Channel Two CVBS: FF 86 00 00 02 78 79 FF
Channel Three HDMI: FF 87 00 00 00 78 79 FF
Channel Three VGA: FF 87 00 00 01 78 79 FF
Channel Three CVBS: FF 87 00 00 02 78 79 FF

Channel Four HDMI: FF 88 00 00 00 78 79 FF
Channel Four VGA: FF 88 00 00 01 78 79 FF
Channel Four CVBS: FF 88 00 00 02 78 79 FF
