vita U100 Series User manual

IMPORTANT SAFETY INSTRUCTIONS
READ ENTIRE MANUAL BEFORE INSTALLING SPA.
PLEASE SAVE THIS MANUAL.
VITA INTERNATIONAL
2320 N.W. 147th Street Miami, Florida 33054

OWNER'S RECORD
DEALER:
ADDRESS:
TELEPHONE:
To contact our Technical Service Department, please write to
VITA INTERNATIONAL
2320 NW 147th Street, Miami, FL33054
or call: [phone]
Monday through Friday,8:30 am to 5pm, EST.

TABLE OF CONTENTS
GENERAL INFORMATION D. Directional and Rotational Massage Jets. .14
EMiniDiIE'di:JnaI~ 1;:.&MiniRoIatKxB1;:..14
SAFETY FEATURES
.Important Safety Instructions 2-3
.WARNINGS 3
.Manufacturer's Do's and Don'ts A. Freeze Protection 15
SET UP AND INSTALLATION B. Flow Protection 15
.Site Selection/lOCAl CODES c. Overheat Protection
415

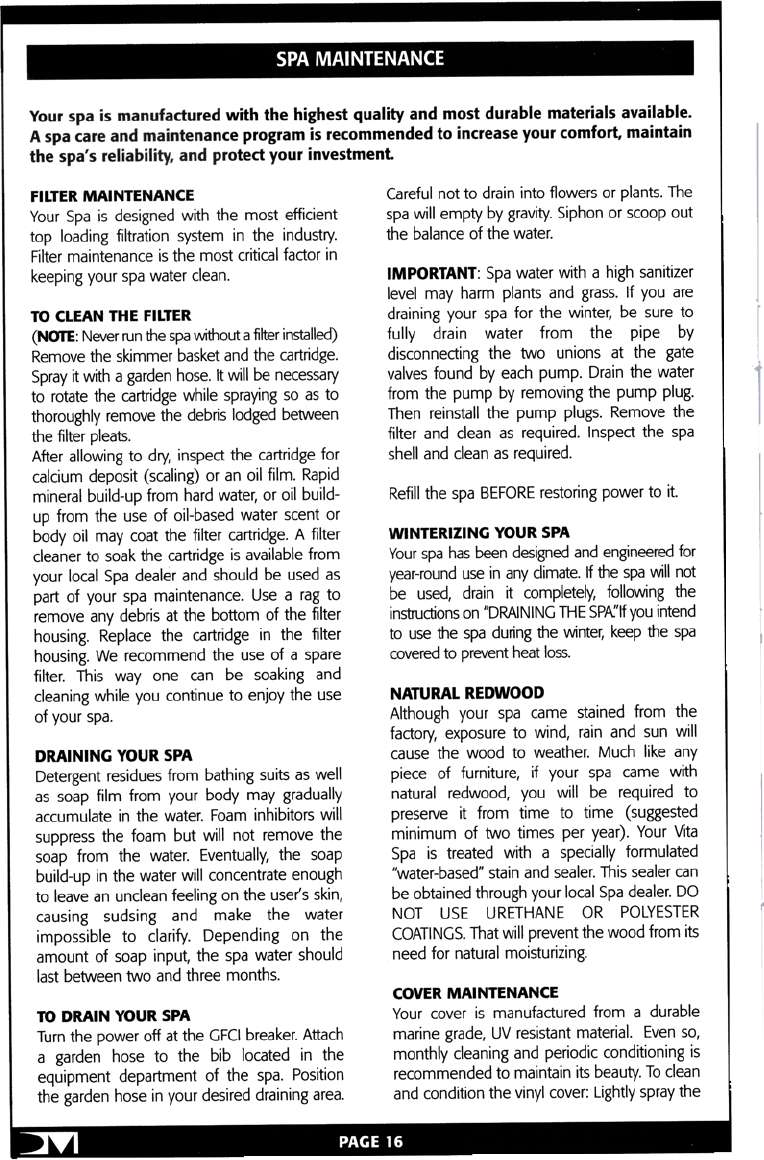

SPA MAINTENANCE

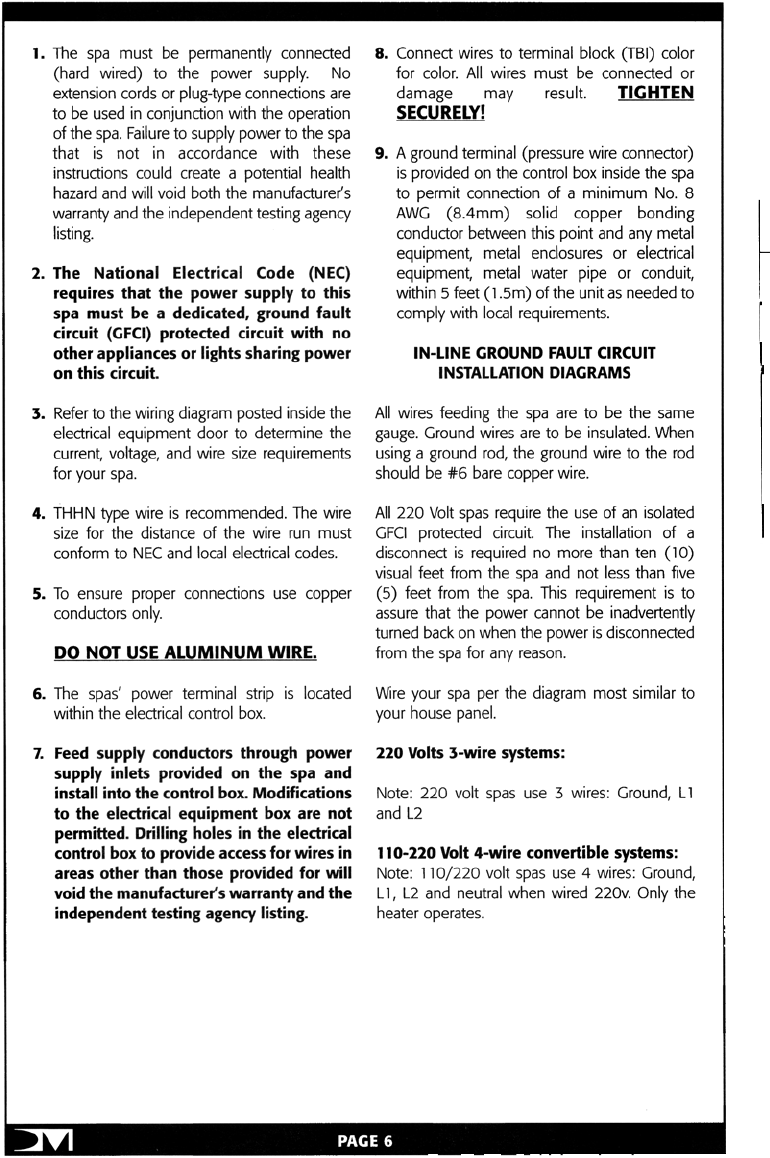

.Electrical Requirements and Installation 4
.Clearances .Filter Maintenance
516
.Draining Your Spa

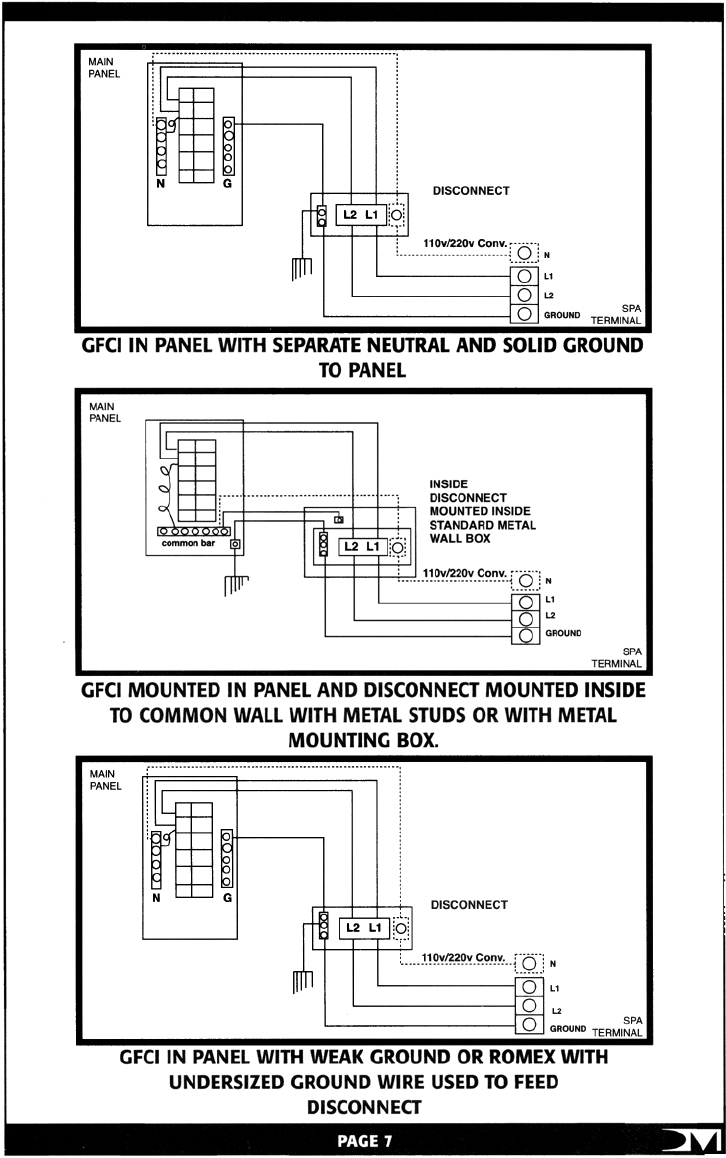

.IrHineGI(XJrdFau~Ol1JJitInstalL3tiOllDiagrams.~ 16

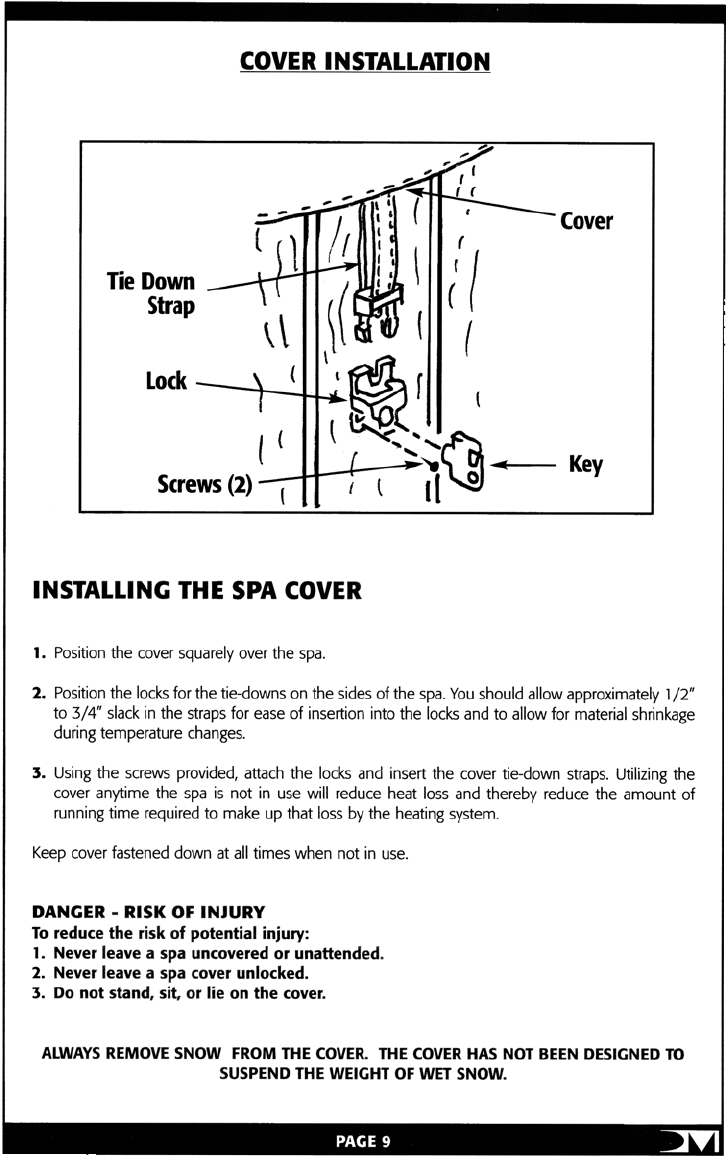

.Cover installation .Winterizing Your Spa
916
OPERATION INSTRUCTIONS .Natural Redwood 16
.Cover Maintenance
.Filling Your Spa 16
10
.Testing the GFCI 17
10

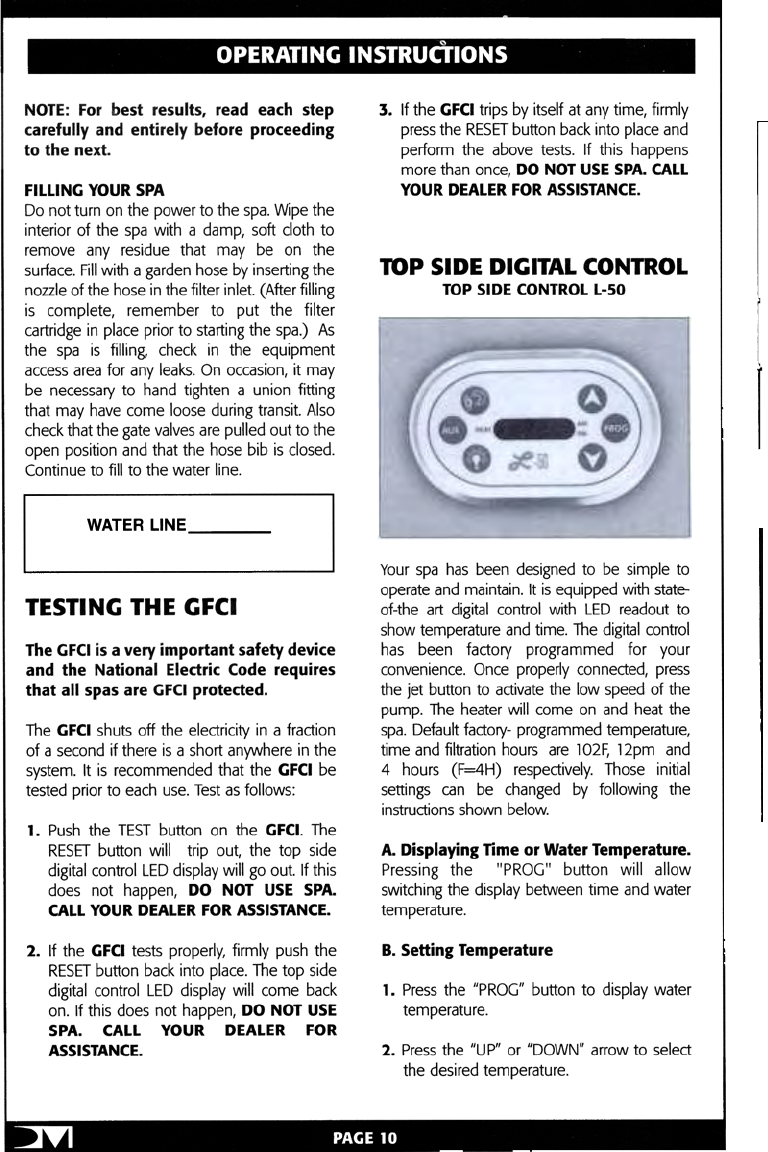

.Top SideDigitalControl
.Care Of Acrylic Surface..Spa Light Colored Lens Removal
17
10
.Spa Light Bulb Replacement 17
A. Displaying Time or Temperature 10
.Diverter Valve Cleaning. 17
WATER QUALITY & MAINTENANCE
B. Setting Temperature 10
:::. Setting Time and Filtration Hours II
.Sanitizing 18
D. Auto Heat Operation II
.pH Control
E. Jet Button. 18
11
F.Light Button .Important MaintenanceProcedures 19
12
G. Auxiliary Button .Balancing SpaWater 20-22
12
.Water MaintenanceDo'sand Don'ts
Memory 23
12
.Water Troubleshooting. 24-25
DIAGNOsnCS & TROUBLESHOonNG
J. Resetting Your Spa. 12
.Jet O~eration
A. Three Way Power Diverter Valve .Diagnostic Messages. 26
liMITED REPLACEMENT WARRANTY. 27
13
B. Turbo Massage Jet 13
MAINTENANCE LOG
:. Air Control 28
13

Thank you for the purchase of your new Vita Spa
Your spa has been designed to be simple to own and operate. With a little care, it will give you
many years of economical, trouble free use. This manual will guide you through the proper
installation and maintenance of your spa. Please take sufficient time to familiarize yourself with it.
If you have any questions regarding your spa's set-up, operations, or maintenance, please contact
your Authorized Dealer.
Consumer satisfaction is important to us. We welcome your comments and suggestions. Please
share them with us via telephone, letter, or email at [email protected].
Sincerely,
~~
presi~
DM Industries, Ltd.

IMPORTANT SAFETY INSTRUCTIONS
WHEN INSTALLING AND USING THIS ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
1. READ AND FOLLOW ALL INSTRUCTIONS. 6. DANGER- Risk of Injury
2. WARNING -To reduce the risk of injury. Do not remove suction fittings. The suction
Do not permit children to use this product fittings on this spa are sized to match the specific
unless they are closely supervised at all times. water flow created by the pump. Should the
3. DANGER -Risk of Accidental Drowning. need arise to replace the suction fIttings or the
Extreme caution must be exercised to prevent pump, be sure that the flow rates are
unauthorized access by children. To avoid compatible. Never operate the spa if the suction
accidents, ensure that children cannot use this fittings are broken or missing. Never replace a
spa unless they are supervised at all times. suction fitting with one rated less than the flow
4. WARNING -Ground Fault Circuit rate marked on the original suction fitting.
Interrupter (GFCI) Protection. 7. DANGER -Risk of electrical shock:
All spas must be GFCI protected. If your spa is A Ground terminal (pressure l--ire connector) is
being permanently connected (hard wired) to a provided on the control box inside the unit to
110V or 220V circuit, the installation must be done permit connection of a minimum No.8 AWG
in accordance with local and national electrical (8.2mm2) solid copper bonding conductor
codes and must be performed by a licensed between this point and any metal equipment. metal
electrician. A GFCI must be installed in line. water pipe, metal enclosure of electrical equipment.
If your spa will operate on 110V only, an or conduit within five feet (1.5m)of the unit
optional GFCI protected cord available from 8. DANGER -Risk of Electric Shock. Install the
your dealer can be used to connect the spa to spa at least 5 feet (1.5 m) from all metal
a 110V 15A grounded outlet. If this outlet surfaces. A spa may be installed within 5 feet of
circuit also serves other appliances, it may metal surfaces if each metal surface is
cause the breaker in the main house panel to permanently connected by a minimum No.8
trip. If this occurs, you may need to upgrade AWG (8.4) so~d copper conductor to the wire
your circuit to 20 Amps or to add a dedicated connector on the control box which is provided
circuit. In either case, please consult your for this purpose.
licensed electrician. 9. DANGER -Risk of Electric Shock. Do not
DANGER -Risk of Injury, spas with GFCI permit any electric appliance, such as a light.
protected Cord. Replace damaged cord telephone, radio, or television, within 5 feet
immediately. Do not bury the cord. Do (1.5 m) of a spa.
connect the GFCI protected cord to a 10.WARNING -To reduce the risk of injury:
grounded, grounding type receptacle only. A. The water in a spa should never exceed 40.
WARNING -GFCI must be tested before C (104. F). Water temperatures between 38. C
each use. Prior to using the spa, push the test (100. F) and 40. C (104. F) are considered safe
button. The unit should stop operating. Push for a healthy adult Lower water temperatures
the reset button and the unit should now are recommended for young children and when
operate normally. If the interrupter fails to spa use exceeds 10 minutes.
operate in this manner, there is ground current B.Since excessive water temperatures have a
flowing indicating the possibility of an electrical high potential for causing fetal damage during
shock. Disconnect the spa until the fault has the early months of pregnancy, pregnant or
been identified and corrected. possibly pregnant women should limit spa
5. DANGER -Risk of injury. The filter in this water temperatures to 38. C (100. F).
spa is sized to match the specific water flow C. Before entering a spa the user should
created by the pump. Should the need arise to measure the water temperature with an
replace the filter or the pump, be sure that the accurate thermometer since the tolerance of
flow rates are compatible. Never operate the water temperature-regulating devices varies.
spa if the filter is broken or missing. Never D. The use of alcohol, drugs, or medication
replace a filter with one rated less than the before or during spa use may lead to
flow rate on the original filter. unconsciousness with the possibility of drowning.

E. Persons suffering from obesity or with a medical
history of heart disease, low or high blood
pressure, circulatory system problems, or diabetes
should consult a physician before using a spa.
F. Persons using medication should consult
a physician before using a spa since some
medication may induce drowsiness while
other medication may affect heart rate, blood
pressure, and circulation.
11.WARNING -Prolonged immersion in water
that is warmer than normal body temperature
can result in a dangerous condition known as:
HYPERTHERMIA. The causes, symptoms,
and effects of hyperthermia may be described
as follows. Hyperthermia occurs when the
internal temperature of the body reaches a
level several degrees above the normal body
temperature of 98.6 degrees F. The
symptoms of hyperthermia include dizziness,
fainting, drowsiness, lethargy, and an increase
in the internal temperature of the body. The
effects of hyperthermia include: (1)
unawareness of impending hazard, (2) failure
to perceive heat, (3) failure to recognize the
need to exit the spa, (4) physical inability to
exit the spa, (5) fetal damage in pregnant
women, and (6) unconsciousness resulting in
a danger of drowning.
12.WARNING
.The use of alcohol, drugs, or medication can
greatly increase the risk of fatal hyperthermia
in hot tubs and spas.
.Persons taking medications which induce
drowsiness such as tranquilizers, antihistamines
or anticoagulants should not use the spa.
.Pregnant women and persons with a medical
history of heart disease, circulatory problems,
diabetes or high blood pressure should consult
their physician before using the spa.
.Children are especially sensitive to hot water.
At no time should children have unsupervised
access to the spa. The use of elevated decking
may encourage children to climb onto the
thermal cover -IT IS NOT DESIGNED AS A
SAFETY OR CHILD RESISTANT COVER! The
Spa comes with a thermal cover which is
provided with locking straps. INSTALL the locks
for your child's safety.
Reading and understanding these womings will
allow you to reduce the risk of causing inadvertent
damage to your spa, your surroundings, or
yourse/t Read these wamings corefullr
DO Make sure the spa is connected to a Ground
Fautt Circuit Interrupter (GFCI) .Refer to "Ground
Fault Circuit Interrupter Protection" on pages 2.
Test the GFCI before each use.
DO Test the water with your hand before entering
the spa to be sure it is comfortable.
DO Remember that wet surfaces can be slippery.
Take care when entering and existing the spa.
Only enter by way of the step(s) in the spa. Do
not step on edges or filter lids.
DO Keep the thermal cover on the spa when it is
not in use, empty or full.
DO Maintain proper water pH (7.4-7:6) and dean filter
cartridge wee~. Refer to Water Maintenance sectjon.
DO Take steps to prevent the intrusion of sand
and dirt into the spa.
DO Maintain water level to 1" above the highest
jets. The jets can spray water out of the spa if the
water level becomes too low.
DO Shut off circuit breaker to the spa before
draining the spa, while it is empty and while filling it
DO Place on~ on surfaces that can withstand the
floor loading requirements of your tub. If you do
not know the rating of your floor, consutt an
architect or engineer before filling.
DO Install the spa on~ on floors or areas that can
withstand repeated exposure to water (tile, brid<.etc)
DO NOT Store chemicals in the spa's equipment
compartment
DO NOT Open the electrical control box. They
are no user serviceable parts inside.
DO NOT Operate the spa Wthout a Gra bcated in line
for permanentty connected spas or at the erKJ of the
IJO.I\e"cord on 11OVunits.The Gra shuts off IJO.I\e"in
the ~ of an eledrical short Refer to "Ground Fauk
Orcu~ IntemJPter Protedion " on pages 2.
DO NOT Use an extension cord on 110V units to
connect the spa to the power source. An
extension cord will cause a vottage drop which
may cause damage to the equipment
WARNING: The use of alcohol, drugs, or
I medication can greatly increase the risk
, of fatal hyperthermia.

SET UP AND INSTALLATION INSTRUalONS
SITE SELECTION Outdoor Installation
Your spa is completely self-contained. It can be Please take into account the following when
set up on a patio, deck. or indoor with special considering outdoor installation.
consideration. See diagram on page 5. 1. Local Building Codes.
Structure: The spa should always be placed 2. Provide a smooth surface (tile, concrete,
on a structurally strong, relatively smooth and wood, brick or sand).
level surface. Concrete, bricks, stepping stone 3. Place your spa away from areas where
or wood deck are acceptable permanent debris and dirt may be tracked into the spa.
surfaces. The majority of the weight of the spa 4. Consider privacy and wind shielding.
is placed under the foot well area of the spa. A sheltered environment can result in lower
This area must be firmly supported at all times. operating and maintenance costs.
Refer to specification section in the "Quick 5. It is recommended that the spa be placed
Reference Guide" provide with this manual for in a location where it can be easily
loading capacity. supervised when in use by children.
Drainage: Drainage of water away from the spa
electrical compartment should be allowed. Do
not place the spa in an area where the water will ELEaRlCAL REQU I REM ENTS
"puddle" around it. A self draining surface
sloped 1 inch per 10 feet would be ideal. AND INSTALLATION
110 VOLT MODELS
If your spa is provided with a GFCI protected
power cord, allow access to the GFCI located
at the end of the power cord. The 110 Volt
outlet and GFCI plug should be protected from
water intrusion from rain, sprinklers and
accidental spills. Do not use an extension cord.
Doing so will void the warranty.
LOCAL CODES:
There may be certain restrictions and/ or
requirements that are particular to your locality.
The GFCI protected power cord can be
plugged into a 110V 15A grounded outlet. If
this outlet circuit also serves other appliances,
it may cause the breaker in the main house
panel to trip. If this occurs, you may need to
upgrade your circuit to 20 Amps or to add a
dedicated circuit. In either case, please consult
your licensed electrician.
220 VOLT MODELS
All 220 Volt models must be permanently
connected (hard wired) and GFCI protected
in accordance with local and national
electrical codes. All electrical wiring must
be performed by a licensed electrician
knowledgeable in the operation and wiring
of a GFCI protected systems.
Delivery Passageway: Doors, halls, stairs,
etc. may pose obstructions to deliver the spa.
Choose its intended site accordingly.
Indoor installation
Please give special consideration to the
following issues when installing your spa
indoors.
1. Install your spa on water resistant, non-slip
floor, preferably with a drain to remove the
water that is splashed from the spa. Do not
install on carpet or other material that will
be damaged by moisture.
2. Take into consideration the room humidity
which will exist due to high temperatures.
Providing natural or forced ventilation in the
room will help maintain comfort and
minimize moisture damage to the
surrounding environment.
3. Indoor second story above finished living
space should be avoided due to the
possibility of water and humidity damage.
4. Allow full access to the spa equipment for seIvice.

'~
,"'> Spa ,
,/ Location
"
'",...
,~, ,, ,-".. "
,
~
,
<;
<
<
16
-)
--\:;:
2I
1I
J
345
CLEARANCES
CHECKTHEFOLLOWINGAREASPRIORTOSPADELIVERY
I. STEPS -We suggest no more than six without a landing.
2. TREE BRANCHES -Clearance for spa passage.
3. TIGHT CORNERS -Make sure there is space to maneuver.
4. STORAGE SHEDS, DOG HOUSES, WOOD PILES -Remove out of the way.
s. GATES:CLEARANCEFORPASSAGEOFSPA-Does gateneedto be removed
from hinges?
6. OVERHANGS AND GUTTERS -Anything overhead, as well as drain pipe
locations, must allow for spa passage.

1. The spa must be permanently connected
(hard wired) to the power supply. No
extension cords or plug-type connections are
to be used in conjunction with the operation
of the spa. Failure to supply power to the spa
that is not in accordance with these
instructions could create a potential health
hazard and will void both the manufacturer's
warranty and the independent testing agency
listing.
8. Connect wires to terminal block (TBI) color
for color. All wires must be connected or
damage may result. TIGHTEN
SECURELY!
9. A ground terminal (pressure wire connector)
is provided on the control box inside the spa
to permit connection of a minimum No.8
AWG (8.4mm) solid copper bonding
conductor between this point and any metal
equipment, metal enclosures or electrical
equipment, metal water pipe or conduit,
within 5 feet ( 1.5m) of the unit as needed to
comply with local requirements.
2. The National Electrical Code (NEC)
requires that the power supply to this
spa must be a dedicated, ground fault
circuit (GFCI) protected circuit with no
other appliances or lights sharing power
on this circuit. IN-LINE GROUND FAULT CIRCUIT INSTALLATION DIAGRAMS
3. Refer to the wiring diagram posted inside the
electrical equipment door to determine the
current, voltage, and wire size requirements
for your spa.
All wires feeding the spa are to be the same
gauge. Ground wires are to be insulated. When
using a ground rod, the ground wire to the rod
should be *6 bare copper wire.
All 220 Volt spas require the use of an isolated
GFCI protected circuit. The installation of a
disconnect is required no more than ten (10)
visual feet from the spa and not less than five
(5) feet from the spa. This requirement is to
assure that the power cannot be inadvertently
turned back on when the power is disconnected
from the spa for any reason.
4. THHN type wire is recommended. The wire
size for the distance of the wire run must
conform to NEC and local electrical codes.
5. To ensure proper connections use copper
conductors only.
DO NOT USE ALUMINUM WIRE.
6. The spas' power terminal strip is located
within the electrical control box. Wire your spa per the diagram most similar to your house panel.
7. Feed supply conductors through power
supply inlets provided on the spa and
install into the control box. Modifications
to the electrical equipment box are not
permitted. Drilling holes in the electrical
control box to provide access for wires in
areas other than those provided for will
void the manufacturer's warranty and the
independent testing agency listing.
220 Volts 3-wire systems:
Note: 220 volt spas use 3 wires" Ground, L
and L2
110-220 Volt 4-wire convertible systems:
Note: 110/220 volt spas use 4 wires" Ground,
L1, L2 and neutral when wired 220v. Only the
heater operates.

GFCIIN PANEL WITH SEPARATE NEUTRAL AND SOLID GROUND
TO PANEL
GFCI MOUNTED IN PANEL AND DISCONNECT MOUNTED INSIDE
TO COMMON WALL WITH METAL STUDS OR WITH METAL
MOUNTING BOX.
GFCIIN PANEL WITH WEAK GROUND OR ROMEX WITH
UNDERSIZED GROUND WIRE USED TO FEED
DISCONNECT

SEPARATENEUTRAL& SOLIDGROUND
COMMON NEUTRAL GROUND BAR IN MAIN
GFCIIN PANEL WITH COMMON NEUTRAL BAR AND/OR ROMEX
WITH UNDERSIZED WIRE USED TO FEED DISCONNECT.

COVER INSTALLATION
INSTALLING THE SPA COVER
1. Position the cover squarely over the spa.
2. Position the loCksfor the tie-downs on the sides of the spa. YoUshould allow approximately 1/2"
to 3/4" slack in the straps for ease of insertion into the loCksand to allow for material shrinkage
during temperature changes.
3. Using the screws provided, attach the locks and insert the CoVertie-down straps. Utilizing the
CoVeranytime the spa is not in use will reduce heat loSSand thereby reduce the amount of
running time required to make up that loSSby the heating system.
Keep cover fastened down at all times when not in use.
DANGER -RISK OF INJURY
To reduce the risk of potential injury:
I. Never leave a spa uncovered or unattended.
2. Never leave a spa cover unlocked.
3. Do not stand. sit. or lie on the cover.
ALWAYS REMOVE SNOW FROM THE COVER. THE COVER HAS NOT BEEN DESIGNED TO
SUSPEND THE WEIGHT OF WET SNOW.

3. If the GFCI trips by itself at any time, firmly
press the RESET button back into place and
perform the above tests. If this happens
more than once, DO NOT USE SPA. CALL
YOUR DEALER FOR ASSISTANCE.
NOTE: For best results. read each step
carefully and entirely before proceeding
to the next.
FILLING YOUR SPA
Do not turn on the power to the spa. Wipe the
interior of the spa with a damp, soft cloth to
remove any residue that may be on the
surface. Fillwith a garden hose by inserting the
nozzle of the hose in the filter inlet. (After filling
is complete, remember to put the filter
cartridge in place prior to starting the spa.) As
the spa is filling, check in the equipment
access area for any leaks. On occasion, it may
be necessary to hand tighten a union fitting
that may have come loose during transit. Also
check that the gate valves are pulled out to the
open position and that the hose bib is closed.
Continue to fill to the water line.
TOP SIDE DIGITAL CONTROL
TOP SIDE CONTROL L-50
Your spa has been designed to be simple to
operate and maintain. It is equipped with state-
of-the art digital control with LED readout to
show temperature and time. The digital control
has been factory programmed for your
convenience. Once properly connected, press
the jet button to activate the low speed of the
pump. The heater will come on and heat the
spa. Default factory- programmed temperature,
time and filtration hours are lO2F, 12pm and
4 hours (F=4H) respectively. Those initial
settings can be changed by following the
instructions shown below.
TESTING THE GFCI
The GFCI is a very important safety device
and the National Electric Code requires
that all spas are GFCI protected.
The GFCI shuts off the electricity in a fraction
of a second if there is a short anywhere in the
system. It is recommended that the GFCI be
tested prior to each use. Test as follows:
1. Push the TEST button on the GFCI. The
RESET button will trip out, the top side
digital control LED display will go out. If this
does not happen, DO NOT USE SPA.
CALL YOUR DEALER FOR ASSISTANCE.
A. Displaying Time or Water Temperature.
Pressing the "PROG" button will allow
switching the display between time and water
temperature.
2. If the GFCI tests properly, firmly push the
RESET button back into place. The top side
digital control LED display will come back
on. If this does not happen, DO NOT USE
SPA. CALL YOUR DEALER FOR
ASSISTANCE.
B. Setting Temperature
1. Press the "PROG" button to display water
temperature.
2. Press the "UP" or "DOWN" arrow to select
the desired temperature.

The pump hi-speed therapy mode can be
activated during those cycles. The heater will
stay on if needed to bring up the water
temperature. Note that for 110 Volt spas, the
heater will turn off when you turn on the Hi-
speed therapy pump mode.
3. Press the "PROG" button to exit the
programming mode.
c. Setting Time and Filtration Hours
1. Press and hold the "PROG" button for 5
seconds until the displayed hour starts
flashing. E. JET Button
2. Press the "UP" or "DOWN" arrow to select
the current hour.
.Your spa is equipped with one or two
therapy pumps that can be activated as follows:
3. Press the"PROG" button one more time to
display the minutes.
4. Press the "UP" or "DOWN" arrow to select
the current minutes.
Single Pump Systems:
1. Press "JET" to activate the Relaxation
Therapy mode. (Low speed pump).
2. Press "jET" a second time to activate the
Power Therapy mode. (High speed pump).
5. Press the "PROG" button one more time to
display the filtration hours. F=4H (default)
will be flashing. Refer to" Filtration Cycles"
section to determine the lengths of cycles
(F=4H or F=8H) you prefer.
6. Press the "UP" or "DOWN" arrow to select
the filtration cycle desired.
3. PressJET button a third time to turn the pump
off. Note that the low speed pump will remain
on if the water temperature is below the set
temperature or if it is during filtration hours.
Note that for safety, Jet Power Therapy mode will
turn off after 30 minutes. Reactivate as needed.7. Press the "PROG" button to exit the
programming mode.
D. Auto Heat Operation
Your spa is equipped with a 2-speed pump. The
low speed operates during filtration and heating
cycles. Your selected water temperature will be
maintained automatically 24 hours a day. The
electronic thermostat will monitor your water
temperature at the top of each hour by cyclingthe
low speed pump for 2 minutes. If the spa water
temperature is below the set temperature, the
heater will be activated until the water
temperature reaches the set temperature, at
which point both low speed pump and heater will
turn off. If the water temperature is at the set
temperature, the low speed pump will tum off at
the end of the 2 minutes. The spa water will heat
about 1 to 3 degrees F per hour for 110 Volt
system and 3 to 5 degrees Ffor 220 Volt systems.
The maximum temperature is set at 104 F.
Dual Pump Systems:
1. Press "JET" to activate the Relaxation
Therapy mode. Low speed pump)
2. Press '~ET" to activate pump #1 Power
Therapy mode. (High speed pump # 1)
3. Press '~ET" to activate pump #2 Power
Therapy mode. (High speed pump #2)
4. Press "JET" to de-activate pump #1.
5. Press '~ET" to de-activate pump #2.
Note that the low speed pump will remain on if
the water temperature is below the set
temperature or if it is during filtration hours. For
safety purposes, Jet Power Therapy Mode will
turn off after 30 minutes. Reactivate as needed.
ALWAYS CHECK THE WATER TEMPERATURE
PRIOR TO ENTERING INTO YOUR SPA.

F. LIGHT Button I. Memory
The temperature setting that is entered into your
spa digital topside control are permanently
retained in its solid state memory. In the event
of a power failure, the temperature and time
settings will be captured and held until power
returns. The temperature setting at the time of
the power failure will be restored when power
returns. You will have to reset the time to actual.
Turns the spa light ON and OFF: If left ON, the light
will automatically go OFF after 9 hours.
G. Auxiliary Button
This button is not operational on U 100 series spas.
H. Filtration Hours
Your spa digital control has an electronic timer
that has been pre-programmed to automatically
run the filtration low speed pump 2 hours twice
a day for a total of 4 hours (F=4H), from Sam
to lOam and from 4pm to 6pm. You have the
option of increasing the filtration time to S hours
per day (F=SH, from 6am to lOam and from
6pm to lOpm) depending on user load and on
the type of sanitizing system you use. For
instance, proper use of an ozonator requires S
hours a day. To change your filtration time to S
hours, please refer to section "8. Setting Time
and Filtration Hours".
J. Resetting Your Spa
Like your PC at home, your spa electronics could
get corrupted by electrical surges or spikes, or by
low voltage, resulting in improper operations.
Anytime there is reason to believe that your spa
system is not operating properly, please follow
the following resetting procedure:
1. Tum the power to the spa off for 5 full minutes.
2. Turn the power back on.
3. Press "PROG" to show time.
4. Press and hold the "UP" arrow for 5 seconds.
The top side display will show 12:00 PM as
soon as you release the "UP" arrow
indicating a successful reset. The set
temperature and filtration hours will be reset
to their factory pre-programmed settings of
102F and 4HR respectfully.
The heater will come on as needed during
filtration hours to maintain the water
temperature. Note that filtration will also be
provided during the heating cycles when the
electronic thermostat monitor water temperature
at the top of each hour and maintain the low
speed pump when additional heat is needed.

JET OPERATION
Your spa is designed with a unique jet system to allow you to select a wide variety of massage patterns.
The following is a description of the various types of jets and their operation you may use to tailor your
spa to your specific massage needs.
A) THREE WAY POWER DIVERTER VALVE B) TURBO MASSAGE JET
The Power Diverter Valve allows water to be
diverted to a zone of jets or the Turbo jet
exclusively, or to both combined. Turning the
diverter to the right or the left will divert all the
water to a bank of jets or the Turbo jet for
maximum output. When left in the center,
water will be flowing through both. For flow
diagram, please refer to your spa. Quick
Reference Guide. provided with this manual.
The Turbo massage therapy is great for working
out those hard-to-relieve muscle knots and to
create swirling whirlpool effect in the spa. The
Turbo Massage jet pressure can be adjusted by
rotating the Power Diverter Valve, or by
adjusting Air Control towards the center.
C) AIR CONTROL
The Air Controls are used to introduce air into
the water jet stream. They allow the user to
increase (open) jet pressure or decrease
(close) jet pressure as desired.

D) DIRECTIONAL AND ROTATIONAL MASSAGE JETS
When the pump is on and the 3-way diverter valve is directed to the bank of jets, the Directional
Quad jets and Rotational Therapy jets will be operational. The nozzle of the Directional Quad jets
can be adjusted to direct the flow to specific parts of your body. The Rotational jets provide a
"swirling" type therapy. The water pressure can be adjusted in both jets by rotating the outer rim of
the jet clockwise for minimum pressure and counter clockwise for maximum pressure. Water
pressure can also be varied by opening or closing the air control.
For cleaning purposes, these jet faces can be removed by depressing locking tab and pulling away
from jet body. Re-install it by pushing the face back in place.
Mini Directional Massa2e Jet
E) MINI DIRECTIONAL MASSAGE JET AND MINI ROTATIONAL JET.
These jets are used for back, neck and shoulder massage. They deliver a firm pinpoint jet stream of
massaging action that are directed to specific areas of the neck or shoulders. They can be pressure
controlled by rotating the jet face or by opening and closing the air control valves.
For cleaning purposes, these jet faces can be removed by grabbing outer face and pulling away from
jet body. Re-install it by pushing the face back in place.

A. Freeze Protection
If the temperature in the spa plumbing falls below 50 degrees Fahrenheit (10 degrees celsius), the
water pump will turn on low speed and run for 30 seconds. After 30 seconds, if the water is still at
50 F,the heater will turn on and raise the temperature 10 Degrees. The top side control will display
the message "ICE" to indicate potential freeze conditions.
B. Flow Protection
If the flow of water through the heater is insufficient, the spa controller will automatically turn off the
heater to prevent overheating. The display will show "FLO", indicating a flow restriction caused by a
clogged filter or pump impeller, a malfunction of the pressure switch or a defective pump motor. Refer
to the Trouble Shooting Chart. Ifyou cannot pinpoint the cause, CallYour Dealer for technical assistance.
c. Overheat Protection.
If a malfunction occurs and the spa water temperature reaches' , 2F,the pump and heater will turn
off. DO NOT ENTER THE WATER. Remove the cover and allow the water temperature to cool down
to, 04 F.Reset the system by holding the llUP" arrow for 5 seconds. See "Resetting Your Spa" page
'2. The pump and heater will start normal operation. If this happens a second time in a row, TURN
THE POWER TO THE SPA OFF AND CALL YOUR DEALER FOR ASSISTANCE.
If there is an overheat condition in the spa heater, the display will show the message "HILI". DO NOT
ENTERTHE WATER Remove the cover and allow the water to cool down to, 04F.Then resetthe system
by holding down the llUP" button for 5 seconds. See "Resetting Your Spa" page' 2. If the "HILI" message
retums, TURN THE POWER TO THE SPA OFF AND CALL YOUR DEALER FOR ASSISTANCE.

Your spa is manufactured with the highest quality and most durable materials available.
A spa care and maintenance program is recommended to increase your comfort, maintain
the spa's reliability, and protect your investment.
Careful not to drain into flowers or plants. The
spa will empty by gravity. Siphon or scoop out
the balance of the water.
FILTER MAINTENANCE
Your Spa is designed with the most efficient
top loading filtration system in the industry.
Filter maintenance is the most critical factor in
keeping your spa water clean. IMPORTANT: Spa water with a high sanitizer
level may harm plants and grass. If you are
draining your spa for the winter, be sure to
fully drain water from the pipe by
disconnecting the two unions at the gate
valves found by each pump. Drain the water
from the pump by removing the pump plug.
Then reinstall the pump plugs. Remove the
filter and clean as required. Inspect the spa
shell and clean as required.
TO CLEAN THE FILTER
(NOTE: Never run the spa without a filter installed)
Remove the skimmer basket and the cartridge.
Spray it with a garden hose. It will be necessary
to rotate the cartridge while spraying so as to
thoroughly remove the debris lodged between
the filter pleats.
After allowing to dry, inspect the cartridge for
calcium deposit (scaling) or an oil film. Rapid
mineral build-up from hard water, or oil build-
up from the use of oil-based water scent or
body oil may coat the filter cartridge. A filter
cleaner to soak the cartridge is available from
your local Spa dealer and should be used as
part of your spa maintenance. Use a rag to
remove any debris at the bottom of the filter
housing. Replace the cartridge in the filter
housing. We recommend the use of a spare
filter. This way one can be soaking and
cleaning while you continue to enjoy the use
of your spa.
Refill the spa BEFORErestoring power to it.
WINTERIZING YOUR SPA
YoUr spa has been designed and engineered for
year-round use in any climate. If the spa will not
be used, drain it completely, following the
instructions on "DRAINING THE SPA:.'lfyou intend
to use the spa during the winter, keep the spa
covered to prevent heat loSS.
NATURAL REDWOOD
Although your spa came stained from the
factory, exposure to wind, rain and sun will
cause the wood to weather. Much like any
piece of furniture, if your spa came with
natural redwood, you will be required to
preserve it from time to time (suggested
minimum of two times per year). Your Vita
Spa is treated with a specially formulated
"water-based" stain and sealer. This sealer can
be obtained through your local Spa dealer. DO
NOT USE URETHANE OR POLYESTER
COATINGS.That will prevent the wood from its
need for natural moisturizing.
DRAINING YOUR SPA
Detergent residues from bathing suits as well
as soap film from your body may gradually
accumulate in the water. Foam inhibitors will
suppress the foam but will not remove the
soap from the water. Eventually, the soap
build-up in the water will concentrate enough
to leave an unclean feeling on the user's skin,
causing sudsing and make the water
impossible to clarify. Depending on the
amount of soap input, the spa water should
last between two and three months. COVER MAINTENANCE
Your cover is manufactured from a durable
marine grade, uv resistant material. Even so,
monthly cleaning and periodic conditioning is
recommended to maintain its beauty. To clean
and condition the vinyl cover: Lightly spray the
TO DRAIN YOUR SPA
Turn the power off at the GFCI breaker. Attach
a garden hose to the bib located in the
equipment department of the spa. Position
the garden hose in your desired draining area.

cover with a garden hose to rinse it and
remove the debris. Using a large sponge or
soft cloth and a mild soap solution (1
teaspoon dish washing liquid with 2 gallons of
water), scrub lightly in circular motion. Then
rinse it thoroughly with plenty of water.
Condition the vinyl after cleaning by applying a
thin film of vinyl conditioner. NOTE: To
remove tree saps, use lighter fluid (not
charcoal lighter but the kind used in cigarette
lighters). Use sparingly and rinse with mild
soap solution afterwards. Wipe dry.
liGHT BULB REPLACEMENT
~-
CARE OF ACRYLIC SURFACE
To maintain the surface of your spa, simply
clean with a soft damp cloth (a mild detergent
is okay) or with any glass cleaner. DO NOT
clean the surface with any type of abrasive as
it will dull the surface and natural luster of the
acrylic. DO NOT use any type of oil based
solvent. Such products can be very harmful to
the surface of the spa and will void the surface
warranty of the spa.
1. Turn off the power to the spa.
2. Remove the front panel of the spa.
3. Locate the spa light.
4. Turn the bulb counter -clockwise 1/4 turn
to remove from its socket
5. The replacement bulb is locked into place
by turning it clockwise 1/4 turn.
6. Oose up the cabinet and tum the power back on.
7. Check the Top Side display and adjust the time.
DIVERTER VALVE
Over a period of time sand or grit may intrude
into your spa. The diverter valves may become
difficult to turn. It is important that the debris
be removed as soon as possible to avoid
damage to the valve.
SPA LIGHT COLORED LENS REMOVAL
In your owners packet you will find colored
lenses for your spa light. They can easily be
installed or removed by placing them over the
spa light and gently pushing on the outer edges
to install and pulling along the edges to remove. 1. Turn off the power to the spa.
2. Remove the diverter handle by pulling
upward and gently rocking it.
3. Grasp the collar and tum it counter-clockwise.
4. Lift the valve body up.
5. Wipe the valve body and interior walls of
the valve with a soft cloth.
6. Inspect the valve and valve walls for any
grooves caused by the debris.
7. Using a fine grit sandpaper, smooth down
any deep furrows.
8. Wipe the valve and wall down with a damp
cloth and remove any debris left behind.
9. Lubricate the valve body Wd1 a waterproof lubricant
10. Reassemble the valve and restore the
power to the spa.
11. Check the Top Side display and adjust for time.
