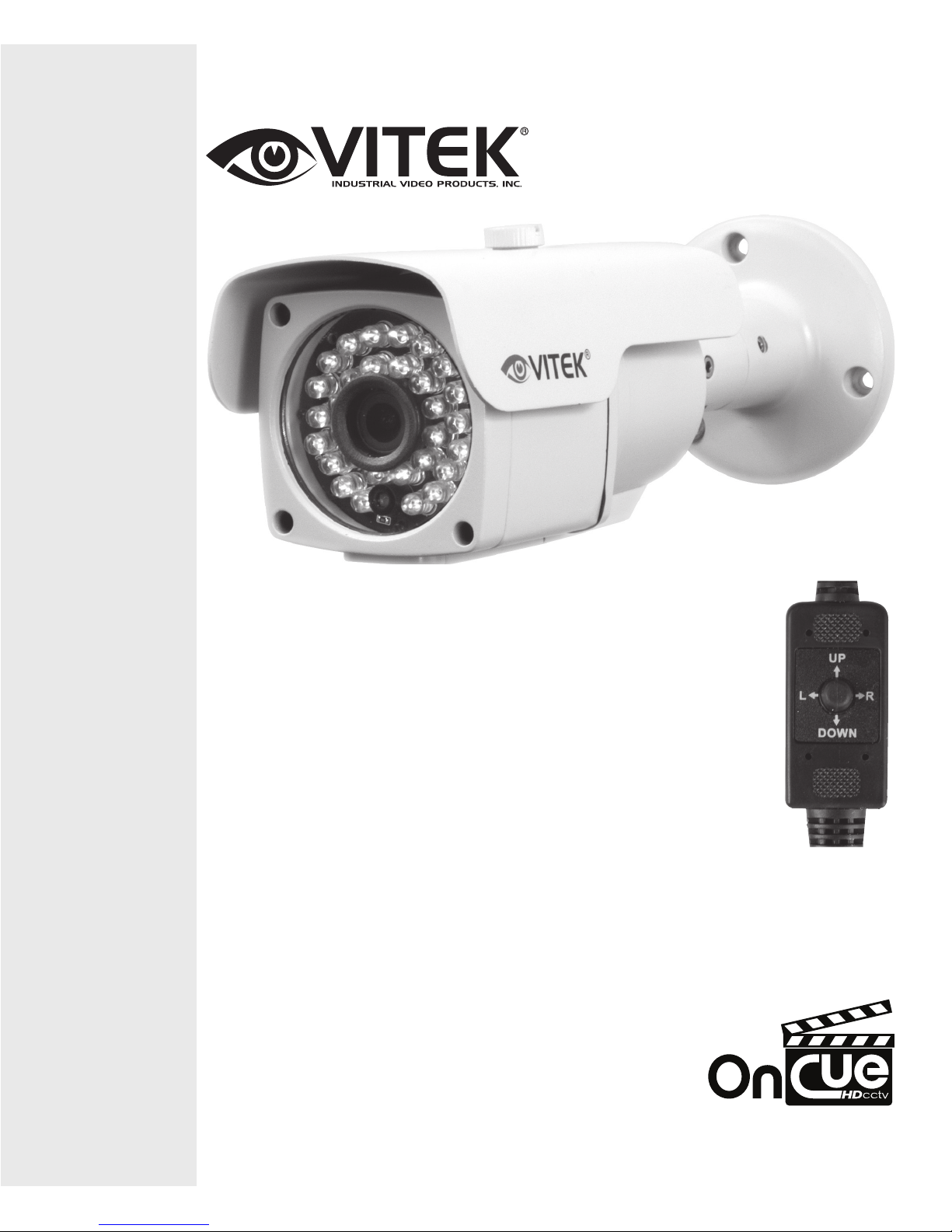

Vitek VTC-BHOC6R4F User manual

External OSD
Controls
for Ease of
installation
VITEK
FEATURES:
• 1/3” 2.1 MegaPixel Progressive Scan CMOS sensor w/
NVP2420 DSP
• 2.1 MegaPixel With full 1080p 3G-SDI (SMPTE 424M) @
60fps / 30fps HD-SDI (SMPTE 292M) @ 30fps Output
• 30 850nm Dynamic Intensity IR LEDs with 115’ Range
• MegaPixel IR Corrected 3.6mm Fixed Iris lens Included
• Mechanical IR Cut Filter (True Day/Night)
• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
• 16:9 Video format
• Advanced OSD Functions: Defog, Dynamic IR, WDR,

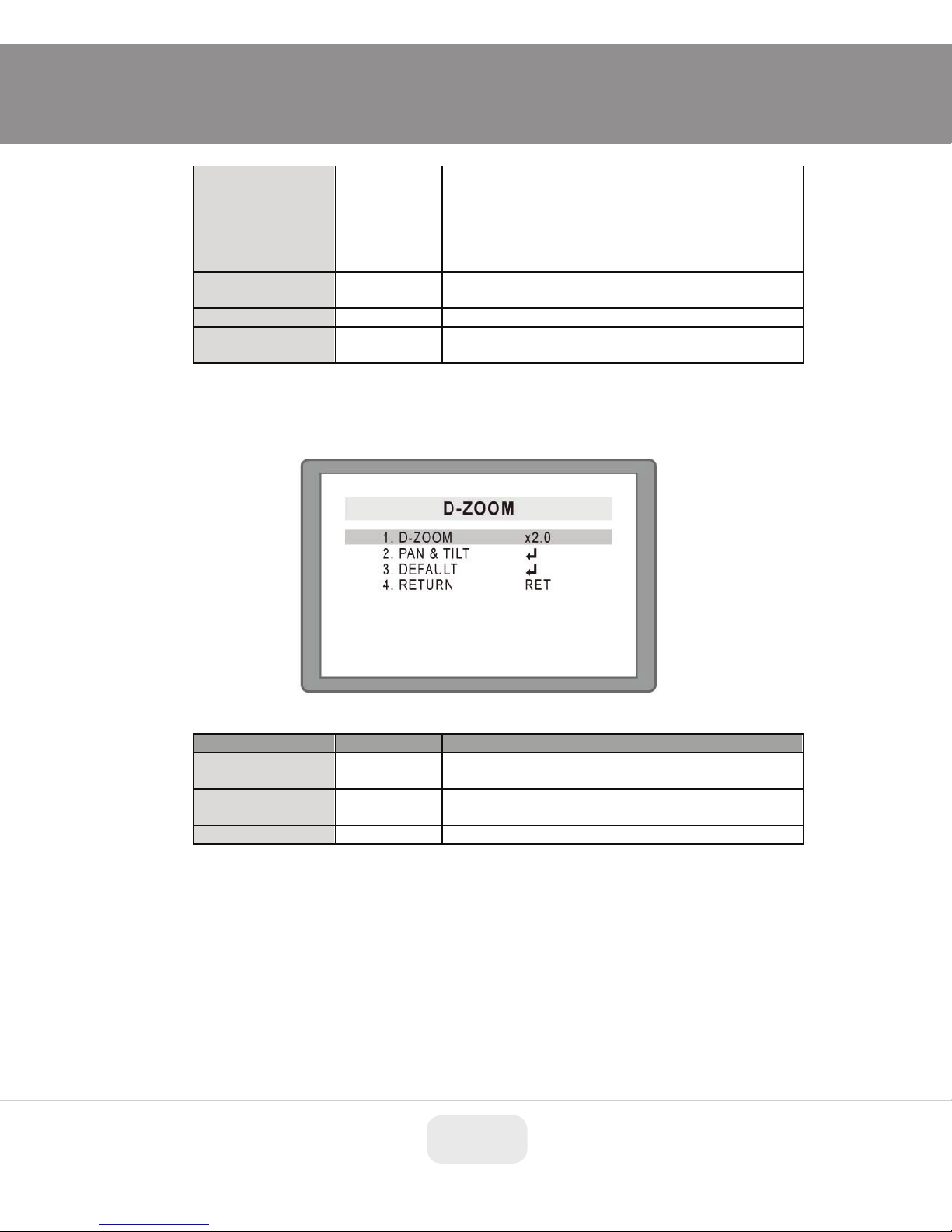

Motion Detection, Privacy mask, Mirror, BLC/HLC, D-Zoom
• 100% Pure Digital Transmission of video data
• Up to 700’ HD Transmission Range (Depending on cable
characteristics and integrity)
• IP67 Weather Resistance
• 12VDC Operation
VTC-BHOC6R4F
2.1MP 3G-SDI IP67 Vandal Resistant WDR True
Day/Night Bullet Camera with 3.6mm Lens &
30 IR LEDs

2

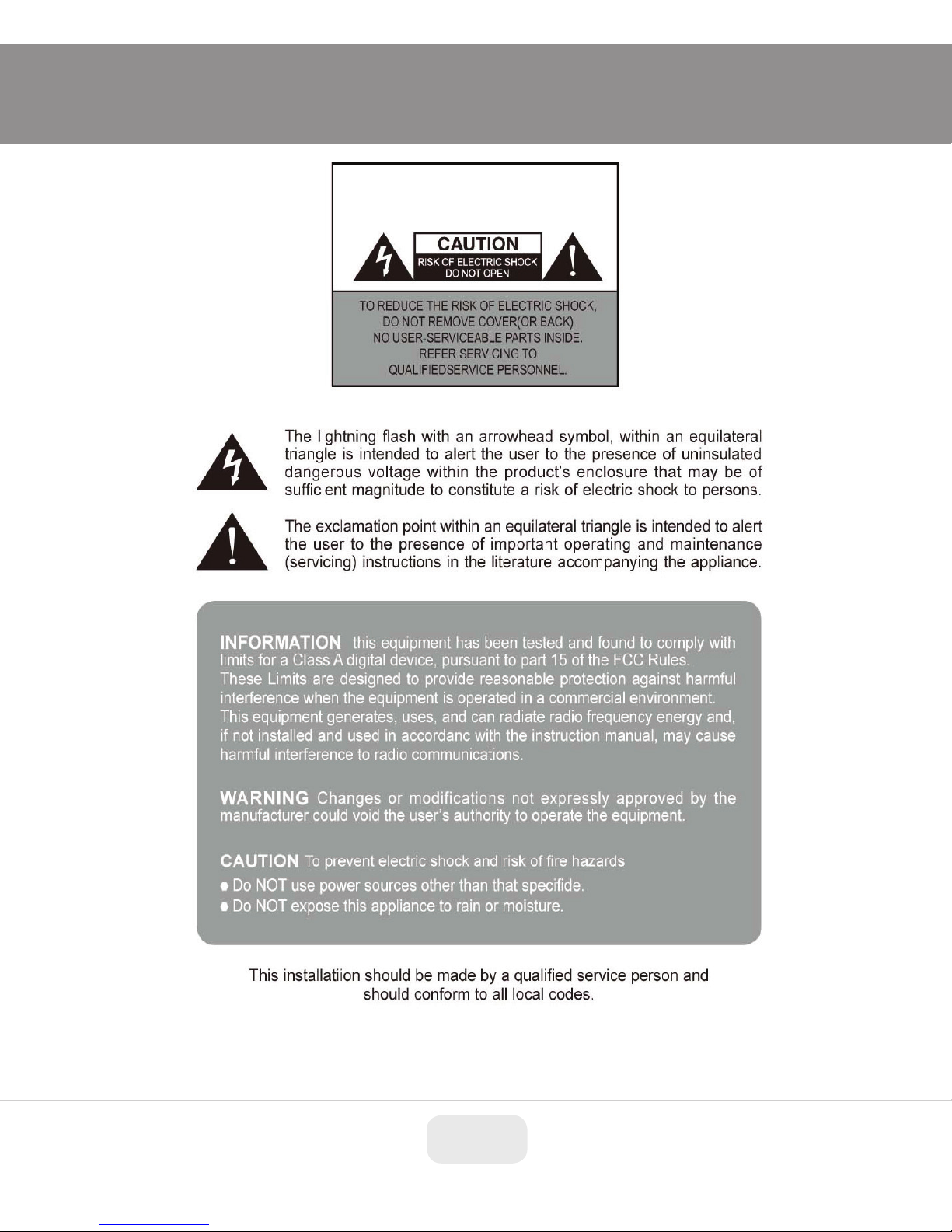

WARNINGS
The camera needs periodic inspection.
• Contact an authorized technician for inspection.
Stop using camera if there is a malfunction.
• Avoid installing camera in high heat areas, risk of fire may occur.
Do not install the camera on a surface that can not support it.
• Unless the surface is suitable, injury or other hazards may occur.
Do not disassemble the camera.
• It may result in fire, electric shock or other hazards.
Do not hold plug with wet hands.
• It could cause an electric shock.
Do not use the camera close to a gas or oil leak.
• It may result in fire or hazards.
3

PRECAUTIONS
ØDo not install the camera in extreme temperature conditions.
• Only use the camera under conditions where temperatures are
between -14˚F and +122˚F. Be especially careful to provide ventilation
when operating under high temperatures.
ØDo not drop the camera or subject it to physical shocks.
• It may cause malfunctions to occur.
ØNever point camera into a strong light source, such as the
sun or bright spotlight.
• It can damage the CMOS Sensor.
ØDo not expose the camera to radioactivity.
• This will damage the CMOS sensor.
NOTE
• If the camera is exposed to spotlight or object reflecting strong
light, smear or blooming may occur.
• Please check power specs before connecting power.
4

• 1/3” 2.0 Mega-Pixel Panasonic Progressive Scan Sensor
• Resolution: 1920 x 1080 (30P/25P, 60P/50P, 60i/50i)
• HD-SDI / SMPTE 292M (30P/25P HD-SDI), SMPTE 424M
(60P/50P 3G SDI) Video Output
• HD over Coaxial Cable
• Uncompressed HD Digital Video
• WDR
• True Day/Night by ICR
• Smart 3DNR, 2DNR / Smart IR
• RS-485 (Pelco®-D) Remote Control, Coaxial Cable Comm.
• Sens-UP: 2x ~ 30x
• Motion Detect, Mirror, Privacy Mask, De-fog, BLC/HLC, D-Zoom
FEATURES
5

Setup Menu (OSD)
[How to operate OSD joy stick]
OSD menu is controlled by OSD joystick in OSD Board or OSD Cable
-▲(UP), ▼(DOWN), ◀(LEFT), ▶(RIGHT),●(SET / ENTER)
[Menu Tree]
07
SETUP MENU (OSD)
6

[Menu Tree]
MENU TREE
7

[Menu Tree]
MENU TREE
8

[Menu Tree]
MENU TREE
9

Main OSD Menu
MAIN MENU
DEFAULT
DESCRIPTION
LENS
DC
Select Lens type according to mounted or built-in lens
EXPOSURE
Set SHUTTER, AGC, SENS-UP, BRIGHTNESS,
D-WDR &, DEFOG
BACK LIGHT
A
Select WDR, BLC, HSBLC or OFF
WHITE BAL ATW
* ATW(Auto Tracking White Balance) * AWC ->
SET : White Balance is fixed at the value when
*(enter) is pressed and keeps the value
* INDOOR : White Balance is fixed at about 3100K
* OUTDOOR : White Balance is fixed at about 5100K
* Manual : Adjustable value of BLUE and RED
DAY&NIGHT AUTO
* AUTO: DAY or NIGHT is set automatically by light
level coming in through lens. DELAY TIME, D -> N
and N -> D, can be set in the menu
* COLOR : Color video output * B/W : B/W video
output regardless of light level
(removes IR cut filter automatically)
* EXT : Day(Color) or Night(B/W) is decided by
external light sensor(CDS sensor)
All IR LED cameras should be set to EXT.
NR
* Set 2DNR, 3DNR, LEVEL, SMART NR
SPECIAL
* Set CAM TITLE, D-EFFECT, MOTION, PRIVACY,
LANGUAGE,DEFECT & RS 485

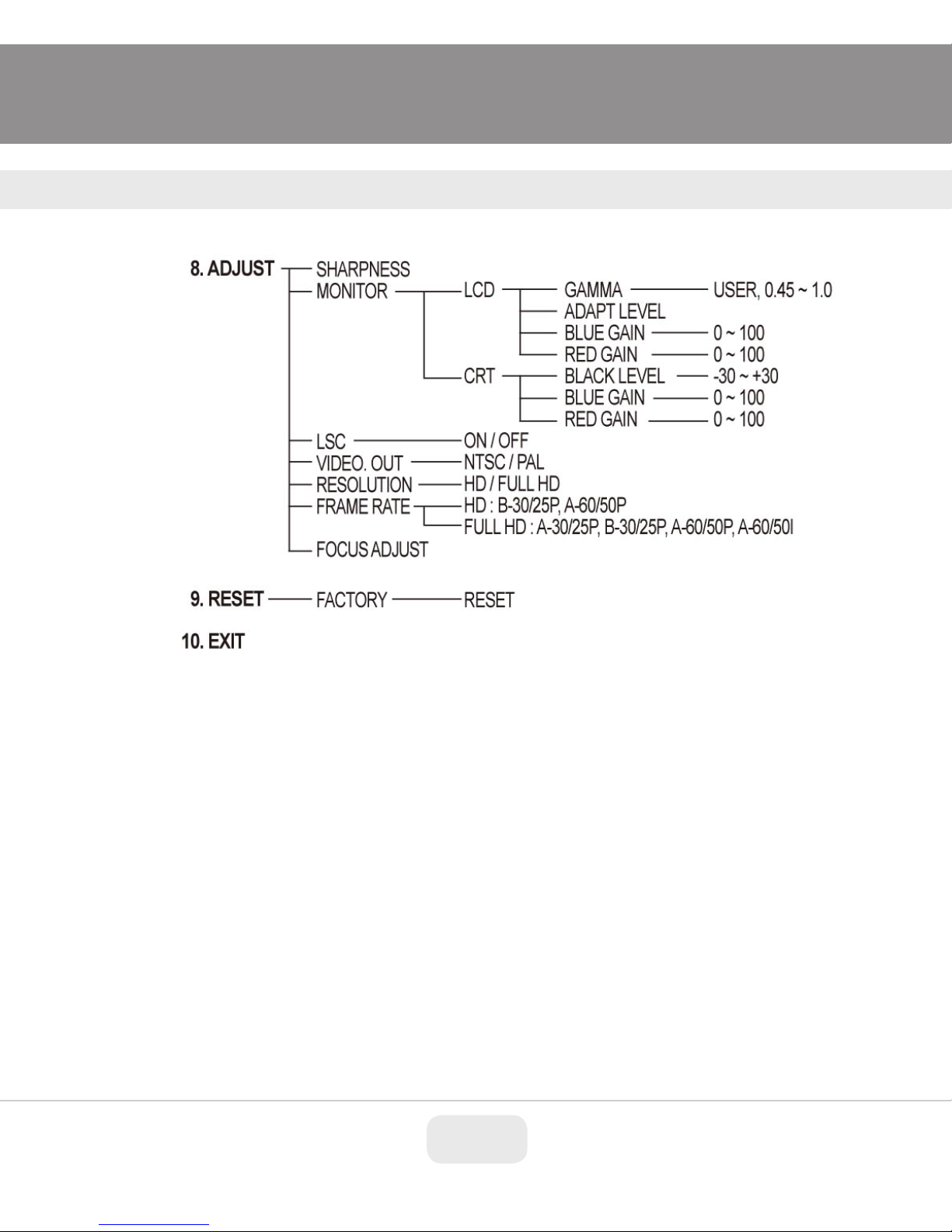

ADJUST
* Set SHARPNESS, MONITOR, LSC, TV SYSTEM
(Video Out), RESOLUTION & FRAME RATE
RESET
* Push • (Enter) at FACTORY, all parameters return
to factory default.
EXIT
* Save all and Exit
MAIN OSD MENU
10

1. LENS
Select Lens type, DC, MANUAL or P-IRIS.
DC Lens: * MODE: Set INDOOR or OUTDOOR

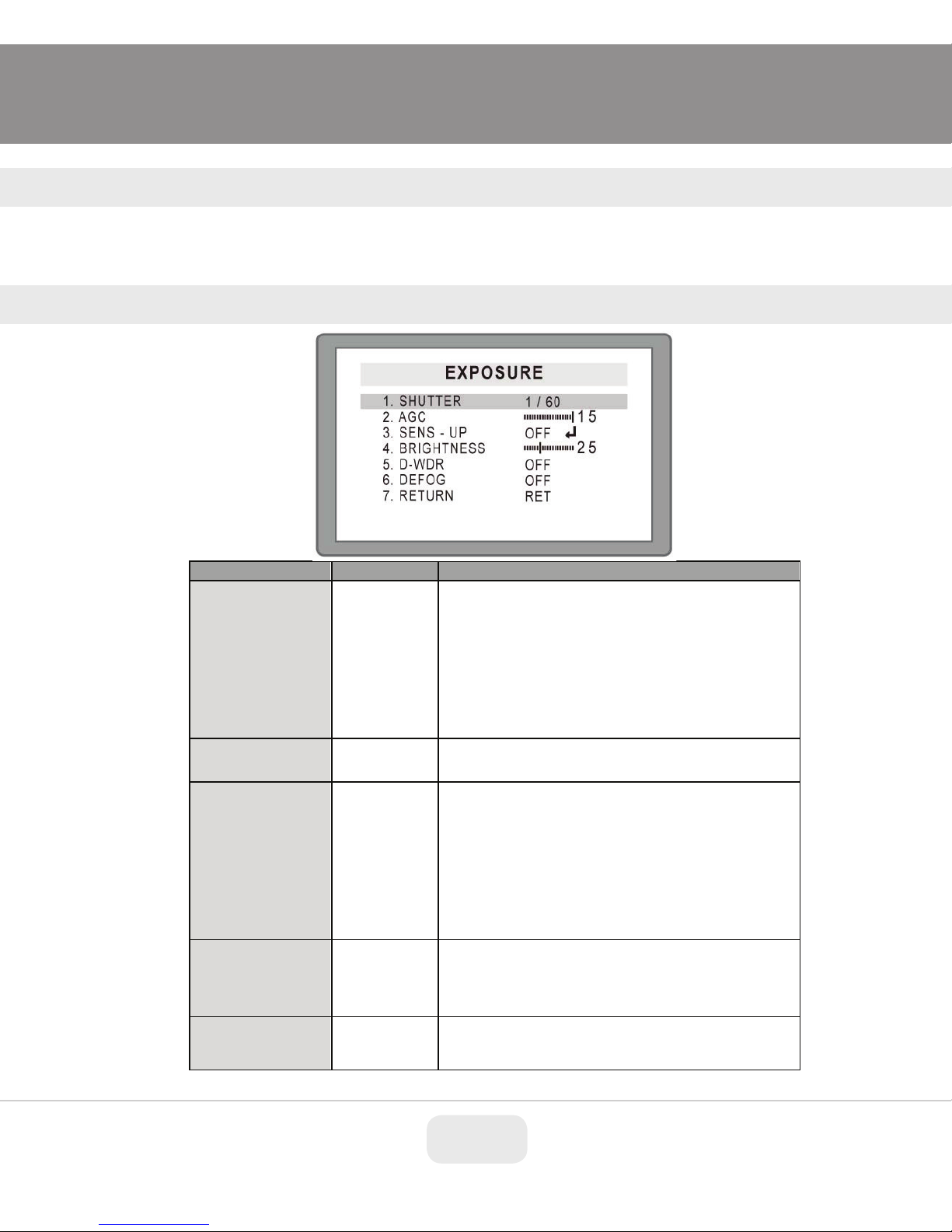

2. EXPOSURE
EXPOSURE
DEFAULT
DESCRIPTION
SHUTTER AUTO
Set Shutter Speed, 1/60(1/50), FLK, 1/240 ~
1/50000 or x2 ~ x30
* If camera is equipped with auto iris lens,
recommended to set to AUTO.
* In the region NTSC but 50Hz power, set to FLK
(Flickerless). In the FLK mode, sensitivity will be
lowered under low light.
* X2 ~ x30, SENS-UP is working at selected
frame integration rate regardless of light level.
AGC
* Under lowest light level, AGC is maximized by
Automatic Gain Controller * Can set AGC level
SENS-UP AUTO
* If set to AUTO, Set limitation of maximum
integration frame rate 2 ~ x30
* Higher SENS-UP rate is higher sensitivity but
slower refresh rate.
* Due to long shutter time, some white dots may
appear.
* Usable at AUTO or 1/60(1/50) for A60/50P,
A60/50i & A30/25P and 1/30(1/25) for B30/25P
set up
BRIGHTNESS 40 * Brightness level. The higher the value, the
brighter the image is.
* Brightness is controlled by the iris of auto iris
lens or shutter speed of fixed iris lens.
D-WDR OFF
* D-WDR is to enhance brightness of dark areas
by partially increasing gain.
* If set too high, white noise will increased in the
2. EXPOSURE
1. LENS
11

dark area.
DEFOG OFF
* This is to enhance visibility in foggy
environments but the performance is limited.
3. BACKLIGHT
Select Backlight mode, WDR, BLC or HSBLC
3-1. WDR
Set WDR level, LOW, MIDDLE or HIGH
Note) WDR mode works only with HD-SDI output and not the CVBS
(composite out)
3-2. BLC
* BLC: This function is used to brighten an image in the foreground with a
highly bright area behind it such as sunlight, limiting the affect of a
silhouette.
BLC
DEFAULT
DESCRIPTION
GAIN MIDDLE
* Gain will compensate the brightness of objects
in the selected area.
* Higher GAIN can brighten the object but other
areas may saturate and noise may increase.
* BLC may not work correctly if the background is
dark and bright.
AREA
AREA
* This is to set the size and location of BLC area.
* If the area is too small the compensation may
be unstable, and if too large it will be less
effective
* Area has 15 x 8 blocks and the SIZE and
POSITION can be set by UP/DOWN/LEFT/
RIGHT button.
DEFAULT AUTO
* Reset current settings and loads the default for
BLC setting.
3. BACKLIGHT
12

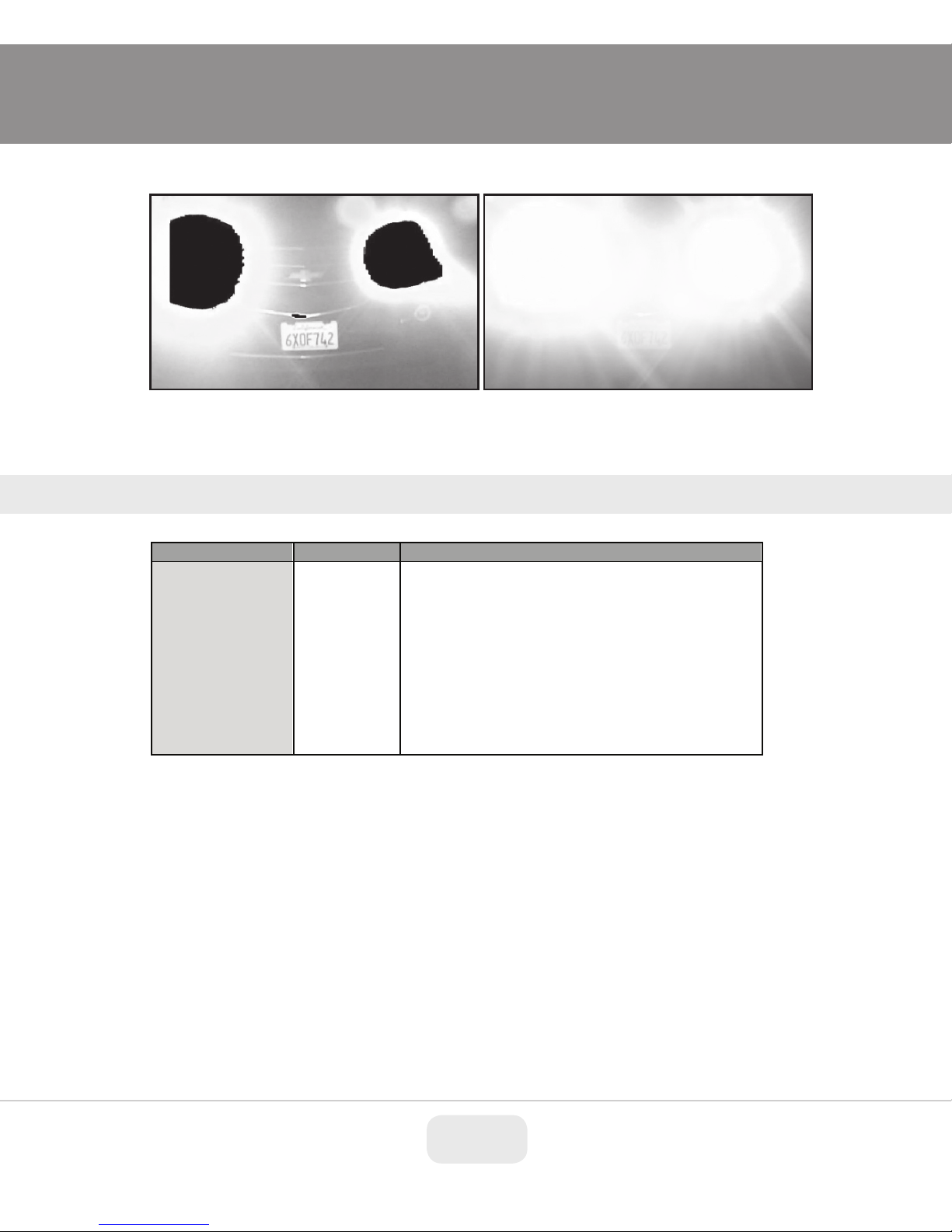

3-3. HSBLC
This function is used to black out highlighted (bright) areas, in order to enable a clear
visual image of objects, such as the license plates of an oncoming vehicle or other
objects that may be obstructed by headlamps.
HSBLC
DEFAULT
DESCRIPTION
SELECT
AREA1
* Select area to adjust AREA 1~4.
DISPLAY ON
* Choose ON then push ●button to enter into
selected area.
Can set POSITION & SIZE of the area
LEVEL 45 Defines the threshold level for HLC. Lower value
is more sensitive.
MODE ALL DAY
* Choose ALL DAY or NIGHT
* ALL DAY : HSBLC works all day regardless of
DAY or NIGHT mode
* NIGHT : HSBLC works when camera is in
NIGHT mode only
BLACK MASK
ON
* Set ON or OFF for displaying black mask.
DEFAULT
* Reset current settings and loads default of
HSBLC.
BLC ON BLC OFF
13

4. WHITE BAL
WHITE BAL
DEFAULT
DESCRIPTION
WHITE BAL ATW
* ATW
(Auto Tracking White balance)
:
White balance performs automatically
* AWC -> SET : Sets the white balance to the
current scene
* INDOOR : White balance is fixed at about
3100K
* OUTDOOR : White balance is fixed at
about 5100K
* MANUAL : Adjustable fixed value of RED &
BLUE
* AWB : Auto White Balance
4. WHITE BALANCE
HSBLC ON HSBLC OFF
14

5. DAY & NIGHT
DAY & NIGHT
DEFAULT
DESCRIPTION
DAY & NIGHT AUTO
* AUTO : Camera switches DAY from/to NIGHT
automatically according to the amount of light
through the lens.
* COLOR : Camera stays color regardless of light
level
* B/W: Camera stays black & white regardless of
light level.
* EXT : DAY or NIGHT is decided by light
sensor(CDS sensor) use this if camera has
built in IR’s
5-1. AUTO
AUTO
DEFAULT
DESCRIPTION
DELAY 5
* DELAY is dwell time before switching D->N or
N->D after checking light level.
*DELAY can avoid unnecessary switching by
short term light.
* Camera should retain the present environment
for longer than DELAY (DWELL TIME).
D -> N (AGC) 80
* D->N is threshold level to switch from DAY to
NIGHT.
* Lower value makes the camera switch to NIGHT
mode at lower light level.
N -> D (AGC) 35
* N->D is threshold level to switch from NIGHT to
DAY.
* Lower value makes the camera exit NIGHT
mode at brighter light level
* If the gap between D -> N and N -> D value is too small, repeated
switching may occur
Recommend set the gap to more than 40
5. DAY & NIGHT
15

5-2. B/W
B/W
DEFAULT
DESCRIPTION
BURST
* Set BURST ON or OFF
IR SMART
OFF
* Set IR SMART ON or OFF
5-3. EXT
EXT
DEFAULT
DESCRIPTION
BURST
* Set BURST ON or OFF
IR SMART
OFF
* Set IR SMART ON or OFF
6. NR
2D & 3D is a powerful noise reduction technology at low light.
2DNR reduces noise with spatial frequency for each field but too strong of noise reduction will
be loss of sharpness. 3 DNR (3-dimensional noise reduction)
which reduces the noise by multi frame comparison? Noise Reduction is
effective at low light. Setting a higher level of noise reduction may result in the loss of
sharpness and the tail effect of a comet may occur.
6. NR
5-2. B/W
B/W
DEFAULT
DESCRIPTION
BURST
* Set BURST ON or OFF
IR SMART
OFF
* Set IR SMART ON or OFF
5-3. EXT
EXT
DEFAULT
DESCRIPTION
BURST
* Set BURST ON or OFF
IR SMART
OFF
* Set IR SMART ON or OFF
6. NR
2D & 3D is a powerful noise reduction technology at low light.
2DNR reduces noise with spatial frequency for each field but too strong of noise
reduction will be loss of sharpness. 3 DNR (3-dimensional noise reduction)
which reduces the noise by multi frame comparison? Noise Reduction is
effective at low light. Setting a higher level of noise reduction may result in the loss of
sharpness and the tail effect of a comet may occur.
16

6-1. 3DNR (ON)
3DNR
DEFAULT
DESCRIPTION
SMART NR ON
* Camera is watching for any motions.
* When no motion is detect: 3 DNR is working
with maximum noise reduction
automatically. This will save
HDD space on the DVR
* When motion is detected: 3 DNR deactivates
slow motion capture for
moving object.
LEVEL 80
* Set strength of 2D & 3 DNR.
* Higher value, higher noise reduction.
* If set too high, sharpness will be lost in 2 DNR
and will have a tail effect in 3 DNR
START. AGC 0
* Set Start level of noise reduction
* Higher level allows 3 DNR to start at brighter
light level
END. AGC 0
* Set stop level of noise reduction
* Higher level allows 3 DNR to start at brighter
light level
18

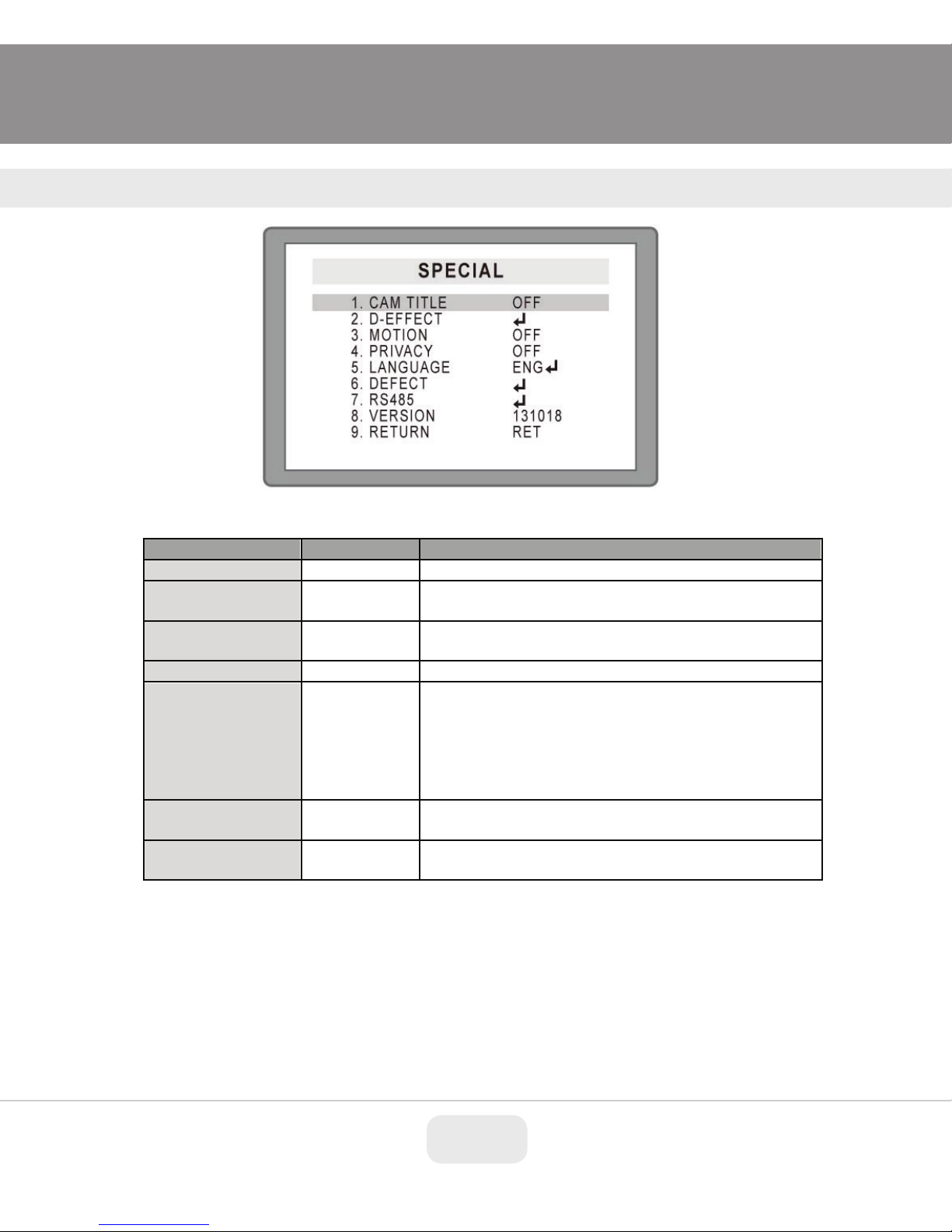

7. SPECIAL
17

SPECIAL
DEFAULT
DESCRIPTION
CAM TITLE
OFF
* If set to ON, camera title is displayed.
D-EFFCT
* Can set FREEZE, MIRROR, D-ZOOM, SMART
D-ZOOM, NEG.IMAGE & DIS.
MOTION OFF
* Programmable up to 4 areas. If motion is
detected, mosaic effect appears.
PRIVACY
OFF
* Programmable up to 8 masked areas.
LANGUAGE ENG
* Support 16 languages, ENG / JPN / CHI1 / CH2
/ KOR / GER / FRA / ITA / SPA / POL / RUS /
POR / NED / TUR / HEB / ARB
* To change the language, push ●(SET/ENTER).
It will be taken about 4seconds to load new
language fonts.
DEFECT
* Defect pixels in the image sensor is
compensated and remapped.
RS485
* Set RS485 for remote control.
CAM ID & BAUDRATE
7. SPECIAL
18

7-1. CAM TITLE
* I
nput max.15 characters or symbols by using▲(up)/▼(down)/◀(left)/▶(right) buttons.
* Press ●to select and the selected character/symbol will be displayed on the input line
* →←: move CAM TITLE input position
* CLR: remove all inputted characters and symbols
* POS: move and set CAM TITLE display position
* END: finish and return to menu
7-2. D-EFFECT
D-EFFECT
DEFAULT
DESCRIPTION
FREEZE OFF
* freeze image and shows still image when set to
ON
MIRROR OFF
* OFF : normal image display
* MIRROR / V-FLIP / ROTATE(H/V FLIP)
* Cannot use if FREEZE is set to ON.
19

D-ZOOM OFF
* Available max. 62x digital zoom.
* PAN/TILT : set zoom position by moving
UP / DOWN / LEFT / RIGHT.
* Usable at 30/25P resolution.
Cannot synchronize with SMART D-ZOOM but
usable either D-ZOOM
SMART
D-ZOOM
When motion is detected camera will digitally
zoom in
NEG.IMAGE
OFF
* If set to ON, shows negative image
DIS
* Digital Image Stabilizer. Available at A-30/25P
set up (will lose part of image)
7-2. �D-ZOOM
D-ZOOM
DEFAULT
DESCRIPTION
D-ZOOM X2.0
2~64 X digital zoom, area can be scanned by
using Pan/Tilt
PAN/TILT
*Set zoom position by moving UP / DOWN / LEFT
/ RIGHT
DEFAULT
* Reset all changes in the menu
1). When entering or exiting D-Zoom video will be lost for a second so that the camera
can adjust to new setting
2). CVBS (Sub-Video) is off at D-ZOOM “ON”
20
