VITEK
VTC-C770WS
Pixim Powered Ultra Dynamic Range
Color CCD Camera with 700 TVL
Short Body
• 700 TVL High Resolution
• Pixim D8800C Seawolf Digital Imaging System CMOS
• 0.00008 Lux (F1.2@40IRE using sense-up)
• Designed to fit in Pelco DF5 Housing
• Supports C/CS Mount DC Drive Lenses
• Supports NTSC & PAL Standards
• On Screen Display (OSD) w/optional remote
• 12VDC / 24VAC Dual Voltage Operation
(Lens not included)

2
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
The symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of un-insulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to the person.
!
!
!
!
Warning (NTSC version) -- This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his
own expense.
Caution -- Any changes or modifications in construction of this device that are not expressly
approved by the party responsible for compliance,could void the user's authority to operate the
equipment.
WARNING
Caution
To prevent electric shocks and
risk of fire hazards, do NOT
use anything other than
specified power source.

3
Table of contents
1. Safety Instructions and Notes….................................................................................................. 4
2. General Descriptions............................................................................……………………………... 5
3. Supplied Items......................................................................................…………………………….. 5
4. Part names…………………………….…...................................................…………………..……….. 6
5. Installation procedure………………………......................................................……………………... 7
6. Start up…………………............................................................................……………………...…... 8
7. Setup Menu………………………………………………..................................................................... 8
8. Specifications……………………………………………..................................................................... 16
9. Dimensional Drawings…............................................................................................................... 17

4
1. Safety Instructions and Notes
•Read instructions carefully before putting the camera into operation.
•Keep the operating instructions in a safe place for later use.
•The Standard Box Camera is designed for indoor use only and it must not be installed where
exposed to rain and moisture.
•Do not operate the cameras beyond their specified temperature, humidity or power ratings.
•Never open the case of the camera because there are precision parts inside. An accident
may result
•Do not put anything metallic or foreign through the vent. A fire or electric shock may result.
•Be sure to turn off the power before installing or making connection.
•Pay attention when laying the connection cable and observe that the cable is not subject to
heavy loads, kinks or damage and that no moisture can get in.
•Do not install the camera in places exposed to vibrations and shocks.
•Be very careful not to drop or shock the camera while carrying it.
•Do not angle the camera to the sun.
•Do not make any modification to the unit (neither to the software nor the hardware). Improper
modification voids the warranty and can cause malfunctions or damages.
The manufacturer accepts no liability for damages resulting from unauthorized or improper
modifications to the unit
•Some types of lenses may cause hunting, light amount drop or other problems. In such case,
readjust the lenses.
•Because of the digital image device characteristics, images may look rugged at high
temperatures. This does not mean the camera is malfunctioning.
•The warranty becomes void if repairs are undertaken by unauthorized persons.
•Contact the supplier if any functional problems arise.
Cleaning:
•Do not touch the surface of the imaging device.
•Keep front and rear lens surfaces clean.
Notice -- The images used in this manual are processed to help comprehension and
may differ from actual video of the camera.

5
2. General Descriptions
The VTC-C770WS camera is a superb ultra dynamic range camera that achieves 120dB max
(102dB typical) of dynamic range of the image by implementing PIXIM's Seawolf digital
imaging system.
Seawolf digital imaging system:
-Delivers high-resolution, crystal clear images that accurately capture every aspect of any
scene
- Offersthe highest resolution of 700TVL (horizontal)
-Ultra-wide dynamic range imaging accurately captures all of the critical details in a scene
including highlights, shadows and everything in between without compromising image
quality or color accuracy
- Enhanced low-light performance makes Seawolf the natural choice for both indoor and
outdoor cameras for all lighting conditions.
ICR mechanism:
-Enhances its sensitivity about 10x at night
-Accepts infrared light
24VAC/12VDC dual power design:
- Offers flexibility of installation
-Ensures reliability
Features:
•1/3" CMY Color DPS SENSOR (Pixim Seawolf D8800C series)
•Resolution of 700 Horizontal TV Lines
•10x sensitivity enhancement by removing the optical filter
•Switches to B/W and able to accept infrared spectrum at night mode
•Enhanced sharpness compensation
•Very low noise and superior picture quality
•0.0008Lux Class sensitivity (0.002Lux@ 2x Sense-up)
•Automatically removable IR Cut Filter
•Automatic White Balance (ATW)
•Support DC auto iris lens
•Supply voltage: 24VAC/12VDC Dual voltage

6
3. Supplied Items
1 x VTC-C770WS Ultra Dynamic Color Camera
1 x Dust protection cap
1 x L-Wrench (1.5mm)
1 x Power Connector
1 x Installation and Operating Instructions
3. Part Names
3.1 Perspective
1. Mount Hole (1/4” UNC)
2. Flange Lock Screw
3. Back Focus Adjusting Flange
4. Camera Body
•"
1
2
3
4

7
ⓐ
ⓑ
ⓒ
ⓓ
3.2 Rear Side view
- Lens Connector for Auto-iris lens (DC Drive)
4. Installation procedure
4.1 Installing the lens
Before installing the lens, make sure the power is not connected to the camera.
Do not touch the lens or filter surfaces.
4.2 Adjust back-focus (If required)
Adjust when the standard back-focus setting is not compatible with lens tolerance or
when the camera is employed at a distance closer than the minimum object distance
(MOD).
i. Loosen (2) FLANGE LOCK SCREW to adjust the back focus of lens
ii. Camera Focus can be adjusted by turning (3) BACK FOCUS ADJUSTING
FLANGE
iii. After adjustment, lock (2) FLANGE LOCK SCREW
PIN No
DC Iris
1
Damp(-)
2
Damp(+)
3
Drive(+)
4
GND
PIN 4 PIN 2
PIN 3 PIN 1
ⓐ Video Output Connector (BNC)
ⓑ OSD Control Joystick (Up/Down/Left/Right/Enter)
ⓒ Power Input Terminal
ⓓ AUTO IRIS LENS CONTROL (DC LENS ONLY)

8
4.3 Power Supply Connections
The VTC-C770WS camera works with 24VAC or 12VDC, dual voltage power. It does NOT
require matching polar connection for 12VDC supply. Primary and secondary grounds are
completely isolated to avoid possible ground-loop problems. Its wide operating voltage range
of 10.5V-30V for DC and 12-28.8V for AC gives extra flexibility during installation.
5. Start up
When the camera is powered properly, it initializes the internal parameters and the filter
switch mechanism. The filter switch unit repeats IN and OUT at each power up and just
after RESTORE FACTORY SETTINGS.
6. SETUP Menu
6.1 In the menu
Use up and down buttons to move through the menu page, and side to side buttons to change
the settings. Press the Circular button to select or enter.
Button stands for MENU or ENTER.
6.2 Entering menu
Press button for 2+ seconds on the back of the camera.
6.3 MAIN
Follow the chart for submenu settings.

9
6.4 EXPOSURE
To enter EXPOSURE menu, press button at MAIN>EXPOSURE.
MENU
Default
Descriptions
EXPOSURE
Sets COLOR ROLL COMP. AE PREFERENCE, WDR CONTROL and
SENSE-UP.
DAY/NIGHT
AUTO
Sets OFF, AUTO or NIGHT
OFF – Day/Night is disabled and camera works as a normal color camera.
AUTO – Camera switches DAY from/to NIGHT automatically.
N->D THRES, N<->D DELAY, BURST ON B/W can be set.
See DAY&NIGHT AUTO SETUP for detail.
NIGHT – Forced to remove IR cut filter and switch to B/W.
LENS SELELT
DC
Selects the lens type, DC or MANUAL.
In sub-menu, Accurate Focus can be set by function of FOCUS ADJ…
CONTROL
Sets WHITE BALANCE, COLOR SELECT, SHARPNESS, SATURATION,
GAMMA.
SPECIAL
Sets MOTION, PRIVACY MASK, 3D NR, D-EFFECT, SYNC, LANGUAGE,
VIDEO STANDARD, RS485 CONTROL.
SAVE AND
EXIT
Exits menu after saving the parameters.
EXIT
Exits menu with discarding any changes.

10
6.5 DAY/NIGHT
To enter DAY/NIGHT menu, press button at MAIN>DAY/NIGHT>AUTO.
EXPOSURE
Descriptions
<WDR MID>
Medium level of the dynamic range control for each PRESETs.
WDR HIGH
Increases the dynamic range control. Some highlight area may washed out.
CUSTOM...
Provides more flexible compensation other than WDR MID, WDR LOW, WDR
HIGH
BLC...
Compensates the brightness of main object against the bright back light.
A zone out of CTR SPOT, UPPER1/3, MIDDLE1/3, LOWER1/3 can be set.
Dynamic range control is inoperative if EXPOSURE is set to BLC.
WDR LOW
Decreases the dynamic range control.
EXPOSURE
Default
Descriptions
COLOR ROLL
COMP.
OFF
In NTSC system, the color tone on the monitor may show a red or green
hue.
COLOR ROLL COMP. - Reduces the color rolling under the fluorescent
lighting. (NTSC system only)
OFF – Does not compensate the color rolling.
MODE-M - Compensates the color rolling when a manual lens is used.
MODE-A - Compensates the color rolling when an auto iris lens is used.
AE
PREFRENCE
HIGHLIGHTS
Sets HIGHLIGHTS or SHADOWS
HIGHLIGHTS - Provides the best detail in bright areas. The darker aspects
of the scene may under-expose.
SHADOWS - Provides the best detail in dark areas. It will reduce the
dynamic range and the brighter aspects may overexpose.
WDR
CONTROL
MEDIUM
LOW - Produces an image that has better contrast but less dynamic range
and is suitable for indoor or low-contrast outdoor scenes.
NORMAL - Produces an image that has average contrast and is suitable
for indoor or low-contrast outdoor scenes.
MEDIUM - Produces an image that has better dynamic range and is
suitable for a lobby or high-contrast outdoor scenes.
HIGH - Produces an image that has superior dynamic range but less
contrast and is suitable for high-contrast outdoor scenes.
CUSTOM - Provides more flexible compensation by ZONE, RANGE and
BIAS.
When COLOR ROLLCOMP is set to MODE-A, WDR CONTROL will be
fixed as LOW.
SENSE-UP
AUTO
If E-UP is set to AUTO, the maximum sense-up rate can be limio 2X-
30FPS, 4X15FPS, 8X-18FPS, 16X-4FPS, 32X-2FPS or 64X-2FPS in
SENSE-UP SETUP.
Thetion frames vary automatically within the max. rate according to
the light level when light becomes low and DSS is operating. The
higher sense-up rate, the higher sensitivity but the slower refresh rate.
Some white dots may appear by sense-u due to the image sensor’s long
accumulation by a long shutter period.
IMPORTANT!!!

11
IMPORTANT!!!
DAY->NIGHT and NIGHT->DAY operations must be examined and verified at the
final step of installation. Factory Settings have DAY/NIGHT set to OFF.
Block the lens for a few seconds for NIGHT mode, then release and let it return to DAY mode.
If the camera stays at NIGHT mode more than 10 seconds, increase N-->D THRES and repeat
the fore-mentioned steps.
If the scene is too dim or the lens iris was adjusted too low (near close), it may not return to
DAY.
DAY/NIGHT
Default
Descriptions
N-->D
THRES.
3
N-->D THRES is a threshold level to switch from NIGHT to DAY.
Due to the nature of WDR,the image level of the scene are controlled
down and the camera would not switch to DAY even though the
ambient is bright enough.
Increase the value if it stays in B/W and is required to switch to DAY.
Too high of a value may make the ICR repeat between NIGHT<-->DAY.
In that case, reduce the value and execute the steps above.
N<-->D
DELAY
3
N<-->D DELAY is the time,in seconds, when the camera maintainsits
status before D<-->N switches.
DELAY can avoid the unwanted/frivolous switching caused by short term
lighting changes, such as the light from a passing car.
BURST
ON
B/W
OFF
BURST ON B/W determines whether a color burst signal keeps output
or
eliminated when camera switches to B/W.
If set to ON, B/W video signal contains color burst signal and is more
compatible with the color equipment but shows the same resolution as
color
video.
If set OFF, the color burst signal is removed from B/W video and
shows better
resolution.
Rarely will acompatibility problem occur with the color equipment.

12
6.6 LENS SELECT
To enter LENS SELECT menu, press button at MAIN>LENS SELECT>DC or MANUAL.
6.7 PICTURE CONTROL
To enter PICTURE CONTROL menu, press button at MAIN>PICTURE CONTROL.
DC/ MANUAL
Default
Descriptions
AI LEVEL
24
Lower valuesopen the lens iris and increases the brightness
and vice versa. Too high of a value reduces the amount
of incoming light and may result in the camera not
returning to DAY from NIGHT.
FOCUS ADJ.
-
FOCUS ADJUST helps the Accurate focus adjustment
regardless of DAY
or NIGHT. Sometimes the focus looks fine tuned at day time
but oocus at night time. This function can eliminate the wrong
adjustment of

13
6.8 SPECIAL
CONTROL
Factory
Default
Descriptions
WHITE
BALANCE
ATW
NORMAL
Sets ATW Normal, ATW Desat, ATW Xtnd or MANUAL.
ATW NORMAL – Compensates automatically in range of 2800K-
7500K.
ATW DESAT – Compensates automatically in range of 2000K-
11000K.
In the range of 2000-2800K and 7500-11000K, white balance is
gradually compensated.
ATW Xtnd – Compensates automatically in range of 2000K-11000K.
MANUAL – White balance can be adjusted by either KELVIN or R/B
COLOR
SELECT
COLOR1
Provides three color tones.
BRIGHTNESS
BRIGHTNESS level is a kind of video output gain and is different
from the iris level control. It can be set to MID-LOW, MIDDLE, MID-
HIGH, HIGH and LOW.
If it is set too high, the dynamic range is decreased.
SHARPNESS
2
Increase or decrease the sharpness of the picture.
Too much sharpness can make image harsh and show more noise
as well as line flicker at the edge of object in the picture.
SATURATION
1
High value makes color rich and vice versa.
GAMMA
45
Lower value improves the gain of the dark area but the image has
less
contrast..
Higher value reduces the gain of the dark area and makes the image
more
dark and contrastive. The image will loose the linearity for too high
value.
CONTROL
Factory
Default
Descriptions
WHITE
BALANCE
ATW
NORMAL
Sets ATW Normal, ATW Desat, ATW Xtnd or MANUAL.
ATW NORMAL – Compensates automatically in range of 2800K-
7500K.
ATW DESAT – Compensates automatically in range of 2000K-
11000K.
In the range of 2000-2800K and 7500-11000K, white balance is
gradually compensated.
ATW Xtnd – Compensates automatically in range of 2000K-11000K.
MANUAL – White balance can be adjusted by either KELVIN or R/B
COLOR
SELECT
COLOR1
Provides three color tones.
BRIGHTNESS
BRIGHTNESS level is a kind of video output gain and is different
from the iris level control. It can be set to MID-LOW, MIDDLE, MID-
HIGH, HIGH and LOW.
If it is set too high, the dynamic range is decreased.
SHARPNESS
2
Increase or decrease the sharpness of the picture.
Too much sharpness can make image harsh and show more noise
as well as line flicker at the edge of object in the picture.
SATURATION
1
High value makes color rich and vice versa.
GAMMA
45
Lower value improves the gain of the dark area but the image has
less
contrast..
Higher value reduces the gain of the dark area and makes the image
more
dark and contrastive. The image will loose the linearity for too high
value.
CONTROL
Factory
Default
Descriptions
WHITE
BALANCE
ATW
NORMAL
Sets ATW to Normal, ATW Desat, ATW Xtnd or MANUAL.
ATW NORMAL – Compensates automatically in range of 2800K-
7500K.
ATW DESAT – Compensates automatically in range of 2000K-
11000K.
In the range of 2000-2800K and 7500-11000K, white balance is
gradually compensated.
ATW Xtnd – Compensates automatically in range of 2000K-11000K.
MANUAL – White balance can be adjusted by either KELVIN or R/B
COLOR
SELECT
COLOR1
Provides three color tones.
VIVID
OFF
Generates a vivid image with a little stronger color and contrast.
If VIVID is set to ON, WDR preset changes to NORMAL.
BRIGHTNESS
BRIGHTNESS level is a kind of video output gain and is different
from the iris level control. It can be set to MID-LOW, MIDDLE, MID-
HIGH, HIGH and LOW.
If it is set too high, the dynamic range is decreased.
SHARPNESS
2
Increase or decrease the sharpness of the picture.
Too much sharpness can turn the image harsh and show noise.
SATURATION
1
A high value makes the color rich and vice versa.
GAMMA
45
Lower value improves the gain of the dark area but the image has
less
contrast.
Higher value reduces the gain of the dark area and makes the image
more
dark and contrastive. The image will loose the linearity for too high
value.

14

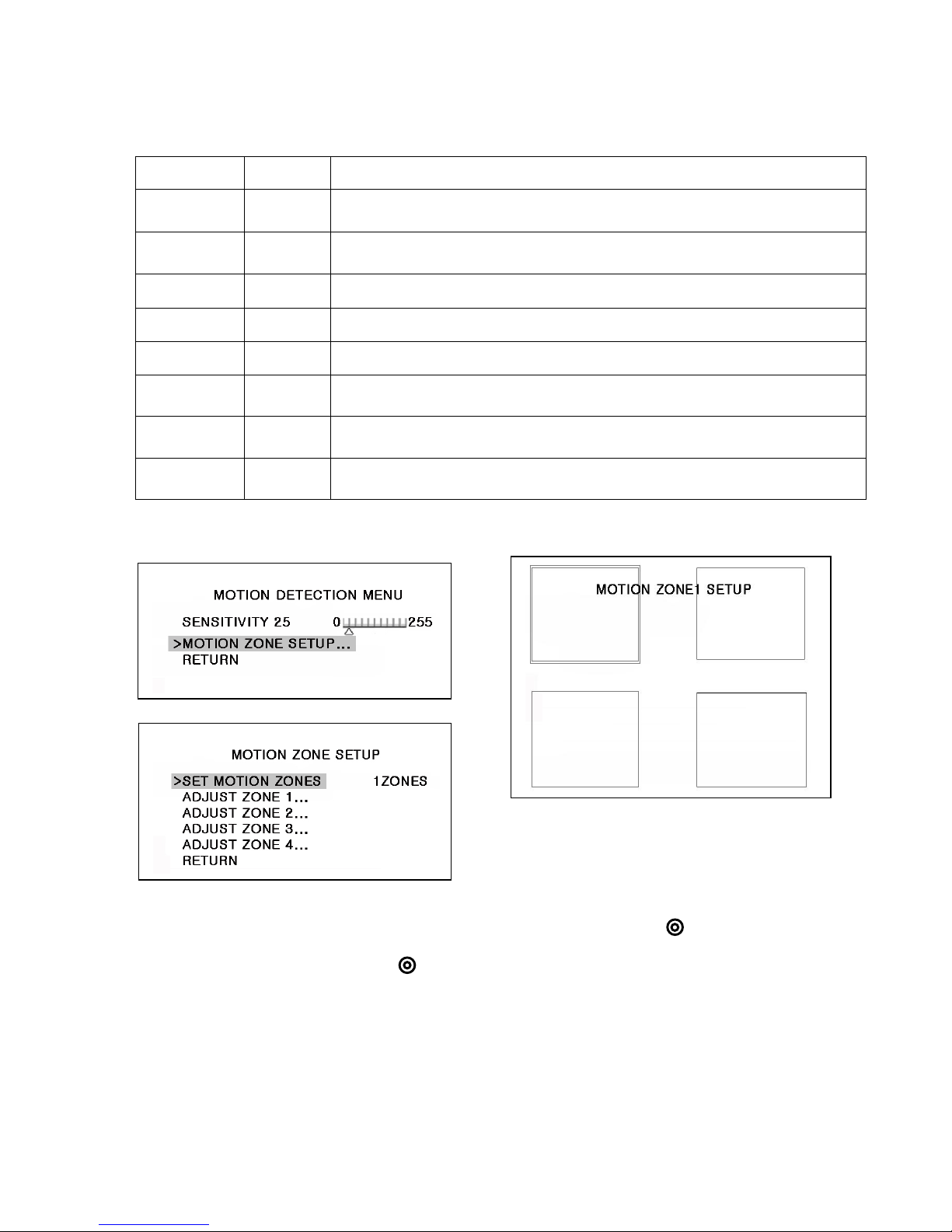

6.8.1 MOTION
Up to 4 motion areas and the sensitivity can be set. The sensitivity is applied to all zones equally.
In adjusting each zone, the zone borderline changes color when pressing button.
Green enables enlarging, red enables reducing and white enables moving the zone.
To exit MOTION ZONE SETUP, press button for 2 seconds.
SPECIAL
Default
Descriptions
MOTION
OFF
If it is set to ON and motion is detected, MOTION message will
appear on the monitor. See ‘6.8.1 MOTION ’ for settings.
PRIVACY
MASK
OFF
If set to ON, up to 6privacy masks will be available.
See ‘6.8.2 PRIVACY menu’ for settings.
D-EFFECT
Sets FREEZE, FLIP, or D-PTZ.
LANGUAGE
ENGLISH
English only.
3D NR
Determines the depth of Three Dimensional Noise Reduction.
VIDEO
STANDARD
NTSC
Able to switch between NTSC or PAL.
FACTORY
SET
Sets previous setting.
RETURN
Returns to previous page.

15
6.8.2 PRIVACY AREA
Up to 6 privacy areascan be programmed in size, position and mask color.
Use joystick to change size, position and mask color.
Press button for 2+ seconds to return to previous menu.
After pressing button at ON, the 1st
zone appears on top-left corner in
orange.
The orange colored zone can be
relocated with ‘up and down’, and ‘side
to side’ buttons.
After pressing button again, the 1st
zone changes to blue.
The blue colored zone can be resized
with ‘up and down’, and ‘side to side’
buttons.
Mask example after resizing.
Mask example after relocating.

16
8. Specifications
Model name
VTC-C770WS
Image Device
1/3" CMY Color DPS SENSOR (Pixim Seawolf D8800C series)
Effective Pixels
768(H) x 540(V)
TV system
NTSC, 525lines / 2:1interlace
PAL, 625lines / 2:1interlace
Scan frequency.
59.94Hz(V), 15.734Khz(H)
50Hz(V), 15.625Khz(H)
Synchronization
Internal/Line lock (Default: Internal)
H. Resolution
700TV Lines
Sensitivity
0.0008Lux Class sensitivity (0.002Lux@ 2x Sense-up)
S/N Ratio
52dB with AGC OFF at 50IRE
White Balance
2000~11000ºK Automatic tracking
WDR Mode
[Low/Middle/High/Custom (User adjustment)]
Auto Iris Control
DC drive iris control. Level control is fixed internally.
SENSE-UP
2X, 4X, 8X, 16X, 32X, 64X ESS
Motion Detection
On/Off (4 Programmable Zone)
D-PTZ
Up to X12 digital zoom
FLIP
OFF / H-FLIP / V-FLIP / H/V-FLIP
Privacy Zone
On/Off (6 Programmable Zone)
Auto Iris Control
DC Drive Iris Control
Flicker reduction
Yes (NTSC Japanese version only)
OSD
Yes (Setup menu only)
Video Output
VBS 1Vpp +/-10%, 75ohm
Lens mount
CS mount
Operating Power
24VAC (12V-28.8Vac) or 12VDC (10.5-30Vdc), 3Watts max
Operating condition
14ºF -122ºF (-10ºC - +50ºC)85% RH. Max. non-condensing
Dimension (W x H x L)
1.9in x 2in x 2.4in (48mm x 51mm x 60.5mm)
●Design and specifications are subject to change for product improvements without prior notice.

17
9. Dimensional Drawings

!
!
VITEK LIMITED PRODUCT WARRANTY
VITEK products carry a three (3) year limited warranty. VITEK warrants to the
purchaser that products manufactured by VITEK are free of any rightful claim of
infringement or the like, and when used in the manner intended, will be free of defects
in materials and workmanship for a period of three (3) years, or as otherwise stated
above, from the date of purchase by the end user. This warranty is non-transferable
and extends only to the original buyer or end user customer of a VITEK Authorized
Reseller.
The product must have been used only for its intended purpose, and not been
subjected to damage by misuse, willful or accidental damage, caused by excessive
voltage or lightning.
The product must not have been tampered with in any way or the guarantee will be
considered null and void.
This guarantee does not affect your statutory rights.
Contact your local VITEK Reseller should servicing become necessary.
VITEK makes no warranty or guarantee whatsoever with respect to products sold or
purchased through unauthorized sales channels. Warranty support is available only if
product is purchased through a VITEK Authorized Reseller.
Visit www.vitekcctv.com to register your product warranty and receive periodic
updates.

28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM | 888-VITEK-70
