Vivitek H1188 Series User manual

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Vivitek H1188 o
cerca il tuo prodotto tra le migliori offerte di Videoproiezione

—i —
Copyright
This publication, including all photographs, illustrations and software, is protected under international
copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may
be reproduced without written consent of the author.
© Copyright 2015
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no
representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations
and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
All other product names used in this manual are the properties of their respective owners and are
acknowledged.
Ver.:01

—ii —
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause
personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”
General Safety Information
Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.

–iii –
Projector Installation Notice
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees, nor should the projector be
installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease
dramatically, and may lead to other unpredictable damages.
Allow at least 50 cm clearance around the exhaust vent.

Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed operation temperature while the projector is running, and the
air intake and exhaust vents are unobstructed.
All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable operation temperature range.
Minimum 500mm
(19.69 inch)
Minimum 500mm
(19.69 inch)
Minimum 500mm
(19.69 inch)
Minimum 500mm
(19.69 inch)
Minimum 100mm
(3.94 inch)
Minimum 300mm
(11.81 inch)
15 °
-15 °

—iv —
Verify Installation Location
To supply power, the 3-blade (with earthing lead) socket should be used to ensure proper
grounding and equalized ground potential for all of the equipment in the Projector System.
The power code provided with the Projector should be used. In case of any missing item, other
qualified 3-blade (with earthing lead) power cord can be used as substitution; however, do not use
2-blade power cord.
Verify if the voltage is stable, grounded properly and there is no electricity leakage.
Measure total power consumption which should not higher the safety capacity and avoid safety
issue and short circuit.
Turn on Altitude Mode when located in high altitude areas
The projector can only be installed upright or inverted.
When installation the bracket, make sure the weight limit is not exceed and firmly secured.
Avoid installing near air conditioner duct or subwoofer.
Avoid installing at high temperature, insufficient cooling and heavy dust locations.
Keep your product away from fluorescent lamps to avoid malfunction
caused by IR interference
The VGA IN connector should be connected to the VGA IN port. Note that it should be inserted
tightly, with the screws on both sides securely fastened to ensure proper connection of the signal
wire for achieving optimal display effect.
The AUDIO IN connector should be connected to the AUDIO IN port and CANNOT be connected
to AUDIO OUT or other ports like BNC, RCA; otherwise, it will lead to mute output and even
DAMAGE the port.
Install the projector above 200cm to avoid damage.
The power cord and signal cable should be connected before power on the projector. During the
projector starting and operating process, DO NOT insert or remove the signal cable or the power
cord to avoid damaging the projector.
Cooling notes
Air outlet
Make sure the air outlet is 50cm clear of any obstruction to ensure proper cooling.
Air outlet location should not be in front of the lens of other projector to avoid causing illusions.
Keep the outlet at least 100cm away from the inlets of other projectors
The projector generates a massive amount of heat during use. The internal fan dissipates the heat
of the projector when shutting down, and such process may continue for a certain period. After the
project enters STANDBY MODE status, press the AC power button to turn off the projector and
remove the power cord. DO NOT remove the power cord during the shutdown process, as it may
cause damage to the projector. In the meantime, the delayed heat radiating will also affect the
service life of the projector. The shutdown process may vary depending on the model used.
Whatever the case may be, be sure to disconnect the power cord till after the projector enters the
STANDBY status.
Air inlet
Make sure there is no object blocking air input within 30 cm.
Keep the inlet away from other heat sources
Avoided heavy dust area

–v –
Power Safety
Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.
Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 34
for clear and safe instructions for this procedure. Before replacing the lamp:
Unplug the power cord.
Allow the lamp to cool for about one hour.
Caution:
In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.
Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and
broken shards of the lamp.
Cleaning the Projector
Unplug the power cord before cleaning. See Cleaning the Projector page 37.
Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on
page 49.
Important Recycle Instructions:
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp
specific disposal information check WWW.LAMPRECYCLE.ORG.
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.

—vi —
Main Features
Lightweight unit, easy to pack away and transport.
Compatible with all major video standards including NTSC, PAL, and SECAM.
A high brightness rating allows for presentations in daylight or in lit rooms.
Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.
Flexible setup allows for front, rear projections.
Line-of-vision projections remain square, with advanced keystone correction for angled projections.
Input source automatically detected.
About this Manual
This manual is intended for end users and describes how to install and operate the DLP projector.
Wherever possible, relevant information—such as an illustration and its description—has been kept on
one page. This printer-friendly format is both for your convenience and to help save paper, thereby
protecting the environment. It is suggested that you only print sections that are relevant to your needs.

–vii –
Table of Contents
GETTING STARTED........................................................................................................................................................... 1
PACKING CHECKLIST........................................................................................................................................................... 1
VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2
Front-right View............................................................................................................................................................ 2
Top view—On-screen Display (OSD) buttons and LEDs....................................................................................... 3
Rear view....................................................................................................................................................................... 4
Bottom view................................................................................................................................................................... 5
REMOTE CONTROL PARTS ................................................................................................................................................... 6
REMOTE CONTROL OPERATING RANGE............................................................................................................................... 8
PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 8
INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 9
SETUP AND OPERATION............................................................................................................................................... 10
STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 10
ADJUSTING THE PROJECTOR LEVEL................................................................................................................................... 12
ADJUSTING THE VERTICAL IMAGE POSITION ...................................................................................................................... 13
ADJUSTING THE ZOOM,FOCUS AND KEYSTONE ................................................................................................................ 13
ADJUSTING THE VOLUME .................................................................................................................................................. 14
ON-SCREEN DISPLAY (OSD) MENU SETTINGS...................................................................................................... 15
OSD MENU CONTROLS ..................................................................................................................................................... 15
Navigating the OSD................................................................................................................................................... 15
SETTING THE OSD LANGUAGE.......................................................................................................................................... 16
OSD MENU OVERVIEW ..................................................................................................................................................... 17
PICTURE>>BASIC MENU................................................................................................................................................. 19
PICTURE>>ADVANCED MENU........................................................................................................................................ 20
HSG Adjustment......................................................................................................................................................... 21
VividSettings ............................................................................................................................................................... 22
DISPLAY MENU............................................................................................................................................................... 23
PC Detail Adjustment................................................................................................................................................. 24
White Balance............................................................................................................................................................. 25
User Color Temp........................................................................................................................................................ 26
3D Setting.................................................................................................................................................................... 27
SETUP>>BASIC MENU..................................................................................................................................................... 28
Menu Settings............................................................................................................................................................. 29
Source.......................................................................................................................................................................... 29
SETUP>>ADVANCED MENU ............................................................................................................................................ 30
Audio............................................................................................................................................................................ 31
Lamp ............................................................................................................................................................................ 31
Closed Caption........................................................................................................................................................... 32
STATUS MENU ................................................................................................................................................................ 33
MAINTENANCE AND SECURITY.................................................................................................................................. 34
REPLACING THE PROJECTION LAMP................................................................................................................................... 34
Resetting the Lamp.................................................................................................................................................... 36
CLEANING THE PROJECTOR................................................................................................................................................ 37
Cleaning the Lens...................................................................................................................................................... 37
Cleaning the Case...................................................................................................................................................... 37
USING THE KENSINGTON®LOCK &USING THE SECURITY BAR......................................................................................... 38
Using the Kensington®Lock..................................................................................................................................... 38
Using the Security Bar............................................................................................................................................... 38
TROUBLESHOOTING...................................................................................................................................................... 39
COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 39
TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 39
LED ERROR MESSAGES..................................................................................................................................................... 40
IMAGE PROBLEMS.............................................................................................................................................................. 40
LAMP PROBLEMS............................................................................................................................................................... 41

—viii —
REMOTE CONTROL PROBLEMS .......................................................................................................................................... 41
AUDIO PROBLEMS ............................................................................................................................................................. 41
HAVING THE PROJECTOR SERVICED .................................................................................................................................. 42
HDMI Q&A .................................................................................................................................................................... 43
SPECIFICATIONS............................................................................................................................................................. 44
SPECIFICATIONS................................................................................................................................................................. 44
PROJECTION DISTANCE VS.PROJECTION SIZE.................................................................................................................... 45
Projection Distance and Size Table......................................................................................................................... 45
TIMING MODE TABLE........................................................................................................................................................ 46
PROJECTOR DIMENSIONS ................................................................................................................................................... 48
REGULATORY COMPLIANCE....................................................................................................................................... 49
FCC WARNING.................................................................................................................................................................. 49
CANADA ............................................................................................................................................................................ 49
SAFETY CERTIFICATIONS................................................................................................................................................... 49
APPENDIX I........................................................................................................................................................................ 50
RS-232C PROTOCOL.......................................................................................................................................................... 50

–1 –
GETTING STARTED
Packing Checklist
Carefully unpack the projector and check that the following items are included:
DLPPROJECTOR WITH LENS CAP
REMOTE CONTROL
(WITH TWO AAA
BATTERIES)
RGBCABLE
POWER CORD
HDMICABLE
CARRYING CASE
CD-ROM
(THIS USER’S MANUAL)
QUICK START GUIDE
WARRANTY CARD
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.
Caution:
Avoid using the projector in dusty environments.

—2 —
Views of Projector Parts

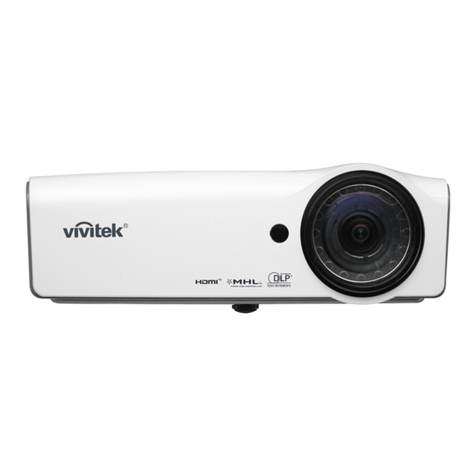

Front-right View
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
IR receiver
Receive IR signal from remote control
2.
Lens
Projection Lens
3.
Focus ring
Focuses the projected image
13
4.
Zoom ring
Enlarges the projected image
5.
LENS SHIFT
For Image vertical shift adjustment.
13
6.
Function keys
See Top view—On-screen Display (OSD) buttons
and LEDs.
3
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.

–3 –
Top view—On-screen Display (OSD) buttons and LEDs
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
MENU
Opens and exits OSD menus
15
2.
Navigates and changes settings in the OSD
Quick Menu –For Volume
3.
Navigates in the OSD
Quick Menu –For Keystone
4.
ENTER
Enter or confirm highlighted OSD menu item
5.
AUTO
Optimizes image size, position, and resolution
6.
Navigates and changes settings in the OSD
Quick Menu –For Volume
7.
Turns the projector On or Off
8.
POWER LED
Green
Ready to power on (Standby)
Lamp Lit , System stable
Over Temperature
40
Flashing
Error code
9.
Navigates in the OSD
Quick Menu –For Keystone
15
10.
TEMP LED
Red
Over Temperature
40
11.
SOURCE
Enter the Source menu
15
12.
LAMP LED
Red
Lamp Fail
40
Flashing
Error code
3
1 2 6 4 5
1012 11 79 8

—4 —
Rear view
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
AC IN
Connect the POWER cable
10
2.
3D SYNC
Connect the 3D IR glasses transmitter
(Note: For Vivitek brand 3D IR glasses only)
3.
HDMI 2
Connect the HDMI cable from a HDMI device
4.
HDMI 1
Connect the HDMI cable from a HDMI device
5.
(USB)
Connect the USB cable from a computer
6.
VGA IN
Connect the RGB cable from a computer
7.
RS-232C
Connect RS-232 serial port cable for remote control
8.
COMPONENT
Connect the Component cable from a component device
9.
USB POWER
For USB charge support DC 5V
10.
Kensington Lock
Secure to permanent object with a Kensington® Lock
system
38
11.
VIDEO IN
Connect the COMPOSITE cable from a video device
12.
AUDIO IN (L and R)
Connect the AUDIO cable from a audio device
13.
DC 12V TRIGGER
When connected to the screen through a commercially available cable,
the screen deploys automatically on start up of the projector. The screen
retracts when the projector is powered off (see notes below).
Note:
 To use this feature, you must plug in the connector before turn on/off the projector.
 Screen controllers are supplied and supported by screen manufacturers.
 Do not use this jack for anything other than intended use.
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
1 2 10
34 5 6 7 8 9
11
1213

–5 –
Bottom view
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
Ceiling support holes
Contact your dealer for information on mounting the projector on a
ceiling
2.
Tilt adjustor
Rotate adjuster lever to adjust angle position.
12
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 6 mm (0.24 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.

—6 —
Remote Control Parts
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency
fluorescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path
between the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.
Note:
Complies with FDA performance standards for laser products except for deviations pursuant to
Laser Notice No. 50, dated June 24, 2007
Caution:
Use of controls, adjustments or performance of procedures other than those specified herein may
result in hazardous laser light exposure.
12
3
4
56
78
9
10 11
12 13
14
15
16
17
18
20
19
21 22
23 24
25 26
27
28
29
30
31
32
33
34

–7 –
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
OFF
Turns the projector off.
2.
PC
Displays the PC source selection.
3.
Video/S-Video
Displays the VIDEO source selection.
4.
Navigates and changes settings in the OSD or MHL mode.
Keystone correction.
15
5.
EXIT
Goes back to previous OSD menu, exits and saves menu settings.
Goes back to previous page or exit programs in MHL mode.
6.
Enters and confirms settings in the OSD.
15
7.
Navigates and changes settings in the OSD or MHL mode.
8.
Navigates and changes settings in the OSD or MHL mode.
Keystone correction.
15
9.
MHL
Starts for selection in MHL mode.
10.
Laser
Presses to emit the on-screen pointer. DO NOT POINT IN EYES.
11.
Starts / pauses the file in MHL mode.
12.
Goes to the next file in MHL mode.
13.
Stops the file in MHL mode.
14.
Fast forwards the file in MHL mode.
15.
Volume
Displays the volume setting bar.
14
16.
Mute
Toggles the built-in speaker between on and off.
17.
3D
Opens the 3D function OSD.
18.
Status
Opens the OSD Status menu (the menu only opens when
an input device is detected).
33
19.
Blank
Toggles the screen between blank and normal.
20.
Freeze
Freeze/unfreezes the on-screen picture.
21.
Zoom
Displays the zoom setting bar.
22.
Lamp
Displays the lamp mode selection.
23.
Contrast
Displays the contrast setting bar.
24.
Brightness
Displays the brightness setting bar.

—8 —
ITEM
LABEL
DESCRIPTION
SEE PAGE
25.
Auto
Auto adjustment for frequency, phase, and position.
15
26.
Source
Displays the source selection bar.
27.
Fast reverses the file in MHL mode.
28.
Goes to the previous file in MHL mode.
29.
Keystone
Displays the keystone setting bar.
13
30.
Navigates and changes settings in the OSD or MHL mode.
31.
Menu
Opens the OSD.
15
32.
HDMI
Toggles the input sources for display between HDMI sources.
33.
ON
Turns the projector on.
34.
Laser
Use as on-screen pointer. DO NOT POINT IN EYES.
Note:
Controlling your smart device with the remote control
When the projector projects the contents from your MHL compatible smart device, you can use
the remote control to control your smart device.
To enter the MHL mode, the following buttons are available for controlling your smart device,
Arrow keys (▲Up, ▼Down, ◄Left, ►Right), MENU/EXIT, MHL control buttons.
When the projector is under MHL mode, The keypad on projector should be with the same
definition of the key on remote control.
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are
limited in use.

–9 –
Inserting the Remote Control Batteries
1.
Remove the battery compartment
cover by sliding the cover in the
direction of the arrow.
2.
Insert the battery with the positive
side facing up.
3.
Replace the cover.
Caution:
1. Only use AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.

—10 —
SETUP AND OPERATION
Starting and Shutting down the Projector
1.
Connect the power cord to the
projector. Connect the other end to
a wall outlet.
The POWER LED on the
projector light.
2.
Turn on the connected devices.
3.
Ensure the POWER LED not a
flashing. Then press the POWER
button to turn on the projector.
The projector splash screen displays
and connected devices are
detected.
4.
If more than one input device is
connected, press the SOURCE
button and use ▲▼ to scroll among
devices.
(Component is supported through
the RGB to COMPONENT
ADAPTER.)
PC: Analog RGB
HDMI 1 / HDMI 2: High-Definition Multimedia
Interface
COMPONENT: DVD input YCbCr/ YPbPr, or HDTV
input YPbPr
VIDEO: Traditional composite video

–11 –
5.
When the “Power Off? /Press
Power again” message appears,
press the POWER button. The
projector turns off.
Caution:
1. Be sure to remove the lens cap before starting projector.
2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has
cooled down.
