VIVO HOME VH1179 User manual

Countertop Ice Cube Maker
with Handle
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND SAVE IT FOR FUTURE REFERENCE.
Instruction Manual

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS………...................……………………………
PREPARING YOUR ICE MAKER FOR USE………………………………………………..
GETTING TO KNOW YOUR UNIT……………………………………………………………….
AUTOMATIC SELF-CLEANING PROGRAM…………………………………………….
OPERATING PROCEDURES & MAINTENANCE……………….............………..
USING YOUR ICE MAKER……………….……..………………………………………………………
TROUBLESHOOTING……………….……..……………………………………………………………….
TECHNICAL PARAMETERS……….……..……………………………………….……..……………
CIRCUIT DIAGRAM……………………………………….……..……………………………………….…

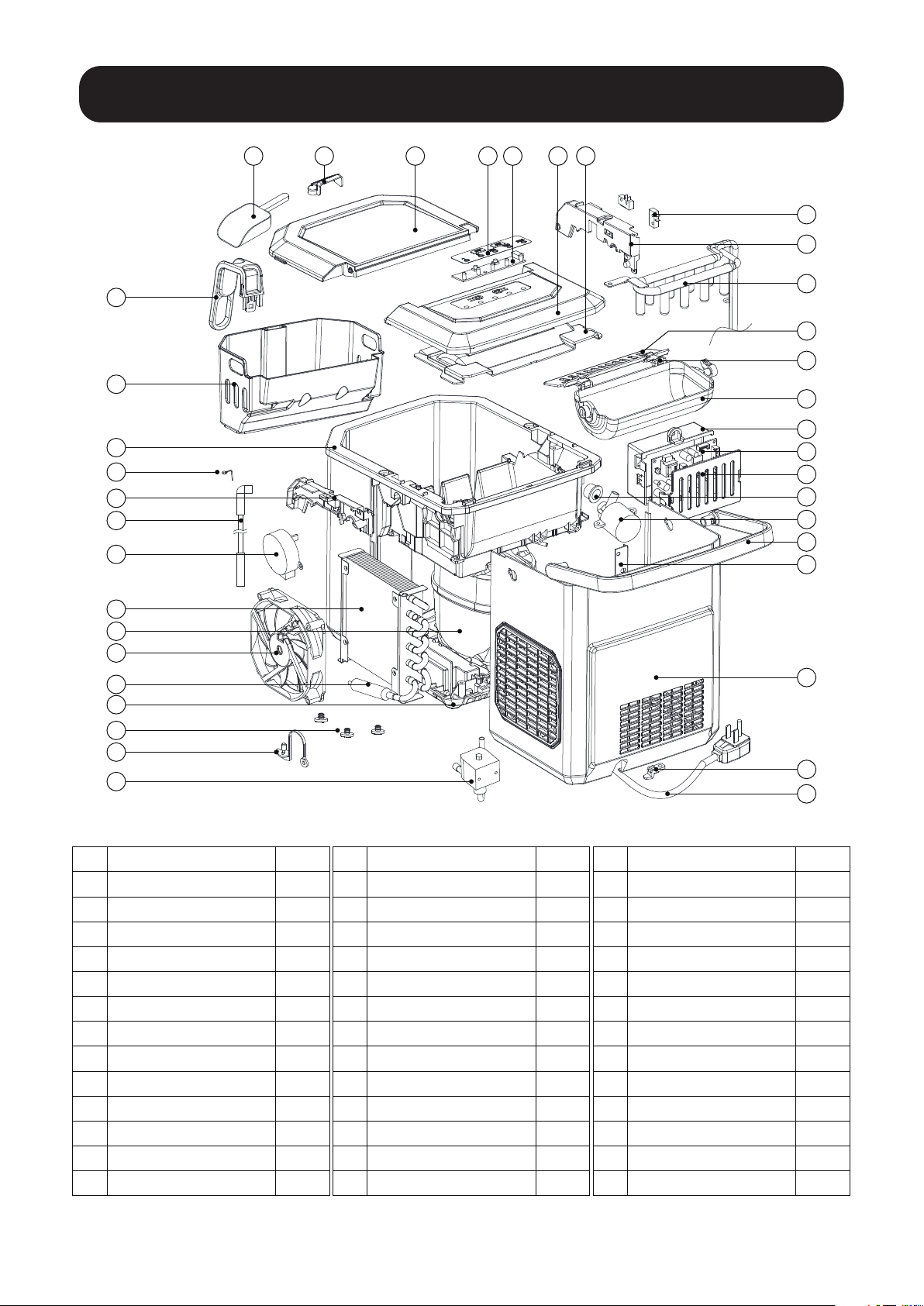

EXPLOSIVE DRAWINGS….……..……………….……..…………….……..…………….……...…..
1
1
3
3
4
7
8
9
9
10

IMPORTANT SAFETY INSTRUCTIONS
-1-
PREPARING YOUR ICE MAKER FOR USE
Your safety and the safety of others are very important.
We have provided important safety information in this manual. Always read
and obey all safety information.
This is the safety alert symbol:
All safety information will follow the safety alert symbol and the word
“DANGER” or “WARNING”.
When using electrical appliances, basic safety precautions should be fol-
lowed to reduce the risk of fire, electric shock, and injury to persons or prop-
erty. Read all instructions before using any appliance.
These words mean:
If you do not follow the instructions strictly, you may endanger your life or
be seriously injured.
The safety information will inform you of the potential dangers associated
with the incorrect use of the product, how to minimize the possibility of injury,
and the possible consequences of not following the instructions.
Do not operate this or any other appliance with a damaged cord. If the
supply cord is damaged, it must be replaced by the manufacturer or
its service agent, or a similarly qualified person in order to avoid a
hazard. This ice-maker must be positioned so that the plug is accessi-
ble. Connect to properly polarized outlets only. No other appliance
should be plugged into the same outlet. Be sure that the plug is fully
inserted into the electrical outlet.
Do not run the power cord over carpeting or other heat insulators. Do
not cover the cord. Keep the cord away from traffic areas, and do not
submerge it in water.
We do not recommend the use of an extension cord, as it may over-
heat and become a risk of fire. If you must use an extension cord, use a
No. 14 AWG minimum size with a rating of no less than 1875 watts.
-
-
-

-2-
The wires attached to this machine are colored according to the fol-
lowing code:
[Green] or [Green with a yellow strip]: Grounding
[White]: Neutral
[Black]: Live
To avoid a hazard due to the instability of the appliance, the appli-
ance must be placed on an even or flat surface.
Unplug the ice maker before cleaning or making any repairs or servic-
ing.
Exercise caution and use reasonable supervision when appliance is
used near children.
Do not use your ice-maker outdoors. Place the ice-maker away from
direct sunlight and make sure that there is at least 6 inches of space
between the back of your unit and wall. Keep a minimum distance of 6
inches on each side of your unit free.
Do not use other liquid to make the ice-cube other than water.
Do not clean your ice maker with flammable fluids. The fumes can
create a fire hazard or explosion.
Do not tip over.
If the ice maker is brought in from outside in wintertime, give it a few
hours to warm up to room temperature before plugging it in.
WARNING: This appliance must be earthed.
-
-
-
-
-
-
-
DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant
Used. To Be Repaired Only By Trained Service Personnel. Do Not
Puncture Refrigerant Tubing.
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Con-
sult Repair Manual/Owner’s Guide Before Attempting To Install or Ser-
vice This Product. All Safety Precautions Must be Followed.
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance
With Federal Or Local Regulations. Flammable Refrigerant Used .
CAUTION-Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tub-
ing;Follow Handling Instructions Carefully. Flammable Refrigerant Used.
The ice maker should be installed in accordance with the safety stan-
dard for Refrigeration Systems, ASHRAE15. The ice maker shall not be
installed in corridors or hallways of public buildings.
If the unit is with problem need to be maintained, that replacing with
like components and that servicing shall be done by factory authorized
service personnel, so as to minimize the risk of possible ignition due to
incorrect parts or improper service.
-
-
-
-
-
-
IMPORTANT

1. Ice scoop.
2. Ice full sensor
3. Ice basket
4. Top cover with transparent window
5. Air exhausting
6. Water drain cap: at front btm side of the unit.
7. Ice basket handle
8. Ice scoop
9. MAXIMUM WATER LEVEL: ▲
Remove the ice basket, you can see the water level mark.
10. Handle
GETTING TO KNOW YOUR UNIT
Plug on the unit,press “ON/OFF”button on control panel for more than 5
seconds, to enter the self-Cleaning program need 30 minutes ,the "S,
L" indicator flashes in turn during cleaning.After cleaning, Drain the
water from the inner tank through the drainage outlet at the bottom of
the machine.
AUTOMATIC SELF-CLEANING PROGRAM
-3-
4
1
2
3
6
7
8
9
5
10

Selected ice size displaying: Small and Large.
Power indicator
Ice-Full indicator
Water shortage indicator
Button to turn on/off the unit.
Button to select ice cube size.
OPERATING PROCEDURES & MAINTENANCE
-4-
Postion of control panel & function
A.
B.
C.
D.
E.
F.
Control Panel: Easy to use, visible functions touch display setting.
Control Panel
ADD WATER ICE FULL POWER S L
ON/OFF SELECT
D C
E F
B A A

-5-
Remove the exterior and interior packaging. Check if ice basket and
ice scoop inside. If any parts are missing, please contact our cus-
tomer service.
Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean
the tank & ice basket.
Put the ice maker on a level & flat counter top without direct sun-
light and other sources of heat (i.e.: stove, furnace, radiator). Make
sure that there is at least 4 inches gap between the back & LH/RH
sides with the wall.
Allow one hour for the refrigerant fluid to settle before plugging the
ice maker in.
The appliance must be positioned so that the plug is accessible.
Unpacking Your Ice Maker
1.
2.
3.
4.
5.

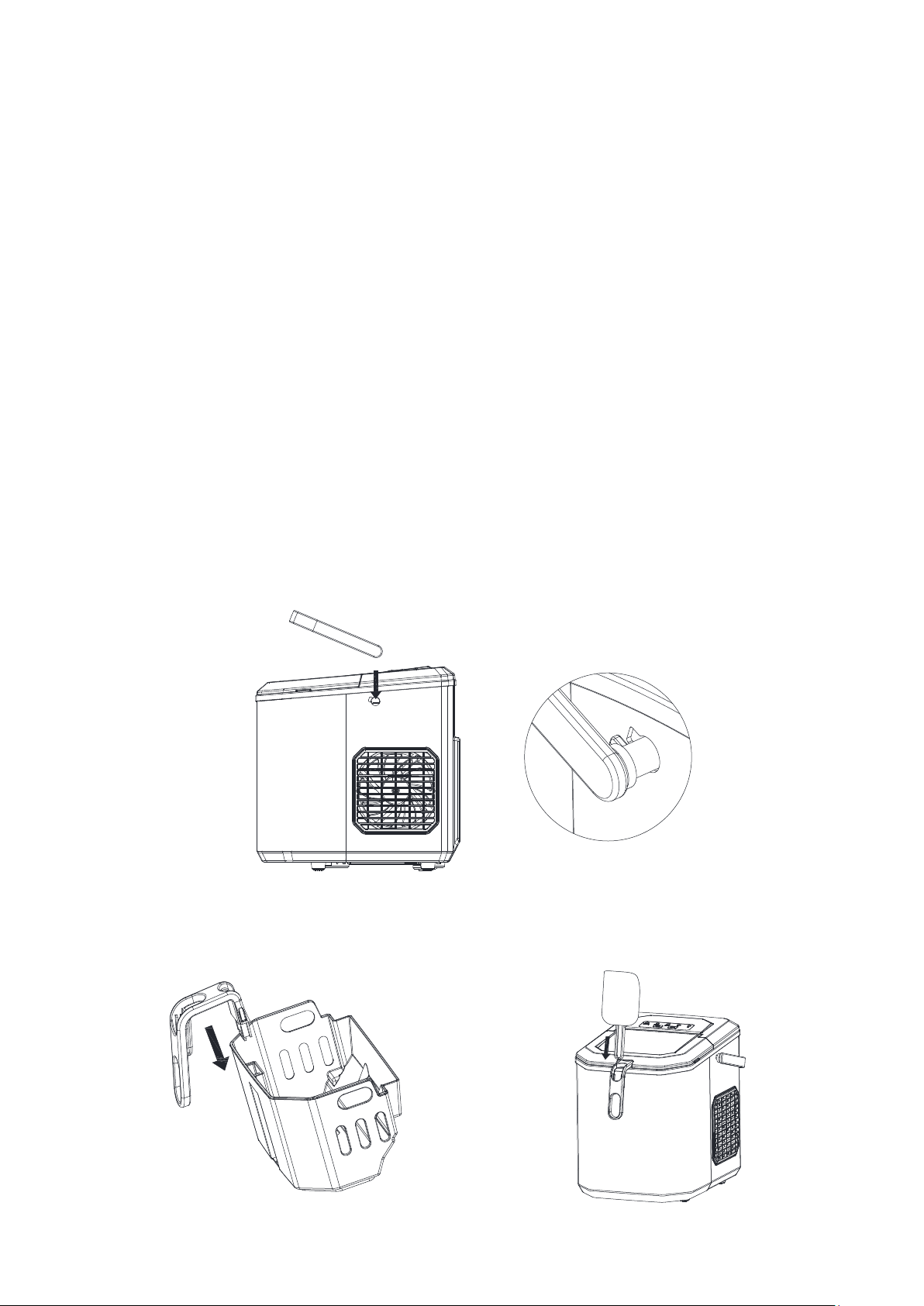

Rotate the handle to the same angle as the mounting hole on the
machine, Put It on the machine.
The ice basket handle gets stuck in the ice basket.
The ice spoon can be placed on the handle of the ice basket.
Assemble Handle
WARNING: fill with potable water only. Only use drinking water.

-6-
This unit should be properly grounded for your safety. The power
cord of this appliance is equipped with a grounding plug which
mates with standard grounding wall outlets to minimize the possi-
bility of electric shock.
Plug your appliance into an exclusive, properly installed, grounding
wall outlet. Do not under any circumstances; damage the ground-
ing means of the plug. Any questions concerning power and/or
grounding should be directed toward a certified electrician.
This appliance requires a standard 110-120Volt, 60Hz electrical outlet
with good grounding means.
Before using your ice maker, it is strongly recommended to clean it
thoroughly.
*Improper use of the grounded plug can result in the risk of electrical
shock. If the power cord is damaged, please call our customer
service.
1.
2.
3.
Take out the ice basket.
Clean the interior with diluted detergent, warm water and a soft
cloth.
Then use the water to rinse the inside parts, and drain out the
water by unplugging the drain cap on front bottom side.
The outside of the ice maker should be cleaned regularly with a
mild detergent solution and warm water.
Dry the interior and exterior with a clean soft cloth.
When the machine is not to be used for a long time, drain water
completely & dry the interior.
1.
2.
3.
4.
5.
6.
Connecting Your Ice Maker
Cleaning And Maintaining Your Ice Maker

-7-
USING YOUR ICE MAKER
Open the cover, remove the ice basket, and pour water into the
tank. Keep the water level below the maximum water level mark.
Press the ON/OFF button on the control panel to begin the
ice-making cycle.
Select the ice cube size by pressing the SELECT button. If the room
temperature is lower than 60°F, it is recommended to select the
small ice cube size in order to avoid the possibility of ice sticking
together.
The ice-making cycle lasts approximately 6 to 13 minutes, de-
pending on the selected size of the ice cube and the room tem-
perature. The recommended room temperature is between 50°F
to 105°F.
If the water pump cannot supply more water, the ice maker will
stop automatically, and the ADD WATER indicator will light up on
the control panel. Press the ON/OFF button and fill the water up to
the maximum water level mark. Press the ON/OFF button again to
restart the unit. Allow the refrigerant liquid inside the compressor
to settle for at least 3 minutes before restarting.
When the ice basket is full, the ice maker will stop and the ICE FULL
indicator on the control panel will light up. Warning: exposure to
direct sunlight or the reflections of sunlight may cause the infrared
sensor to malfunction. If the device cannot be paused even if ice
blocks the sensor, please move the device to a place without sun-
light.
Change the water in the water tank every 24 hours to ensure an
appropriate hygiene level. If the unit will not be used for a while,
drain all the water and dry the tank.
1.
2.
3.
4.
5.
6.
7.

-8-
TROUBLESHOOTING
PROBLEM
ADD WATER
indicator is on. Lack of water. Power the device off, fill it with water, and press the ON/OFF
button again to restart the unit.
ICE FULL
indicator is on. The ice basket is full. Empty the ice basket. Long press SELECT for 5 seconds. The unit
can make 10 cycles of ice even
while the ICE indicator is on.
Ice cubes stick
together.
The ice-making
cycle is normal
but no ice is
produced.
The ice-making
cycle is too
long.
Power the device off. Restart the
unit when the ice blocks melt.
Select “S” on the control panel to
make small ice cubes.
The water
temperature in
the inner tank is
too low.
Change the water in the tank. The
recommended temperature of
the water is between 40°F-90°F.
The water in the
inner tank is too
low.
The room temperature should be
between 50°F-105°F. The water
temperature should be between
40°F-90°F.
Refrigerant
liquid leakage
in the cooling
system.
Verify with a qualified technician.
Blocked pipe in
the cooling
system.
Verify with a qualified technician.
POSSIBLE CAUSE SOLUTION

-9-
TECHNINCAL PARAMETERS

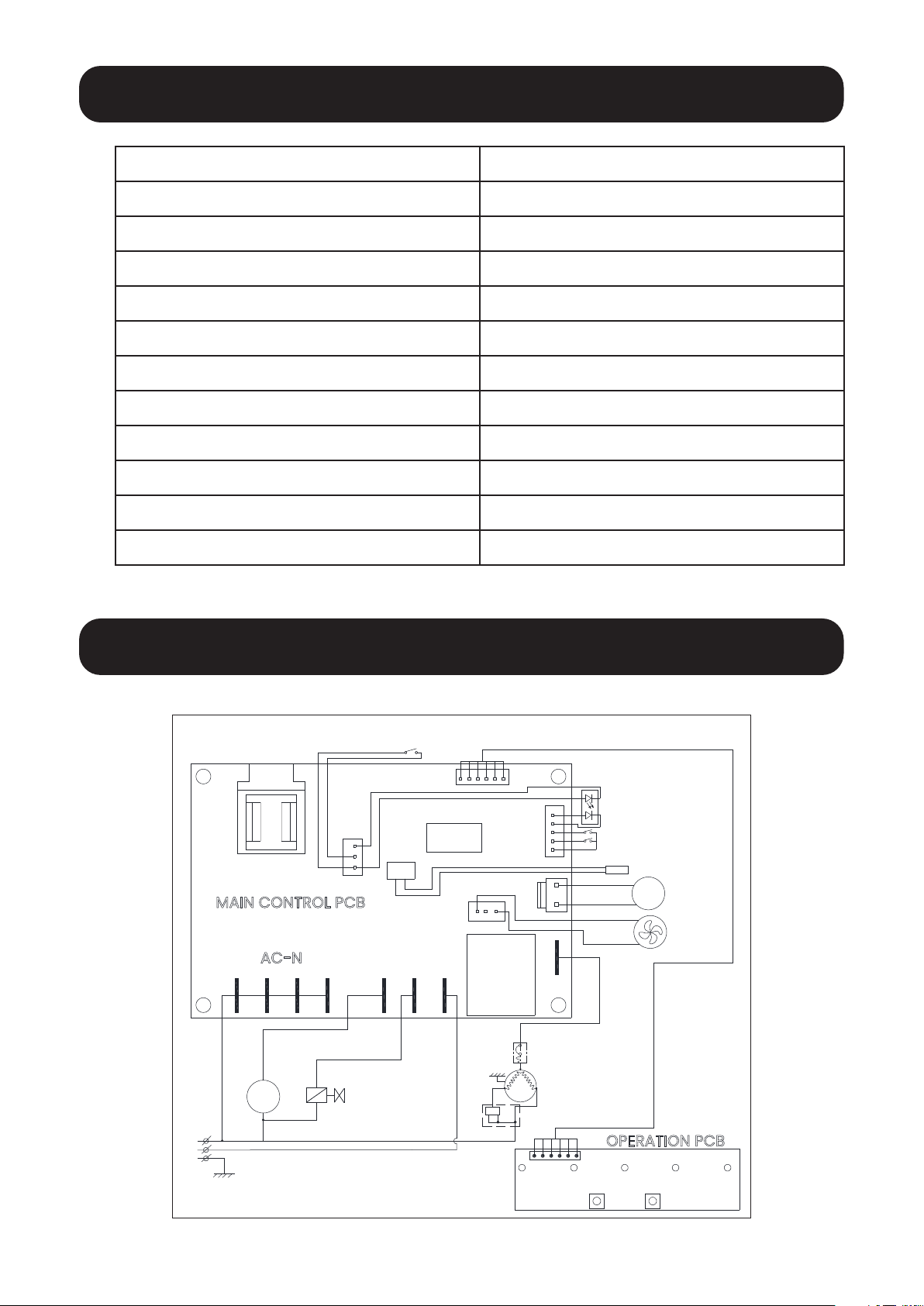

CIRCUIT DIAGRAM
Model
Protection Type
Power
Ice Making Current
Ice Harvest Current
Refrigerant
Design Pressure
Vesicant
Net Weight
Dimension ( W * D *H )
Enclosure
VH1179
I
115V/60Hz
1.5A
1.8A
R600a 0.74 oz. / 21g
High side: 290 Psig
Low side: 88 Psig
C5H10
6.3kg (16.7 lbs)
222x290x294mm (8.7x11.4x11.2 inch)
Plastic
POWER LED2S LED3LICEWATER
ON/OFF SELECT
OPERATION PCB
RELAY
T1
MCU
MOTOR VALVE
COMP
AC-L
AC-N
DC WATER
PUMP
+PUMP-
+FAN-
3
Overload
Protector
C
COMP
SM
21StartLelay
N
L
POWER
SUPPLY
G
SolenoidValve
MotorForIce
shovel
SM
WATER
DC FAN
MOTOR
COND TEMP
SENSOR
ELECTRICAL DIAGRAM
MICRO SWITCH
MICRO SWITCH
INFRARED
SENSOR
DETECTOR
WATER LEVEL
DETECTING
MAIN CONTROL PCB

-10-
EXPLOSIVE DRAWINGS
1
2
3
4
7
5
6
8
9
10
11
12
13
14
15
16
17181920212223
24
25
26
27
28
29
30
32
34
36
38
37
35
33
31
14 Evaporator 1 27 Stainless wire 1
15 Micro switch
2 28 Water supply pipe 1
16 Inner tank bracket, LH 1 29 Synchronous motor 1
17 Back btm panel 1 30 Condenser
1
18 Back top panel 1 31 DC fan motor 1
19 Displaying PCB 1 32 Nylon plug drain 1
20 Touch pad
1 33
Copper tube filter 1
21 Front top panel 1 34 Rubber foot 3
22 Water filter 1 35 Plastic bottom 1
23 Ice scoop
1 36
Compressor 1
24 Ice basket
1 37
Magnetism valve 1
25 Foaming asm
1 38 Internal wire 1
26 Inner tank bracket, RH 1
1 Power cord 1
2 plastic clip 1
3 Back panel 1
4 Plate back support 1
5 DC water pump 1
6 Silicon pump sealing 1
7 Handle
1
8 Control box cover 1
9 Main PCB 1
10 Control box 1
11 Ice making box 1
12 Ice scoop link 2
13 Ice shovel 1
S/N Part description Qty/Per S/N Part description Qty/Per S/N Part description Qty/Per
